2AERQ18H13Bluetooth Speaker

Speaker User Manual 1.Introduction Thank you for your purchase and use our wireless bluetooth speakers with mobile power supply function, this manual will help you how to use your bluetooth stereo speakers, before use, you must first understand and familiar with your bluetooth phone or other bluetooth devices using bluetooth. 2.Bluetooth use method 2.1 General Functions ● Power On Slide switch to “ON “button to boot, or press ON/OFF button to power on,meanwhile the LED will shine with boot sound. ● Enter the matched pattern The Speaker will search the last matched device automatically within 30 seconds after power on,(When the LED blinking blue quickly,the speaker enters to matched pattern)Matching using a bluetooth cell phone or active bluetooth function matching of the equipment,the Match code is “0000”or No match code matching directly. ●Power Off Slide switch to “OFF “button to shutdown, or press ON/OFF button to power off,the bluetooth working LED will be extinguished after power off. ● Low electric alarm It will make a beep sound(The LED light will blinked). 2.2 Matched with smartphone or other devices In order to use bluetooth speaker, you must first make bluetooth speaker paired with mobile phone or computer, if bluetooth speaker and mobile phone matched before, within the effective distance, cell phone and bluetooth speaker will automatically matched, if the speaker paired with a matched computer before, only need to select the audio connection. Compatible to moblie phone and tablet PC ● Phone is switched on and be sure it is with Bluetooth device. ● Bluetooth Speaker is in matching mode when the phone is switched on. ● Seek the Bluetooth device as the phone instruction said. ● Phone will show the found Bluetooth device “mini speaker”. Choose this device. ● Phone will indicate you to set the pairing code. Please input “0000” as pairing code. ● Phone is connected to your mini speaker. Then you can open your mobile player to play the music,watch movie and play Games. All the sound will come from the mini speaker. Of course, you can use the button on mini speaker to control the song. Compatible to PC ● If your PC is without Bluetooth function. You need to insert an adaptor with USB port. (Please refer to the instruction about How to activate the adaptor). ● Bluetooth Speaker is in matching mode when the phone is switched on. ● Open the control software on your PC or the own software for the operating system. Select “Seek Bluetooth device”. ● When you found “mini speaker”, it will shown in the found device list. Choose this device, click the right button on the Mouse. Then select “match device”choose this device again,Click the right button on the mouse. Choose “Connect the audio device ”. ● So far, your Bluetooth speaker had connected to your computer. Then open your media player on your PC to play the music,watch movie or play games. Now the speaker became External speakers. 3. Charging for the Bluetooth Speaker with Power Bank Bluetooth speaker with power bank is used to general USB charging port,to ensure charging at least 8 hours at first time,the usage is inserting your charger or line dc output side into the USB port of the product. The product LED refers to red, after filling the LED light will extinguished or turned blue instructions. If the products don't use (more than 3 months) for a long time, please charge to it, using DC5V - 500 charger. 4.Specifications and Conditions Data Index Bluetooth Version 2.1+EDR/3.0+EDR Bluetooth Protocol A2DP AVRCP Communication Distance 10 M Power Bank Energy 4000mAh Charging Voltage and Current 5V-1A (MAX) On the Voltage and Current 5V-2.1A（MAX） FCC warning This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio Frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

Shenzhen GBE Technologies Co.,Ltd. 2F/6F.,B1 Building,Jindida Technical Park,Langkou,Dalang Street,Longhua New District,Shenzhen,China 518101 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: May 13, 2015 To whom it may concern: The testing model of our Shenzhen GBE Technologies Co., Ltd. brand of FCC approval is 18H13 and we have models or brands for listed. We hereby certify that the interior structure, electrical circuit and schematics of the listed models are the same as the testing model except the below list. And just for the marketing requirement. Our listed models is as follows: Product name: Bluetooth Speaker Brand: N/A Model: OOM54/OOM55/OOM56/00M58/00M59/ 00M61/00M62/00M63/00M64/ 00M65/00M66/00M67/00M68 /00M70/00M71/00M72/00M73/00M74/ OOM75/ OOM76/ 00M77/ 00M78/ 00M79/ 00M80/ 00M81/ 00M82/ 00M83/ 00M84/ 00M85/ 00M86/ 00M87/ 00M88/ 00M89 FCC ID: 2AERQ18H13 Your assistance on this mater is highly appreciated. Company Officer: Jonmsx Mao

Shenzhen GBE Technologies Co.,Ltd. 2F/6F.,B1 Building,Jindida Technical Park,Langkou,Dalang Street,Longhua New District,Shenzhen,China 518101 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: May 13, 2015 Subject; Request for Confidentiality FCC ID: 2AERQ18H13 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely.  Schematic Diagram  Block Diagram  Operational Description Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Jonmsx Mao Title: Manager

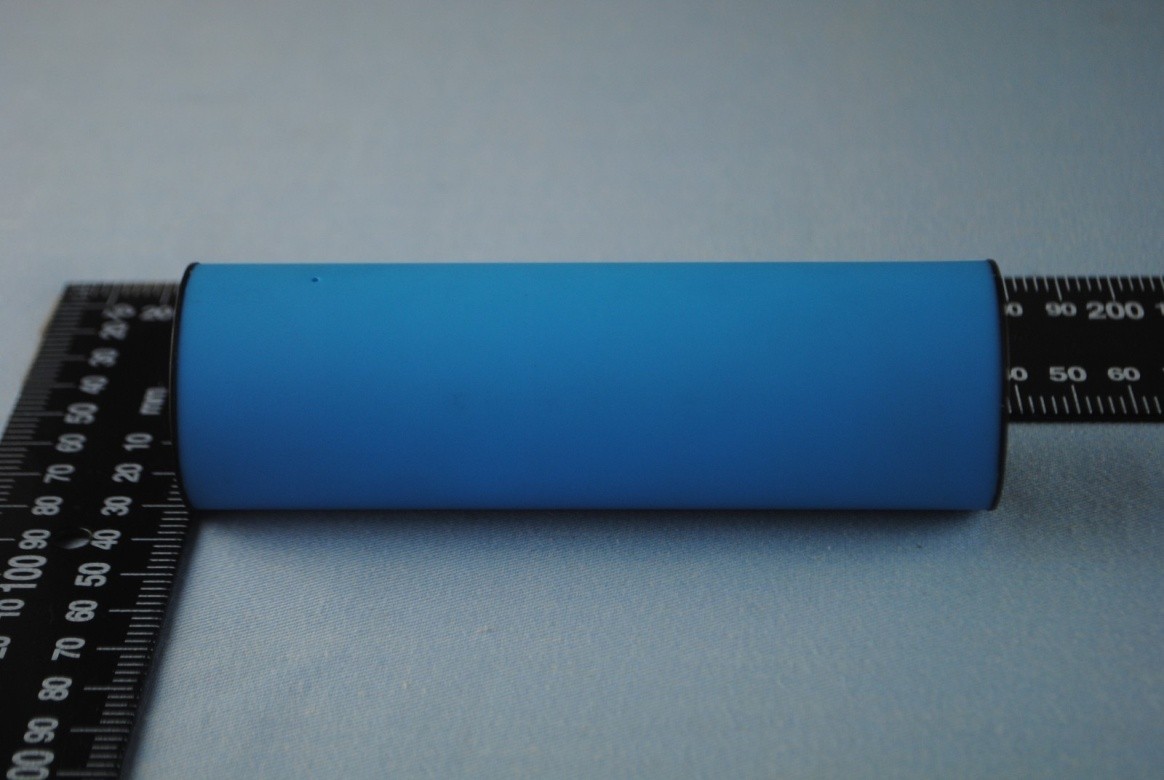

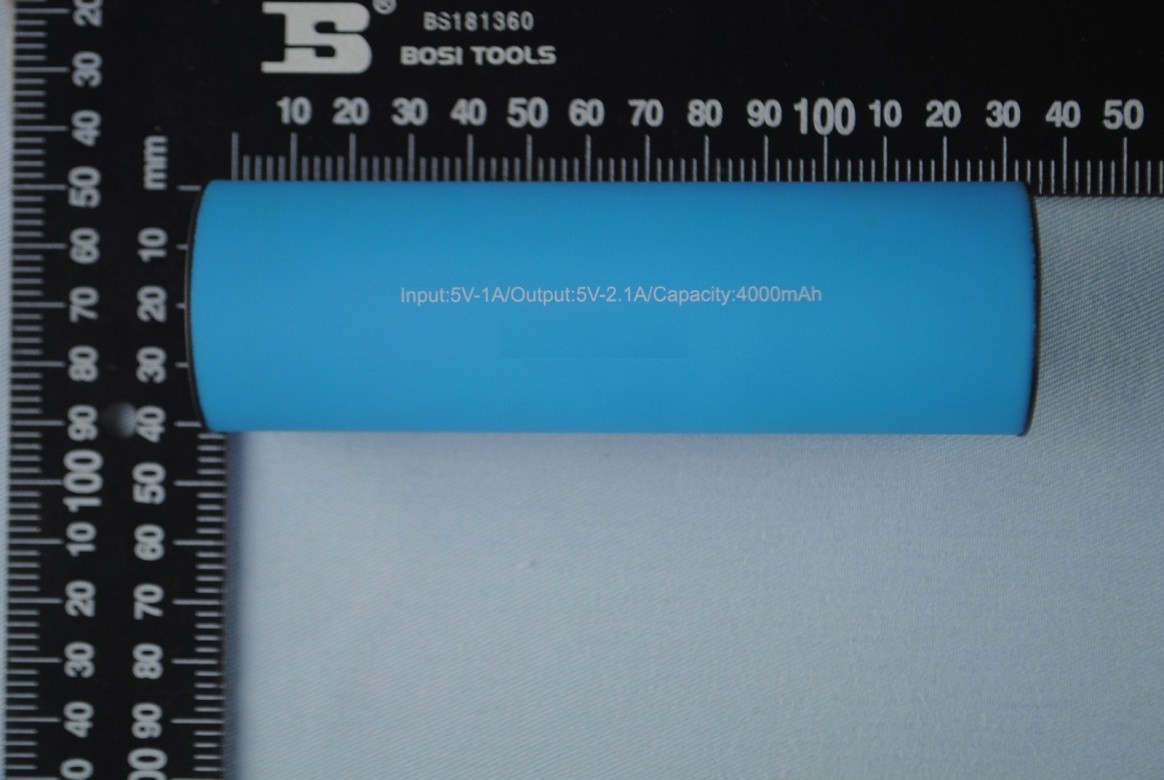

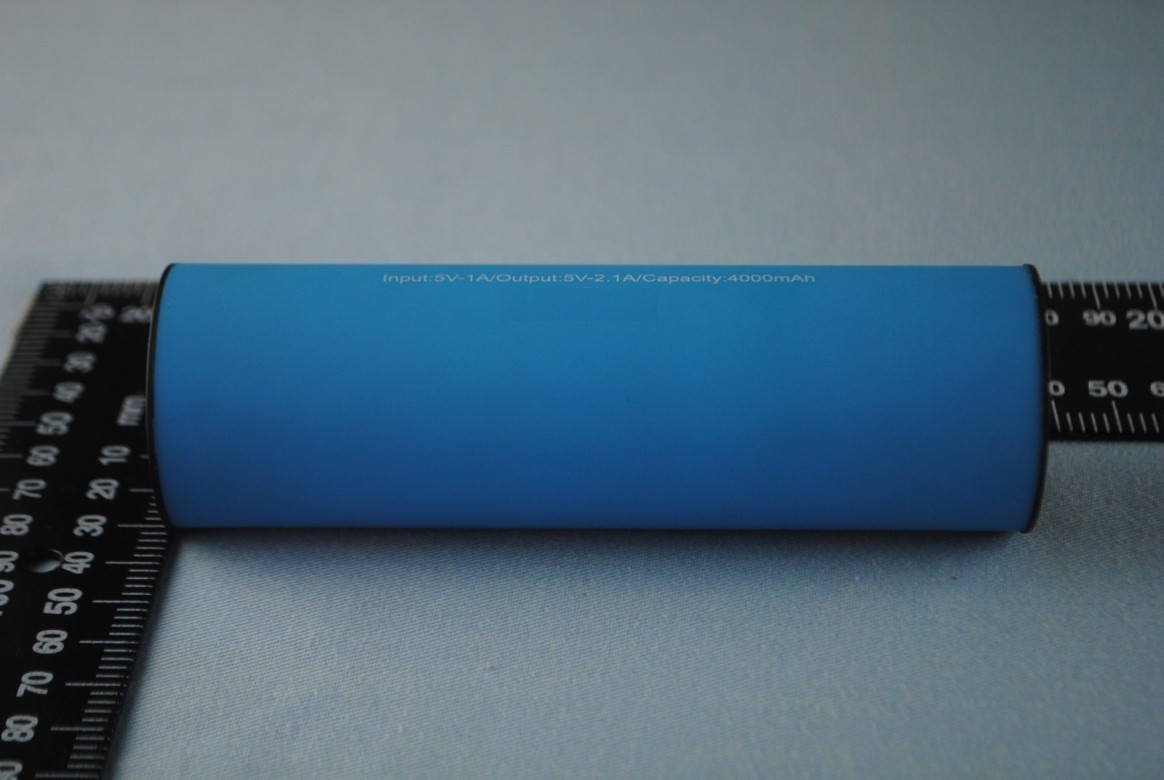

EUT top view EUT bottom view

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The Label must not be a stick-on paper label. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Proposed Label Location on EUT FCC ID: 2AERQ18H13

EUT inside whole view Main board component side Main board solder side

The test report consists 30 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Ke Mei Ou Laboratory Corporation. The test result in the report only applied to the tested sample. FCC TEST REPORT Under FCC 15 Subpart C, Paragraph 15.249 Prepared For : Shenzhen GBE Technologies Co.,Ltd. 2F/6F.,B1 Building,Jindida Technical Park,Langkou,Dalang Street,Longhua New District,Shenzhen,China 518101 FCC ID: 2AERQ18H13 EUT: Bluetooth Speaker Model: 18H13 May 8, 2015 Issue Date: Original Report Report Type: Test Engineer: Eric Guo Review By: Apollo Liu / Manager E506, 5th Floor, No.39 Keji Middle 2nd Rd, Science & Technology Park, Nanshan District, Shenzhen, P. R. China Tel: + 86 755 83642690 Fax: + 86 755 83297077 www.kmolab.com Shenzhen GBE Technologies Co.,Ltd. FCC ID: 2AERQ18H13 KMO FCC ID Report Report #: KSZ2015050501J Page 2 of 30 TABLE OF CONTENTS 1. General Information ........................................................................................................................................................... 3 1. 1 Notes ............................................................................................................................................................................... 3 1. 2 Testing Laboratory .......................................................................................................................................................... 3 1. 3 Details of Applicant ........................................................................................................................................................ 3 1. 4 Application Details ......................................................................................................................................................... 3 1. 5 Test Item ......................................................................................................................................................................... 3 1. 6 Test Standards ................................................................................................................................................................. 3 2. Technical Test ....................................................................................................................................................................... 4 2. 1 Summary of Test Results ................................................................................................................................................ 4 3. EUT Modifications .............................................................................................................................................................. 4 4. Conducted Power Line Test ................................................................................................................................................ 5 4. 1 Test Equipment ............................................................................................................................................................... 5 4. 2 Test Procedure ................................................................................................................................................................ 5 4. 3 Test Setup ....................................................................................................................................................................... 5 4. 4 Configuration of the EUT ............................................................................................................................................... 6 4. 5 EUT Operating Condition ............................................................................................................................................... 7 4. 6 Conducted Power Line Emission Limits ........................................................................................................................ 7 4. 7 Conducted Power Line Test Result ................................................................................................................................. 7 5. Radiated Emission Test ....................................................................................................................................................... 9 5. 1 Test Equipment ............................................................................................................................................................... 9 5. 2 Test Procedure ................................................................................................................................................................ 9 5. 3 Radiated Test Setup ........................................................................................................................................................ 9 5. 4 Configuration of the EUT ..............................................................................................................................................11 5. 5 EUT Operating Condition ..............................................................................................................................................11 5. 6 Radiated Emission Limit ...............................................................................................................................................11 5. 7 Radiated Emission Test Result...................................................................................................................................... 12 6. Band Edge .......................................................................................................................................................................... 15 6. 1 Test Equipment .......................................................................................................................................................…

Text truncated - open the document above for the full version.

Conducted Emission test view Radiated Emission test view (Frequency from 30MHz to 1GHz) Radiated Emission test view (Frequency above 1GHz)
