2AEUO-1505SOLAR POWER BLUETOOTH HEADPHONE

Solar-powered Hi-fi hands-free bluetooth headphone User Manual Hello, dear customer Welcome for using our solar-powered hi-fi hands-free bluetooth headphone, Please read carefully the user manual before use it to make sure proper operation. ！Keep it away from water , don’t immerse headphone in any liquid ！Keep it away from heat resource . ！Adjust the volume to proper, avoid to harm your health and device Function Spec introduction for Solar-powered Hi-fi hands-free bluetooth headphone ------------------------------------------------------------------------------------------- 1、 Solar-powered charging mode The solar powered panel adopt imported thin film solar cell chip , turn on the charging switch of the headphone, place it in 100000LUX bright light for about 12 hours .it can be full charged . 2、 Bluetooth mode Wireless bluetooth, can receive the bluetooth audio transmission signals for distance from 8-10 meters . We can also receive and control reversely bluetooth media player such as iphone, ipad ,pc, laptop and other bluetooth audio files .( few devices can not achieve all functions in effect from operation system or other reason). Call Answering for mobile phone /headphone switch, hi-fi calling , call quality is clear , no echo . 2、Call hands-free function Call answering for mobile phone / headphone, Hi-fi calling, call quality is clear, no echo. 3、 Line In Input function Connect the audio cable with line-in connector, so that you can still listen music after the battery runs out. (Attention: this function only can be used after you turn off the bluetooth. We suggest not using when the headphone is in bluetooth mode) 4、 Automatic re-connection, memory play function For this function, can help you to re connect your bluetooth device which connected successfully last time. And memory play the music course before you turn off last time . 5、Micro USB port charging function Micro USB for charging， Easy and Convenient. 6、 Low power alarm, power off function When the power is not enough, the headphone have low power alarm function and power off function automatically. Port / Button function explanation 1. Turn on / turn off / play/ pause/ hands-free/next track and previous track Long press for turn on /off; when in play status, short press for pause/play. When the call is coming , short press one time for call answering ; If you do not want to answer the call , long press for 2 seconds for refuse ; Under the music mode , press two times to next track , press three times to previous track . (Blue red indicating light are in the top and bottom of buttons) 2. Bluetooth Charging switch Push the switch, the green indicating light flash, to enter solar power charging mode. Pull the button down, the green indicating light off; the charging mode has been shut. 3. Volume + key Under bluetooth connection status, short press it to make the volume larger. 4. Volume - key 5. Short press it to make the volume smaller. 5. Micro USB Charging Port 6. Line in Port. Basic operation Explanation ： 1. Long press the power button, enter bluetooth mode, the headphone will make the indicated sound of “Du,Du,Du,Du” . Red and blue light flash alternately. The headphone is searching for the bluetooth signal. After connect well , the headphone will make an indicated sound of “ Du, Du” , After the devices connect normally , the blue indicated light flash from brightest to extinguish status slowly once every three seconds. The bluetooth device named “ EXOC” 2. Under bluetooth mode, when the call is coming, short press power button for call answering. During conversation, short press power button for hanging up . When the call is coming, if you do not want to answer the call, long press about two seconds for refuse . Under the music mode, press two times power button to next track , press three times power button to previous track . 3. Short press 3(showed in above picture) for volume + under bluetooth mode 4. Short press 4 (showed in above picture) for volume - under bluetooth mode. 5. When the batter runs out, insert Line Audio input cable to Line mode ((Attention: this function only can be used after you turn off the bluetooth. We suggest not using when the headphone is in bluetooth mode ) 6. Connect Micro USB cable with computer USB port or adaptor for charging, the red indicated light flash, the red indicated light become blue after the battery is full. You can charge when is turn on or off. We suggest to charge under power off status. 7. Push the bluetooth charging switch up to be solar power charging mode. Pull it down to shut the charging mode. 8. Bluetooth adopt point-point connection, we can only connect for one device for one time. Pairing mode can not be deleted under connection status, It only can be deleted in interrupt status. 9. It is not allowed to occur the same bluetooth device in the same media device in bluetooth list. Otherwise you cannot find another same or similar named bluetooth headphone . 1. Product Specification 2. Product Dimension ：168mm（L）*178mm(W)*72mm(H) 3. Product Weight ： 270G Headphone parameter: 1. Speaker Diameter ：40MM。 2. Impedance ：16Ω。 3. Audio Rated Output power ：5mW。 4. Sensitivity ：106±3DB。 5. Audio Peak Output power ：≤10mW Bluetooth parameter ： 1. Bluetooth specification ： Bluetooth V4.1 2. Power supply voltage ： 3.3V～5V 3. Working current： ≤30mA 4. Standby current ： ≤50uA 5. Wireless transmission range More than 10 meters 6. Sensitivity ： -80dBm<0.1%BER 7. Frequency Range ： 2.402GHz-2.480GHz 8. Audio Performance ： Support AAC,MP3,SBC,Stereo Support aptX Hi-fi audio technical Battery Parameter ： 1. Battery spec: Standard battery : 430AH built-in 2. Endurance Time ：up to 10-12hours ( based on 50% voice volume) (If play High Bit Rate video , the play time will be shorter ) 3. Charging Standard ： AC 100v～240v/50-60Hz ，Output 5v/300～500MA（Use the standard international certified charger, or use computer USB port for charging) 4. Charging time about 2-3 hours (depends on differen…

Text truncated - open the document above for the full version.

GOLD CHAMP INTERNATIONAL HOLDINGS LIMITED Room D, 26/F., MG Tower, 133 Hoi Bun Road, Kwun Tong, Kln., H.K. DATE :2015-05-21 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Kevin Yu of Shenzhen EBO Technology Co., Ltd. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with GOLD CHAMP INTERNATIONAL HOLDINGS LIMITED and Room D, 26/F., MG Tower, 133 Hoi Bun Road, Kwun Tong, Kln., H.K. Dated this / Day of 21/5/2015 / Agency agreement expiration date: 20/5/2016 By: Joe Kuk Signature Printed Title: Product Manager On behalf of : GOLD CHAMP INTERNATIONAL HOLDINGS LIMITED Telephone: 00852-27171359

GOLD CHAMP INTERNATIONAL HOLDINGS LIMITED Room D, 26/F., MG Tower, 133 Hoi Bun Road, Kwun Tong, Kln., H.K. DATE :2015-05-21 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AEUO-1505 Product Name: SOLAR POWER BLUETOOTH HEADPHONE Request for Long-term Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission rules, we hereby request that the following documents be held confidential long term:  Block diagram  Schematics  Operational Description These documents contain detailed system and equipment description and related information about the product which GOLD CHAMP INTERNATIONAL HOLDINGS LIMITED. considers to be proprietary, confidential, and a custom design and, otherwise would not release to the general public. Since this design is a basis from which future technological products will evolve, GOLD CHAMP INTERNATIONAL HOLDINGS LIMITED. considers this information to be of benefit to its competitors, and that the disclosure of information in these documents would give competitors an unfair advantage in the market Dated this / Day of 21/5/2015 / By: Joe Kuk Signature Printed Title: Product Manager On behalf of : GOLD CHAMP INTERNATIONAL HOLDINGS LIMITED Telephone: 00852-27171359

GOLD CHAMP INTERNATIONAL HOLDINGS LIMITED Room D, 26/F., MG Tower, 133 Hoi Bun Road, Kwun Tong, Kln., H.K. DATE : 2015-05-21 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AEUO-1505 Product Name:SOLAR POWER BLUETOOTH HEADPHONE Request for Short-Term Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission rules, and in accordance with the FCC Public notice dated June 15, 2004 (DA 04-1705), we hereby request short-term confidentiality for the following items prior to marketing the device.  Test Setup Photos  External Photos  Internal Photos  User Manual These documents contain detailed system and equipment description and related information about the product which GOLD CHAMP INTERNATIONAL HOLDINGS LIMITED. considers to be proprietary, confidential, and a custom design and, otherwise would not release to the general public. Since this design is a basis from which future technological products will evolve, GOLD CHAMP INTERNATIONAL HOLDINGS LIMITED. considers this information to be of benefit to its competitors, and that the disclosure of information in these documents would give competitors an unfair advantage in the market This request is being made retroactively due to an over site on our part. We understand that the information has been publicly available since the date of grant. Dated this / Day of 21/5/2015/ By:Joe Kuk Signature Printed Title:Product Manager On behalf of : GOLD CHAMP INTERNATIONAL HOLDINGS LIMITED Telephone:00852-27171359 information will be publicly available after 180days since the date of grant.

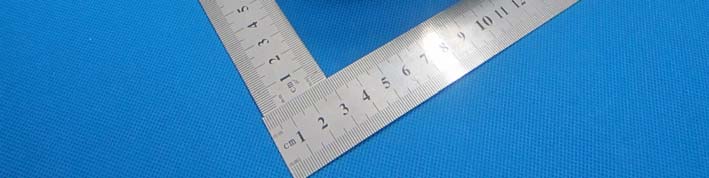

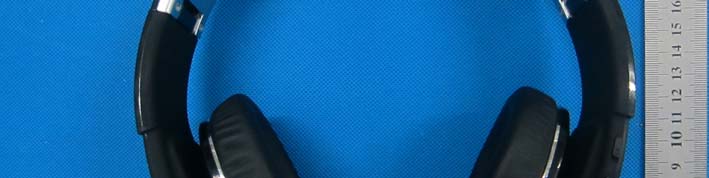

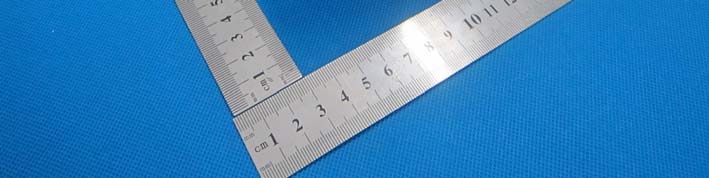

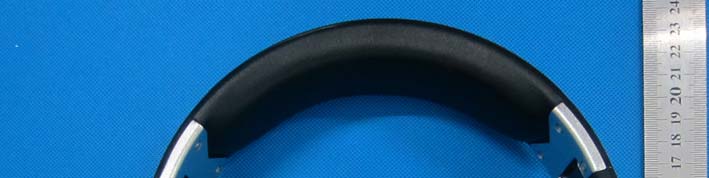

External Photos of EUT Sample

Label Label location

Internal Photos of EUT Sample RF Antenna

FCC ID: 2AEUO-1505 According to KDB447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances  50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[f(GHz)]  3.0 for 1-g SAR and  7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison According to the follow transmitter output power (P t ) formula: P t =(E x d) 2 /(30 x g t ) P t =transmitter output power in watts g t =numeric gain of the transmitting antenna (unitless) E=electric field strength in V/m d= measurement distance in meters (m). According to the above test data, Emax=98.91dBuV/m=0.0882V/m, d=3m, g t =1 P t =(E x d) 2 /(30 x g t )= (0.0882x 3) 2 /(30 x 1)=0.00233W=2.33mW The maximum tune-up limit power is 2.33mW @ 2.480GHz For the head and body SAR, use 5mm as the conservative minimum test separation distance, [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[f(GHz)] =0.735 3.0 Then SAR evaluation is not required. )=0.00233W=2.33mW EIRP

Shenzhen EBO Technology Co., Ltd . 1-4F, Huafeng Science Park, Xin’an Sixth Road, 82 th District, Bao’an, Shenzhen, China. Telephone: +86-755-29451282, Fax: +86-755-22639141 Report No.: EBO1505065-E223 Page 1 of 24 Authorized Signature: Kevin Yu Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the EBO product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of EBO International Electrical Approvals or testing done by EBO International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by EBO International Electrical Approvals in writing. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” FCC REPORT Applicant: GOLD CHAMP INTERNATIONAL HOLDINGS LIMITED Address of Applicant: Room D, 26/F., MG Tower, 133 Hoi Bun Road, Kwun Tong, Kln., H.K. Equipment Under Test (EUT) Product Name: SOLAR POWER BLUETOOTH HEADPHONE Trade Mark: EXOD Model No.: 1505 FCC ID: 2AEUO-1505 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.249:2014 Date of sample receipt: May 19, 2015 Date of Test: May 19, 2015 To May 22, 2015 Date of report issued: May 22, 2015 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Shenzhen EBO Technology Co., Ltd . Report No.: EBO1505065-E223 Page 2 of 24 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.ebotek.cn 2 Version Version No. Date Description 00May 22, 2015 Original Prepared By: Date: May 22, 2015 Project Engineer Check By: Date: May 22, 2015 Reviewer and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.ebotek.cn . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” Shenzhen EBO Technology Co., Ltd . Report No.: EBO1505065-E223 Page 3 of 24 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.ebotek.cn and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.ebotek.cn . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 3 Contents Page 1 COVER PAGE............................................................................................................................................ 1 2 VERSION .................................................................................................................................................. 2 3CONTENTS.............................................................................................................................................. 3 4TEST SUMMARY..................................................................................................................................... 4 5GENERAL INFORMATION...................................................................................................................... 5 5.1CLIENT INFORMATION......................................................................................................................... 5 5.2GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.3TEST MODE................................................................…

Text truncated - open the document above for the full version.

Shenzhen EBO Technology Co., Ltd . 1-4F, Huafeng Science Park, Xin’an Sixth Road, 82 th District, Bao’an, Shenzhen, China. Telephone: +86-755-29451282, Fax: +86-755-22639141 Report No.: EBO1505065-E224 Page 1 of 24 Authorized Signature: Kevin Yu Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the EBO product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of EBO International Electrical Approvals or testing done by EBO International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by EBO International Electrical Approvals in writing. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” FCC REPORT Applicant: GOLD CHAMP INTERNATIONAL HOLDINGS LIMITED Address of Applicant: Room D, 26/F., MG Tower, 133 Hoi Bun Road, Kwun Tong, Kln., H.K. Equipment Under Test (EUT) Product Name: SOLAR POWER BLUETOOTH HEADPHONE Trade Mark: EXOD Model No.: 1505 FCC ID: 2AEUO-1505 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.249:2014 Date of sample receipt: May 19, 2015 Date of Test: May 19, 2015 To May 22, 2015 Date of report issued: May 22, 2015 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Shenzhen EBO Technology Co., Ltd . Report No.: EBO1505065-E224 Page 2 of 24 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.ebotek.cn 2 Version Version No. Date Description 00May 22, 2015 Original Prepared By:Date: May 22, 2015 Project Engineer Check By: Date: May 22, 2015 Reviewer and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.ebotek.cn . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” Shenzhen EBO Technology Co., Ltd . Report No.: EBO1505065-E224 Page 3 of 24 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.ebotek.cn and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.ebotek.cn . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 3 Contents Page 1 COVER PAGE............................................................................................................................................ 1 2 VERSION .................................................................................................................................................. 2 3CONTENTS.............................................................................................................................................. 3 4TEST SUMMARY..................................................................................................................................... 4 5GENERAL INFORMATION...................................................................................................................... 5 5.1CLIENT INFORMATION......................................................................................................................... 5 5.2GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.3TEST MODE.................................................................…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOGRAPHS 1. Conducted Emission Test Setup 2. Radiated Emission Test Setup
