2AEUT-RXRF 2.4G USB Dongle

KING WINS TECHNOLOGY CO.,LTD. User Manual Name： RF 2.4G Remote Controller Model No.： TMRCD200TX & Name： RF 2.4G USB Dongle Model No.： TMRCD200RX Trade Mark： TOSHIBA Version： 1.0 KING WINS TECHNOLOGY CO.,LTD. Product Profile 1. RF2.4G Remote Controller. 2. RF 2.4G USB Dongle. KING WINS TECHNOLOGY CO.,LTD. ◎Electrical Characteristic USB Dongle Transmit rate 250KHz bps Frequency 2404.0MHz – 2480.0MHz Power out ‐18dBm ‐ 0dBm Function HID‐compliant device, Modulation GFSK Controller Transmit rate 250KHz bps Frequency 2404.0MHz – 2480.0MHz Power out ‐18dBm ‐ 0dBm Function 2.4G Wireless Transmission Modulation GFSK KING WINS TECHNOLOGY CO.,LTD. ◎The key value is default as below: Button Function RF Code Usage Page(Hex) Usage ID(Hex) Home(F7) 07 3C Back(F2) 07 3B Menu(F3) 07 3C Up 07 52 Left 07 50 Right 07 4F Down 07 51 Ok(F6) 07 3F Volume Dec(F4) 07 3D Volume Inc(F5) 07 3E KING WINS TECHNOLOGY CO.,LTD. ◎FUNCTION DESCRIPTION 1. The remote controller transmits RF signal to USB receiver dongle. 2. USB Dongle The dongle is defined as standard HID device. When it plug into PC USB port, the USB Dongle will receive RF signal from remote controller transmitter. 3. Pair ■Power on the Controller, press “ ” continuously then press “”buttons ,pair mode is on. ■Plug USB dongle into and wait about 3 seconds, then press any key function, then pairing is successful. ◎ POWER CONSUMPTION 1. Normal mode When User operates the controller, it’s in normal mode; power consumption is less than 20mW. 2. Sleeping mode If user hasn’t used the controller for 1 SECS, it will enter sleeping mode, power consumption is less than 0.1mW. User can press any button to wake it up. KING WINS TECHNOLOGY CO.,LTD. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modify to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. KWS declares that this Radio‐Frequency peripheral is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

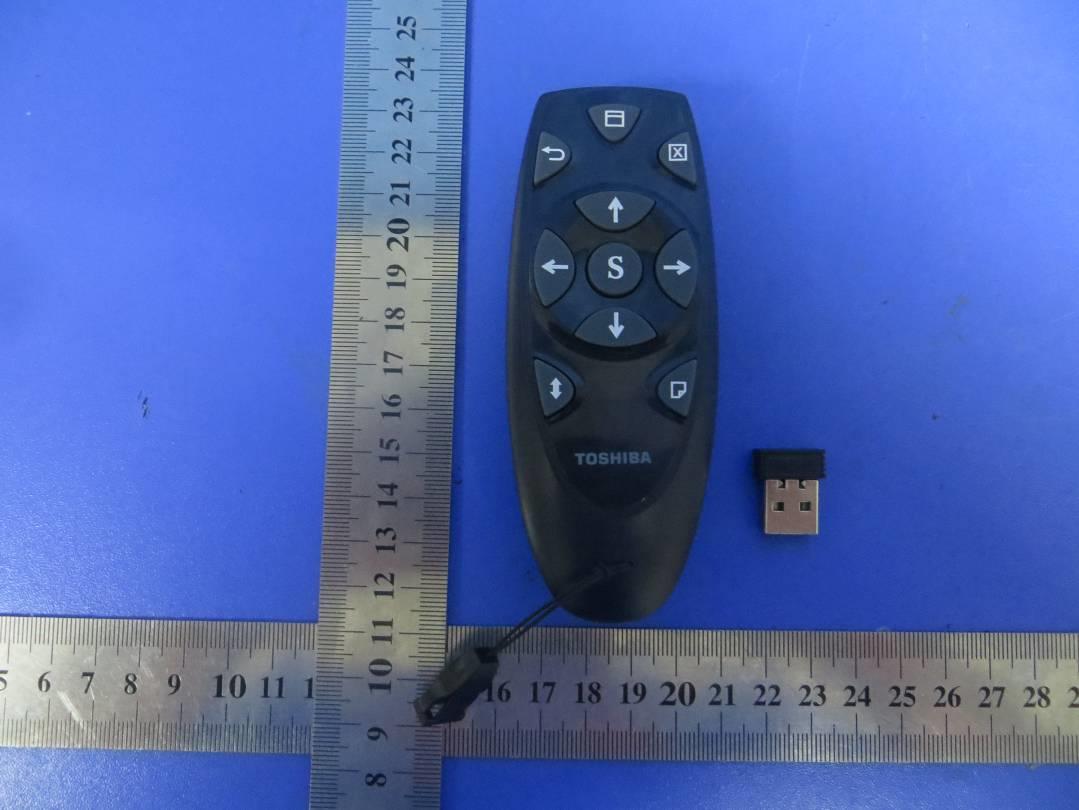

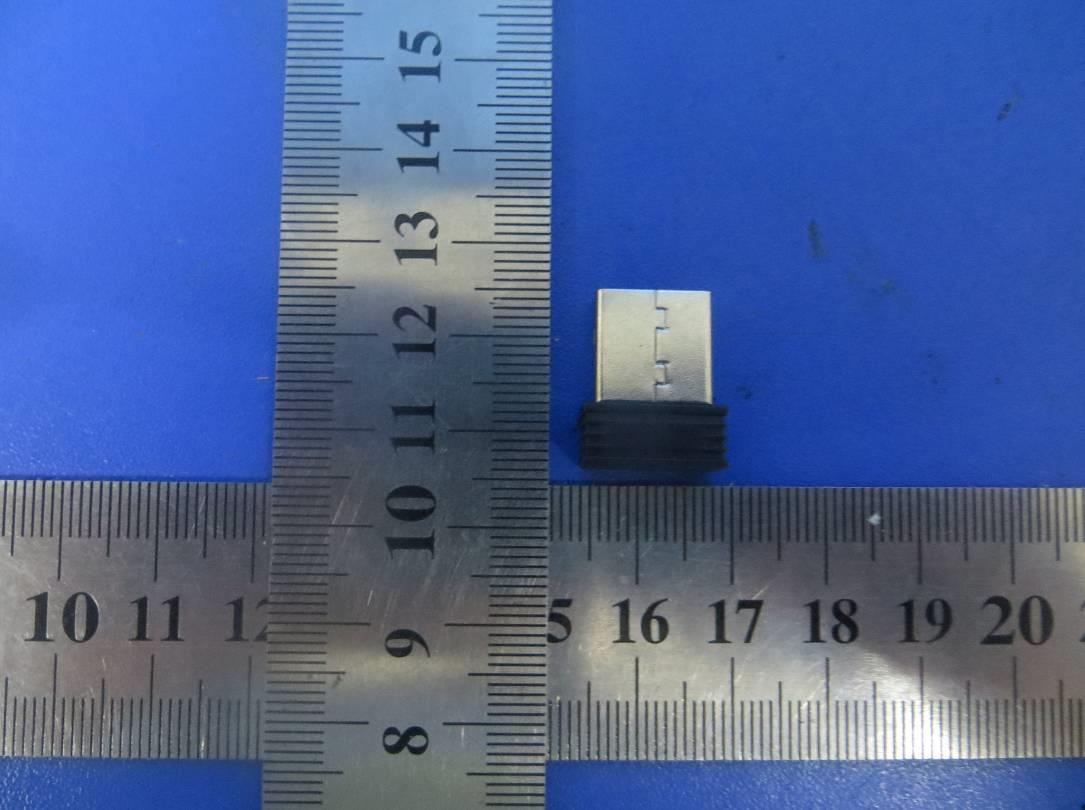

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEUT-RX Report No.: LCS1505080421E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 4 1. EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEUT-RX Report No.: LCS1505080421E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 4 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEUT-RX Report No.: LCS1505080421E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 4 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEUT-RX Report No.: LCS1505080421E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 4 Fig.7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEUT-RX Report No.: LCS1505080421E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 3 LABEL AND LOCATION Size: L13.0mm*W5.0mm Material: Tagboard Glue: adhesive sticker Font color: Black Label color: White Label 1 Location FCC ID: 2AEUT-RX Label 1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEUT-RX Report No.: LCS1505080421E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 3 LABEL AND LOCATION Size: L12.0mm*W5.0mm Material: Tagboard Glue: adhesive sticker Font color: Black Label color: White Label 2 Location TOSHIBA Label 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEUT-RX Report No.: LCS1505080421E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 3 LABEL AND LOCATION Size: L12.0mm*W5.0mm Material: Tagboard Glue: adhesive sticker Font color: Black Label color: White Label 3 Location M/N:TMRCD200RX Label 3

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEUT-RX Report No.: LCS1505080421E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 2 1. INTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEUT-RX Report No.: LCS1505080421E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 2 Fig.3 PCB Antenna

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEUT-RX Report No.: LCS1505080421E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 26 FCC TEST REPORT FOR Toshiba Power Systems Inspection Services Co., Ltd. RF 2.4G USB Dongle Test Model: TMRCD200RX Prepared for : Toshiba Power Systems Inspection Services Co., Ltd. Address : 8, Shinsugita-cho, Isogo-ku, Yokohama 235-8523, Japan Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd Address : 1/F., Xingyuan Industrial Park, Tongda Road, Bao’an Avenue, Bao’an District, Shenzhen, Guangdong, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : May 08, 2015 Number of tested samples : 1 Serial number : TMRCD200-000001 Date of Test : May 08, 2015 - May 23, 2015 Date of Report : May 23, 2015 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEUT-RX Report No.: LCS1505080421E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 26 FCC TEST REPORT FCC CFR 47 PART 15 C(15.249): 2015 Report Reference No. ............... : LCS1505080421E Date of Issue ................................. : May 23, 2015 Testing Laboratory Name .......... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ......................................... : 1/F., Xingyuan Industrial Park, Tongda Road, Bao’an Avenue, Bao’an District, Shenzhen, Guangdong, China Testing Location/ Procedure ......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ....................... : Toshiba Power Systems Inspection Services Co., Ltd. Address ......................................... : 8, Shinsugita-cho, Isogo-ku, Yokohama 235-8523, Japan Test Specification Standard ........................................ : FCC CFR 47 PART 15 C(15.249): 2015 / ANSI C63.10: 2009 Test Report Form No. ................... : LCSEMC-1.0 TRF Originator ............................. : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ................ : RF 2.4G USB Dongle Trade Mark ................................... : TOSHIBA Test Model .................................... : TMRCD200RX Ratings .......................................... : DC 5V Result ......................................... : Positive Compiled by: Supervised by: Approved by: Leo Lee/ File administrators Glin Lu/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEUT-RX Report No.: LCS1505080421E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 26 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS1505080421E May 23, 2015 Date of issue Test Model.............................. : TMRCD200RX EUT......................................... : RF 2.4G USB Dongle Applicant............................... : Toshiba Power Systems Inspection Services Co., Ltd. Address.................................. : 8, Shinsugita-cho, Isogo-ku, Yokohama 235-8523, Japan Telephone............................... : / Fax.......................................... : / Manufacturer........................ : KING WINS TECHNOLOGY CO.,LTD. Address................................... : 2F., NO.1 Jian 1 St Rd., Zhonghe Dist., New Taipei City Taiwan Telephone............................... : / Fax.......................................... : / Factory................................... : KING WINS TECHNOLOGY CO.,LTD. Address................................... : 2F., NO.1 Jian 1 St Rd., Zhonghe Dist., New Taipei City Taiwan Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEUT-RX Report No.: LCS1505080421E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 26 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................. 5 1.1. Description of Device (EUT) ........................................................................................................... 5 1.2. Support Equipment List .................................................................................................................... 5 1.3. External I/O ...................................................................................................................................... 5 1.4. Description of Test Facility .............................................................................................................. 6 1.5. Statement of the measurement uncertainty ....................................................................................... 6 1.6. Measurement Uncertainty ................................................................................................................ 6 1.7. Description Of Test Modes ......................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEUT-RX Report No.: LCS1505080421E _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 3 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Line Conducted Emissions Measurement SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEUT-RX Report No.: LCS1505080421E _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 3 1.2 Photo Of Radiated Emission Measurement(X Position) Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEUT-RX Report No.: LCS1505080421E _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 3 Fig.3
