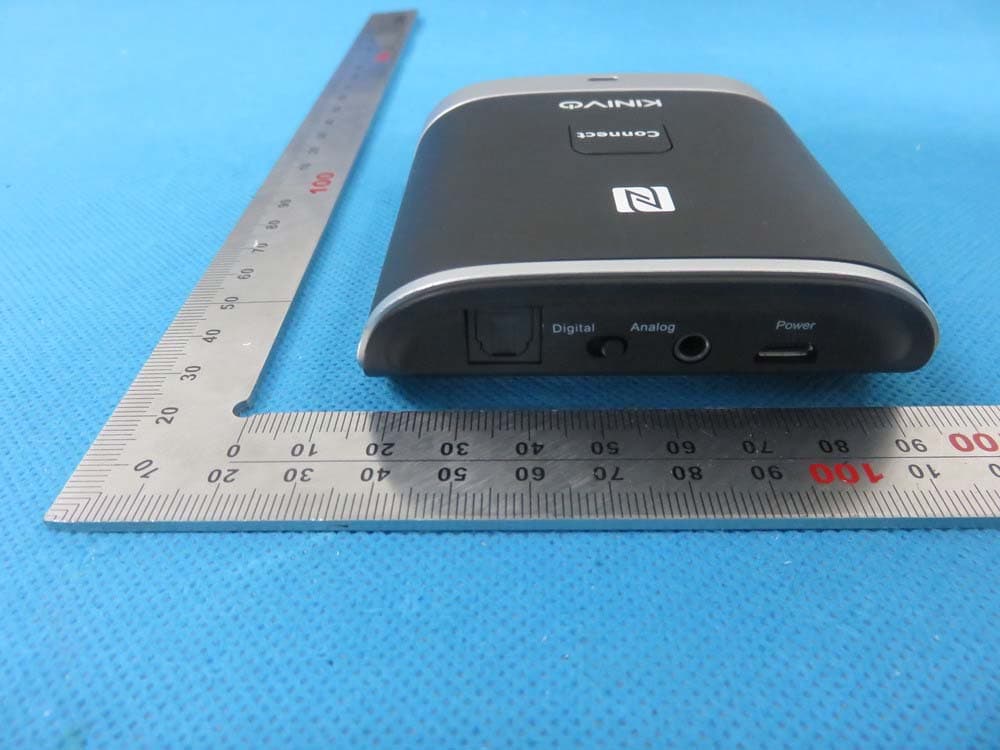

Kinivo BTR200 - Quick Reference Receiver Overview Operation To power on the Kinivo BTR200, connect the Micro USB cable to the Micro USB port and to the wall outlet via the included USB wall adapter. 1. Bluetooth Pairing 1. Ensure that the Kinivo BTR200 is plugged in and receiving power. 2. Press and hold Connect button for about 4 seconds until the LED alternates red and blue. 3. Locate and pair to “Kinivo BTR200” on your computer or mobile device: 1. NFC pad for pairing via NFC 2. Connect button 3. Digital audio port 4. Selectable switch for analog and digital audio output 5. 3.5mm analog audio port 6. Micro USB power port 5 4 3 6 1 2 http: //downloads.kinivo.com Designed by Kinivo, Inc. Assembled in China Windows Vista, 7, and 8.1 a. From the system tray’s Bluetooth menu, choose “Add a Device”. b. When “Kinivo BTR200” appears in the list of available devices, double-click it and wait for Windows to configure it. Windows 8 a. Find and open “Add a Bluetooth Device” using the Search charm. b. Click “Kinivo BTR200” in the device list, then click “Pair. “ Mac OS a. From the Bluetooth menu, choose “Open Bluetooth Preferences”. b. Click the “Pair” button beside “Kinivo BTR200. “ iOS Settings > Bluetooth (On) > then select “Kinivo BTR200” to pair. Android Settings > Wireless & Networks > Bluetooth Settings (enabled) > Scan for Devices, then select “Kinivo BTR200” to pair. 2. Factory Reset Press and hold the Connect button for 10 seconds, until the LED blinks red. Functions LED and Tone* Indicators *Tones only in Analog mode FunctionOperation Bluetooth pairing mode Press and hold Connect button for 4 seconds. StatusLED IndicatorTone Indicator Bluetooth Pairing Mode Flashing Red/ Blue On Entering Pairing Mode Connect to Known Device Flashing BlueNone Bluetooth Connected Solid Blue Tone when connected Deep Sleep Mode OffNone Support and Troubleshooting Online : http://support.kinivo.com Email : [email protected] Connect to Known Device Press and release the Connect button. Set Analog/Digital Output Slide the selection switch to Analog or Digital. Wake from Sleep Press Connect button to wake and connect. FCC ID:2AEUVBTR200 N OTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Enjoying your Kinivo? We invite you to share your Kinivo experience on Amazon and social media Connect with us on social media: @Kinivo

Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 6/30/2015 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AEUVBTR200 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Signature Kinivo Inc Contact person: Sameer Dhole Title: Manager

Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 6/30/2015 Request for Confidentiality Company name: Kinivo Inc FCC ID: 2AEUVBTR200 FCC Part 15 Certification Gentlemen, In accordance with CFR 47 § 0.459, Moment Inc hereby requests confidentiality of following attachments: (1) schematic diagrams, (2) detailed block diagrams, (3) detailed operational descriptions, (4) parts lists. These documents contain detailed system and equipment description and related information about the product which Moment Inc considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, Moment Inc considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Signature [Sameer Dhole] [Manager] Kinivo Inc 8573 154th Ave NE Redmond Washington 98052 United States

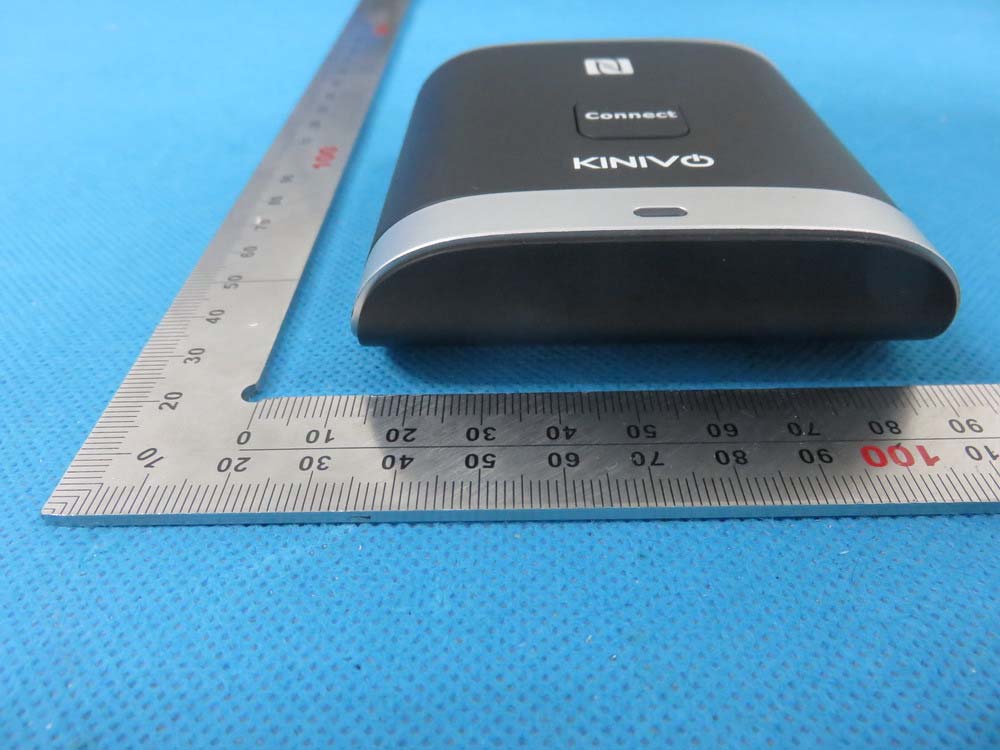

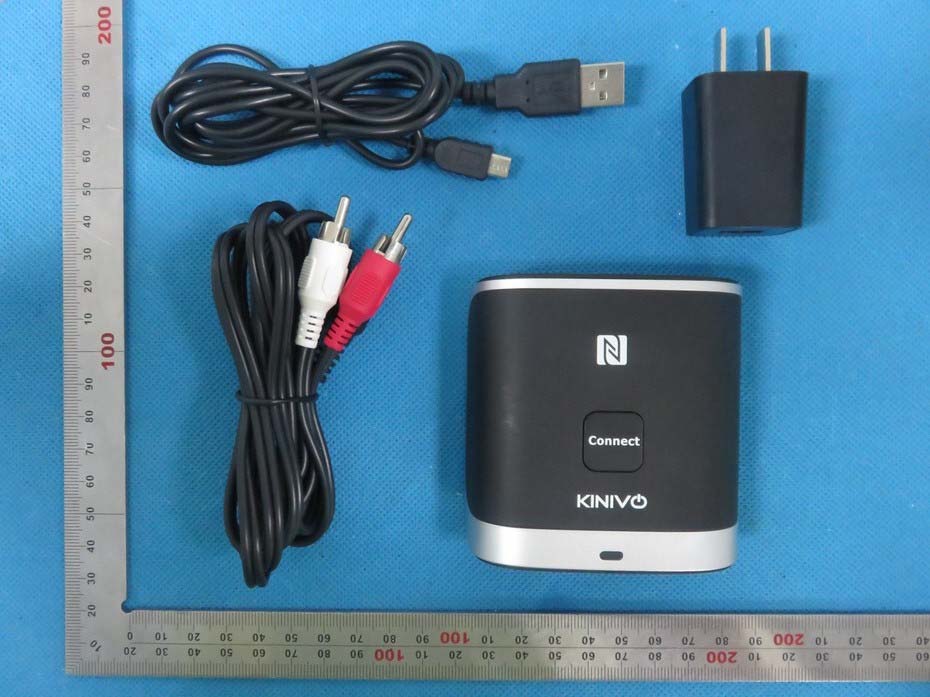

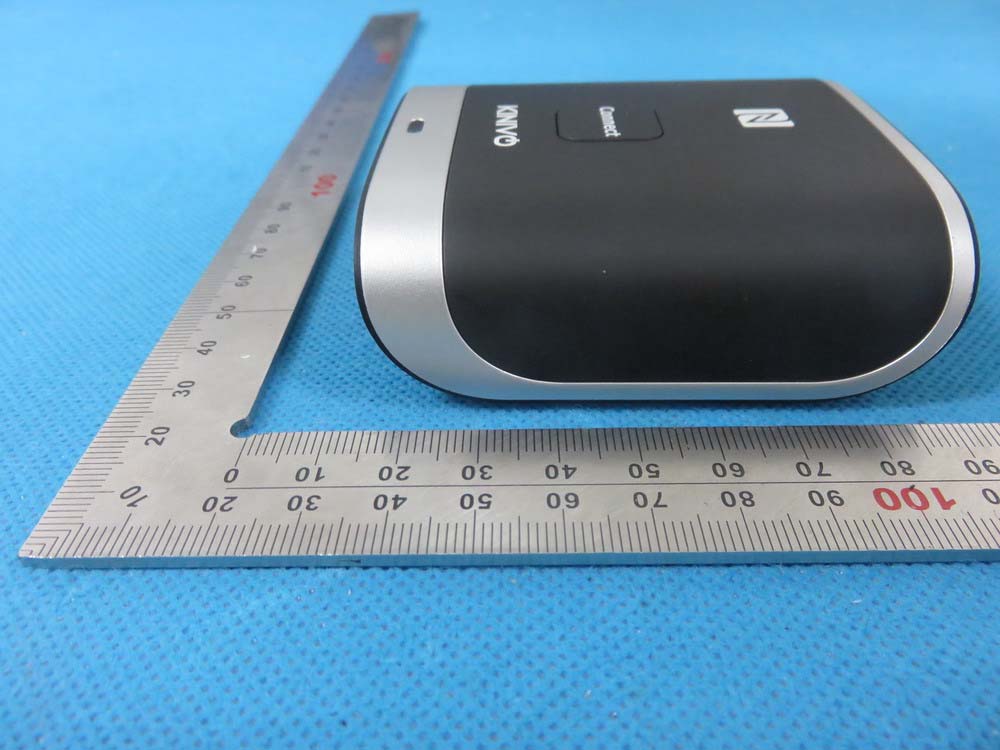

External Photos All VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT(PORT)

FCC ID Label Location Home HD Bluetooth Receiver Model:BTR200 Brand: KINIVO FCC ID: 2AEUVBTR200 FCC ID Label Location Home HD Bluetooth Receiver Model:BTR200 Brand: KINIVO FCC ID: 2AEUVBTR200

Internal Photos OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 INTERNAL VIEW OF EUT-5 INTERNAL VIEW OF EUT-6 INTERNAL VIEW OF EUT-7 Antenna

Declaration concerning Antenna Specification It is hereby declared that the product Model No.: BTR200 FCC ID: 2AEUVBTR200 fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type described below: Model No. of antenna: N/A Type of antenna: PCB Antenna Gain of the antenna: 2 dBi Frequency range: 2402-2480 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Kinivo Inc Address: 8573 154th Ave NE City: Redmond ZIP / Postal code: 98052 Country: United States Place: Shenzhen Date: Jun.30,2015 Signature:

RF Exposure evaluation Product Description:Home HD Bluetooth Receiver Model Number: BTR200 FCC ID: 2AEUVBTR200 According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation According to the follow transmitter output power（P t ）formula： P t =（E x d） 2 /（30 x g t ） P t =transmitter output power in watts g t =numeric gain of the transmitting antenna (unitess) E=electric field strength in V/m d=measurement distance in meters (m) According to the above test data, Emax=100.55dBuv/m=0.107V/m,d=3m,g t =1.58 P t =（E x d） 2 /（30 x g t ）=(0.107x3) 2 /(30x1.58)=0.002174W=2.17mW The result is rounded to one decimal place for comparison Worse case is as below: [2402MHz -2.17mW output power] (2.17mW /5mm) .[√2.402(GHz)]= 0.673<3.0 for 1-g SAR Then SAR evaluation is not required NOTE: For the maximum power, you can refer FCC test report.
