2AEVX-E100AWE3IoT Gateway System

USER'S MANUAL Revision 1.0b SuperServer ® E100-8Q and E100-8QE ii The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates. Please Note: For the most up-to-date version of this manual, please see our web site at www.supermicro.com. Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product described in this manual at any time and without notice. This product, including software and documentation, is the property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license. IN NO EVENT WILL SUPERMICRO BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, SUPERMICRO SHALL NOT HAVE LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA. Any disputes arising between manufacturer and customer shall be governed by the laws of Santa Clara County in the State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Super Micro's total liability for all claims will not exceed the price paid for the hardware product. FCC Statement: This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer’s instruction manual, may cause harmful interference with radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case you will be required to correct the interference at your own expense. California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. “Perchlorate Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate” WARNING: Handling of lead solder materials used in this product may expose you to lead, a chemical known to the State of California to cause birth defects and other reproductive harm. Manual Revision 1.0b Release Date: August 24, 2015 mk Unless you request and receive written permission from Super Micro Computer, Inc., you may not copy any part of this document. Information in this document is subject to change without notice. Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders. Copyright © 2015 by Super Micro Computer, Inc. All rights reserved. Printed in the United States of America iii Preface About This Manual This manual is written for professional system integrators and PC technicians. It provides information for the installation and use of the system. Installation and maintainance should be performed by experienced technicians only. Please refer to the system specifications page on our Web site for updates on supported memory, processors and operating systems (www.supermicro.com). Preface SuperServer E100-8Q User's Guide iv Contents Chapter 1 Introduction ..............................................................................1-1 1-1 Overview .........................................................................................................1-1 1-2 Motherboard Features .....................................................................................1-1 Processors ......................................................................................................1-1 Memory ...........................................................................................................1-1 Storage ............................................................................................................1-1 Expansion Slots ..............................................................................................1-2 Input/Output .....................................................................................................1-2 1-3 Chassis Features ............................................................................................1-3 System Power .................................................................................................1-3 1-4 Models .............................................................................................................1-3 1-5 System Installation and Setup ........................................................................1-4 Unpacking the System ....................................................................................1-4 Warnings and Precautions ..............................................................................1-4 Adding Components to Your System ..............................................................1-4 Radio Capability ..............................................................................................1-4 Operating System ...........................................................................................1-4 Connecting Power ...........................................................................................1-4 1-6 System Interface ..........................................................................…

Text truncated - open the document above for the full version.

Super Micro Computer, Inc. 980 Rock Avenue, San Jose, CA 95131, USA Date：July 2, 2015 BABT TCB Dear Sir or Madam, We, Super Micro Computer, Inc. hereby authorize Compliance Certification Services Inc / David.Wang to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on 2015/12/30 Your Sincerely, Victor Yuan Compliance Manager Super Micro Computer, Inc. TEL: 408-503-8000 Ext. 6297 Fax: 408-503-8008 E-Mail: [email protected]

Super Micro Computer, Inc. 980 Rock Avenue, San Jose, CA 95131, USA Date：July 2, 2015 BABT TCB Confidentiality Request FCC ID: 2AEVX-E100AWE3 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Super Micro Computer, Inc. hereby requests permanent confidential treatment of information accompanying this application as outlined below: Common exhibits for which confidentiality is requested are: Schematics Block Diagrams Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Your Sincerely, Victor Yuan Compliance Manager Super Micro Computer, Inc. TEL: 408-503-8000 Ext. 6297 Fax: 408-503-8008 E-Mail: [email protected]

Super Micro Computer, Inc. 980 Rock Avenue, San Jose, CA 95131, USA Date：July 2, 2015 BABT FCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, Due to the business consideration, we hereby declare that our product of IoT Gateway System Model: SYS-E100-8QE-AWE3 Serial model SYS-E100-8Q-AWE3 , SYS-E100-8QE-E3 , SYS-E100-8Q-E3 , SYS-E100-8Q-AW , SYS-E100-8QE-AW Differences are in the following table : Model Number Difference Fuction Motherboard Operating Temperature SYS-E100-8Q-AWE3 WIFI+Zigbee A1SQN 0°C to 50°C SYS-E100-8QE-AWE3 WIFI+Zigbee A1SQN-E -20°C to 50°C SYS-E100-8Q-E3 Zigbee A1SQN 0°C to 50°C SYS-E100-8QE-E3 Zigbee A1SQN-E -20°C to 50°C SYS-E100-8Q-AW WIFI A1SQN 0°C to 50°C SYS-E100-8QE-AW WIFI A1SQN-E -20°C to 50°C Any questions regarding this declaration, please don’t hesitate to contact us. Sincerely, ________________________________________ Victor Yuan Compliance Manager Super Micro Computer, Inc. TEL: 408-503-8000 Ext. 6297 Fax: 408-503-8008 E-Mail: [email protected]

Super Micro Computer, Inc. 980 Rock Avenue, San Jose, CA 95131, USA Date：July 2, 2015 Subject:DoC declaration To Whom it may concern, We, as the grantee of this project FCC ID: 2AEVX-E100AWE3, would like to declare that the composite Portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Brand Name & Model Name of the specified radio equipment: Supermicro/ SYS-E100-8QE-AWE3 , SYS-E100-8Q-AWE3 , SYS-E100-8QE-E3 , SYS-E100-8Q-E3 , SYS-E100-8Q-AW , SYS-E100-8QE-AW FCC ID: 2AEVX-E100AWE3 Product Name: IoT Gateway System Regards, Your Sincerely, Victor Yuan Compliance Manager Super Micro Computer, Inc. TEL: 408-503-8000 Ext. 6297 Fax: 408-503-8008 E-Mail: [email protected]

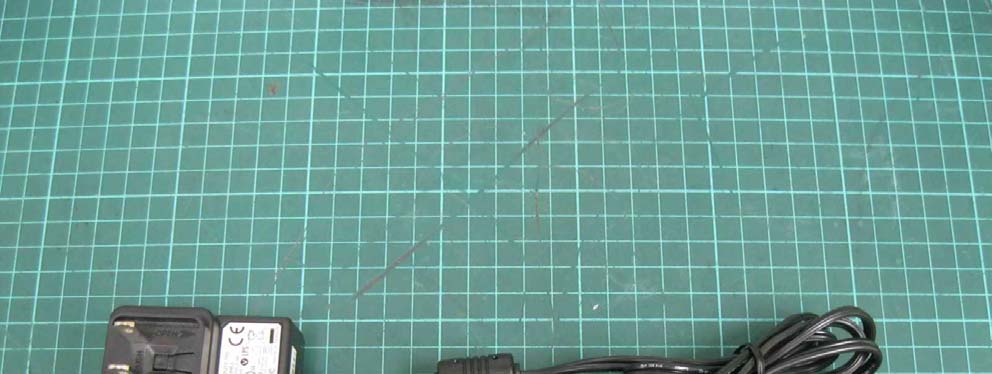

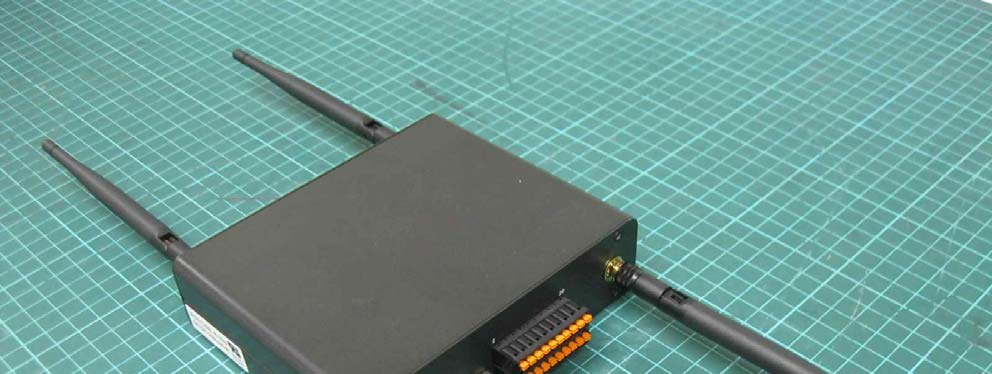

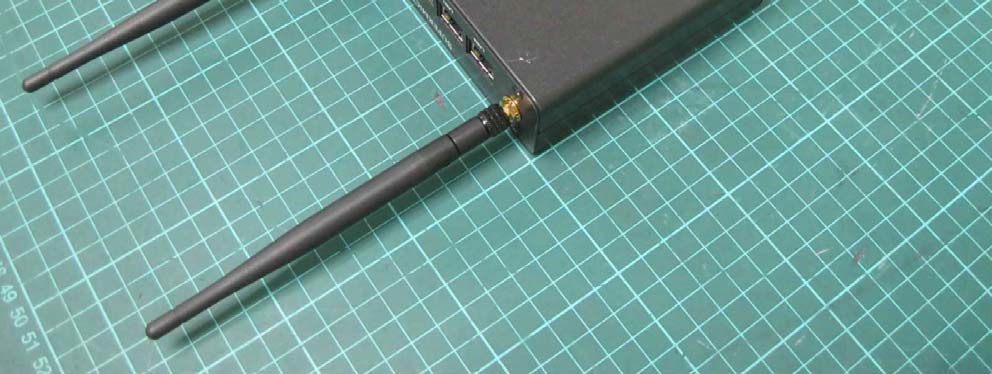

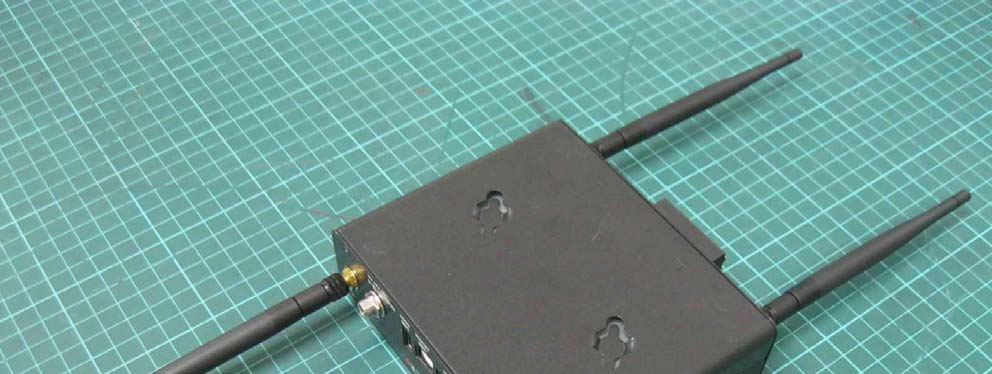

Report No.：T150504D11 Page 1 of 5 External Photo Report No.：T150504D11 Page 2 of 5 I/O Port Report No.：T150504D11 Page 3 of 5 Power Adapter Report No.：T150504D11 Page 4 of 5 Report No.：T150504D11 Page 5 of 5 SD Card

CAN ICES-3[B] NMB-3[B] Laite on liitettävä suojamaadoituskoskettimilla varustettuun pistorasiaan Apparaten skall anslutas till jordat uttag Apparatet må tilkobles jordet stikkontakt Assembled in the USA Rev 1.00 Caution: Disconnect all power cords before servicing Ziehen Sie alle Netzkabel vor der Wartung Débranchez tous les cordons d'alimentation de l'unité avant d'intervenir This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Product Name(產品名稱) IoT Gateway物聯網閘道器 Model/ P/N (型號): SYS-E100-8QE-AWE3 Type: E100-15 Input(輸入):12Vdc, 1.25A max I.T.E LISTED E209323 This is Class B digital apparatus Complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. FCC ID :2AEVX-E100AWE3 IC : 20273-E100AWE3 CAN ICES-3[B] NMB-3[B] Laite on liitettävä suojamaadoituskoskettimilla varustettuun pistorasiaan Apparaten skall anslutas till jordat uttag Apparatet må tilkobles jordet stikkontakt Assembled in the USA Rev 1.00 Caution: Disconnect all power cords before servicing Ziehen Sie alle Netzkabel vor der Wartung Débranchez tous les cordons d'alimentation de l'unité avant d'intervenir This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Product Name(產品名稱) IoT Gateway物聯網閘道器 Model/ P/N (型號): SYS-E100-8Q-AWE3 Type: E100-15 Input(輸入):12Vdc, 1.25A max I.T.E LISTED E209323 This is Class B digital apparatus Complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. FCC ID :2AEVX-E100AWE3 IC : 20273-E100AWE3 CAN ICES-3[B] NMB-3[B] Laite on liitettävä suojamaadoituskoskettimilla varustettuun pistorasiaan Apparaten skall anslutas till jordat uttag Apparatet må tilkobles jordet stikkontakt Assembled in the USA Rev 1.00 Caution: Disconnect all power cords before servicing Ziehen Sie alle Netzkabel vor der Wartung Débranchez tous les cordons d'alimentation de l'unité avant d'intervenir This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Product Name(產品名稱) IoT Gateway物聯網閘道器 Model/ P/N (型號): SYS-E100-8Q-E3 Type: E100-15 Input(輸入):12Vdc, 1.25A max I.T.E LISTED E209323 This is Class B digital apparatus Complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. FCC ID :2AEVX-E100AWE3 IC : 20273-E100AWE3 CAN ICES-3[B] NMB-3[B] Laite on liitettävä suojamaadoituskoskettimilla varustettuun pistorasiaan Apparaten skall anslutas till jordat uttag Apparatet må tilkobles jordet stikkontakt Assembled in the USA Rev 1.00 Caution: Disconnect all power cords before servicing Ziehen Sie alle Netzkabel vor der Wartung Débranchez tous les cordons d'alimentation de l'unité avant d'intervenir This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Product Name(產品名稱) IoT Gateway物聯網閘道器 Model/ P/N (型號): SYS-E100-8QE-E3 Type: E100-15 Input(輸入):12Vdc, 1.25A max I.T.E LISTED E209323 This is Class B digital apparatus Complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. FCC ID :2AEVX-E100AWE3 IC : 20273-E100AWE3 CAN ICES-3[B] NMB-3[B] Laite on liitettävä suojamaadoituskoskettimilla varustettuun pistorasiaan Apparaten skall anslutas till jordat uttag Apparatet må tilkobles jordet stikkontakt Assembled in the USA Rev 1.00 Caution: Disconnect all power cords before servicing Ziehen Sie alle Netzkabel vor der Wartung Débranchez tous les cordons d'alimentation de l'unité avant d'intervenir This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Product Name(產品名稱) IoT Gateway物聯網閘道器 Model/ P/N (型號): SYS-E100-8Q-AW Type: E100-15 Input(輸入):12Vdc, 1.25A max I.T.E LISTED E209323 This is Class B digital apparatus Complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. FCC ID :2AEVX-E100AWE3 IC : 20273-E100AWE3 CAN ICES-3[B] NMB-3[B] Laite on liitettävä suojamaadoituskoskettimilla varustettuun pistorasiaan Apparaten skall anslutas till jordat uttag Apparatet må tilkobles jordet stikkontakt Assembled in the USA Rev 1.00 Caution: Disconnect all power cords before servicing Ziehen Sie alle Netzkabel vor der Wartung Débranchez tous les cordons d'alimentation de l'unité avant d'intervenir This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Product Name(產品名稱) IoT Gateway物聯網閘道器 Model/ P/N (型號): SYS-E100-8QE-AW Type: E100-15 Input(輸入):12Vdc, 1.25A max I.T.E LISTED E209323 This is Class B digital apparatus Complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. FCC ID :2AEVX-E100AWE3 IC : 20273-E100AWE3

Report No.：T150504D11 Page 1 of 12 Internal Photo Report No.：T150504D11 Page 2 of 12 Report No.：T150504D11 Page 3 of 12 Report No.：T150504D11 Page 4 of 12 Report No.：T150504D11 Page 5 of 12 Report No.：T150504D11 Page 6 of 12 Report No.：T150504D11 Page 7 of 12 Report No.：T150504D11 Page 8 of 12 Report No.：T150504D11 Page 9 of 12 Report No.：T150504D11 Page 10 of 12 Report No.：T150504D11 Page 11 of 12 Report No.：T150504D11 Page 12 of 12 Antenna

Compliance Certification Services Inc. Report No.：T150504D11-RP1-2 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT IoT Gateway System Model SYS-E100-8QE-AWE3 Data Applies To SYS-E100-8Q-AWE3 ; SYS-E100-8Q-E3 ; SYS-E100-8QE-E3 ; SYS-E100-8Q-AW ; SYS-E100-8QE-AW Frequency band (Operating) 802.11b/g/n HT20: 2.412GHz ~ 2.462GHz 802.11gn HT40: 2.422GHz ~ 2.452GHz Bluetooth 3.0: 2.402GHz ~ 2.480GHz Bluetooth 4.0: 2.402GHz ~ 2.480GHz Zigbee: 2.405GHz ~ 2.475GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification Diploe Antenna × 2 (Wifi & Bluetooth) , 2.4GHz: Antenna 1 (Main) Gain : 2.60 dBi (Numeric gain 1.82) 2.4GHz: Antenna 2 (Aux) Gain :2.60 dBi (Numeric gain 1.82) Diploe Antenna × 1 , Zigbee 1 :Antenna Gain :3.10 dBi (Numeric gain 2.04) Diploe Antenna × 1 , Zigbee 2 :Antenna Gain :3.10 dBi (Numeric gain 2.04) Maximum output power IEEE 802.11b Mode: 20.75 dBm (118.850 mW) IEEE 802.11g Mode: 23.67 dBm (232.809 mW) IEEE 802.11gn HT 20 Mode: 23.38 dBm (217.771 mW) IEEE 802.11gn HT 40 Mode: 22.65 dBm (184.077 mW) Bluetooth 3.0: 5.97 dBm(3.954 mW) Bluetooth 4.0: 5.96 dBm(3.945 mW) Zigbee 1: 18.39 dBm (69.024 mW) Zigbee 2: 19.26 dBm (84.333 mW) Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark : The model SYS-E100-8QE-AWE3 was considered the main model for testing. Compliance Certification Services Inc. Report No.：T150504D11-RP1-2 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 2015/06/30 Initial Issue ALL Gloria Chang Compliance Certification Services Inc. Report No.：T150504D11-RP1-2 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TEST RESULTS No non-compliance noted. Calculation Given d GP E   30 & 3770 2 E S Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields   22 0796.0 100/3770 1000/30 d GP d GP S      Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.：T150504D11-RP1-2 Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: GPS000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 IEEE 802.11b mode: Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm 2 ) 2412 ~ 2462118.8501.82200.04301 IEEE 802.11g mode: Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm 2 ) 2412 ~ 2462232.8091.82200.08431 IEEE 802.11gn HT20 mode: Frq.(MHz)P (mW) Gain (num.)D (cm) Power densit y in mW / cm 2 Limit (mW/cm 2 ) 2412 ~ 2462217.7711.82200.07891 IEEE 802.11gn HT40 mode: Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm 2 ) 2422 ~ 2452184.0771.82200.06671 Bluetooth 3.0: Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm 2 ) 2402 ~ 24803.9541.82200.00141 Bluetooth 4.0: Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm 2 ) 2402 ~ 24803.9451.82200.00141 Zigbee 1: Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm 2 ) 2405 ~ 247569.0242.04200.02801 Zigbee 2: Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm 2 ) 2405 ~ 247584.3332.04200.03421

Compliance Certification Services Inc. FCC ID : 2AEVX-E100AWE3 Report No.：T150504D11-RP1-1 Page 1 / 81 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. FCC 47 CFR PART 15 SUBPART C AND ANSI C63.10:2013 TEST REPORT For IoT Gateway System Model : SYS-E100-8QE-AWE3 Data Applies To : SYS-E100-8Q-AWE3 ; SYS-E100-8Q-E3 ; SYS-E100-8QE-E3 ; SYS-E100-8Q-AW ; SYS-E100-8QE-AW Trade Name : Supermicro Issued for Super Micro Computer, Inc. 980 Rock Avenue, San Jose, CA 95131, USA Issued by Compliance Certification Services Inc. Hsinchu Lab. No.989-1, Wenshan Rd., Shangshan Village, Qionglin Township, Hsinchu County 30741, Taiwan (R.O.C.) TEL: +886-3-5921698 FAX: +886-3-5921108 http://www.ccsrf.com E-Mail : [email protected] Issued Date: June 30, 2015 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF or any government agencies. The test results of this report relate only to the tested sample identified in this report. Compliance Certification Services Inc. FCC ID : 2AEVX-E100AWE3 Report No.：T150504D11-RP1-1 Page 2 / 81 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 06/30/2015 Initial Issue All Page 81 Dola Hsieh Compliance Certification Services Inc. FCC ID : 2AEVX-E100AWE3 Report No.：T150504D11-RP1-1 Page 3 / 81 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION ................................................................................ 4 2. EUT DESCRIPTION ..................................................................................................... 5 3. DESCRIPTION OF TEST MODES ............................................................................... 7 4. TEST METHODOLOGY ............................................................................................... 9 5. FACILITIES AND ACCREDITATION ........................................................................... 9 5.1 FACILITIES ............................................................................................................ 9 5.2 ACCREDITATIONS................................................................................................ 9 5.3 MEASUREMENT UNCERTAINTY ......................................................................... 10 6. SETUP OF EQUIPMENT UNDER TEST...................................................................... 11 7. FCC PART 15.247 REQUIREMENTS.......................................................................... 12 7.1 20dB BANDWIDTH FOR HOPPING...................................................................... 12 7.2 MAXIMUM PEAK OUTPUT POWER ..................................................................... 18 7.3 AVERAGE POWER ............................................................................................... 20 7.4 HOPPING CHANNEL SEPARATION..................................................................... 22 7.5 NUMBER OF HOPPING FREQUENCY USED...................................................... 28 7.6 DWELL TIME ON EACH CHANNEL ...................................................................... 31 7.7 CONDUCTED SPURIOUS EMISSION .................................................................. 46 7.8 RADIATED EMISSION........................................................................................... 54 7.9 CONDUCTED EMISSION ...................................................................................... 73 APPENDIX SETUP PHOTOS .......................................................................................... 78 Compliance Certification Services Inc. FCC ID : 2AEVX-E100AWE3 Report No.：T150504D11-RP1-1 Page 4 / 81 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 1. TEST REPORT CERTIFICATION Applicant ： Super Micro Computer, Inc. Address ： 980 Rock Avenue, San Jose, CA 95131, USA Equipment Under Test ： IoT Gateway System Model ： SYS-E100-8QE-AWE3 Data Applies To ： SYS-E100-8Q-AWE3 ; SYS-E100-8Q-E3 ; SYS-E100-8QE-E3 ; SYS-E100-8Q-AW ; SYS-E100-8QE-AW Trade Name ： Supermicro Tested Date ： May 04 ~ June 17, 2015 APPLICABLE STANDARD Standard Test Result FCC Part 15 Subpart C AND ANSI C63.10:2013 PASS WE HEREBY CERTIFY THAT: The above equipment has been tested by Compliance Certification Services Inc., and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved by: Reviewed by: Jacky Chen Sb. Lu Section Manager Sr. Engineer Compliance Certification Services Inc. FCC ID : 2AEVX-E100AWE3 Report No.：T150504D11-RP1-1 Page 5 / 81 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 2. EUT DESCRIPTION Product Name IoT Gateway System Model Number SYS-E100-8QE-AWE3 Data Applies To SYS-E100-8Q-AWE3 ; SYS-E100-8Q-E3 ; SYS-E100-8QE-E3 ; SYS-E100-8Q-AW ; SYS-E100-8QE-AW Identify Number T150504D11 Received Date May 04, 2015 Frequency Range 2402MHz to 2480MHz f = 2402 + nMHz, n = 0, .....78 Transmit Power 5.97 dBm (0.0040W) Channel Spacing 1MHz Channel Number 79 Channels Transmit Data Rate GFSK (1Mbps), /4-DQPSK (2Mbps), 8-DPSK (3Mbps) Type of Modulation Frequency Hopping Spread Spect…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID : 2AEVX-E100AWE3 Report No.：T150504D11-RP1-1 Page 78 / 81 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. APPENDIX SETUP PHOTOS RADIATED EMISSION SETUP Below 1GHz Compliance Certification Services Inc. FCC ID : 2AEVX-E100AWE3 Report No.：T150504D11-RP1-1 Page 79 / 81 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Above 1GHz Compliance Certification Services Inc. FCC ID : 2AEVX-E100AWE3 Report No.：T150504D11-RP1-1 Page 80 / 81 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP Compliance Certification Services Inc. FCC ID : 2AEVX-E100AWE3 Report No.：T150504D11-RP1-1 Page 81 / 81 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. CONDUCTED EMISSION SETUP
