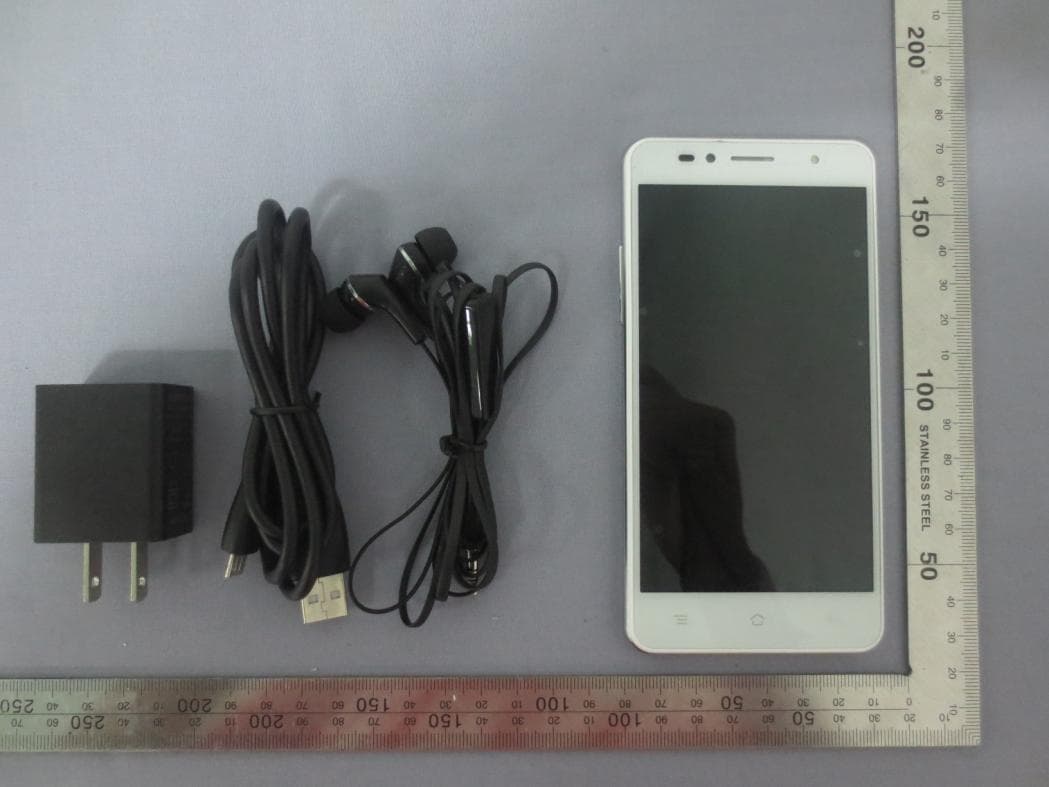

2AEW7SISWOOC50AMobile phone

User Manual 1 User Manual Mobile Phone C50 SISWOO User Manual 2 Contents 1．APPEARANCE AND KEYPAD OPERATIONS ............................ 3 2．USING MEMORY CARD AS U DISK ............................... 4/5 3．WIFI ..................................................... 6/7 4．BLUETOOTH .................................................. 8 5．MAIL ....................................................... 9  5.1 GMAIL ...................................................................................................................... 9  5.2 EMAIL .......................................................................................................................... 10 6．DIALLING ............................................. 11/12/13 7．MESSAGING ........................................... 14/15/16 8. CONTACTS ............................................ 17/19/21 9. INTENET EXPLOR ......................................... 22/23 10．RECORDER ................................................. 24 11．CLOCK .................................................... 24 12. CACULATOR ................................................ 25 13．CAMERA ............................................. 26/27/28  13.1 IMAGE MODE .................................................................................................................. 26  13.2 VIDEO MODE ................................................................................................................. 27 14．IMAGES ............................................... 29/30 15．MUSIC ................................................. 31/32 16. CALENDER ................................................. 33 17. FM RADIO ................................................. 34 18. SETTINGS ........................................ 35/36/37/38 User Manual 3 19. NOTICES FOR THE USE OF PHONE ........................... 39/40 1 . Appearance and Keypad Operations Keys Functions home  Press this button to return home from any application or interface.  Press it to open recently opened application window. menu  Press it to start the menu，which allows you to perform actions in the current interface or options’ menu. back  Press it to return to the previous interface，or to close dialog box 、 options’ menu、notification panel or the keypad. power  Press it to open the phone’s menu，then you could choose to lock the screen、 turn off the phone，or set it to the silent mode . up  Press it to increase the volume  Press it to turn the phone to vibration mode from the silent mode. down  Press it to decrease the volume. P-Serson  Cover it, and then the phone’s backlight will turn off User Manual 4 front camera  Entering the camera interface, switched to the front camera can photo yourself. 2. Using Memory Card as U Disk If you want to send music, pictures or other files to the phone’s memory card from the computer，you should set memory card as u disk first. Set memory card as u disk 1) Connect the phone to the computer with USB cable. The notification icon will appear in the status box. 2) Use USB mobile transmission line will connected to the computer 3) In the notification panel, touch USB is connected ，And then touch the USB connected as a media device 1 2 m e d i a c o n n e c ti o n o p ti o 3 m e d i a c o n n e c ti o n o p ti 4 e d i a c o n n e c ti o n o p Specific shown in the following figure (picture 1.2.3.4) User Manual 5 3: 1: connectedas a media device 2:Charging info 3:Wi-Fi network available 4:USB debuggling connected User Manual 6 4) Insert the SD Card. Open USB connected. 2）After the connection can be directly in the PC check images captured on camera。  Notice: different PC operating system to how to operate to normal use the U disk. 1） WIN7 Can directly use User Manual 7 2） XP update windows media player to 11 3） Install wpdmtp.inf driver 4） V ista Unconfirmed  Notice :On the PC operation assistant tool such as mobile phone, Must be open the USB debugging. 3.WiFi Wifi provides as far as 300feet (100M) range of wireless network access. If you use cell phone to connect wifi, you should connect to the wireless access point or 「hot spots」.  Notices：The availability and coverage of Wi-Fi signal depend on the number, infrastructure and other objects penetrated by the signal. Open Wi-fi and to connect to the wireless network 1) Press home>menu，then touch settings>wifi and internet 2) Select the wi-fi box，to open Wi-Fi. Phone will automatically scan for available wireless networks. 3) Touch Wi-Fi settings. Then a list of Wi-Fi network will show the founded network name and security settings. (open network or WEP、WPA/WPA2 with password).If you enable the notification in Wi-Fi settings, The status box will show this icon () when open available wireless network founded. 4) Touch one of the Wi-Fi choices to connect the network. When you choose open network, phone will connect to it automatically. If you choose WEP、WPA/WPA2 with password, you should type the password first, then touch to connect it.  Notices：when the phone is connected to the wireless network, The status box will show this Wi-Fi icon（）, and the approximate signal strengthen (the number of lit bars).If touch the connected network，will display the name of Wi—Fi network, status,speed,signal, strength, security, information and IP address. If you want to delete the wireless settings, please touch “not reserve” as in the right picture. If you want to connect to this network, you should re-enter these settings.  Notices： Unless you choose not to reserve the network, otherwise, there is no need to re-enter the corresponding password when next time connecting to the previously encrypted wireless network. Wi-Fi will search automatically, that is, phone needn’t to perform additional steps to connect Wi-Fi networks. User Manual 8  Notices： Unless you choose not to reserve the network with password, otherwise, there is no need to re-enter the corresponding password when next time connecting to the previously …

Text truncated - open the document above for the full version.

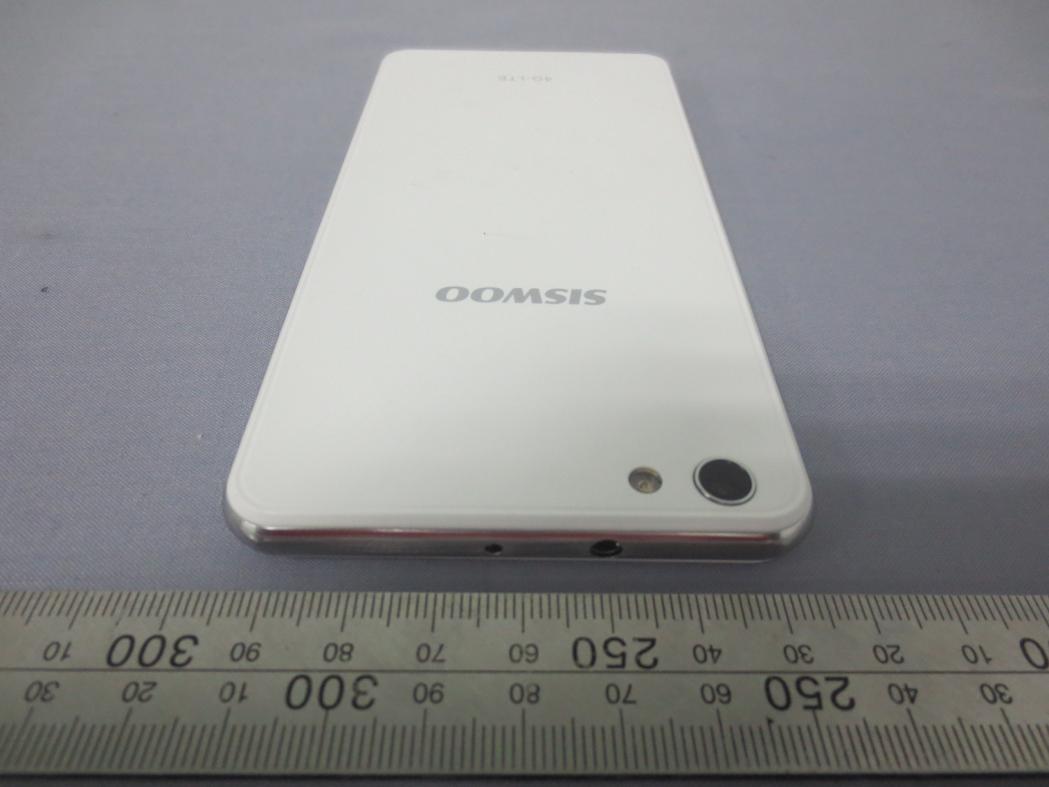

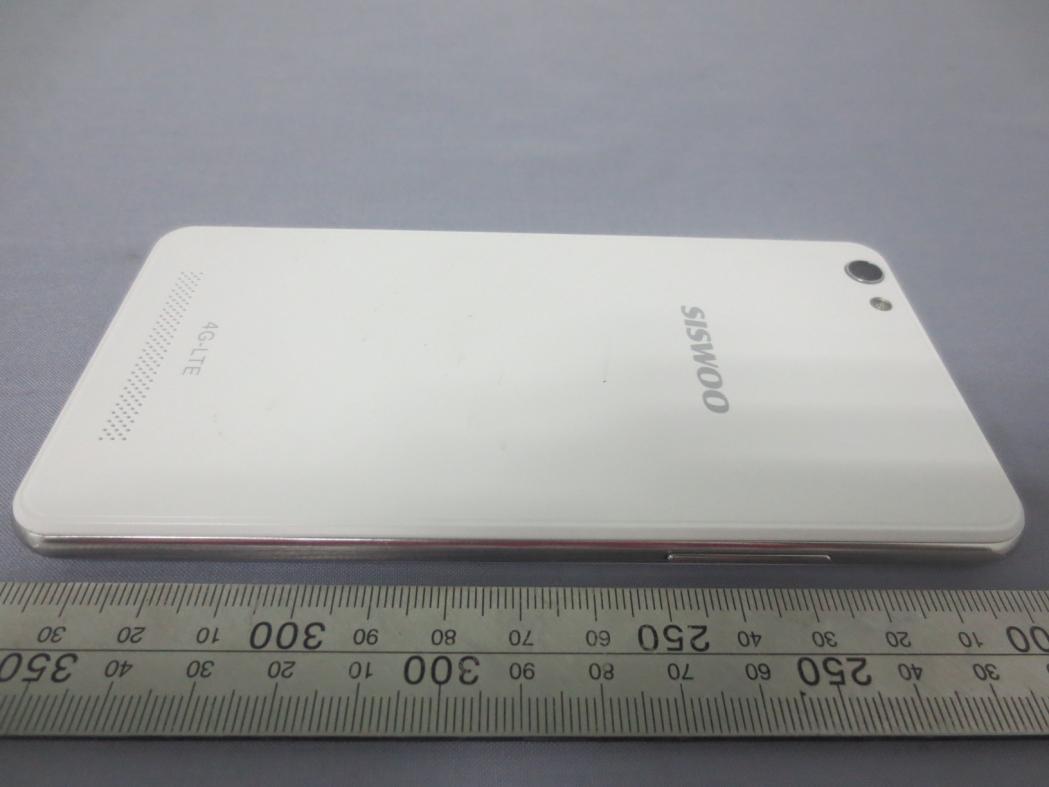

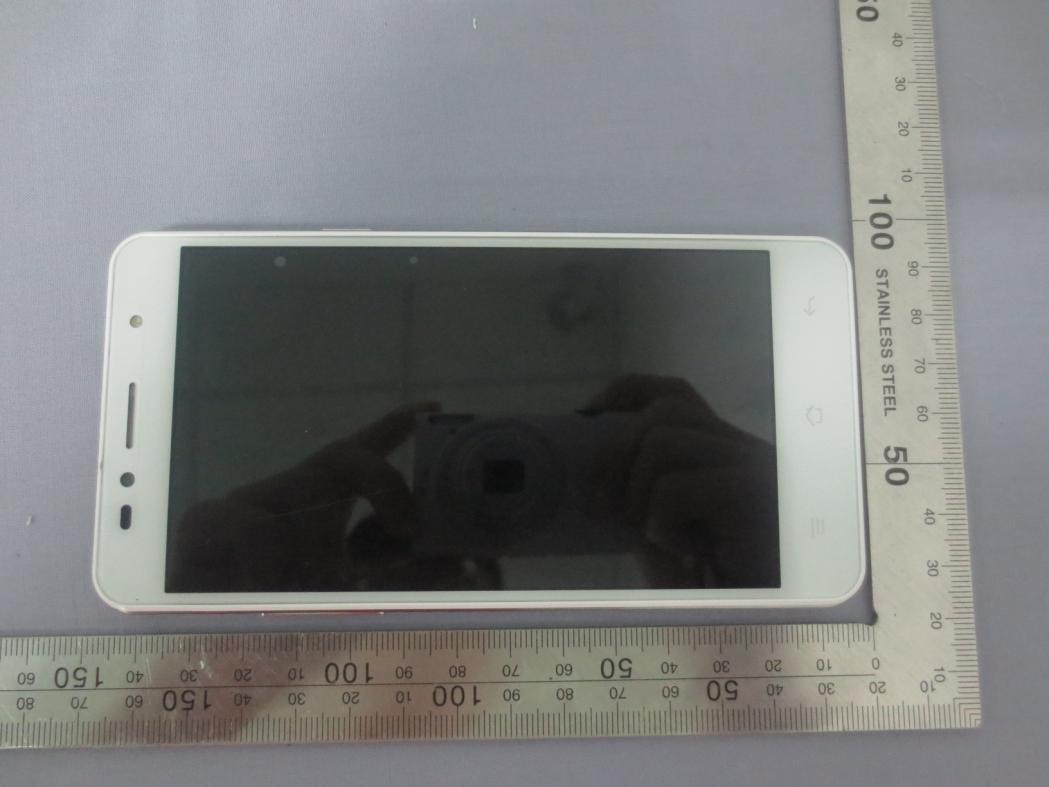

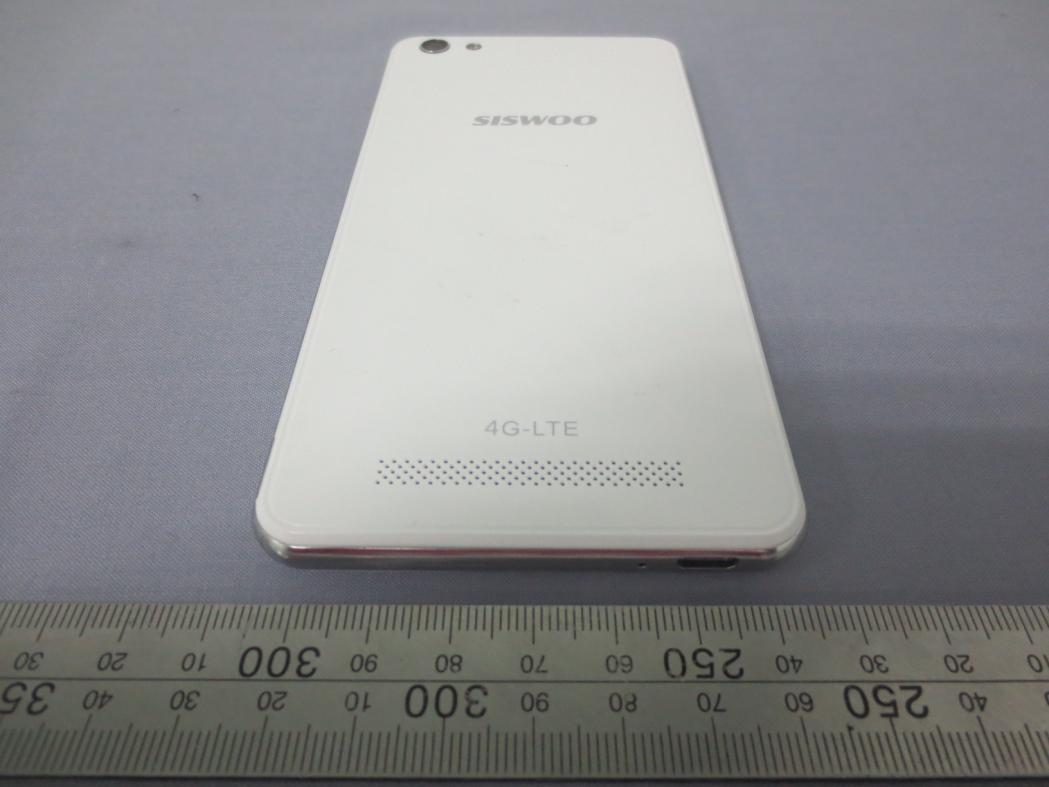

Report No: CCIS15050032101 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS150500321RF No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 72 of 81 8 EUT Constructional Details Report No: CCIS15050032101 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS150500321RF No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 73 of 81 Report No: CCIS15050032101 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS150500321RF No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 74 of 81 Report No: CCIS15050032101 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS150500321RF No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 75 of 81 Report No: CCIS15050032101 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS150500321RF No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 76 of 81

Label location Label location

Report No: CCIS15050032101 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS150500321RF No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 77 of 81 Report No: CCIS15050032101 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS150500321RF No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 78 of 81 Report No: CCIS15050032101 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS150500321RF No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 79 of 81 Report No: CCIS15050032101 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS150500321RF No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 80 of 81 Report No: CCIS15050032101 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS150500321RF No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 81 of 81 ------End of report------

Report No: CCIS15050032201 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS150500322RF No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 201 of 287 Test Laboratory: CCIS Date/Time: 06.07.2015 08:51:49 DUT: Mobile phone; Type: C50; Serial: 1# Communication System: UID 0, LTE-FDD(USA) 50%RB QPSK (0); Frequency: 1860 MHz Medium parameters used: f = 1860 MHz; σ = 1.513 S/m; ε r = 52.414; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY Configuration:  Probe: EX3DV4 - SN3924; ConvF(7.63, 7.63, 7.63); Calibrated: 06.20.2014;  Sensor-Surface: 2mm (Mechanical Surface Detection), z = 31.0  Electronics: DAE4 Sn1373; Calibrated: 06.11.2014  Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP:1208  DASY52 52.8.7(1137); SEMCAD X 14.6.10(7164) LTE Band 2 50%RB(20MHz) Body Bottom/Low Channel/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.255 V/m; Power Drift = 0.13 dB Peak SAR (extrapolated) = 0.257 W/kg SAR(1 g) = 0.168 W/kg; SAR(10 g) = 0.100 W/kg Maximum value of SAR (measured) = 0.214 W/kg LTE Band 2 50%RB(20MHz) Body Bottom/Low Channel/Area Scan (31x51x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.220 W/kg 0 dB = 0.220 W/kg = -6.58 dBW/kg Report No: CCIS15050032201 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS150500322RF No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 202 of 287 Test Laboratory: CCIS Date/Time: 06.08.2015 10:53:03 DUT: Mobile phone; Type: C50; Serial: 1# Communication System: UID 0, LTE-FDD(USA) 50%RB QPSK (0); Frequency: 1732.5 MHz Medium parameters used: f = 1840 MHz; σ = 1.536 S/m; ε r = 52.707; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY Configuration:  Probe: EX3DV4 - SN3924; ConvF(8.13, 8.13, 8.13); Calibrated: 06.20.2014;  Sensor-Surface: 2mm (Mechanical Surface Detection), z = 31.0  Electronics: DAE4 Sn1373; Calibrated: 06.11.2014  Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP:1208  DASY52 52.8.7(1137); SEMCAD X 14.6.10(7164) LTE Band 4 50%RB(20MHz) Body Left/Middle Channel/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.237 V/m; Power Drift = 0.14 dB Peak SAR (extrapolated) = 0.204 W/kg SAR(1 g) = 0.133 W/kg; SAR(10 g) = 0.081 W/kg Maximum value of SAR (measured) = 0.169 W/kg LTE Band 4 50%RB(20MHz) Body Left/Middle Channel/Area Scan (31x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.178 W/kg 0 dB = 0.178 W/kg = -7.50 dBW/kg Report No: CCIS15050032201 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS150500322RF No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 203 of 287 Test Laboratory: CCIS Date/Time: 06.08.2015 11:07:56 DUT: Mobile phone; Type: C50; Serial: 1# Communication System: UID 0, LTE-FDD(USA) 50%RB QPSK (0); Frequency: 1732.5 MHz Medium parameters used (interpolated): f = 1732.5 MHz; σ = 1.505 S/m; ε r = 55.13; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY Configuration:  Probe: EX3DV4 - SN3924; ConvF(8.13, 8.13, 8.13); Calibrated: 06.20.2014;  Sensor-Surface: 2mm (Mechanical Surface Detection), z = 31.0  Electronics: DAE4 Sn1373; Calibrated: 06.11.2014  Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP:1208  DASY52 52.8.7(1137); SEMCAD X 14.6.10(7164) LTE Band 4 50%RB(20MHz) Body Right/Middle Channel/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.719 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 0.0570 W/kg SAR(1 g) = 0.038 W/kg; SAR(10 g) = 0.025 W/kg Maximum value of SAR (measured) = 0.0483 W/kg LTE Band 4 50%RB(20MHz) Body Right/Middle Channel/Area Scan (31x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.0484 W/kg 0 dB = 0.0484 W/kg = -13.15 dBW/kg Report No: CCIS15050032201 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS150500322RF No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 204 of 287 Test Laboratory: CCIS Date/Time: 06.08.2015 11:22:27 DUT: Mobile phone; Type: C50; Serial: 1# Communication System: UID 0, LTE-FDD(USA) 50%RB QPSK (0); Frequency: 1732.5 MHz Medium parameters used (interpolated): f = 1732.5 MHz; σ = 1.505 S/m; ε r = 55.13; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY Configuration:  Probe: EX3DV4 - SN3924; ConvF(8.13, 8.13, 8.13); Calibrated: 06.20.2014;  Sensor-Surface: 2mm (Mechanical Surface Detection), z = 31.0  Electronics: DAE4 Sn1373; Calibrated: 06.11.2014  Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP:1208  DASY52 52.8.7(1137); SEMCAD X 14.6.10(7164) LTE Band 4 50%RB(20MHz) Body Bottom/Middle Channel/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.932 V/m; Power Drift = -0.39 dB Peak SAR (extrapolated) = 0.502 W/kg SAR(1 g) = 0.317 W/kg; SAR(10 g) = 0.181 W/kg Maximum value of SAR (measured) = 0.424 W/kg LTE Band 4 50%RB(20MHz) Body Bottom/Middle Channel/Area Scan (31x51x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.425 W/kg 0 dB = 0.425 W/kg = -3.72 dBW/kg Report No: CCIS15050032201 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS150500322RF No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Teleph…

Text truncated - open the document above for the full version.

SAR Test Report Product Name : Mobile Phone Model No. : C50,C50A,C55A,C5,C45, A4,A4+,A5,A5+,A6,i7,C55,C60, M3,MG12 FCC ID : 2AEW7SISWOOC50A Applicant : Shenzhen siswoo mobile technology co.,ltd Address : room 1701,haisong building,tairang road 9,futian district shenzhen city,China Date of Receipt : Jul. 27, 2015 Date of Test : Jul. 27, 2015 Issued Date : Jul. 29, 2015 Report No. : 1560229R-HP-US-P03V01 Report Version : V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No.: 1560229R-HP-US-P03V01 Page: 2 of 92 Test Report Certification Issued Date: Jul. 29, 2015 Report No.: 1560229R-HP-US-P03V01 Product Name : Mobile Phone Applicant : Shenzhen siswoo mobile technology co.,ltd Address : room 1701,haisong building,tairang road 9,futian district shenzhen city,China Manufacturer : Shenzhen siswoo mobile technology co.,ltd Address : room 1701,haisong building,tairang road 9,futian district shenzhen city,China Model No. : C50,C50A,C55A,C5,C45, A4,A4+,A5,A5+,A6,i7,C55,C60, M3,MG12 Brand Name : APRIX FCC ID : 2AEW7SISWOOC50A EUT Voltage : DC 5V Brand Name : SISWOO Applicable Standard : IEEE Std. 1528-2013, 47CFR § 2.1093 FCC KDB Publication 447498 D01v05r02 FCC KDB Publication 648474 D04v01r02 FCC KDB Publication 865664 D01v01r03 FCC KDB Publication 941225 D01,D05 and D06 FCC KDB Publication 248227 D01v02r01 Test Result : Max. SAR Measurement (1g) 0.753W/kg(98.6% d/c) for Head position; 0.260W/kg(98.6% d/c) for Body position Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392 Documented By : Reviewed By : Approved By : Report No.: 1560229R-HP-US-P03V01 Page: 3 of 92 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site :http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou Testing Laboratory : No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL : +86-512-6251-5088 / FAX : 86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. : BSMI, NCC USA : FCC Japan : VCCI China : CNAS Report No.: 1560229R-HP-US-P03V01 Page: 4 of 92 TABLE OF CONTENTS Description Page 1. General Information ............................................................................................................................. 7 1.1. EUT Description ............................................................................................................................. 7 1.2. Test Environment ........................................................................................................................... 9 1.3. EUT Antenna Locations ................................................................................................................. 9 1.4. SAR Test Exclusions Applied ........................................................................................................ 11 1.5. Power Reduction for SAR ............................................................................................................. 11 1.6. Max Power Reduction for SAR ..................................................................................................... 11 1.7. Guidance Documents ................................................................................................................... 11 2. SAR Measurement System ................................................................................................................ 12 2.1. DASY5 System Description ......................................................................................................... 12 2.1.1. Applications ............................................................................................................................. 13 2.1.2. Area Scans .............................................................................................................................. 13 2.1.3. Zoom Scan (Cube Scan Averaging) ....................................................................................... 13 2.1.4. Uncertainty of Inter-/Extrapolation and Averaging .................................................................. 13 2.2. DASY5 E-Field Probe .................................................................................................................. 14 2.2.1. Isotropic E-Field Probe Specification ...................................................................................... 14 2.3. Boundary Detection Unit and Probe Mounting Device ................................................................ 15 2.4. DATA Acquisition Electronics (DAE) and Measurement Server ................................................. 15 2.5. Robot ........................................................................................................................................... 16 2.6. Light Beam …

Text truncated - open the document above for the full version.

Shenzhen Zhongjian Nanfang Testing Co., Ltd. Report No: CCIS15050032201 Authorized Signature: Bruce Zhang Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the CCIS product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 1 Cover Page FCC SAR REPORT Applicant: Shenzhen siswoo mobile technology co.,ltd Address of Applicant: room 1701, haisong building, tairang road 9, futian district shenzhen city, China Equipment Under Test (EUT) Product Name: Mobile Phone Model No.: Trade mark: C50, C50A, C55A, C5, C45, A4, A4+, A5, A5+, A6, i7, C55, C60, M3, MG12 APRIX, SISWOO FCC ID: 2AEW7SISWOOC50A Applicable standards: FCC 47 CFR Part 2.1093 Date of Test: 26 May., 2015 ~ 09 Jun., 2015 Test Result: Maximum Reported 1-g SAR (W/kg) Head: 0.753 Body: 1.387 Hotspot: 1.387 Report No: CCIS15050032201 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS150500322RF No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 2 of 287 2 Version Version No. Date Description 02 31 Jul., 2015 Original Prepared by: Date: 31 Jul., 2015 Report Clerk Reviewed by: Date: 31 Jul., 2015 Project Engineer Report No: CCIS15050032201 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS150500322RF No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 3 of 287 3 Contents 1 COVER PAGE ....................................................................................................................................................... 1 2 VERSION ............................................................................................................................................................... 2 3 CONTENTS ........................................................................................................................................................... 3 4 SAR RESULTS SUMMARY ................................................................................................................................. 5 5 GENERAL INFORMATION .................................................................................................................................. 7 5.1 CLIENT INFORMATION ..................................................................................................................................................................... 7 5.2 GENERAL DESCRIPTION OF EUT ................................................................................................................................................... 7 5.3 MAXIMUM RF OUTPUT POWER ...................................................................................................................................................... 8 5.4 ENVIRONMENT OF TEST SITE ......................................................................................................................................................... 9 5.5 TEST LOCATION ............................................................................................................................................................................. 9 6 INTRODUCTION ................................................................................................................................................. 10 6.1 INTRODUCTION ............................................................................................................................................................................. 10 6.2 SAR DEFINITION .......................................................................................................................................................................... 10 7 RF EXPOSURE LIMITS ..................................................................................................................................... 11 7.1 UNCONTROLLED ENVIRONMENT ................................................................................................................................................... 11 7.2 CONTROLLED ENVIRONMENT ....................................................................................................................................................... 11 7.3 RF EXPOSURE LIMITS .................................................................................................................................................................. 11 8 SAR MEASUREMENT SYSTEM ....................................................................................................................... 12 8.1 E-FIELD PROBE............................................................................................................................................................................ 13 8.2 DATA ACQUISITION ELECTRONICS (DAE) .................................................................................................................................... 13 8.3 ROBOT ............…

Text truncated - open the document above for the full version.

Shenzhen Zhongjian Nanfang Testing Co., Ltd. Report No: CCIS15050032107 Authorized Signature: Bruce Zhang Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the CCIS product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 1 Cover Page FCC REPORT Applicant: Shenzhen siswoo mobile technology co., ltd Address of Applicant: room 1701, haisong building, tairang road 9, futian district shenzhen city, China Equipment Under Test (EUT) Product Name: Model No.: Trade mark: Mobile Phone C50, C50A, C55A, C5, C45, A4, A4+, A5, A5+, A6, i7, C55, C60, M3, MG12 APRIX, SISWOO FCC ID: 2AEW7SISWOOC50A Applicable standards: FCC CFR Title 47 Part 15 Subpart E Section 15.407 Date of sample receipt: 13 May, 2015 Date of Test: 14 May, to 10 Jun., 2015 Date of report issued: 11 Jun., 2015 Test Result: PASS* * In the configuration tested, the EUT complied with the standards specified above. Report No: CCIS15050032107 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS150500321RF No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 2 of 38 2 Version Version No. Date Description 00 11 Jun., 2015 Original Prepared by: Date: 11 Jun., 2015 Report Clerk Reviewed by: Date: 11 Jun., 2015 Project Engineer Report No: CCIS15050032107 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS150500321RF No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 3 of 38 3 Contents Page 1 COVER PAGE ................................................................................................................................................... 1 2 VERSION ........................................................................................................................................................... 2 3 CONTENTS ................................................................................................................................…

Text truncated - open the document above for the full version.
