2AEW9JVS-H411IP CAMERA With WIFI

User Manual 1 FCC Certification Requirements Caution: Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐ Reorient or relocate the receiving antenna. ‐ Increase the separation between the equipment and receiver. ‐ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐ Consult the dealer or an experienced radio/TV technician for help. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm form all persons. CHANGE THE DEFAULT PASSWORD Default Network Camera Account : Username: abc Password: 123 The default password (123) for the abc account is for first‐time log‐in purposes only. You should change this default password to better protect against security risks, such as the unauthorized access by others to the product that may prevent the product from functioning properly and/or lead to other undesirable consequences. For your privacy, we strongly recommend changing the password to something of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end‐user. 2 Contents 1. Introduction ......................................................................................................................................3 1.1 Appearance and Interface...................................................................................................3 1.2 Specification........................................................................................................................3 Installation.........................................................................................................................................4 2.1 Ceiling Mounting.................................................................................................................4 Network Connection.........................................................................................................................5 3.1 Wireless connection............................................................................................................5 3.2 Wired Connection ...............................................................................................................5 Preparation on Smart Phone (iOS, Android) .....................................................................................6 4.1 Get NVSIP APP.....................................................................................................................6 4.2 Register NVSIP Account.......................................................................................................6 4.3 Power‐on the Device...........................................................................................................6 Add HD Cloud Camera on Phone ......................................................................................................7 5.1 How to Choose Device Adding Methods.............................................................................7 5.2 Add by Sound Wave ............................................................................................................7 5.3 Add Wi‐Fi Device on iPhone................................................................................................9 5.4 Add Wi‐Fi Device on Android............................................................................................12 5.5 Add by Device ID ...............................................................................................................13 5.6 Scan devices in LAN...........................................................................................................14 3 1 Introduction 1.1 Appearance and Interface 1.2 Specification Image Sensor 1/4′′CMOS Resolution 1280×720 Pixel 1.0MP Frame Rate 25fps View Angle 71° Focus 3.6mm Fixed Local Storage 64G Infrared Lamp 10 LED Lamps IR distance（m） 10m Best distance（m） 8m Temperature ‐20°C～55°C Humidity 10%～90% Power Supply DC 5V/adapter AC 120V Power ≦3.2W Material White ABS+PC Size(W×H×D)(mm) 95×123×122 Weight(g) 300 4 2 Installation 2.1 Ceiling Mounting Before you start: This camera can be installed to wall/ceiling or fixed on desktop. Ceiling mounting is taken as an example in this section; if you adopt wall mounting, you can also take below procedure as a reference. Steps: 1. Attach the mounting base (not provided) to the…

Text truncated - open the document above for the full version.

Jovision Technology Co.,Ltd. Floor11,Building D,In-hi Tech Square,No.2008 Xinluo Street,Jinan,Shandong,China Confidentia lity Request Letter Page 1 of 1 Rev 2.0 June 28, 2015 To : Federa l Co mmunica tio ns Co mmis s io n A ut hor izat io n and E va lua t io n D ivi s io n 7435 Oakland Mills Road Columbia, MD - Block Diagram Permanent Confidentiality Request Confid e ntia lity Req uest re gard ing a pp lica tio n fo r certificatio n o f FCC ID:2A EW9J VS-H411 We hereby request confidential treatment of information accompanying this application as outlined below: - Operational Description - Sche matic The abo ve mate ria ls co nta in t rade sec rets a nd propr ieta ry info rma tio n no t c us to marily re lea sed to t he p ub lic. The p ub lic d isc los ure o f these mate ria ls ma y be harmful to t he app lica nt a nd provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this app lica tio n a nd a ll accompanying documentation will not be made before the date of the Gra nt for this app lica tio n. Sinc ere ly, Clie nt’s s ignat ure: Clie nt’s na me / title: peter zhang/ Manager Contact information / address: Floor11,Building D,In-hi T ec h Square,No.2008 Xinluo Street, J ina n,S ha ndo ng,C hi na TEL: 0086-531-55515736-6888 F AX : 0086-531-68621537 E- ma il: liuxl@ jo vis io n.co m

Jovision Technology Co.,Ltd. Floor11,Building D,In-hi Tech Square,No.2008 Xinluo Street,Jinan,Shandong,China Date: June 28, 2015 Subject: the operating frequency and non-US frequencies Declaration FCC ID:2AEW9JVS-H411 To Whom it may concern, This device is acting as slave and operating in the 2.4 GHz (2412 – 2462 MHz) band.the operating frequency not able to operate on non-US frequencies.The EUT not support Ad-hoc mode. Please contact the one signed below or the authorized agent for this filing. Thank you. Regards, Client’s signature: Client’s name / title: peter zhang/ Manager Contact information / address: Floor11,Building D,In-hi Tech Square,No.2008 Xinluo Street,Jinan,Shandong,China TEL: 0086-531-55515736-6888 FAX: 0086-531-68621537 E-mail: [email protected]

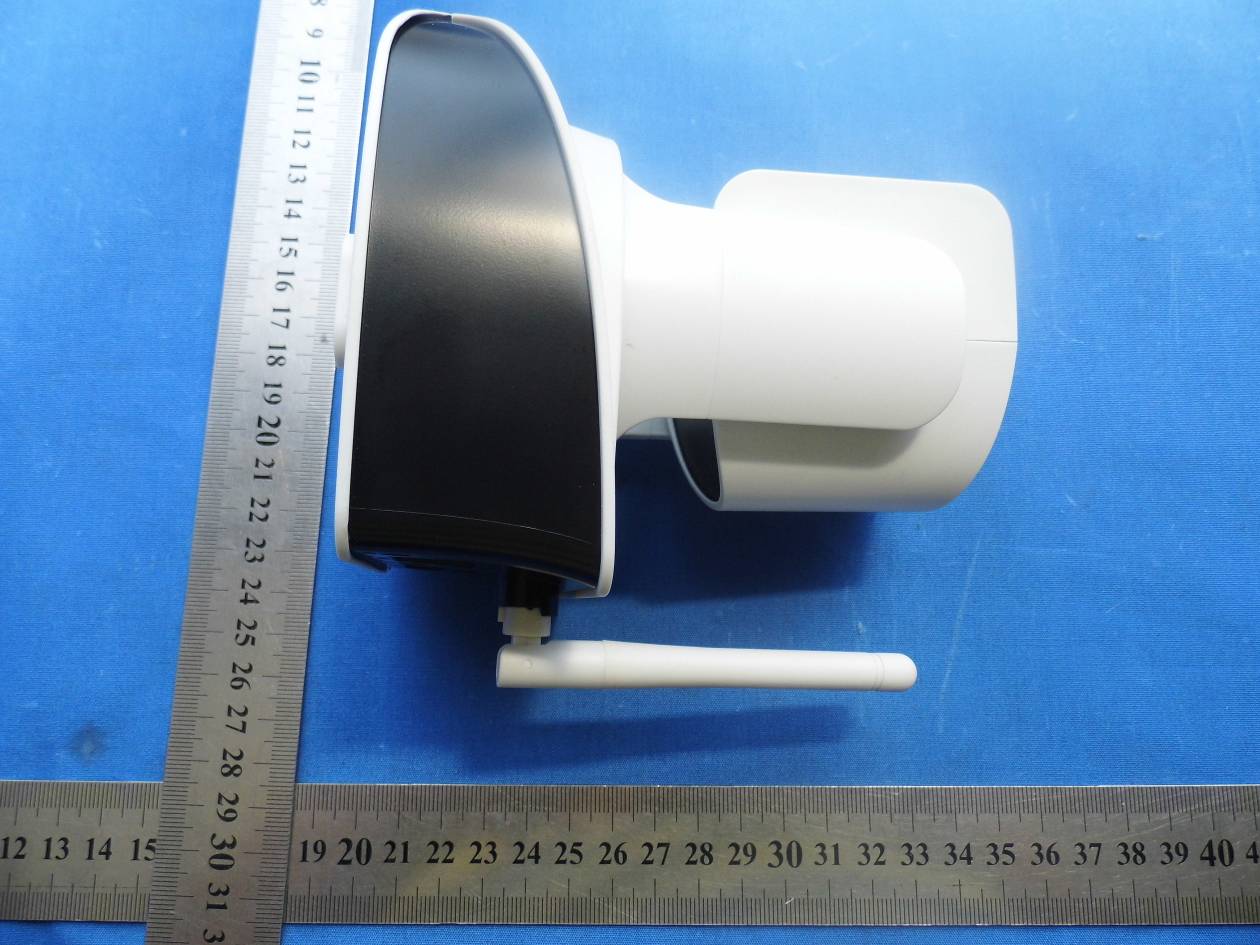

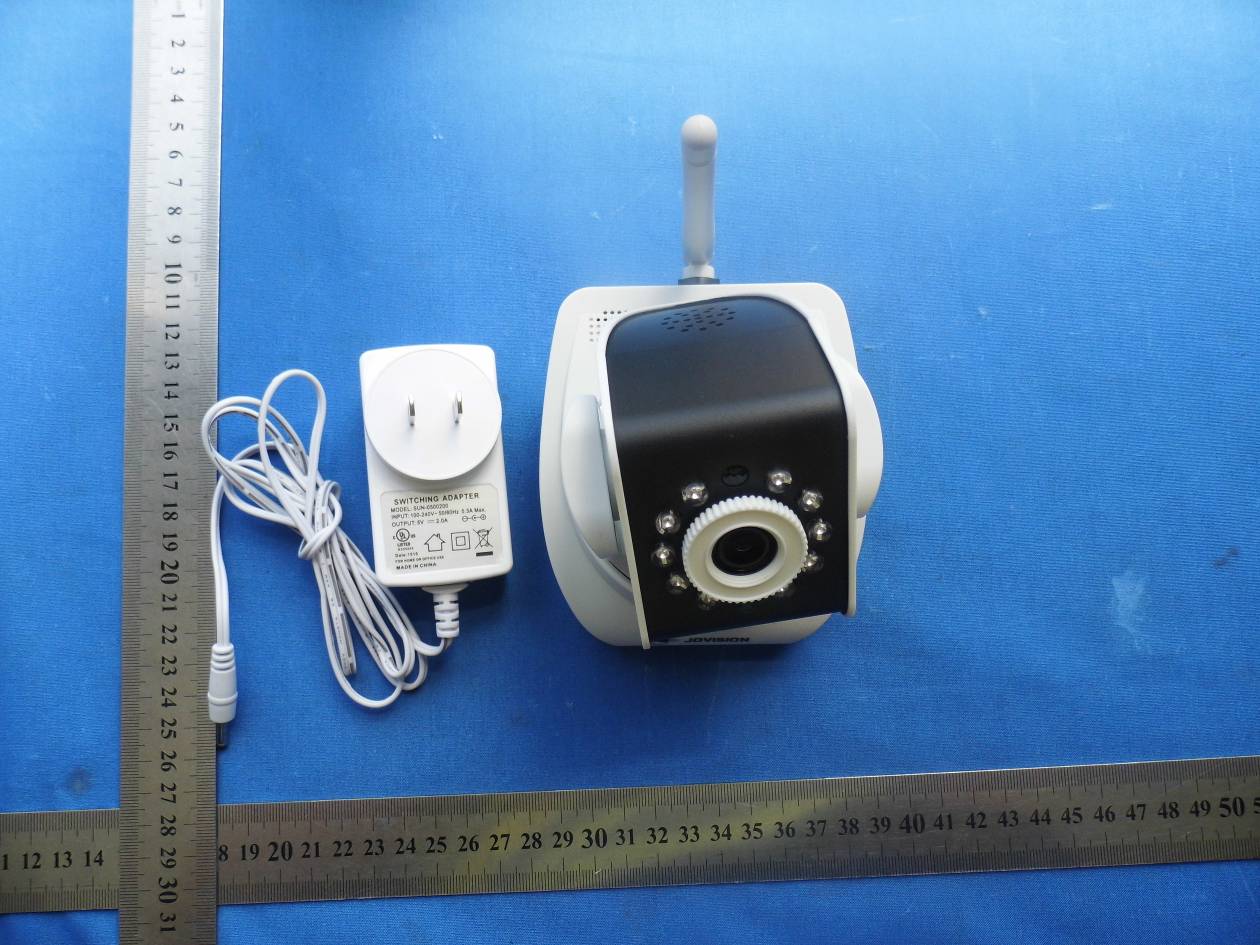

External Photo

FCC Certification Label FCC ID:2AEW9JVS-H411 Label Location on EUT label size:high 1.5cm, Wide:4 cm EUT View/ FCC ID Label Location Tra de Name: Model Number:JVS-H411

Internal Photo WIFI Antenna

1 Maximum Permissible Exposure report For Jovision Technology Co.,Ltd. Floor11,Building D,In-hi Tech Square,No.2008 Xinluo Street,Jinan,Shandong,China FCC ID:2AEW9JVS-H411 Trade: This Report Concerns: Original Report Equipment Type: IP CAMERA With WIFI Test Engineer: Lisa Chen Report No.: BSL20150628-6 Receive EUT Date/Test Date: June 9, 2015/ June 9 - June 19, 2015 Reviewed By: Mike Moo Prepared By: BSL Testing Co.,LTD. NO. 24, ZH Park, Nantou, Shenzhen, 518000 China Tel: 86- 755-26508703 Fax: 86- 755-26508703 2 1.§ 15.247 (i) and §1.1307 (b) (1) – Maximum Permissible exposure (MPE) 1.1 Standard Applicable According to subpart 15.247 (i) and subpart 1.1307 (b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to RF energy level in excess of the communication guidelines. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3–3.0 614 1.63 *(100) 30 3.0–30 824/f 2.19/f *(180/f2) 30 30–300 27.5 0.073 0.2 30 300–1500 / / f/1500 30 1500–100,0 00 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density 1.2 Test Data Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG/4πR² S: Power density, in mW/cm² P: Power input to the antenna, in mW G: numeric gain of the antenna R: distance to the center of the antenna, in cm 3 802.11b Mode Maximum AV output power at antenna input terminal (dBm): 9.15 Maximum AV output power at antenna input terminal (mW): 8.22 Prediction distance (cm): 20 Prediction frequency (MHz): 2462 Antenna Gain, typical (dBi): 0 Maximum Antenna Gain (numeric): 1 Power density at predication frequency and distance (mW/cm 2 ): 0.00164 MPE limit for the predication frequency (mW/cm 2 ): 1.0 802.11g Mode Maximum AV output power at antenna input terminal (dBm): 9.55 Maximum AV output power at antenna input terminal (mW): 9.016 Prediction distance (cm): 20 Prediction frequency (MHz): 2437 Antenna Gain, typical (dBi): 0 Maximum Antenna Gain (numeric): 1 Power density at predication frequency and distance (mW/cm 2 ): 0.00179 MPE limit for the predication frequency (mW/cm 2 ): 1.0 802.11n Mode Maximum AV output power at antenna input terminal (dBm): 9.34 Maximum AV output power at antenna input terminal (mW): 8.59 Prediction distance (cm): 20 Prediction frequency (MHz): 2412 Antenna Gain, typical (dBi): 0 Maximum Antenna Gain (numeric): 1 Power density at predication frequency and distance (mW/cm 2 ): 0.00171 MPE limit for the predication frequency (mW/cm 2 ): 1.0 1.3 Test Result The device is compliant with the requirement MPE limit of General Population/Uncontrolled Exposure at predication frequency 1.0 mW/cm2 .And the precaution is outlined in the user’s manual to prevent to high level of RF energy.

FCC PART 15.247 EMI MEASUREMENT AND TEST REPORT For Jovision Technology Co.,Ltd. Floor11,Building D,In-hi Tech Square,No.2008 Xinluo Street,Jinan,Shandong,China FCC ID:2AEW9JVS-H411 Trade: This Report Concerns: Original Report Equipment Type: IP CAMERA With WIFI Test Engineer: Lisa Chen Report No.: BSL20150619-3 Receive EUT Date/Test Date: June 9, 2015/ June 9 - June 19, 2015 Reviewed By: Mike moo Prepared By: BSL Testing Co.,LTD. NO. 24, ZH Park, Nantou, Shenzhen, 518000 China Tel: 86- 755-26508703 Fax: 86- 755-26508703 FCC ID:2AEW9JVS-H411 Page 2/47 TABLE OF CONTENTS 1. GENERAL INFORMATION ....................................................................................................4 1.1. Report information ............................................................................................................4 1.2. Measurement Uncertainty .................................................................................................4 2. PRODUCT DESCRIPTION ......................................................................................................5 2.1. EUT Description ...............................................................................................................5 2.2. Block Diagram of EUT Configuration..............................................................................6 2.3. Support Equipment List ....................................................................................................6 2.4. Test Conditions .................................................................................................................6 3. TEST RESULTS SUMMARY ...................................................................................................7 Modifications ................................................................................................................................7 4. TEST EQUIPMENT USED .......................................................................................................8 5. §15.203 - ANTENNA REQUIREMENT ...................................................................................9 5.1. Standard Applicable..........................................................................................................9 5.2. Antenna Connector Construction......................................................................................9 5.3. Result ................................................................................................................................9 6. §15.207 - CONDUCTED EMISSIONS....................................................................................10 6.1. Applicable Standard........................................................................................................10 6.2. Test Procedure ................................................................................................................10 6.3. Conducted Power line Emission Limits..........................................................................10 6.4. Block Diagram of Test Setup..........................................................................................10 6.5. Conducted Power Line Test Result.................................................................................11 7. §15.209, §15.205, §15.247(D) - SPURIOUS EMISSIONS .....................................................13 7.1. Test Equipment ...............................................................................................................13 7.2. Test Procedure ................................................................................................................13 7.3. Radiated Test Setup ........................................................................................................13 7.4. Radiated Emission Limit.................................................................................................15 7.5. Radiated Emission Test Result .......................................................................................16 7.6. Conducted Emission Method ..........................................................................................21 7.7. Test Requirement: ...........................................................................................................21 7.8. Limit:...............................................................................................................................21 7.9. Test Setup........................................................................................................................21 7.10. Test Result ......................................................................................................................21 8. §15.247(A) (2) – 6DB BANDWIDTH TESTING....................................................................28 8.1. Test Equipment ...............................................................................................................28 8.2. Test Procedure ................................................................................................................28 8.3. Applicable Standard........................................................................................................28 8.4. Test Result:Pass. .............................................................................................................28 9. §15.247(B) (3) - MAXIMUM OUTPUT POWER ..................................................................35 9.1. Test Equipment ...............................................................................................................35 FCC ID:2AEW9JVS-H411 Page 3/47 9.2. Test Procedure ................................................................................................................35 9.3. Applicable Standard........................................................................................................35 9.4. Test Result .......................................................................................…

Text truncated - open the document above for the full version.

Conducted emissions test Radiated emissions test
