2AEX5-PBWC-02057Qubi WPB2

使用手冊 Otta–Qubi 無線暨USB可充式鋰聚合物行動電源2 內置電池容量5000mAh型號 PBWC-02055GBBAB, PBWC-02055GWWAB, 內置電池容量7000mAh型號 PBWC-02057GBXXB, PBWC-02057GWXXB, 感謝您選購Otta無線電源解決方案。為充分瞭解本裝置的用 法及所有功能，請閱讀本手冊內的各項說明。 1)電源按紐 2)LED電池狀態指示燈 3)USB輸入 4)USB輸出 5)無線充電板 RX無線充電接收器收納空間 Qubi行動電源的功能： 電池容量5000或7000 mAh（請參閱產品標籤） 能充飽一般智慧型手機2 ~ 4次 （視手機電池容量而定） 擁有智慧型充電功能： 行動電源本身進行充電時，亦可經由行動電源同時為裝 置充電透過LED指示燈，即可輕鬆瞭解行動電源的電池狀態 無線充電： 1)按下行動電源裝置上的電源按鈕，啟動無線充電功能 2)將已有內建無線充電轉接器的裝置或外接無線充電轉接 器的裝置，放置於Qubi WPB2的無線充電板上，一秒內即開 始進行無線充電 3)LED指示燈點亮時，表示正在為您的裝置充電 4)裝置的電量充滿後，行動電源將自動停止輸出電力 USB充電： 1)只需將裝置的充電線插入行動電源的USB輸出埠，即可立 即進行充電 2)LED指示燈閃爍時，表示正在為您的裝置充電 注意：不可同時使用無線充電與USB為裝置進行充電 規格： 機型名稱：Otta-Qubi 無線暨USB可充式鋰聚合物行動電源2 電池組代號: 1lCP62/53/104; 1ICP62/53/104-2 額定電容量：2950mAh; 4590mAh 額定輸入電壓電流: 5Vdc/2A; 額定輸出電壓電流: USB 5Vdc/2.1A; 無線 5Vdc/1A 內置電池容量: 3.8V/5000mAh; 3.8V/7000mAh 操作溫度：0 ~ 45°C 產品尺寸：144 X 61 x 17.5mm 重量：221g (5000mAh); 230g（7000 mAh） 生產國別: Made in Taiwan 包裝內容物：行動電源、USB傳輸線及使用手冊 警語: 電池長時間處於充電狀態會有爆炸危險,棄置時應妥善處理. 詳細注意事項請參照說明書. 安全注意事項： 1.行動電源配備有保護用彩殼及內部電子線路。切勿自行 拆解，以免影響您的產品保固權益 2.使用行動電源時，應避免高電壓及大電流的應用方式 3.切勿於任何可能產生高能量電磁波的設備附近，使用或 放置行動電源 4.切勿使行動電源摔落 5.請將行動電源放置於孩童無法取得之處 6.請將行動電源放置於乾燥處。切勿將行動電源放置於潮 濕處或於潮濕處使用，亦不得使行動電源浸入水中 7.請將行動電源放置於涼爽處，切勿使行動電源接近火爐 源、暖爐或任何加熱設備 NCC警語: 本產品符合低功率電波輻射性電機管理辦法：第十二條經形式認證 合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅 自變更頻率、加大功率或變更原設計之特性及功能。第十四條低功 率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干 擾現象時，應立即停用，並改善至無干擾時方的繼續使用。前項合 法通信，指依電信規定作業之無線電信。低功率射頻電機須忍受合 法通信或工業、科學及醫療用電波輻射性電機設備之干擾。 保固資訊： 有限保固： Otta產品若出現材料或製作工藝上的瑕疵，Otta提供自購買日起一 年的保固。在此有限保固期間，Otta將免費修復或更換正常使用下 故障的零組件。本有限保固不適用於： 1. 因誤用、意外、濫用、火災或其他不可抗力因素所造成的損壞； 2. 表面刮傷、凹痕等機體損傷； 3. 電池等消耗性零組件，除非是因材料或工藝瑕疵所造成的損壞； 4. 非聯昌電子授權服務供應商所造成的損壞。 本產品保固條款如下： 1. 如需取得保固服務，請出示購買證明、原經銷商開具的收據正本 或副本。 2. Otta保留自行斟酌產品的修復、或更換或原價退款的權利。 3. 經由線上拍賣所購得的產品，若有任何零組件短少的情形，Otta 恕不負責。如需取得有限保固服務，請出示原經銷商開具的收據 正本或副本。 4. 本有限保固將包含保固期內產品的檢查及維修費用。故障產品應 由買方自行負擔送返指定地點的運費，並附上購買證明。 5. 所有換下的故障產品或零組件將屬Otta所有。 6. 由Otta所修復或更換的零組件仍適用於原有的一年保固期，或擁 有修復、更換後90天的保固期，以時間較長者為準。 7. 若為跨國購買，則可能由國際經銷商另行提供保固，視各國適用 條款而定。適用狀況下，本保固將由當地國內經銷商提供，而此 經銷商亦提供您裝置的當地服務項目。經銷商所提供的保固，僅 適用於特定的經銷區。 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Instructions manual Otta – Qubi Wireless charging Power Bank 2 Thank you for choosing Otta wireless power solution. Please read the instructions inthis manual to learn the usage and full functions of our device. 1) Power Button 2) LED Battery Status Indicator 3) USB Input 4) USB Output 5) Wireless Charging Landing Pad RX receiver storage Qubi Power Bank Features: Qubi WPB2 is a power bank built-in wireless charging solution, make you enjoy the convenience of no cable life. Battery capacity of 5000 or 7000 mAh (please refer to packaging label), is able to charge a smart phone for average 2 to 4 full times depending on your device’s capacity. Smart Charging: 1)Able to charge up to 2 devices simultaneously (via Wireless and USB charging); 2)Able to charge Power Bank and mobile devices simultaneously. LED indicator to monitor Power Bank battery status easily. Charging the Qubi Power Bank: Please fully charge the Power Bank before use. You can charge the Power Bank via Micro-USB with a power adapter (not included in the package). You can charge the Power Bank via USB cable (included in the package) with a computer. LED Battery Power Level Indicator light up when charging. When power bank is fully charged, LED indicator will light up green steadily. Charging your devices with Power Bank: You can charge your device(s) via wireless charging and/or via USB at the same time Wireless Charging: 1)You can charge your device with an wireless receiver(Rx) attached at your device or a self-adapted wireless charging device. 2)Press the Button on Power Bank to activate wireless charging. 3)Place device on the Power Landing Pad logo on the charging side of Power Bank. 4)Wireless Charging should commence within one second. 5)LED indicator would light up to indicate charging in progress. 6)Once fully charged, Power Bank would automatically stop power output as intelligent charging. USB Charging: Simply connect your device to USB output port of Power Bank via charging cable, device charging would start without additional steps. LED indicator would light up to indicate charging in progress. Notice:Do not use USB and wireless charging at the same time. Specifica…

Text truncated - open the document above for the full version.

LIEN CHANG Wireless Charger Power Output Control Diagram 110-205 kHz

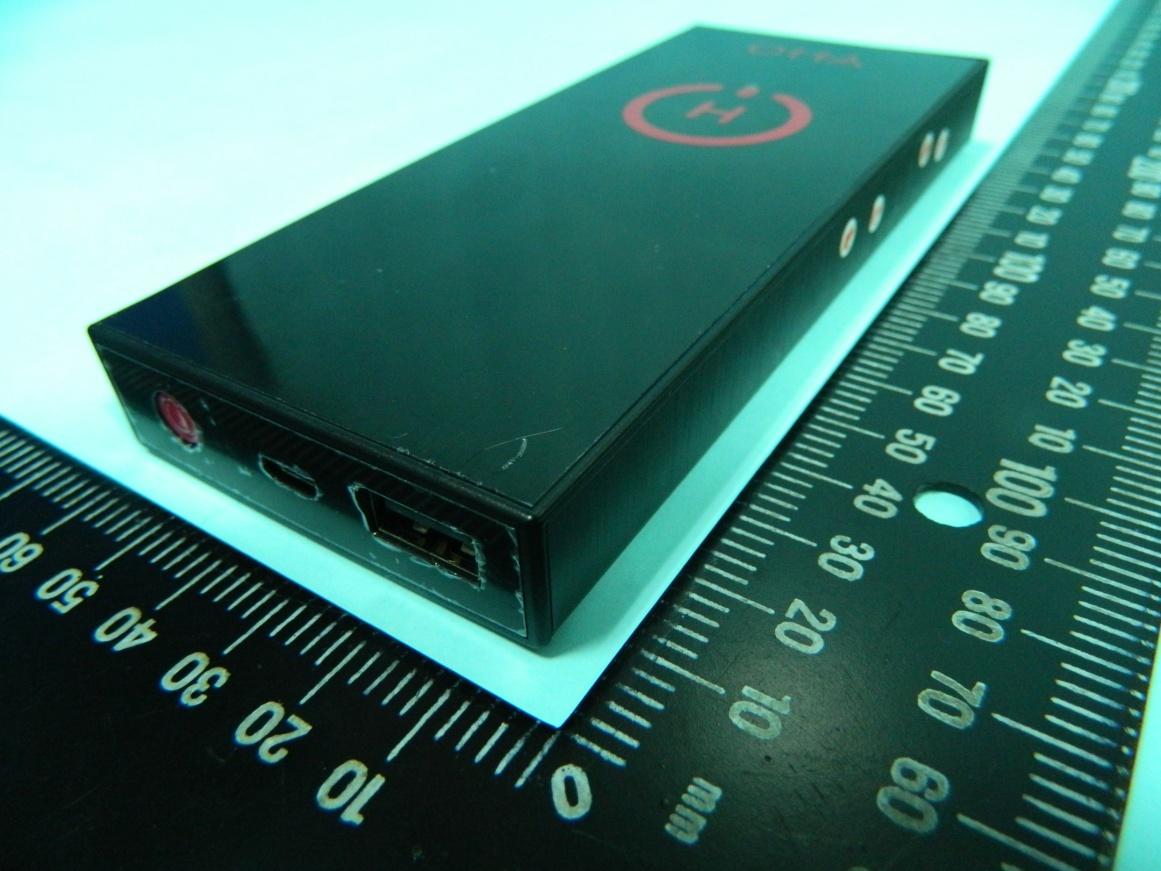

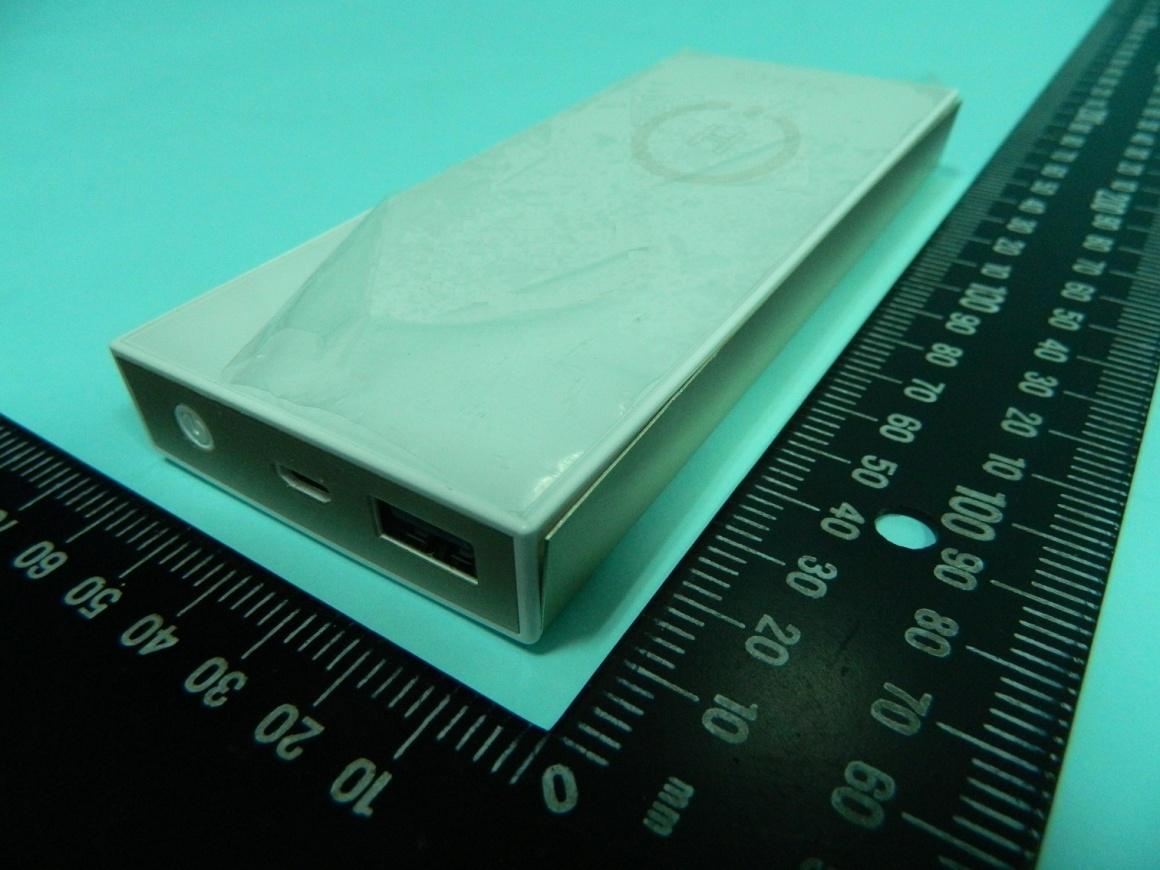

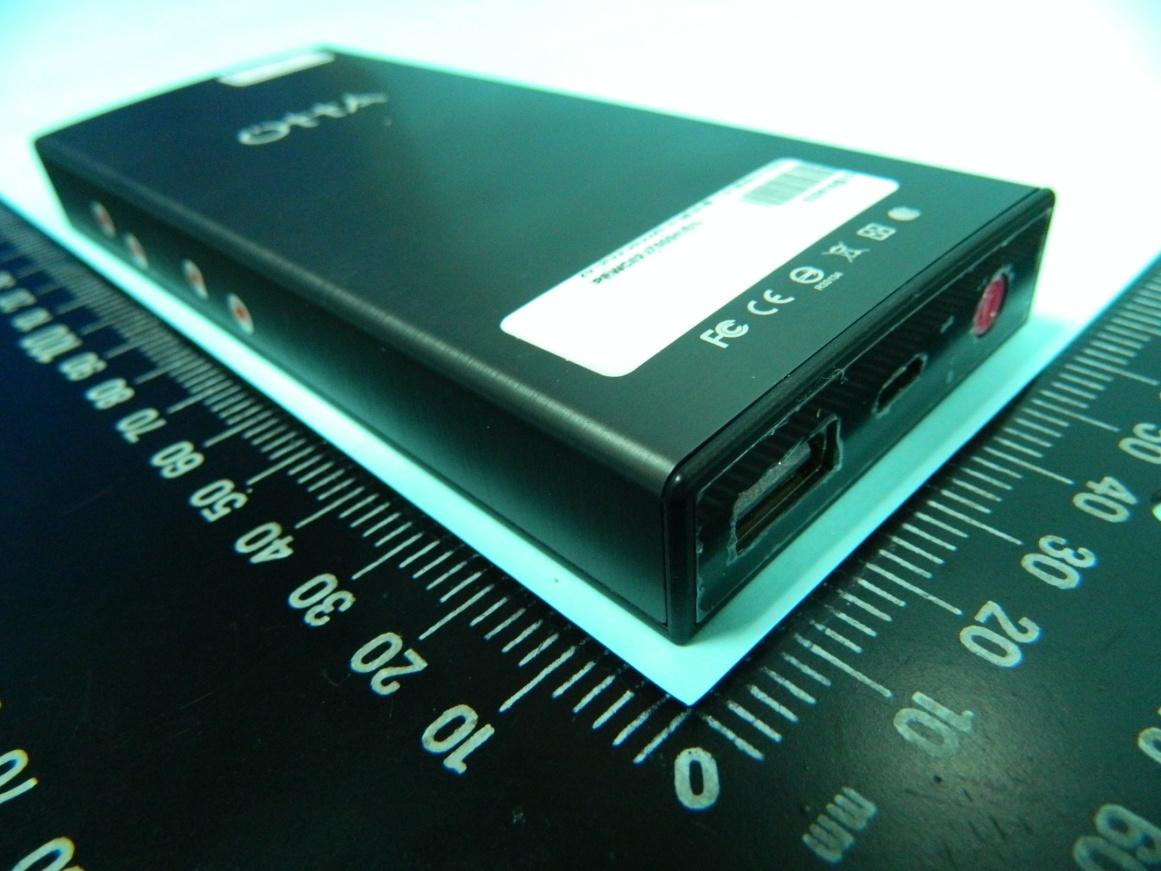

FCC Test Report Report No. : FR532616 SPORTON International Inc. Page Number : B1 of B23 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Sample 1 APPENDIX B. Photographs of EUT FCC Test Report Report No. : FR532616 SPORTON International Inc. Page Number : B2 of B23 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Sample 2 FCC Test Report Report No. : FR532616 SPORTON International Inc. Page Number : B3 of B23 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 FCC Test Report Report No. : FR532616 SPORTON International Inc. Page Number : B12 of B23 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Sample 3 FCC Test Report Report No. : FR532616 SPORTON International Inc. Page Number : B13 of B23 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Sample 4 FCC Test Report Report No. : FR532616 SPORTON International Inc. Page Number : B14 of B23 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973

Label location

FCC Test Report Report No. : FR532616 SPORTON International Inc. Page Number : B4 of B23 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Sample 1 Sample 2 FCC Test Report Report No. : FR532616 SPORTON International Inc. Page Number : B5 of B23 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 FCC Test Report Report No. : FR532616 SPORTON International Inc. Page Number : B6 of B23 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 FCC Test Report Report No. : FR532616 SPORTON International Inc. Page Number : B7 of B23 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 FCC Test Report Report No. : FR532616 SPORTON International Inc. Page Number : B8 of B23 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 FCC Test Report Report No. : FR532616 SPORTON International Inc. Page Number : B9 of B23 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 IC Location FCC Test Report Report No. : FR532616 SPORTON International Inc. Page Number : B10 of B23 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 FCC Test Report Report No. : FR532616 SPORTON International Inc. Page Number : B11 of B23 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 FCC Test Report Report No. : FR532616 SPORTON International Inc. Page Number : B15 of B23 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Sample 3 Sample 4 FCC Test Report Report No. : FR532616 SPORTON International Inc. Page Number : B16 of B23 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 FCC Test Report Report No. : FR532616 SPORTON International Inc. Page Number : B17 of B23 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 IC Location FCC Test Report Report No. : FR532616 SPORTON International Inc. Page Number : B18 of B23 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 FCC Test Report Report No. : FR532616 SPORTON International Inc. Page Number : B19 of B23 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 FCC Test Report Report No. : FR532616 SPORTON International Inc. Page Number : B20 of B23 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 FCC Test Report Report No. : FR532616 SPORTON International Inc. Page Number : B21 of B23 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 FCC Test Report Report No. : FR532616 SPORTON International Inc. Page Number : B22 of B23 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 FCC Test Report Report No. : FR532616 SPORTON International Inc. Page Number : B23 of B23 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 USB Cable

About Product OTTA Qubi-WPB2 is a device combined both mobile power bank and wireless charging functions together as a new tech trend product End user is easily to re-charge their mobile phone through wired or wireless method to extend their mobile phone battery life. About Qi Qi is a global standard that makes wireless charging possible for your device. With a Qi-compatible device (Or used Qubi-WPB2 embedded Qi-compatible receiver connected to device), you don't need to connect any cables. You just place your device on the wireless charging area surface. Qi works using magnetic induction, and is currently designed for devices that use 5watts of power or less, such as mobile phones. Qi chargers and devices use the same frequency, so as long as their active areas are touching, all Qi products are compatible, regardless of manufacturer or brand. Operation Description Wireless Charging 1. Operation Frequency 110kHz ~ 205kHz. 2. Push power bottom of Qubi-WPB2 to start embedded wireless charger transmitter operating. At the beginning of transmitter operating, transmitter operate at ping-phase, transmitter apply power signal at operating point . And if transmitter does not detect the start of a Packet within 70mS, transmitter will remove power signal automatically. 3. While Transmitter received the signal strength of Packet, it will process identification & configuration phase of power transfer, maintain the power signal operated frequency swing between 110KHz ~ 205KHz depend on load demand. 4. If transmitter does not correctly receive Packet during identification & configuration phase within 90mS; or transmitter received “End Power Transfer Packet”; Transmitter will remove power signal automatically. 5. During charging device, Qubi-WPB2 will light up color LED to indicate battery capacity, user can identify capacity through LED lighting color. USB Charging Qubi-WPB2 has build-in automatically USB port plug-in detection function. User can easily use power bank function by plug-in USB cable connected with charging device. Charging Power Bank Qubi-WPB2 has build-in smart charging function to adopt different 5V charging sources ( Computer USB port, Wall Charger, Car Charger.....; 5V output device. While plug-in 5V source through MicroUSB port of Power bank; the charging function will draw power as high as possible till input 5V drop to 4.6V(calculated the wire loss), and maintain this highest current drawing to charge power bank.

1 1 2 2 3 3 4 4 DD CC BB AA Title NumberRevisionSize A4 Date:2015/7/7Sheet of File:D:\3_PB\..\PG-033 TX_V02_20140616.SchDocDrawn By: GPMQ8005A P14 1 P15 2 RESET 3 P30 4 P31 5 P32 6 P33 7 P34 8 P35 9 N C 2 2 N C 4 8 N C 4 7 TEST 10 VPP 11 VNN 12 P 3 6 1 3 P 3 7 1 4 G N D 1 5 P 2 7 1 6 P 2 0 1 7 P 2 1 1 8 P 2 2 1 9 P41 31 P42 30 P43 29 P44 28 V18 27 P26 26 P25 25 G N D _ R 2 4 V 1 8 _ R 2 3 P 2 4 2 1 P 2 3 2 0 V C C 4 2 P 0 0 4 1 P 0 1 4 0 P 0 2 3 9 P 0 3 3 8 P 0 4 3 7 P05 36 P06 35 P07 34 AGND 33 P40 32 P 1 1 4 3 P 1 2 4 4 P 1 3 4 5 N C 4 6 U3 MQ8005A_LQF48 C23 10uF/6.3V REF SDA P 0 6 P W M 3 P 3 6 P 3 7 P 2 7 P 2 0 P W M 2 P W M 1 P W M 0 MOD SCK P30 P31 P35 P 0 2 P 0 1 P 0 0 V D D C A P 0 O U T C A P 1 O U T R 3 3 5 1 K O h m R 3 2 5 1 K O h m R 3 1 5 1 K O h m R 3 0 5 1 K O h m VDD R 1 7 1 0 K O h m R 2 0 T S _ T S M 1 1 0 3 C 4 1 0 4 P C 5 1 0 4 P C 6 1 0 3 P 3 1 2 Z D 1 T L 4 3 1 - 2 . 5 C 2 1 0 2 P R 1 8 3 3 0 O h m C 1 4 1 0 4 P C 1 3 1 0 u F / 6 . 3 V R371K Ohm R341K Ohm L3 0 . 0 8 m m x 1 0 5 x 1 0 T D u a l 6 . 3 u H Pwm 3 Ugate 1 Phase 8 Fccm 7 Vcc 6 Lgate 5 Boost 2 Gnd 4 T.P 9 Q2 ISL6208CBZ Pwm 3 Ugate 1 Phase 8 Fccm 7 Vcc 6 Lgate 5 Boost 2 Gnd 4 T.P 9 Q5 ISL6208CBZ 1 3 2 Q6 PMN3610 1 3 2 Q4 PMN3610 1 3 2 Q3 PMN3610 1 3 2 Q1 PMN3610 R404.7 Ohm R384.7 Ohm R294.7 Ohm R354.7 Ohm C34 104P C28 104P C32224P C38224P PWM2 PWM1 C35 10uF/6.3V C30 10uF/6.3V C36 104P C31 104P I_DC I_DC R43 50m ohms 1% C 2 4 1 0 4 P 5 0 V N P O C 2 5 1 0 4 P 5 0 V N P O C 2 6 1 0 4 P 5 0 V N P O C 2 7 1 0 4 P 5 0 V N P O C29 4n7F C37 4n7F VPP VPP VDD VDD 1IN- 2 GND 4 2IN+ 5 2IN- 6 2OUT 7 VCC 8 1IN+ 3 1OUT 1 U1BA2904FVM 1IN- 2 GND 4 2IN+ 5 2IN- 6 2OUT 7 VCC 8 1IN+ 3 1OUT 1 U4BA2904FVM 1IN- 2 GND 4 2IN+ 5 2IN- 6 2OUT 7 VCC 8 1IN+ 3 1OUT 1 U2BA2904FVM 1IN- 2 GND 4 2IN+ 5 2IN- 6 2OUT 7 VCC 8 1IN+ 3 1OUT 1 U5BA2904FVM C8 1uF/10V C3 104P C7 472P C 1 2 1 0 4 P C10 472P C1 562P C9 103P C 3 3 4 7 2 P C11 103P C19 472P C15 104P C20 472P C16 472P C17 104P R50 Ohm R816K Ohm R43K Ohm R16 1K Ohm R2310KOhmR2210KOhm R261K Ohm R 2 4 3 . 9 K O h m R2810KOhm R2110KOhm R27 10KOhm R42 680K Ohm R41 3K Ohm R39 51K Ohm R11.5K Ohm R 1 0 3 3 K O h m R 2 1 0 0 K O h m R 1 3 6 8 K O h m R1510KOhm R14 100K Ohm R112.2M Ohm R6 10KOhm R710KOhm R3100K Ohm R 9 6 8 0 K O h m R123K Ohm D 5 1N4148 D 1 1 N 4 1 4 8 V_BACK P02 V_BACKVDD V D D MOD I_DC AMP_I_OUT P06 AMP_I_OUT VDD CAP0 OUT R2510KOhm R191M Ohm VDD CAP1 OUT C18 1uF/10V WS1short VPPVDD L1 0 ohms L2 0 ohms C21 104P VDD 1 W T P 4 T P 1 . 0 1 W T P 5 T P 1 . 0 P37 P31 SDA SCK VPP PG-012 wireless charge PG-012-002 1.0 WLGND WL+ VDD C22 10uF/6.3V B 1 B u z z e r R 4 4 1 5 K O h m C39 10uF/6.3V P36 VDD 1 2 3 4 J1 TEST POINT T1 1 T2 2 T3 3 RSTB 4 VDD 8 NC 7 ROSC 6 VSS 5 U6 GPM60001A 1 2 3 4 J2 FPC_CNN_4PIN R 4 5 1 K O h m @ 1 2 3 4 J3 BM02B-ACHLKS P J 1 J u m p 1 5 0 O h m P J 2 J u m p 1 5 0 O h m WL+ WLGND 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 DD CC BB AA Title NumberRevisionSize A3 Date:2015/7/7Sheet of File:D:\3_PB\..\PG033N PWR V02_Dual Battery_1401224.SchDocDrawn By: VIN BAT1+ BAT+ VSS 6 O D 1 T D 4 VCC 5 CS 2 O C 3 PU2 FS326+G PR10 1K Ohm/1% PR1 1K Ohm PC10 0.1uF BAT1- D C H G _ C U R D+ D- 1 TP4 TP1.5 PR7 174K Ohm/1% 1 T P 7 B a t t _ p a d _ W 8 1 T P 8 B a t t _ p a d _ W 8 S1 3 D1 1 D2 8 S2 7 S2 6 G2 5 S1 2 G1 4 PQ5PDEW2206 S1 3 D1 1 D2 8 S2 7 S2 6 G2 5 S1 2 G1 4 PQ6PDEW2206 PC220.1uF P C 9 1 U F / 6 . 3 V @ 1 TP5 TP1.5 1 TP6 TP1.5 1 TP11 TP1.0 PC28 0.1uF/ 0603 @ ILIM 6 P G N D 2 7 CSP 18 F B 1 1 ACOK 10 CHG 23 VIN 4 REG 9 VCC 5 BATT 17 NTC 12 EN 25 BOOST 22 S Y S 3 MODE 24 PWIN 7 TMR 8 SW 2 VB 16 A G N D 1 5 ISET 13 O L I M 1 4 FREQ 26 I B 1 VIN 19 P G N D 2 8 SW 21 S Y S 2 0 VIN VIN S Y S S Y S PU1 MP2636 1 2 4 3 PL2 WCM-4532-801A23T@ PB1 0 Ohm PB2 0 Ohm P C 3 9 1 U F / 6 . 3 V @ USB_IN PR21 22K Ohm 1% 5VO_EN1 P R 1 1 2 3 . 7 K O h m 1 % P R 1 4 5 . 1 K O h m 1 % P R 1 5 1 7 . 4 K O h m 0 . 5 % P R 1 2 4 9 . 9 K O h m 0 . 5 % PR2 43K Ohm 1% PR3 13K Ohm 1% PR4 39K Ohm 1% PL1 2.2UH PR5 20m Ohm 1% PR13 10K Ohm P R 1 6 1 0 K O h m OUT+ P R 3 4 4 9 . 9 K O h m 1 % P C 1 5 0 . 2 2 u F ACOK CHG_EN PC16 100pF S 3 s h o r t S 2 s h o r t STATUSVCC1 GND1 GND1 GND1 GND1 P C 7 1 u F / 1 6 V P C 4 2 2 u F / 6 . 3 V PC1 2.2uF 0603 P C 3 1 0 0 u F / 6 . 3 V P C 8 1 0 0 u F / 6 . 3 V P C 6 2 2 u F / 6 . 3 V PC14 0.1uF 1 3 2 PQ2 2N7002 P R 1 9 4 7 0 K O h m P R 2 0 4 7 0 K O h m ACOK PD1 1N4148 CHA VCC1 OUT+ GND1 PR33 22K Ohm 1% 5VO_EN2 PC36 1uF/16V P R 3 7 2 3 . 7 K O h m 1 % P R 4 6 5 . 1 K O h m 1 % P R 4 7 1 7 . 4 K O h m 0 . 5 % P R 3 6 4 9 . 9 K O h m 0 . 5 % PR28 43K Ohm 1% PR32 13K Ohm 1% PR35 39K Ohm 1% PL4 2.2UH PR27 20m Ohm 1% PR24 10K Ohm P R 4 9 1 0 K O h m WL+ P R 2 6 4 9 . 9 K O h m 1 % P C 4 0 0 . 2 2 u F S4 short S5 short VCC2 GND2 GND2 GND2GND2 GND2 GND2 GND2 P C 3 1 1 u F / 1 6 V P C 2 5 2 2 u F / 6 . 3 V P C 2 9 2 . 2 u F 0 6 0 3 P C 2 4 1 0 0 u F / 6 . 3 V @ ILIM 1.2V 0.8~1.15V VIN 1 TP9 TP1.5 BAT+ P C 1 9 2 2 u F / 6 . 3 V P C 2 0 2 2 u F / 6 . 3 V @ GND2 WL+ BAT+ P C 5 0 . 1 u F P C 1 3 0 . 1 u F P C 1 2 2 2 u F / 6 . 3 V P C 1 1 2 2 u F / 6 . 3 V DBG MCU_VCC OC S1 CHA MCU_GND PC34 100pF PR31 470 Ohm PC32 223P/16V PR30 4.7K Ohm PS5 Short_pad LEDG ADC 5VO_EN1 PR29 4.7K Ohm X0/PF0 1 X1/PF1 2 GND 3 X1A/PG2 4 X0A/PG1 5 VCC 6 CPIN 7 RSTX/PF2 8 TO10/P62 9 TO11/P63 10 P64/EC1 11 P00/AN00 12 P01/AN01 13 P02/AN02 14 P03/AN03 15 P04/AN04 16 P05/AN05 17 P06/INT06 18 P07/INT07 19 P12/DBG 20 PU6 MB95F012K RST LEDR LEDB STATUS 3 1 2 PZD1 TL431-2.5 PR40 180K Ohm 0.5% PR43 49.9K Ohm 0.5% BAT_S 1234 PJ2 TEST POINT M C U _ V C C M C U _ G N D D B G PC33 10uF/6.3V P C 3 0 0 . 1 u F P C 3 5 0 . 1 u F PR42 470K Ohm BAT+ PR38 4.7 Ohm OUT+ S1 short BAT_S 5VO_EN2 ATDT P C 1 7 1 U F / 6 . 3 V @ 1 2 4 3 PL3 WCM-4532-801A23T@ PB3 0 Ohm PB4 0 Ohm P C 1 8 1 U F / 6 . 3 V @ S E L 1 D P 4 DM 5 G N D 2 VCC 3 PU5 F75198 PR411.5M Ohm 1 TP1 TP1.5 1 TP2 TP1.0 1 TP3 TP1.0 OUT+ PS3 short_pad_a PS2 Short_pad PR39 20m Ohm 1% PC21 0.1uF IN- PC26 0.1uF OC PC23 0.1uF PR22 1K ohm 1IN- 2 GND 4 2IN+ 5 2IN- 6 2OUT 7 VCC 8 1…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR532616 SPORTON INTERNATIONAL INC. Page No. : 1 of 29 TEL : 886-3-327-3456 Report Version : Rev. 03 FAX : 886-3-327-0973 FCC Test Report Equipment : Qubi WPB2 Brand Name : OTTA Model No. : PBWC-02057GBXXB FCC ID : 2AEX5-PBWC-02057 Standard : 47 CFR FCC Part 15.209 Operating Band : 110-205 kHz FCC Classification : DCD (for 110-205kHz only) Equipment Type : Wireless Power Transfer for Consumer Devices Output power : 5W (from Each Primary Coil) Applicant : LIEN CHANG ELECGTRONIC ENTERPRISE CO., LTD. 11F, No.501, Sec. 6, Nanjing E., Rd., Neihu Dist., Taipei City 11469, TWN Manufacturer : POWERGENE Technology Co., LTD. Taiwan Branch Rm. 1, 8F., No.1, Wuquan 1st Rd., Xinzhuang Dist., New Taipei City 242, Taiwan (R.O.C.) The product sample received on Mar. 27, 2015 and completely tested on May 04, 2015. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2009 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Vic Hsiao / Supervisor FCC Test Report Report No. : FR532616 SPORTON INTERNATIONAL INC. Page No. : 2 of 29 TEL : 886-3-327-3456 Report Version : Rev. 03 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Accessories and Support Equipment ..................................................................................................... 7 1.3 Testing Applied Standards ..................................................................................................................... 7 1.4 Testing Location Information .................................................................................................................. 7 1.5 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION OF EUT ......................................................................................................... 9 2.1 The Worst Case Configuration ............................................................................................................... 9 2.2 The Worst Charger Frequencies Configuration ..................................................................................... 9 2.3 The Worst Case Measurement Configuration ...................................................................................... 10 2.4 Test Setup Diagram ............................................................................................................................. 11 3 TRANSMITTER TEST RESULT .......................................................................................................... 13 3.1 AC Power-line Conducted Emissions .................................................................................................. 13 3.2 Transmitter Radiated Emissions .......................................................................................................... 17 3.3 Emission Bandwidth ............................................................................................................................. 27 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 29 A PPENDIX A. TEST PHOTOS APPENDIX B. PHOTOGRAPHS OF EUT FCC Test Report Report No. : FR532616 SPORTON INTERNATIONAL INC. Page No. : 3 of 29 TEL : 886-3-327-3456 Report Version : Rev. 03 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.3 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]:0.1615500MHz 51.16 (Margin 14.22dB) - QP 30.91 (Margin 24.47dB) - AV FCC 15.207 Complied 3.2 15.209 Transmitter Radiated Emissions [dBuV/m at 3m]:37.76MHz 32.85 (Margin 7.15dB) - PK FCC 15.209 Complied 3.3 15.215(c) Emission Bandwidth 20dB Bandwidth 2.64 [kHz] N/A Complied FCC Test Report Report No. : FR532616 SPORTON INTERNATIONAL INC. Page No. : 4 of 29 TEL : 886-3-327-3456 Report Version : Rev. 03 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FR532616 Rev. 03 Initial issue of report Jun. 04, 2015 FCC Test Report Report No. : FR532616 SPORTON INTERNATIONAL INC. Page No. : 5 of 29 TEL : 886-3-327-3456 Report Version : Rev. 03 FAX : 886-3-327-0973 1 General Description 1.1 Information 1.1.1 Product Details The equipment is Qubi WPB2. There are four types of the EUT. The differences are appearance, battery capacity, PCB location and TX coil location. In this report, we chose the Sample 2 to test. Sample No. Appearance Color Battery Capacity Sample 1 Black 5000mAh Sample 2 White Sample 3 Black 7000mAh Sample 4 White For more detailed features description, please refer to the manufacturer’s specifications or user’s manual. 1.1.2 General Information Wireless Power Transfer General Information Frequency Range Modulation Charging Freq. (kHz) Field Strength (dBuV/m) 110-205 kHz ASK 110-205 84.34 Power Transfer Method Output power from each primary coil Max. coupling surface area Charging Method Magnetic induction and only single primary coil coupling secondary coil 5W 40 cm 2 Client directly contact Note 1: Field strength performed peak level at 3m. 1.1.3 Antenna Information Antenna Category Equipment placed on the market without antennas Integral antenna (antenna permanently attached) External antenna (dedicated antennas) FCC Test Report Report…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR532616 SPORTON INTERNATIONAL INC. Page No. : A1 of A4 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Appendix A. Test Photos 1. Photographs of Conducted Emissions Test Configuration Mode 1 Front view Rear view FCC Test Report Report No. : FR532616 SPORTON INTERNATIONAL INC. Page No. : A2 of A4 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Side view FCC Test Report Report No. : FR532616 SPORTON INTERNATIONAL INC. Page No. : A3 of A4 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 2. Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz Mode 1 Front view Rear view FCC Test Report Report No. : FR532616 SPORTON INTERNATIONAL INC. Page No. : A4 of A4 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 For radiated emissions 30MHz~1GHz Mode 1 Front view Rear view
