2AEXS-DV-11AAction Camera

Actioncamera(DV-11A)Specification ThanksforchoosingourHDMIactioncamera. MainCharacteristc: （1）ThelastestCPUofambarellaUSA,panasonicimagesensor1600W. （2）Waterproof60maters,suitableforallkindsofextremeweatheroutdoor. （3）ConnectedwithcellphonebyWIFI,andoperatebyAPP,whichsupportAndriodandAppleIOSsystem.Thecellphone cancontrol,preview,playthevideofiles,Theystoredinthecameraorphone.Videoandimagescansharetosocial websitetimely. （4）Smallvolume,lightweightandportable （5）Remotingcontrolupto20meters. （6）Thecameracanalsotakeverticalimagewhenitsbodyreversed180degrees. Tousethecameracorrectly,pleasereadthismanualfirstcarefully(Thedesignorspecificationchangewon'tbenotified separately.) ProductStructure： 1.Upbutton/menubutton(pressfor3stoopen)/shrinkbutton 2.Downbutton/Enlargebutton 3.shootbutton/upbuttonfor modeswitch /playbacksettingbutton(pressfor3secondstoenter) 4.recordingbutton/downbuttonfor modeswitch /WIFIshortcuts(pressfor3secondstoopen) 5.2inchHDMIPanel 6.HDMIinterface 7.TFcard 8.USBinterface 9.Video/photoredlightindication 10.MICmicrophone 11.Cameralens 12.Chargingyellowlightindication 13.Remotingbluelightindication 14.Powerbutton/OKbutton 15.Lampstand 16.RemotingcontrolLEDindication 17.Remotingcontrolpowerbutton 18.Remotingcontrolvideobutton 19.Remotingcontrolcamerabutton Assesoriespictures： Howtouse: 1.Cameraonanyflaysurface/tripod 2.Cameraontopofhelmet 3.Cameraonanycuredsurface 4.Cameraonhandlebar Directionforuse: 一.Batterycharge ChargefromcomputerbyUSB.Whencharging,yellowlightworks,Finishing,theyellowlightclosedautomatically.The chargingtimeisabout4.5hours. 二.TFCard TFcard:Thecamerarequires4GBandaboveTFcard(Maxsupport64GB),SpeedisCLASS6andabove WhenusingTFcardforthefirsttime,pleaseconnectwithcomputertoformatit,ThatwilldeleteallthedataontheTF cardpermanently,includingyourprotectivevideo,andcannotberestored.Therefore,beforeformattingTFcard,please backupimportantdata. 三．SealingDV Waterproofcasecanmaketheactioncameraworksunderwater60meters(180inches).Whenusingintherainordamp environment,youmustusePODZtosealyourmachineinordertoprotectit. Note: 1.Itwillcausedamagetothemachineifthesealingisnotcorrectly.Thedamageduetothiscasebytheuserisnot includedinthescopeofthewarranty. 2Intheenvironmentofhumidorunderwater,themachineisprotectedbythesealingrubberinsideofthePODZ.Soyou mustkeepthesealingrubberclean,theinjurycausedbyhair,sandorgrainscanleadtoleaking. 3.Everytimeafteruseinsaltwater,youneedcleantheoutsideoftheproductandthesealingrubberandthendrythemin theair.Ifnot,theproductwouldbecorrodedandcan'tbesealed. 四．Recording pressthepowerbuttonfor3secondstostartthemachine.presstherecordbuttontoopenthevideorecordingfunction,and pressitagaintoturnoff.thenenterthestandbystate.(whenvideoworkingstatetheredlightflash) Beforerecording,choosetheresolutionyouneedbythemenu(1080P60FPS/1080P30FPS/720P120FPS/720P60FPS/480P 240FPS/480P120FPS). 五.Shooting Pressthepowerbuttonfor3secondstoopenthecamera.Pressshootbuttontotakephoto.thenenterthestandbymode(Thered indicatorlightflashonetimewhentakephotos) Note:Whenthecameraisrecordingvideo,italsocantakesnapshot. 六．HDMIoutput AfterconnectingHDMIoutput,Itenterintocurrentmodeautomatically.Youcanviewvideos,photosanddomenuSettings 七.WIFIconnection(ConnectviaAndroidsystemorAppleAPPbyWIFI) Hardwarerequirement: CPU:1G双核RAM:1GB以上。 CPU:1Gdual-coreRAM:Above1GB Thevideowillbemorefluencywhilethehardwarelevelishigher. Systemrequirement: Android4.0andabove IOS6.0andabove Softwareinstallationandupdate: APPdownloadandupdate:UseGoogleplaytodownloadlinkineyesforAndroidsystemanduseAPPstoretodownloadlinkineyesfor Applesystem. WIFI youcanturnonorofftheWIFIinthemenusetting.(presstherecordbottonfo r3secondtoopenWIFIshortcut)thenthecamerarestart,theWIFIsignwillturn greeninabout25second. WIFIconnection: AssuretheWIFIofactioncameraisopen,thenfindthecorrespondingnetworktoconnectitbycellphoneortablet.(Presstherecord buttonfor3secondstorestartthecamera,thentheWIFIopen,it’sWIFIshortcut) DefaultPasswordsis1234567890 Appapplication: Maininterface 分辨率：resolution 视屏区：Screenareascreenarea 设置：setting 影片资料：document 开关：switch 照片：picture 视频：video Wificonnectionsettings: 1.SDcardwithaMISCcatalogandMISCincludesawifi.confsettingfile. 2.Usingmomerytoopenthefile(nosuggestopenbyWORD),findtheindication #####SoftAPconfiguration######################### Andthenmodifiedasshowninfigure: Note:afterstartthecamera,WIFInamewillbedependedonSDcard.Ifwithoutwifi.conffile,camerawillcreateMISC catalougeandwifi.conffileautomatically. 八Remotecontrol directionoftheremotecontrol: 1.Longpresstheshootbuttonontheremotecontroltoturnonit. 2.Beforethecameraisopen,presstheshootbuttontoturnontheremotecontrol(theblueLEDlighted).Beforethe cameraisopen,presstheshootbuttontoturnofftheremotecontrol. 3.Whenthecameraishandledbytheremotecontrol.theblueLEDlightflashonetime parameterssetting: Pressupbuttonfor3secondstoentermenusettings 一Picturessetting 1.Picturesize：16M4608*345616:9/12M4608*259216：9/8M3200*24004:3 2.Picturequality：highquality/good/general 3.Self-timer:closed/self-timer10seconds/self-timer30seconds/self-timertake60seconds. 4.Thetimewatermark:closed/date/time/date/time 5.Automaticshot:closed/3seconds/5seconds/10seconds/30secondsto60seconds. 6.Shoot:close/2shoot/3shoot 二Videosetting 1.Videosize：1920*108060P16：9/1920*108030P16：9/1280*720120P16：9/1280*72060P16：9/1280*72030P16： 9/848*480240P16：9/848*48060P16：9 2.Videoquality：high/good/general 3.Time-lapse:closed/1second/2seconds/5seconds/10seconds/30seconds/50seconds 4.Doublestream:closed/open 5.Timewatermark:closed/date/time/date/time 6.Motiondetecting:close/low/medium/high 7.Length:15minutes/20minutes/25minutes 8.MICvolume：close/50%/60%/70%/80%/90%/100%/ 9.Imageflip:normal/180°reverseit 三．Menusetting 1.Tvsystem：NTSC/PAL 2.Lightsourcefrequency：Automatic/60Hz/50Hz 3.Whitebalance:Automatic//incandescentlamp/D4000/D5000/sun/cloudy 4.ISO:Automatic//100/200/400/800/1600/3200 5.EV：-2.0--0.0--+2.0 6.Filename:reset/series 7.Timesetting：2015/01/0100：00 8.FormatSD-CARD：Yes/No 9.RestoreDefaults：Yes/No 10.Me…

Text truncated - open the document above for the full version.

SHENZHENDOAGEAS TECHNOLOGYLIMITED FCCConfidentialityRequest Number:CF303 Version:V05 Date:21-05-2012 (Permanentoralsocalledlongtermconfidentialityisthenormalmethodtokeepcertaindocuementsconfidential,andmayapplyto schematics,blockdiagrams,operationaldescriptionandbillofmaterials.) To:FederalCommunicationsCommission EquipmentAuthorizationBranch 7435OaklandMillsRoad Columbia,MD21046 Pursuantto47CFRSection0.459(a)&(b),we, (theapplicant/grantee) CompanynameSHENZHENDOAGEASTECHNOLOGYLIMITED Address5F,4thBlock,HedianIndustrialPark,GuanlanTown,LonghuaDistrict, CityShenzhen,518110 CountryChina requestforthiscertificationfilingunder: GranteeCodeProductNumber FCCID:2AEXS-DV-11A tomaintainpermanentconfidentialityforthefollowingdocumentssubmittedwithinthisapplication: (pleasecrosswhatisapplicable,oraddotherdocuments,providethefilenameanddescription) ExhibitFileNameDescription √ OperationalDescriptionOperationalDescriptionexplainingthefunctioningoftheblockdiagram √ BlockDiagramsBlockDiagramsshowingthesystematicbuildingblocksoftheEUT √ SchematicsDiagramsSchematicsshowingcomponents,theirvaluesandinterconnection BillofMaterialsListofcomponentsusedonthePCB’softheEUT Abovematerialscrossedcontainsecrets,proprietaryandtechnicalinformation,whichwouldcustomarilybeguardedfrom competitorsunder47CFR,section0.457(d)(2).Disclosureorpublicationoranyportionofthiscompanyconfidentialmaterial tootherpartiescouldcausesubstantialcompetitiveharmandprovideunjustifiedbenefitsforcompetitors.Weunderstandthat pursuantto47CFRsection0.457(d)(1)(ii)disclosureoftheapplicantandallaccompanyingdocumentationwillnotbemade beforethedateofthegrant.Thedocumentsindicatedasconfidentialabove,arenotpubliclyavailableelsewhere. Attestation: CityandCountry:Date:Name: (thismustbeaperson) Function:Signature: (orofficialcompanystamp) Shenzhen,China2015-06-23JianZhengCEO

SHENZHENDOAGEAS TECHNOLOGYLIMITED FCCAuthorizationLetter Number:CF304 Version:V03 Date:01-08-2011 We, (theapprovalholder) CompanynameSHENZHENDOAGEASTECHNOLOGYLIMITED Address5F,4thBlock,HedianIndustrialPark,GuanlanTown,LonghuaDistrict, CityShenzhen,518110 CountryChina declarethatthefollowingrepresentative(agent): Name(person)TomChen CompanynameShenzhenAnbotekComplianceLaboratoryLimited Addresss1/F.,Building1,SECIndustrialPark,No.0409QianhaiRoad,NanshanDistrict, CityShenzhen CountryChina isherebyauthorizedtoapplythefollowingequipmentforcertificationonourbehalf: ProductDescriptionActioncamera TypeorModel(s)DV-11A TradenameorBrand(s) WealsoauthorizeTeleconformity(Mr.M.Koop,ManagerCertification,Address:Rietven31,7534NHEnschede,the Netherlands)toapplyandsignthisapplicationforcertification,registrationorfilingonourbehalf(asrepresentativeagentor certifier). Attestation: CityandCountry:Date:Name: (thismustbeaperson) Function:Signature: (orofficialcompanystamp) Shenzhen,China2015-06-23JianZhengCEO

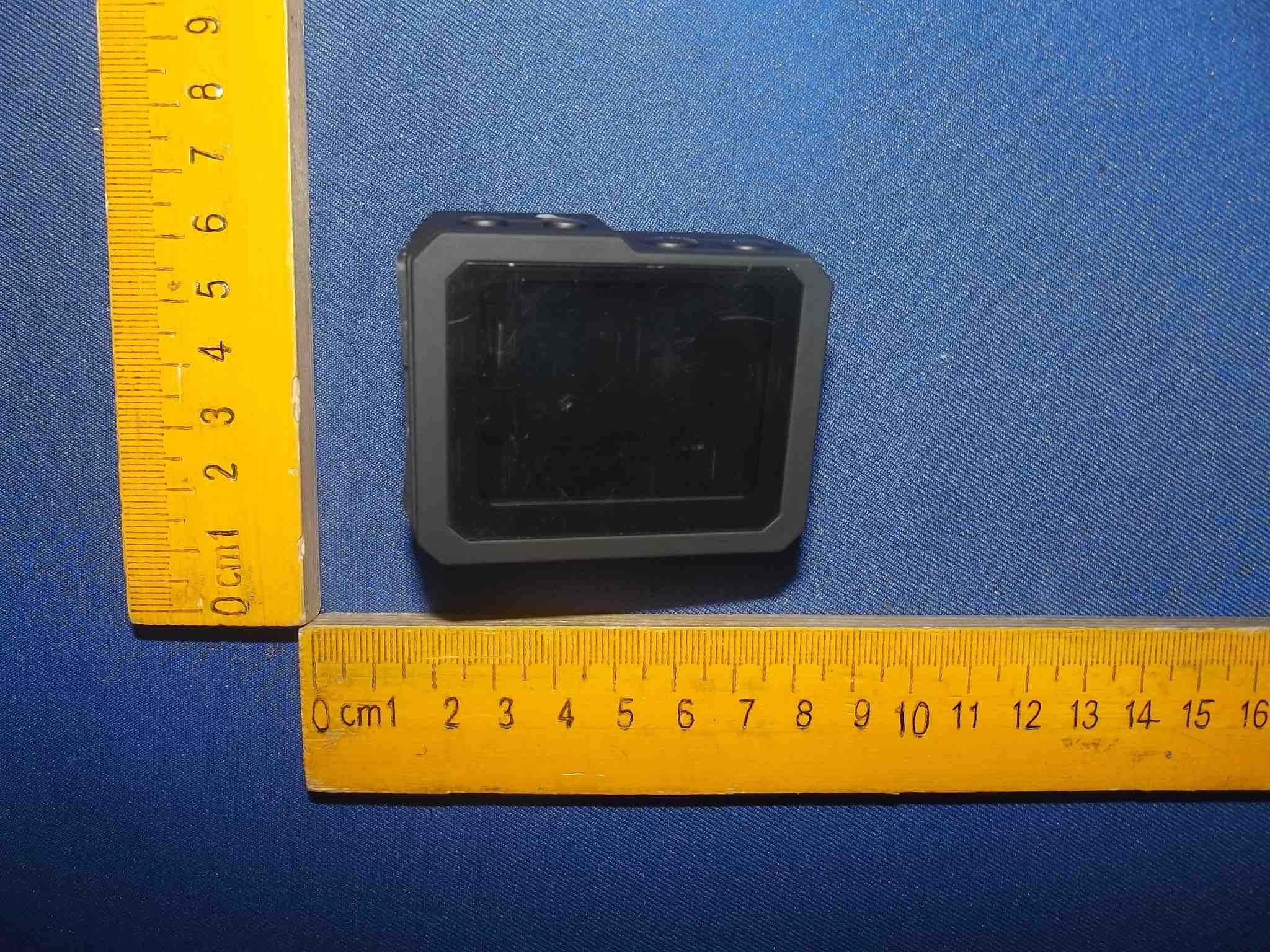

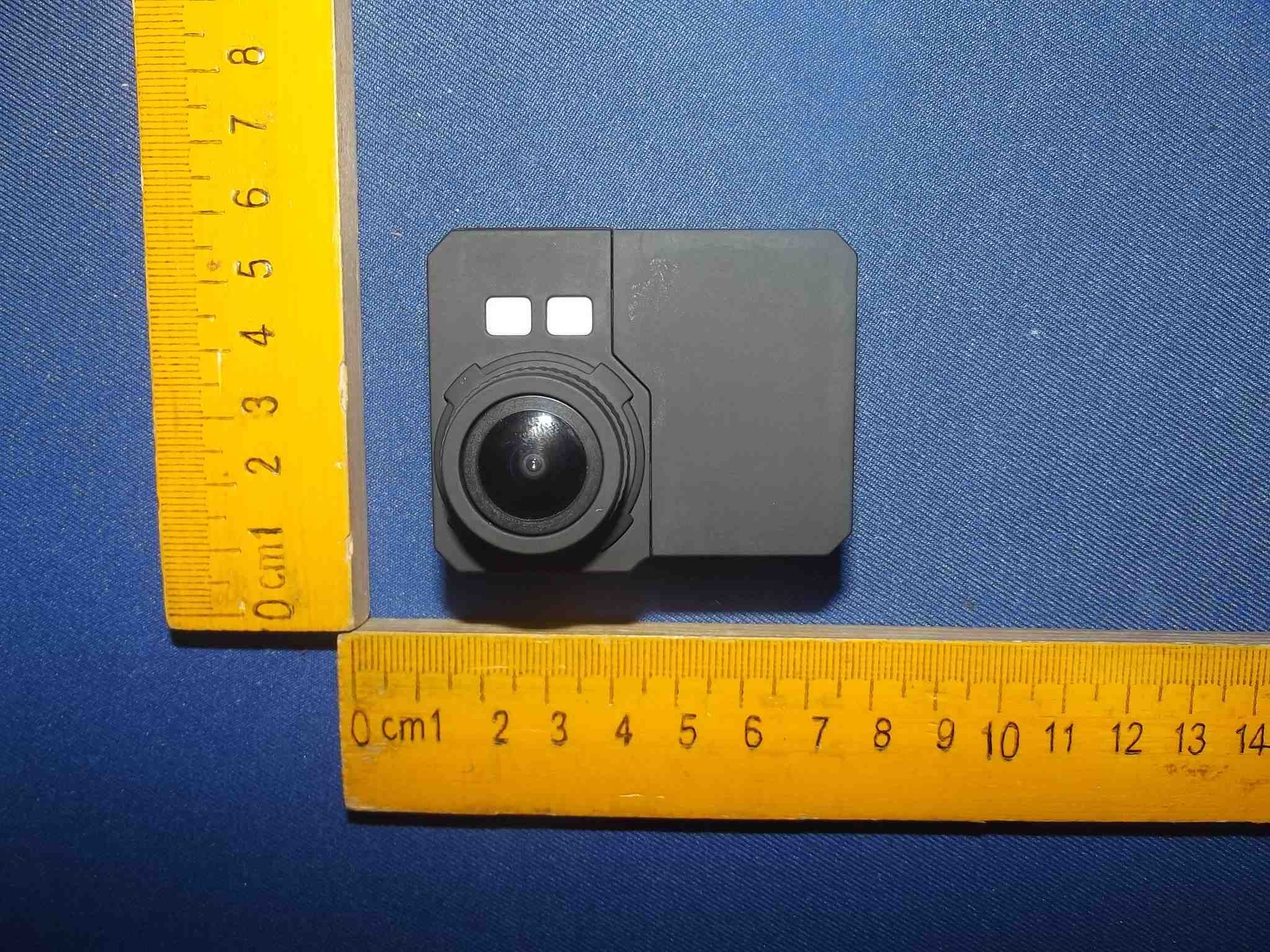

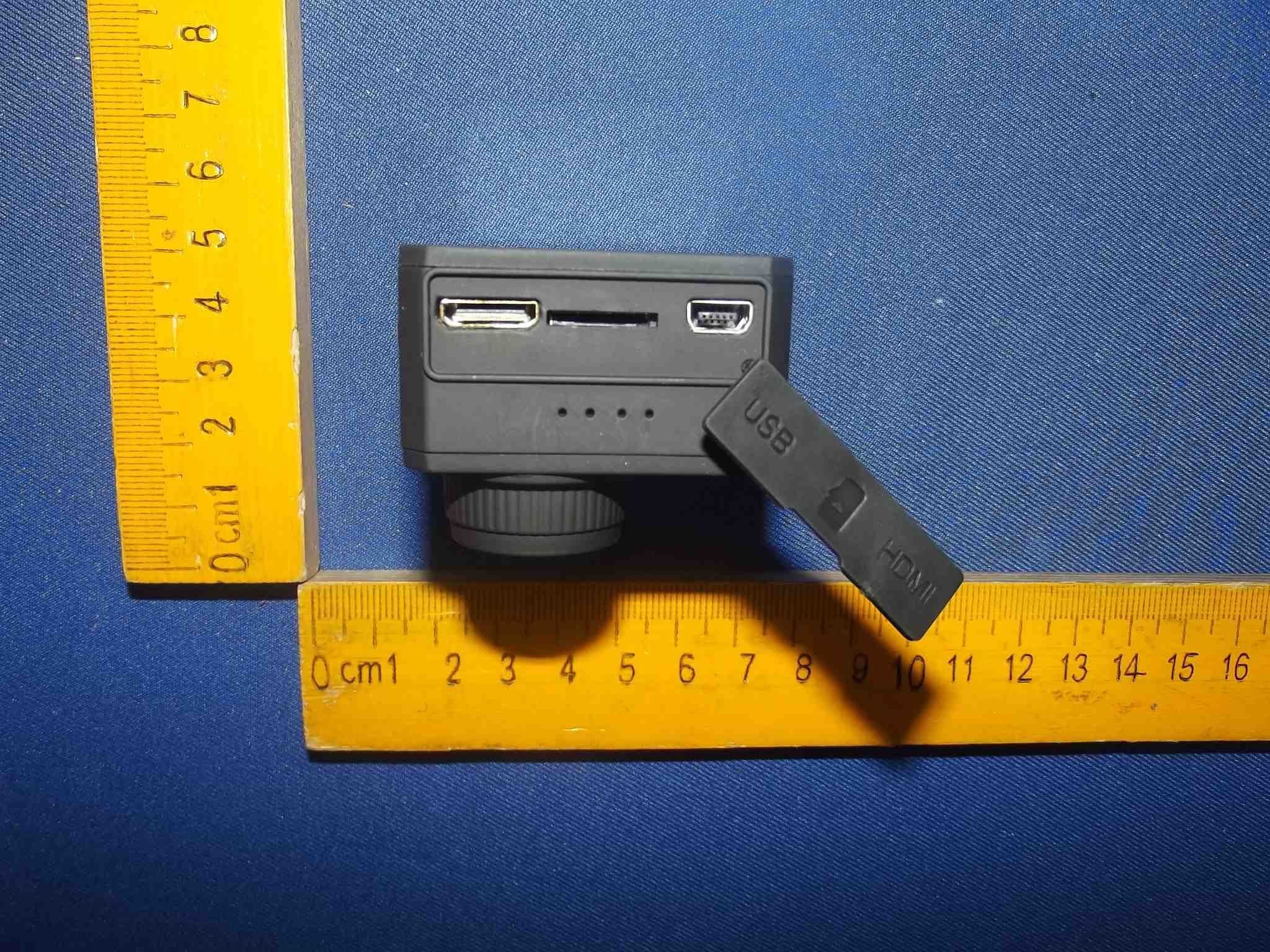

Figure1 TheEUT-FrontView Figure2 TheEUT-BackView Figure3 TheEUT-TopView Figure4 TheEUT-BottomView Figure5 TheEUT-RightView Figure6 TheEUT-LeftView Figure7 TheEUT-PortView

LabelLocationOnEUT

ProductName:Actioncamera ModelNo.:DV-11A FCCID:2AEXS-DV-11A

Figure 8 The EUT-Inside View Figure 9 The EUT-Inside View Figure 10 The EUT-Inside View Figure 11 PCB of the EUT-Front View Antenna Figure 12 PCB of the EUT-Back View Figure 13 PCB of the EUT-Front View Figure 14 PCB of the EUT-Front View Figure 15 PCB of the EUT-Back View

Figure16 PCBoftheEUT-FrontView Figure17 PCBoftheEUT-BackView Figure18 PCBoftheEUT-FrontView Figure19 PCBoftheEUT-BackView Figure20 PCBoftheEUT-FrontView Figure21 PCBoftheEUT-BackView

RFEXPOSUREEVALUATION FCCID ： 2AEXS-DV-11A AccordingtoFCC1.1310:Thecriterialistedinthefollowingtableshallbeused toevaluatetheenvironmentimpactofhumanexposuretoradiofrequency(RF) Radiationasspecifiedin§1.1307(b): RoutineSARevaluationreferstothatspecificallyrequiredby§2.1093,using measurementsorcomputersimulation.WhenroutineSARevaluationisnot required,portabletransmitterswithoutputpowergreaterthantheapplicable lowthresholdrequireSARevaluationtoqualifyforTCBapproval. Testmode:802.11b/802.11g/802.11n(HT20) Themaximumoutputpowerforlowchannelis:5.73dBm=3.74mW Thecalculationresults=3.74/5*√2.412=1.16 ＜ 3 Themaximumoutputpowerformiddlechannelis:5.45dBm=3.51mW Thecalculationresults=3.51/5*√2.437=1.10 ＜ 3 Themaximumoutputpowerforhighchannelis:4.36dBm=2.73mW Thecalculationresults=2.73/5*√2.462=0.86 ＜ 3 Testmode:802.11n(HT40) Themaximumoutputpowerforlowchannelis:4.67dBm=2.93mW Thecalculationresults=2.93/5*√2.422=0.91 ＜ 3 Themaximumoutputpowerformiddlechannelis:3.79dBm=2.39mW Thecalculationresults=2.39/5*√2.437=0.75 ＜ 3 Themaximumoutputpowerforhighchannelis:3.63dBm=2.31mW Thecalculationresults=2.31/5*√2.452=0.72 ＜ 3 TestResults:PASS.

Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2AEXS-DV-11A Page 1 of 106 Report No.: R011504154I Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544Fax:(86)755-26014772www.anbotek.com FCC TEST REPORT for SHENZHEN DOAGEAS TECHNOLOGY LIMITED Action camera Model No.: DV-11A ReportNumber:R011504154I DateofTest:Apr.22~Jun.16,2015 DateofReport:Jun.24,2015 Preparedfor:SHENZHENDOAGEASTECHNOLOGYLIMITED Address: 5F, 4th Block, Hedian Industrial Park, Guanlan Town, Longhua District,Shenzhen,518110,China PreparedBy:ShenzhenAnbotekComplianceLaboratoryLimited Address: 1/F., Building 1, SEC Industrial Park, No.0409 Qianhai Road, NanshanDistrict,Shenzhen,Guangdong,China Tel:(86)755-26066544 Fax:(86)755-26014772 Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2AEXS-DV-11A Page 2 of 106 Report No.: R011504154I Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544Fax:(86)755-26014772www.anbotek.com TABLE OF CONTENT Description Page Test Report 1. GENERAL INFORMATION......................................................................................................4 1.1. Description of Device (EUT)................................................................................................................4 1.2. Auxiliary Equipment Used during Test................................................................................................5 1.3. Description of Test Facility.................................................................................................................. 5 1.4. Measurement Uncertainty.....................................................................................................................5 2. TEST METHODOLOGY............................................................................................................6 2.1. Summary of Test Results......................................................................................................................6 2.2. Description of Test Modes....................................................................................................................6 2.3. List of channels:....................................................................................................................................7 3. CONDUCTED EMISSION TEST.............................................................................................. 8 3.1. Block Diagram of Test Setup................................................................................................................8 3.2. Power Line Conducted Emission Measurement Limits (15.207).........................................................8 3.3. Configuration of EUT on Measurement............................................................................................... 8 3.4. Operating Condition of EUT................................................................................................................ 8 3.5. Test Procedure...................................................................................................................................... 9 3.6. Test equipment......................................................................................................................................9 3.7. Power Line Conducted Emission Measurement Results...................................................................... 9 4. FCC PART 15.247 REQUIREMENTS FOR DSSS & OFDM MODULATION................. 12 4.1 Test Setup.............................................................................................................................................12 4.2 6dB Bandwidth.................................................................................................................................... 12 4.3. Maximum Output Power Test.............................................................................................................28 4.4. Band Edges Measurement...................................................................................................................36 4.5. Peak Power Spectral Density..............................................................................................................74 4.6. Radiated Emissions.............................................................................................................................82 5. ANTENNA APPLICATION......................................................................................................93 5.1. Antenna requirement...........................................................................................................................93 5.2. Result.................................................................................................................................................. 93 6. PHOTOGRAPH......................................................................................................................... 94 6.1. Photo of Conducted Emission Measurement......................................................................................94 6.2. Photo of Radiation Emission Test.......................................................................................................94 APPENDIX I (EXTERNAL PHOTOS)........................................................................................96 APPENDIXII(INTERNAL PHOTOS).................................................................................... 100 Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2AEXS-DV-11A Page 3 of 106 Report No.: R011504154I Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544Fax:(86)755-26014772www.anbotek.com TEST REPORT Applicant: SHENZHEN DOAGEAS TECHNOLOGY LIMITED Manufacturer: SHENZHEN DOAGEAS TECHNOLOGY LIMITED EUT: Action camera Model No.: DV-11A Serial No.: N.A. Trade Mark: Rating: DC 5V or DC 3.7V Battery Measurement Procedure Used: FCC Part15 Subpart C, Paragraph 15.247 The device described above is tested by Shenzhen Anbotek Compliance La…

Text truncated - open the document above for the full version.

1.PhotoofConductedEmissionMeasurement 2.PhotoofRadiationEmissionTest
