2AEY7-BBG001Tablet PC

0 Smart series GSM/GPRS Digital Mobile Phone User’s Guide 1 1 THE BASICS ....................................................... 4 1.1 OVERVIEW ....................................................... 4 1.2 SAFETY GUIDE ................................................. 5 1.3 SAFETY WARNINGS AND NOTICES ..................... 6 1.3.1 General attention ........................................ 6 1.3.2 Notices when using your phone ................. 7 1.3.3 Notices when using the battery ................ 10 1.3.4 Charging your phone ................................ 12 1.3.5 Cleaning and maintenance ....................... 16 2 GETTING STARTED ............................................. 17 2.1 COMPONENT NAME AND EXPLANATION ............... 17 2.1.1 Technical parameters ......................... 17 2.1.2 Icons ..................................................... 17 2.2 KEY EXPLANATIONS ........................................ 19 2.3 USING THE TOUCHSCREEN ............................. 21 2.4 CONNECTING TO THE NETWORK ..................... 21 2.4.1 Inserting and removing the SIM card ....... 21 2.4.2 Turning your phone on and off .................. 22 2.4.3 Unlocking the SIM card............................. 23 2.4.4 Unlocking your phone ............................... 24 2.4.5 Connecting to the network ........................ 24 2.4.6 Making a call ............................................. 25 2.4.7 Making a domestic call ............................. 25 2 2.4.8 Making an international call ...................... 26 2.4.9 Making a call from the list ......................... 26 2.4.10 Making an emergency call ...................... 27 2.4.11 Call menu ................................................ 27 3 FUNCTIONAL MENU ............................................ 29 3.1 FILE MANAGEMENT ........................................ 29 3.2 SENDING AN EMAIL ........................................ 30 3.3 DIALING ......................................................... 31 3.4 3G VIDEO CALL .............................................. 32 3.5 CALCULATOR ................................................. 33 3.6 BROWSER...................................................... 34 3.7 VOICE RECORDER .......................................... 35 3.8 CALENDAR .................................................... 37 3.9 SETTINGS ...................................................... 38 3.10 CLOCK ........................................................ 40 3.11 RADIO .......................................................... 42 3.12 GOOGLE SEARCH ........................................ 44 3.13 CONTACTS .................................................. 44 3.14 GALLERY ..................................................... 46 3.15 CAMERA ...................................................... 47 3.16 MESSAGING ................................................. 48 3.17 NOTIFICATION MENU .................................... 50 3.18 DOWNLOAD CONTENT .................................. 51 3 3.19 MUSIC ......................................................... 52 3.20 CALL RECORDS ........................................... 53 3.21 WIDGET ....................................................... 54 3.22 SELECTING WALLPAPER SOURCE ................ 55 3.23 LOCAL SEARCH............................................ 56 3.24 NOTE ........................................................... 57 3.25 FLASHLIGHT ................................................ 58 3.26 DOCUMENTS TO GO ..................................... 59 3.27 MOBOPLAYER ............................................... 60 3.28 MAP ............................................................ 61 3.29 NAVIGATION ................................................. 63 3.30 VOICE SEARCH ............................................ 64 3.31 VIEW PALYER ............................................... 65 3.32 WIRELESS INPUT DEVICE ............................... 66 3.33 MOBILE BROADCASTS ............................... 67 3.34 GOOGLE TALK ............................................. 68 3.35 TODO .......................................................... 69 3.36 BACKUP AND RESET ..................................... 70 3.37 FALM WORKPSPACE ...................................... 70 4. TEXT INPUT ................................................... 71 5 SD CARD INTRODUCTION.............................. 74 6 FAQS AND SOLUTIONS .................................. 78 4 1 The Basics 1.1 Overview Thank you for choosing the GSM/GPRS digital mobile phone. After reading this guide you will be able to fully master the use of your phone and appreciate all its functions and ease of use. Not only does the smartphone provide you with basic call functions such as call Register, but also with many practical functions and services, to improve the time you spend working and playing. The color screen mobile phone complies with the GSM/GPRS technology and has been approved by certification authorities both domestically and abroad. The availability of some services and features described in this manual depends on the network and your subscription. Therefore, some menu items may not be available in your phone. The shortcuts to menus and features may also vary from phone to phone. Our company reserves the right to revise this manual content without prior notice. 5 1.2 Safety guide  If your mobile phone is lost or stolen, please contact the telecommunications authorities or a sales agent immediately to have a hold on the phone and the SIM card. This will prevent economic loss caused by unauthorized calls made from your mobile phone.  When you contact the telecommunications authorities or a sales agent, they will need to know the IMEI number of our mobile phone (remove battery to expose number located on the label on back of phone). Please copy this number and keep in a safe place for future use.  In order to avoid the misuse of your mobile phone please take the following preventative measures: - Set…

Text truncated - open the document above for the full version.

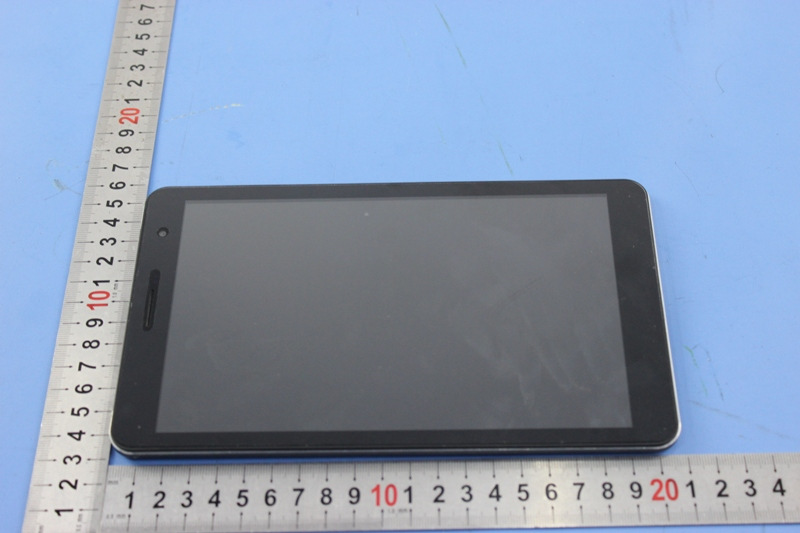

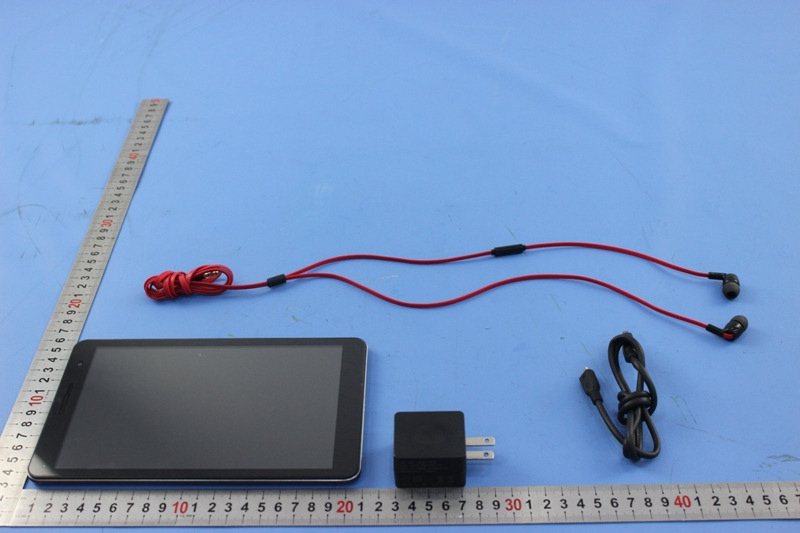

1 Photographs - EUT Constructional Details Test Model No.: BAK BOARD 3G

75 .00 m m 42 .00 m m Designed and Assembled by Bak USA in Buffalo NY United States of America Model: BAK BOARD 3G Input: 5V 2A FCC ID: 2AEY7-BBG001 MM-YYYY Bak Board

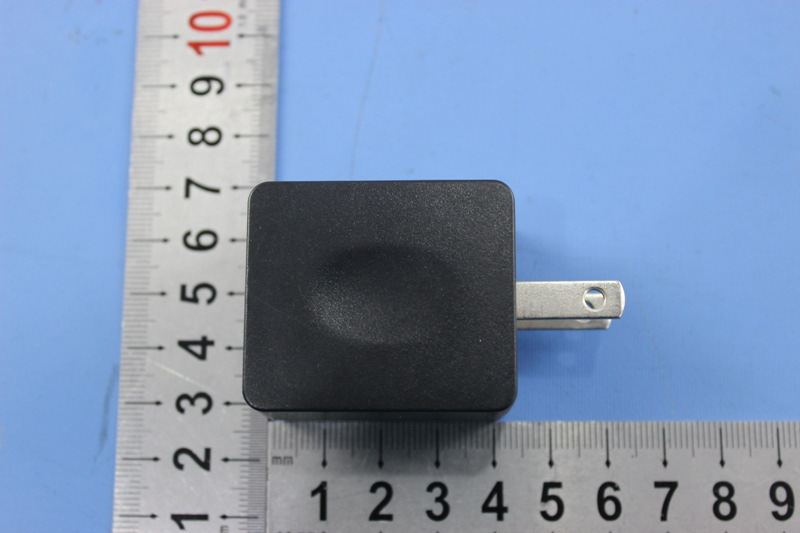

1 Photographs - EUT Constructional Details Test Model No.: BAK BOARD 3G

SGS-CSTC Standards Technical Services Co., Ltd. No. 1 Workshop, M-10, Middle section, Science & Technology Park, Nanshan District, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM141100637205 Rev.01 Page : 1 of 55 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” FCC SAR TEST REPORT Application No: SZEM1411006372HR Applicant: BAK USA LLC Manufacturer/ Factory: BAK USA LLC Product Name: Tablet PC Model No.(EUT): BAK BOARD 3G Trade Mark: BAK FCC ID: 2AEY7-BBG001 Standards: FCC 47CFR §2.1093 Date of Receipt: 2014-11-25 Date of Test: 2015-02-02 to 2015-02-06 Date of Issue: 2015-08-03 Test Result : PASS * * In the configuration tested, the EUT detailed in this report complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Report No.: SZEM141100637205 Rev.01 Page: 2 of 55 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” REVISION HISTORY Revision Record Version Chapter Date Modifier Remark 00 2015-08-03 Original SGS-CSTC Standards Technical Services Co., Ltd. Report No.: SZEM141100637205 Rev.01 Page: 3 of 55 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” Test Summary Test Summary Frequency Band Test position Test mode Max Report SAR (W/kg) SAR limit (W/kg) Verdict GSM850 Head GSM 0.28 1.6 PASS Body Support GPRS 4TS 0.53 1.6 PASS GSM1900 Head GSM 0.284 1.6 PASS Body Support GPRS 4TS 0.761 1.6 PASS WCDMA850 Head RMC 0.198 1.6 PASS Body Support RMC 0.241 1.6 PASS WCDMA1900 Head RMC 0.272 1.6 PASS Body Support RMC 0.504 …

Text truncated - open the document above for the full version.

Date/Time: 2015-02-06 08:47:12 Test Laboratory: SGS-SAR Lab System Performance Check 2450MHz Head DUT: D2450V2; Type: D2450V2; Serial: 733 Communication System: UID 0, CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL2450;Medium parameters used: f = 2450 MHz; σ = 1.778 S/m; ε r = 38.574; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY 5 Configuration: • Probe: EX3DV4 - SN3962; ConvF(7.32, 7.32, 7.32); Calibrated: 2014-11-24; • Sensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 • Electronics: DAE3 Sn569; Calibrated: 2014-10-01 • Phantom: SAM 1; Type: SAM V4.0; Serial: TP-1283 • DASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Body/d=10mm, Pin=250mW/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 13.1 W/kg Body/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 87.39 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 27.9 W/kg SAR(1 g) = 12.6 W/kg; SAR(10 g) = 5.67 W/kg Maximum value of SAR (measured) = 14.3 W/kg 0 dB = 13.1 W/kg = 11.16 dBW/kg Date/Time: 2015-02-06 14:32:29 Test Laboratory: SGS-SAR Lab System Performance Check 2450MHz Body DUT: D2450V2; Type: D2450V2; Serial: 733 Communication System: UID 0, CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL2450;Medium parameters used: f = 2450 MHz; σ = 1.951 S/m; ε r = 51.68; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY 5 Configuration: • Probe: EX3DV4 - SN3962; ConvF(7.47, 7.47, 7.47); Calibrated: 2014-11-24; • Sensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 • Electronics: DAE3 Sn569; Calibrated: 2014-10-01 • Phantom: SAM 1; Type: SAM V4.0; Serial: TP-1283 • DASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Body/d=10mm, Pin=250mW/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 12.1 W/kg Body/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 81.80 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 26.0 W/kg SAR(1 g) = 11.8 W/kg; SAR(10 g) = 5.32 W/kg Maximum value of SAR (measured) = 13.2 W/kg 0 dB = 12.1 W/kg = 10.84 dBW/kg SGS-CSTC Standards Technical Services Co., Ltd. Report No.: SZEM141100637205 Appendix B Detailed Test Results GSM850 for Head GSM850 for Body GSM1900 for Head GSM1900 for Body WCDMA Band II for Head WCDMA Band II for Body WCDMA Band V for Head WCDMA Band V for Body WIFI for Head WIFI for Body Date/Time: 2015-02-02 11:38:20 Test Laboratory: SGS-SAR Lab BAK BOARD 3G GSM835 190CH Right Hand Tilted 15 Degree With SIM2 DUT: BAK BOARD 3G; Type: Tablet PC; Serial: N/A Communication System: UID 0, GSM Only Communication System (0); Frequency: 836.6 MHz;Duty Cycle: 1:8.30042 Medium: HSL835;Medium parameters used: f = 837 MHz; σ = 0.926 S/m; ε r = 41.232; ρ = 1000 kg/m 3 Phantom section: Right Section DASY 5 Configuration: • Probe: EX3DV4 - SN3962; ConvF(9.89, 9.89, 9.89); Calibrated: 2014-11-24; • Sensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 • Electronics: DAE3 Sn569; Calibrated: 2014-10-01 • Phantom: SAM 1; Type: SAM V4.0; Serial: TP-1283 • DASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) BAK BOARD 3G/Head/Area Scan (11x16x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.329 W/kg BAK BOARD 3G/Head/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.36 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 0.730 W/kg SAR(1 g) = 0.279 W/kg; SAR(10 g) = 0.131 W/kg Maximum value of SAR (measured) = 0.288 W/kg 0 dB = 0.329 W/kg = -4.83 dBW/kg Date/Time: 2015-02-03 09:18:49 Test Laboratory: SGS-SAR Lab BAK BOARD 3G GSM850 GPRS 4TS 190CH Back side 0mm DUT: BAK BOARD 3G; Type: Tablet PC; Serial: N/A Communication System: UID 0, GPRS/EGPRS Mode(4up) Communication System (0); Frequency: 836.6 MHz;Duty Cycle: 1:2.0797 Medium: MSL835;Medium parameters used: f = 837 MHz; σ = 0.979 S/m; ε r = 55.161; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY 5 Configuration: • Probe: EX3DV4 - SN3962; ConvF(10.07, 10.07, 10.07); Calibrated: 2014-11-24; • Sensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 • Electronics: DAE3 Sn569; Calibrated: 2014-10-01 • Phantom: SAM 1; Type: SAM V4.0; Serial: TP-1283 • DASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) BAK BOARD 3G/Body/Area Scan (11x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.422 W/kg BAK BOARD 3G/Body/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.61 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 1.34 W/kg SAR(1 g) = 0.471 W/kg; SAR(10 g) = 0.239 W/kg Maximum value of SAR (measured) = 0.503 W/kg 0 dB = 0.422 W/kg = -3.75 dBW/kg Date/Time: 2015-02-04 10:26:44 Test Laboratory: SGS-SAR Lab BAK BOARD 3G GSM1900 661CH Right Hand Touch Cheek DUT: BAK BOARD 3G; Type: Tablet PC; Serial: N/A Communication System: UID 0, GSM Only Communication System (0); Frequency: 1880 MHz;Duty Cycle: 1:8.30042 Medium: HSL1900;Medium parameters used: f = 1880 MHz; σ = 1.427 S/m; ε r = 40.665; ρ = 1000 kg/m 3 Phantom section: Right Section DASY 5 Configuration: • Probe: EX3DV4 - SN3962; ConvF(8.14, 8.14, 8.14); Calibrated: 2014-11-24; • Sensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 • Electronics: DAE3 Sn569; Calibrated: 2014-10-01 • Phantom: SAM 1; Type: SAM V4.0; Serial: TP-1283 • DASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) BAK BOARD 3G/Head/Area Scan (11x16x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.242 W/kg BAK BOARD 3G/Head/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.155 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 1.06 W/kg SAR(1 g) = 0.281 W/kg; SAR(10 g) = 0.150 W/kg Maximum value of SAR (measured) = 0.473 W/kg 0 dB = 0.473 W/kg = -3.25 dBW/kg Date/Time: 2015-02-05 11:46:14 Test Laboratory: SGS-SAR Lab BAK BOARD 3G GSM1900 GPRS 4TS 661CH Top side 0mm DUT: BAK BOARD 3G; Type: Tablet PC; Serial: N/A Communication …
