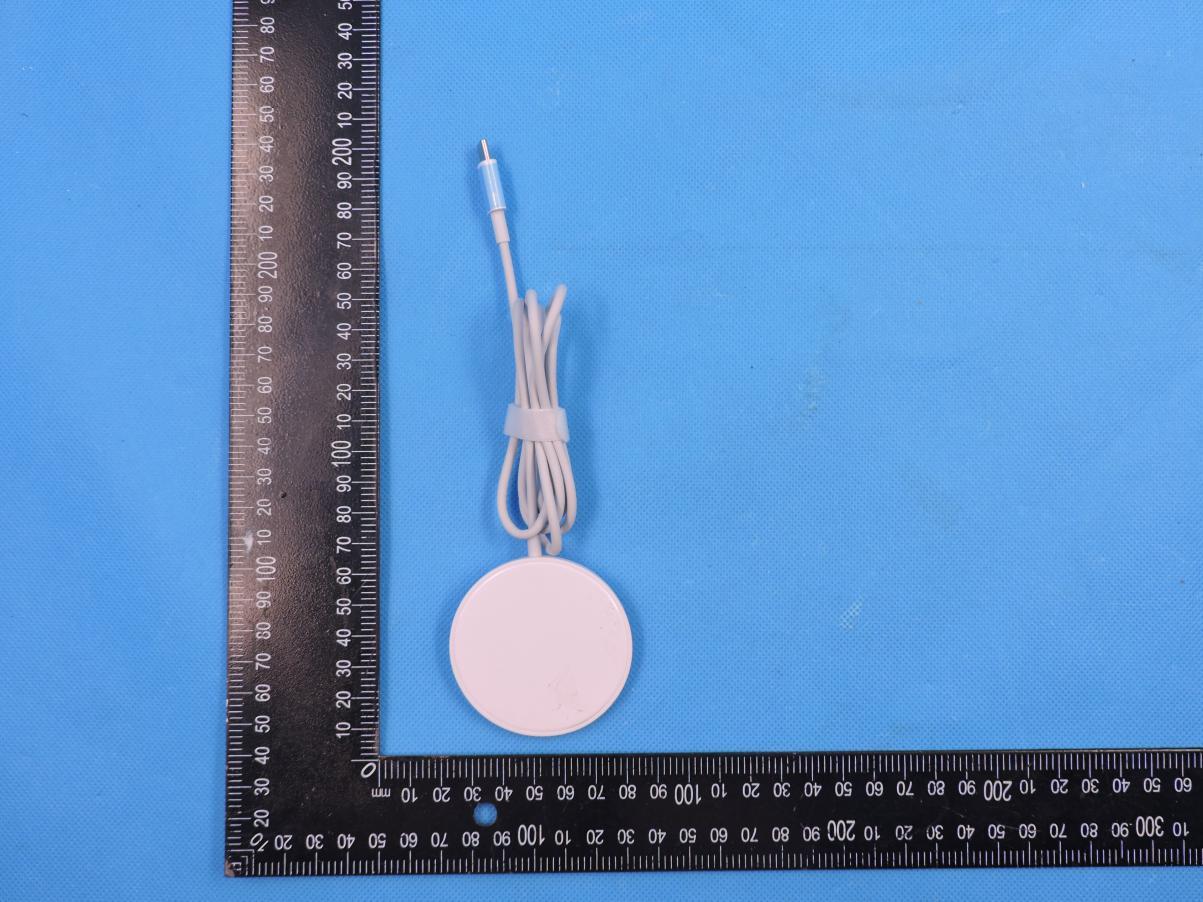

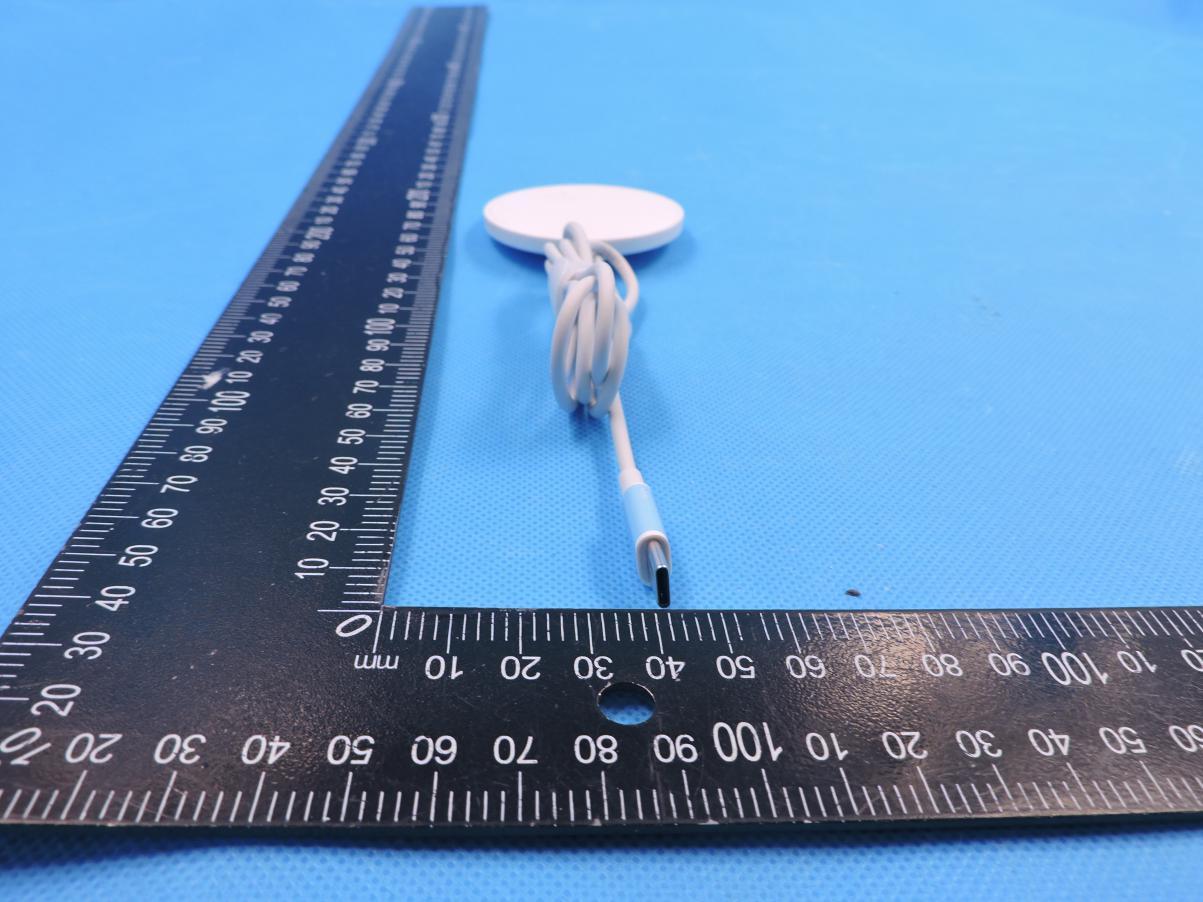

Page 1 of 3 Report No.: STS2104011 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: JW33 Photo 1 Photo 2 Photo 3 Page 2 of 3 Report No.: STS2104011 Photo 4 Page 3 of 3 Report No.: STS2104011 Photo 5 Photo 6

FCC Label Wireless Charger Model name: JW33 FCC ID: 2AEZ4 JW33 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Page 1 of 2 Report No.: STS2104011 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: JW33 Photo 1 Photo 2 Photo 3 Page 2 of 2 Report No.: STS2104011 Photo 4

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, all test data presented in this report is only applicable to presented test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] MPE TEST REPORT Report No:STS2104011H01 Issued for Shenzhen Joway Power Supply Co., Ltd. Floor 1-5 of Bldg 10th and Bldg 11th, Antuoshan High-Tech Industrial Park, Sha'er Community, Shajing Street, Bao'an District, Shenzhen Product Name: Wireless Charger Brand Name: Joway Model Name: JW33 Series Model: N/A FCC ID: 2AEZ4JW33 Test Standard: FCC CFR 47 part 1, 1.1310 S T L A B S Page 2 of 11 Report No.: STS2104011H01 TEST RESULT CERTIFICATION Applicant’s Name ...................: Shenzhen Joway Power Supply Co., Ltd. Address ..................................: Floor 1-5 of Bldg 10th and Bldg 11th, Antuoshan High-Tech Industrial Park, Sha'er Community, Shajing Street, Bao'an District, Shenzhen Manufacturer's Name .............: Shenzhen Joway Power Supply Co., Ltd. Address ..................................: Floor 1-5 of Bldg 10th and Bldg 11th, Antuoshan High-Tech Industrial Park, Sha'er Community, Shajing Street, Bao'an District, Shenzhen Product Description Product Name ........................: Wireless Charger Brand Name .........................: Joway Model Name ...........................: JW33 Series Model ..........................: N/A Standards ...............................: FCC CFR 47 part 1, 1.1310 Test Procedure .....................: 680106 D01 RF Exposure Wireless Charging Apps v03r01 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document may be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ............................: Date of receipt of test item ......: 02 Apr. 2021 Date of performance of tests ..: 02 Apr. 2021 ~ 12 Apr. 2021 Date of Issue ..........................: 12 Apr. 2021 Test Result .............................: Pass Testing Engineer : (Chris Chen) Technical Manager : (Sean She) Authorized Signatory : (Vita Li) Page 3 of 11 Report No.: STS2104011H01 Table of Contents Page 1. SUMMARY OF TEST RESULTS 5 1.1 TEST FACTORY 5 1.2 MEASUREMENT UNCERTAINTY 5 1.3 GENERAL DESCRIPTION OF THE EUT 6 1.4 EQUIPMENTS LIST FOR ALL TEST ITEMS 7 1.5 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 7 2. MAXIMUM PERMISSIBLE EXPOSURE 8 2.1 MAXIMUM PERMISSIBLE EXPOSURE 8 2.2 TEST PROCEDURE 9 2.3 TEST SETUP 9 2.4 TEST RESULTS 9 2.5 MAXIMUM PERMISSIBLE EXPOSURE 10 Page 4 of 11 Report No.: STS2104011H01 Revision History Rev. Issue Date Report NO. Effect Page Contents 00 12 Apr. 2021 STS2104011H01 ALL Initial Issue Page 5 of 11 Report No.: STS2104011H01 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC KDB 680106 D01 RF Exposure Wireless Charging Apps v03 FCC CFR 47 Standard Section Test Item Judgment Remark FCC CFR 47 part1, 1.1310 KDB680106 D01v03 Electric Field Strength (E) (V/m) PASS Magnetic Field Strength (H) (A/m) PASS 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ±U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainly 1 H-filed ±1.2μT 2 E-filed ±16% Page 6 of 11 Report No.: STS2104011H01 1.3 GENERAL DESCRIPTION OF THE EUT Product Name Wireless Charger Trade Name Joway Model Name JW33 Series Model N/A Model Difference N/A Equipemnt Category Non-ISM frequency Antenna Type Please refer to the Note 2. Operating frequency 110.5-205KHz Modulation Type ASK Power Rating Input: 5V⎓2A，9V⎓2A Output: 15W/10W/7.5W/5W Hardware version number N/A Software version number N/A Connecting I/O Port(s) Please refer to the Note 1. Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User Manual. 2. Table for Filed Antenna Ant. Brand Model Name Antenna Type Connector NOTE 1 Joway JW33 Coil N/A Antenna The EUT antenna is Coil Antenna. No antenna other than that furnished by the responsible party shall be used with the device. Page 7 of 11 Report No.: STS2104011H01 1.4 EQUIPMENTS LIST FOR ALL TEST ITEMS Kind of Equipment Manufacturer Type No. Serial No. Last calibration Calibrated until Electromagnetic field strength analyzer Coliy Technology GmbH E300 13945 2010.10.19 2021.10.18 Three-dimensional omnidirectional electric field probe Coliy Technology GmbH EP0650 N/A 2010.10.19 2021.10.18 Three-dimensional omnidirectional magnetic field probe Coliy Technology GmbH HP0350 N/A 2010.10.19 2021.10.18 Three-dimensional omnidirectional electric and magnetic field combo probe Coliy Technology GmbH EHP150 N/A 2010.10.19 2021.10.18 Note: 1. The Three-dimensional omnidirectional electric field probe frequency rang is 100 KHz - 6.5 GHz, the Three-dimensional omnidirectional magnetic field probe frequency rang is 100 KHz - 35 MHz, and the Three-dimensional omnidirectional electric and magnetic field combo probe frequency rang is 5 Hz - 150 KHz, their selectable resolution bandwidth (RBW) is 1Hz/10Hz/30Hz. 2. The isotropic probes mean deviation response is not greater than 1 dB. 1…
