2AF2R-81TX2.4GHz Digital Wireless Video Baby Camera

HB6081说明书 (hellobaby) 说明书为折叠式 尺寸：630*120MM 材质：100g双胶纸（彩色） 版本：V1.1 类型：环保 设计 审核审批 王勇 2023/06/19 Ver: 1.0 版本 修改内容日期 文件首发。 2023/01/03 7 8 11. MAINTENANCE * Clean your baby monitor with a slightly damp or anti-static cloth. * Never use cleaning agents or solvents. 12. DISPOSAL GUIDE FOR BATTERY AND PRODUCT * Do not attempt to repair or adjust any of the electrical or mechanical functions of the unit; * Remember to dispose of the product in an environmentally responsible way; * For proper collection and processing of these products, take them to the collection points designated by local authorities. You can also contact the store where you purchased the product. Improper or incorrect use of batteries may cause corrosion or battery leakage, which could cause personal injury or damage to property. Use only the types of the batteries which are indicated in this manual. CAUTION: Risk of Fire and Burns. Do Not Open, Crush, Heat Above 45 degree C or Incinerate. Follow Manufacturer's Instructions. - Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion; - Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas; - A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas. - The battery shall not be exposed to excessive heat such as sunshine, fire or the like; FCC& ISDE Statement This device complies with Part 15 of the FCC Rules and with Industry Canada licence-exempt RSS standard(s).Operation is subject to the following two conditions: (1)this device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation. Cet appareil est conforme à la partie 15 des règles de la FCC et aux normes RSS exemptées de licence d’Industrie Canada. Le fonctionnement est soumis aux deuxconditions suivantes : (1)cet appareil ne doit pas causer d’interférences nuisibles, et (2)cet appareil doit accepter toute interférence reçue, y compris les interferences pouvant entraîner un fonctionnement indés. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is 9 Audio feedback (high pitched noise) Interference or poor reception * Move the monitor close to the camera; * The camera or monitor may be placed too close to many metal objects; * Other electronic devices may be interfering with the signal; * The battery power may be too low; * The camera and monitor may be placed too closed; * The volume on the monitor may be set too high; Frozen picture on screen * Repower the baby unit (plug out the adapter, then plug it into the socket again); * Press the RESET key at the back of parent unit No reception on the monitor * The power adapters may not be properly connected; * Confirm that the camera and monitor are ON; * Camera may be far away from the monitor; * Camera and monitor may not be properly paired; follow PAIRING instrucons; 10. TROUBLE SHOOTING



3. Press the MENU Key .The sub-menu Settings will pop up.



4. Press
◀
/

▶
/
▲
/
▼ to
select
default settings , press the MANU key to enter.



5. Select icon to restore default setting; Select icon to cancel the default setting;


6. Press the Return Key one time to exit sub-menu , and two times exit main menu. 8.8.2 ALARM VOULME SETTING


1.
Press MENU Key, the Main Menu will pop up. 2. Press the
◀
/

▶
/
▲
/
▼ key
until
the
Setting
icon







is
selected.
3. Press the MENU Key . The sub-menu Settings will pop up.


4. Press
◀
/

▶
/
▲
/
▼ to
select
default settings , press the MANU key to enter.



5. Select icon to restore default setting; Select icon to cancel the default setting;


6. Press the Return Key one time to exit sub-menu, and two times exit main menu. 8.8.2 ALARM VOULME SETTING


1.
Press MENU Key, the Main Menu will pop up. 2. Press the
◀
/

▶
/
▲
/
▼ key
until
the
Setting
icon







is
selected.
3. Press the MENU Key .The sub-menu Settings will pop up. 4. Press
◀
/

▶
/
▲
/
▼ to
select ALARM . 5. Select volume increase icon , press MANU key to incress the alarm volume. 6. Select volume decrease icon , press MANU key to decrease the alarm volume. 7. Press the Return Key one time to exit sub-menu, and two times exit main menu. 8.8.3 CONTACT
1.
Press MENU Key, the Main Menu will pop up. 2. Press the
◀
/

▶
/
▲
/
▼ key
until
the
Setting
icon







is
selected.
3. Press the MENU Key .The sub-menu Settings will pop up. 4. Press
◀
/

▶
/
▲
/
▼ to select Contact . 5. Press MANU key . You can see our brand HelloBaby, our Email address and Website. 6. Press the Return Key one time to exit sub-menu, and two times exit main menu. 8.8.4 DATE/TIME SETTING 1.
Press MENU Key, the Main Menu will pop up. 2. Press the
◀
/

▶
/
▲
/
▼ key
until
the
Setting
icon







is
selected.
3. Press the MENU Key .The sub-menu Settings will pop up. 4. Press
◀
/

▶
/
▲
/
▼ key until the time icon is selected . 5. Press
◀
/

▶
key to select Month, Day and Year
setting; Press
▲
/
▼ key to set your desired month, date and year. 6. Press the
◀
/

▶
key to select the tim…

Text truncated - open the document above for the full version.

Shenzhen Videotimes Technology Co.,Ltd Room 2106, Building 11, Tianan Yungu Phase II(Plot of Land 02-08) , Gangtou Community, Bantian Street, Longgang District, Shenzhen, Guangdong.China The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 04/13/2023 To whom it may concern: We, Shenzhen Videotimes Technology Co.,Ltd,hereby certify that the equipment for which authorization is sought FCC ID: 2AF2R-81TX is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist) as an entity producing “covered” equipment. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). Sincerely, Signature Name/Title： Chris Liu/General Manager Company: Shenzhen Videotimes Technology Co.,Ltd Address: Room 2106, Building 11, Tianan Yungu Phase II(Plot of Land 02-08) , Gangtou Community, Bantian Street, Longgang District, Shenzhen, Guangdong.China Phone: +86-755-26966058 Fax: +86-755-26966058 E-Mail: [email protected] 62_[model] CoveredEqu_2.911(d)(5)(i) and (ii) - U, V02

Shenzhen Videotimes Technology Co.,Ltd Add: Room 2106, Building 11, Tianan Yungu Phase II(Plot of Land 02-08) , Gangtou Community, Bantian Street, Longgang District, Shenzhen, Guangdong.China Date: 2023-4-13 FCC ID: 2AF2R-81TX Dear Sir/Madam, We, Shenzhen Videotimes Technology Co.,Ltd Hereby declares the following statement for Federal Communications Commission, All these models are identical in the same PCB, layout and circuitry, the only difference is the different sales designation: Product name: 2.4GHz Digital Wireless Video Baby Camera Model no.: HB6081, BBM818, BBM818-2, BBM818TX, HB6081-2, HB6081TX, VT510, VT510-2, VT510TX, FK8160, FK8160-2, FK8160TX, JA2302, JA2302-2, JA2302TX, BG1055, BG1055-2, BG1055TX, VV6010, VV6010-2, VV6010TX, BL9055, BL9055-2, BL9055TX Sincerely, Name/Title： Chris Liu/General Manager Company: Shenzhen Videotimes Technology Co.,Ltd Address: Room 2106, Building 11, Tianan Yungu Phase II(Plot of Land 02-08) , Gangtou Community, Bantian Street, Longgang District, Shenzhen, Guangdong.China Phone: +86-755-26966058 Fax: +86-755-26966058 E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2023-4-13> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AF2R-81TX HB6081 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Chris Liu/General Manager Company: Shenzhen Videotimes Technology Co.,Ltd Address: Room 2106, Building 11, Tianan Yungu Phase II(Plot of Land 02-08) , Gangtou Community, Bantian Street, Longgang District, Shenzhen, Guangdong.China Phone: +86-755-26966058 Fax: +86-755-26966058 E-Mail: [email protected]

Shenzhen Videotimes Technology Co.,Ltd Room 2106, Building 11, Tianan Yungu Phase II(Plot of Land 02-08) , Gangtou Community, Bantian Street, Longgang District, Shenzhen, Guangdong.China Date: 2023-4-13 FCC ID: 2AF2R-81TX Model Number: HB6081 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, Shenzhen Videotimes Technology Co.,Ltd , declare that this EUT (FCC ID: 2AF2R-81TX) doesn’t have Ad Hoc mode function on “non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, Name/Title： Chris Liu/General Manager Company: Shenzhen Videotimes Technology Co.,Ltd Address: Room 2106, Building 11, Tianan Yungu Phase II(Plot of Land 02-08) , Gangtou Community, Bantian Street, Longgang District, Shenzhen, Guangdong.China Phone: +86-755-26966058 Fax: +86-755-26966058 E-Mail: [email protected]

Shenzhen Videotimes Technology Co.,Ltd Room 2106, Building 11, Tianan Yungu Phase II(Plot of Land 02-08) , Gangtou Community, Bantian Street, Longgang District, Shenzhen, Guangdong.China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2023-4-13 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AF2R-81TX including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Chris Liu/General Manager Company: Shenzhen Videotimes Technology Co.,Ltd Address: Room 2106, Building 11, Tianan Yungu Phase II(Plot of Land 02-08) , Gangtou Community, Bantian Street, Longgang District, Shenzhen, Guangdong.China Phone: +86-755-26966058 Fax: +86-755-26966058 E-Mail: [email protected]

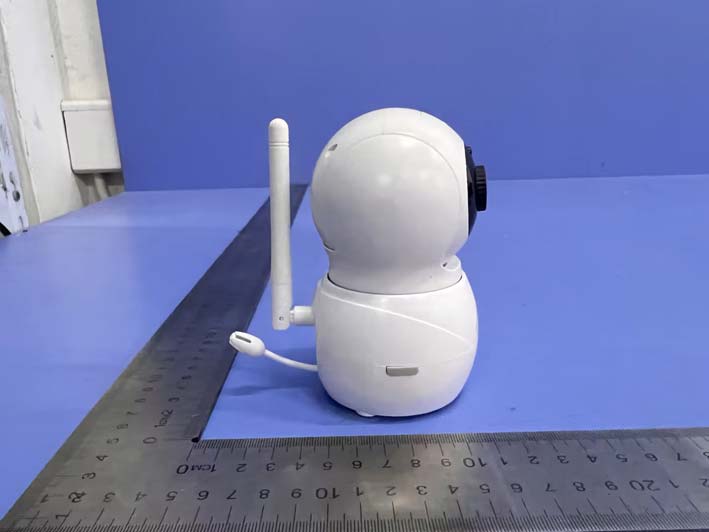

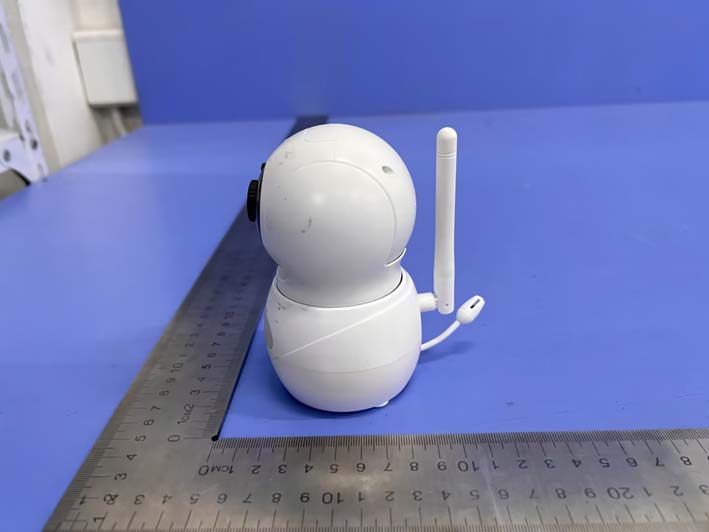

FCC ID: 2AF2R-81TX TB-RF-074-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of EUT WiFi Antenna FCC ID: 2AF2R-81TX TB-RF-074-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of EUT FCC ID: 2AF2R-81TX TB-RF-074-1.0 Photo 5 Appearance of EUT Photo 6 Appearance of Adapter

FCC ID: 2AF2R-81TX TB-RF-074-1.0 Appendix IFCC ID Label FCC ID: 2AF2R-81TX TB-RF-074-1.0 Appendix II ID Label Location ID LOCATION

FCC ID: 2AF2R-81TX TB-RF-074-1.0 Appendix IV EUT Internal Photographs Photo 7 Internal of EUT Photo 8 Internal of EUT FCC ID: 2AF2R-81TX TB-RF-074-1.0 Photo 9 Internal of EUT Photo 10 Internal of EUT FCC ID: 2AF2R-81TX TB-RF-074-1.0 Photo 11 Internal of EUT Photo 12 Battery parameters FCC ID: 2AF2R-81TX TB-RF-074-1.0 Photo 13 Appearance of PCB

Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202303-0036-12 Page: 1 of 3 TB-RF-075-1.0 1 A/F., Building.6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao’an, Shenzhen, Guangdong, China Tel: +86 75526509301 Fax: +86 75526509195 Maximum Permissible Exposure Evaluation FCC ID: 2AF2R-81TX 1. Client Information Applicant : Shenzhen Videotimes Technology Co.,Ltd Address : Room 2106, Building 11, Tianan Yungu Phase II(Plot of Land 02-08) , Gangtou Community, Bantian Street, Longgang District, Shenzhen, Guangdong.China Manufacturer : Shenzhen Videotimes Technology Co.,Ltd Address : Room 2106, Building 11, Tianan Yungu Phase II(Plot of Land 02-08) , Gangtou Community, Bantian Street, Longgang District, Shenzhen, Guangdong.China 2. General Description of EUT EUT Name : 2.4GHz Digital Wireless Video Baby Camera Models No. : HB6081, BBM818, BBM818-2, BBM818TX, HB6081-2, HB6081TX, VT510, VT510-2, VT510TX, FK8160, FK8160-2, FK8160TX, JA2302, JA2302-2, JA2302TX, BG1055, BG1055-2, BG1055TX, VV6010, VV6010-2, VV6010TX, BL9055, BL9055-2, BL9055TX Model Different : All these models are identical in the same PCB, layout and circuitry, the only difference is the different sales designation Product Description : Operation Frequency: 802.11b/g: 2412MHz~2462MHz Number of Channel: 802.11b/g:11 channels Antenna Gain: 3.05dBi Monopole antenna Power Rating : Adapter: K05V050120U Input: 100-240V~50/60Hz, 0.2A Output:5.0V1.2A Software Version : 1.0 Hardware Version : 1.0 Connecting I/O Port(S) : : Please refer to the User's Manual Remark : the evaluation report used the EUT(202303-0036-11-2#). Report No.: TBR-C-202303-0036-12 Page: 2 of 3 TB-RF-075-1.0 MPE Calculations for WIFI 1. EUT Operation Condition: Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 2. Exposure Evaluation: Equation from page 18 of OET Bulletin 65, Edition 97-01 S=(PG)/4πR 2 Where S: power density P: power input to the antenna G: power gain of the antenna in the direction of interest relative to an isotropic radiator. R: distance to the center of radiation of the antenna 3. Simultaneous transmission MPE Considerations According to KDB447498: All transmitters and antennas in the host must be either evaluated for MPE compliance, by measurement or computational modeling, or qualify for the standalone MPE test exclusion in section 7.1. Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modeled or measured field strengths or power density, is ≤ 1.0. This means that: ∑ of MPE ratios ≤ 1.0 4. Test Result: Mode Frequency (MHz) Conducted Power(max) (dBm) Turn-up Power (dB) Max tune up power (dBm) [P] ANT Gain (dBi) [G] Distance (cm) [R] Power Density (mW/ cm 2 ) [S] Limit of Power Density (mW/ cm 2 ) (S) 802.11b 2412 12.372 12±1 13 3.05 20 0.00801 1 2437 18.331 18±1 19 3.05 20 0.03190 1 2462 13.261 13±1 14 3.05 20 0.01009 1 802.11g 2412 13.647 13±1 14 3.05 20 0.01009 1 2437 15.166 15±1 16 3.05 20 0.01599 1 2462 13.174 13±1 14 3.05 20 0.01009 1 Report No.: TBR-C-202303-0036-12 Page: 3 of 3 TB-RF-075-1.0 5. Conclusion: As specified in Table 1B of 47 CFR 1.1310- Limits for Maximum Permissible Exposure (MPE), Limits for General Population/ Uncontrolled Exposure Frequency Range (MHz) Power density (mW/ cm 2 ) 300-1,500 F/1500 1,500-100,000 1.0 For 2.4WIFI:2412~2462 MPE limit S: 1mW/ cm 2 The MPE is calculated as 0.03190 < limit 1mW / cm 2 . So, RF exposure limit warning or SAR test are not required. The EUT will only be used with a separation of 20cm or greater between the antenna and nearby persons and can therefore be considered a mobile transmitter per 47 CFR2.1091 (b). The RF Exposure Information page from the manual is included here for reference. Note For a more detailed features description, please refer to the RF Test Report. 6. Conclusion: The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. -----END OF REPORT-----
