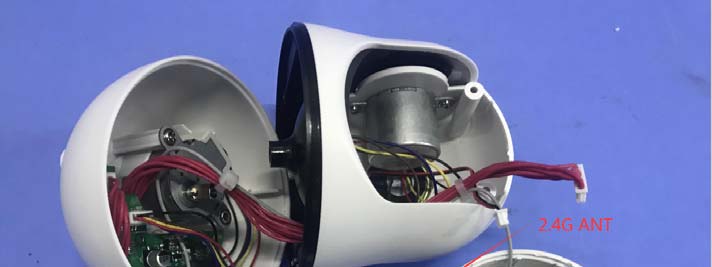

Page : 6 of 11 TB-RF-075-1.0 Appendix 3 EUT Internal Photographs Model: HB88TX Photo 2 Internal of EUT Page : 7 of 11 TB-RF-075-1.0 Page : 8 of 11 TB-RF-075-1.0 Page : 9 of 11 TB-RF-075-1.0

Shenzhen Toby Technology Co., Ltd. Report No.: TB-MPE174732 Page: 1 of 3 TB-RF-075-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 Maximum Permissible Exposure Evaluation FCC ID: 2AF2R-HB88TX 1. Client Information Applicant : Shenzhen Videotimes Technology Co.,Ltd Address : Room 601, Building B, Union Financial Building Fubao Street, Futian Free Trade Zone, Shenzhen, China Manufacturer : Shenzhen Videotimes Technology Co.,Ltd Address : Room 601, Building B, Union Financial Building Fubao Street, Futian Free Trade Zone, Shenzhen, China 2. General Description of EUT EUT Name : 2.4GHz Digital Wireless Video Baby Camera Models No. : HB88TX Model Different : N/A Product Description : Operation Frequency: 2410MHz~2473MHz RF Output Power: 6.619dBm Antenna Gain: 2dBi Diople Antenna Modulation Type: GFSK (4Mbps) Power Supply : DC Voltage Supply from AC/DC Adapter Power Rating : Adapter (Model:K05V050120U) Input: AC 100-240V~50/60Hz, 0.2A Output: DC 5.0V,1.2A Software Version : V1.0 Hardware Version : HB88T_V02 Remark : The adapter and antenna gain provided by the applicant, the verified for the RF conduction test provided by TOBY test lab. Report No.: TB-MPE174732 Page: 2 of 3 TB-RF-075-1.0 MPE Calculations for WIFI 1. Antenna Gain: Monopole Antenna: 2dBi. 2. EUT Operation Condition: Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 3. Exposure Evaluation: Equation from page 18 of OET Bulletin 65, Edition 97-01 S=(PG)/4πR 2 Where S: power density P: power input to the antenna G: power gain of the antenna in the direction of interest relative to an isotropic radiator. R: distance to the center of radiation of the antenna 4. Test Result: Mode Conducted Power(max) (dBm) Turn-up Power (dB) Max tune up power (dBm) [P] ANT Gain (dBi) [G] Distance (cm) [R] Power Density (mW/ cm 2 ) [S] 2410.0 6.619 6±1 7 2 20 0.00158 2441.5 6.476 6±1 7 2 20 0.00158 2473.0 5.794 6±1 7 2 20 0.00158 Report No.: TB-MPE174732 Page: 3 of 3 TB-RF-075-1.0 5. Conclusion: As specified in Table 1B of 47 CFR 1.1310- Limits for Maximum Permissible Exposure (MPE), Limits for General Population/ Uncontrolled Exposure Frequency Range (MHz) Power density (mW/ cm 2 ) 300-1,500 F/1500 1,500-100,000 1.0 For GFSK:2410~2473 MHz MPE limit S: 1mW/ cm 2 The MPE is calculated as 0.0158mW / cm 2 < limit 1mW / cm 2 . So, RF exposure limit warning or SAR test are not required. The EUT will only be used with a separation of 20cm or greater between the antenna and nearby persons and can therefore be considered a mobile transmitter per 47 CFR2.1091 (b). The RF Exposure Information page from the manual is included here for reference. Note For a more detailed features description, please refer to the RF Test Report. -----END OF REPORT-----

Report No.: TB-FCC174731 Page: 1 of 52 TB-RF-074-1.0 Radio Test Report FCC ID: 2AF2R-HB88TX Original Grant Report No. : TB-FCC174731 Applicant : Shenzhen Videotimes Technology Co.,Ltd Equipment Under Test (EUT) EUT Name : 2.4GHz Digital Wireless Video Baby Camera Model No. : HB88TX Series Model No. : N/A Brand Name : HelloBaby Sample ID : TBBJ-20200714-15-02# Receipt Date : 2020-08-11 Test Date : 2020-08-11 to 2020-08-31 Issue Date : 2020-08-31 Standards : FCC Part 15, Subpart C 15.247 Test Method : ANSI C63.10: 2013 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above, The EUT technically complies with the FCC requirements Test/Witness Engineer : Jack Deng Engineer Supervisor : Ivan Su Engineer Manager : Ray Lai This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TB-FCC174731 Page: 2 of 52 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 5 1.1 Client Information ................................................................................................................. 5 1.2 General Description of EUT (Equipment Under Test) ................................................... 5 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 6 1.4 Description of Support Units .............................................................................................. 7 1.5 Description of Test Mode .................................................................................................... 7 1.6 Description of Test Software Setting ................................................................................ 8 1.7 Measurement Uncertainty .................................................................................................. 8 1.8 Test Facility ........................................................................................................................... 9 2. TEST SUMMARY ..................................................................................................................... 10 3. TEST SOFTWARE ................................................................................................................... 10 4. TEST EQUIPMENT .................................................................................................................. 11 5. CONDUCTED EMISSION TEST ........................................................................................... 11 5.1 Test Standard and Limit .................................................................................................... 12 5.2 Test Setup ........................................................................................................................... 12 5.3 Test Procedure ................................................................................................................... 13 5.4 Deviation From Test Standard ......................................................................................... 13 5.5 EUT Operating Mode ........................................................................................................ 13 5.6 Test Data ............................................................................................................................. 13 6. RADIATED EMISSION TEST ................................................................................................ 14 6.1 Test Standard and Limit .................................................................................................... 14 6.2 Test Setup ........................................................................................................................... 15 6.3 Test Procedure ................................................................................................................... 16 6.4 Deviation From Test Standard ......................................................................................... 17 6.5 EUT Operating Condition ................................................................................................. 17 6.6 Test Data ............................................................................................................................. 17 7. RESTRICTED BANDS AND BAND-EDGE TEST ............................................................. 18 7.1 Test Standard and Limit .................................................................................................... 18 7.2 Test Setup ........................................................................................................................... 18 7.3 Test Procedure ................................................................................................................... 19 7.4 Deviation From Test Standard ......................................................................................... 19 7.5 EUT Operating Condition ................................................................................................. 19 7.6 Test Data ............................................................................................................................. 19 8. NUMBER OF HOPPING CHANNEL .................................................................................... 20 8.1 Test Standard and Limit .................................................................................................... 20 8.2 Test Setup ........................................................................................................................... 20 8.3 Te…
