User Manual Bluetooth Selfie Stick Model:LY9347A FCC ID:2AF3GLY9347A Wireless Handheld Monopod Extendable Selfie Stick for iPhone & Android Instructions for use: At first use: Pair the mobile device and Selfie Stick with your mobile device’s Bluetooth function. First turn on the Selfie Stick. Next, turn on the mobile device’s Bluetooth function and search for selfie device. Connect your device with the Selfie Stick. Your device should now be paired. Step 1: Place mobile phone into the phone holder Step 2: Turn camera app on and reverse camera so front camera is in use Step 3: Adjust the top to the angle desired Step 4: Extend the selfie stick Step 5: Capture desirde picture and press the button on Selfie Stick Step 6: Enjoy your awesome selfies! Charging Selfie Stick: Step 1: Insert mini USB into bottom of Selfie Stick Step 2: Insert the USB into a USB charging device (wall USB port, car USB port, computer) Specs: Operating ambient temperature: -10° to 40° Relative humidity: 10% to 90% Battery capacity: 45 mAh Charging voltage: 5 V DC Charging time: 1 hour Standby time: 100 hours N OTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
Beacon Promotions, Inc. 2121 South Bridge Street New Ulm, Minnesota, 56073,United States TEL: 001-1-213-2879463 FAX: 001-1-213-2879463 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 10/22/2015 Request for Confidentiality Company name: Beacon Promotions, Inc. FCC ID: 2AF3GLY9347A FCC Part 15 Certification Gentlemen, In accordance with CFR 47 § 0.459, Beacon Promotions, Inc. hereby requests confidentiality of following attachments: (1) schematic diagrams, (2) detailed block diagrams, (3) detailed operational descriptions, (4) parts lists. These documents contain detailed system and equipment description and related information about the product which Beacon Promotions, Inc. considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, Beacon Promotions, Inc. considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Signature [Angie Shaul] [Manager] Beacon Promotions, Inc. 2121 South Bridge Street New Ulm, Minnesota, 56073,United States

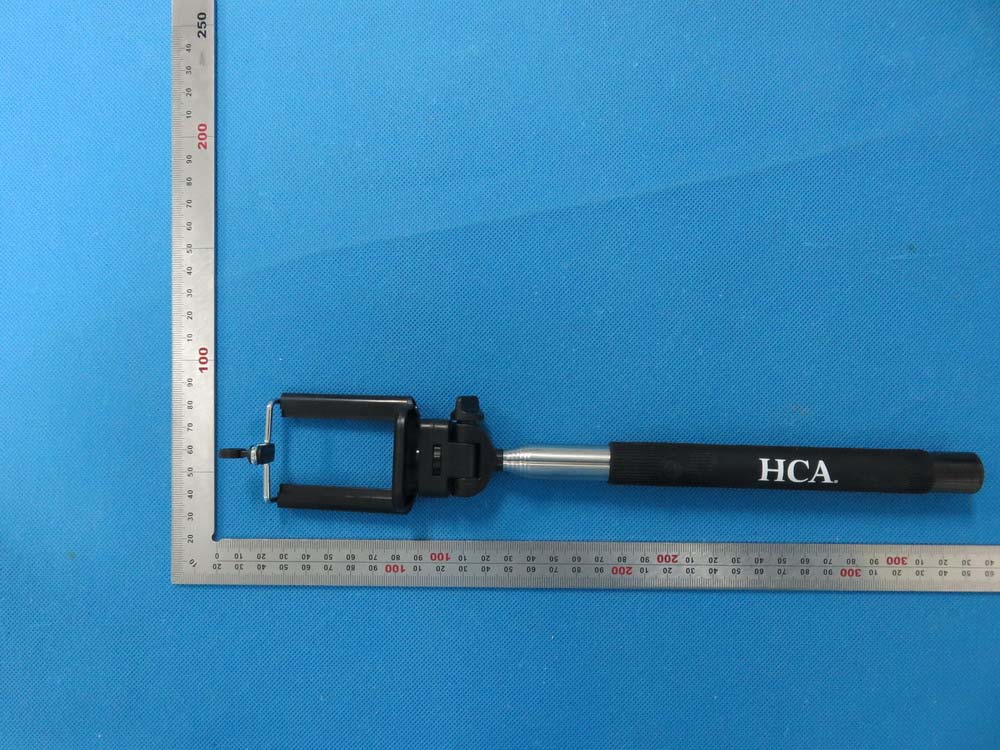

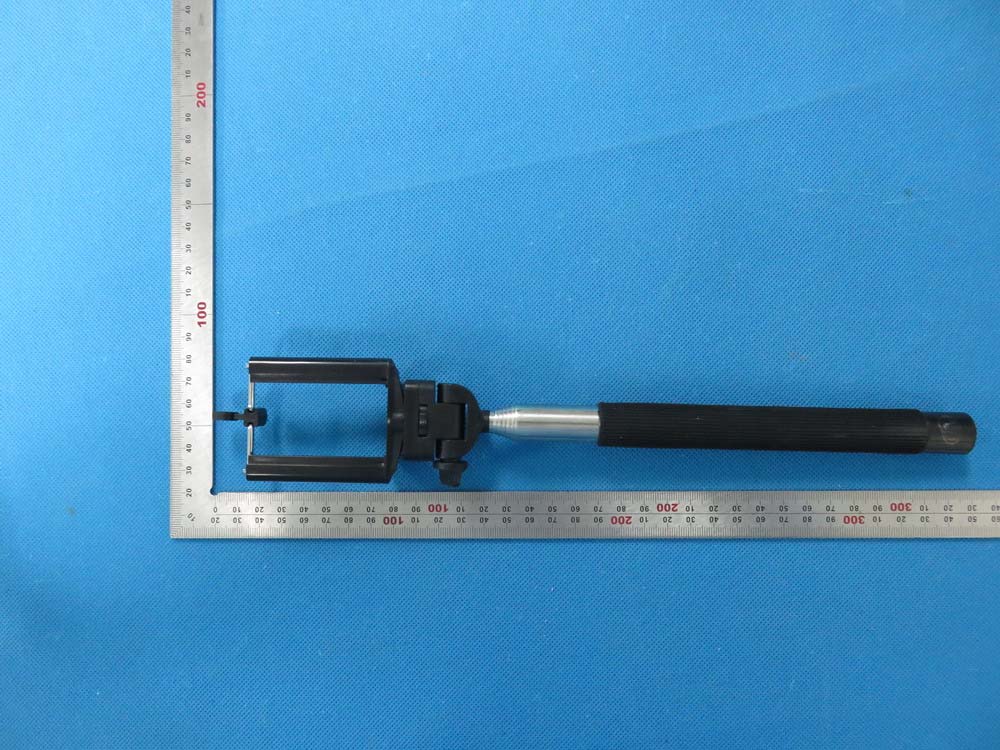

External Photos TOTAL VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT (PORT)
FCC ID Label Location Model:LY9347A FCC ID: 2AF3GLY9347A
Internal Photos OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 Antenna
RF Exposure evaluation Product Description:Bluetooth Selfie Stick Model Number: LY9347A FCC ID: 2AF3GLY9347A According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation According to the follow transmitter output power(P t )formula: P t =(E x d) 2 /(30 x g t ) P t =transmitter output power in watts g t =numeric gain of the transmitting antenna (unitess) E=electric field strength in V/m d=measurement distance in meters (m) According to the above test data, Emax=92.64dBuv/m=0.043V/m,d=3m,g t =0.76 P t =(E x d) 2 /(30 x g t )=(0.043x3) 2 /(30x0.76)=0.00073W=0.73mW The result is rounded to one decimal place for comparison Worse case is as below: [2480MHz -0.73mW output power] (0.73mW /5mm) .[√2.480(GHz)]= 0.23<3.0 for 1-g SAR Then SAR evaluation is not required NOTE: For the maximum power, you can refer FCC test report.
Page 1 of 51 FCC Test Report Report No.: AGC05116150801FE03 FCC ID : 2AF3GLY9347A APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Bluetooth Selfie Stick BRAND NAME : N/A MODEL NAME : LY9347A CLIENT : Beacon Promotions, Inc. DATE OF ISSUE : Sep.23,2015 STANDARD(S) TEST PROCEDURE(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC05116150801FE03 Page 2 of 51 Report Revise Record Report Version Revise Time Issued Date Valid VersionNotes V1.0 / Sep.23,2015 Valid Original Report Report No.: AGC05116150801FE03 Page 3 of 51 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ...................................................................................... 4 2. GENERAL INFORMATION .................................................................................................. 5 2.1. PRODUCT DESCRIPTION ........................................................................................................... 5 2.2. TABLE OF CARRIER FREQUENCYS .......................................................................................... 5 3. MEASUREMENT UNCERTAINTY........................................................................................ 6 4. DESCRIPTION OF TEST MODES ........................................................................................ 6 5. SYSTEM TEST CONFIGURATION ...................................................................................... 7 5.1. CONFIGURATION OF EUT SYSTEM .......................................................................................... 7 5.2. EQUIPMENT USED IN EUT SYSTEM ......................................................................................... 7 5.3. SUMMARY OF TEST RESULTS .................................................................................................. 7 6. TEST FACILITY .................................................................................................................... 8 7 ALL TEST EQUIPMENT LIST ............................................................................................... 8 8. RADIATED EMISSION ......................................................................................................... 9 8.1TEST LIMIT ..................................................................................................................................... 9 8.2. MEASUREMENT PROCEDURE ................................................................................................ 10 8.3. TEST SETUP .............................................................................................................................. 12 8.4. TEST RESULT ............................................................................................................................ 14 9. BAND EDGE EMISSION .................................................................................................... 27 9.1. MEASUREMENT PROCEDURE ................................................................................................ 27 9.2 TEST SETUP ............................................................................................................................... 27 9.3 RADIATED TEST RESULT .......................................................................................................... 28 10. 20DB BANDWIDTH .......................................................................................................... 32 10.1. MEASUREMENT PROCEDURE .............................................................................................. 32 10.2. TEST SET-UP ........................................................................................................................... 32 10.3. LIMITS AND MEASUREMENT RESULTS ................................................................................ 32 11. FCC LINE CONDUCTED EMISSION TEST ..................................................................... 39 11.1. LIMITS OF LINE CONDUCTED EMISSION TEST ................................................................... 39 11.2. BLOCK DIAGRAM OF LINE CONDUCTED EMISSION TEST ................................................. 39 11.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST .............................. 40 11.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST ............................................. 40 11.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST ....................................................... 41 APPENDIX A: PHOTOGRAPHS OF TEST SETUP ............................................................... 43 APPENDIX B: PHOTOGRAPHS OF EUT .............................................................................. 45 Report No.: AGC05116150801FE03 Page 4 of 51 1. VERIFICATION OF CONFORMITY Applicant Beacon Promotions, Inc. Address 2121 South Bridge Street New Ulm, Minnesota, 56073, USA Manufacturer Ningbo Leyond Imp. & Exp. Co., Ltd. Address Room 1107, A1 Modern Times Building, No.203 LanTian Road, Ningbo 315000, China Product Designation Bluetooth Selfie Stick Brand Name N/A Test Model LY9347A Date of test Sep.05,2015 to Sep.08,2015 Deviation None Condition of Test Sample Normal Report Template AGCRT-US-BR/RF We hereby certify that: The above equipment was tested by Compliance Certification Service(Shenzhen) Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with radiated emission limits of FCC Rules Part 15.249. Tested By Jerry Xiao(Xiao Wang) Sep.23,2015 Reviewed By Forrest Lei(Lei Yonggang) Sep.23,2015 Approved By Solger Zhang(Zhang Hongyi) Authorized Officer Sep.23,2015 Report No.: AGC05116150801FE…
Text truncated - open the document above for the full version.
APPENDIX IV PHOTOGRAPHS OF TEST SETUP FCC LINE CONDUCTED EMISSION TEST SETUP FCC RADIATED EMISSION TEST SETUP
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 2.40 GHz - 2.48 GHz | - |
