2AF46DSPREV1-3Module Radar (field sensor) 24GHz band

USER GUIDE ANTENNA MODULE REV1-3 1/7 FCC APPROVAL FCC 2-parts warning statement under 15.19 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Modification statement 15.21 The user manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. IC APPROVAL (EN) Warning: This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. (FR) Attention: Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. 2/7 WARNING RF Emission (EN) Warning: This module contains radio-frequency transceivers and antennas which emits and receive in the 24GHz frequency band. This module can interfere with and its functionality can be impacted by other nearby equipment operating in the same frequency band. (FR) Attention: Ce module contient des émetteurs-récepteurs et antennes qui émettent et reçoivent dans la plage fréquentielle de 24GHz. Ce module peut interférer et ses fonctionnalités peuvent être altérées par de l’équipement avoisinant opérant dans la même plage fréquentielle. RF Exposure (EN) Warning: Exposure to Radio Frequency Energy: The radiated power output of the radar module is below the RF exposure limits for uncontrolled exposure. This device should be operated with a minimum distance of at least 20 cm between the antenna and a person’s body. (FR) Attention: Évaluation d'exposition aux RF: L’intensité de champ RF émis par la carte radar est inferieures aux limites d'intensité de champ RF prévues pour l’environnement non contrôlé. Les dispositifs à un élément rayonnant fonctionnant normalement à des distances de séparation entre l'utilisateur et le dispositif supérieures à 20 cm. Other warnings Manufacturers of mobile or fixed devices incorporating ANTENNA MODULE REV1-3 modules are authorized to use the FCC Grants and IC Certificates of the ANTENNA MODULE REV1-3 modules for their own final products according to the conditions referenced in these documents. In this case, the FCC label of the module shall be visible from the outside, or the host device shall bear a second label stating "Contains FCC ID: 2AF46DSPREV1-3". (EN) Warning: Changes or modifications made to this equipment not expressly approved by ELANCITE TECHNOLOGIES may void the FCC authorization to operate this equipment, (FR) ATTENTION : Toute modification sur ce produit, n'étant pas expressement validée par ELANCITE TECHNOLOGIES peut annuler l'autorisation FCC d'utiliser cet équipement. 3/7 1.Description The « ANTENNA MODULE REV1-3 » is dedicated to speed measurement of various moving objects. Its high quality antenna permits to mesure speeds with a range of 250 meters and an average angle of 30° (Azimut and Elevation @-3dB) Especially studied for cars speed measurement, the firmware offers reliable and easy to use communication protocol. High quality French manufacturing. The antenna module consists in an antenna for measurements and a high speed DSP processor for fast calculation. On board power regulation. For an ease of use : unique connector for power and data. 4/7 2.Antenna informations 5/7 3.Power specifications Power source : DC Power voltage : 9 – 15 (V) Max power consumption : 2,7 (W) See part4 for cable connection specs. 4.Cable specifications ANTENNA MODULE REV1-3 uses only one connector for data and power. Ground 4 TX signal3 Rx signal2 Power 1 Onboard connector Cable connector references ; 6/7 4 3 2 1 BOITIER CST 100 4 PTSRS : 293 0048 CONTACT ETAME CST 100 RS : 293 0098 5.Mechanical specifications 7/7

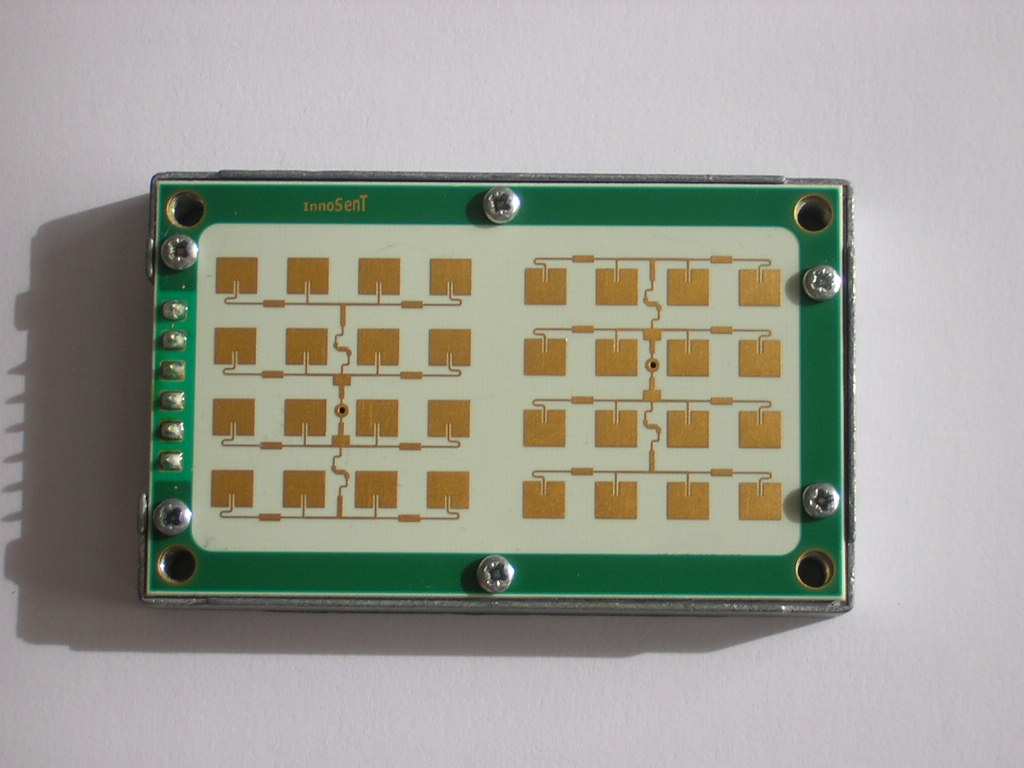

- EXTERNAL PHOTOS - CONFIDENTIAL IPS-146_F 24GHz-Doppler-Module CONFIDENTIAL AND PROPRIETARY page 1 of 2 2008-09-12 Documentation for FCC-approval - External Photos - Module : IPS-146_F for MOR MANUFACTURING CORPORATION 5676 E Seltice Way Post Falls, Idaho 83854 UNITED STATES - EXTERNAL PHOTOS - CONFIDENTIAL IPS-146_F 24GHz-Doppler-Module CONFIDENTIAL AND PROPRIETARY page 2 of 2 2008-09-12 External Photos a) Antenna side b) Back side

- INTERNAL PHOTOS - CONFIDENTIAL IPS-146_F 24GHz-Doppler-Module CONFIDENTIAL AND PROPRIETARY page 1 of 2 2008-09-12 Documentation for FCC-approval - Internal Photos - Module : IPS-146_F for MOR MANUFACTURING CORPORATION 5676 E Seltice Way Post Falls, Idaho 83854 UNITED STATES - INTERNAL PHOTOS - CONFIDENTIAL IPS-146_F 24GHz-Doppler-Module CONFIDENTIAL AND PROPRIETARY page 2 of 2 2008-09-12 Internal Photos

Version 4.2 IPS-146_F page 1 of 3 2007-10-12 _____________________________________________________________________________________________________ USER MANUAL Product Family: K-Band Transceiver Range of use: traffic monitoring Module Number: IPS-146_F _____________________________________________________________________________________________________ Description: - radar-based motion detector - advanced PHEMT-oscillator with low current consumption - RF-pre-amplifier for lowest noise operation - split transmit and receive path for maximum gain - stereo (dual channel) operation for direction of motion identification - IF-pre-amplifier, bandwidth limited for lowest noise performance - enable input for oscillator shut down - small outline dimensions Absolute Maximum Ratings: Parameter Symbol Rating Units supply voltage V CC 5.5 V operating temperature (out of spec) T OP - 40 / + 85 °C storage temperature T STG + 90 °C Electrical Characteristics: Parameter Symbol min. typ. max. units comment transmit frequency f IPS-146_F 24.075 24.125 24.175 GHz output power (EIRP) P out 18 dBm temperature drift Df - 1 MHz/°C antenna pattern horizontal 30 ° azimuth vertical 32 ° elevation side lobe suppression horizontal 20 dB azimuth vertical 20 dB elevation I/Q balance amplitude 6 dB phase 60 90 120 ° IF output voltage offset V CC /2 V IF-amplifier gain 50 dB bandwidth 50 – 10k Hz supply voltage V CC 4.75 5.0 5.25 V supply current I 60 80 mA IF-amp included operating temperature T OP - 20 + 60 °C outline dimensions 60 x 37 x 9 mm Version 4.2 IPS-146_F page 2 of 3 2007-10-12 Interface: The sensor provides a 2.54 mm grid, single row pin header (square pin
0.635 mm). Pin # Description In/Out Comment 1 NC not connected 2 enable input active low 3 V CC input supply voltage 4 GND input analog ground 5 IF2 output Signal Q(uadrature) 6 IF1 output Signal I(nphase) Mechanical Outlines: (dimensions in mm) elevation azimuth
 Version 4.2 IPS-146_F page 3 of 3 2007-10-12 Certification and environment protection: InnoSenT GmbH has established and applies a quality system for: Development, production and sales of radar sensors for commercial and industrial sensors An audit was performed, Report No. 010350 Proof has been furnished that the requirements according to DIN EN ISO 9001:2000 are fulfilled. This InnoSenT product is compliant to the restriction of hazardous substances (RoHs – European Union directive 2002/95/EG). FCC-Approval ∑ This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ∑ Warning: Changes or modifications made to this equipment not expressly approved by InnoSenT GmbH may void the FCC authorization to operate this equipment. ∑ Manufacturers of mobile or fixed devices incorporating IPS-146_F modules are authorized to use the FCC Grants and IC Certificates of the IPS-146_F modules for their own final products according to the conditions referenced in these documents. In this case, the FCC label of the module shall be visible from the outside, or the host device shall bear a second label stating "Contains FCC ID: xxx-IPS146F". Contact Information: InnoSenT GmbH Am Roedertor 30 97499 Donnersdorf Germany Phone: +49 (0) 9528-9518-0 Fax: +49 (0) 9528-9518-99 E-Mail: [email protected] Web: www.InnoSenT.de

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at device output terminal:-0.70dBm* see below Cable and Jumper loss:0.0dB Maximum peak output power at antenna input terminal:-0.70dBm 0.851138038mW Single Antenna gain (typical):15dBi Number of Antennae:1 Total Antenna gain (typical):15dBi 31.6227766(numeric) Prediction distance:20cm Prediction frequency:24135MHz MPE limit for uncontrolled exposure at prediction frequency:1mW/cm 2 Power density at prediction frequency:0.005355 mW/cm 2 0.053546W/m 2 Tx On time:1.000000ms Tx period time:1.000000ms Average Factor:100.000000% Average Power density at prediction frequency:0.053546W/m 2 Maximum allowable antenna gain:37.71269855dBi Margin of Compliance:22.71269855 dB *Rational for this calculation is as follows: Measured field strength at 1 m distance is 119.07 dBμV/m. Field strength at 3 m will be as follows: 119.07 dBμV/m + 20 × Log 10 (1 m / 3 m) = 119.07 dBμV/m – 9.5 dB = 109.57 dBμV/m EIRP based on 3 m field strength is: 109.57 dBμV/m – 95.23 dB = 14.37 dBm Output power is: 14.37 dBm – 15 dBi = −0.66 dBm = −0.7 dB 2 4R PG S  

www.nemko.com Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation FCC Part 15.245 and RSS-210 A7.docx; Date: Oct 2013 SCC Accredited LAB LAB Accrédité CCN TM ONE WORLDOURAPPROVAL Test report 297413-1TRFWL Date of issue: January 28, 2016 Applicant: ÉlanCité Product: Module Radar (field sensor) 24GHz band Model: ANTENNA MODULE REV1-3 FCC ID: IC Registration number: 2AF46DSPREV1-3 20796-DSPREV13 Specifications:  FCC 47 CFR Part 15.245 Subpart C Operation within the bands 902–928 MHz, 2435–2465 MHz, 5785–5815 MHz, 10500–10550 MHz, and 24075–24175 MHz.  RSS-210 Issue 8, December 2010, Annex 7 Field Disturbance Sensors Operating in the Bands 902–928 MHz, 2435–2465 MHz, 5785–5815 MHz, 10.5–10.55 GHz and 24.075–24.175 GHz. Report reference ID: 297413-1TRFWL Page 2 of 19 Test location Company name: Nemko Canada Inc. Address: 303 River Road City: Ottawa Province: Ontario Postal code: K1V 1H2 Country: Canada Telephone: +1 613 737 9680 Facsimile: +1 613 737 9691 Toll free: +1 800 563 6336 Website: www.nemko.com Site number: FCC: 176392; IC: 2040A-4 (3 m semi anechoic chamber) Tested by: Andrey Adelberg, Senior Wireless/EMC Specialist Reviewed by: Kevin Rose, Wireless/EMC Specialist Date: January 28, 2016 Signature: Limits of responsibility Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. All results contain in this report are within Nemko Canada’s ISO/IEC 17025 accreditation. Copyright notification Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. © Nemko Canada Inc. Report reference ID: 297413-1TRFWL Page 3 of 19 Table of contents Table of contents .......................................................................................................................................................................................................... 3 Section 1. Report summary ................................................................................................................................................................................. 4 1.1 Test specifications .................................................................................................................................................................................................... 4 1.2 Test methods ............................................................................................................................................................................................................ 4 1.3 Statement of compliance ......................................................................................................................................................................................... 4 1.4 Exclusions ................................................................................................................................................................................................................. 4 1.5 Test report revision history ...................................................................................................................................................................................... 4 Section 2. Summary of test results ....................................................................................................................................................................... 5 2.1 FCC Part 15 Subpart C, general requirements test results ........................................................................................................................................ 5 2.2 FCC Part 15 Subpart C, Intentional radiators test results ......................................................................................................................................... 5 2.3 IC RSS-GEN, Issue 4, test results ............................................................................................................................................................................... 5 2.4 IC RSS-210, Issue 8, test results ................................................................................................................................................................................ 5 Section 3. Equipment under test (EUT) details ..................................................................................................................................................... 6 3.1 Applicant and manufacturer .................................................................................................................................................................................... 6 3.2 Sample information .................................................................................................................................................................................................. 6 November 24, 2015 ....................................................................................................................................................................................................... 6 3.3 EUT information ....................................................................................................................................................................................................... 6 3.4 Technical information ..........…
