2AF54-NANOT1CyberGeek Nano T1 Mini PC

FY International LLC. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: June 4, 2024 FCC ID: 2AF54-NANOT1 Ref. #1: Attestation Statements Part 2.911(d)(5)(i) Filing FY International LLC. certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Ref. #2: Attestation Statements Part 2.911(d)(5)(ii) Filing FY International LLC. certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Applicant: FY International LLC. Address: 13 Garabedian Dr, Unit C, Salem, NH, United States 03079 Contact Person: John Yang Tel.: +1-888-396-8527 Email: [email protected] Sincerely, Signature:

Rev 1/26/2023 FY International LLC. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: June 4, 2024 Ref: Attestation Statements Part 2.911(d)(7) Filing FCC ID: 2AF54-NANOT1 FY International LLC.(“the applicant”) certifies that, as of the date of the filing of the application, we designate ourselves as the U.S. agent for service of process. Designated U.S. Agent Information: FRN: 0024958894 Name: FY International LLC. Address: 13 Garabedian Dr, Unit C, Salem, New Hampshire, United States 03079 Contact Person: John Yang Tel.: +1-888-396-8527 Email: [email protected] Sincerely, FY International LLC. John Yang

产品图片（Product picture） A ddress: Shiyan Industrial Park, No. 26, Juxiang Road, Dalang Alley, Dongguan Electrical Properties Frequency 2400-2500;5150-5850MHz Impedance 50 Ohm Nominal V.S.W.R ＜2.0 Radiation Omni-directional Gain (Peak) 4.43dBi ConnectorMHF-4L Physical Properties Antenna MaterialFPCB Cable Type1.13CABLE Storage Temp.-20 ~ +75 ̊C Cable ColorGRAY A ddress: Shiyan Industrial Park, No. 26, Juxiang Road, Dalang Alley, Dongguan 280.0±3.0 1 2 E 4 3 DATE:2023-08-09 TITLE SCALE: 1/1 DRAWED S.H P/NO TOLERANCE UNLESS OTHERWISE SPECIFIED ANGLES ±0.5°X.X ±0.5X.XX ±0.2 UNIT:mm SHEET: 1/1 CHECKED APPROVED SIZE A4 PART NO CUSTOMER XX. ±5.0X. ±2.0 6 7 8 A 5 4 2 3 1 A B B BECD 8 7 6 4 5 Jammy SY-W90PE2360G280C-L01 Patrick Jerry BB BCD RoHS DONGGUAN SEYA ELECTRONIC COMMUNICATION CO.,LTD 东 莞 市 仕 研 电 子 通 讯 有 限 公 司 SEYA REV. CONTENT DATE A 2023-08-09 2.4-5.8GHz WIFI ANTENNA FOR C14T 2 NO. 1 Finished Q'ty FPC B ， SIZE:32.2*23.4*T0.1mm Name 1PC1PC FPC105 17 A-SY2360 3 1PC Ø1.13mm Coaxial Cable （ gray ） ;L=280.0mm COA11301A TER10010A.P01 MHF-4LØ1.13mm Coaxial Cable 4 1PC EVA10XXXA Conductive foam single-sided adhesive backing SIZE:L20.5*W5.0*T5.0mm 3 1 Ø1.13 CABLE Color:Gray SIZE:L20.5*W5.0*T5.0mm 4 1.0 2.0 2.0 FPC STRIPPING DIM'S 1.1 0.5 0.8 MHF-4L STRIPPING DIM'S W5 L20.5 T5 0.1 2 SEYA SY2360 32.2±0.3 23.4±0.3 20.5 9.2 4 A ddress: Shiyan Industrial Park, No. 26, Juxiang Road, Dalang Alley, Dongguan GAIN A ddress: Shiyan Industrial Park, No. 26, Juxiang Road, Dalang Alley, Dongguan GAIN A ddress: Shiyan Industrial Park, No. 26, Juxiang Road, Dalang Alley, Dongguan GAIN Freq (MHz) Effi(%)Gain (dBi) 2400 30.771.84 2450 35.083.22 2500 36.792.15 5150 41.773.21 5350 46.274.25 5550 50.904.38 5650 47.654.43 5750 42.952.52 5850 39.033.29 A ddress: Shiyan Industrial Park, No. 26, Juxiang Road, Dalang Alley, Dongguan

产品图片（Product picture） A ddress: Shiyan Industrial Park, No. 26, Juxiang Road, Dalang Alley, Dongguan Electrical Properties Frequency 2400-2500;5150-5850MHz Impedance 50 Ohm Nominal V.S.W.R ＜2.0 Radiation Omni-directional Gain (Peak) 4.73dBi ConnectorMHF-4L Physical Properties Antenna MaterialFPCB Cable Type1.13CABLE Storage Temp.-20 ~ +75 ̊C Cable ColorBLACK A ddress: Shiyan Industrial Park, No. 26, Juxiang Road, Dalang Alley, Dongguan 330.0±3.0 1 2 E 4 3 DATE:2023-08-09 TITLE SCALE: 1/1 DRAWED S.H P/NO TOLERANCE UNLESS OTHERWISE SPECIFIED ANGLES ±0.5°X.X ±0.5X.XX ±0.2 UNIT:mm SHEET: 1/1 CHECKED APPROVED SIZE A4 PART NO CUSTOMER XX. ±5.0X. ±2.0 6 7 8 A 5 4 2 3 1 A B B BECD 8 7 6 4 5 Jammy SY-W90PE2361B330C-L01 Patrick Jerry BB BCD RoHS DONGGUAN SEYA ELECTRONIC COMMUNICATION CO.,LTD 东 莞 市 仕 研 电 子 通 讯 有 限 公 司 SEYA REV. CONTENT DATE A 2023-08-09 2.4-5.8GHz WIFI ANTENNA FOR C14T 备注： 网络测试： 测试频段：2400-2500;5150-5850MHz VSWR:2.0MAX GAIN:2-4dBi 2 NO. 1 Finished Q'ty FPC B ， SIZE:31.1*23.4*T0.1mm Name 1PC1PC FPC10518A-SY2361 3 1PC Ø1.13mm Coaxial Cable （ black ） ;L=330.0mm COA11301B TER10010A.P01 MHF-4LØ1.13mm Coaxial Cable 4 1PC EVA10XXXA Conductive foam single-sided adhesive backing SIZE:L20.5*W5.0*T5.0mm 3 1 Ø1.13 CABLE Color:Black SIZE:L20.5*W5.0*T5.0mm 4 1.0 2.0 2.0 FPC STRIPPING DIM'S 1.1 0.5 0.8 MHF-4L STRIPPING DIM'S W5 L20.5 T5 0.1 2 SEYA SY2361 31.1±0.3 23.4±0.3 20.5 8.2 4 A ddress: Shiyan Industrial Park, No. 26, Juxiang Road, Dalang Alley, Dongguan GAIN A ddress: Shiyan Industrial Park, No. 26, Juxiang Road, Dalang Alley, Dongguan GAIN A ddress: Shiyan Industrial Park, No. 26, Juxiang Road, Dalang Alley, Dongguan GAIN Freq (MHz) Effi(%)Gain (dBi) 2400 33.231.85 2450 32.211.61 2500 33.681.16 5150 40.214.73 5350 38.133.57 5550 39.893.42 5650 42.584.01 5750 35.473.12 5850 41.193.41 A ddress: Shiyan Industrial Park, No. 26, Juxiang Road, Dalang Alley, Dongguan

FY International LLC. Date: June 4, 2024 Product Model Number: Nano T1, Nano T2, Nano T3, Nano T4, Nano T5 FCC ID: 2AF54-NANOT1 To whom it may concern, Re: Product Certification Representative Authorization Letter We authorize QAI Laboratories Ltd. 3980 North Fraser Way, Burnaby B.C. Canada V5J 5K5 to act on our behalf on all matters concerning the above named equipment. This shall include the following: • Testing • Approval applications and procedures We declare that ORGANIZATION. is allowed to forward all information related to the approval project to the applied certification body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by ORGANIZATION. on our behalf shall have the same effect as acts of our own. By: John Yang Contact Listed on FCC Wesbite Email: [email protected] Telephone: +1-888-396-8527 On behalf of: FY International LLC.

FY International LLC. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: June 4, 2024 Subject; Request for Confidentiality FCC ID: 2AF54-NANOT1 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Software Security Requirements for UNII devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: John Yang

FY International LLC. Model Difference Statement Dear Sir/Madam, Added models Nano T2, Nano T3, Nano T4, Nano T5 basis of the original product Nano T1. The color of appearance and model name of series models listed are different from the main model, but the circuit and the electronic construction are the same, declared by the manufacturer. Sincerely, Name: John Yang Company name: FY International LLC. Address: 13 Garabedian Dr, Unit C, Salem, NH, United States 03079

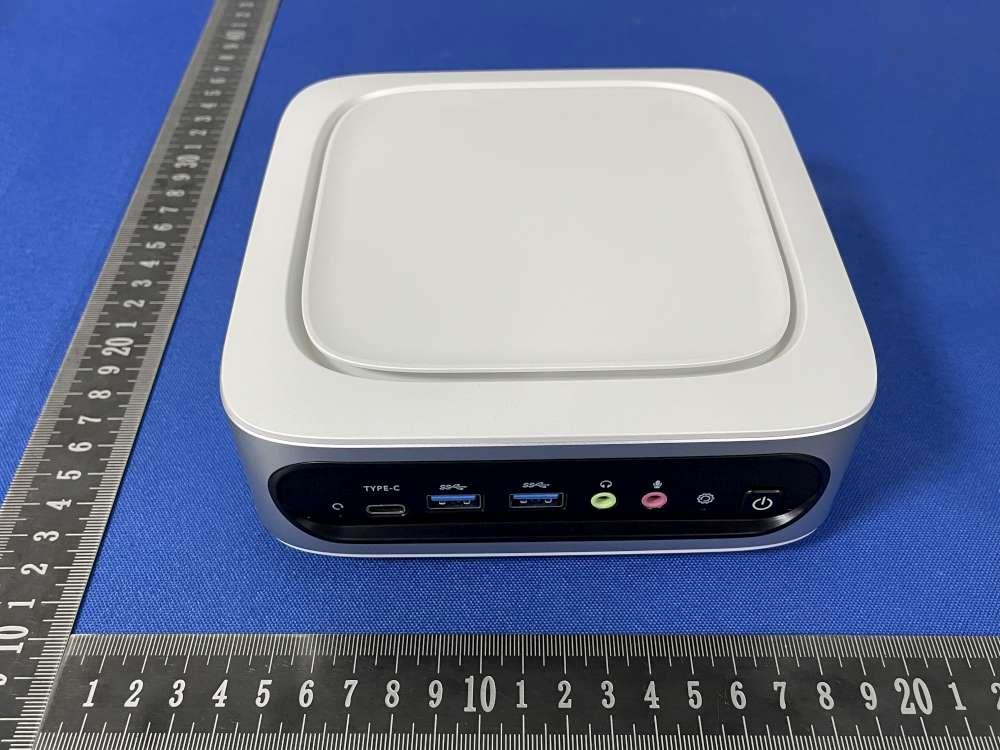

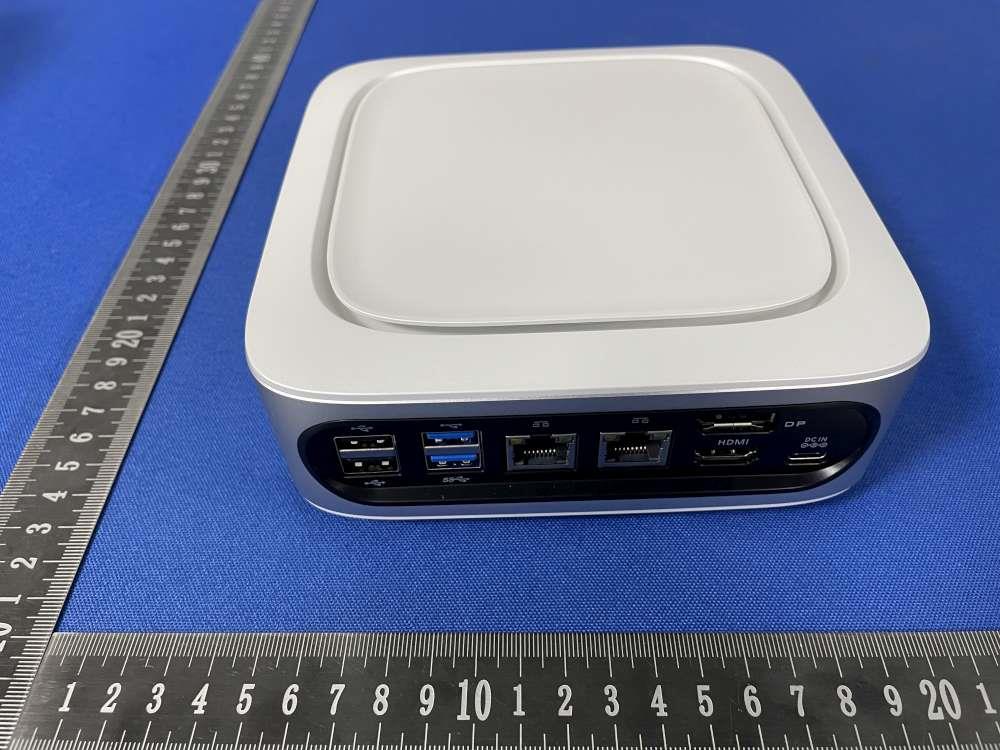

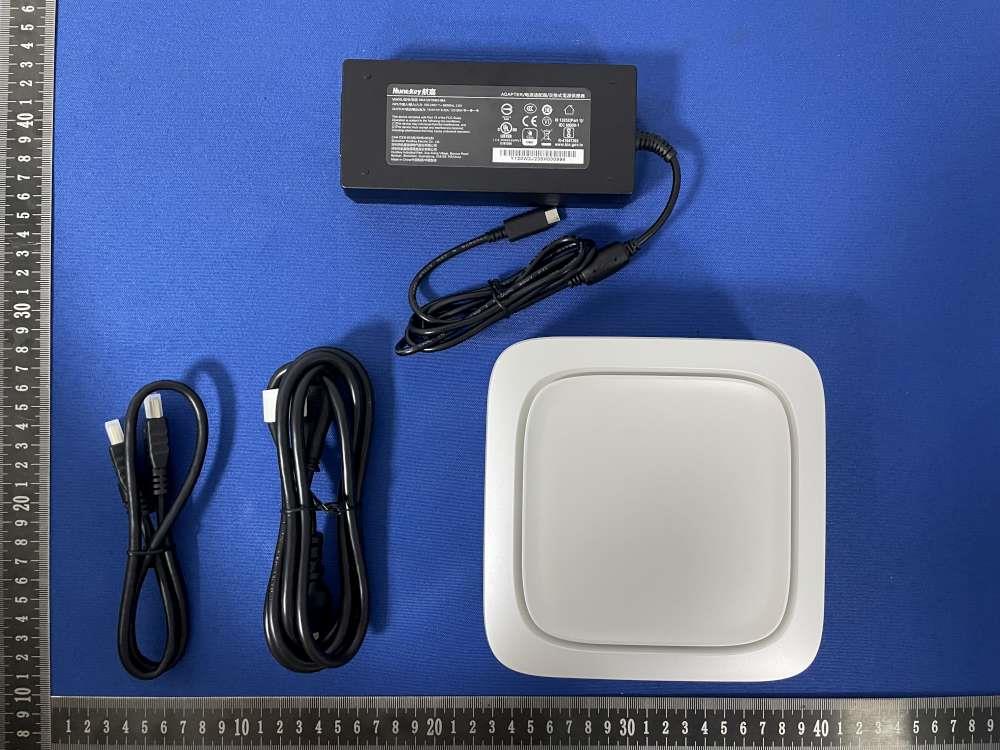

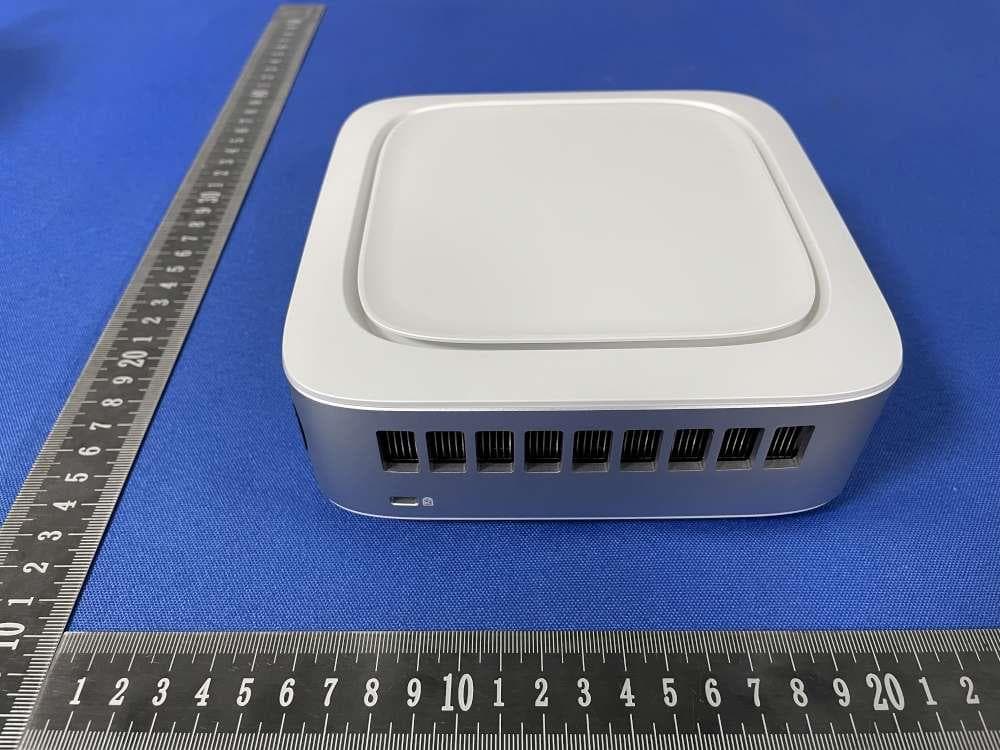

Report No: SSP24050103-1&2&3&4E FCC ID: 2AF54-NANOT1 Annex of Test Report Annex A. EUT External Photos EUT View 1 EUT View 2 Report No: SSP24050103-1&2&3&4E FCC ID: 2AF54-NANOT1 Annex of Test Report EUT View 3 EUT View 4 Report No: SSP24050103-1&2&3&4E FCC ID: 2AF54-NANOT1 Annex of Test Report EUT View 5 EUT View 6 Report No: SSP24050103-1&2&3&4E FCC ID: 2AF54-NANOT1 Annex of Test Report EUT View 7 EUT View 8

Report No: SSP24050103-1&2&3&4E FCC ID: 2AF54-NANOT1 Annex of Test Report Annex D. Label and Information FCC Label Sample FCC Label Specifications Text is Black in color and is justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Where the EUT is constructed in two or more sections connected by wires and marketed together, the above statement is required to be affixed only to the main control unit. When the EUT is so small or for such use that it is not practicable to place the statement on it, the above information shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. FCC Label Location

FCC ID: 2AF54-NANOT1 RF Exposure Evaluation Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm2) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f2) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f2) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz Friis transmission formula: Pd = (Pout*G)/(4*pi*r2) Where Pd = power density in mW/cm2, Pout = output power to antenna in mW; G = gain of antenna in linear scale, Pi = 3.1416; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Test Result of RF Exposure Evaluation BLE Mode Output power to antenna (dBm) Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result GFSK 4.13 2.59 0.0011 1.0 PASS BR+EDR Mode Output power to antenna (dBm) Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result GFSK 7.82 6.05 0.0025 1.0 PASS 2.4G Wi-Fi Mode Output power to antenna (dBm) Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 802.11b 12.51 17.82 0.0080 1.0 PASS 5.2G Wi-Fi Mode Output power to antenna (dBm) Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 802.11n 14.53 28.38 0.0168 1.0 PASS 5.8G Wi-Fi Mode Output power to antenna (dBm) Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 802.11a 11.22 13.24 0.0058 1.0 PASS Remark: BT antenna gain: 3.22dBi, Wi-Fi antenna gain: 2.4GHz=3.52dBi, 5.2GHz=4.73dBi, 5.8GHz=3.41dBi. The device cannot transmit with 2.4G Wi-Fi and 5.2, 5.8G Wi-Fi simultaneously, can transmit with 2.4G Wi-Fi ,5.2, 5.8G Wi-Fi and BT simultaneously. Calculations for simultaneously transmit Mode Ratios Result Limit Result BR+EDR 0.0011 0.0116 1 PASS BLE 0.0025 2.4G Wi-Fi 0.0080 Mode Ratios Result Limit Result BR+EDR 0.0011 0.0204 1 PASS BLE 0.0025 5.2G Wi-Fi 0.0168 Mode Ratios Result Limit Result BR+EDR 0.0011 0.0094 1 PASS BLE 0.0025 5.8G Wi-Fi 0.0058 Ratios = Power Density / Power density Limit So a SAR test is not required

CCUT Testing & Certification Report No: SSP24050103-1E FCC Test Report Page 1 of 32 FCC TEST REPORT FCC ID: 2AF54-NANOT1 Report No. : SSP24050103-1E Applicant : FY International LLC. Product Name : CyberGeek Nano T1 Mini PC Model Name : Nano T1 Test Standard : FCC Part 15.247 Date of Issue : 2024-05-29 Shenzhen CCUT Quality Technology Co., Ltd. 1F, Building 35, Changxing Technology Industrial Park, Yutang Street, Guangming District, Shenzhen, Guangdong, China; (Tel.:+86-755-23406590 website: www.ccuttest.com) This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd. CCUT Testing & Certification Report No: SSP24050103-1E FCC Test Report Page 2 of 32 Test Report Basic Information Applicant..................................: FY International LLC. Address of Applicant...............: 13 Garabedian Dr, Unit C, Salem, NH, United States 03079 Manufacturer..........................: FY International LLC. Address of Manufacturer........: 13 Garabedian Dr, Unit C, Salem, NH, United States 03079 Product Name.........................: CyberGeek Nano T1 Mini PC Brand Name.............................: CyberGeek Main Model..............................: Nano T1 Series Models..........................: Nano T2, Nano T3, Nano T4, Nano T5 Test Standard..........................: FCC Part 15 Subpart C KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.4-2014 ANSI C63.10-2013 Date of Test .............................: 2024-05-14 to 2024-05-29 Test Result...............................: PASS Tested By ................................: (Lorzix Luo) Reviewed By............................: (Lieber Ouyang) Authorized Signatory............: (Lahm Peng) Note : This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd.. All test data presented in this test report is only applicable to presented test sample. CCUT Testing & Certification Report No: SSP24050103-1E FCC Test Report Page 3 of 32 CONTENTS 1. General Information ....................................................................................................................................................5 1.1 Product Information .............................................................................................................................................5 1.2 Test Setup Information..........................................................................................................................................6 1.3 Compliance Standards ...........................................................................................................................................7 1.4 Test Facilities ........................................................................................................................................................7 1.5 List of Measurement Instruments ..........................................................................................................................8 1.6 Measurement Uncertainty .....................................................................................................................................8 2. Summary of Test Results .............................................................................................................................................9 3. Antenna Requirement ............................................................................................................................................... 10 3.1 Standard and Limit.............................................................................................................................................. 10 3.2 Test Result .......................................................................................................................................................... 10 4. Conducted Emissions ................................................................................................................................................ 11 4.1 Standard and Limit.............................................................................................................................................. 11 4.2 Test Procedure.................................................................................................................................................... 11 4.3 Test Data and Results .......................................................................................................................................... 12 5. Radiated Emissions ................................................................................................................................................... 15 5.1 Standard and Limit.............................................................................................................................................. 15 5.2 Test Procedure.................................................................................................................................................... 15 5.3 Test Data and Results .......................................................................................................................................... 17 6. Band-edge Emissions(Radiated) ............................................................................................................................... 21 6.1 Standard and Limit.............................................................................................................................................. 21 6.2 Test Procedure.................................................................................................................................................... 21 6.3 Test Data and Results ....................................................................................................................…

Text truncated - open the document above for the full version.

CCUT Testing & Certification Report No: SSP24050103-3E FCC Test Report Page 1 of 54 FCC TEST REPORT FCC ID: 2AF54-NANOT1 Report No. : SSP24050103-2E Applicant : FY International LLC. Product Name : CyberGeek Nano T1 Mini PC Model Name : Nano T1 Test Standard : FCC Part 15.247 Date of Issue : 2024-05-29 Shenzhen CCUT Quality Technology Co., Ltd. 1F, Building 35, Changxing Technology Industrial Park, Yutang Street, Guangming District, Shenzhen, Guangdong, China; (Tel.:+86-755-23406590 website: www.ccuttest.com) This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd. CCUT Testing & Certification Report No: SSP24050103-3E FCC Test Report Page 2 of 54 Test Report Basic Information Applicant..................................: FY International LLC. Address of Applicant...............: 13 Garabedian Dr, Unit C, Salem, NH, United States 03079 Manufacturer..........................: FY International LLC. Address of Manufacturer........: 13 Garabedian Dr, Unit C, Salem, NH, United States 03079 Product Name.........................: CyberGeek Nano T1 Mini PC Brand Name.............................: CyberGeek Main Model..............................: Nano T1 Series Models..........................: Nano T2, Nano T3, Nano T4, Nano T5 Test Standard..........................: FCC Part 15 Subpart C KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.4-2014 ANSI C63.10-2013 Date of Test .............................: 2024-05-14 to 2024-05-29 Test Result...............................: PASS Tested By ................................: (Lorzix Luo) Reviewed By............................: (Lieber Ouyang) Authorized Signatory............: (Lahm Peng) Note : This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd.. All test data presented in this test report is only applicable to presented test sample. CCUT Testing & Certification Report No: SSP24050103-3E FCC Test Report Page 3 of 54 CONTENTS 1. General Information ....................................................................................................................................................5 1.1 Product Information .............................................................................................................................................5 1.2 Test Setup Information..........................................................................................................................................6 1.3 Compliance Standards ...........................................................................................................................................7 1.4 Test Facilities ........................................................................................................................................................7 1.5 List of Measurement Instruments ..........................................................................................................................8 1.6 Measurement Uncertainty .....................................................................................................................................8 2. Summary of Test Results .............................................................................................................................................9 3. Antenna Requirement ............................................................................................................................................... 10 3.1 Standard and Limit.............................................................................................................................................. 10 3.2 Test Result .......................................................................................................................................................... 10 4. Conducted Emissions ................................................................................................................................................ 11 4.1 Standard and Limit.............................................................................................................................................. 11 4.2 Test Procedure.................................................................................................................................................... 11 4.3 Test Data and Results .......................................................................................................................................... 12 5. Radiated Emissions ................................................................................................................................................... 15 5.1 Standard and Limit.............................................................................................................................................. 15 5.2 Test Procedure.................................................................................................................................................... 15 5.3 Test Data and Results .......................................................................................................................................... 17 6. Band-edge Emissions(Radiated) ............................................................................................................................... 21 6.1 Standard and Limit.............................................................................................................................................. 21 6.2 Test Procedure.................................................................................................................................................... 21 6.3 Test Data and Results ....................................................................................................................…
