2AF6F-KHC-20TPMS

T P M S ENGLISH User Guide KHC-20 Tire Pressure Monitoring System Chi Yu Tech. Co., Ltd. Contents TPMS Sensor TPMS Reader Sensor Assemble....................................................5 Reader Install ..............................................................1 Power On Self Test......................................................1 Reader Interface Description..........................................2 Chi Yu Tech. Co., Ltd. Basic Operate Tire Pressure, Tire Temperature Display.............................3 Set Standard Alarm ......................................................3 Advanced Operate Sensor Pair .............................................................4 Alarm Alarm Description ......................................................5 Plug USB Cigarette Lighter to Cigarette Lighter slot Connect USB Cable to USB Cigarette Lighter After ACC turns ON, a self test procedure will start and raise Be-Beep sound while complete. Reader Install TPMS Reader TPMS ReaderUSB Cable Power ON Self Test -1- Chi Yu Tech. Co., Ltd. 1 2 Front Left Front Left Rear Left Rear Left Front Right Front Right Rear Right Rear Right Alarm Alarm Display Display Select Key Select Key Set Key Set Key Reader Interface Description TPMS Reader -2- Tire Pressure, Tire temperature Display Basic Operate Reader receives sensor data, the display will show the value of tire information 1 Push Select can switch different tire information 2 Push Set can change tire information, pressure or temperature 3 FL FL Display Display Select Select FR FR RL RL RR RR Set Standard Alarm At normal state, make sure all 4-tire information was received, and tire pressure is at stander value 1 Keep pushing Set key for 3 second, release key while bi-beep sounds. This will make alarm value set to current value 2 If any abnormal rise, alarm LED will flash, and buzzer will keep bi-beep sound 3 Set Set If no operating for a long time, display will switch to next tire information one by one. 4 Alarm Alarm Push and key will make alarm sound stop, but alarm LED will keep warning until system normal 4 -3- Set Set Sensor Pair Advanced Operate Use Select Key to select which tire to pair 1 Keep holding Set key for 7 seconds, release key after you hear bi-beep sounds 2 times 2 Display will display a tire number and waiting for pair 3 Take sensor to reader or vice versa, pair will complete while hear bi-beep sound 4 -4- Recall Default Setting Keep push Select and Set key at the same time for 7 seconds, release them after hear bi-beep sound. Reader will recall it’s default setting then. Low pressure : Alarm value:25 psi / 170 kPa / 1.7 bar High pressure : Alarm value:44 psi / 300 kPa / 3.0 bar High temperature: Alarm value:176 °F / 80 °C 1 FL FL Display Display Select Select FR FR RL RL RR RR Set Set Select Select Set Set Alarm Description Alarm Tire Pressure is too high or too low Sensor function abnormal or battery too low Tire Temperature too high -5- Pressure Abnormal Sensor not responsed Temperature Abnormal Sensor Assemble TPMS SensorParts FCC Part 15.19 Caution: 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation 2. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. 3. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. FCC Statement in User’s Manual (for calss B) FCC Section 15.105 “Federal Communications Commission (FCC) Statement” This equipment has been tested and found to comply with the limits for a lass B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. -6-

Compliance Certification Services Inc. Report No.T151007N03 Date of Issue: November 03, 2015 Page A1 / 13 External Photo ( KHC-20 ) Compliance Certification Services Inc. Report No.T151007N03 Date of Issue: November 03, 2015 Page A2 / 13 External Photo ( KHC-20 ) for Transmitter Compliance Certification Services Inc. Report No.T151007N03 Date of Issue: November 03, 2015 Page A3 / 13 Compliance Certification Services Inc. Report No.T151007N03 Date of Issue: November 03, 2015 Page A4 / 13 External Photo ( KHC-20 ) for Receiver Compliance Certification Services Inc. Report No.T151007N03 Date of Issue: November 03, 2015 Page A5 / 13

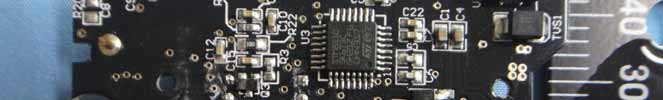

Compliance Certification Services Inc. Report No.T151007N03 Date of Issue: November 03, 2015 Page A6 / 13 Internal Photo ( KHC-20 ) for Transmitter Compliance Certification Services Inc. Report No.T151007N03 Date of Issue: November 03, 2015 Page A7 / 13 Compliance Certification Services Inc. Report No.T151007N03 Date of Issue: November 03, 2015 Page A8 / 13 Compliance Certification Services Inc. Report No.T151007N03 Date of Issue: November 03, 2015 Page A9 / 13 Internal Photo ( KHC-20 ) for Receiver Compliance Certification Services Inc. Report No.T151007N03 Date of Issue: November 03, 2015 Page A10 / 13 RX: Loop Antenna Compliance Certification Services Inc. Report No.T151007N03 Date of Issue: November 03, 2015 Page A11 / 13 Compliance Certification Services Inc. Report No.T151007N03 Date of Issue: November 03, 2015 Page A12 / 13 Compliance Certification Services Inc. Report No.T151007N03 Date of Issue: November 03, 2015 Page A13 / 13

Compliance Certification Services Inc. Reference No:T150901N02-RD FCC ID: FCC : 2AF6F-KHC-20 Report No.: T151007N03-RP1 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1/ 36 FCC 47 CFR PART 15 SUBPART C: 2014 ANSI C63.10: 2013 TEST REPORT For TPMS Model : KHC-20 Brand : KHC Issued to Kuen Hwa Traffic Industrial Co., LTD. No.57, HUANGONG RD., YONGKANG DIST., TAINAN CITY 71041, TAIWAN, R.O.C . Issued by Compliance Certification Services Inc. Tainan Lab. No.8,Jiucengling, Xinhua Dist., Tainan City 712, Taiwan (R.O.C.) TEL: (06) 580-2201 FAX: (06) 580-2202 Issued Date: November 03, 2015 Compliance Certification Services Inc. Reference No:T150901N02-RD FCC ID: FCC : 2AF6F-KHC-20 Report No.: T151007N03-RP1 Page 2/ 36 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 November 03, 2015 Initial Issue ALL Sunny Chang Compliance Certification Services Inc. Reference No:T150901N02-RD FCC ID: FCC : 2AF6F-KHC-20 Report No.: T151007N03-RP1 Page 3/ 36 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .........................................................................4 2. EUT DESCRIPTION..............................................................................................5 3. TEST METHODOLOGY........................................................................................6 3.1 EUT CONFIGURATION .................................................................................................6 3.2 EUT EXERCISE .............................................................................................................6 3.3 GENERAL TEST PROCEDURES ..................................................................................6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ......................................7 3.5 DESCRIPTION OF TEST MODES .................................................................................7 4. INSTRUMENT CALIBRATION .............................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION.................................................................8 4.2 MEASUREMENT EQUIPMENT USED...........................................................................8 4.3 MEASUREMENT UNCERTAINTY .................................................................................9 5. FACILITIES AND ACCREDITATIONS ...............................................................10 5.1 FACILITIES ..................................................................................................................10 5.2 EQUIPMENT ................................................................................................................10 5.3 TABLE OF ACCREDITATIONS AND LISTINGS ..........................................................10 5.4 TABLE OF ACCREDITATIONS AND LISTINGS ..........................................................11 6. SETUP OF EQUIPMENT UNDER TEST ............................................................12 6.1 SETUP CONFIGURATION OF EUT ............................................................................12 6.2 SUPPORT EQUIPMENT ..............................................................................................12 7. FCC PART 15.231 REQUIREMENTS ................................................................13 7.1 20 DB BANDWIDTH .....................................................................................................13 7.2 LIMIT OF TRANSMISSION TIME.................................................................................15 7.3 DUTY CYCLE...............................................................................................................18 7.4 CENTRAL FREQUNCY................................................................................................21 7.5 RADIATED EMISSIONS...............................................................................................23 7.6 POWERLINE CONDUCTED EMISSIONS ...................................................................33 8. APPENDIX 1 PHOTOGRAPHS OF TEST SETUP .............................................34 Compliance Certification Services Inc. Reference No:T150901N02-RD FCC ID: FCC : 2AF6F-KHC-20 Report No.: T151007N03-RP1 Page 4/ 36 1. TEST RESULT CERTIFICATION Product: TPMS Model: KHC-20 Brand Name: KHC Applicant: Kuen Hwa Traffic Industrial Co., LTD. No.57, HUANGONG RD., YONGKANG DIST., TAINAN CITY 71041, TAIWAN, R.O.C . Manufacturer: KING LIAN YANG ENTERPRISE CO., LTD. NO.228-4, ZHONGSHAN N. RD., LUNG-TAN LI, YONGKANG DIST., TAINAN CITY 71086, TAIWAN (R.O.C.) Tested: September 4, 2015 ~ September 24, 2015 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C: 2014 ANSI C63.10: 2013 No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10: 2013 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.207, 15.209 and Part 15.231. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Jeter Wu Assistant Manager Eric Huang Assistant Section Manager Compliance Certification Services Inc. Reference No:T150901N02-RD FCC ID: FCC : 2AF6F-KHC-20 Report No.: T151007N03-RP1 Page 5/ 36 2. EUT DESCRIPTION Product TPMS Model Number KHC-20 Brand Name KHC Received Date September 01, 2015 Frequency Range 433.92MHz ± 0.05MHz Transmit Peak Power 77.24dBuV/m Number of Channels 1 Channel Type of Modulation For transmitter: Model: SP370 / Brand: INFINION Fo…
