2AF7PSF01Smart watch

Sovogue technology Limited
Smart watch - FCC ID 2AF7PSF01 - Sovogue technology Limited
Click to zoom

Application Details

Equipment Class
PCT - PCS Licensed Transmitter worn on body
Date of Grant
Nov 08, 2015
Application Purpose
Original Equipment
Date of Application
Nov 08, 2015
Equipment Note
Smart watch
Frequency Range
1850.20000000 - 1909.80000000
Company
Sovogue technology Limited
Country
United Kingdom

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

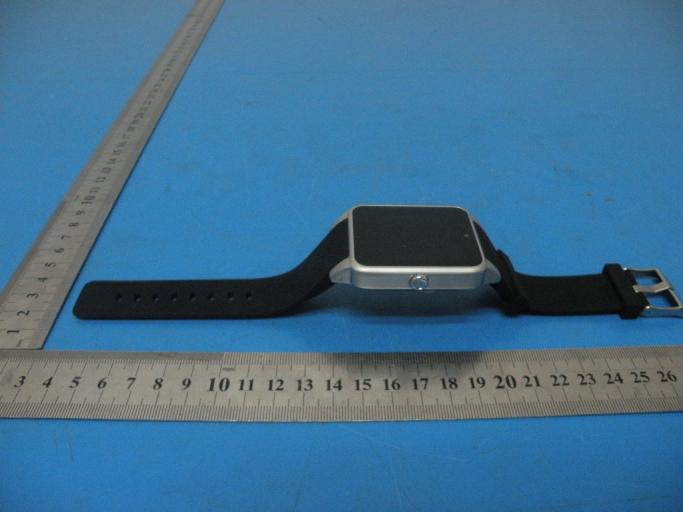

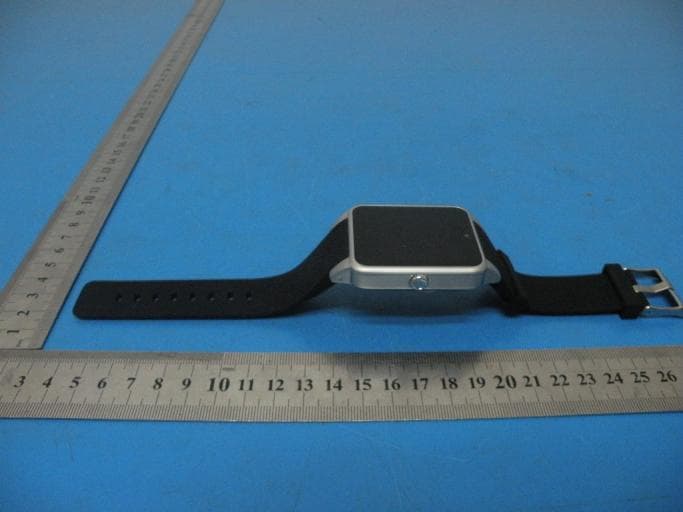

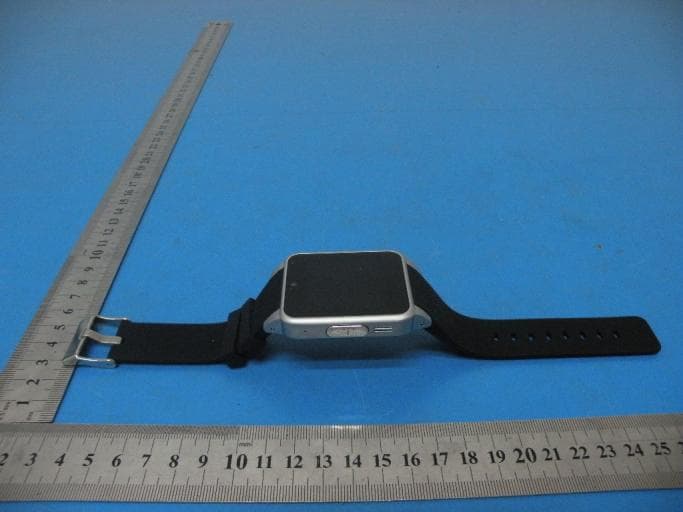

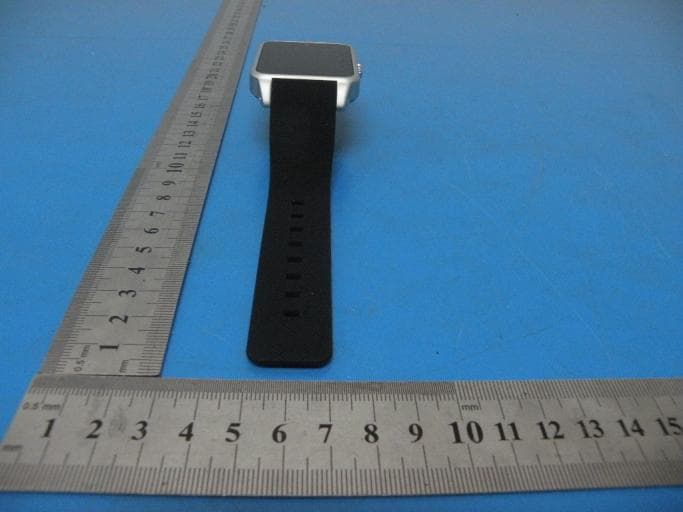

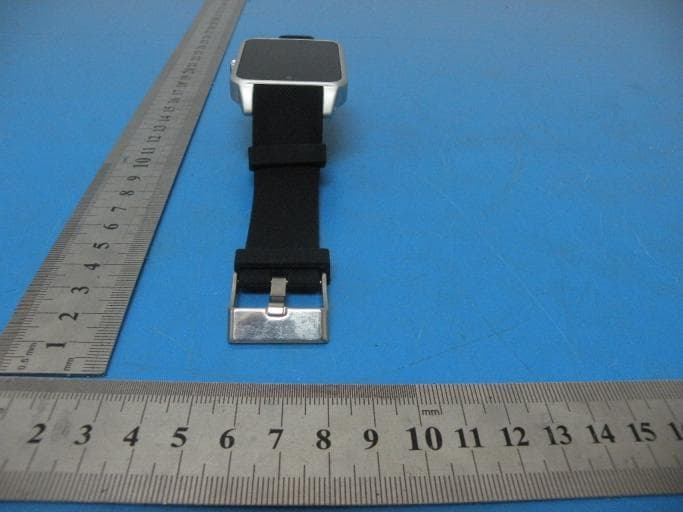

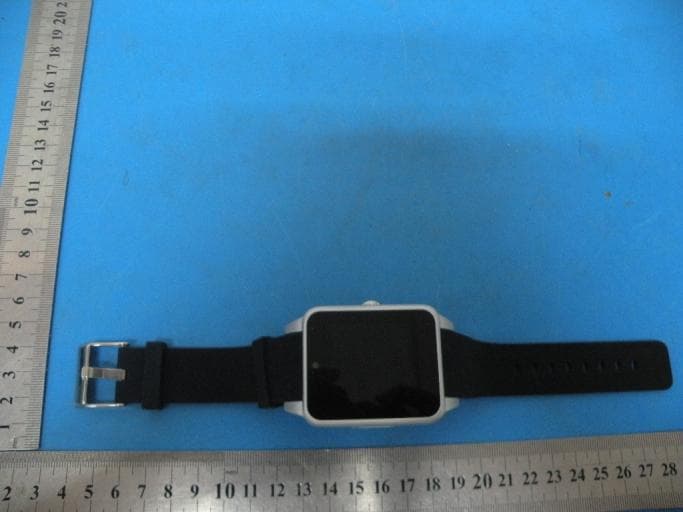

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. SAR levels of various watch and at various positions, they all meet the government requirement for safe exposure. The FCC has granted an Equipment Authorization for this Smart Watch with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this Smart Watch is on file with the FCC and can be found under the Display Grant section of http:// www.fcc.gov/ oet/fccid after searching on FCC ID: 2ADUA-C001 additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications Industry Asso-ciation (CTIA) web-site at http://www.wow-com.com. * In the United States and Canada, the SAR limit for Smart Watch used by the public is 1.6watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a sub-stantial margin of safety to give additional protection for the public and to account for any variations in measurements. To comply with RF exposure requirements, a minimum separation distance of 10mm must be maintained between the user’s mouth and this watch during voice communication. This device is restricted to worn on the wrist operations. SAR Information Statement Your smart watch is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radiofrequency (RF) energy set by the Federal Communications Commission of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard for wireless smart watch employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. * Tests for SAR are conducted with the watch transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the watch while operating can be well below the maximum value. This is because the watch is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. Before a watch model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the government adopted requirement for safe exposure. The tests are performed in positions and locations (e.g., next to the mouth and worn on the wrist) as required by the FCC for each model. The FCC has granted an Equipment Authorization for this Smart Watch with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this Smart Watch is on file with the FCC and can be found under the Display Grant section of http://www.fcc.gov/ oet/fccid after searching on FCC ID: 2AF7PSF01 additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications Industry Asso-ciation (CTIA) web-site at http://www.wow- com.com. To comply with RF exposure requirements, a minimum separation distance of 10mm must be maintained between the user’s mouth and this watch during voice communication. This device is restricted to worn on the wrist operations.

Cover Letter(s)

Ersteller: D. Brandhorst Revision: 00 Erstelldatum: 07.03.2008 Datum: 00.00.00 Seite 1 von 1 Sovogue technology Limited Date: 2015-10-17 FCC ID: 2AF7PSF01 Subject: Attestation Letter “Declaration of Conformity” Dear Sirs, Our products with the above FCC ID are defined as composite device. The transmitter is authorized under the “Certification” procedure. The device is also defined as “PC Periphery” acc to §15.101 Equipment authorization of unintentional radiators, where we hereby declare, that we apply and follow the “Declaration of Conformity” procedure. If you have any questions, please feel free to contact me at the address shown below. Yours sincerely, Name Peter Luo Position Manager Company Name Sovogue technology Limited Address 9 PANTYGRAIGWEN ROAD PONTYPRIDD MID GLAMORGAN UNITED KINGDOM CF37 2RR Tel 86-755 89489359 Fax 86-755 89489359 Email [email protected]

Cover Letter(s)

2015-10-17 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Shenzhen Alpha Product Testing Co., Ltd. Address: Building B, East Area of Nanchang Second Industrial Zone, Gushu 2nd Road, Bao'anDistrict, Shenzhen 518126,P.R.China Person: Mark Zhu (Name and address,person). to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with I Sovogue technology Limited Address: 9 PANTYGRAIGWEN ROAD PONTYPRIDD MID GLAMORGANUNITED KINGDOM CF37 2RR ( applicant name and address). Signature: Name Peter Luo Position Manager Company Name Sovogue technology Limited Address 9 PANTYGRAIGWEN ROAD PONTYPRIDD MID GLAMORGAN UNITED KINGDOM CF37 2RR Tel 86-755 89489359 Fax 86-755 89489359 Email [email protected]

Cover Letter(s)

2015-10-1 7 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AF7PSF01 Product Name: Smart watch Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: Schematics Long-term confidential Block diagram Long-term confidential Operation description Long-term confidential Tune up procedure Long-term confidential These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Signature: Name Peter Luo Position Manager Company Name Sovogue technology Limited Address 9 PANTYGRAIGWEN ROAD PONTYPRIDD MID GLAMORGAN UNITED KINGDOM CF37 2RR Tel 86-755 89489359 Fax 86-755 89489359 Email [email protected]

ID Label/Location Info

Label 40mm 25mm Label Here FCC ID: 2AF7PSF01 Sovogue technology Limited Model name: Smart watch Model No.: SF01

RF Exposure Info

Ref : ACR.262.1.14.SATU.A SHENZHEN STS TEST SERVICES CO., LTD. 1/F., BUILDING B, ZHUOKE SCIENCE PARK, No.190, CHONGQING ROAD,FUYONG STREET, BAO’ AN DISTRICT, SHENZHEN,GUANGDONG,CHINA SATIMO COMOSAR DOSIMETRIC E-FIELD PROBE SERIAL NO.: SN 17/14 EP221 Calibrated at SATIMO US 2105 Barrett Park Dr. - Kennesaw, GA 30144 09/01/2015 Summary: This document presents the method and results from an accredited COMOSAR Dosimetric E-Field Probe calibration performed in SATIMO USA using the CALISAR / CALIBAIR test bench, for use with a SATIMO COMOSAR system only. All calibration results are traceable to national metrology institutions. COMOSAR E-Field Probe Calibration Report COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.262.1.14.SATU.A Page: 2/9 This document shall not be reproduced, except in full or in part, without the written approval of SATIMO. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of SATIMO. Name Function Date Signature Prepared by : Jérôme LUC Product Manager 9/19/2015 Checked by : Jérôme LUC Product Manager 9/19/2015 Approved by : Kim RUTKOWSKI Quality Manager 9/19/2015 Customer Name Distribution : Shenzhen STS Test Services Co., Ltd. Issue Date Modifications A 9/19/2015Initial release COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.262.1.14.SATU.A Page: 3/9 This document shall not be reproduced, except in full or in part, without the written approval of SATIMO. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of SATIMO. TABLE OF CONTENTS 1 Device Under Test ..................................................................................................... 4 2 Product Description ................................................................................................... 4 2.1 General Information _______________________________________________________ 4 3 Measurement Method ................................................................................................ 4 3.1 Linearity ________________________________________________________________ 4 3.2 Sensitivity _______________________________________________________________ 5 3.3 Lower Detection Limit _____________________________________________________ 5 3.4 Isotropy _________________________________________________________________ 5 3.5 Boundary Effect __________________________________________________________ 5 4 Measurement Uncertainty .......................................................................................... 5 5 Calibration Measurement Results .............................................................................. 6 5.1 Sensitivity in air __________________________________________________________ 6 5.2 Linearity ________________________________________________________________ 7 5.3 Sensitivity in liquid ________________________________________________________ 7 5.4 Isotropy _________________________________________________________________ 8 6 List of Equipment ...................................................................................................... 9 COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.262.1.14.SATU.A Page: 4/9 This document shall not be reproduced, except in full or in part, without the written approval of SATIMO. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of SATIMO. 1 DEVICE UNDER TEST Device Under Test Device Type COMOSAR DOSIMETRIC E FIELD PROBE Manufacturer Satimo Model SSE5 Serial Number SN 17/14 EP221 Product Condition (new / used) New Frequency Range of Probe 0.4 GHz- 6 GHz Resistance of Three Dipoles at Connector Dipole 1: R1=0.179 M Dipole 2: R2=0.167 M Dipole 3: R3=0.178 M A yearly calibration interval is recommended. 2 PRODUCT DESCRIPTION 2.1 GENERAL INFORMATION Satimo’s COMOSAR E field Probes are built in accordance to the IEEE 1528, OET 65 Bulletin C and CEI/IEC 62209 standards. Figure 1 – Satimo COMOSAR Dosimetric E field Dipole Probe Length 330 mm Length of Individual Dipoles 4.5 mm Maximum external diameter 8 mm Probe Tip External Diameter 5 mm Distance between dipoles / probe extremity 2.7 mm 3 MEASUREMENT METHOD The IEEE 1528, OET 65 Bulletin C, CENELEC EN50361 and CEI/IEC 62209 standards provide recommended practices for the probe calibrations, including the performance characteristics of interest and methods by which to assess their affect. All calibrations / measurements performed meet the fore mentioned standards. 3.1 LINEARITY The evaluation of the linearity was done in free space using the waveguide, performing a power sweep to cover the SAR range 0.01W/kg to 100W/kg. COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.262.1.14.SATU.A Page: 5/9 This document shall not be reproduced, except in full or in part, without the written approval of SATIMO. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of SATIMO. 3.2 SENSITIVITY The sensitivity factors of the three dipoles were determined using a two step calibration method (air and tissue simulating liquid) using waveguides as outlined in the standards. 3.3 LOWER DETECTION LIMIT The lower detection limit was assessed using the same measurement set up as used for the linearity measurement. The required lower detection limit is 10 mW/kg. 3.4 ISOTROPY The axial isotropy was evaluated by exposing the probe to a reference wave from a standard dipole with the dipole mounted under the flat phantom in the test configuration suggested for system validations and checks. The probe was rotated along its main axis from 0 - 360 degrees in 15 degree steps. The hemispherical isotropy is determined by inserting the probe in a thin plastic box filled with …

Text truncated - open the document above for the full version.

Test Report

Page 1 of 33 Report No.: T1851416 01 TEST REPORT FCC ID: 2AF7PSF01 Applicant : Sovogue technology Limited Address : 9 PANTYGRAIGWEN ROAD PONTYPRIDD MID GLAMORGAN UNITED KINGDOM CF37 2RR Equipment Under Test(EUT): Name : Smart watch Model : SF01, SF09 In Accordance with: FCC PART 2; FCC PART 22H; FCC PART 24E Report No : T1851416 01 Date of Test : September 28- October 15, 2015 Date of Issue : October 16, 2015 Test Result : PASS Test Result: PASS In the configuration tested, the EUT complied with the standards specified above Authorized Signature ___________________________ (Mark Zhu) General Manager The manufacture should ensure that all the products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of Shenzhen Alpha Product Testing Co., Ltd. Or test done by Shenzhen Alpha Product Testing Co., Ltd. Approvals in connection with, distribution or use of the product described in this report must be approved by Shenzhen Alpha Product Testing Co., Ltd. Approvals in writing. Page 2 of 33 Report No.: T1851416 01 Contents 1. General Information ............................................................................................................... 4 1.1. Description of Device (EUT) .......................................................................................... 4 1.2. Test Lab information ....................................................................................................... 4 2. Summary of test ...................................................................................................................... 5 2.1. Summary of test result .................................................................................................... 5 2.2. Assistant equipment used for test .................................................................................... 6 2.3. Test mode ........................................................................................................................ 6 2.4. Test Environment Conditions .......................................................................................... 6 2.5. Measurement Uncertainty (95% confidence levels, k=2) ............................................... 6 2.6. Test Equipment ............................................................................................................... 7 3. Conducted Output power ....................................................................................................... 8 3.1. Block Diagram of Test Setup .......................................................................................... 8 3.2. Limit ................................................................................................................................ 8 3.3. Test Procedure ................................................................................................................. 8 3.4. Test Result ....................................................................................................................... 8 4. Radiated Output power .......................................................................................................... 9 4.1. Block Diagram of Test Setup .......................................................................................... 9 4.2. Limit ................................................................................................................................ 9 4.3. Test Procedure ................................................................................................................. 9 4.4. Test Result ..................................................................................................................... 10 5. Occupied Bandwidth ............................................................................................................ 11 5.1. B lock Diagram of Test Setup ....................................................................................... 11 5.2. Limit .............................................................................................................................. 11 5.3. Test Procedure ............................................................................................................... 11 5.4. Test Result ..................................................................................................................... 12 5.5. Orginal test data ............................................................................................................ 12 6. Frequency stability ................................................................................................................ 16 6.1. Block Diagram of Test Setup ........................................................................................ 16 6.2. Limit .............................................................................................................................. 16 6.3. Test Procedure ............................................................................................................... 16 6.4. Test Result ..................................................................................................................... 17 7. Conducted spurious emissions ............................................................................................. 18 7.1. Block Diagram of Test Setup ........................................................................................ 18 7.2. Limit .............................................................................................................................. 18 7.3. Test Procedure ............................................................................................................... 18 7.4. Test Result ..........................................................…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Peter Luo
[email protected]86-755 89489359Fax: 86-755-89489329

Test Firm

Shenzhen Alpha Product Testing Co., Ltd.Mark Zhu
[email protected]86-755-86375552Fax: 86-755-26736857

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
224E1.85 GHz - 1.91 GHz570.00 mW248KGXW0.02 ppm
Confidentiality
Long Term
Grant Notes
Power listed is ERP for Part 22 and EIRP for Part 24. Device is restricted to worn on the wrist operations. End-users must be informed of the operating requirements for satisfying RF exposure compliance. The highest reported SAR for head, simultaneous transmission, and extremity (wrist) exposure conditions are 0.38 W/kg, 0.51 W/kg, and 3.05 W/kg, respectively. This device contains functions that are not operational in the U.S. Territories. This filing is only applicable for U.S. operations.
