2AF8XTD433RFRF Remote Controller

产品规格书 & 使用说明 Product Datasheet & User menu 433.92MHz RF吊扇遥控器&壁控 433.92MHz RF Ceiling Fan Remote Controller & Wall controller 一．产品说明 Product Introduction 本产品为吊扇遥控器，主要借由433.92MHz RF射频遥 控来控制吊扇运作的各项功能。下图左方为手持遥控 器（图1）； 将 手 持 遥 控 器 外 层 壳 料 去 除 ， 则 可 当 壁 控 遥控器使用（图2） 二．产品图片 Product Photo 图1 图2 三．产品规格 Specification 1. 工作频率：433.92MHz ASK RF Working Frequency： 433.92MHz ASK RF 2. 遥控距离：15米 （开放空间） Working Distance：15 Meter（Open space） 3. 发射功率：< 500mW Transmit Power： < 500mW 4. 工作电压：12V Working Voltage: 12V 5. 使用电池规格：23A碱性电池（12V）＊1 Battery type: 23A Alkaline (12V)*1 6. 智能对码功能 Smart learning function 7. 尺寸：120*56*27 mm （L＊W＊H） Size: 120*56*27 mm （L＊W＊H） 8. 重量：79.5g（发射器本体） Weight: 79.5 g for remote controller 43.8 g for wall controller 四．按键说明 Key definition 1 ：风速1档 Fan speed 1 2 ：风速2档Fan speed 2 3 ：风速3档Fan speed 3 4 ：风速4档Fan speed 4 5 ：风速5档Fan speed 5 6 ：风速6档Fan speed 6 ：风扇关 Fan off ：正／反转 Fan reverse ：灯控开关 Lighting control ：总电源开关 AC Power Switch ：对码按键 Learning key 五．操作说明 Operation Introduction 1. 装电池：将发射器表面面盖取下，装入23A电池1颗后， 盖上面盖。 Remove the surface cover and put one 23A battery, then cover the surface cover. 2. 发射器配对（学习功能）：取下发射器面盖，吊扇上电后1 分钟以内按下学习按键 约1～3秒，蜂鸣器发出声响 后表示发射器与吊扇完成配对，即可开始使用；如果配对 失败，重复一次上述的方式完成配对动作。 Remote Controller Learning method：remove the surface cover, turn on the ceiling fan then put within 1~3 minute. Learning success when hearing beep. If learning fail, then repeat this method. 3. 数字键1～6为控制吊扇风速。 No.1~6 for fan speed control. 4. 键是控制吊扇的正反转，吊扇在运转状态下，无论当 时吊扇处于正转或反转的情形下，按下此按键，吊扇将往 原来转向的反方向运转；不过，当吊扇在关闭的状态下， 按压此按键是不会有任何动作的。 key is for fan reverse control when ceiling fan in working stage. The key has no function when ceiling fan is in off stage. 5. 键是控制灯光开与关，以循环档的方式控制，上下两 键功能是相同的（一键预留）。 Key is for lighting control, cycling control mode. 6. 键是风扇OFF键，风扇是以风速1～6的按键做为启 动键，按压OFF键，风扇停止运转。 Key is fan off control. Fan starting key is Key1 to Key6 7. 拨动开关：当客户将发射器外壳取下后， 当成壁控遥控器使用时，此拨动开关是连接市电电源，可 由此拨动开关控制市电进入风扇的开与关（跟发射器线路 无关）。 switch is for fan power control. 六．433.92MHz發射碼格式 Control code 發射碼定義 Code definition： 封包為24 個位元(BIT) 封包與封包之間的間隔時間T inv 為6 ms 每組封包均會帶一個起始位元(Start Bit)，用來確保每組 封包能正確接收 每次按鍵最少會發送8組封包，持續按鍵則持續發送； 當按鍵放開會再發送8組封包後停止發送 封包1封包2 封包N N ≥ 8 間格時間 6 msec 起始碼 Bit 23Bit 22Bit 21Bit 20Bit 01Bit 00 每個封包共24碼 010101 0 0.5ms 1ms 1 1ms 0.5ms 解碼 封包 發射碼描述 Transmit code description Code Number 描述 Start Bit 起始碼, 每個封包均有起始碼 Bit 23 位址碼, 依背面8排指撥左起第1鍵, ON: “1” / OFF: “0” Bit 22 位址碼, 依背面8排指撥左起第2鍵, ON: “1” / OFF: “0” Bit 21 位址碼, 依背面8排指撥左起第3鍵, ON: “1” / OFF: “0” Bit 20 位址碼, 依背面8排指撥左起第4鍵, ON: “1” / OFF: “0” Bit 19 位址碼, 依背面8排指撥左起第5鍵, ON: “1” / OFF: “0” Bit 18 位址碼, 依背面8排指撥左起第6鍵, ON: “1” / OFF: “0” Bit 17 位址碼, 依背面8排指撥左起第7鍵, ON: “1” / OFF: “0” Bit 16 位址碼, 依背面8排指撥左起第8鍵, ON: “1” / OFF: “0” Bit 15 調光/不可調光切換碼, 依背面右側單排指撥, D: “1” / ON: “0” Bit 14 保留碼, 輸出”0” Bit 13 保留碼, 輸出”0” Bit 12 保留碼, 輸出”0” Bit 11 保留碼, 輸出”0” Bit 10 保留碼, 輸出”0” Bit 09 上燈碼, 按壓”1”, 無按壓”0” Bit 08 下燈碼, 按壓”1”, 無按壓”0” Bit 07 轉向碼, 按壓”1”, 無按壓”0” Bit 06 檔位6碼, 按壓”1”, 無按壓”0” Bit 05 檔位5碼, 按壓”1”, 無按壓”0” Bit 04 檔位4碼, 按壓”1”, 無按壓”0” Bit 03 檔位3碼, 按壓”1”, 無按壓”0” Bit 02 檔位2碼, 按壓”1”, 無按壓”0” Bit 01 檔位1碼, 按壓”1”, 無按壓”0” Bit 00 停止碼, 按壓”1”, 無按壓”0” FCC Note 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment NOTE:THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THESE EQUIPMENT.SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

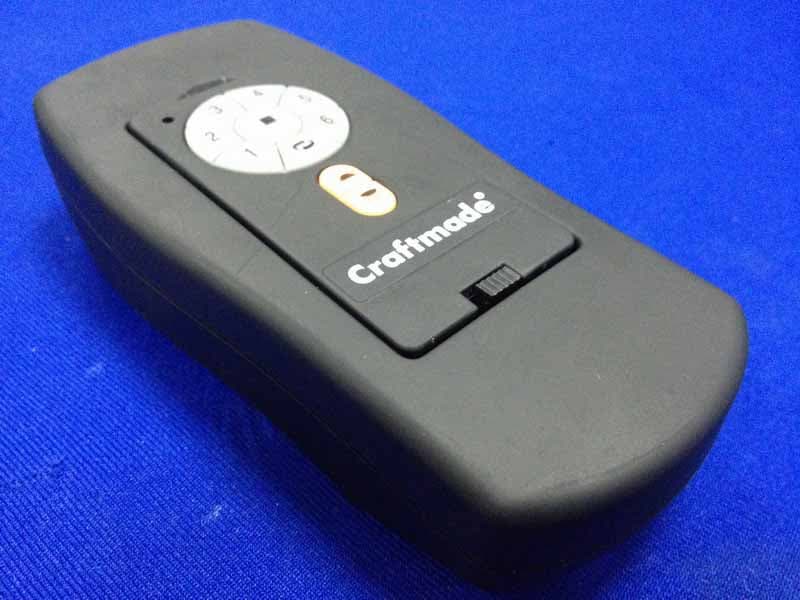

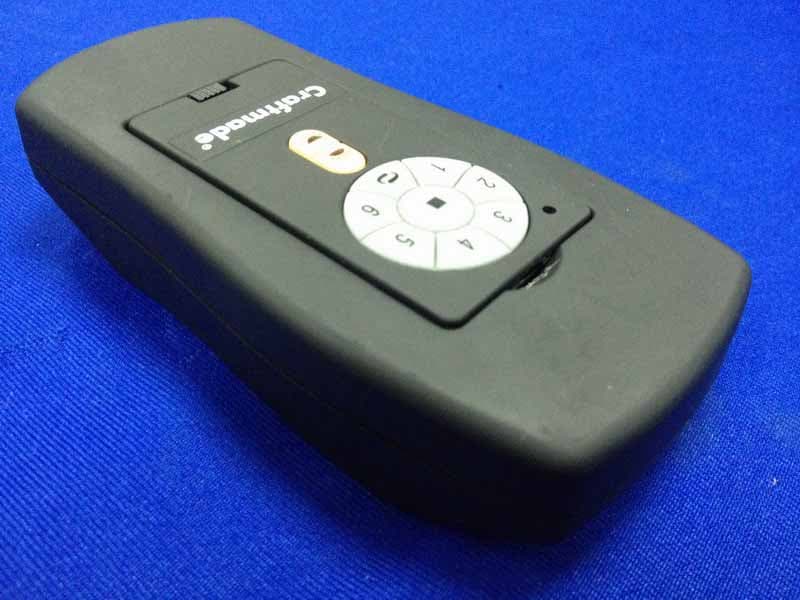

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:2AFR2TD433RF page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15273 11-1 11. PHOTOGRAPH OF EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:2AFR2TD433RF page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15273 11-2 Figure 3 General Appearance of the EUT Figure 4 General Appearance of the EUT

尺寸：30*35mm 直接打在外壳后盖上。 FCC ID：2AF8XTD433RF This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Location

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:2AFR2TD433RF page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15273 11-3 Figure 5 Inside of the EUT Figure 6 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:2AFR2TD433RF page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15273 11-4 Figure 7 Inside of the EUT Figure 8 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:2AFR2TD433RF page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15273 11-5 Figure 9 Inside of the EUT Figure 10 Inside of the EUT

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:2AF8XTD433RF Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15273 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of TAI-DER Electric Manufacture Co. Ltd. RF Remote Controller Model Number: TD-433RF FCC ID: 2AF8XTD433RF Prepared for : TAI-DER Electric Manufacture Co. Ltd. Dongxing Industrial Zone,Ta-Gang Village, Dong-Keng Town，Dong guan, Guangdong Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F15273 Date of Test ： Aug.30~Sep.22, 2015 Date of Report ： Oct.21, 2015 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:2AF8XTD433RF Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15273 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS ......................................................... 1-1 1.1. Description of Standards and Results .................................................................................. 1-1 2. GENERAL INFORMATION ......................................................................................... 2-1 2.1. Description of Device (EUT) .............................................................................................. 2-1 2.2. EUT Configuration and operation conditions for test. ........................................................ 2-1 2.3. Test Facility ......................................................................................................................... 2-2 2.4. Measurement Uncertainty (95% confidence levels, k=2) .................................................... 2-2 3. POWER LINE CONDUCTED EMISSION TEST ....................................................... 3-1 4. RADIATED EMISSION TEST ...................................................................................... 4-1 4.1. Test Equipment .................................................................................................................... 4-1 4.2. Block Diagram of Test Setup .............................................................................................. 4-2 4.3. Radiated Emission Limit Standard: FCC 15.209 and 15.231 .............................................. 4-3 4.4. EUT Configuration on Test ................................................................................................. 4-3 4.5. Operating Condition of EUT ............................................................................................... 4-3 4.6. Test Procedure ..................................................................................................................... 4-3 4.7. Radiated Emission Test Results........................................................................................... 4-4 5. STOP TRANSMITTING TIME TEST.......................................................................... 5-1 5.1. Test Equipment .................................................................................................................... 5-1 5.2. Limit .................................................................................................................................... 5-1 5.3. Test Results ......................................................................................................................... 5-1 6. 20 DB BANDWIDTH TEST ........................................................................................... 6-3 6.1. Test Equipment .................................................................................................................... 6-3 6.2. Test Results ......................................................................................................................... 6-3 7. ANTENNA REQUIREMENT ........................................................................................ 7-5 8. RADIO FRREQUENCY EXPOSURE COMPLIANCE .............................................. 8-1 9. DEVIATION TO TEST SPECIFICATIONS ................................................................ 9-1 10. PHOTOGRAPH OF TEST ........................................................................................... 10-1 10.1. Photos of Radiated Emission Test ..................................................................................... 10-1 11. PHOTOGRAPH OF EUT ............................................................................................. 11-1 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:2AF8XTD433RF page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15273 1-1 1. SUMMARY OF STANDARDS AND RESULTS 1.1. Description of Standards and Results The EUT have been tested according to the applicable standards as referenced below. EMISSION Description of Test Item Standard Results Conducted Emission Test FCC Part 15C: 15.231 ANSI C63.10: 2009 N/A Radiated Emission Test FCC Part 15C: 15.231 ANSI C63.10: 2009 PASS Stop Transmitting Time Test FCC Part 15C: 15.231 PASS 20 dB Bandwidth Test FCC Part 15C: 15.231 PASS N/A is an abbreviation for Not Applicable. R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:2AF8XTD433RF page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15273 2-1 2. GENERAL INFORMATION 2.1. Description of Device (EUT) Product Name : RF Remote Controller Model Number : TD-433RF FCC ID : 2AF8XTD433RF Operation frequency : 433.92MHz Applicant : TAI-DER Electric Manufacture Co. Ltd. Dongxing Industrial Zone,Ta-Gang Village, Dong-Keng Town，Dong guan, Guangdong Manufacturer : SHENZHEN HOTBROAD TECHNOLOGY Co., Ltd. A3 building, HuaFeng Century Technology Park, XiXiang, BaoAn, Shenzhen, Guangdong Antenna Type &Gain : Spring Loaded Antenna, 2.0dBi Date of Test : Aug.30~Sep.14, 2015 Date of Receipt : Aug.29, 2015 Sample Type : Prototype production 2.2. EUT Configuration and operation conditions for test. ( EUT: RF Remote Controller) EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:2AF8XTD433RF page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F1…

Text truncated - open the document above for the full version.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:2AFR2TD433RF page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15273 10-1 10. PHOTOGRAPH OF TEST 10.1. Photos of Radiated Emission Test (At Anechoic 3m Chamber Test 30-1000MHz) R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:2AFR2TD433RF page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15273 10-2 (At Anechoic 3m Chamber Test 1GHz –5GHz)
