2AF96GV1000-10B-1Remote Control

User Manual Power ON/OFF：(Every time the key is removed, the other parameters are removed from time to time) Color Select：Choose the color, red and green versions have changong, green, red and green three optional; three optional red and blue version of red, blue, red and blue; green version of a single green, blue, green, blue three optional。 Flash Mode：Flashing switch Timer Reset：Timing reset button, the button cancel timing settings (red, green, red, blue and red light flashes 3 tips; blue for Blu ray scintillation prompted three times) Flash Speed -：Flashing speed slows down buttons Flash Speed +：Flashing speed up down buttons 2 hours：Time 2 hours，Laser light flashes 1 times 4 hours：Time 2 hours，Laser light flashes 2 times 6 hours：Time 2 hours，Laser light flashes 3 times 8 hours：Time 2 hours，Laser light flashes 4 times FCC Statement z Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. z This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help z This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation

Scanned by CamScanner

Scanned by CamScanner

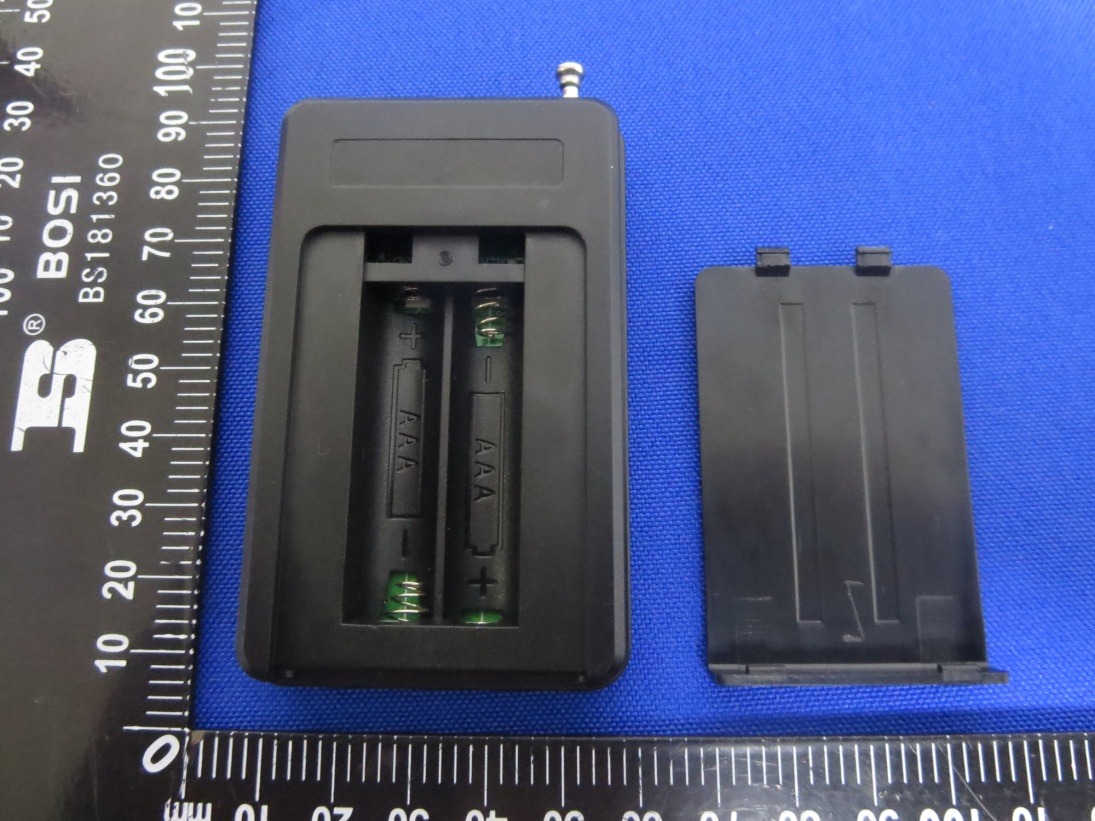

Appendix B: Photographs of EUT Model: GV1000-10B-1 External Photos

LABEL ARTWORK AND LOCATION Label size: L*W=30*22mm Model No.: GV1000-10B-1 Input: DC 3V FCC ID: 2AF96GV1000-10B-1 Made in China

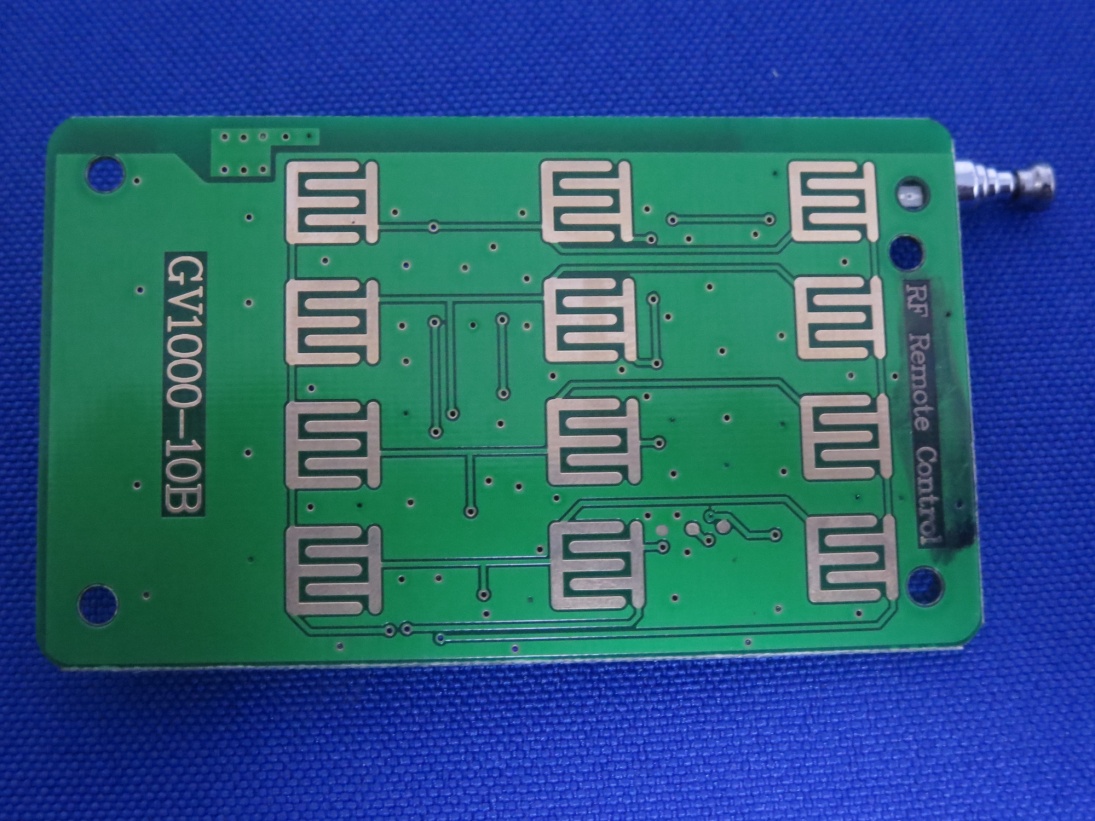

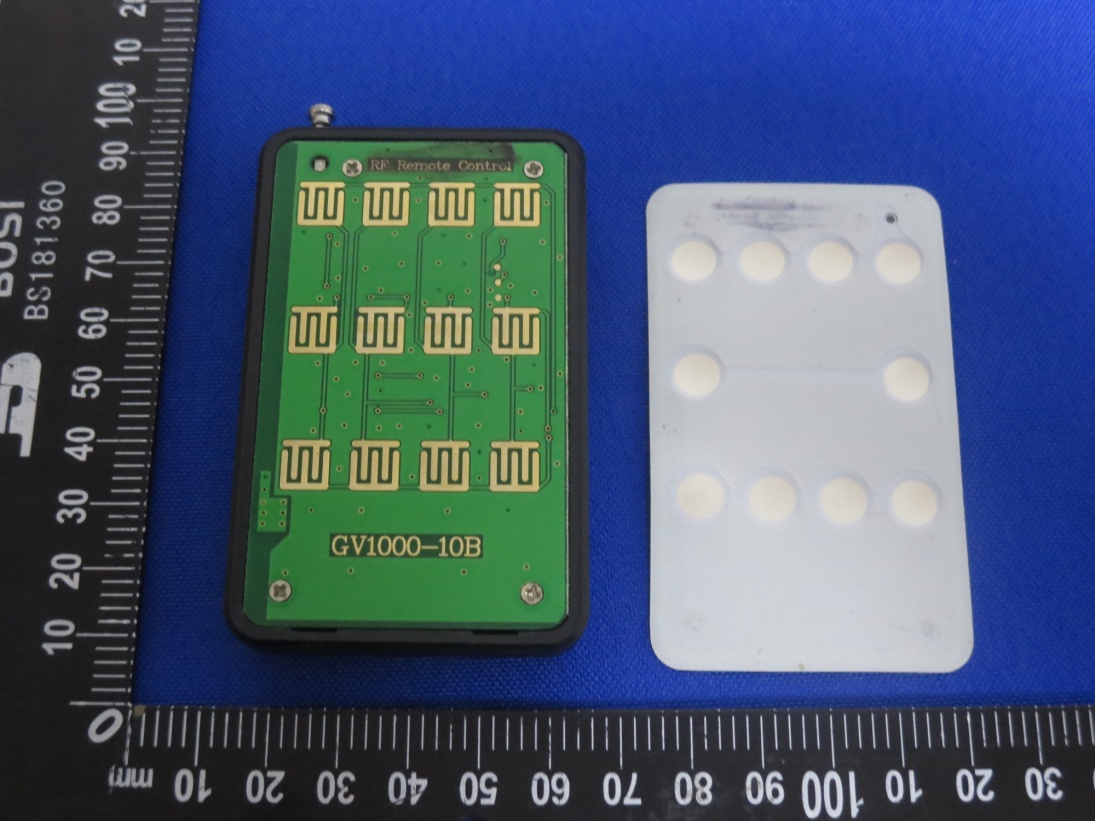

Model: GV1000-10B-1 Internal Photos

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID: 2AF96GV1000-10B-1 Product: Remote Control Model No.: GV1000-10B-1 Trade Mark: Report No.: TCT151016E005 Issued Date: Oct. 22, 2015 Issued for : OPTLASER TECHNOLOGIES CO., LTD 5th floor, Building 1, Libang Tech Industrial Park, XiTian village, Gong ming town, Shenzhen 518106 Issued By: Shenzhen Tongce Testing Lab. 1F, Leinuo Watch Building, Fuyong Town, Baoan Dist, Shenzhen, China TEL: +86-755-27673339 FAX: +86-755-27673332 Note: This report shall not be reproduced except in full, without the written approval of Shenzhen Tongce Testing Lab. This document may be altered or revised by Shenzhen Tongce Testing Lab. personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT150310E009 Page 2 of 17 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TABLE OF CONTENTS 1. Test Certification....................................................................................... 3 2. Test Result Summary ............................................................................... 4 3. EUT Description ........................................................................................ 5 4. Genera Information ................................................................................... 6 4.1. Test Environment and Mode ................................................................................. 6 4.2. Description of Support Units ................................................................................ 6 5. Facilities and Accreditations ................................................................... 7 5.1. Facilities ................................................................................................................. 7 5.2. Location ................................................................................................................. 7 5.3. Measurement Uncertainty ..................................................................................... 7 6. Test Results and Measurement Data ...................................................... 8 6.1. Antenna Requirement ........................................................................................... 8 6.2. Radiated Emission Measurement ........................................................................ 9 6.3. Occupied Bandwidth ........................................................................................... 16 Appendix A: Photographs of Test Setup Appendix B: Photographs of EUT Report No.: TCT150310E009 Page 3 of 17 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. Test Certification Product: Remote Control Model No.: GV1000-10B-1 Applicant: OPTLASER TECHNOLOGIES CO., LTD Address: 5th floor, Building 1, Libang Tech Industrial Park, XiTian village, Gong ming town, Shenzhen 518106 Manufacturer: OPTLASER TECHNOLOGIES CO., LTD Address: 5th floor, Building 1, Libang Tech Industrial Park, XiTian village, Gong ming town, Shenzhen 518106 Date of Test: Oct. 19 - Oct. 21, 2015 Applicable Standards: FCC CFR Title 47 Part 15 Subpart C Section 15.231 The above equipment has been tested by Shenzhen Tongce Testing Lab. and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Tested By: Date:Oct. 21, 2015 Garen Reviewed By: Date:Oct. 22, 2015 Joe Zhou Approved By: Date:Oct. 22, 2015 Tomsin Report No.: TCT150310E009 Page 4 of 17 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 2. Test Result Summary Requirement CFR 47 Section Result Conduction Emission, 0.15MHz to 30MHz §15.207 PASS Manually Activated Transmitter §15.231(a) PASS Radiation Emission §15.231(b), §15.205, §15.209, §15.35 PASS Occupied Bandwidth §15.231(c) PASS Note: 1. Pass: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. Report No.: TCT150310E009 Page 5 of 17 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 3. EUT Description Product Name: Remote Control Model : GV1000-10B-1 Additional Model: N/A Trade Mark: Operation Frequency: 433.92MHz Max Field Strength: 78.17 (dBμV/m) Modulation Technology: ASK Antenna Type: Internal Antenna Antenna Gain: 1.5dBi Power Supply: DC 3V Report No.: TCT150310E009 Page 6 of 17 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 4. Genera Information 4.1. Test Environment and Mode Operating Environment: Temperature: 24.0 °C Humidity: 54 % RH Atmospheric Pressure: 1010 mbar Test Mode: Operation mode: Keep the EUT in continuous transmitting with modulation The sample was placed 0.8m above the ground plane of 3m chamber. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating the turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. 4.2. Description of Support Units The EUT has been tested as an independent unit together with other necessary accessories or support units. The following support units or accessories were used to form a representative test configuration during the tests. Equipment Model No. Serial No. FCC ID Tra…
