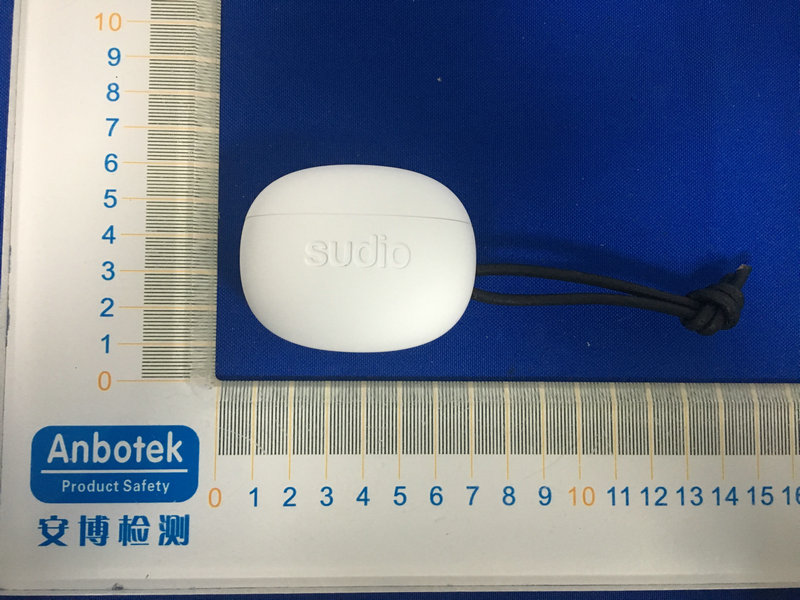

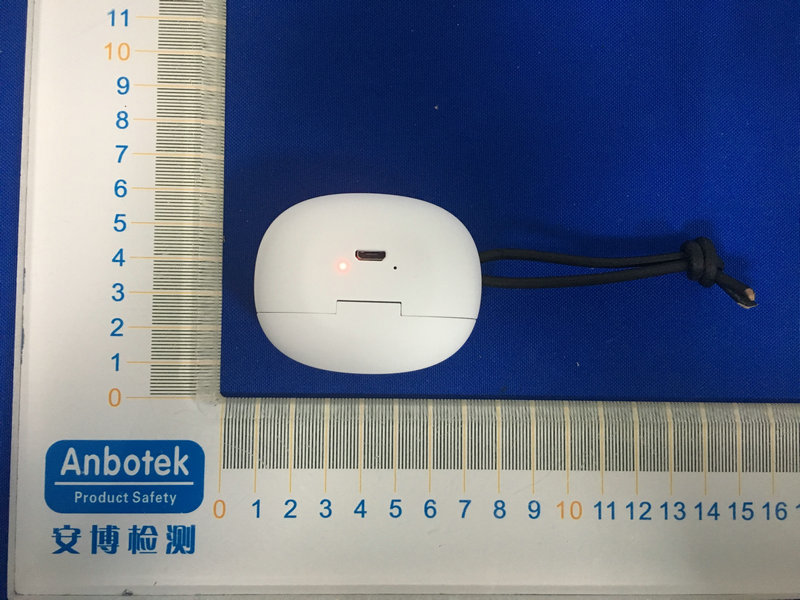

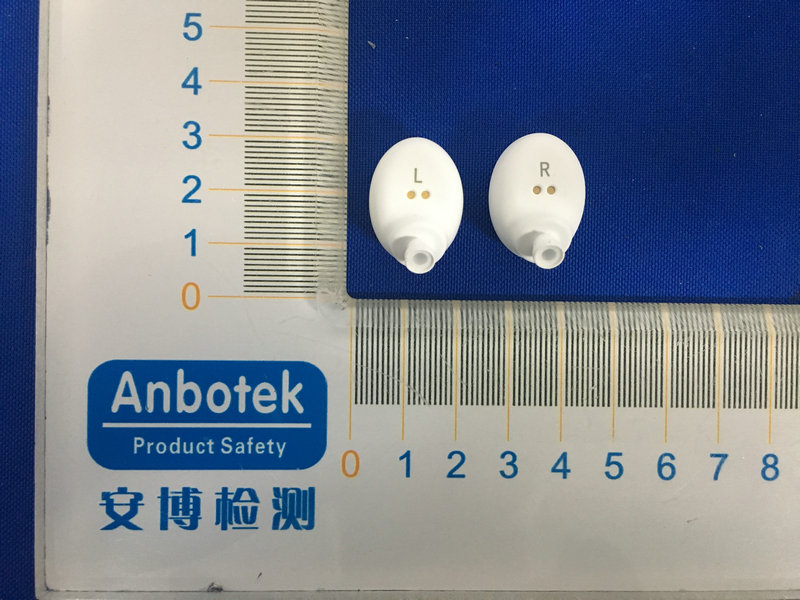

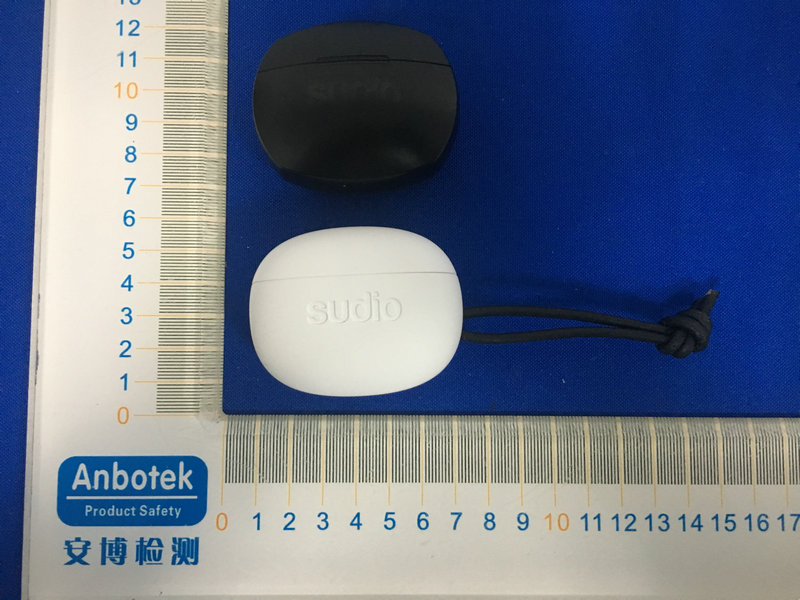

2AF9P-SUDIOTOLVTrue Wireless Earphone

Owner’s Manual Sudio Tolv R, True Wireless Earphones TOLV R M odel：Sudio Tolv LANGUAGES TABLE OF CONTENTS 4 PRECAUTIONS AND USAGE Do not use the product in other ways than described. Handle with care at all times and protect from damage. Do not expose the earphones to heat, magnetism, cold, damp environments or abnormal wear and tear e.g. by bending or pulling them. Avoid dropping, strong impact or winding the cable tightly. Clean with a slightly damp fabric. The WEEE-symbol means that the product should Not be mixed with normal house- hold waste, please return to facilities for Waste Electrical and Electronic Equipment. WARNING Never listen to music at an uncomfort- ably high volume, this may permanently damage your hearing. Never use the ear- phones in traffic or in other places where your hearing is needed to perceive dan- gers. Always store small accessories out of small children’s range. Always lower the volume before you connect. 5 SPECIFICATIONS Bluetooth Version: V5.0, class II Bluetooth Profile: HFPv1.7 HSPv1.2 A2DPv1.3 AVRCPv1.6, SPP1.2 Bluetooth Range: 10M Music Time: 5,5 hours Talking Time: 5,5 hours Charging Time: 120 minutes Charging Type: 3.7V, 50mAh (earphone) rechargeable lithium polymer battery Operating Temperature: -10 - 40°C Charging case: 500mAh (case) rechargeable lithium polymer battery 6 POWER ON / PAIRING MODE You do not need to press the button on either earbud. Simply lift both earphones from the case and the earphones will be visible in the bluetooth list of your device. MUSIC CONTROLS Play/Pause = Press either button once Next song = Press R button two times Previous song = Press L button two times RL (1 click)(1 click) (2 click)(2 click) English 7 PHONE CONTROLS VOICE CONTROL Press and hold for 1 second on either side to start the voice assistant. TROUBLESHOOTING If the earphones are behaving unexpect- edly or you’re having difficulty pairing, we recommend a reset. 1. Turn off both earphones by pressing and holding both buttons for six seconds. Start the earphones again by pressing and holding both sides for thirteen seconds, until the lights stop blinking. 2. Put the earphones back in the case and wait for 10 seconds. They are now reset. (1 click)(2 sec) English 9 ADMINISTRATIVE REGULATIONS ON LOW POWER RADIO WAVES RADIATED DEVICES WARNING Without permission granted by the NCC, any company, enterprise, or user is not allowed to change frequency, enhance transmitting power or alter original characteristic as well as performance to a approved low power radio-frequency devices. The low power radio-frequency devices shall not inf uence aircraft security and interfere legal communications; If found, the user shall cease operating immediately until no interfer- ence is achieved. The said legal communications means radio communications is operated in compliance with the Telecommunications Act. The low power radio-frequency devices must be susceptible with the interference from legal communications or ISM radio wave radiated devices. ADDRESS Sudio AB Grev Turegatan 35 SE-11438 Stockholm Sweden FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. RF warning statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

FCC ID: 2AF9P-SUDIOTOLV

Label Location On EUT LeftRight Label FCC ID: 2AF9P-SUDIOTOLV

FCC ID: 2AF9P-SUDIOTOLV ANT

version01 Sudio AB Declaration concerning Antenna Specification It is hereby declared that the product Model No.: Sudio Tolv, Sudio Tolv R FCCID:2AF9P-SUDIOTOLV fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type(s) described below: Model No. of antenna: Sudio Tolv Type of antenna: Ceramic Antenna Gain of the antenna: 3.3 dBi Frequency range: 2402-2480MHz for BDR+EDR+BLE The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Sudio AB Address: Artillerigatan 42, 114 45, Stockholm, Sweden City:Stockholm ZIP / Postal code: N/A Country:Sweden Place:SwedenDate: 202019-02-21 Signature:

RF EXPOSURE EVALUATION FCC ID: 2AF9P-SUDIOTOLV According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b): Routine SAR evaluation refers to that specifically required by §2.1093, using measurements or computer simulation. When routine SAR evaluation is not required, portable transmitters withoutput power greater than the applicable low threshold require SAR evaluation to qualify for TCB approval. Channel (MHz) Maximum output power (dBm) Tune up tolerance (dBm) Max Tune Up Power (dBm) Distance (mm) Calculation results Limit Operating Mode 24023.881 3.881±1 4.88150.9543 BDR+EDR 24413.860 3.860±14.860 5 0.957 3 24802.812 2.812±1 3.81250.7583 24023.120 3.120±1 4.12050.8003 24412.993 2.993±13.993 5 0.784 3 24801.948 1.948±1 2.94850.6213 24023.982 3.982±1 4.98250.9763 BLE24404.072 4.072±15.072 5 1.005 3 24803.039 3.039±1 4.03950.7983 Test Results:PASS.

Report No.: SZAWW191226008-01FCC ID: 2AF9P-SUDIOTOLVPage 1 of 63 Code:AB-RF-05-a FCC TEST REPORT Client Name:Sudio AB Address:Artillerigatan 42, 114 45, Stockholm, Sweden Product Name:True Wireless Earphone Date:Feb. 21, 2020 Shenzhen Anbotek Compliance Laboratory Limited Report No.: SZAWW191226008-01FCC ID: 2AF9P-SUDIOTOLVPage 2 of 63 Code:AB-RF-05-a Contents 1. General Information ............................................................................................................................................... 5 1.1. Client Information ....................................................................................................................................... 5 1.2. Description of Device (EUT) ..................................................................................................................... 5 1.3. Auxiliary Equipment Used During Test ................................................................................................... 6 1.4. Description of Test Modes ........................................................................................................................ 6 1.5. List of channels ........................................................................................................................................... 7 1.6. Description Of Test Setup ......................................................................................................................... 8 1.7. Test Equipment List .................................................................................................................................... 9 1.8. Measurement Uncertainty ....................................................................................................................... 10 1.9. Description of Test Facility ...................................................................................................................... 10 2. Summary of Test Results ................................................................................................................................... 11 3. Conducted Emission Test ................................................................................................................................... 12 3.1. Test Standard and Limit .......................................................................................................................... 12 3.2. Test Setup .................................................................................................................................................. 12 3.3. Test Procedure .......................................................................................................................................... 12 3.4. Test Data .................................................................................................................................................... 12 4. Radiation Spurious Emission and Band Edge ................................................................................................ 15 4.1. Test Standard and Limit .......................................................................................................................... 15 4.2. Test Setup .................................................................................................................................................. 15 4.3. Test Procedure .......................................................................................................................................... 16 4.4. Test Data .................................................................................................................................................... 17 5. Maximum Peak Output Power Test .................................................................................................................. 25 5.1. Test Standard and Limit .......................................................................................................................... 25 5.2. Test Setup .................................................................................................................................................. 25 5.3. Test Procedure .......................................................................................................................................... 25 5.4. Test Data .................................................................................................................................................... 25 6. 20DB Occupy Bandwidth Test ........................................................................................................................... 29 6.1. Test Standard ............................................................................................................................................ 29 6.2. Test Setup .................................................................................................................................................. 29 6.3. Test Procedure .......................................................................................................................................... 29 6.4. Test Data .................................................................................................................................................... 29 7. Carrier Frequency Separation Test ................................................................................................................... 33 7.1. Test Standard and Limit .......................................................................................................................... 33 7.2. Test Setup .................................................................................................................................................. 33 7.3. Test Procedure .......................................................................................................................................... 33 7.4. Test Data ............................…

Text truncated - open the document above for the full version.

FCC ID: 2AF9P-SUDIOTOLV Photo of Conducted Emission Measurement Photo of Radiation Emission Test
