2AFC8-FTAN10A10 channel FM wireless intercom

Instruction Manual Digital Wireless Intercom SAMCOM FTAN10A Features of Model FTAN10A Simple to use " Instant " Intercom system Simple to use Instant Intercom system . Individually call and Group call function.Connect ability to other hand held two way radio. Sancon Inc. Sancon Inc. assumes no responsibility of any damages or loss resulting from use of this ManualS I ibilit f l l i b thi d tl hi h i SANCON Sancon Inc. assumes no responsibility for any loss or claims by third partly which may arise through the use of Wireless Intercom FTAN10ASancon Inc. assumes no responsibility for any damage or loss caused by repair or failure of non p ower connection p 1. Get Acquaint CONTENTS q Description of Buttons and Keys 3 Display Symbols and Icons 4 2. Set INTERCOM channel and function Set Channel 5 Set Channel 5 Set Group channel 6 ABC Switch function 7 3. Basic Operation Pdtdb 8 Power up and standby 8 Reception from other intercom 9 Talk to other intercom 10 Talkin g lock o p eration 12 gp Group call operation 13 Monitor operation 14 4. Important precaution 15 2 1. Get Acquaint Description of Buttons and Keys ABC Switch DC Input (Mini USB) ABC Switch DC Input (Mini USB) AntennaLCD Unit10 Keys Unit LOCK KEY TALK KEY GROUP KEY Mic 3 Display symbols and icons Selective icon Power On icon Channel icon ABC icon Group icon VOL icon 4 2. Set INTERCOM channel and function Set Channel Factory settings for all INTERCOM channel is 1F ac t ory se tti ngs f or a ll INTERCOM c h anne l i s 1 Each INTERCOM should have own channel to be called other INTERCOM individually.To set INTERCOM channel, select number from 1 to 9 and depress for 8 seconds p After 8 seconds, short beep sound will be generated and New set channel will be displayed in LCD unit automatically. For example Your room Kitchen room Your room Living room Your room Kitchen room Your room Living room Channel 6Channel 6 C h a nn e l2 Channel 4 5 Channel 6Channel 6 Channel 2 Channel 4 Set Group channel Factory settings for all Group channel is 0, if no interference sound or interface from theneighbor system need not be resettedneighbor system need not be resetted . To set new Group channel for each INTERCOM, following are the step:1. Press "-" key for 15 seconds 2. After the beep, Group call icon will flash3. Input new group channel number.4. New group channel will be displayed in LCD unit. Press key Group call icon Input new group New group channel for 15 seconds will flash channel Note:Note: If you change Group call channel you should change all INTERCOM in your hand to same numbe r otherwise group call does not function. 6 ABC switch function FTAN10A has special ABC selection switch. All the ABC switch should set in the same position such as "A" positionAll th e ABC sw it c h s h ou ld se t i n th e same pos iti on suc h as "A" pos iti on. If you find some interference sound or interface from the neighbor system, you can change to ABC switch to other position "B" or " C" to avoid such problems. ABC Switch 7 3. Basic Operation Power up and standby Connect USB power cable to INTERCOM, small beep alert will be heard and icon will be appeared to indicate the INTERCOM is in the standby mode.While standby mode, you can see INTERCOM channel number in the LCD unit display. In this standby mode you will be called by ot her INTERCOM automatically without depressing any keys Channel 8 standby display 8 Reception from other intercom You will be called by other INTERCOM automatically.AntennaAntennaINTERCOM has the external AntennaTo get better communication range it would be recommend to pull up the Antenna as picture.Volume control You can adjust the volume by pressing "+" key or "-" key. You can adjust the volume by pressing + key or key . While volume adjusting icon will be appeared to indicate volume is under adjusting."+""-"key to increase/reduce volume from 1 to 8 9 Talk to other intercom To talk to other INTERCOM. Press 10 key unit to select which INTERCOM to be talked with.then press TALK key to start to speak.While talking to other INTERCOM Selective call icon and selected channel number will While talking to other INTERCOM , Selective call icon and selected channel number will appear in the LCD LCD when selected channel 6 as a selective call TALK key 10 Note: 15 seconds after the last reception or last transmission. INTERCOM will return channelto own channel automatically (standby mode)LCD when selected channel 6 as a selective call Channel 8 standby display NOTE: When press the TALK key then LCD back light color will change from white to red to indicate that INTERCOM is under transmissions mode. 11 Talking lock operation INTERCOM has the LOCK key to make you hands free speaking mode. When press LOCK key at once INTERCOM will enter the transmissionWhen press LOCK key at once . INTERCOM will enter the transmission mode continuously. So you can speak to other INTERCOM without anypressing keys. To release the mode. Press LOCK key again. LOCK Key NOTE:NOTE:When press the LOCK key then LCD back light color will change from white to red to indicate that INTERCOM is under transmissions mode. 12 Group call operation INTERCOM has a unique GROUP call function. When under the groupcall operation you can speak to all the INTERCOM simultaneouslycall operation you can speak to all the INTERCOM simultaneously . Or you will be called by other INTERCOM on GROUP call and your INTERCOM will change channel from own channel to GROUP channelautomatically.When pressing GROUP key, you can enter the group call mode.When release the GROUP ke y, INTERCOM come back to own channel. When release the GROUP key, INTERCOM come back to own channel. When INTERCOM is in the group mode. Group call icon will be appeared. GROUP key GROUP icon and group channel display 13 Monitor operation INTERCOM also has unique application for Monitor operation.You can listen other rooms voice continuously to use LOCK key.INTERCOM in the monitor room, select your own channel and pressLOCK key. Your ro…

Text truncated - open the document above for the full version.

DATE : August 04, 2015 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint _ Shenzhen Timeway Technology Consulting Co., Ltd. East 5/Block 4, Anhua Industrial Zone, No.8,Tairan Rd. CheGongMiao, FuTian District, Shenzhen City, Guangdong Province, China_, to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Sancon Inc./ 36 South 18th Avenue, Suite A Brighton, CO USA 80601 Dated this August 4, 2015 Agency agreement expiration date: Usually Give 8 - 12 Months By: Xiuzhen Wu Signature Printed Title: General Manager On behalf of : Sancon Inc. Telephone: 702 866 2689

DATE : August 04, 2015 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AFC8- FTAN10A Product Name: 10 channel FM wireless intercom Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • Operational Description • Part List • Tune up Procedure These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this August 4, 2015 Agency agreement expiration date: Usually Give 8 - 12 Months By: Xiuzhen Wu Signature Printed Title: General Manager On behalf of : Sancon Inc. Telephone: 702 866 2689

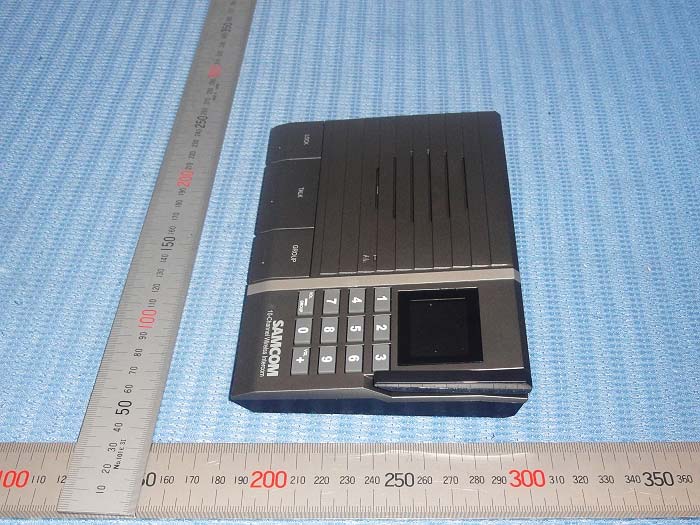

Outside View Outside View Outside View Outside View Outside View Outside View

FCC ID: 2AFC8-FTAN10A This device complies with part 95 of the FCC rules operation is subject to the following two conditions: 1) This device may not cause harmful interference,and 2) This device must accept any interference received including interference that may cause undesired operation. 长X宽 75MM X 35MM 黑底白字 材料 PVC e-mail: [email protected] MADE IN CHINA

Interior View Interior View Interior View Interior View Interior View Interior View Interior View

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of interest relative to isotropicR = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 23.40 (dBm) Maximum peak output power at antenna input terminal: 218.8 (mW) Antenna gain(typical): 2.15 (dBi) Maximum antenna gain: 1.641 (numeric) Prediction distance: 20 (cm) Sourse Based Time Average Duty Cycle: 100 (%) Prediction frequency: 462.6625 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 0.308 (mW/cm^2) Power density at prediction frequency: 0.07141 (mW/cm^2) Power density at prediction frequency: 0.7141 (W/m^2) Margin of Compliance: 6.35 (dB) 2 4 R PG S  

RF Exposure Applicable Standard According to §1.1307(b)(5), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a Portable device. The Section 4.3.1 and Appendix A of KDB447498 D01 V05 was used as the guidance. Calculation Result (Worse Case): [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] =357.3/65 * 0.684= 3.76 < 7.5, this value is less than test exclusion thresholds of 10-g ex tremity SAR (hand). The minimum test separation distance is decided by the following figure: The SAR measur ement is not necessary.

Report No: FCC 1507060 File reference No: 2015-08-03 Applicant: Sancon Inc. Product: 10 channel FM wireless intercom Model No: FTAN10A Trademark: Test Standards: FCC Part 95, Subpart B and Subpart E; Test result: It is herewith confirmed and found to comply with the requirements set up by ANSI C63.10, FCC Part 95, Subpart B and Subpart E; regulations for the evaluation of electromagnetic compatibility Approved By Jack Chung Manager Dated: August 03, 2015 Results appearing herein relate only to the sample tested The technical reports is issued errors and omissions exempt and is subject to withdrawal at SHENZHEN TIMEWAY TESTING LABORATORIES Room 512-519, 5/F., East Tower, Building 4, Anhua Industrial Zone, Futian District, Shenzhen, Guangdong, China Tel (755) 83448688, Fax (755) 83442996, E-Mail:[email protected] Report No: FCC1507060 Page 2 of 50 Date: 2015-08-04 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the SHENZHEN TIMEWAY TESTING LABORATORIES. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the SHENZHEN TIMEWAY TESTING LABORATORIES to his customer. Supplier or others persons directly concerned. SHENZHEN TIMEWAY TESTING LABORATORIES will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. SHENZHEN TIMEWAY TESTING LABORATORIES reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Special Statement： The testing quality ability of our laboratory meet with "Quality Law of People's Republic of China" Clause 19. The testing quality system of our laboratory meets with ISO/IEC-17025 requirements, which is approved by CNAS. This approval result is accepted by MRA of APLAC. Our test facility is recognized, certified, or accredited by the following organizations: CNAS-LAB Code: L2292 The EMC Laboratory has been assessed and in compliance with CNAS-CL01 accreditation criteria for testing Laboratories (identical to ISO/IEC 17025:1999 General Requirements) for the Competence of testing Laboratories. FCC-Registration No.: 899988 The EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications commission. The acceptance letter from the FCC is maintained in our files. Registration No.:899988. IC- Registration No.: IC5205A-02 The EMC Laboratory has been registered and fully described in a report filed with the (IC) Industry Canada. The acceptance letter from the IC is maintained in our files. Registration No.: IC 5205A-02. Report No: FCC1507060 Page 3 of 50 Date: 2015-08-04 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the SHENZHEN TIMEWAY TESTING LABORATORIES. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the SHENZHEN TIMEWAY TESTING LABORATORIES to his customer. Supplier or others persons directly concerned. SHENZHEN TIMEWAY TESTING LABORATORIES will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. SHENZHEN TIMEWAY TESTING LABORATORIES reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Test Report Conclusion Content 1.0 General Details ................................................................................................ 4 1.1 Test Lab Details................................................................................................ 4 1.2 Applicant Details.............................................................................................. 4 1.3 Description of EUT .......................................................................................... 4 1.4 Submitted Sample............................................................................................. 4 1.5 Test Duration.................................................................................................... 5 1.6 Test Uncertainty.................................................................................................5 1.7 Test By.......................................................................................................... 5 2.0 List of Measurement Equipment......................................................................... 6 3.0 Technical Details............................................................................................. 7 3.1 Summary of Test Results..................................................................................... 7 3.2 Test Standards.................................................................................................. 7 4.0 EUT Modification............................................................................................. 7 5.0 Power Line Conducted Emission Test...................................................................... 8 6.0 Frequency Tolerance........................................................................................... 12 7.0 EMISSION BANDWIDTH and Mask...................................................................... 15 8.0 UNWANTED RADIATION.............................................................. ........ ........... 24 9.0 Modulation Characteristics.................................................................................... 27 10.0 MAXIMUM TRANSMITTER POWER..........................................…

Text truncated - open the document above for the full version.

Conducted test View-- Radiated emission test view
