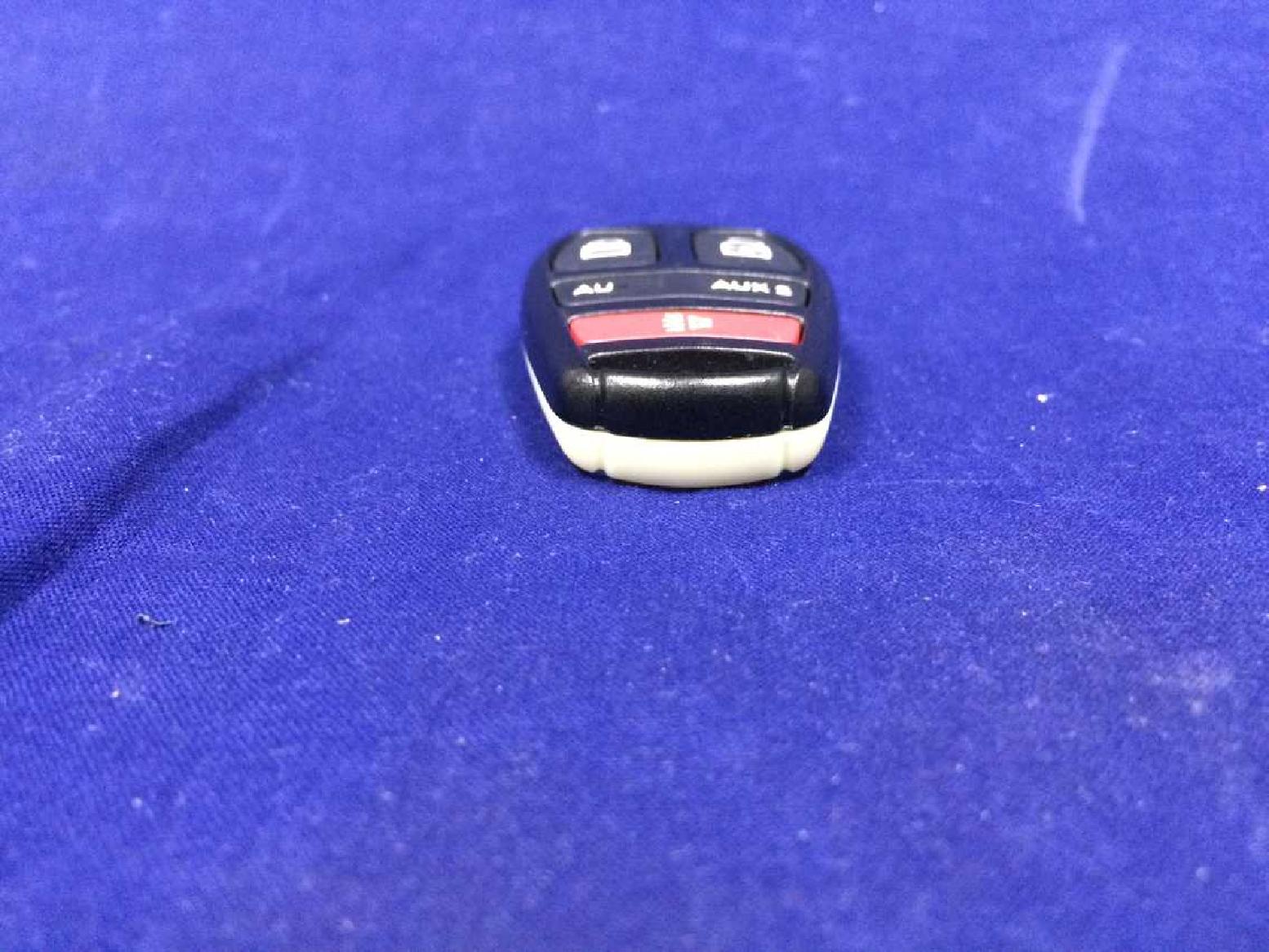

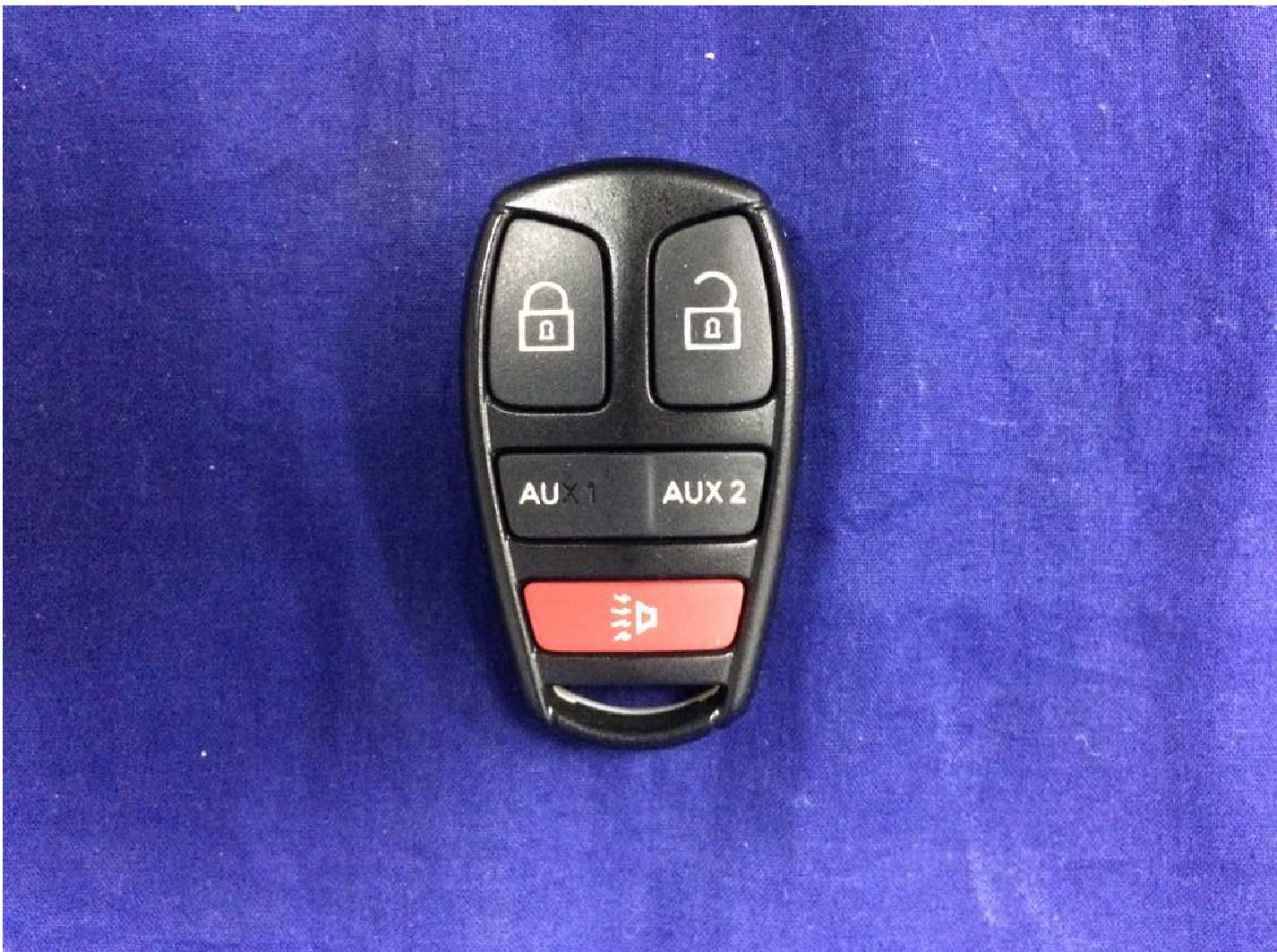

2AFCZ-315RKENavsistar RKE

编号：HRP****-HARD-DD-004 内部：密C HR/QR16949-0807-11-02 NAVISTAR RKE User Manual Hirain Technologies 编号：HRP****-HARD-DD-004 内部：密C HR/QR16949-0807-11-02 Document status: [ ] Draft [√] Released [ ] Modifying Draft: 1. Mimi Hu Design： Mimi Hu Signature： Mimi Hu Date： 2015.06.12 Review： Huiping wang Signature： Huiping Wang Date： 2015.06.16 Approve： Fei.Xu Signature： Fei.Xu Date： 2015.06.16 编号：HRP****-HARD-DD-004 内部：密C HR/QR16949-0807-11-02 Modify History Ver. Description Date Signature V1.0 Initial 2015-06-12 Hu Mimi 编号：HRP****-HARD-DD-004 内部：密C HR/QR16949-0807-11-02 Table of Contents Modify History ................................................................................................................................ 3 1.Scope .............................................................................................................................................. 5 1.1Purpose ................................................................................................................................. 5 1.2Definition ............................................................................................................................. 5 2.System Description ........................................................................................................................ 5 2.1 Operational principle ........................................................................................................... 5 3.Function Description ...................................................................................................................... 5 3.1Remote keyless entry function ............................................................................................. 5 3.2Warning function .................................................................................................................. 6 4.Technical parameters ...................................................................................................................... 6 4.1Electrical Characteristics ...................................................................................................... 6 5.Dimensions..................................................................................................................................... 7 6. FCC ID Position ............................................................................................................................ 8 编号：HRP****-HARD-DD-004 内部：密C HR/QR16949-0807-11-02 1.Scope 1.1Purpose This document is the datasheet of Navistar RKE. 1.2Definition RKE: Remote Keyless Entry 2.System Description 2.1 Operational principle AS the system block shows, the RKE contains four modules. They are POWER, MCU, SWITCHES and RF module. When any switch is pressed, a wake up signal of MCU will be active. Then MCU module will send enable signal and data signal to the RF module. Once the RF module receives these signals, it will send RF signal by antenna. 3.Function Description 3.1Remote keyless entry function 3.1.1 Lock function The receiver receives the RF signal when the lock switch is pressed .If the key is suit for the car, the receiver will send a corresponding message to lock the car. 3.1.2 Unlock function 编号：HRP****-HARD-DD-004 内部：密C HR/QR16949-0807-11-02 The receiver receives the RF signal when the unlock switch is pressed .If the key is suit for the car, the receiver will send a corresponding message to unlock the car. 3.1.3 Auxiliary function1 The receiver receives the RF signal when the AUX1 switch is pressed .If the key is suit for the car, the receiver will send a corresponding message. 3.1.4 Auxiliary function2 The receiver receives the RF signal when the AUX2 switch is pressed .If the key is suit for the car, the receiver will send a corresponding message. 3.1.5 Panic function The receiver receives the RF signal when the panic switch is pressed .If the key is suit for the car, the receiver will send a corresponding message . 3.2Warning function On the low power condition, if the RKE is used , it will add the low power information in the message. And the receiver will send the relevant warning message. 4.Technical parameters 4.1Electrical Characteristics Table 1 RKE Characteristics Parameter Value Operating voltage range 2.1V-3.3V Standby current <=1uA Operating current <=10mA Type of modulation ASK Operating frequency 315MHz±100KHZ 编号：HRP****-HARD-DD-004 内部：密C HR/QR16949-0807-11-02 Typical operating voltage 3V Operating temperature range -40°C~+85°C（without battery） 5.Dimensions The mould and dimensions of Navistar RKE are shown in the following pictures. 编号：HRP****-HARD-DD-004 内部：密C HR/QR16949-0807-11-02 6. FCC ID Position FCC ID is on the inner surface of shell, which can be seen after opening the RKE by the way shown below. FCC ID is on the inner surface of shell Open the RKE from this position by tooling. 编号：HRP****-HARD-DD-004 内部：密C HR/QR16949-0807-11-02 Federal Communications Commission (FCC) Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference …
