FCC statement This device complies with Part 15 of the FCC Rules: Operation is subject to the following two conditions: 1. This device may not cause harmful interference and 2. This device must accept any interference that is received, including any interfer ence that may cause undesired operation. This device is acting as slave and operating in the 2.4 GHz (2412 ~2462 MHz) band. Ad Hoc function is supported but not able to operate on non-US frequencies. Do not use the device with the environment which below minimum -30°C or maximum over 50°C . NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help RF exposure warning : This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment shall be installed and operated with minimum distance 20cm between the radiator & body.

HK Tech Science & Technology Co.,Ltd Agent Authorization Company: HK Tech Science & Technology Co.,Ltd Address: Xiehe Industrial B Zone, Laimei Road, Chenghai District, Shantou,Guangdong, China Product Name: DRONE Model Number(s): FX-9G, FX-9, FX-9P, FX-8, FX-8G, FX-8P, FX-7, FX-7S, FX-22, FX- 22G, FX-15, FX-16, FX-35, FX-35G, FX-35P, FX-30, FX-30G, FX-30P Product Description: DRONE We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-08-28 Name: Huai Yu Wu Company: HK Tech Science & Technology Co.,Ltd

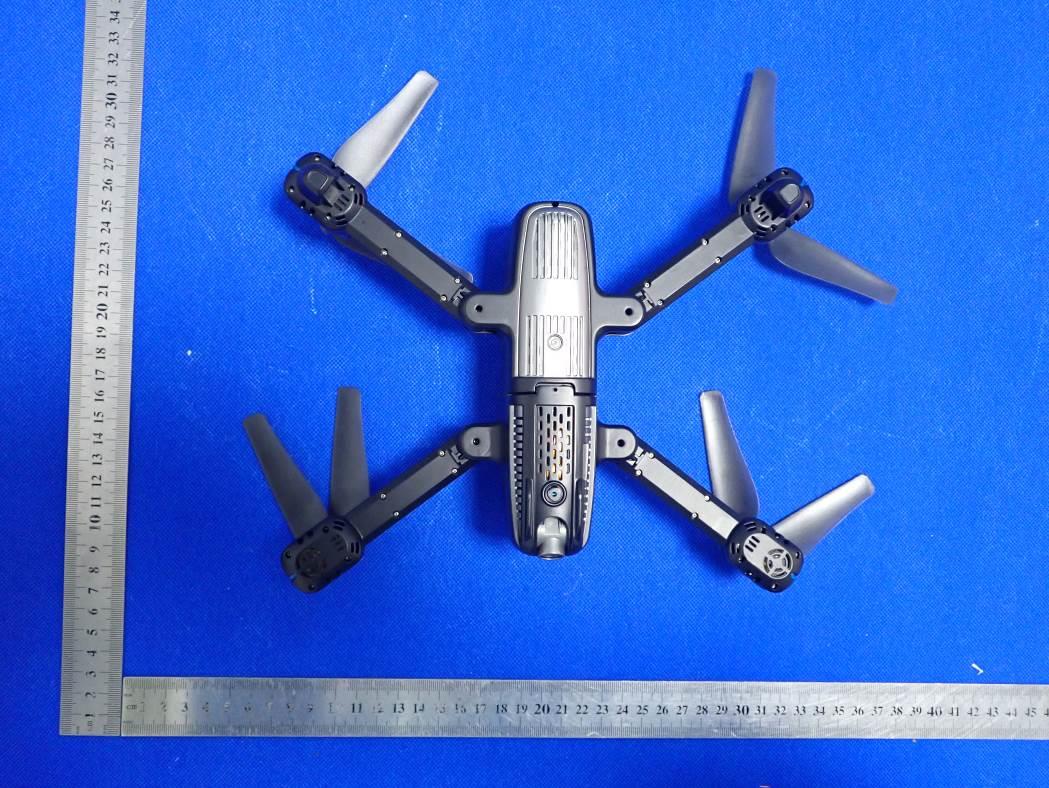

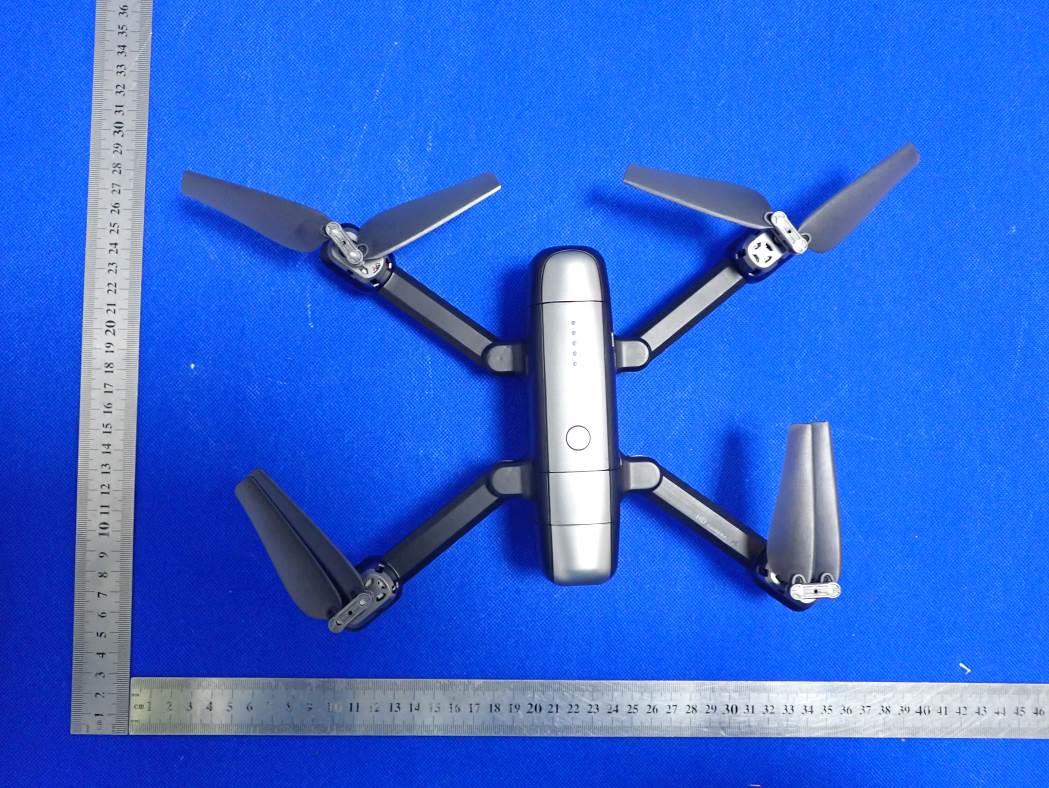

External Photos ALL VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT (PORT)

FCC ID Label Location 3mm&15mm FCC ID: 2AFDJFX9GWF

Internal Photos OPEN VIEW OF EUT-1 OPEN VIEW OF EUT-2 INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 INTERNAL VIEW OF EUT-5 INTERNAL VIEW OF EUT-6 INTERNAL VIEW OF EUT-7 INTERNAL VIEW OF EUT-8 INTERNAL VIEW OF EUT-9 INTERNAL VIEW OF EUT-10 Wifi Antenna INTERNAL VIEW OF EUT-11 INTERNAL VIEW OF EUT-12 INTERNAL VIEW OF EUT-13 INTERNAL VIEW OF EUT-14 2.4G Receiver Antenna INTERNAL VIEW OF EUT-15 INTERNAL VIEW OF EUT-16 INTERNAL VIEW OF EUT-17 INTERNAL VIEW OF EUT-18 GPS Antenna INTERNAL VIEW OF EUT-19 VIEW OF BATTERY

Page 1 of 80 Report No.: AGC04363200501FE05 FCC ID : 2AFDJFX9GWF APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : DRONE BRAND NAME : N/A MODEL NAME : FX-9G, FX-9, FX-9P, FX-8, FX-8G, FX-8P, FX-7, FX-7S, FX-22, FX-22G, FX-15, FX-16, FX-35, FX-35G, FX-35P, FX-30, FX-30G, FX-30P APPLICANT : HK Tech Science & Technology Co.,Ltd DATE OF ISSUE : Aug. 11, 2020 STANDARD(S) TEST PROCEDURE(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd FCC Test Report Report No.: AGC04363200501FE05 Page 2 of 80 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Aug. 11, 2020 Valid Initial Release Report No.: AGC04363200501FE05 Page 3 of 80 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ............................................................................................................... 5 2. GENERAL INFORMATION ............................................................................................................................ 6 2.1. PRODUCT DESCRIPTION ..................................................................................................................... 6 2.2. TABLE OF CARRIER FREQUENCYS ..................................................................................................... 6 2.3. IEEE 802.11N MODULATION SCHEME .................................................................................................. 7 2.4. RELATED SUBMITTAL(S) / GRANT (S) .................................................................................................. 7 2.5. TEST METHODOLOGY .......................................................................................................................... 7 2.6. SPECIAL ACCESSORIES ....................................................................................................................... 7 2.7. EQUIPMENT MODIFICATIONS .............................................................................................................. 7 2.8. ANTENNA REQUIREMENT. ................................................................................................................... 8 3. MEASUREMENT UNCERTAINTY ................................................................................................................. 9 4. DESCRIPTION OF TEST MODES ............................................................................................................... 10 5. SYSTEM TEST CONFIGURATION ............................................................................................................. 11 5.1. CONFIGURATION OF EUT SYSTEM .................................................................................................... 11 5.2. EQUIPMENT USED IN EUT SYSTEM .................................................................................................... 11 5.3. SUMMARY OF TEST RESULTS ............................................................................................................. 11 6. TEST FACILITY ........................................................................................................................................... 12 7. OUTPUT POWER ........................................................................................................................................ 13 7.1. MEASUREMENT PROCEDURE ........................................................................................................... 13 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 13 7.3. LIMITS AND MEASUREMENT RESULT ............................................................................................... 14 8. 6 DB BANDWIDTH ...................................................................................................................................... 15 8.1. MEASUREMENT PROCEDURE ........................................................................................................... 15 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 15 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................. 16 9. CONDUCTED SPURIOUS EMISSION ........................................................................................................ 22 Report No.: AGC04363200501FE05 Page 4 of 80 9.1. MEASUREMENT PROCEDURE ........................................................................................................... 22 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 22 9.3. MEASUREMENT EQUIPMENT USEDJN ............................................................................................. 22 9.4. LIMITS AND MEASUREMENT RESULT ............................................................................................... 22 10. MAXIMUM CONDUCTED OUTPUT POWER SPECTRAL DENSITY ....................................................... 37 10.1 MEASUREMENT PROCEDURE .......................................................................................................... 37 10.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................. 37 10.3 MEASUREMENT EQUIPMENT USED ................................................................................................. 37 10.4 LIMITS AND MEASUREMENT RESULT .............................................................................................. 37 11. RADIATED EMISSION ............................................................................................................................... 44 11.1. MEASUREMENT PROCEDURE ......................................................................................................... 44 11.2. TEST SETUP ...............................................................................…

Text truncated - open the document above for the full version.

Report No.: AGC04363200501FE05 Page 41 of 80 TEST PLOT OF SPECTRAL DENSITY FOR MIDDLE CHANNEL TEST PLOT OF SPECTRAL DENSITY FOR HIGH CHANNEL Report No.: AGC04363200501FE05 Page 42 of 80 802.11n 20 TEST RESULT TEST PLOT OF SPECTRAL DENSITY FOR LOW CHANNEL TEST PLOT OF SPECTRAL DENSITY FOR MIDDLE CHANNEL Report No.: AGC04363200501FE05 Page 43 of 80 TEST PLOT OF SPECTRAL DENSITY FOR HIGH CHANNEL Report No.: AGC04363200501FE05 Page 44 of 80 11. RADIATED EMISSION 11.1. MEASUREMENT PROCEDURE 1. The EUT was placed on the top of the turntable 0.8 or 1.5 meter above ground. The phase center of the receiving antenna mounted on the top of a height-variable antenna tower was placed 3 meters far away from the turntable. 2. Power on the EUT and all the supporting units. The turntable was rotated by 360 degrees to determine the position of the highest radiation. 3. The height of the broadband receiving antenna was varied between one meter and four meters above ground to find the maximum emissions field strength of both horizontal and vertical polarization. 4. For each suspected emissions, the antenna tower was scan (from 1 M to 4 M) and then the turntable was rotated (from 0 degree to 360 degrees) to find the maximum reading. 5. Set the test-receiver system to Peak or CISPR quasi-peak Detect Function with specified bandwidth under Maximum Hold Mode. 6. For emissions above 1GHz, use 1MHz RBW and 3MHz VBW for peak reading. Place the measurement antenna away from each area of the EUT determined to be a source of emissions at the specified measurement distance, while keeping the measurement antenna aimed at the source of emissions at each frequency of significant emissions, with polarization oriented for maximum response. The measurement antenna may have to be higher or lower than the EUT, depending on the radiation pattern of the emission and staying aimed at the emission source for receiving the maximum signal. The final measurement antenna elevation shall be that which maximizes the emissions. The measurement antenna elevation for maximum emissions shall be restricted to a range of heights of from 1 m to 4 m above the ground or reference ground plane. 7. When the radiated emissions limits are expressed in terms of the average value of the emissions, and pulsed operation is employed, the measurement field strength shall be determined by averaging over one complete pulse train, including blanking intervals, as long as the pulse train does not exceed 0.1 seconds. As an alternative (provided the transmitter operates for longer than 0.1 seconds) or in cases where the pulse train exceeds 0.1 seconds, the measured field strength shall be determined from the average absolute voltage during a 0.1 second interval during which the field strength is at its maximum values. 8.If the emissions level of the EUT in peak mode was 3 dB lower than the average limit specified, then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions which do not have 3 dB margin will be repeated one by one using the quasi-peak method for below 1GHz. 9. For testing above 1GHz, the emissions level of the EUT in peak mode was lower than average limit (that means the emissions level in peak mode also complies with the limit in average mode), then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions will be measured in average mode again and reported. 10. In case the emission is lower than 30MHz, loop antenna has to be used for measurement and the recorded data should be QP measured by receiver. High - Low scan is not required in this case. Report No.: AGC04363200501FE05 Page 45 of 80 11.2. TEST SETUP Radiated Emission Test-Setup Frequency Below 30MHz RADIATED EMISSION TEST SETUP 30MHz-1000MHz RADIATED EMISSION TEST SETUP ABOVE 1000MHz Report No.: AGC04363200501FE05 Page 46 of 80 11.3. LIMITS AND MEASUREMENT RESULT 15.209(a) Limit in the below table has to be followed Frequencies (MHz) Field Strength (micorvolts/meter) Measurement Distance (meters) 0.009~0.490 2400/F(KHz) 300 0.490~1.705 24000/F(KHz) 30 1.705~30.0 30 30 30~88 100 3 88~216 150 3 216~960 200 3 Above 960 500 3 Note: All modes were tested For restricted band radiated emission, the test records reported below are the worst result compared to other modes. 11.4. TEST RESULT RADIATED EMISSION BELOW 30MHZ The result of the lowest internal use/generated frequency to 30MHz is 20dB less than the limit. Report No.: AGC04363200501FE05 Page 47 of 80 RADIATED EMISSION BELOW 1GHZ EUT DRONE Model Name FX-9G Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode 802.11b with date rate 1 2412MHZ Antenna Horizontal NO. Freq. [MHz] Level [dBμV/m] Factor [dB] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1 528.5800 42.18 22.82 46.00 3.82 200 1 Horizontal 2 577.0800 42.58 23.84 46.00 3.42 200 258 Horizontal 3 601.3300 38.89 24.34 46.00 7.11 200 84 Horizontal 4 695.4200 39.43 25.90 46.00 6.57 100 110 Horizontal 5 853.5300 40.16 29.39 46.00 5.84 100 183 Horizontal 6 899.1200 41.26 30.11 46.00 4.74 200 311 Horizontal RESULT: PASS Report No.: AGC04363200501FE05 Page 48 of 80 EUT DRONE Model Name FX-9G Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode 802.11b with date rate 1 2412MHZ Antenna Vertical NO. Freq. [MHz] Level [dBμV/m] Factor [dB] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1 528.5800 38.19 22.82 46.00 7.81 100 272 Vertical 2 549.9200 41.23 23.26 46.00 4.77 100 269 Vertical 3 600.3600 38.28 24.33 46.00 7.72 100 196 Vertical 4 624.6100 38.25 24.76 46.00 7.75 100 266 Vertical 5 649.8300 41.90 25.17 46.00 4.10 100 259 Vertical 6 696.3900 41.53 25.91 46.00 4.47 100 283 Vertical RESULT: PASS Note: 1. Factor=Antenna Factor + Cable loss, Margin=Measurement-Limit. 2. The “Factor” value can be calculated automatically by software of measurement system. 3. All test modes had been pre-tested. The 802.11b at low channel is t…

Text truncated - open the document above for the full version.

Report No.: AGC04363200501FE05 Page 68 of 80 BACK VIEW OF EUT LEFT VIEW OF EUT Report No.: AGC04363200501FE05 Page 69 of 80 RIGHT VIEW OF EUT VIEW OF EUT (PORT) Report No.: AGC04363200501FE05 Page 70 of 80 OPEN VIEW OF EUT-1 OPEN VIEW OF EUT-2 Report No.: AGC04363200501FE05 Page 71 of 80 INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 Report No.: AGC04363200501FE05 Page 72 of 80 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 Report No.: AGC04363200501FE05 Page 73 of 80 INTERNAL VIEW OF EUT-5 INTERNAL VIEW OF EUT-6 Report No.: AGC04363200501FE05 Page 74 of 80 INTERNAL VIEW OF EUT-7 INTERNAL VIEW OF EUT-8 Report No.: AGC04363200501FE05 Page 75 of 80 INTERNAL VIEW OF EUT-9 INTERNAL VIEW OF EUT-10 Wifi Antenna Report No.: AGC04363200501FE05 Page 76 of 80 INTERNAL VIEW OF EUT-11 INTERNAL VIEW OF EUT-12 Report No.: AGC04363200501FE05 Page 77 of 80 INTERNAL VIEW OF EUT-13 INTERNAL VIEW OF EUT-14 2.4G Receiver Antenna Report No.: AGC04363200501FE05 Page 78 of 80 INTERNAL VIEW OF EUT-15 INTERNAL VIEW OF EUT-16 Report No.: AGC04363200501FE05 Page 79 of 80 INTERNAL VIEW OF EUT-17 INTERNAL VIEW OF EUT-18 GPS Antenna Report No.: AGC04363200501FE05 Page 80 of 80 INTERNAL VIEW OF EUT-19 VIEW OF BATTERY ----END OF REPORT---- Conditions of Issuance of Test Reports 1. All samples and goods are accepted by the Attestation of Global Compliance (Shenzhen) Co., Ltd (the “Company”) solely for testing and reporting in accordance with the following terms and conditions. The company provides its services on the basis that such terms and conditions constitute express agreement between the company and any person, firm or company requesting its services (the “Clients”). 2. Any report issued by Company as a result of this application for testing services (the “Report”) shall be issued in confidence to the Clients and the Report will be strictly treated as such by the Company. It may not be reproduced either in its entirety or in part and it may not be used for advertising or other unauthorized purposes without the written consent of the Company. The Clients to whom the Report is issued may, however, show or send it, or a certified copy thereof prepared by the Company to its customer, supplier or other persons directly concerned. The Company will not, without the consent of the Clients, enter into any discussion or correspondence with any third party concerning the contents of the Report, unless required by the relevant governmental authorities, laws or court orders. 3.The Company shall not be called or be liable to be called to give evidence or testimony on the Report in a court of law without its prior written consent, unless required by the relevant governmental authorities, laws or court orders. 4. The non-CMA report issued by AGC is only permitted to be used by the client as internal reference use and shall not be used for public demonstration purpose. 5. In the event of the improper use of the report as determined by the Company, the Company reserves the right to withdraw it, and to adopt any other additional remedies which may be appropriate. 6. Samples submitted for testing are accepted on the understanding that the Report issued cannot form the basis of, or be the instrument for, any legal action against the Company. 7. The Company will not be liable for or accept responsibility for any loss or damage however arising from the use of information contained in any of its Reports or in any communication whatsoever about its said tests or investigations. 8.Clients wishing to use the Report in court proceedings or arbitration shall inform the Company to that effect prior to submitting the sample for testing. 9. The Company is not responsible for recalling the electronic version of the original report when any revision is made to them. The Client assumes the responsibility to providing the revised version to any interested party who uses them. 10. Subject to the variable length of retention time for test data and report stored hereinto as otherwise specifically required by individual accreditation authorities, the Company will only keep the supporting test data and information of the test report for a period of six years. The data and information will be disposed of after the aforementioned retention period has elapsed. Under no circumstances shall we provide any data and information which has been disposed of after retention period. Under no circumstances shall we be liable for damage of any kind, including (but not limited to) compensatory damages, lost profits, lost data, or any form of special, incidental, indirect, consequential or punitive damages of any kind, whether based on breach of contract of warranty, tort (including negligence), product liability or otherwise, even if we are informed in advance of the possibility of such damages.

Test Setup Photos FCC RADIATED EMISSION TEST SETUP BELOW 1GHZ FCC RADIATED EMISSION TEST SETUP ABOVE 1GHZ
