2AFDQACORN180REMOTEAcorn 180 Curved Lift T573

User Manual Acorn 180 Curved Stairlift T565 Carriage Acorn Stairlifts User Manual ENGLISH 3 Before using your stairlift, please read through these instructions carefully. Thank you for choosing Acorn. You can rest assured that your stairlift will provide many years of reliable service and allow you to enjoy the full use of your home. Your stairlift is covered by a manufacturer’s warranty for 12 months that covers the cost of replacement parts. However, problems arising as a result of misuse of the equipment are not covered by the warranty. Your stairlift is expertly designed and manufactured to the very highest standards. Annual maintenance is required to ensure safe and trouble-free service. #EQTPNJKPMGGRKPIYKVJKVURQNKE[QHEQPVKPWCNFGXGNQROGPVNJTGUGTXGUVJGTKIJVVQEJCPIGURGEKƵECVKQP without prior notice. All measurements are approximate. All images are shown for illustrative purposes only. Product may vary slightly. USA / CANADA ONLY Some States require that permits are obtained prior to installation, and that a licensed engineer completes the installation. Check your local regulatory requirements. Acorn Stairlifts User Manual ENGLISH 4 QUICK USER GUIDE This is a quick start reference guide to help get you started using your Acorn 180 curved stairlift. It is important for your safety that you study this manual to completely familiarise yourself with your stairlift. TURNING THE LIFT ON 1 Insert and turn key clockwise. 2 Push switch until green light shows. 2 OPERATING THE LIFT 1 Press the switch towards the stairs to go up. 2 Press the switch away from the stairs to go down. 1 2 SEAT BELT 1 Retract the seatbelt and pull over lap. 2 Push seatbelt into the buckle until it clicks. 2 1 IMPORTANT - SEAT BELT MUST BE WORN DURING OPERATION 1 7KLVZLOODOORZWKHXVHUWRRSHUDWHWKHKLQJHZKLOVWLQDOLQHRIVLJKW2QFH\RXDUHƶQLVKHGXVLQJWKHVWDLUOLIW DQLQWHUPHGLDWHFKDUJHSRLQWLIƶWWHGRUWKHWRSFKDUJHSRLQW Acorn Stairlifts User Manual ENGLISH 5 QUICK USER GUIDE REMOTE CONTROLS 1 Press the up arrow for the lift to go up. 2 Press the down arrow for the lift to go down. SWIVEL SEAT At the top of the stairs push down on the lever to swivel the seat 45° and 88° to exit the lift. The seat must be swivelled back into position to operate. FOLDING ARMS, SEAT & FOOTREST Fold down the arms, seat and footrest. Both arms of the seat must be completely down for the stairlift to operate. The stairlift can still be called with the remote controls with the arms in any position. IMPORTANT INFORMATION FOR USERS WITH A POWERED HINGE Using the arm control will start the lift in motion. When the lift reaches or leaves the programmed hinge zone the stairlift will stop and the powered hinge will be automatically raised or lowered at the bottom of the staircase. 7KLVZLOODOORZWKHXVHUWRRSHUDWHWKHKLQJHZKLOVWLQDOLQHRIVLJKW2QFH\RXDUHƶQLVKHGXVLQJWKHVWDLUOLIW pressing the up button on the remote handset will automatically run the lift to either, DQLQWHUPHGLDWHFKDUJHSRLQWLIƶWWHGRUWKHWRSFKDUJHSRLQW It is important that the stairlift is moved to the nearest charge point to ensure battery drain does not occur. Images shown for illustrative purposes only and may change. Acorn Stairlifts User Manual ENGLISH 6 YOUR STAIRLIFT 1 3 2 5 4 6 7 8 10 9 11 4 4 4 Acorn Stairlifts User Manual ENGLISH 7 YOUR STAIRLIFT The Acorn 180 Curved Stairlift is an electrically powered stairlift designed for domestic use. If used correctly, it will provide many years of safe, reliable service. It is designed to carry one person weighing no more than 120kg (265lbs/18.9 stone). It is important for your safety that you study this manual to completely familiarise yourself with your stairlift. The pictures in this manual show a stairlift on the left hand side of the stairs. Stairlifts on the opposite side of the stairs operate in exactly the same way. Seat Armrest Status indicator Safety Edges Footrest Charging points Rail Carriage Seat swivel release paddle Seatbelt Direction controller 1 2 3 4 5 6 7 8 9 10 11 Acorn Stairlifts User Manual ENGLISH 8 • To guard against injury, basic safety precautions should be observed. • Ensure that the stairway is not being used by others and is clear of articles or obstructions before using the stairlift. • Relax and sit well back in the seat with your arms on the armrests and your feet well back on the footrest. ũ $QLQHUWLDW\SHVHDWEHOWLVƶWWHGHQVXUHLWLVIDVWHQHGVHFXUHO\DWDOOWLPHVGXULQJRSHUDWLRQ • Do not use the appliance for other than intended use. GENERAL NOTES ON SAFETY READ AND FOLLOW ALL SAFETY INSTRUCTIONS DANGER! The stairlift is designed to carry one person at a time. Never attempt to carry more than one person. DANGER! Do not allow children to play with the stairlift. Use by children should always be supervised. For safety, it is advisable WRVZLWFKRƵWKHVWDLUOLIWDQGUHPRYHWKHNH\LIWKHUHLVDULVNRI tampering by children. WARNING! Ensure other members of your household or visitors DUHDZDUHWKDWWKHVWDLUOLIWLVLQXVHPDNHWKHPDZDUHRIDQ\ potential trip hazards. DANGER! Ensure that household pets are out of harms way before using the stairlift. DANGER! Ensure that there are no articles of your clothing that could become trapped in the stairlift mechanism, as this could result in personal injury and/or damage to the equipment. Always check that your clothing is clear of the rail and carriage assemblies before using the stairlift. CAUTION! It is possible for small items to be dropped onto the stairlift rail and then slide down the rail and into the stairlift mechanism. If you suspect that any foreign object has become trapped in the equipment, consult your Acorn representative before further use. WARNING! Disconnecting the power supply will cause the stairlift batteries to lose their charge, and the stairlift will not operate (See page 9 - Charging Your Stairlift). • Do not use the stairlift if you have not been given a demonst…

Text truncated - open the document above for the full version.

2AFDQ-ACORN180REMOTE

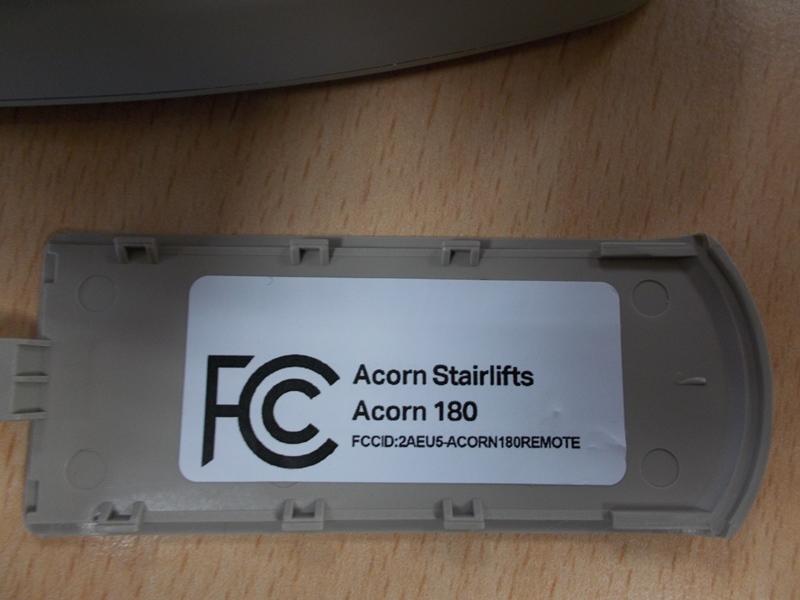

External Photographs & Label - Remote

45.7 21.2 5.0 1.0 NOTES :- 1/ LABEL SIZE - 45.7 X 21.2 2/ LABEL MATERIAL - POLYESTER 3/ LABEL SPEC. - HEAVY DUTY, SUITABLE FOR INDOOR OR OUTDOOR USE (IE. AVERY L4778-20) 4/ LABEL COLOUR - WHITE (RAL 9003) 5/ TEXT COLOUR - BLACK (RAL 9005) 6/ SUPPLIED IN A4 SHEETS OF 48 OR ROLLS (QTY T.B.A.) 7/ USE THE DETAILS ABOVE FOR PRINTING D E F C 23 4 B A 3215 C D 4678 A B B LABEL - FCC (45.7 X 21.2) REMOTE WEIGHT: (grams) A3 SHEET 1 OF 1 NOT TO SCALE DWG NO. DESCRIPTION; REVISION DO NOT SCALE DRAWING MATERIAL: DATEREVISION DEBUR AND BREAK SHARP EDGES FINISH: CHK'DDRAWNAPPV'D SEE NOTES 9111-00092 THE INFORMATION IN THIS DRAWING IS CONFIDENTIAL TO LEMAC LTD. AND MAY NOT BE COPIED OR DISCLOSED IN WHOLE OR PART WITHOUT PRIOR WRITTEN PERMISSION LEMAC © ALL DIM'S IN MM TOLERANCES: ACORN / BISON No. CROSS REF. ACORN GLS No. CROSS REF. 1 E B RELEASED - APPROVED FOR MANUFACTURE DESCRIPTIONECN No. RELEASED - APPROVED FOR MANUFACTURE ECR-0000092 Release K McC17-06-15 ECR-000114FCC No WAS 2AEU5MRN 15-07-15 B

External Photographs & Label - Remote

TRaC Global Test Report: TRA-025851-01-47-03A 33 Appendix G: General SAR test reduction and exclusion guidance KDB 447498 Section 4.3 General SAR test reduction and exclusion guidance For Standalone SAR exclusion consideration, when SAR Exclusion Threshold requirement in KDB 447498 is satisfied, standalone SAR evaluation for general population exposure conditions by measurement or numerical simulation is not required. The SAR Test Exclusion Threshold for 100 MHz to 6 GHz will be determined as follows. SAR Exclusion Threshold (SARET) = Step 1 + Step 2 Step 1 NT = [ (MP/TSD A ) * √ f GHz ] NT = Numeric Threshold (3.0 for 1-g SAR and 7.5 for 10-g SAR) MP = Max Power of channel (mW) (including tune-up tolerance) TSD A = Min Test separation Distance or 50mm (whichever is lower) = 5mm (in this case) We can transpose this formula to allow us to find the maximum power of a channel allowed and compare this to the measured maximum power. = [(NT x TSD A ) / √ f GHz ] For Distances Greater than 50 mm Step 2 applies Step 2 (TSD B – 50mm) * 10 Where: TSD B = Min Test separation Distance (mm) = 50 Note: Step 2 doesn’t apply here as the TSD A is less than 50 mm Operating Frequency 915 MHz SARET = [(3.0 x 5) / √0.915] SARET = 15.68 mW Channel Frequency (MHz) EIRP (mW) SAR Exclusion Threshold (mW) SAR Evaluation 915.0 0.63 15.68 Not Required Therefore standalone SAR evaluation for general population exposure conditions by measurement or numerical simulation is not required. TRaC Global Test Report: TRA-025851-01-47-03A 34 Appendix H: MPE Calculation Prediction of MPE limit at a given distance For purposes of these requirements mobile devices are defined by the FCC and Industry Canada as transmitters designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between radiating structures and the body of the user or nearby persons. These devices are normally evaluated for exposure potential with relation to the MPE limits. As the 20cm separation specified under FCC and Industry Canada rules may not be achievable under normal operation of the EUT, an RF exposure calculation is needed to show the minimum distance required to be less than the power density limit, as required under FCC and Industry Canada rules. Equation from IEEE C95.1 Where: S = power density R = distance to the centre of radiation of the antenna EIRP = EUT Maximum power Result Prediction Frequency (MHz) Maximum EIRP (mW) Power density limit (S) (mW/cm 2 ) Distance (R) cm required to be less than power density limit 915.0 0.63 0.61 0.29 4 arranged-re 4 2 S EIRP R R EIRP S

A Radio Test Report FOR Acorn Mobility Services Limited ON Acorn180 Stair Lift System T573 Hand Held Remote Document No.TRA-025851-01-47-03B Total number of pages: 35 TRaC Wireless Test Report : TRA-025851-01-47-03B Applicant : Acorn Mobility Services Limited Apparatus : T573 hand held remote Specification(s) : FCC CFR47 Part 15.249 & RSS-210 Issue 8 Purpose of Test : Certification FCC ID : 2AFDQACORN180REMOTE Authorised by : : Radio Product Manager Issue Date : 30 th July 2015 Authorised Copy Number : PDF TRaC Global Test Report: TRA-025851-01-47-03B 3 Contents Section 1: Introduction 4 1.1 General 4 1.2 Tests Requested By 5 1.3 Manufacturer 5 1.4 Apparatus Assessed 5 1.5 Test Result Summary 6 1.6 Notes relating to the assessment 7 1.7 Deviations from Test Standards 7 Section 2: Measurement Uncertainty 8 2.1 Measurement Uncertainty Values 8 Section 3: Modifications 10 3.1 Modifications Performed During Assessment 10 Section 4 General Test Procedures 11 4.1 Radiated Test Setup and Procedures 11 4.2 AC Powerline Conducted Emissions Test Setup and Procedures 12 4.3 Antenna Port Conducted Emissions 12 4.4 Power Supply Variation 13 4.5 Thermal Variation 13 4.6 Time Domain Measurements 13 Appendix A: Formal Emission Test Results 14 A1 Transmitter Intentional Emission Radiated 15 A2 Transmitter Bandwidth 16 A3 Radiated Electric Field Emissions 17 Appendix B: Supporting Graphical Data 19 Appendix C: Additional Test and Sample Details 23 C1 Test samples 24 C2 EUT operating mode during testing 25 C3 EUT Configuration Information 26 C4 List of EUT Ports 27 C5 Details of Equipment Used 28 Appendix D: Additional Information 29 Appendix E: Calculation of the duty cycle correction factor 30 Appendix F: Photographs and Figures 31 Appendix G: General SAR test reduction and exclusion guidance 33 Appendix H: MPE Calculation 34 TRaC Global Test Report: TRA-025851-01-47-03B 4 Section 1: Introduction 1.1 General This report contains an assessment of an apparatus against Electromagnetic Compatibility Standards based upon tests carried out on samples submitted to the Laboratory. Test performed by: TRaC Global [ ] Unit E South Orbital Trading Park Hedon Road Hull, HU9 1NJ. United Kingdom. Telephone: +44 (0) 1482 801801 Fax: +44 (0) 1482 801806 TRaC Global [X] Unit 1 Pendle Place Skelmersdale West Lancashire, WN8 9PN United Kingdom Telephone: +44 (0) 1695 556666 Fax: +44 (0) 1695 577077 Email: [email protected] Web site: http://www.tracglobal.com Tests performed by: A Tosif Report author: A Tosif This report must not be reproduced except in full without prior written permission from TRaC Global Ltd. TRaC Global Test Report: TRA-025851-01-47-03B 5 1.2 Tests Requested By This testing in this report was requested by: Acorn Mobility Services Limited Telecom House Millennium Business Park Steeton Station Road BD20 6RB UK 1.3 Manufacturer As above 1.4 Apparatus Assessed The following apparatus was assessed between: 5 th May 2015 and 18 th May 2015 • Acorn180 Stair Lift System - T573 hand held remote The Acorn180 Stair Lift System consists of a T565 chair controller, a T567 hinge controller and a T573 hand held remote. All of the above equipments contain the same radio module that operates in 902 MHz – 928 MHz band. This report only covers the testing done on T573 hand held remote. TRA-025851-01-47-01B and TRA-025851-01-47-02B cover the testing done on T565 chair controller and T567 hinge controller, respectively. TRaC Global Test Report: TRA-025851-01-47-03B 6 1.5 Test Result Summary Full details of test results are contained within Appendix A. The following table summarises the results of the assessment. The statements relating to compliance with the standards below apply ONLY as qualified in the notes and deviations stated in sections 1.6 to 1.7 of this test report. Full details of test results are contained within Appendix A. The following table summarises the results of the assessment. Test Type FCC Regulation IC Regulation Measurement standard Result Spurious Emissions Radiated Title 47 of the CFR: Part 15 Subpart (c) 15.249(a)(d) RSS-210 Issue 8 December 2010 Annex 2 A2.9 ANSI C63.10:2009 Pass Unintentional Radiated Spurious Emissions Title 47 of the CFR: Part 15 Subpart (b) 15.109 RSS-Gen Issue 4 November 2014 Section 7.1.2 ANSI C63.10:2009 N/A * AC Power line conducted emissions (PLCE) Title 47 of the CFR: Part 15 Subpart (c) 15.207 RSS-Gen Issue 4 November 2014 Section 8.8 ANSI C63.10:2009 N/A # Intentional Emission Frequency Title 47 of the CFR: Part 15 Subpart (c) 15.249 (a) RSS-210 Issue 8 December 2010 Annex 2 A2.9 ANSI C63.10:2009 Pass Intentional Emission Field Strength Title 47 of the CFR: Part 15 Subpart (c) 15.249 (a) RSS-210 Issue 8 December 2010 Annex 2 A2.9 ANSI C63.10:2009 Pass Intentional Emission Band Occupancy Title 47 of the CFR: Part 15 Subpart (c) 15.215 (c) RSS-Gen Issue 4 November 2014 Section 4.6.1 ANSI C63.10:2009 Pass * EUT is a transmitter only device. # EUT is a battery powered device. Abbreviations used in the above table: CFR : Code of Federal Regulations ANSI : American National Standards Institution REFE : Radiated Electric Field Emissions PLCE : Power Line Conducted Emissions TRaC Global Test Report: TRA-025851-01-47-03B 7 1.6 Notes relating to the assessment With regard to this assessment, the following points should be noted: The results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. The apparatus was set up and exercised using the configurations, modes of operation and arrangements defined in this report only. Particular operating modes, apparatus monitoring methods and performance criteria required by the standards tested to have been performed except where identified in Section 1.7 of this test report (Deviations from Test Standards). For emissions testing, throughout this test report, “Pass” indicates that the results for the sample as tested were…

Text truncated - open the document above for the full version.

TRaC Global Test Report: TRA-025851-01-47-03A 31 Appendix F: Photographs and Figures The following photographs were taken of the test samples: 1. Radiated electric field emissions arrangement: overview 2. Radiated electric field emissions arrangement: close up TRaC Global Test Report: TRA-025851-01-47-03A 32 Photograph 1 Photograph 2
