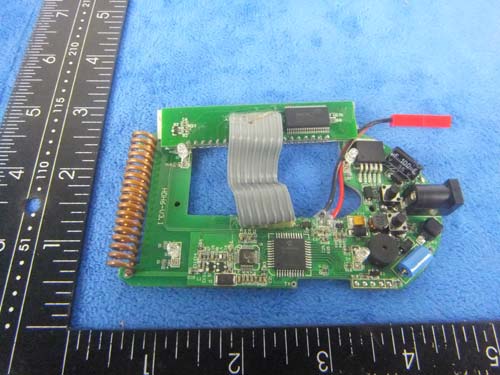

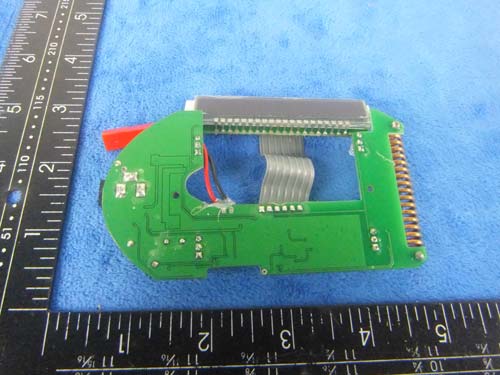

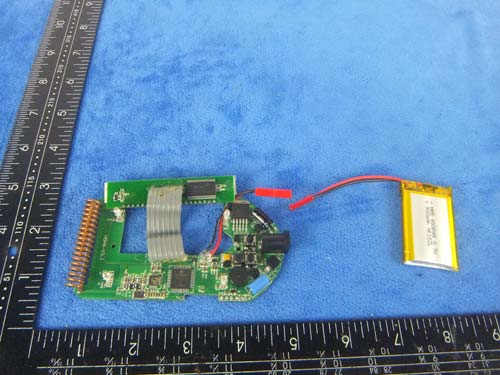

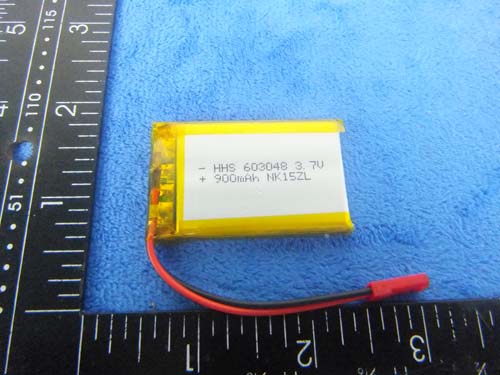

2AFEFH6581851Crystal model tire pressure monitoring system

Wireless tire pressure monitoring System 24 hours monitoring, Comprehensive tire care Instruction manual Brief introduction Car tires are the most important components of a car, and have significant relationship to driving safety. The traffic accident caused by tire is shocking. According to traffic accident statistics of the relevant departments: 70% of highway traffic accidents are caused by tire explosion in China, and as high as 80% in America. In fact, it’s critical to safe driving in maintaining the standard tire pressure and finding tire leak timely. At present, when a car is under driving, the data and status of the vehicle speed, the circle, the water temperature, the oil, the safety belt, the ABS brake and so on are shown on the instruments, while no display and alarm of tire pressure and temperature. But wireless tire pressure monitor can solve this problem！ Special tips 1. This product is a ‘proactive’ type of car safety system, which can provide a very effective warning for the owner, but it can’t predict sudden tire damage and can’t stop the occurrence of accidents. 2. Please install and use this product in the permitted range. If there is any use beyond the scope, our company will not be responsible for all the consequences arising there from！ 3. The range of the threshold should be strictly complied with in setting the threshold. Different models should be installed in accordance with the parameters or specifications of the tire, or the agent given scope. Generally the settings don’t have to be modified once the system is set up. If there are any product failure or consequences caused in self setting or improper settings or operations, our company will not take the responsibility arising there from. 4. The contents of the written instructions shall be changed without notice. 5. Make sure to hire experienced technician to install or assembly; Please do not damage the emitter if the tires have to be torn down again. Button Layout Display profile Indicator light Tire pressure Value Up Down Query Temperature Technical parameters Receiver Project Content Working voltage DC 12V±3V Working temperature -20 +85 LCD °C°C Quiescent current <20mA Working frequency 433.92MHZ TPMS-H6 Installation of receiver Use the double faced adhesive tape to stick the receiver on the dashboard, located in the field of driver. Threshold of various alarm functions No. Fault state Warning condition 01 High pressure alarmTire pressure value exceeds 3.0Bar 02 Low pressure alarm Tire pressure is lower than 1.8Bar 03 High temperature alarm Inside tire temperature exceeds 70°C Functional operation instructions Boot description In normal state, press the query key for 5 seconds and the system enters into sleep state. LED does not show and does not accept data. In sleep state, press the query for 5 seconds to wake up system, and enter normal working state. Vibration switch 1. Standby state The system enters standby mode when the system does not detect any vibration signal for 10 minutes. 2. Standby state wake up The system shifts from standby state to working state when the system detects any vibration signal in standby mode. Re lock code The system will delete all previous data when you press the query key to keep it up for 5 seconds，All tires will all renew codes. Standby settings In normal state, press the query key for 5 seconds and the system enters into sleep state. LED does not show and does not accept data. In sleep state, press the query for 5 seconds to wake up system, and enter normal working state. Data query Press the query key to check the pressure and temperature values of each tire. If the data are normal. the corresponding LED light turns blue. Alarm setting Press the key ‘UP’ and the system enter the pressure setting. Left for low pressure alarm, right for high pressure alarm setting. Press the query key to adjust the data value, between 1.0 to 2.0 bar. After the low pressure value is set up, press again the key ‘UP’ to enter the setting of the high pressure value, between 2.6 to 3.5 bar. After the high pressure value is set up, press again the key ‘UP’ and the system enter the working state, shown as below: Alarm function The product alarms when the tire pressure is lower than the low value, higher than the high pressure or temperature higher than 70 degree. Alarm mode is buzzer alarm, and the corresponding tire LED light turns red. Buzzer alarm time is 10 seconds, the buzzer stops after 10 seconds after, so repeatedly. (The buzzer stops alarm in these 10 seconds if there is a press on query key.） 1. Low pressure alarm: The Buzzer sound prompts 10 times when the pressure is lower than low pressure value. The receiver screen displays the corresponding emitter data and the corresponding car tire LED light turns red. Alarm information displays by turns if there are multiple transmitter alarms. Low pressure alarm 2. High pressure alarm: The Buzzer sound prompts 10 times when the pressure is higher than high pressure value. The receiver screen displays the corresponding emitter data and the corresponding car tire LED light turns red. Alarm information displays by turns if there are multiple transmitter alarms. High pressure alarm 3. High temperature alarm: The Buzzer sound prompts 10 times when the temperature is higher than high temperature value. The receiver screen displays the corresponding emitter data and the corresponding car tire LED light turns red. Alarm information displays by turns if there are multiple transmitter alarms. High temperature alarm 4. No signal alarm： The product alarms when there is no signal transmitter, and the screen shows ‘－－,－－’. Alarm information displays by turns If there are multiple transmitter alarms. No signal alarm Tire transposition setting Press the key ‘Down’ and the system enters tire transposition setting. In the setting process, the LED lamp is lit up in blue. On the left side of the LCD screen is a symbol of the sensor code on the tire, on the right…
