2AFEJ-DWH69Graphic Tablet (Pen Tablet)

Graphic Model:DWH69 Address: Huion Building,Hi-Tech Park Shifeng, ShenZhen, P.R.China Tel: +86-755-61537861 Support: [email protected] [email protected] www.huion-tablet.com www.huiontablet.com CONTENTS 1 1 1 2 2 2 3 5 6 6 7 7 8 9 12 13 15 I . General Information 1. Ove rvi ew 2. Pen TabletFunct ions 3. Syst emRequire ments 4. I nstallin g the Dri ve r Softwareon Windows 5. HardwareInstallat ion IV. Question & Answer II. Driver Interface Introduction 1. Control Interface 2.1 Key Functions 4. Digital Pen Pressure Sensitivity Test 6. Wireless Graphic Tablet 2. Pen Buttons Settings lll. Pen Storage and Maintenance 3. Workspace and Hotkey Settings 3.1 Workspace Settings 10 3.2 No Shortcut keys-Workspace Settings 7. Usage Tips 1 I. General Information 1. Ove rvi ew Welcome to the world of Graphic Tablet with rechargeable pen. Now you will discover how easy it is to use your personal computer by using a Graphic Tablet with rechargeable pen instead of a mouse.Unique feature of this rechargeable pen is that it makes it easy for you to draw thin, thick, light or dark (called pressure sensitivity) lines. You can also write, sign, annotate documents or draw, sketch and paint as easily as you would do on normal paper. You can further simulate functions like pencil, mark pen, brush, or water color pen by using the commercial software packages such as Adobe Photoshop, Corel Painter. 2. Graphic Tablet Functions After installing the device driver, your Graphic Tablet will have following functions: (1) Direct pointing — You can move the cursor to any area of the screen by hovering the rechargeable pen tip over the tablet’s surface. (2) Three-buttons mouse commands — Your Graphic Tablet will provide all functions of a three-buttons’ mouse by using its pen tip and two buttons. (3) Pressure sensitivity — This feature allows you to emulate various brushes and pencils. Harder you press down the pen, the thicker lines you get; lighter you press the thinner ones you get. 2 3. System Requirements Windows Vista / Windows 7 / Windows 8 / Windows 8.1 / Windows 10 4. Installing the Driver Software on Windows Please close all painting software and antivirus software before driver installation. For Windows Vista / Windows 7 / Windows 8 / Windows 8.1 / Windows 10 operating systems: (1) Insert the Driver CD intoa CD-ROM drive and wait for the main installation screen to appear. (2) The main installation screen will appear automatically; if not, you can manually start the installation- Open [My Computer] [CD/DVD Rom] -click on the [Setup] program. (3) When installing the driver, follow the installation instructions on screen. 5. HardwareInstallat ion Once the driver installation is finished, connect the tablet with USB interface into a PC.You will then see a small tablet icon appearing in the system tray (normally at thelower right corner of the screen.) If the USB cable is disconnected, there will apprear a icon to represent the tablet is disable 3 6. Wireless Graphic Tablet (1) Dual working modes - wired & wireless (wireless distance can reach 20 meters in open space) Wireless Graphic Tablet: Button2 Button1 Pen ti p *This illustration is of a model picture of Huion DWH69 Touch Express Keys Touch Express Keys USB Receiver Battery LCD Active Area 4 (3) Working Mode for Wireless Graphic Tablet 1) Pull out the USB cable - switch “On/Off” button to “On” plug in the wireless receiver. 2) If you want to charge in wireless mode, please plug the USB cable directly. 3) Constant working time: > 30 hours. 4) For battery power saving, please switch “On/Off” button to “OFF” when you are not using it. 5) Automatic shutdown: 200 uA (the tablet will automatically turn off when not used for over 20 minutes. (Push ON OFF ON to restart). (4) Working Mode for Wired Graphic Tablet 1) Swith "ON/OFF" button to "OFF". 2) Then plug in the USB cable and the Graphic Tablet is in a wired mode. 3) Swith "ON/OFF" button to "ON", then the tablet is still in wired mode plus charge at the same time. (2) Functions of the LCD display 1).The LCD display will lit up when the Graphic Tablet is in normal working conditions; 2).The LCD display will show an icon to represent that the Graphic Tablet detected the pen; 3).The LCD display will show an icon to represent that you are touching the Express Key; 4).The LCD display will show an icon to represent the Graphic Tablet is in a wireless mode; 5).The LCD display will show an icon to represent the Graphic Tablet is charging; 6).The LCD sreen will show the icon when running out of battery and please charging in time , or it will lead to bad Linear, no drawing line and the screen dim out etc 7).The display will show an icon to show the power 8).The LCD display will show an icon to represent the Graphic Tablet is in wired mode and without charging. 7. Usage Tips (1) Double tapping When you double tap with a rechargeable pen (equivalent to a double click with a mouse), try to keep pen’ tip away from the tablet’s surface, or at least try to lift the pen tip as fast as possible before the second tap. (2) Storing the rechargeable pen While storing the rechargeable pen, make sure the pen tip does not touch anything, especially the pen stand in a cup or pen holder with the tip down. Though the possibility is low, constant stress on a pen tip might damage precise configuration of the pen. Place the pen in a pen holder, or turn the pen tip pointing upward or horizontally with the pen tip free from any pressure by other objects. (3) Using a pen without an ordinary mouse You may install the rechargeable pen, digital mouse, and normal mouse in your computer at the same time. However, only one device will be able to work at a time. * Do not use more than two devices at the same time in case the screen cursor is jittering or not moving. 5 6 ǁ. Driver Interface Introduction 1. Control Interface 7 When you double click the driver tablet icon ( ) that normally appears in the system tray at the corner of a screen, you will s…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 Shenzhen Huion Animation Technology Co.,ltd. 2015-07-16 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, ____ Shenzhen Huion Animation Technology Co.,ltd. __ hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): Product： Graphic Tablet (Pen Tablet) Trade Name： HUION Model Name： DWH69 Serial Model： DWH1410,WH1409,W58,WH850,WH580, WH690E,W58pro,DW69 FCC ID： 2AFEJ-DWH69 Sincerely, Signature Client’s name / title : leo luo/ Sales assistant Contact information / address : Unit D, Floor 2, Building B Shifeng Technology Park, Huangmabu Community, Xixiang Road,Baoan District,ShenZhen City, China

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (current) 3.0 4.0 March-26-2015 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 4.0 Shenzhen Huion Animation Technology Co.,ltd. 2015-07-16 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2AFEJ-DWH69 We hereby request confidential treatment of information accompanying this application as outlined below: - . Block Diagram - Schematics - Operational Description - The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature Client’s name / title : leo luo/ Sales assistant Contact information / address : Unit D, Floor 2, Building B Shifeng Technology Park, Huangmabu Community, Xixiang Road,Baoan District,ShenZhen City, China

Shenzhen Huion Animation Technology Co.,ltd. Model Difference FCC ID:2AFEJ-DWH69 Model : DWH69, DWH1410,WH1409,W58,WH850,WH580, WH690E,W58pro,DW69 All the model are the same circuit and RF module,except the model name and colour. Regards, Client’s signature Signature Client’s name / title : leo luo/ Sales assistant Contact information / address : Unit D, Floor 2, Building B Shifeng Technology Park, Huangmabu Community, Xixiang Road,Baoan District,ShenZhen City, China

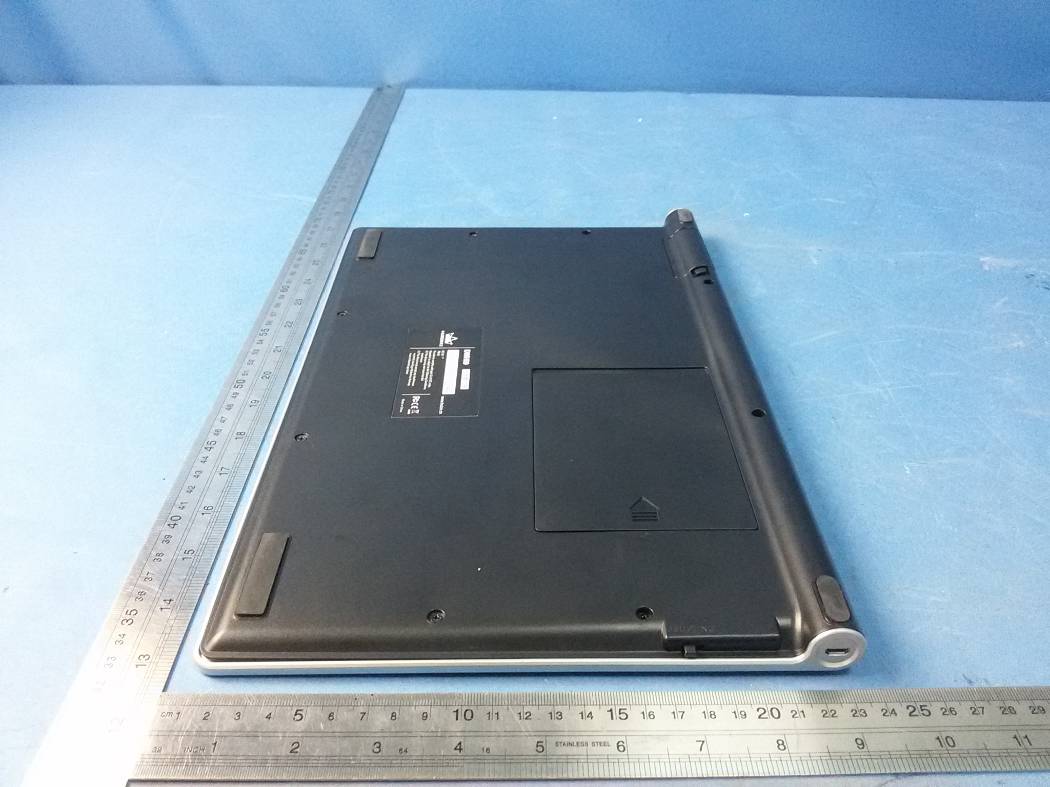

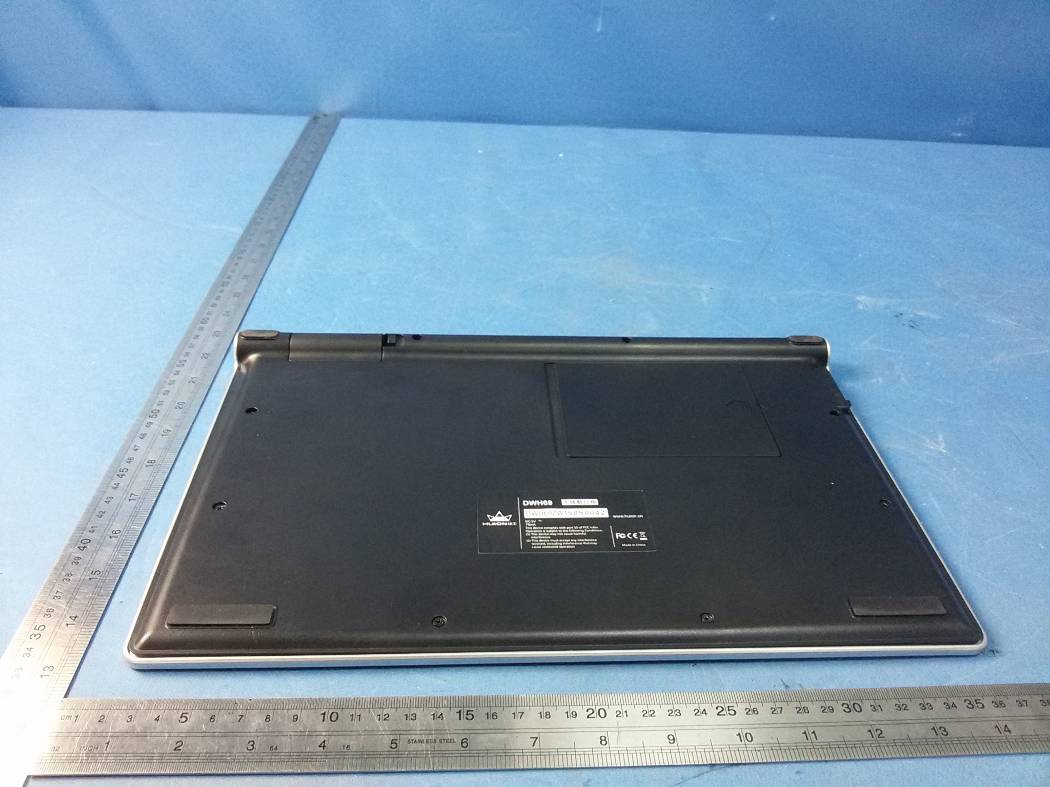

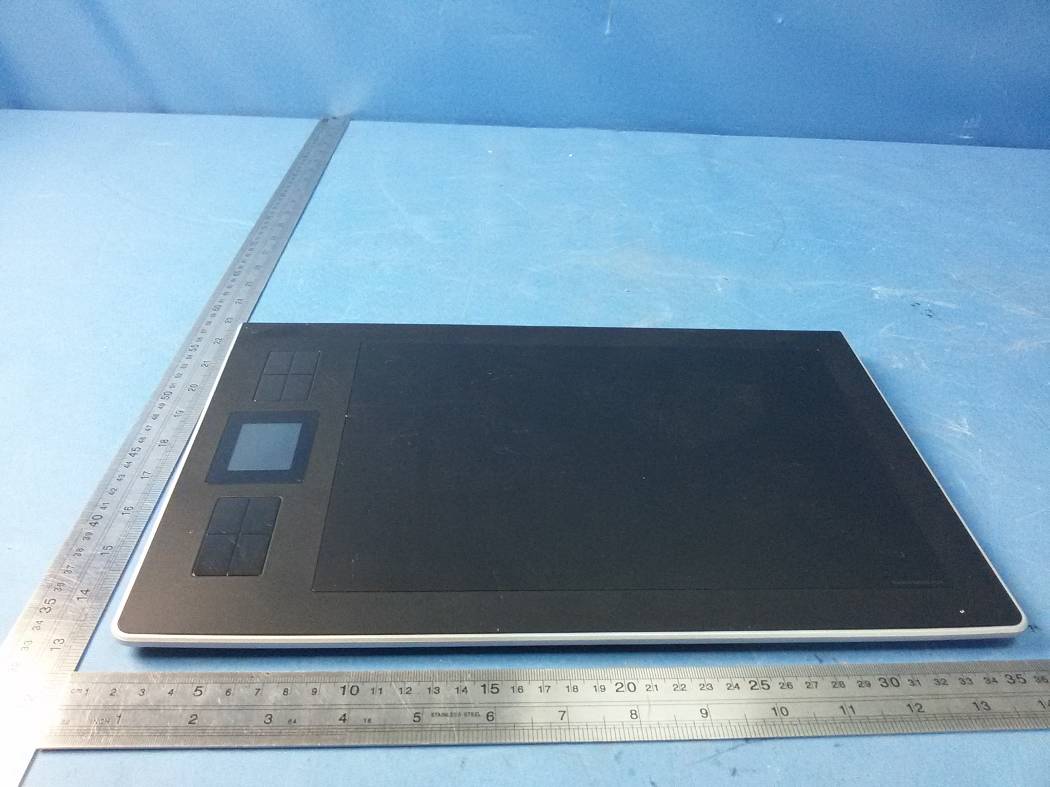

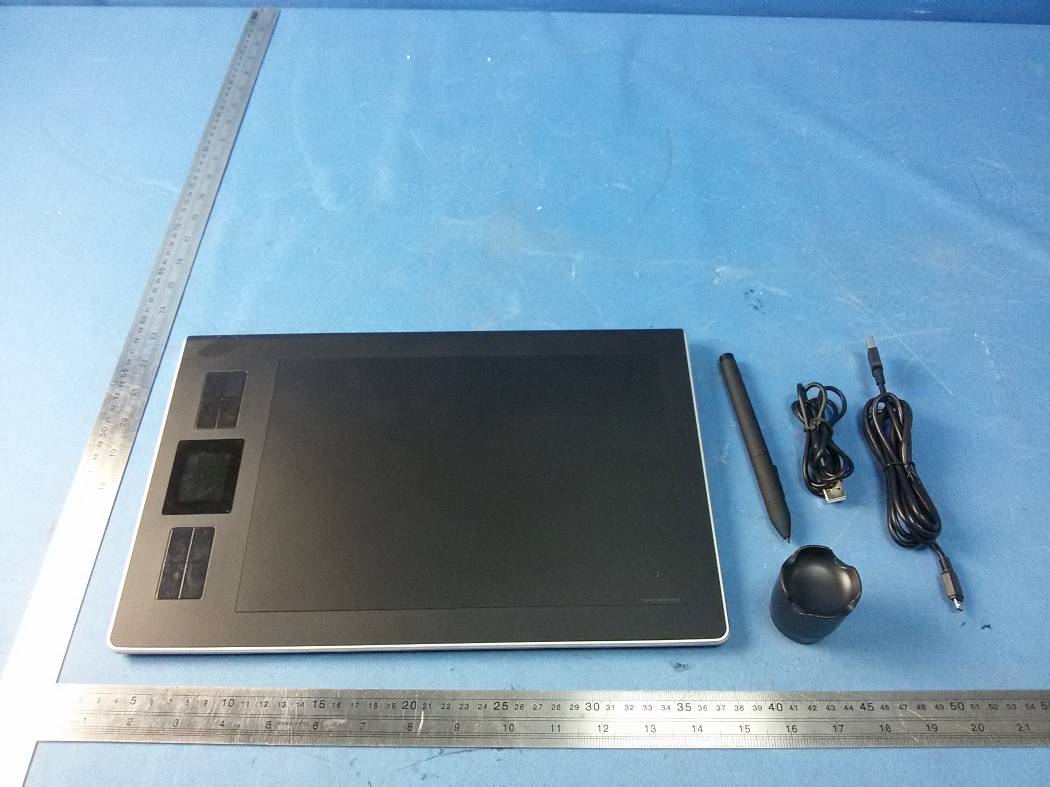

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6

FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) FCC ID: 2AFEJ-DWH69 FCC ID: 2AFEJ-DWH69

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Tx Ant Photo 7

FCC RADIO TEST REPORT FCC ID: 2AFEJ-DWH69 Product： Graphic Tablet (Pen Tablet) Trade Name： HUION Model Name： DWH69 Serial Model： DWH1410,WH1409,W58,WH850,WH580, WH690E,W58pro,DW69 Report No.： NTEK-2015NT06091976F2 Prepared for Shenzhen Huion Animation Technology Co.,ltd. Unit D, Floor 2, Building B Shifeng Technology Park, Huangmabu Community, Xixiang Road,Baoan District,ShenZhen City, China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website:www.ntek.org.cn Page 2 of 41 Report No.: NTEK-2015NT06091976F2 ` TEST RESULT CERTIFICATION Applicant’s name ................. : Shenzhen Huion Animation Technology Co.,ltd. Address ................................. : Unit D, Floor 2, Building B Shifeng Technology Park, Huangmabu Community, Xixiang Road,Baoan District,ShenZhen City, China Manufacture's Name ............ : Shenzhen Huion Animation Technology Co.,ltd. Address ................................. : Unit D, Floor 2, Building B Shifeng Technology Park, Huangmabu Community, Xixiang Road,Baoan District,ShenZhen City, China Product description Product name ........................... : Graphic Tablet (Pen Tablet) Model and/or type reference : DWH69 Serial Model： DWH1410,WH1409,W58,WH850,WH580, WH690E,W58pro,DW69 Rating(s) ................................ : DC 3.7V Standards ............................. : FCC Part15.249 01 Oct. 2014 Test procedure ..............................ANSI C63.10-2013 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personnel only, and shall be noted in the revision of the document. Date of Test ............................................ : Date (s) of performance of tests ............. : 09 Jun. 2015 ~10 Jul. 2015 Date of Issue ........................................... : 10 Jul. 2015 Test Result ............................................... : Pass Testing Engineer : (Jason Chen) Technical Manager : (Brown Lu) Authorized Signatory : (Bill Yao) Page 3 of 41 Report No.: NTEK-2015NT06091976F2 ` Table of Contents Page 1 . SUMMARY OF TEST RESULTS 4 1.1 TEST FACILITY 5 1.2 MEASUREMENT UNCERTAINTY 5 2 . GENERAL INFORMATION 6 2.1 GENERAL DESCRIPTION OF EUT 6 2.2 DESCRIPTION OF TEST MODES 8 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 9 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 10 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 11 3 . ANTENNA REQUIREMENT 13 3.1 STANDARD REQUIREMENT 13 3.2 EUT ANTENNA 13 3.3 CONDUCTED EMISSION MEASUREMENT 14 3.3.1 POWER LINE CONDUCTED EMISSION LIMITS 14 3.3.2 TEST PROCEDURE 15 3.3.3 DEVIATION FROM TEST STANDARD 15 3.3.4 TEST SETUP 15 3.2.5 TEST RESULT 16 3.4 RADIATED EMISSION MEASUREMENT 20 3.4.1 RADIATED EMISSION LIMITS 20 3.4.2 TEST PROCEDURE 21 3.4.3 DEVIATION FROM TEST STANDARD 21 3.4.4 TEST SETUP 22 3.4.5 TEST RESULTS (BLOW 30MHZ) 24 3.4.6 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 25 3.4.7 TEST RESULTS (ABOVE 1000 MHZ) 27 3.4.8 TEST RESULTS (RESTRICTED BANDS REQUIREMENTS) 33 4 . BANDWIDTH TEST 37 4.1 TEST PROCEDURE 37 4.2 DEVIATION FROM STANDARD 37 4.3 TEST SETUP 37 4.4 TEST RESULTS 38 5 . EUT TEST PHOTO 40 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 4 of 41 Report No.: NTEK-2015NT06091976F2 ` 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15, Subpart C (15.249) Standard Section Test Item Judgment Remark 15.207 Conducted Emission Pass 15.203 Antenna Requirement Pass 15.249 Radiated Spurious Emission Pass 15.205 Band Edge Emission Pass 15.249 Occupied Bandwidth Pass Page 5 of 41 Report No.: NTEK-2015NT06091976F2 ` 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add. : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC FRN Registration No.:238937; IC Registration No.:9270A-1 CNAS Registration No.:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 6 of 41 Report No.: NTEK-2015NT06091976F2 ` 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Graphic Tablet (Pen Tablet) Trade Name HUION Model Name DWH69 Serial Model DWH1410,WH1409,W58,WH850,WH580, WH690E,W58pro,DW69 Model Difference All the model are the same circuit and RF module, except the model name and colour. Product Description The EUT is a Graphic Tablet (Pen Tablet) Operation Frequency: 2405MHz~2480MHz Modulation Type: O-QPSK Antenna Designation: PCB Antenna Antenna Gain(Peak) 1.0 dBi Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More details of EUT technical specification, please refer to the User's Manual. Channel List Please refer to the Note 2. Adapter N/A Battery Tablet :DC 3.7V,2100mAh Pen:DC 3.7V Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. Page 7 of 41 Report No.: NTEK-2015NT06091976F2 ` 2. Channel Frequency (MHz) 01 2405 02 2440 03 2480 3. Table for Filed Antenna Ant . Brand Model Name Antenna Type Connector Gain (dBi) NOTE 1 N/A N/A PCB Antenna N/A 1.0 Antenna Page 8 of 41 Report No.: NTEK-2015NT06091976F2 ` 2.2 DESCRIPTION OF TEST MODES To investigate the maximum EMI emission c…
