2AFEZIPH-03Electronic Panorama Head

FCC Caution.§ 15.19 Labelling requirements.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may n ot cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. § 15.21 Changes or modification warningAny Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. § 15.105 Information to the user. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of t he FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installa tion. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna.-Increase the separation between thee quipment and receiver.-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.-Consult the dealer or an experienced radio/TV technician for help. * RF warning for Portable device:The device should be used as fixed or mobile device by its camera screw hole or holders to make the device function correctly . The distance between user and products should be no less than 20cm.

Differences Description We Zhongshan Nikow Precision Industrial Co., Ltd state: Product： Electronic Panorama Head Model Name： IPH-03,QP-906R+,BT-1 Trade Name: Fotopro FCC ID 2AFEZIPH-03 The electrical circuit design, layout, components used and internal wiring for above models are identical, only different in model name. Signatory Date 2015-7- 15 Signature Name: MS LISA Title: manager Company: Zhongshan Nikow Precision Industrial Co., Ltd Address: 1#ShuGuang Road,1st Industrial Zone,Tanzhou Town,Zhongshan City, Guangdong Province, China

Zhongshan Nikow Precision Industrial Co., Ltd Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for (FCC ID: 2AFEZIPH-03) To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite device. We understand that devices subject to the DoC procedure are required to be tested to show compliance with the FCC technical regulations by a recognized accredited testing laboratory. The testing laboratory must be accredited by a Commission approved accreditation body or designated under the terms of a government-to-government Mutual Recognition Agreement (MRA). A listing of those accredited testing laboratories that have been recognized by the Commission is published on the FCC Webpage: https://apps.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm Select the "accredited" option to search for FCC recognized accredited test firms. Test facilities located in countries, where the U.S. does not have an operational Telcom MRA are not recognized by the FCC to test for the DoC procedure. Regards, Signatory ----------------------------- Client’s signature Client’s name / title : MS LISA/ Manager Contact information / address : 1#ShuGuang Road,1st Industrial Zone,Tanzhou Town, Zhongshan City,Guangdong Province,China

Zhongshan Nikow Precision Industrial Co., Ltd 07 /15/2015 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:2AFEZIPH-03 Product Name: Electronic Panorama Head Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 07/15/2015 By: MS. LISA Signature Printed Title: Manager On behalf of : Zhongshan Nikow Precision Industrial Co., Ltd Telephone: 0760-86788188

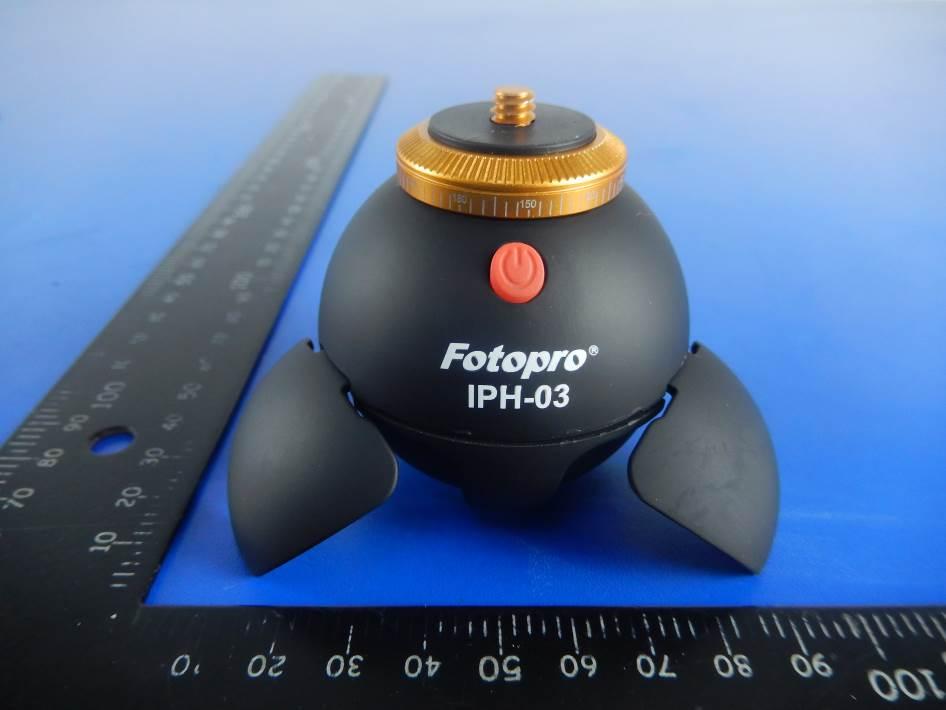

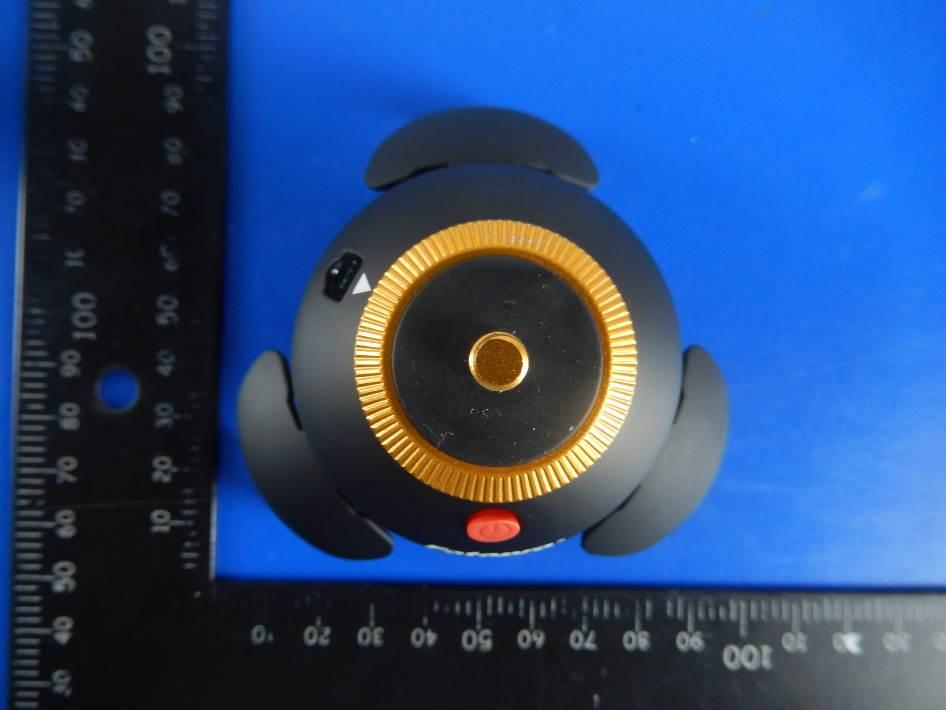

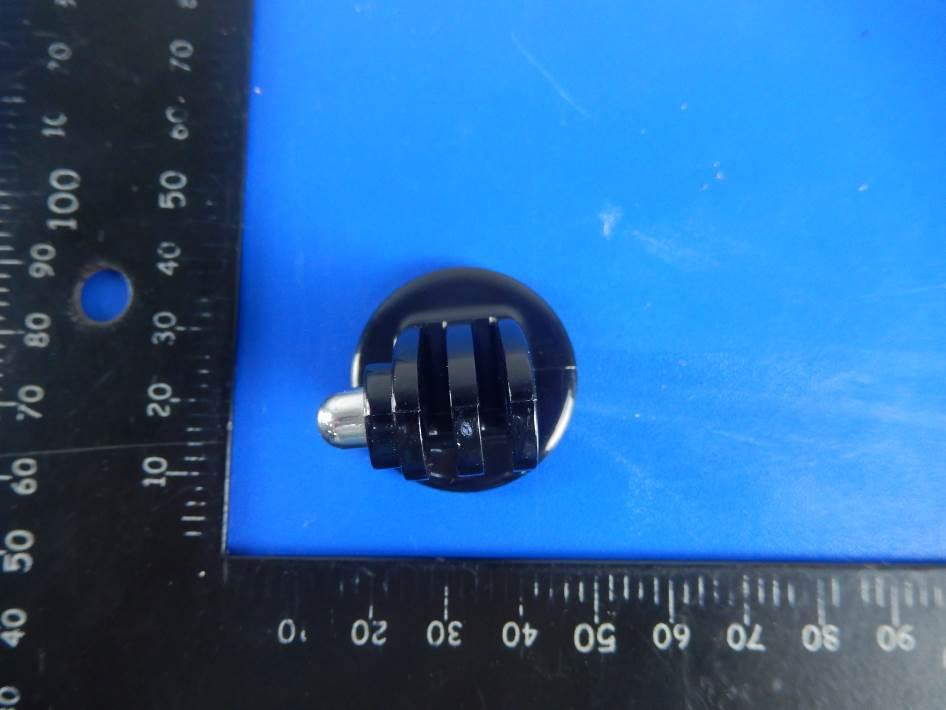

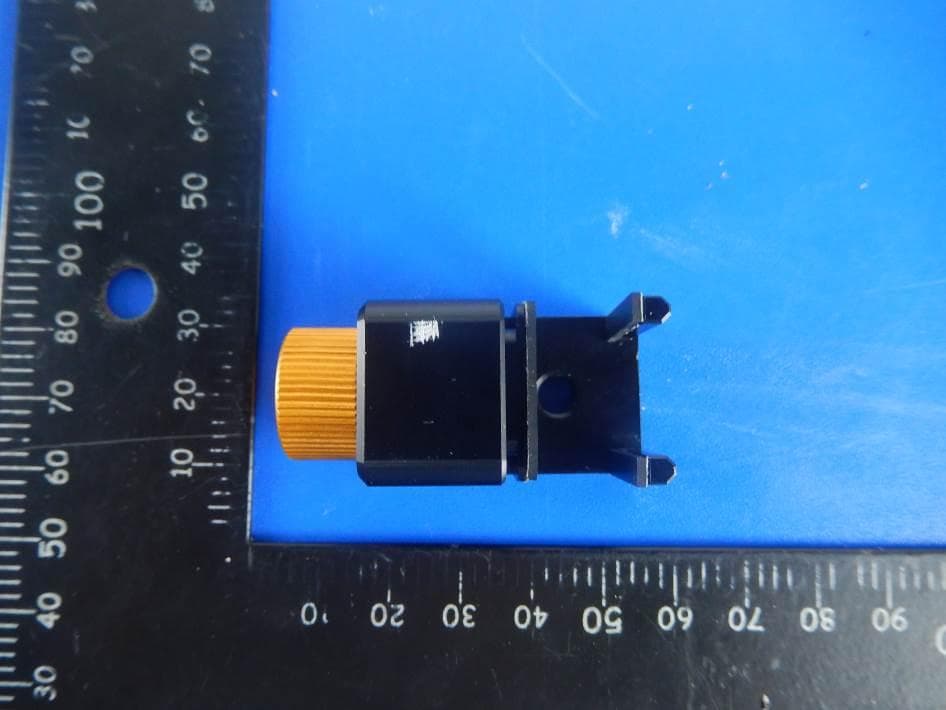

Project No: STS1507052 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Project No: STS1507052 Photo 3 Photo 4 Project No: STS1507052 Photo 5 Photo 6 Project No: STS1507052 Photo 7 Photo 8

Label Electronic Panorama Head Model name: IPH-03 FCC ID: 2AFEZIPH-03

Project No: STS1507052 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Project No: STS1507052 Photo 3 Photo 4 BT ANTENNA Project No: STS1507052 Photo 5 Photo 6 Project No: STS1507052 Photo 7 Photo 8 Project No: STS1507052 Photo 9 Photo 10

RF exposure letter RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] •[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison Worse case is as below: [2402 MHz -5.032dBm（ 0.3139 mW） output power] (0.3139mW /5mm) •[√2.402(GHz)]=0.097 <3.0 for 1-g SAR Then SAR evaluation is not required

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen STS Test Services Co., Ltd. 1/F., Building B, Zhuoke Science Park, No.190,Chongqing Road, Fuyong Street, Bao’an District, Shenzhen, Guangdong,China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No: STS1507052F01 Issued for Zhongshan Nikow Precision Industrial Co., Ltd 1#ShuGuang Road,1st Industrial Zone,Tanzhou Town,Zhongshan City,Guangdong Province,China Product Name: Electronic Panorama Head Brand Name: Fotopro Model No.: IPH-03 Series Model: QP-906R+,BT-1 FCC ID: 2AFEZIPH-03 Test Standard: FCC Part 15.247 S T L A B S Page 2 of 48 Report No.: STS1507052F01 TEST RESULT CERTIFICATION Applicant’sname............ Zhongshan Nikow Precision Industrial Co., Ltd Address ................................ 1#ShuGuang Road,1st Industrial Zone,Tanzhou Town,Zhongshan City,Guangdong Province,China Manufacture's Name ........... Zhongshan Nikow Precision Industrial Co., Ltd Address ................................ 1#ShuGuang Road,1st Industrial Zone,Tanzhou Town,Zhongshan City,Guangdong Province,China Product description Product name ....................... Electronic Panorama Head Band name ........................... Fotopro Model and/or type reference ............................................. IPH-03 Ratings .................................DC 3.7V/450mA Standards ............................ FCC Part 15.247 Test procedure ...................... ANSI C63.4-2014 This device described above has been tested by STS, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document may be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ................................ Date (s) of performance of tests .. 10 July. 2015 ~15 July. 2015 Date of Issue............................... 16 July. 2015 Test Result ..................................Pass Testing Engineer : (Jin Ming) Technical Manager :  (Vita Li) Authorized Signatory : (Bovey Yang) Page 3 of 48 Report No.: STS1507052F01 Table of Contents Page 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACILITY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF EUT 8 2.2 DESCRIPTION OF TEST MODES 10 2.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 10 2.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 2.5 DESCRIPTION OF SUPPORT UNITS 12 2.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 13 3. EMC EMISSION TEST 14 3.1 CONDUCTED EMISSION MEASUREMENT 14 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 14 3.1.2 TEST PROCEDURE 15 3.1.3 TEST SETUP 15 3.1.4 EUT OPERATING CONDITIONS 15 3.1.5 TEST RESULTS 16 3.2 RADIATED EMISSION MEASUREMENT 18 3.2.1 RADIATED EMISSION LIMITS 18 3.2.2 TEST PROCEDURE 19 3.2.3 DEVIATION FROM TEST STANDARD 19 3.2.4 TEST SETUP 20 3.2.5 EUT OPERATING CONDITIONS 21 3.2.6 TEST RESULTS 22 4. CONDUCTED SPURIOUS EMISSIONS 28 4.1 REQUIREMENT 28 4.2 TEST PROCEDURE 28 4.3 TEST SETUP 28 4.4 EUT OPERATION CONDITIONS 28 4.5 TEST RESULTS 29 5. NUMBER OF HOPPING CHANNEL 32 5.1 APPLIED PROCEDURES / LIMIT 32 5.2 TEST PROCEDURE 32 5.3 TEST SETUP 32 5.4 EUT OPERATION CONDITIONS 32 5.5 TEST RESULTS 33 Page 4 of 48 Report No.: STS1507052F01 Table of Contents Page 6. AVERAGE TIME OF OCCUPANCY 34 6.1 APPLIED PROCEDURES / LIMIT 34 6.2 TEST PROCEDURE 34 6.3 TEST SETUP 34 6.4 EUT OPERATION CONDITIONS 34 6.5 TEST RESULTS 35 7. HOPPING CHANNEL SEPARATION MEASUREMEN 37 7.1 APPLIED PROCEDURES / LIMIT 37 7.2 TEST PROCEDURE 37 7.3 TEST SETUP 37 7.4 EUT OPERATION CONDITIONS 37 7.5 TEST RESULTS 38 8. BANDWIDTH TEST 40 8.1 APPLIED PROCEDURES / LIMIT 40 8.2 TEST PROCEDURE 40 8.3 TEST SETUP 40 8.4 EUT OPERATION CONDITIONS 40 8.5 TEST RESULTS 41 9. PEAK OUTPUT POWER TEST 43 9.1 APPLIED PROCEDURES / LIMIT 43 9.2 TEST PROCEDURE 43 9.3 TEST SETUP 43 9.4 EUT OPERATION CONDITIONS 43 9.5 TEST RESULTS 44 10. ANTENNA REQUIREMENT 46 10.1 STANDARD REQUIREMENT 46 10.2 EUT ANTENNA 46 Page 5 of 48 Report No.: STS1507052F01 Revision History Rev. Issue Date Report NO. Effect Page Contents 00 16 July. 2015 STS1507052F01 ALL Initial Issue Page 6 of 48 Report No.: STS1507052F01 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS -- 15.247(a)(1) Hopping Channel Separation PASS -- 15.247(b)(1) Peak Output Power PASS -- 15.247(c) Radiated Spurious Emission PASS -- 15.247(d) Conducted Spurious Emission PASS -- 15.247(a)(iii) Number of Hopping Frequency PASS -- 15.247(a)(iii) Dwell Time PASS -- 15.247(a)(1) Bandwidth PASS -- 15.205 Band Edge Emission PASS -- 15.203 Antenna Requirement PASS -- NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 7 of 48 Report No.: STS1507052F01 1.1 TEST FACILITY Shenzhen STS Test Services Co., Ltd. Add. : 1/F., Building B, Zhuoke Science Park, No.190,Chongqing Road, Fuyong Street, Bao’an District, Shenzhen, Guangdong,China CNAS Registration No.: L7649; FCC Registration No.: 842334; IC Registration No.: 12108A-1 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U炻where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2炻providing a level of confidence of approximately 95 %ˤ No. Item Uncertainty 1 Conducted Emission (9KHz-150KHz) ±2.88dB 2 Conducted Emission (150KHz-30MHz) ±2.67dB 3 RF power,conducted ±0.70dB 4 Spurious emissions,conducted ±1.19dB 5 All emissions,radiated(<1G) 30MHz-200MHz ±2.83dB 6 All emissions,radiated(<1G) 200MHz-1000MHz ±2.94dB 7 All emissions,radiated(>1G) ±3.03dB …

Text truncated - open the document above for the full version.

DSSSetup photo DSSradiation L DSSradiation H
