2AFG8CPWMU02WiFi Module

Important FCC notice: In accordance with FCC Part 15C and RSP-100, this module is listed as a Modular Transmitter device. The user must comply with all of the instructions provided by the Grantee, which indicate the installation and/or operating conditions necessary for compliance. The antenna of this transmitter must not be co-located or operating in conjunction with any other antenna or transmitters within a host device, except in accordance with FCC multitransmitter product approval procedures. Only external antenna (Max. gain of dipole antenna is 2.74dBi) as AN2400- 39A14BBF can be used for this module, and the printed antenna is not used. The module has allowed to use. In USA and Canada, the number of operation frequency channel is 11. Technical Specification Value Operating Frequencies 802.11b/g/n HT20 : 2412 MHz ~ 2462 MHz Channel Spacing 802.11b/g/n HT20 : 5MHz Channel number 802.11b/g/n HT20 : 11 Operation Voltage 12Vdc Modulation CCK, DQPSK, DBPSK for DSSS 64QAM, 16QAM, QPSK, BPSK for OFDM Antenna gain 2.74dBi The final Host is required to comply with all applicable FCC equipment authorization regulations, requirements and other device functions that are not associated with the transmitter module. For example, compliance must be ensured: - regulations for other transmitter portions within a host product; - requirements for unintentional radiators (Part 15 Subpart B), such as digital devices, computer peripherals, radio receivers, etc.; - additional authorization requirements for the non-transmitter functions on the transmitter module (i.e., SDoC or certification) as appropriate (e.g., Digital radio transmitter modules usually contain digital logic functions for the Data interface to the Host product) - need to follow the instructions shown in the FCC publication “KDB 996369 D04 Module Integration Guide” which can be found under the following link: xxxxxxxxxxx Changes or modifications not expressly approved by the host device or module manufacturer could void the user’s authority to operate the equipment. FCC Label Instructions The outside of final products that contains this module device must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: 2AFG8CPWMU02” or “Contains FCC ID: 2AFG8CPWMU02.” Any similar wording that expresses the same meaning may be used. Additionally, there must be the following sentence on the device, unless it is too small to carry it: “This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.” If the final product is to be sold in Canada, then this exterior label should use wording such as the following: “Contains Transmitter Module IC: “11470A-CPWMU02” FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. USER MANUAL The following statements should be inside the user manual of the final products that contains this module: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Canada: Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: 1) l'appareil ne doit pas produire de brouillage, et 2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. This device complies with Industry Canada licence-exempt RSS 247 standard. Operation is subject to the following two conditions: 1) this device may not cause interference, and 2) this device must accept any interference, including interference that may cause undesired operation of the device. NCC警語: 取得審驗證明之低功率射頻器材，非經核准，公司、商號或使用者均不得擅自變更頻率、加大功 率或變更原設計之特性及功能。 低功率射頻器材之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用， 並改善至無干擾時方得繼續使用。 前述合法通信，指依電信管理法規定作業之無線電通信。 低功率射頻器材須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。

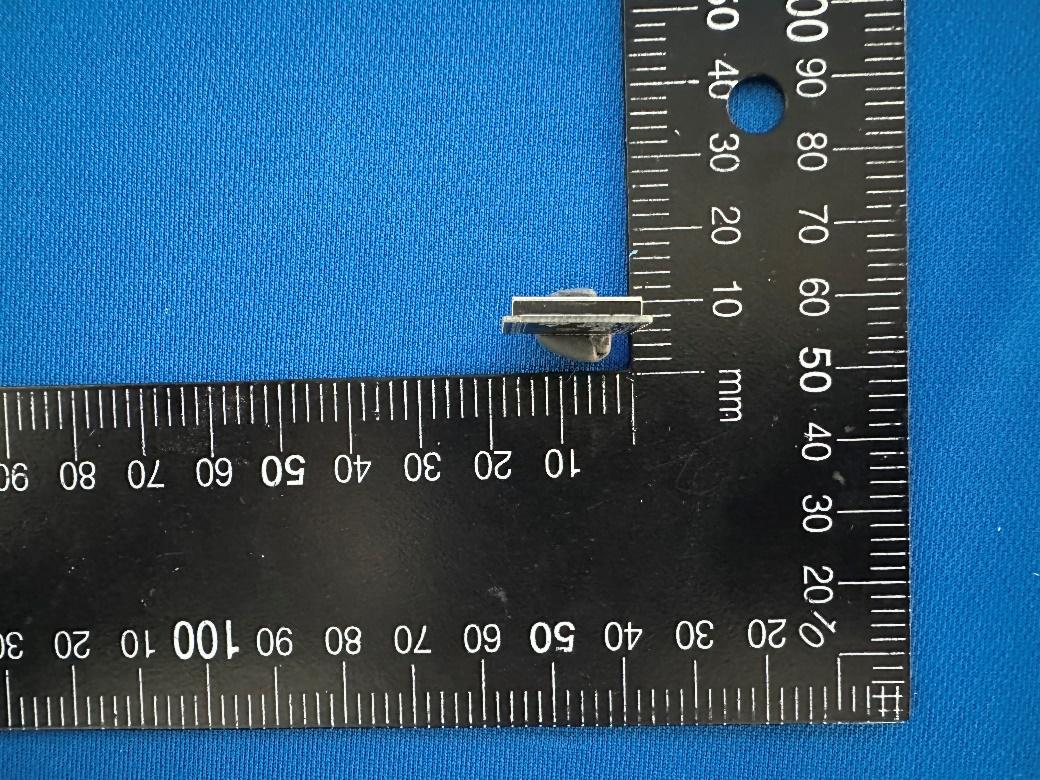

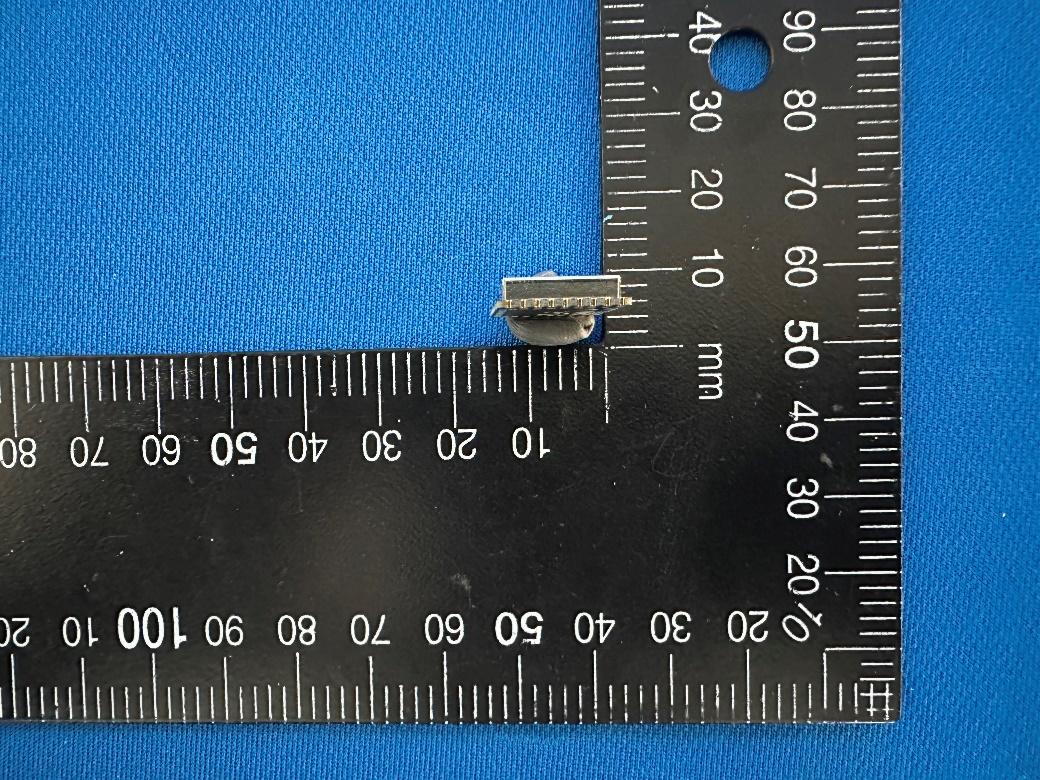

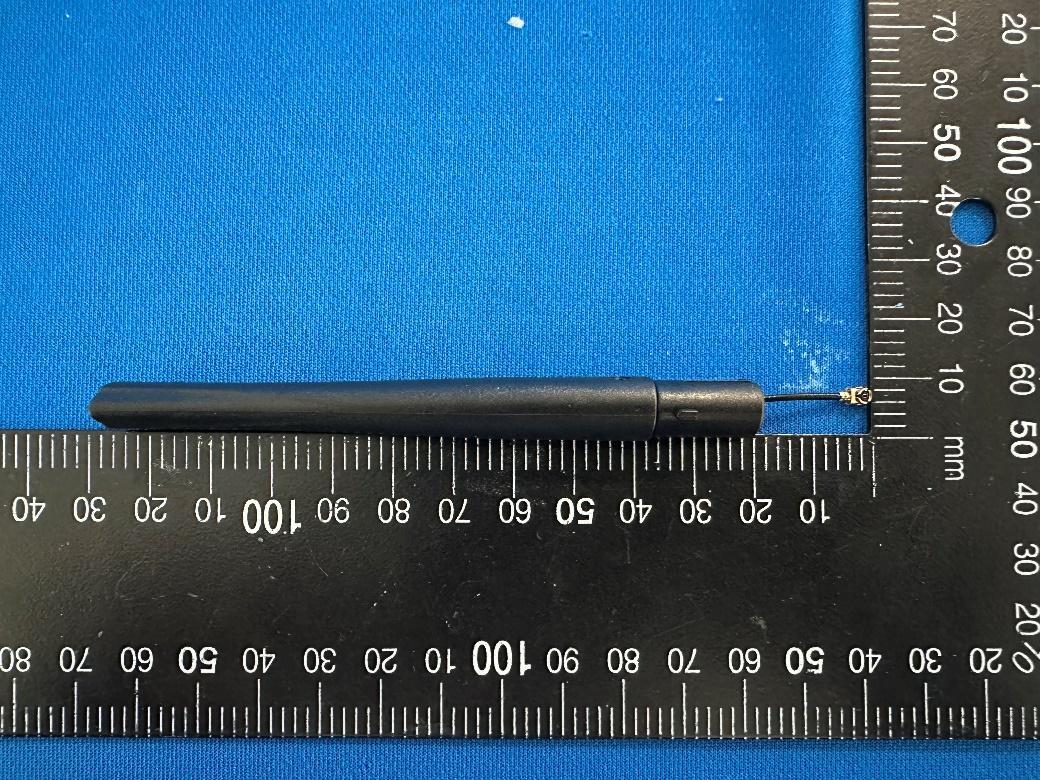

Appendix EP Photographs of EUT Product: WiFi Module Brand Name: CyberPower Type Identification: CPWMU02 Page 1 of 5 Appendix EP Photographs of EUT Product: WiFi Module Brand Name: CyberPower Type Identification: CPWMU02 Page 2 of 5 Appendix EP Photographs of EUT Product: WiFi Module Brand Name: CyberPower Type Identification: CPWMU02 Page 3 of 5 Appendix EP Photographs of EUT Product: WiFi Module Brand Name: CyberPower Type Identification: CPWMU02 Page 4 of 5 AN2400-39A14BBF Appendix EP Photographs of EUT Product: WiFi Module Brand Name: CyberPower Type Identification: CPWMU02 Page 5 of 5 Label Drawing Label Location — END OF EP —

Model: CPWMU02 FCC ID: 2AFG8CPWMU02 IC: 11470A-CPWMU02

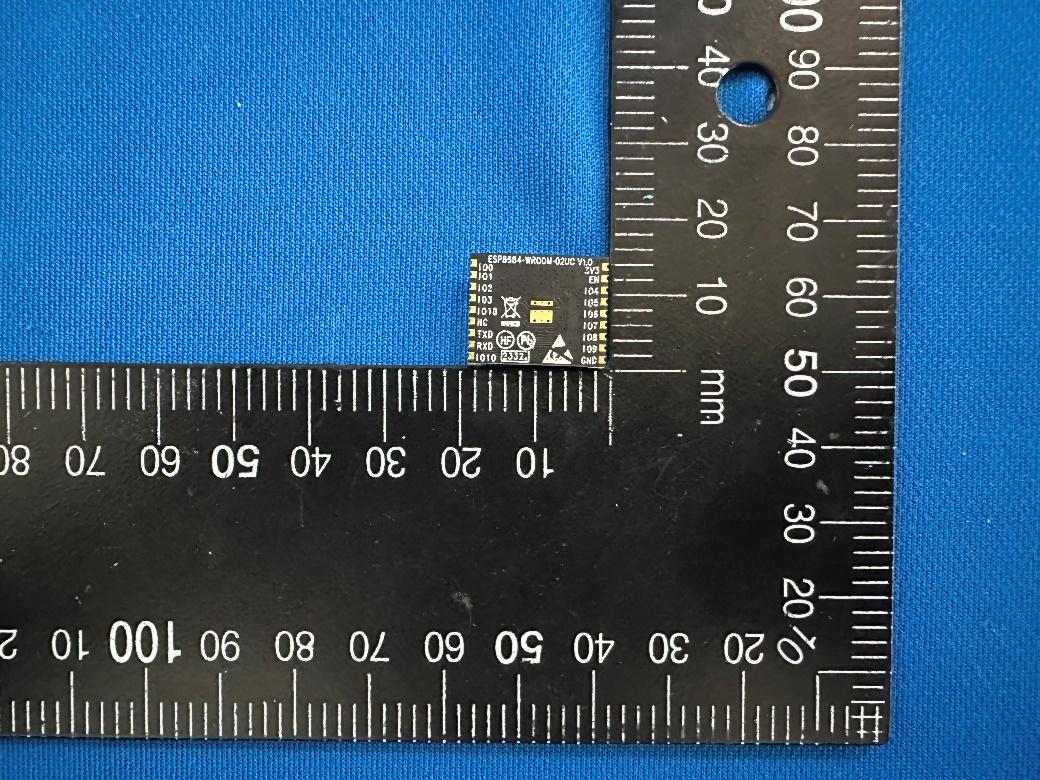

Appendix EP Photographs of EUT Product: WiFi Module Brand Name: CyberPower Type Identification: CPWMU02 Page 1 of 1 AN2400-39A14BBF ESP8684 — END OF EP —

TÜ V SÜ D Asia Ltd., Taiwan Branch 7F., No. 37, Sec. 2, Zhongyang S. Rd., Beitou District, Taipei City, 11270, Taiwan (R.O.C.) Phone: + 886 2 2898-6818 Fax: + 886 2 2895-1598 Revision: 1.0 Effective: 2024-06-07 Page 1 of 7 RF Exposure Evaluation Applicant : Cyber Power Systems, Inc. Product : WiFi Module Model : CPWMU02 FCC ID : 2AFG8CPWMU02 In accordance with FCC rule Part §1.13101 RESPONSIBLE FOR NAME SIGNATURE DATE Approved By Jack Chang 2026.03.03 Prepared By Ariel Hsu 2026.03.03 Signatures in this approval box have checked this document in line with the requirements of TÜ V SÜ D Product Service control rules. EXECUTIVE SUMMARY TÜ V SÜ D Asia Ltd., reports apply only to the specific samples tested under stated test conditions. Construction of the actual test samples has been documented. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. The manufacturer/importer is responsible to the Competent Authorities for any modifications made to the production units which result in non-compliance to the relevant regulations. TÜ V SÜ D Asia Ltd. shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜ V SÜD Asia Ltd. issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. Page 2 of 7 Contents 1 General Information ....................................................................................................................3 1.1 Report Modification Record ...........................................................................................................3 1.2 Introduction ....................................................................................................................................3 1.3 Applied Standard ...........................................................................................................................4 1.4 Deviation from standards ..............................................................................................................4 1.5 Reference Test Report ..................................................................................................................4 2 General EUT Information ............................................................................................................5 2.1 Technical Specification of EUT .....................................................................................................5 2.2 Antenna List ..................................................................................................................................5 3 FCC Maximum Permissible Exposure Evaluation ...................................................................6 3.1 Introduction ....................................................................................................................................6 3.2 Reference Levels ..........................................................................................................................6 3.3 Classification of the Assessment Methods....................................................................................7 3.4 Power Density Calculation (Worst Case) ......................................................................................7 Page 3 of 7 1 General Information 1.1 Report Modification Record Alterations and additions to this report will be issued to the holders of each copy in the form of a complete document. History of this test report Issue Description of Change Date of Issue 1 Initial Issue 2026-03-03 1.2 Introduction The information contained in this report is intended to show verification of RF qualification approval. The testing requirements of the standards for the tests listed in Section 1.5. Applicant : Cyber Power Systems, Inc. Address : 11F, No. 26,, Jinzhuang Rd., Neihu Dist., Taipei, Taiwan Manufacturer : CyberPower (ShenZhen) System lnc. Brand Name : CyberPower Product Name : WiFi Module Model Number(s) : CPWMU02 Date of Receipt of EUT : 2025-06-11 Start of Test : 2025-07-02 Finish of Test : 2025-07-04 Test Laboratory : TÜ V SÜ D Asia Ltd., Taiwan Branch Address : 7F., No. 37, Sec. 2, Zhongyang S. Rd., Beitou District, Taipei City 11270, R.O.C. Taiwan Test Location : TÜ V SÜ D Asia Ltd., Taiwan Branch, Guishan Laboratory Address : No. 31, Dinghu Road, Guishan District, Taoyuan City, TAIWAN (R.O.C.) The test facility is accredited by TAF (member of ILAC), under number 2573 according to ISO/IEC 17025: 2017. Page 4 of 7 1.3 Applied Standard FCC rule Part §2.1091 FCC Part §1.1310 FCC KDB 447498 D01 v06 1.4 Deviation from standards None 1.5 Reference Test Report Test Lab TÜ V SÜ D Asia Ltd., Taiwan Branch Report Number 6128625032701 Page 5 of 7 2 General EUT Information All information in this chapter was provided by the applicant. 2.1 Technical Specification of EUT Items EUT information Operating Frequency 2412 ~ 2462 MHz Channel number 802.11b/g/n HT20: 11 Maximum Output Power (dBm) 802.11b: 18.43dBm 802.11g: 21.83dBm 802.11n HT20:22.38dBm Operation Voltage 3.3Vdc Modulation DSSS (DBPSK, DQPSK, CCK) OFDM (BPSK, QPSK, 16QAM, 64QAM) Test Software Version EspRFTestTool v3.6 (ESP32C2) 2.2 Antenna List Antenna Type Brand Model Connector Freq. (MHz) Peak Antenna Gain (dBi) Main Dipole Cortec AN2400- 39A14BBF I-Pex 2400 - 2480 2.74 Page 6 of 7 3 FCC Maximum Permissible Exposure Evaluation 3.1 Introduction This Standard specifies requirements for, and provides guidance on, assessing compliance with the exposure limits of radiofrequency (RF) safety standards such as IEEE Std C95.1. This includes methodologies for making an assessment (by measurement or computation) of human exposure to ambient RF fields and induced body currents in the frequency range of 0 kHz to 300 …

Text truncated - open the document above for the full version.

TÜ V SÜ D Asia Ltd., Taiwan Branch 7F., No. 37, Sec. 2, Zhongyang S. Rd., Beitou District, Taipei City, 11270, Taiwan (R.O.C.) Phone: + 886 2 2898-6818 Fax: + 886 2 2895-1598 Revision: 1.0 Effective: 2024-06-07 Page 1 of 103 RF Test Report Report Number : 6128625032701 Applicant : Cyber Power Systems, Inc. Product : WiFi Module Model : CPWMU02 FCC ID : 2AFG8CPWMU02 IC : 11470A-CPWMU02 In accordance with FCC rule Part §15.247 ISED RSS-247 ISED RSS-Gen RESPONSIBLE FOR NAME SIGNATURE DATE Approved By Jack Chang 2026.03.03 Prepared By Ariel Hsu 2026.03.03 Signatures in this approval box have checked this document in line with the requirements of TÜ V SÜ D Product Service control rules. EXECUTIVE SUMMARY TÜ V SÜ D Asia Ltd., reports apply only to the specific samples tested under stated test conditions. Construction of the actual test samples has been documented. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. The manufacturer/importer is responsible to the Competent Authorities for any modifications made to the production units which result in non-compliance to the relevant regulations. TÜ V SÜ D Asia Ltd. shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜ V SÜD Asia Ltd. issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. Report Number: 6128625032701 Page 2 of 103 Contents 1 General Information ....................................................................................................................3 1.1 Report Modification Record ...........................................................................................................3 1.2 Introduction ....................................................................................................................................3 1.3 Applied Standard ...........................................................................................................................4 1.4 Deviation from standards ..............................................................................................................4 1.5 List of applied test(s) of the EUT ...................................................................................................4 2 General EUT Information ............................................................................................................5 2.1 Technical Specification of EUT .....................................................................................................5 2.2 Variation of family model(s) ...........................................................................................................5 2.3 Antenna List ..................................................................................................................................5 3 Configuration of Equipment .......................................................................................................6 3.1 Equipment used ............................................................................................................................6 3.2 Cable(s) used ................................................................................................................................6 3.3 System configuration .....................................................................................................................7 4 General Test Configurations ......................................................................................................9 4.1 Operating channels and frequencies ............................................................................................9 4.2 Description of test mode ............................................................................................................ 10 4.1 Test Condition ............................................................................................................................ 11 5 Test Result ................................................................................................................................ 12 5.1 Transmitter Requirement & Test Suites ..................................................................................... 12 5.2 Peak Output Power .................................................................................................................... 12 5.3 6 dB Bandwidth and 99% Occupied Bandwidth ......................................................................... 14 5.4 Power Spectral Density .............................................................................................................. 15 5.5 Conducted Spurious Emissions and Frequency Band Edges Measured in 100kHz Bandwidth 16 5.6 Radiated Spurious Emissions and Band Edges ........................................................................ 18 5.7 AC Mains Conducted Emission .................................................................................................. 21 6 Measurement Uncertainty ....................................................................................................... 22 7 Photographs of the Test Set-Up ............................................................................................. 23 Appendix A. Test Equipment ................................................................................................................... 27 Appendix B. Duty ...................................................................................................................................... 29 Appendix C. Peak Output Power ............................................................................................................. 32 Appendix D. 6dB Bandwidth & 99% Bandwidth .................…

Text truncated - open the document above for the full version.

Report Number: 6128625032701 Page 27 of 103 Appendix A. Test Equipment Test Equipment Used (spurious emission) Test Software Manufacturer Model No. Version Remark Test Software Keysight IOT0047A 224.11.25.17 Conducted Test Software Audix e3 V9 Radiation/Conduction Test Equipment Used (spurious emission) Equipment Manufacturer Model No. Serial No. Cal. Date Cal. Due Spectrum Analyzer R&S FSV3044 101348 Aug. 05, 2024 Aug. 04, 2025 Spectrum Analyzer R&S ESR 7 102600 Aug. 13, 2024 Aug. 12, 2025 Horn(18-40G) RF SPIN DRH0844 LE2C01A0844 Nov. 11, 2024 Nov. 10, 2025 Horn(1-18G) RF SPIN DRH18-E 211218A18EN Oct. 25, 2024 Oct. 24, 2025 Bi-log Schwarzbeck&EMEC VULB9168&EM- ATT3000-6-NN 01497&2205 Nov. 29, 2024 Nov. 28, 2025 Preamplifier(1-18G) SGH SGH118-HS 20230214-5 Apr. 10, 2025 Apr. 09, 2026 Preamplifier(18- 40G) SGH SGH184 20230214-8 Apr. 10, 2025 Apr. 09, 2026 Preamplifier(30M- 1G) SGH SGH0301 20230214-4 Apr. 24, 2025 Apr. 24, 2026 Loop Antenna TESEQ HLA-6121 64165 Mar. 27, 2025 Mar. 26, 2026 Test Equipment Used (RF output power) Equipment Manufacturer Model No. Serial No. Cal. Date Cal. Due Power Sensor Keysight 2063XA MY58000436 Oct. 18, 2024 Oct. 17, 2025 Test Equipment Used (Mains conduction) Equipment Manufacturer Model No. Serial No. Cal. Date Cal. Due EMI Receiver R&S ESR 7 102599 Aug. 05, 2024 Aug. 04, 2025 LISN R&S ENV216 101517 Oct. 22, 2024 Oct. 21, 2025 Report Number: 6128625032701 Page 28 of 103 Test Equipment Used (Power Density/Emission Bandwidth/in of Band Emission) Equipment Manufacturer Model No. Serial No. Cal. Date Cal. Due Spectrum Analyzer Keysight N9010B MY63440384 Jul. 09, 2024 Jul. 08, 2025 *: The calibrations of the above equipment are traceable to NIST or equivalent standards of the reference organizations. Report Number: 6128625032701 Page 29 of 103 Appendix B. Duty 802.11b *Duty cycle = 1 *If duty cycle of test signal is ≥ 98%, duty factor is not required. *If duty cycle of test signal is < 98%, duty factor shall be considered. 1Mbps Duty On (ms): - Duty Cycle = Ton / (Ton + Toff) Duty OnOff (ms): - Duty Cycle (%): 100 VBW (Hz): 3M Report Number: 6128625032701 Page 30 of 103 802.11g *Duty cycle = 1 *If duty cycle of test signal is ≥ 98%, duty factor is not required. *If duty cycle of test signal is < 98%, duty factor shall be considered. 6Mbps Duty On (ms): - Duty Cycle = Ton / (Ton + Toff) Duty OnOff (ms): - Duty Cycle (%): 100 VBW (Hz): 3M Report Number: 6128625032701 Page 31 of 103 802.11n20 *Duty cycle = 1 *If duty cycle of test signal is ≥ 98%, duty factor is not required. *If duty cycle of test signal is < 98%, duty factor shall be considered MCS0 Duty On (ms): - Duty Cycle = Ton / (Ton + Toff) Duty OnOff (ms): - Duty Cycle (%): 100 VBW (Hz): 3M Report Number: 6128625032701 Page 32 of 103 Appendix C. Peak Output Power Peak Output Power <11b> Channel Channel Frequency Peak Output Power Limit (dBm) (MHz) (dBm) (mW) Low Channel 2412 18.43 69.662651 30 Middle Channel 2437 17.51 56.363766 30 High Channel 2462 17.62 57.809605 30 <11g> Channel Channel Frequency Peak Output Power Limit (dBm) (MHz) (dBm) (mW) Low Channel 2412 21.72 148.593564 30 Middle Channel 2437 21.83 152.405275 30 High Channel 2462 21.04 127.057411 30 Report Number: 6128625032701 Page 33 of 103 Peak Output Power <11n20 > Channel Channel Frequency Peak Output Power Limit (dBm) (MHz) (dBm) (mW) Low Channel 2412 20.39 109.395637 30 Middle Channel 2437 22.38 172.981636 30 High Channel 2462 20.01 100.230524 30 Report Number: 6128625032701 Page 34 of 103 Appendix D. 6dB Bandwidth & 99% Bandwidth 6dB Bandwidth <11b> Channel Channel Frequency 6dB Bandwidth Limit (MHz) (MHz) (MHz) Low Channel 2412 9.200 0.5 Middle Channel 2437 10.050 0.5 High Channel 2462 9.750 0.5 Report Number: 6128625032701 Page 35 of 103 6dB Bandwidth <11g> Channel Channel Frequency 6dB Bandwidth Limit (MHz) (MHz) (MHz) Low Channel 2412 16.300 0.5 Middle Channel 2437 16.100 0.5 High Channel 2462 16.300 0.5 Report Number: 6128625032701 Page 36 of 103 6dB Bandwidth <11n20> Channel Channel Frequency 6dB Bandwidth Limit (MHz) (MHz) (MHz) Low Channel 2412 16.550 0.5 Middle Channel 2437 16.050 0.5 High Channel 2462 16.100 0.5 Report Number: 6128625032701 Page 37 of 103 99% Bandwidth <11b> Channel Channel Frequency 99% Bandwidth (MHz) (MHz) Low Channel 2412 12.947 Middle Channel 2437 12.969 High Channel 2462 12.950 Report Number: 6128625032701 Page 38 of 103 99% Bandwidth <11g> Channel Channel Frequency 99% Bandwidth (MHz) (MHz) Low Channel 2412 16.365 Middle Channel 2437 16.363 High Channel 2462 16.365 Report Number: 6128625032701 Page 39 of 103 99% Bandwidth <11n20> Channel Channel Frequency 99% Bandwidth (MHz) (MHz) Low Channel 2412 17.199 Middle Channel 2437 17.206 High Channel 2462 17.198 Report Number: 6128625032701 Page 40 of 103 Appendix E. Power Density Power Density <11b> Channel Channel Frequency Power Density Limit (dBm/3kHz) (MHz) (dBm/3kHz) Low Channel 2412 -13.640 8 Middle Channel 2437 -14.544 8 High Channel 2462 -14.477 8 Report Number: 6128625032701 Page 41 of 103 Power Density <11g> Channel Channel Frequency Power Density Limit (dBm/3kHz) (MHz) (dBm/3kHz) Low Channel 2412 -19.454 8 Middle Channel 2437 -19.752 8 High Channel 2462 -20.435 8 Report Number: 6128625032701 Page 42 of 103 Power Density <11n20> Channel Channel Frequency Power Density Limit (dBm/3kHz) (MHz) (dBm/3kHz) Low Channel 2412 -21.183 8 Middle Channel 2437 -18.458 8 High Channel 2462 -21.545 8 Report Number: 6128625032701 Page 43 of 103 Appendix F. Conducted Spurious Emissions and Frequency Band Edges Measured in 100kHz Bandwidth Reference <11b> <Lowest Channel> <Middle Channel> Report Number: 6128625032701 Page 44 of 103 < Highest Channel > Report Number: 6128625032701 Page 45 of 103 Reference <11g> <Lowest Channel> <Middle Channel> Report Number: 6128625032701 Page 46 of 103 < Highest Channel > Report Number: 6128625032701 Page 47 of 103 Reference <11n20> <Lowest Channel> <Middle Channel> Report Number: 6128625032701 Page 48 of 103 < Highest Channel > Repor…

Text truncated - open the document above for the full version.

Product Number: AN2400-39A14BBF Product Name: Antenna Page 1 S pecification For Approval Date: 2019 / 04 / 12 File No.: 190412004 Version: 1.0 Customer： 碩天科技股份有限公司 Customer P/N： WS9-0000022-00 INVAX P/N： AN2400-39A14BBF Description : Antenna Cortec Checked By: Customer Approved By: INVAX System Technology Corp. Cortec Technology Inc. 4F. No. 815.Chung Hsiao East Rd.,Sec.5 Xian-Xi Industrial, Sha-Tou Administration Zone, Taipei, TAIWAN Chang-An Town, Dong-Guan City, Guangdong Province, China TEL:886-2-2788-5218 FAX:886-2-2783-1658 TEL:86-769-85388261 FAX:86-769-85317869 htt p://www.invaxsystem.com http://www.cortec.com.cn 單重(天線加扣環) 5g Product Number: AN2400-39A14BBF Product Name: Antenna Page 2 Index: 1. Revision History / Page 3 2. Specification / Page 4 3. Characteristics and Reliability Test / Page 5 4. Antenna - S Parameter Test Data / Page 6 5. Antenna - Radiation Pattern Test Data / Page 7 6. Mechanical and Packing Drawing / Page 8 ~ 9 7. Material Description and RoHS Test Report / Page 10 ~ end Product Number: AN2400-39A14BBF Product Name: Antenna Page 3 1. Revision History Revision Date Change NotificationDescription 1.0 2019.04.12 初版 Product Number: AN2400-39A14BBF Product Name: Antenna Page 4 2. Specification Sample Photo A. Electrical Characteristics Frequency 2400 ~ 2500 MHz V.S.W.R.<= 2.0 Peak Gain 2.74 dBi Radiation Pattern Omni-Directional Max Input Power >= 2 W PolarizationLinear Impedance 50 Ohm B. Material & Mechanical Characteristics Material of Radiator Cu Material of Plastic ABS Cable TypeOD1.13mm Connector Type Mini Connector C. Environmental Operation Temperature - 40 ̊C ~ + 80 ̊C Storage Temperature - 40 ̊C ~ + 80 ̊C Antenna Color Storage life < 2 y ear Product Number: AN2400-39A14BBF Product Name: Antenna Page 5 3. Characteristics and Reliability Test Test Items測試 項目 Test Condition and Procedure測試方法 Requirements要求 Result 結果 C1 V.S.W.R. 電壓駐波比 Set DUT on Network Analyzer; make individual calibration to test 設置網路分析儀參數進行測試 Directive DUT specification 符合待測物規範 PASS C3 Antenna Gain 天線增益 Set DUT on Antenna Chamber; make individual calibration to test 設置天線暗室參數進行測試 Directive DUT specification 符合待測物規範 PASS M1 Vibration 震動 GB / T2423.48-2008 Amplitude: 0.03 inch (1.5mm); Freq: 20 to 80 to 20 Hz 3 directions; 2 hours for each direction 振幅1.5mm；頻率20~80~20Hz；3個方向各2H 1. No Visual Damage 2. Frequency Tol.≤5% 無明顯外觀不良;頻率偏移≤5% PASS M2 Random Drop 跌落 GB / T2423.8-1995 Single：Height: 1.0 Meter; 3 directions; 1 time for each direction單支天線，高1m；3個方向各1次 1. No parts separated、fracture 2. Frequency Tol.≤5% 產品無脫落、斷裂;頻率偏移≤5% PASS M4 Pull Test 拉力 Holding with individual specification; force applied to axis of terminal .單獨定義產品端子拉力 1. Directive DUT specification 2. Frequency Tol.≤5% 符合待測物規範;頻率偏移≤5% PASS M6 Dimension 尺寸 Inspection of dimension, color, material, package, surface process.检查尺寸,颜色,材料,包装,表面處理 Directive DUT specification 符合待測物規範 PASS E2 Salt Spray鹽 霧 GB / T 2423.17-2008 Temp: 35°C; RH: ≥ 95%; NaCl solution: ≥ 5%;Time: 24H 溫度35°C；濕度≥95%;鹽水濃度≥5%；測試24H 1. No Visual Damage 2. Frequency Tol.≤5% 無明顯外觀不良;頻率偏移≤5% PASS E3 Temperature and Humidity Chamber 恒溫恒濕 GB / T 2423.3-2006 Temp: 80°C / 12 H; -40°C / 12H RH: ≥ 90%; Time: 24H 溫度80°C測試12H轉-40°C測試12H；濕度≥ 90%； 時間24H After 2 Hours Recovery 1. No Visual Damage 2. Frequency Tol.≤5% 恢復2H后，無明顯外觀不良;頻 率偏移≤5% PASS E5 Aging test 老化 GB /T 2423.2 - 2008 Temp: 80°C; Time: 24 hours 溫度80°C，測試24H After 2 Hours Recovery 1. No Visual Damage 2. Frequency Tol.≤5% 無明顯外觀不良;頻率偏移≤5% PASS R1 RoHS With Reference to IEC 62321:2008 with flow chart 參考IEC 62321測試流程 Directive RoHS 2011/65/EU 符合RoHS 2011/65/EU標準 PASS Product Number: AN2400-39A14BBF Product Name: Antenna Page 6 3. Antenna - S Parameter Test Data Product Number: AN2400-39A14BBF Product Name: Antenna Page 7 4. Antenna - Radiation Pattern Test Data 2400MHz 2450MHz 2500MHz B C D A P P R O V E R D A T E S I G N D E S C R I P T I O N A N 2 4 0 0 - 3 9 A 1 4 B B F / 2 . 4 G H z 2 d B i A n t e n n a 1 / 1 ± 0 . 5 ± 0 . 2 ± 1 O D 1 . 1 3 C u P a r t N u m b e r N a m e R - C B - 1 1 3 B S C a b l e M i n i c o n n c e t o r C R - 1 1 3 1 N o . 2 3 11 Q ' t y 1 M a t e r i a l F i n i s h B l a c k A u P l a t i n g A L J F 2 0 1 9 / 0 4 / 0 3 S C A L E : A P P B Y T o l e r a n c e X . X X X . X X ° T I T L E : P A R T N O . : C U S T O M E R P / N : C H K B Y D E S B Y C o r t e c T e c h n o l o g y I n c . T e l : 8 8 6 - 2 - 2 7 8 8 5 2 1 8 H t t p : / / w w w . i n v a x s y s t e m . c o m F a x : 8 8 6 - 2 - 2 7 8 3 1 6 5 8 E - m a i l : i n f o @ i n v a x . c o m . t w R F B Y U N I T S : m m R E V I S I O N : ̃ ̃ ̃ ̃ ̋ S F 2 0 1 9 / 0 4 / 0 3 K e n n y 2 0 1 9 / 0 4 / 0 3 G r a n t 2 0 1 9 / 0 4 / 0 3 P O M B O D Y - A N 3 9 - 0 1 B - P B o d y 4 1 B l a c k A B S B A S E - A N 3 9 - 0 1 B - A B a s e B l a c k N o t e : 1 . M a r k 点 i s i m p o r t a n t d i m e n s i o n ; " C p k " I d e n t i f y f o r p r o c e s s c o n t r o l ( C p K ʁ 1 . 3 3 ) . 2 . T o l e r a n c e : U n m a r k e d t o l e r a n c e r e f e r t o t h e s t a n d a r d t o l e r a n c e p l e a s e . 3 . P a y a t t e n t i o n t o t h e d i r e c t i o n o f t h e c o n n e c t o r . P O M 5 1 B l a c k R - A N 0 7 - 0 5 - P O M H o l d e r 1000PCS / CARTON ALL A ANTENNA-2.4GHz-2dBi AN2400-39A14BBF UNITS: mm Page烉1 of 1 Date烉 APPROVED BY烉CHECKED BY烉 DESIDNED BY烉 䓊⑩⊭墅夷䭬 PACKING CRITERION Part Number : Name:Customer : Revision : Ḵ.PACKING MEAS: G W : # # # KGS N W : # # # KGS Q TY: # # # PCS ITEM NO: I V X C/ NO MADE IN CHINA ᶨ .WITH THE ANT INTO THE PE BAG SIDE FRONT ᶱ.SEALING LJF ̃ ̃ ̃ ̃ ̋ 10 PCS/PEBAG Kenny Grant 1000PCS/PEBAG 填表： 時麗 部門： 研發部 職務： 文員 Cd Pb Hg Cr(VI) PBBs PBDEs DBP BBP DIBP DEHP 1 BODY-AN39-01B-P R-AN07-05-POM Body POM N.D. N.D. N.D. N.D. N.D. N.D. N.D. N.D. N.D. N.D. CANML1808483301 2018.05.10 聚甲醛 SGS 2 BASE AN39 01B A B ABS ND ND ND ND ND ND ND ND ND ND 0114084381d5001 2018 11 29 POLYLAC® PA 757 各構成物料的材質 測試名稱 檢測報告編號 測試報告裡 RoHS2.0 對應物質測試結果 物料中 HSF 對象物質含量調查表 COR/F-G-47a 測試日期 物料型號 物料各構成 名稱 測試機構 名稱 序號 康捷電子有限公司 物料名稱…

Text truncated - open the document above for the full version.

Report Number: 6128625032701 Page 23 of 103 7 Photographs of the Test Set-Up Set-up for Spurious Emissions Front View Set-up for Spurious Emissions Back View Report Number: 6128625032701 Page 24 of 103 Set-up for Spurious Emissions Back View Set-up for Spurious Emissions Back View Report Number: 6128625032701 Page 25 of 103 Set-up for Spurious Emissions Back View Report Number: 6128625032701 Page 26 of 103 Set-up for Conduction Emissions Front View Set-up for Conduction Emission…
