2AFHF-MW426I/R MINI COPTER/DRONE

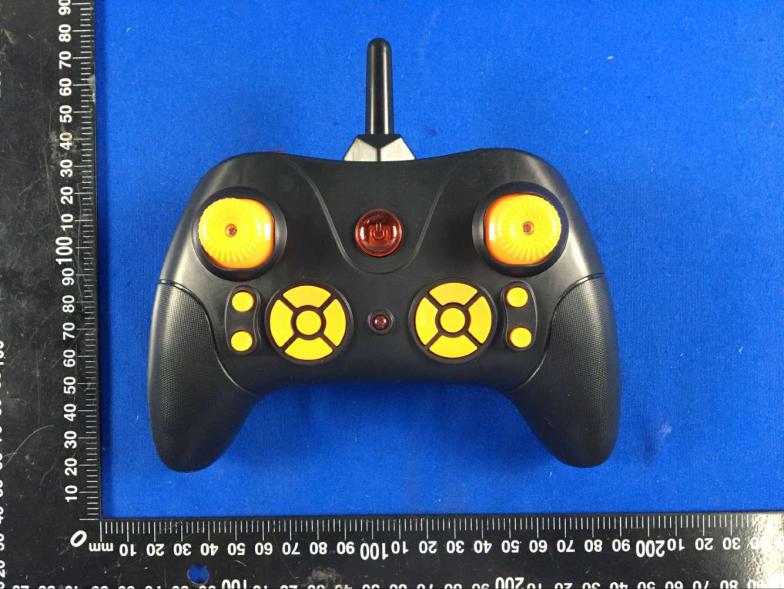

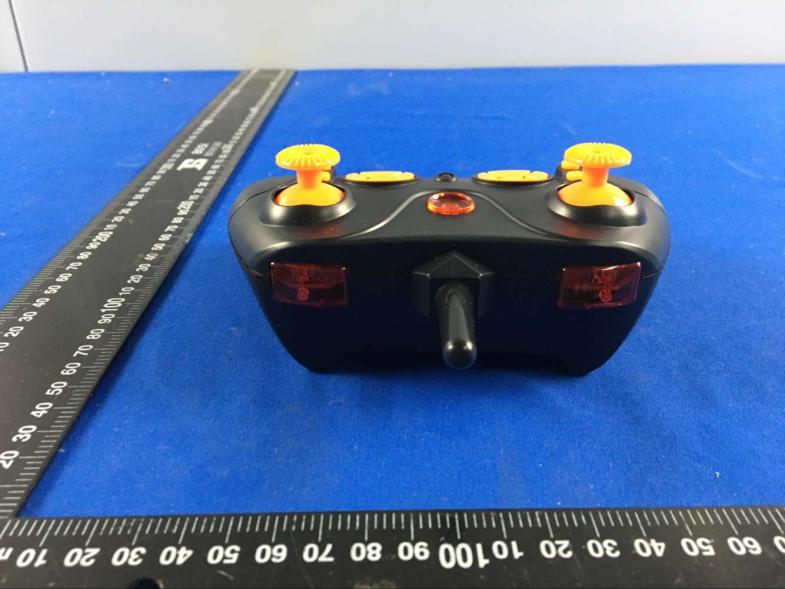

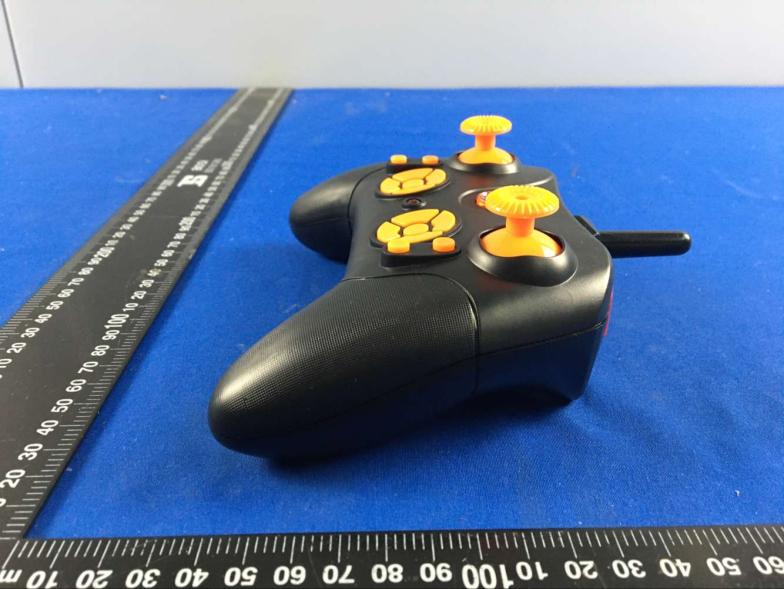

External Photos of EUT

FCC ID Label Information 1. Label location: Label Size: L: 3.0cm x W: 2.0cm Speaker Model: MW426 FCC ID:2AFHF-MW426 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal Photos of EUT Antenna

version01 RUICHUANG TOYS INDUSTRIAL CO., LTD. Mid of Laimei Road and Fengxiang Steet, Chenghai District, Shantou City, China Tel: +86-754-85632789 Fax: +86-754-85632789 Declaration concerning Antenna Specification It is hereby declared that the product Model No.: MW426，902411，MDC-4/1461 FCC ID: 2AFHF-MW426 fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type(s) described below: Model No. of antenna: NA Type of antenna: Monopole antenna Gain of the antenna: 2 dBi Frequency range: 2405~2475 MHz Mo The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: RUICHUANG TOYS INDUSTRIAL CO., LTD. Address: Mid of Laimei Road and Fengxiang Steet, Chenghai District, Shantou City, China City: Shantou ZIP / Postal code: Country: China Place: China Date: 2020.5.20 Signature:

RF Exposure evaluation FCC ID：2AFHF-MW426 1. Reference According to 447498 D01 General RF Exposure Guidance v06 and KDB 412172 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 5 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, Where:  f (GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  The result is rounded to one decimal place for comparison And according to KDB 412172 eirp = p t x g t = (E X d ) 2 / 30 Where: p t = transmitter output power in watts, g t = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m) ---3m 2. Test distance As the plot exhibit below, the remote control of body to the Antenna plane is 5mm. Antenna plane slice Nearest point of body 3. Result As the antenna EUT used was 2dBi and the Max field strength level measured with duty cycle ≥98% in EMI test report, the sar exclusion value can obtained. According to the formula described above: E max =100.74dBuV/m =0.1089V/m, d=3m, gt=1.58 Pt=（E x d） 2 /（30 x gt）=(0.1089x3) ) 2 / (30x1.58)= 0.002251=2.25mW The value is within the tune up 2±0.5dBm stated by the manufacturer Worse case is as below: Frequency (MHz) Field strength dBuV/m TX Power (mw) TX Power with tune-up (mw) Separation Distance (mm) calculated value exclusion thresholds 2405 100.74 2.24 2.44 5 0.7 3 4. Conclusion The SAR evaluation is not required.

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] TEST REPORT FOR FCC PART 15 SUBPART C 15.249 Report Reference No. ................. : CTL2004163011-WF Compiled by: ( position+printed name+signature) Happy Guo (File administrators) Tested by: ( position+printed name+signature) Nice Nong (Test Engineer) Approved by: ( position+printed name+signature) Ivan Xie (Manager) Product Name .............................. : I/R MINI COPTER/DRONE Model/Type reference ................. : MW426 FCC ID .......................................... : 2AFHF-MW426 List Model(s) ................................ : 902411, MDC-4/1461 Trade Mark ................................... : N/A Applicant’s name ........................ : RUICHUANG TOYS INDUSTRIAL CO., LTD. Address of applicant .................. : Mid of Laimei Road and Fengxiang Steet, Chenghai District, Shantou City, China Test Firm ...................................... : Shenzhen CTL Testing Technology Co., Ltd. Address of Test Firm .................. : Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Test specification ........................ : Standard ........................................ : FCC Part 15.249:Operation within the bands 920-928 MHz, 2400-2483.5 MHz, 5725-5850 MHz and 24.0 - 24.25 GHz. TRF Originator .............................. : Shenzhen CTL Testing Technology Co., Ltd. Master TRF ................................... : Dated 2011-01 Date of receipt of test item ......... : Apr. 23, 2020 Date of sampling ......................... : Apr. 23, 2020 Date of Test Date ......................... : Apr. 23, 2020–May 12, 2020 Data of Issue ................................ : May 12, 2020 Result ........................................... : Pass Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. V1.0 Page 2 of 23 Report No.: CTL2004163011-WF TEST REPORT Test Report No. : CTL2004163011-WF May 12, 2020 Date of issue Equipment under Test : I/R MINI COPTER/DRONE Model /Type : MW426 Listed Models : 902411, MDC-4/1461 Applicant : RUICHUANG TOYS INDUSTRIAL CO., LTD. Address : Mid of Laimei Road and Fengxiang Steet, Chenghai District, Shantou City, China Manufacturer : RUICHUANG TOYS INDUSTRIAL CO., LTD. Address : Mid of Laimei Road and Fengxiang Steet, Chenghai District, Shantou City, China Test result Pass * * In the configuration tested, the EUT complied with the standards specified page 5. The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the issuing testing laboratory. V1.0 Page 3 of 23 Report No.: CTL2004163011-WF ** Modified History ** Revision Description Issued Data Report No. Remark Version 1.0 Initial Test Report Release 2020-05-12 CTL2004163011-WF Tracy Qi V1.0 Page 4 of 23 Report No.: CTL2004163011-WF Table of Contents Page 1. SUMMARY............................................................................................................................................................ 5 1.1. TEST STANDARDS ..................................................................................................................................................... 5 1.2. TEST DESCRIPTION ........................................................................................................................................................ 5 1.3. TEST FACILITY .............................................................................................................................................................. 6 1.4. STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................................... 6 2. GENERAL INFORMATION ....................................................................................................................................... 7 2.1. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 7 2.2. GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 7 2.3. DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 7 2.4. EQUIPMENTS USED DURING THE TEST .............................................................................................................................. 8 2.5. RELATED SUBMITTAL(S) / GRANT(S)................................................................................................................................. 8 2.6. MODIFICATIONS ........................................................................................................................................................... 8 3. TEST CONDITIONS AND RESULTS ........................................................................................................................... 9 3.1. CONDUCTED EMISSIONS TEST ......................................................................................................................................... 9 3.2. RADIATED EMISSIONS AND BAND EDGE .......................................................................................................................... 10 3.3. OCCUPIED BANDWIDTH MEASUREMENT .........................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos of the EUT
