2AFHT-GENESISGSM PHONE

User Manual MAODEL:GENESIS Brand:F.Cell User manual Declaration Please read the user manual so as to keep your mobile phone in the best condition，The manual has been verified and reviewed to guarantee the accuracy. Instructions and descriptions contained herein are accurate at the time of publication. However, mobile phones developed afterwards and the contents of their manual are subject to modification without further notification. Our company reserves the rights in relation to the manual Contents Overview. ..............................................................................................1 1. Introduction .........................................................................................2. 2. Function of main menu.............................................................................2. 3. PC connect.........................................................................................................................6. 4. Maintenance and service............................................................................6.  Overview Please read the following concise rules carefully. Nonobservance to the rules may lead to danger or violence of the laws. The user’s manual gives details about the safety precautions.  Emergency call Make sure the equipment is in the covered area of the network service and the calling f unction is activated. As per the specific requirements, press the key of finish to clear the screen and return to the standby state. Input the emergency call number （112）and press the call key.  Function Description The phone is a perfect combination of humanized design and exquisite workmanship, the streamline and ingenious body is comfortable to hold. With streamline and ingenious frame, it feels comfortable to hold the mobile phone in your hand. It supports TXT electronic book, Blue-tooth, dual SIM cards with one standby, network camera, camera, FM and etc，It makes your work more convenient and your free time more fun with the combination of keyboard, florid colored screen, pleasant bells, cartoon head portrait for incoming calls, strong file management function (supporting T-FLASH card), fashionable camera function and long time tape recording function, music player, video player. 1. Introduction Insert the SIM card and the battery Ask your SIM card dealer whether he has provided SIM card service and the method of usage who may be service provider or other dealers，SIM card and its contacts are vulnerable to scratch or bending. Attention shall be attached when use, insert or take out the card.  Inserting/taking out T-FLASH CARD Only use approved and compatible T-FLASH card applicable to the mobile phone. Approved memory card trade standard is applied; however, certain bands may not be completely compatible with the mobile phone. Using incompatible memory card may damage not only the card and the mobile, but also the data stored in the card.  Charging the battery Check the model number of the charger before using it to charge the mobile，Only use approved battery, charger and accessories applicable to the specific mobile model. Using other types of battery, charger and accessories may violate the certification or warranty terms of the equipment and may result in danger，Refer to the dealer for supply of relative approved accessories.  Startup and shutdown Press the key of power supply to start up or shut down the mobile phone，If it is prompted to input PIN or UPIN, please input the required password (shown as **** on the screen). 2. Function of main menu  Names  You my save the information of contacts including names and telephone numbers in the phonebook, which can save as much as 300 entries.  settings  Call settings You can some on the communications aspects of setting.  Phone settings Refer to settings of basic functions, including city, time and format, display language and response time, reset all settings. ① date＆time You can set the cell phone time and date. ② Language settings You can set the phone language and input method. ③ Shortcut settings You can set any navigation shortcut keys. ④ Auto power on/off You can set the cell phone automatically switch machine. ⑤ Restore the factory settings Enter the correct password of the phone will have to change your phone settings back to factory default state value, the user of the function be used with caution. (Default password: 1234).  Display You may set functions in display.  Security You may set functions in relations to cell phone security.  Profiles You may customize the profiles and activate any profile in order to use a specific function. You may set the ring signal, ringing mode, prompt for connecting through, answer mode, and etc.  Connections You can set the network account in this menu.  Application  My files You can insert the memory card and save files in it.  Calculator You can calculate in this function.  Snake Here is a game, the game help  STK This function by the network providers, according to the SIM card provides services will appear different menu options. If a SIM card and network supplier does not sup port this service, this function will not be used. If you need to get more information please contact with network providers.  Bluetooth You may establish wireless connection with other compatible devices with the Bluetooth technology; you may send images, videos, music files and etc. with the Bluetooth technology  Message Write a message: You may select to send the finished message from SIM card 1 or SIM card 2You may select multiple receivers to send the message to more than 1 person.  WhatsApp  WhatsApp (WhatsApp messenger) this application by the push notification service, can instantly receive messages from relatives and friends and colleagues. Free from sending text messages to use WhatsApp program, in order to send and receive information, pictures, audio and video information.  operating guide: WhatsApp is based on the mobile phone number registe…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2Rev 5.0 Janne Shirley gomez Nit 31445556-6 2015.7.25 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, Janne Shirley gomez Nit 31445556-6 hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): (Product description, model name): Product description: GSM PHONE model name: GENESIS FCC ID: 2AFHT-GENESIS Sincerely, Client’s signature : Janne Shirley gomez Client’s name / title: manager Applicant company：Janne Shirley gomez Nit 31445556-6 address： carrera 5 numero 13-83 oficina 1301 edificio BBVA, cali colombia

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (current) 3.0 4.0 March-26-2015 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 4.0 Janne Shirley gomez Nit 31445556-6 2015.7.25 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2AFHT-GENESIS We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description - Tune up Procedure - Part List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Janne Shirley gomez Client’s name & title : manager Contact information / address: Janne Shirley gomez Nit 31445556-6 / carrera 5 numero 13- 83 oficina 1301 edificio BBVA,cali colombia

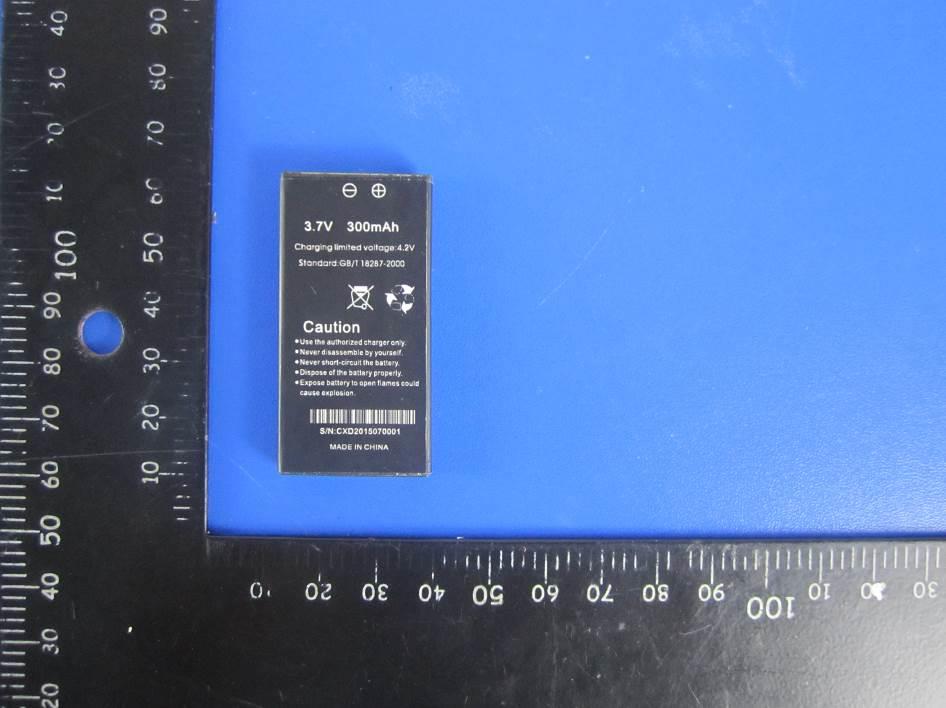

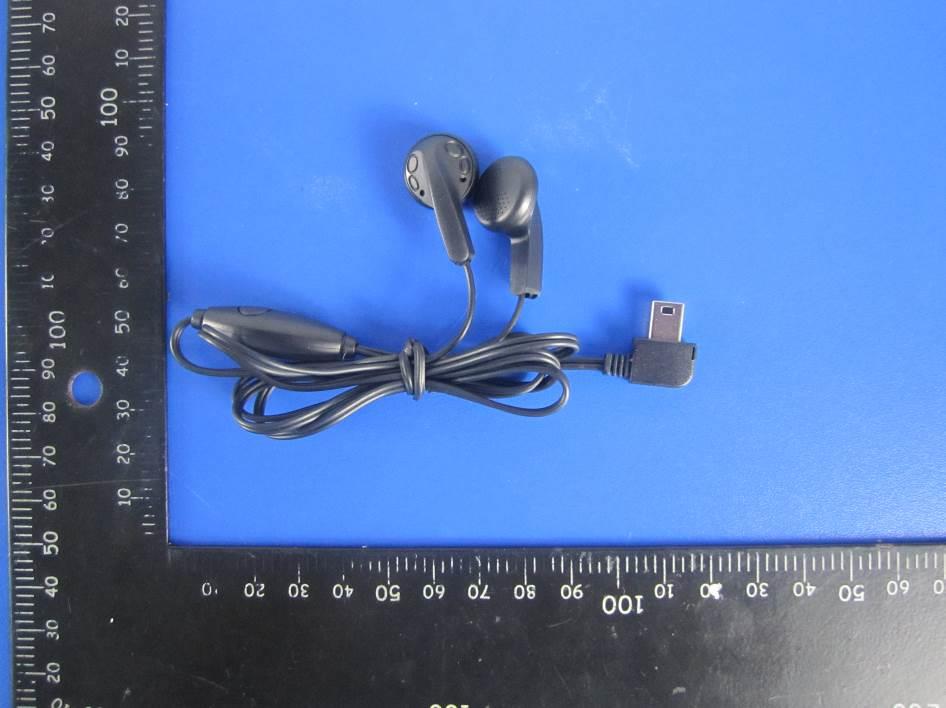

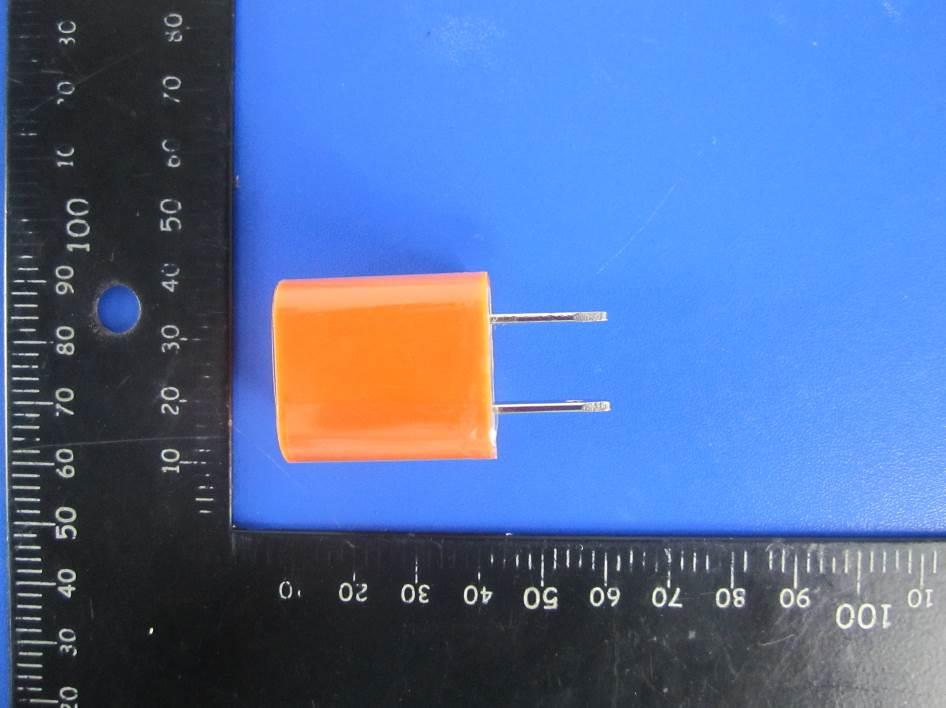

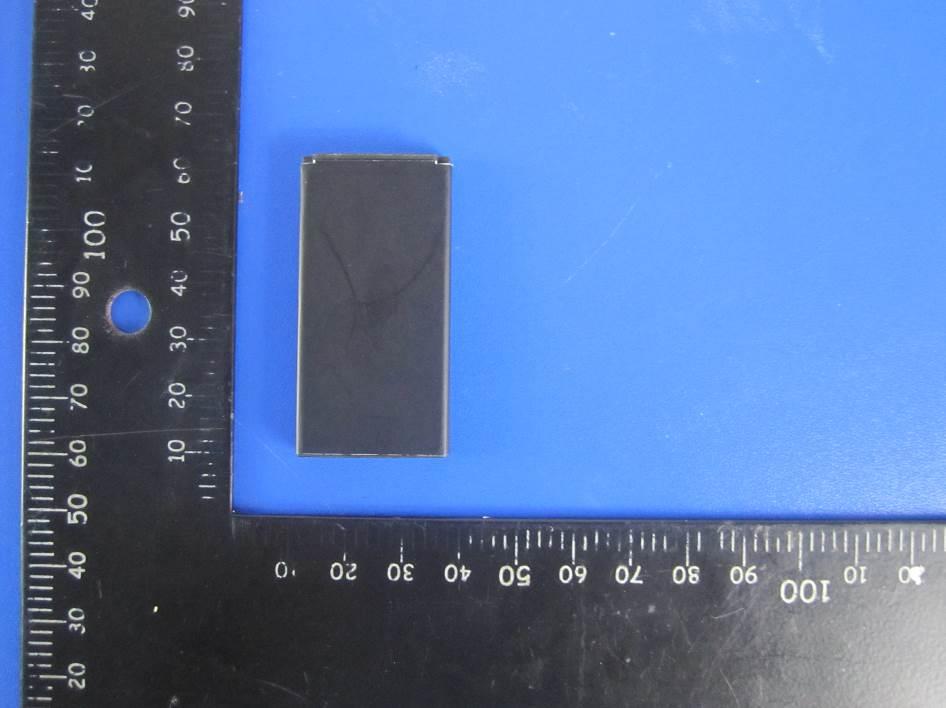

Project No: STS1507106 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Project No: STS1507106 Photo 3 Photo 4 Project No: STS1507106 Photo 5 Photo 6 Project No: STS1507106 Photo 7 Photo 8 Project No: STS1507106 Photo 9 Photo 10 Project No: STS1507106 Photo 11

Label GSM PHONE Model name: GENESIS FCC ID: 2AFHT-GENESIS This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. label

Project No: STS1507106 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Project No: STS1507106 Photo 3 Photo 4 Project No: STS1507106 Photo 5 Photo 6 Project No: STS1507106 Photo 7

FCC ID : 2AFHT-GENESIS RF EXPOSURE EVALUATION METHOD SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. FCC ID : 2AFHT-GENESIS Maximum measured transmitter power. BT The Worst Case frequency Maximum Peak Conducted Output Power Tune up tolerance Max Antenna Gain GHz dBm dBm dBi 2.402 -7.162 -6.5±1 0 2.441 -6.218 -6.5±1 0 2.480 -5.633 -6.5±1 0 Remark: The best case gain of the antenna is 0 dBi. 0 dBi logarithmic terms convert to numeric result is nearly 1 (2.402GHz) -5.5 dbm= 0.2818mw (2.441GHz) -5.5 dbm= 0.2818mw (2.480GHz) -5.5 dbm= 0.2818mw BT: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 0.2818/5*√2.402=0.0873≤3.0 [(mid. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 0.2818/5*√2.441=0.0881≤3.0 [(min. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 0.2818/5*√2.480=0.0888≤3.0 Threshold at which no SAR required is 0.0888 ≤ 3.0 for 1-g SAR, Separation distance is 5mm. Conclusion: No SAR is required.

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen STS Test Services Co., Ltd. 1/F., Building B, Zhuoke Science Park, No.190,Chongqing Road, Fuyong Street, Bao’an District, Shenzhen, Guangdong,China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] FCC SAR TEST REPORT Report No: STS1507106H01 Issued for Janne Shirley gomez Nit 31445556-6 carrera 5 numero 13-83 oficina 1301 edificio BBVA,cali colombia Product Name: GSM PHONE Brand Name: F.Cell Model No.: GENESIS Series Model: N/A FCC ID: 2AFHT-GENESIS Test Standard: ANSI/IEEE Std. C95.1 FCC 47 CFR Part 2 ( 2.1093) IEEE 1528: 2013 Max. SAR (1g): Head:0.776 W/kg Body:1.435 W/kg S T L A B S Page 2 of 55 Report No.: STS1507106H01 Test Report Certification Applicant’s name ................. : Janne Shirley gomez Nit 31445556-6 Address ................................. : carrera 5 numero 13-83 oficina 1301 edificio BBVA,cali colombia Manufacture's Name ............ : MOVEON TECHNOLOGY LIMITED Address ................................. : Room 3201-3202 BuildingA World Trade Plaza, Fuhong Rd Futian District Shenzhen China Product description Product name ........................ : GSM PHONE Trademark ........................... : F.Cell Model and/or type reference : GENESIS Serial Model： N/A Standards ............................. : ANSI/IEEE Std. C95.1-1992 FCC 47 CFR Part 2 ( 2.1093) IEEE 1528: 2013 The device was tested by Shenzhen STS Test Services Co., Ltd. in accordance with the measurement methods and procedures specified in KDB 865664 The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Date of Test ........................................... : Date (s) of performance of tests ............. : 28 Jul. 2015 Date of Issue .......................................... : 29 Jul. 2015 Test Result.............................................. : Pass Testing Engineer : (Allen Chen) Technical Manager : (John Zou) Authorized Signatory : (Bovey Yang) Page 3 of 55 Report No.: STS1507106H01 TABLE OF CONTENS 1. General Information 4 1.1 EUT Description 4 1.2 Test Environment 5 1.3 Test Facility 5 2. Test Standards And Limits 6 3. SAR Measurement System 7 3.1 Definition Of Specific Absorption Rate (SAR) 7 3.2 SAR System 7 3.2.1 Probe 8 3.2.2 Phantom 9 3.2.3 Device Holder 9 4. Tissue Simulating Liquids 10 4.1 Simulating Liquids Parameter Check 10 5. SAR System Validation 11 5.1 Validation System 11 5.2 Validation Result 11 6. SAR Evaluation Procedures 12 7. EUT Test Position 13 7.1 Define Two Imaginary Lines On The Handset 13 8. Uncertainty 15 8.1 Measurement Uncertainty 15 8.2 System validation Uncertainty 17 9. Conducted Power Measurement 19 10. EUT And Test Setup Photo 21 10.1 EUT Photo 21 10.2 Setup Photo 24 11. SAR Result Summary 28 11.1 Head SAR 28 11.2 Body SAR And Hotspot 28 12. Equipment List 30 Appendix A. System Validation Plots 32 Appendix B. SAR Test Plots 40 Appendix C. Probe Calibration And Dipole Calibration Report 52 Page 4 of 55 Report No.: STS1507106H01 1. General Information 1.1 EUT Description Equipment GSM PHONE Brand Name F.Cell Model No. GENESIS Serial Model N/A FCC ID 2AFHT-GENESIS Model Difference N/A Adapter Input: AC100-240V,150m A, 50/60 Hz Output: DC 5V,1000mA Battery Rated Voltage: 3.7V Charge Limit: 4.2V Capacity: 300mAh Hardware Version S627B_MB_V1.01_PCB(20140904) Software Version S627B_OK_T171_E1__DA_12C0403_128128_NTP _Z4P_SPRD_NTV_SPRDV0_NCL_NTL_NHL_20150713 Frequency Range GSM 850: 824.2 ~ 848.8 MHz PCS1900: 1850.2 ~ 1909.8 MHz Bluetooth：2402~2480MHz Transmit Power(MAX): GSM 850: 31.98 dBm GSM 1900: 29.99 dBm Bluetooth: -5.633 dBm Max. Reported SAR(1g): Head: GSM 850:0.776 W/kg GSM 1900: 0.538 W/kg Body: GSM 850: 0.754 W/kg GSM 1900:1.435 W/kg Operating Mode: GSM: GSM Voice; GPRS Class 12; Bluetooth: V2.1+EDR(GFSK+π/4DQPSK+8DPSK) Antenna Specification: GSM: PIFA Antenna BT: Dipole Antenna SIM Card Support dual-SIM, dual standby, the multiple SIM card with two lines cannot transmitting at the same time Hotspot Mode: Not Support DTM Mode: Not Support Page 5 of 55 Report No.: STS1507106H01 1.2 Test Environment Ambient conditions in the SAR laboratory: Items Required Actual Temperature (°C) 18-25 22~23 Humidity (%RH) 30-70 55~65 1.3 Test Facility Shenzhen STS Test Services Co., Ltd. Add. : 1/F, Building B, Zhuoke Science Park,No.190, Chongqing Road, Fuyong, Baoan District, Shenzhen, Guangdong, China CNAS Registration No.: L7649 FCC Registration No.: 842334; IC Registration No.: 12108A-1 Page 6 of 55 Report No.: STS1507106H01 2. Test Standards And Limits No. Identity Document Title 1 47 CFR Part 2 Frequency Allocations and Radio Treaty Matters; General Rules and Regulations 2 ANSI/IEEE Std. C95.1-1992 IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz 3 IEEE Std. 1528-2013 Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques 4 FCC KDB 447498 D01 v05r02 Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies 5 FCC KDB 865664 D01 v01r03 SAR Measurement 100 MHz to 6 GHz This device belongs to portable device category because its radiating structure is allowed to be used within 20 centimeters of the body of the user. According to EN 50360 and 1999/519/EC the limit for General Population/Uncontrolled exposure should be applied for this device, it is 2.0 W/kg as averaged over any 10 gram of tissue. (A). Limits for Occupational/Controlled Exposure (W/kg) Whole-Body Partial-Body Hands, Wrists, Feet and Ankles 0.4 8.0 20.0 (B). Limits for General Pop…

Text truncated - open the document above for the full version.

Ref : ACR.262.1.14.SATU.A SHENZHEN STS TEST SERVICES CO., LTD. 1/F., BUILDING B, ZHUOKE SCIENCE PARK, No.190, CHONGQING ROAD,FUYONG STREET, BAO’ AN DISTRICT, SHENZHEN,GUANGDONG,CHINA SATIMO COMOSAR DOSIMETRIC E-FIELD PROBE SERIAL NO.: SN 17/14 EP221 Calibrated at SATIMO US 2105 Barrett Park Dr. - Kennesaw, GA 30144 09/01/2014 Summary: This document presents the method and results from an accredited COMOSAR Dosimetric E-Field Probe calibration performed in SATIMO USA using the CALISAR / CALIBAIR test bench, for use with a SATIMO COMOSAR system only. All calibration results are traceable to national metrology institutions. COMOSAR E-Field Probe Calibration Report COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.262.1.14.SATU.A Page: 2/9 This document shall not be reproduced, except in full or in part, without the written approval of SATIMO. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of SATIMO. Name Function Date Signature Prepared by : Jérôme LUC Product Manager 9/19/2014 Checked by : Jérôme LUC Product Manager 9/19/2014 Approved by : Kim RUTKOWSKI Quality Manager 9/19/2014 Customer Name Distribution : Shenzhen STS Test Services Co., Ltd. Issue Date Modifications A 9/19/2014 Initial release COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.262.1.14.SATU.A Page: 3/9 This document shall not be reproduced, except in full or in part, without the written approval of SATIMO. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of SATIMO. TABLE OF CONTENTS 1 Device Under Test ..................................................................................................... 4 2 Product Description ................................................................................................... 4 2.1 General Information _______________________________________________________ 4 3 Measurement Method ................................................................................................ 4 3.1 Linearity ________________________________________________________________ 4 3.2 Sensitivity _______________________________________________________________ 5 3.3 Lower Detection Limit _____________________________________________________ 5 3.4 Isotropy _________________________________________________________________ 5 3.5 Boundary Effect __________________________________________________________ 5 4 Measurement Uncertainty .......................................................................................... 5 5 Calibration Measurement Results .............................................................................. 6 5.1 Sensitivity in air __________________________________________________________ 6 5.2 Linearity ________________________________________________________________ 7 5.3 Sensitivity in liquid ________________________________________________________ 7 5.4 Isotropy _________________________________________________________________ 8 6 List of Equipment ...................................................................................................... 9 COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.262.1.14.SATU.A Page: 4/9 This document shall not be reproduced, except in full or in part, without the written approval of SATIMO. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of SATIMO. 1 DEVICE UNDER TEST Device Under Test Device Type COMOSAR DOSIMETRIC E FIELD PROBE Manufacturer Satimo Model SSE5 Serial Number SN 17/14 EP221 Product Condition (new / used) New Frequency Range of Probe 0.4 GHz- 6 GHz Resistance of Three Dipoles at Connector Dipole 1: R1=0.179 M Dipole 2: R2=0.167 M Dipole 3: R3=0.178 M A yearly calibration interval is recommended. 2 PRODUCT DESCRIPTION 2.1 GENERAL INFORMATION Satimo’s COMOSAR E field Probes are built in accordance to the IEEE 1528, OET 65 Bulletin C and CEI/IEC 62209 standards. Figure 1 – Satimo COMOSAR Dosimetric E field Dipole Probe Length 330 mm Length of Individual Dipoles 4.5 mm Maximum external diameter 8 mm Probe Tip External Diameter 5 mm Distance between dipoles / probe extremity 2.7 mm 3 MEASUREMENT METHOD The IEEE 1528, OET 65 Bulletin C, CENELEC EN50361 and CEI/IEC 62209 standards provide recommended practices for the probe calibrations, including the performance characteristics of interest and methods by which to assess their affect. All calibrations / measurements performed meet the fore mentioned standards. 3.1 LINEARITY The evaluation of the linearity was done in free space using the waveguide, performing a power sweep to cover the SAR range 0.01W/kg to 100W/kg. COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.262.1.14.SATU.A Page: 5/9 This document shall not be reproduced, except in full or in part, without the written approval of SATIMO. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of SATIMO. 3.2 SENSITIVITY The sensitivity factors of the three dipoles were determined using a two step calibration method (air and tissue simulating liquid) using waveguides as outlined in the standards. 3.3 LOWER DETECTION LIMIT The lower detection limit was assessed using the same measurement set up as used for the linearity measurement. The required lower detection limit is 10 mW/kg. 3.4 ISOTROPY The axial isotropy was evaluated by exposing the probe to a reference wave from a standard dipole with the dipole mounted under the flat phantom in the test configuration suggested for system validations and checks. The probe was rotated along its main axis from 0 - 360 degrees in 15 degree steps. The hemispherical isotropy is determined by inserting the probe in a thin plastic box filled with…

Text truncated - open the document above for the full version.

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen STS Test Services Co., Ltd. 1/F., Building B, Zhuoke Science Park, No.190,Chongqing Road, Fuyong Street, Bao’an District, Shenzhen, Guangdong,China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No: STS1507106F01 Issued for Janne Shirley gomez Nit 31445556-6 carrera 5 numero 13-83 oficina 1301 edificio BBVA,cali colombia Product Name: GSM PHONE Brand Name: F.Cell Model No.: GENESIS Series Model: N/A FCC ID: 2AFHT-GENESIS Test Standard: FCC Part 22H and 24E S T L A B S 2 of 55 Report No.: STS1507106F01 Testing Engineer : (Jin Ming) Technical Manager : (Vita Li) Authorized Signatory : (Bovey Yang) TEST RESULT CERTIFICATION Applicant’s name ................. : Janne Shirley gomez Nit 31445556-6 Address ................................. : carrera 5 numero 13-83 oficina 1301 edificio BBVA,cali colombia Manufacture's Name............ : MOVEON TECHNOLOGY LIMITED Address ................................. : Room 3201-3202 BuildingA World Trade Plaza, Fuhong Rd Futian District Shenzhen China Product name ........................ : GSM PHONE Brand name ......................... : F.Cell Model and/or type reference .. : GENESIS Standards ............................. : FCC Part 22H and 24E Test procedure ............................ : TIA 603 C This device described above has been tested by STS and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document may be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ........................................... : Date of performance of tests .................. : 22 July. 2015 ~27 July. 2015 Date of Issue.......................................... : 28 July. 2015 Test Result ............................................. : Pass 3 of 55 Report No.: STS1507106F01 TABLE OF CONTENTS Page 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2. GENERAL INFORMATION 7 2.1 PRODUCT DESCRIPTION 7 2.2 RELATED SUBMITTAL(S) / GRANT (S) 8 2.3 SPECIAL ACCESSORIES 8 2.4 EUT CONFIGURATION 8 2.5 EUT EXERCISE 8 2.6 CONFIGURATION OF EUT SYSTEM 8 2.7 MEASUREMENT INSTRUMENTS 9 3. DESCRIPTION OF TEST MODES 10 4. OUTPUT POWER 11 4.1 CONDUCTED OUTPUT POWER 11 4.2 PEAK-TO-AVERAGE RADIO (PAR) OF TRANSMITTER 14 4.3 RADIATED OUTPUT POWER 17 5. SPURIOUS EMISSION 20 5.1 SPURIOUS EMISSION 20 5.2 RADIATED SPURIOUS EMISSION 22 6. FREQUENCY STABILITY 26 6.1 MEASUREMENT METHOD 26 6.2 PROVISIONS APPLICABLE 27 6.3 MEASUREMENT RESULT 28 7. OCCUPIED BANDWIDTH 30 7.1 MEASUREMENT METHOD 30 7.2 PROVISIONS APPLICABLE 30 7.3 MEASUREMENT RESULT 30 8. EMISSION BANDWIDTH 31 8.1 MEASUREMENT METHOD 31 8.2 PROVISIONS APPLICABLE 31 8.3 MEASUREMENT RESULT 31 9. BAND EDGE 32 9.1 MEASUREMENT METHOD 32 4 of 55 Report No.: STS1507106F01 9.2 PROVISIONS APPLICABLE 32 9.3 MEASUREMENT RESULT 32 APPENDIX I 33 TEST PLOTS FOR CONDUCTED SPURIOUS EMISSION 33 APPENDIX II 43 TEST PLOTS FOR OCCUPIED BANDWIDTH (99%) 43 EMISSION BANDWIDTH (-26DBC) 43 APPENDIX III 51 TEST PLOTS FOR BAND EDGES 51 APPENDIX IV 55 PHOTOS OF TEST SETUP 55 5 of 55 Report No.: STS1507106F01 Revision History Rev. Issue Date Report NO. Effect Page Contents 00 28 July. 2015 STS1507106F01 ALL Initial Issue 6 of 55 Report No.: STS1507106F01 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: The radiated emission testing was performed according to the procedures of ansi C63.10: 2009; TIA 603 C and fcc cfr 47 rules of 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057 Item Number Item Description FCC Rules 1 Output Power Conducted output power 22.913(a) / 24.232 (b) Radiated output power 2 Spurious Emission Conducted spurious emission 2.1051 / 22.917 / 24.238 Radiated spurious emission 3 Frequency Stability 2.1055 /24.235 4 Occupied Bandwidth 2.1049 (h)(i) 5 Emission Bandwidth 22.917(b) / 24.238 (b) 6 Band Edge 22.917(b) / 24.238 (b) NOTE: (1)” N/A” denotes test is not applicable in this Test Report 1.1 TEST FACILITY Shenzhen STS Test Services Co., Ltd. Add. : 1/F., Building B, Zhuoke Science Park, No.190,Chongqing Road, Fuyong Street, Bao’an District, Shenzhen, Guangdong,China CNAS Registration No.: L7649; FCC Registration No.: 842334; IC Registration No.: 12108A-1 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission (9KHz-150KHz) ±2.88dB 2 Conducted Emission (150KHz-30MHz) ±2.67dB 3 RF power,conducted ±0.70dB 4 Spurious emissions,conducted ±1.19dB 5 All emissions,radiated(<1G) 30MHz-200MHz ±2.83dB 6 All emissions,radiated(<1G) 200MHz-1000MHz ±2.94dB 7 All emissions,radiated(>1G) ±3.03dB 8 Temperature ±0.5°C 9 Humidity ±2% 7 of 55 Report No.: STS1507106F01 2. GENERAL INFORMATION 2.1 PRODUCT DESCRIPTION A major technical description of EUT is described as following: Product Designation: GSM PHONE Hardware version: S627B_MB_V1.01_PCB(20140904) Software version: S627B_OK_T171_E1__DA_12C0403_128128_NTP _Z4P_SPRD_NTV_SPRDV0_NCL_NTL_NHL_20150713 FCC ID: 2AFHT-GENESIS Frequency Bands: GSM 850 PCS 1900 (U.S. Bands) GSM 900 DCS 1800 (Non-U.S. Bands) U.S. Bands: UMTS FDD Band II UMTS FDD Band V Non-U.S. Bands: UMTS FDD Band I UMTS FDD Band VIII Max RF Output Power: GSM850:32.21dBm,GSM1900:30.31dBm Type of Emission: GSM(850):254KGXW: GSM(1900):250KGXW GPRS(850):250KGXW; GPRS(1900):253KGXW SIM CARD SIM 1 and SIM 2 is a chipset unit and tested as single chi…

Text truncated - open the document above for the full version.

PCESetup photo PCEradiation L PCEradiation H
