SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 PuHua(HongKong)Technology Co., Limited 2015-11-11 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, ____ PuHua(HongKong)Technology Co., Limited _ _hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): Product： Bluetooth headset Trade Name： ENJOYOU Model Name： BT-09 Serial Model： BT-09A, BT-09B FCC ID： 2AFII-BT09 Sincerely, Signature Client’s name / title : Hican Liao / Product Manager Contact information / address : Unit 3A-5,12/F,Kaiser Centre,No.18 Centre Street, Sai Ying Pun,Hong Kong

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (current) 3.0 4.0 March-26-2015 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 4.0 PuHua(HongKong)Technology Co., Limited 2015-11-11 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2AFII-BT09 We hereby request confidential treatment of information accompanying this application as outlined below: - . Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature Client’s name / title : Hican Liao / Product Manager Contact information / address : Unit 3A-5,12/F,Kaiser Centre,No.18 Centre Street, Sai Ying Pun,Hong Kong

PuHua(HongKong)Technology Co., Limited Model Difference FCC ID: 2AFII-BT09 Model : BT-09, BT-09A, BT-09B All the model are the same circuit and RF module, except the model name and colour. Regards, Client’s signature Signature Client’s name / title : Hican Liao / Product Manager Contact information / address : Unit 3A-5,12/F,Kaiser Centre,No.18 Centre Street, Sai Ying Pun,Hong Kong

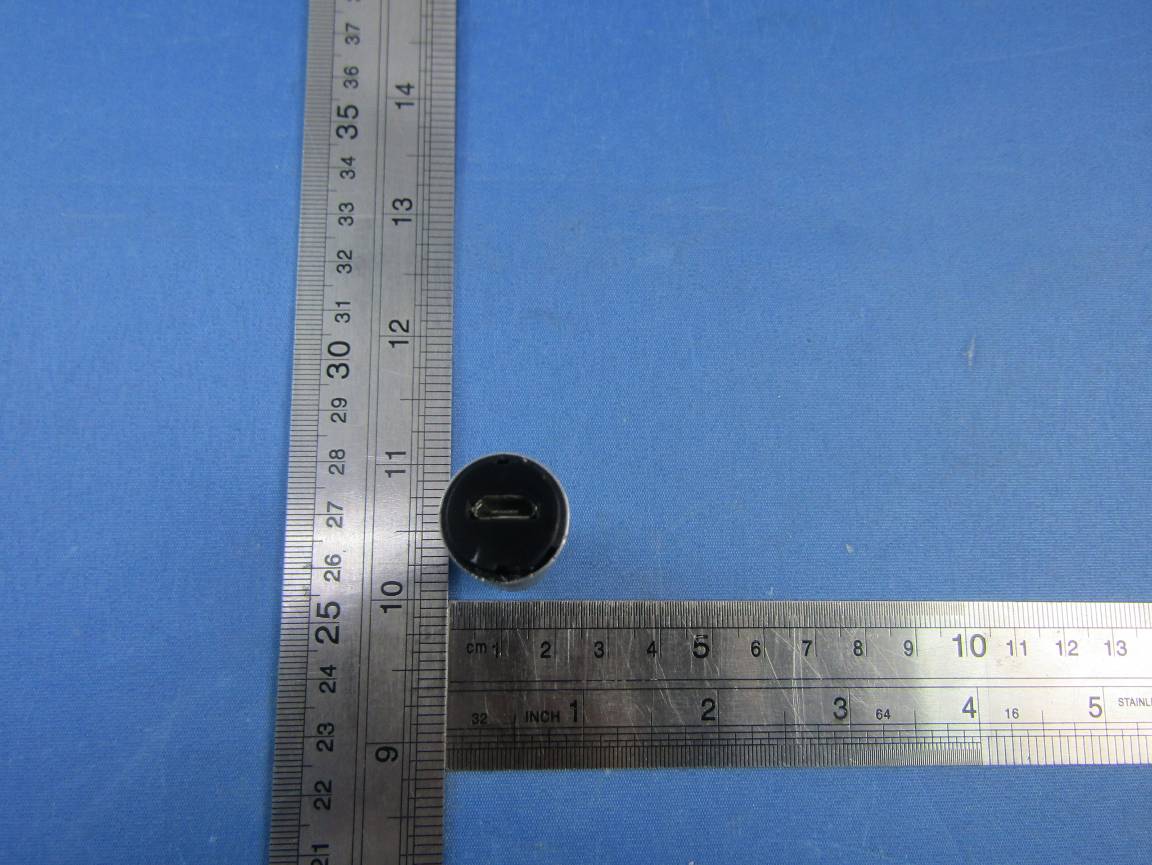

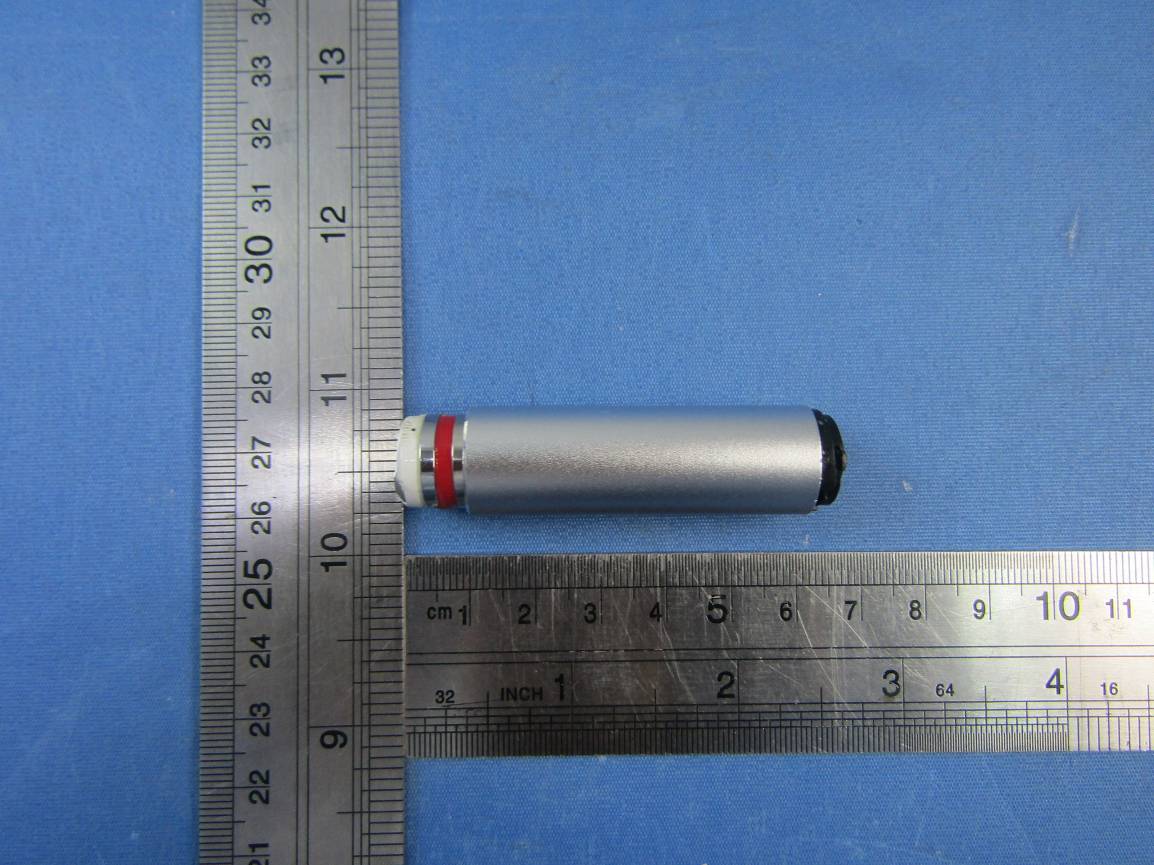

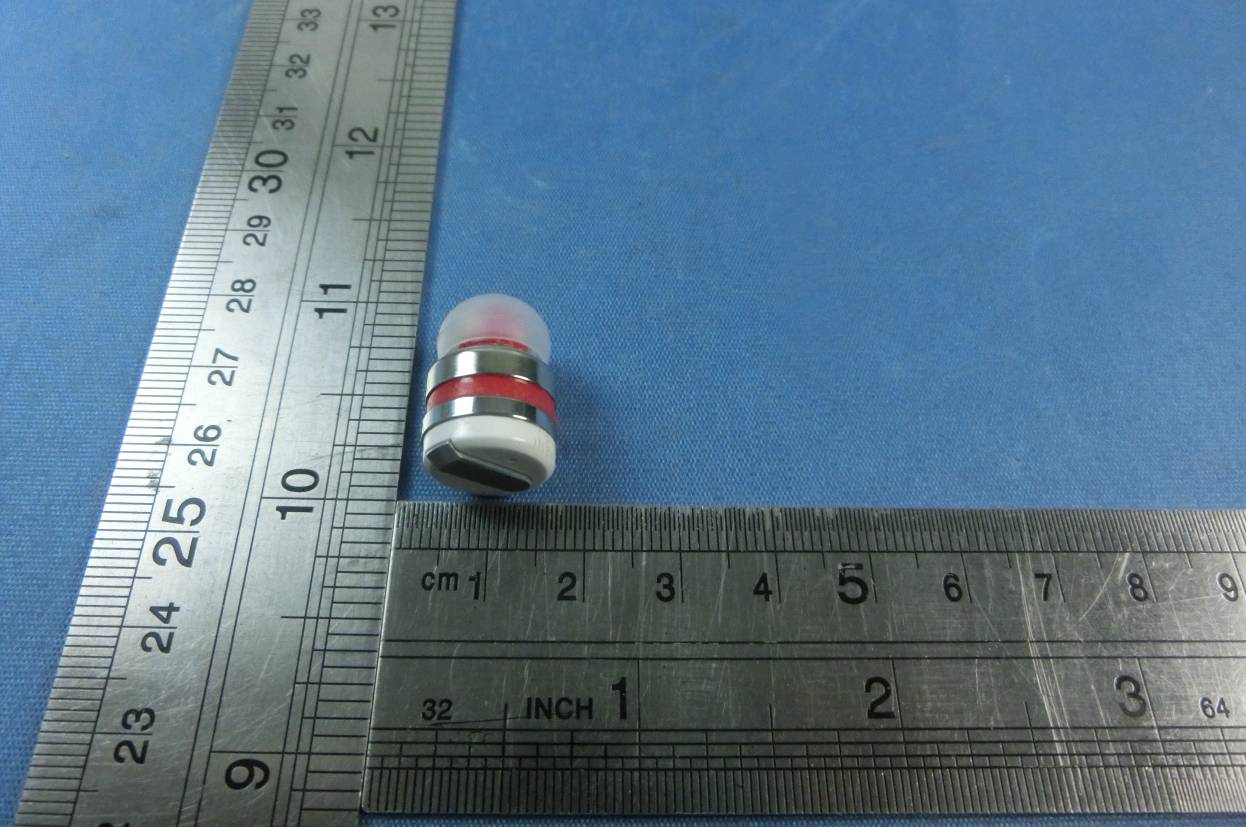

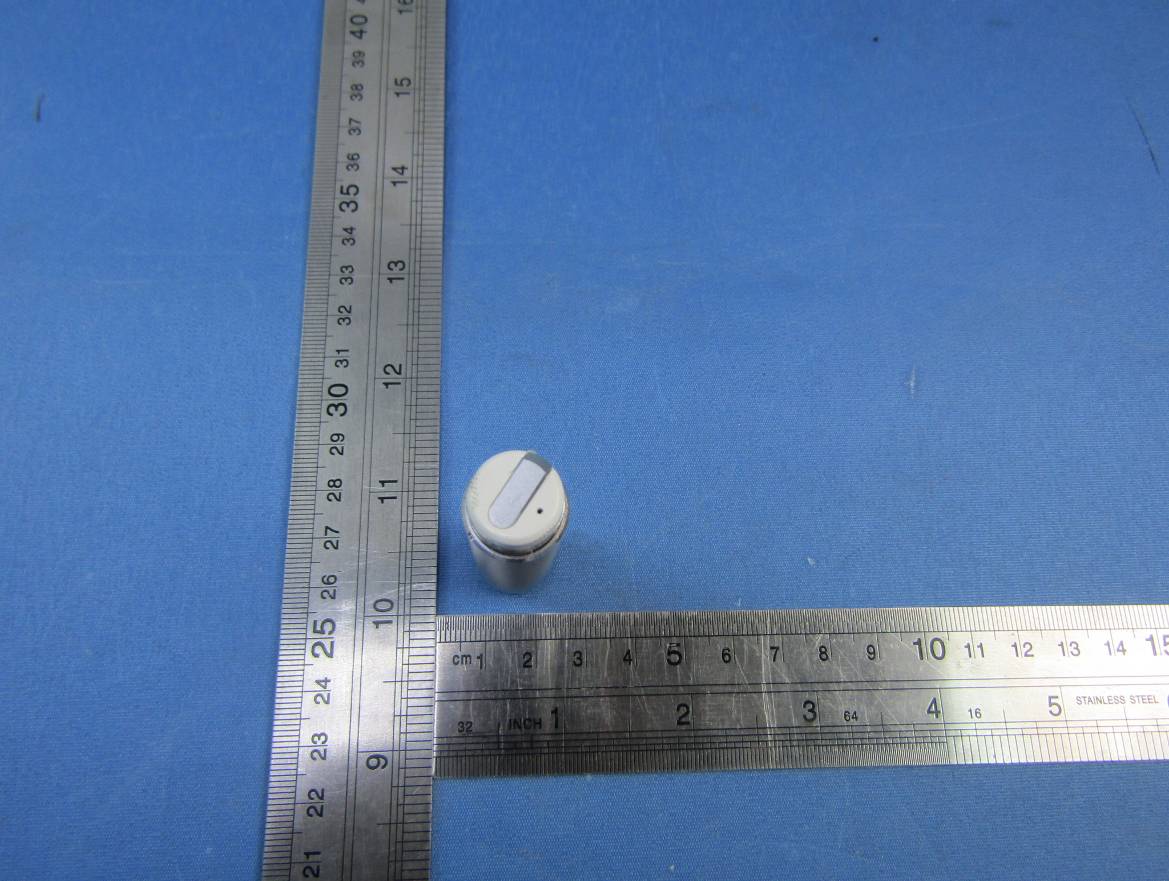

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8

FCC ID LABELING AND LOCATION FCC ID Label Bluetooth headset Model NO.: BT-09 FCC ID: 2AFII-BT09 FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 BT ANT Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10

FCC ID: 2AFII-BT09 RF EXPOSURE EVALUATION METHOD FCC ID:2AFII-BT09 SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Maximum measured transmitter power. BT 3.0 1Mbps Test Channel Frequency (MHz) Peak Output Power (dBm) Peak Output Power (mW) CH00 2402 0.94 1.242 CH39 2441 2.30 1.698 CH78 2480 1.94 1.563 2Mbps CH00 2402 1.21 1.321 CH39 2441 2.68 1.854 CH78 2480 3.03 2.009 3Mbps CH00 2402 1.29 1.346 CH39 2441 2.91 1.954 CH78 2480 2.92 1.959 BT 4.0 Te s t Channe Frequency Maximum Conducted Output Power(PK) Maximum Conducted Output Power(PK) (MHz) (dBm) mW CH00 2402 2.43 1.750 CH19 2440 2.38 1.730 CH39 2480 2.90 1.950 FCC ID: 2AFII-BT09 Remark: The best case gain of the antenna is 0.54dBi. 0.54 dBi logarithmic terms convert to numeric result is nearly 1.13 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)] BT 3.0 Te s t Channel Range tune up max power (dBm) [(max. power of channel, including tune-up tolerance, mW) (min. test separation distance,mm)] [f(GHz)] Result Limit 1Mbps CH00 0.5~2.5 2.5 1.778 5 2.402 0.551 3 CH39 0.5~2.5 2.5 1.778 5 2.441 0.556 3 CH78 0.5~2.5 2.5 1.778 5 2.480 0.560 3 2Mbps CH00 1.2~3.2 3.2 2.089 5 2.402 0.648 3 CH39 1.2~3.2 3.2 2.089 5 2.441 0.653 3 CH78 1.2~3.2 3.2 2.089 5 2.480 0.658 3 3Mbps CH00 1~3 3 1.995 5 2.402 0.618 3 CH39 1~3 3 1.995 5 2.441 0.623 3 CH78 1~3 3 1.995 5 2.480 0.628 3 BT 4.0 Te s t Channel Range tune up max power (dBm) [(max. power of channel, including tune-up tolerance, mW) (min. test separation distance,mm)] [f(GHz)] Result Limit CH00 1~3 3 1.995 5 2.402 0.618 3 CH39 1~3 3 1.995 5 2.441 0.623 3 CH78 1~3 3 1.995 5 2.480 0.628 3 The test Result is less than 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Conclusion: No SAR is required.

FCC RADIO TEST REPORT-BLE FCC ID:2AFII-BT09 Product： Bluetooth headset Trade Name： ENJOYOU Model Name： BT-09 Serial Model： BT-09A, BT-09B Report No.： NTEK-2015NT1012870F3 Prepared for PuHua(HongKong)Technology Co., Limited Unit 3A-5,12/F,Kaiser Centre,No.18 Centre Street, Sai Ying Pun,Hong Kong Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website:www.ntek.org.cn Page 2 of 44 Report No.: NTEK-2015NT1012870F3 TEST RESULT CERTIFICATION Applicant’s name ....... PuHua(HongKong)Technology Co., Limited Address ....................... . Unit 3A-5,12/F,Kaiser Centre,No.18 Centre Street, Sai Ying Pun,Hong Kong Manufacture's Name . . Shenzhen Puhua Technology Co.,Ltd. Address ....................... . 4/F BLDG-B,Forzen Technology Park,Fuyuan 2nd Road,Fuyong Town,Baoan District,Shenzhen,China Product description Product name ................Bluetooth headset Model and/or type reference ................... . BT-09 Serial Model .................. BT-09A, BT-09B Standards .................. . FCC Part15.247: 01 Oct. 2015 Test procedure .............. ANSI C63.10-2013 and KDB 558074: June 5, 2014 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personnel only, and shall be noted in the revision of the document. Date of Test ............................................ : Date (s) of performance of tests .............. : 12 Oct. 2015 ~29 Oct. 2015 Date of Issue ........................................... : 29 Oct. 2015 Test Result ............................................... : Pass Testing Engineer : (Susan Su) Technical Manager : (Brown Lu) Authorized Signatory : (Sam Chen) Page 3 of 44 Report No.: NTEK-2015NT1012870F3 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 9 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 11 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 14 3.1.3 DEVIATION FROM TEST STANDARD 14 3.1.4 TEST SETUP 14 3.1.5 EUT OPERATING CONDITIONS 14 3.1.6 TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 23 3.2.1 RADIATED EMISSION LIMITS 23 3.2.2 TEST PROCEDURE 24 3.2.3 DEVIATION FROM TEST STANDARD 24 3.2.4 TEST SETUP 25 3.2.5 EUT OPERATING CONDITIONS 26 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 27 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 28 3.2.8 TEST RESULTS (ABOVE 1000 MHZ) 30 4 . POWER SPECTRAL DENSITY TEST 31 4.1 APPLIED PROCEDURES / LIMIT 31 4.1.1 TEST PROCEDURE 31 4.1.2 DEVIATION FROM STANDARD 31 4.1.3 TEST SETUP 31 4.1.4 EUT OPERATION CONDITIONS 31 4.1.5 TEST RESULTS 32 5 . BANDWIDTH TEST 34 5.1 APPLIED PROCEDURES / LIMIT 34 5.1.1 TEST PROCEDURE 34 Page 4 of 44 Report No.: NTEK-2015NT1012870F3 Table of Contents Page TEST SETUP 34 5.1.2 EUT OPERATION CONDITIONS 34 5.1.3 TEST RESULTS 35 6 . PEAK OUTPUT POWER TEST 37 6.1 APPLIED PROCEDURES / LIMIT 37 6.1.1 TEST PROCEDURE 37 6.1.2 DEVIATION FROM STANDARD 37 6.1.3 TEST SETUP 37 6.1.4 EUT OPERATION CONDITIONS 37 6.1.5 TEST RESULTS 38 7 . 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE 39 7.1 DEVIATION FROM STANDARD 39 7.2 TEST SETUP 39 7.3 EUT OPERATION CONDITIONS 39 7.4 TEST RESULTS 40 8 . ANTENNA REQUIREMENT 42 8.1 STANDARD REQUIREMENT 42 8.2 EUT ANTENNA 42 9 . EUT TEST PHOTO 43 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 5 of 44 Report No.: NTEK-2015NT1012870F3 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247 (a)(2) 6dB Bandwidth PASS 15.247 (b) Peak Output Power PASS 15.247 (c) Radiated Spurious Emission PASS 15.247 (d) Power Spectral Density PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 6 of 44 Report No.: NTEK-2015NT1012870F3 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add.:1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.:238937; IC Registration No.:9270A-1 CNAS Registration No.:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 7 of 44 Report No.: NTEK-2015NT1012870F3 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Bluetooth headset Trade Name ENJOYOU Model Name BT-09 Serial Model BT-09A, BT-09B Model Difference All the model are the same circuit and RF module, except the model name. Product Description The EUT is a Bluetooth headset Operation Frequency: 2402~2480MHz Modulation Type: GFSK Number Of Channel 40CH Antenna Designation: Please see Note 3. Antenna Gain (dBi) 0.54dBi Channel List Please refer to the Note 2. Ratings DC 3.7V Adapter N/A Battery DC 3.7V, 18mAh Connecting I/O Port(s) Please refer to the User's Manual Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. Page 8 of 44 Report No.: …

Text truncated - open the document above for the full version.

Radiated Measurement Photos CONDUCTED EMISSION Photos
