2AFJJGWLE1010BBluetooth module

GWLE1010B Bluetooth Low Energy Module Data Sheet (Document Number:GWLE-1010B-01B) GooWi Technology Co., Ltd GOOWI GWLE1010B Bluetooth Low Energy Module Data Sheet GWLE-1010B-01B GooWi Technology Co.,Ltd. Fax+86-755-2220 8632 DP+86-755-2220 4365 Websitewww.goowi-tech.com [email protected] AddrRoom402, Building 212, Tairan Technology Park, Futian District, Shenzhen,PRC 2 GWLE1010B Module CSR1010 Rev1.0 Apr. 2015 Device Features • A small and cost effective Bluetooth® Low Energy System • Bluetooth® specification v4.1 • Single module compliant – Supports mater or slave mode • Integrated Bluetooth low energy stack: GAP,GATT,ATT,L2CAP,SMP • RSSI monitoring for proximity applications • Programmable general purpose • 10-bti ADC • 12 digital PIOs • 3 analogue AIOs • UART • I2C interface • Wakeup-interrupt • Watchdog timer • Software programmable • Ultra Low current consumption • PCB antenna General Description GWLE1010B from GooWi is a single-mode Bluetooth low energy module. It’s for low power sensors and accessories, such as health device, active 3D glasses. GWLE1010B offers all Bluetooth low energy features: radio, stack, profiles. GWLE1010B also provides flexible hardware interface to connect sensors, simple user interfaces and even driver display device directly. GooWi setups the software development platform in the lab, provides the full software and customization service to our valuable customers. Applications • Health and medical • Security and proximity • Sports and fitness • Entertainment • Human interface device • Smart Home GOOWI GWLE1010B Bluetooth Low Energy Module Data Sheet GWLE-1010B-01B GooWi Technology Co.,Ltd. Fax+86-755-2220 8632 DP+86-755-2220 4365 Websitewww.goowi-tech.com [email protected] AddrRoom402, Building 212, Tairan Technology Park, Futian District, Shenzhen,PRC 3 Version History Version No Author Date Remark Rev1.0 alvin 2015-4-18 Init Version GWLE1010B Bluetooth Low Energy Module Data Sheet GWLE-1010B-01B GooWi Technology Co.,Ltd. Fax+86-755-2220 8632 DP+86-755-2220 4365 Websitewww.goowi-tech.com [email protected] AddrRoom402, Building 212, Tairan Technology Park, Futian District, Shenzhen,PRC 4 Content System Architecture ............................................................................................................................5 Specifications ......................................................................................................................................5 Electrical Characteristics.....................................................................................................................6 Absolute Maximum Ratings ...............................................................................................................6 Recommended operation conditions ...................................................................................................6 Pin Configurations ..............................................................................................................................7 Mechanical Drawing ...........................................................................................................................9 Ordering information ..........................................................................................................................9 PCB LAYOUT ..................................................................................................................................10 Package .......................................................................................................................................12 Document Reference.........................................................................................................................13 GWLE1010B Bluetooth Low Energy Module Data Sheet GWLE-1010B-01B GooWi Technology Co.,Ltd. Fax+86-755-2220 8632 DP+86-755-2220 4365 Websitewww.goowi-tech.com [email protected] AddrRoom402, Building 212, Tairan Technology Park, Futian District, Shenzhen,PRC 5 System Architecture Specifications Operating Frequency Band 2.4GHz ~ 2.48GHz unlicensed ISM band Bluetooth Specification V4.1 Output Power 7.5dBm (MAX) Operating Voltage 1.8V-3.6V Host Interface UART Dimension 20.5mm (L) x 11.95 (W) mm x 2.5 (H) mm NOTES:Specifications are subject to change without prior notice GWLE1010B Bluetooth Low Energy Module Data Sheet GWLE-1010B-01B GooWi Technology Co.,Ltd. Fax+86-755-2220 8632 DP+86-755-2220 4365 Websitewww.goowi-tech.com [email protected] AddrRoom402, Building 212, Tairan Technology Park, Futian District, Shenzhen,PRC 6 Electrical Characteristics Absolute Maximum Ratings Rating Min Max Unit Storage temperature -40 85 °C Battery (VDD_BAT) operation(a) 1.8 4.4 V I/O supply voltage （VDD_IO） -0.4 4.4 V Other terminal voltages VSS - 0.4 VDD + 0.4 V Recommended Operation Conditions Operating Condition Min Typ Max Unit Operating temperature range -30 - 85 °C Battery (VDD_BAT) operation 1.8 - 3.6 V I/O supply voltage (VDD_IO) 1.2 - 3.6 V AIO Input Voltage Levels Min Typ Max Unit Input voltage 0 - 1.3 V GWLE1010B Bluetooth Low Energy Module Data Sheet GWLE-1010B-01B GooWi Technology Co.,Ltd. Fax+86-755-2220 8632 DP+86-755-2220 4365 Websitewww.goowi-tech.com [email protected] AddrRoom402, Building 212, Tairan Technology Park, Futian District, Shenzhen,PRC 7 Pin Definition Pin No Name Type Function Remark 1 GND GND Ground 2 AIO2 Bi-directional Analogue programmable input/output line 3 AIO1 Bi-directional Analogue programmable input/output line 4 AIO0 Bi-directional Analogue programmable input/output line Programmable Input/Output Line 0 5 PIO0 Bi-directional UART Data Output (TX) Programmable Input/Output Line 1 6 PIO1 Bi-directional UART Data Input (RX) Programmable Input/Output Line 3 7 PIO3 Bi-directional SPI serial flash data input Programmable Input/Output Line 4 8 PIO4 Bi-directional SPI serial flash chip select GWLE1010B Bluetooth Low Energy Module Data Sheet GWLE-1010B-01B…

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 DATE 2015-08-04 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AFJJGWLE1010B including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, GooWi Wireless Technology Co., Limited Contact person: Thomas Wei Title: Manager

Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 8/4/2015 Request for Confidentiality Company name: GooWi Wireless Technology Co., Limited FCC ID: 2AFJJGWLE1010B FCC Part 15 Certification Gentlemen, In accordance with CFR 47 § 0.459, GooWi Wireless Technology Co., Limited hereby requests confidentiality of following attachments: Schematics Bill of Materials/Parts List Block Diagrams Theory of Operation These documents contain detailed system and equipment description and related information about the product which GooWi Wireless Technology Co., Limited considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, GooWi Wireless Technology Co., Limited considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Company Officer: Thomas Wei Company address： Room 402，Building 212,Tairan Technology Park,Futian District,Shenzhen PRC Email: [email protected]

RE FCC ID: 2AFJJGWLE1010B To the certification reviewer: We are hereby applying for single modular approval of the above-referenced FCC ID, based on compliance with part of the criteria as detailed below. Sincerely, Thomas Wei Manager Part 15 Unlicensed Single Modular Transmitter Approval Justification per 15.212 Requirement per 15.212 reference (i) The radio elements of the modular transmitter must have their own RF shielding. Yes. The metal shielding as shown on external photo. (ii) The modular transmitter must have buffered modulation/data inputs (if such inputs are provided. Yes. The modular data inputs are buffered through log or microcontroller connections. All modulation and data inputs are buffered by circuitry on the transmitter chip. (iii) The modular transmitter must have its own power supply regulation. Yes. Power supply regulation is provided by circuitry on the transmitter chip. (iv) The modular transmitter must comply with the antenna and transmission system requirements of §§ 15.203, 15.204(b) and 15.204(c). Yes The modular with permanently antenna. The antenna is integral antenna. (v) The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 parameters. Yes. Referring to the test setup photos. The modular transmitter was tested with a control board and PC which will be unmodified and commercially available equipment. (vi) The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. If the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. Yes. (vii) The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. Yes. Please refer to the modular installation manual. (viii) The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Yes.

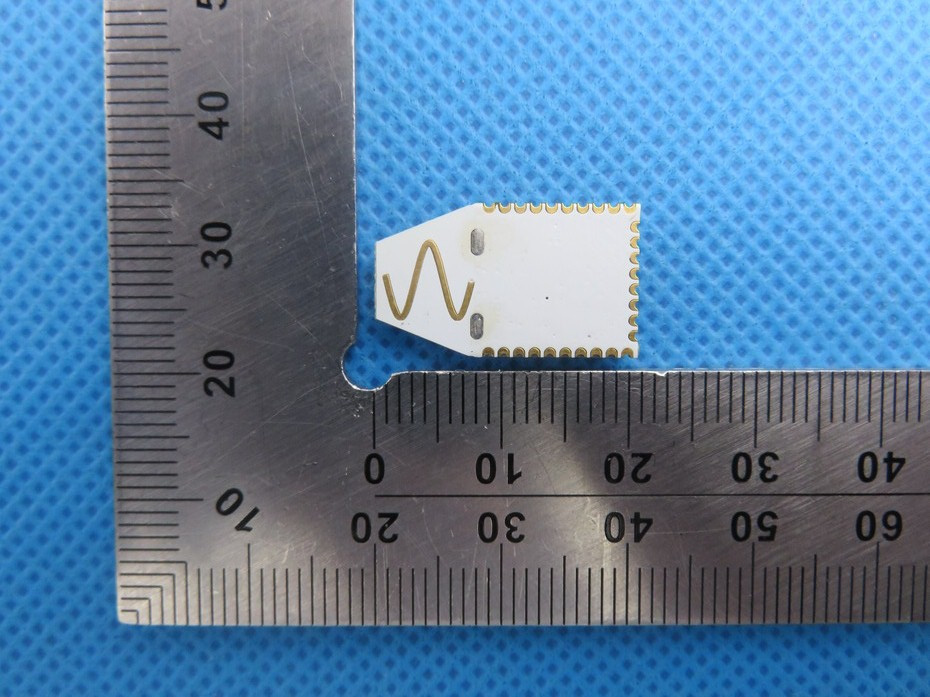

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT

FCC ID Label Location FCC ID: 2AFJJGWLE1010B Model: GWLE1010B

Internal Photos INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 Antenna
