2AFJSSET100-2015Smart Water Valve

Smart Earth Technologies LLC
Smart Water Valve - FCC ID 2AFJSSET100-2015 - Smart Earth Technologies LLC
Click to zoom

Application Details

Equipment Class
DXT - Part 15 Low Power Transceiver, Rx Verified
Date of Grant
Jan 27, 2016
Application Purpose
Original Equipment
Date of Application
Jan 27, 2016
Equipment Note
Smart Water Valve
Frequency Range
2402.00000000 - 2480.00000000
Company
Smart Earth Technologies LLC
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: 2AFJSSET100-2015 FCC Rule Part: 15.249 ACS Project Number: 14-0039 Manufacturer: Smart Earth Technologies LLC Model: SET 100 Smart Valve OBTAIN MASTER CONTROL PASSWORD 2 In order to provision or control your valve, you must obtain the Master Password from your Administrator. ARRIVE AT THE SERVICE LOCATION 5 Arrive at the service location where the valve will be installed and place the valve as near to the physical location the valve will be installed before proceeding. This will help to ensure that there is a good network connection at the actual service location before plumbing the valve. TURN ON HANDHELD BLUETOOTH 4 On your handheld (iPhone, iPod, etc..), please make sure that Bluetooth is ON within your handheld settings. Go to SETTINGS then tap on Bluetooth and toggle the switch to ON. LOGIN TO SETFLOW MOBILE & TURN ON LOCATION SERVICES 7 TAP the SETflow Mobile App icon on your home screen. Press YES to turn on LOCATION SERVICES or you will be unable to provision the valve. LOGIN with the credentials provided by your administrator. The app will immediately scan for all valves within range. NOTE: All of our valves are discoverable when they ship, it will help if there are no other valves within range. when provisioning your valve. FIND & CONNECT TO THE VALVE 8 In order to provision the correct valve in the list, please match the Serial Number located on the side of the valve to the Serial Number listed for your valve in the Valve List. Once you’ve identified the correct valve, TAP on the valve in the list in order to connect. OBTAIN A USER ACCOUNT LOGIN 1 Make sure you have a SETflow User Account and the login information before leaving to install your SET100 valve. Your administrator must create this for you. This login will be needed to access your SET100 thru the SETflow Mobile App on your handheld for provisioning. DOWNLOAD SETFLOW MOBILE APP 3 The SETflow Mobile app will be used to provision your valve. You are required to download our app from the Apple App Store using your organization’s APPLE ID. Using your handheld device (iPhone, iPod, etc..) you can either go to the APPLE APP STORE and search for SETFLOW and install the app OR using your web browser, go to www.setflow.com and click the “GET SETFLOW MOBILE” link at the bottom of the screen which will open the APP STORE where you can install the app. ow VALVE CONTROL ™ SMART EARTH TECHNOLOGIES QUICK SETUP GUIDE For Additional Support: 877.515.SMART (7627) Press 2 877.515.SMART (7627) www.smartearthtechnologies.com BEFORE GOING TO INSTALL...AT THE SERVICE LOCATION... SET100 - ITRON 100w+ CONNECT CABLE TO THE ITRON 100w+ 6 Now connect the gray serial interface cable from the valve to the middle blue port on the Itron 100w+ radio. INSTALL THE VALVE 12 You can now plumb the valve. 14CONNECT TO WIFI TO COMPLETE In order to complete the provisioning process, please make sure you connect to either a wifi or cellular data network and login to the app. This will upload the required valve information to SETflow automatically and the process will be complete. CHANGE INTERFACE 10 The “Interface” button determines how you will control your valve. By default it is set to SET Bluetooth for provisioning. TAP on INTERFACE then TAP the “Itron” button to switch to the Itron Interface. The app will attempt to connect to the Itron radio. If the valve can connect, the app will tell you that you are connected and you can proceed. If the app tells you that it is unable to connect, try again, if the result is the same, please call SETflow Support before you proceed. SET PREMISE ID (if applicable) 11 If your organization uses Premise IDs, they must be import- ed into SETflow Enterprise by your Administrator prior to assigning to the valve. To assign a Premise ID, TAP on PREMISE and enter the Premise ID for the Service Location to link the Premise ID to the valve. TEST VALVE ROTATION 9 TAP on the POSITION button and CLOSE the valve to verify that the valve is working correctly. Complete testing by turning the Valve to the desired installation position. If the valve does not turn, please try again. If it still does not turn make sure the Serial Number in the mobile app match- es the serial number on the valve. If Serial Numbers match and the valve does not turn, please contact SETflow Support before moving forward with provisioning. TAKE A PICTURE & ENTER NOTES 13 In order for this valve to be geo-located on our SETflow Enterprise App MAPS screen please TAP on PICTURE to take a picture of the installation location. This will give other technicians an idea of the installation location should a problem arise. You can take multiple pictures. You can TAP on the Notes icon to add any relevant notes about the installation for future reference. Warning: Changes or modifications to this device not expressly approved by Smart Earth Technologies LLC (SET) could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limitsare designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful inerference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet different from t…

Text truncated - open the document above for the full version.

Cover Letter(s)

2752 E. Ponce de Leon Ave. Ste F. Decatur, GA. 30030 [email protected] | 877.515.7627 www.smartearthtechnologies.com 9-18-15 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir or Madam: I hereby appoint Sam Wismer at Advanced Compliance Solutions, Inc. to act as our agent in the preparation of an application for equipment authorization of FCC ID: 2AFJSSET100-2015 to the FCC Rules and Regulations. I certify that all exhibits contained within this filing properly describe the device or system for which authorization is sought. I further certify that appropriate arrangements have been made to assure that production units of this equipment bearing the name and FCC IDENTIFIER listed in this application will continue to comply with the Commission's requirements. I further certify by signature below that no party (per 47 CFR 1.2002(b)) to the application is subject to a denial of Federal benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Sincerely, Steve Askew Co-Founder/COO

Cover Letter(s)

2752 E. Ponce de Leon Ave. Ste F. Decatur, GA. 30030 [email protected] | 877.515.7627 www.smartearthtechnologies.com 9-18-15 CONFIDENTIALITY REQUEST Federal Communications Commission Date: Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: Smart Earth Technologies LLC respectfully requests confidentiality of certain materials provided with the submission of the SET 100 Smart Valve under FCC ID: 2AFJSSET100-2015 in accordance with 47 CFR 0.457(d) and 47 CFR 0.459. The confidentiality request applies to the Exhibits contained in this filing and included in the following files. 14-0039 – Schematics.pdf 14-0039 – System Block Diagram.pdf 14-0039 – Theory of Operation.pdf The SET 100 Smart Valve has been developed at considerable effort and expense by Smart Earth Technologies LLC. These items are considered as Trade Secrets and therefore public access to the proprietary material could possibly result in duplication of equipment that could severely damage the company's business advantage. I appreciate your assistance in this matter. Sincerely, Steve Askew Co-Founder/COO

Cover Letter(s)

5015 B. U. Bowman Dr. Buford, GA 30518 December 29, 2015 ACS TCB 5015 B.U. Bowman Drive Buford, GA 30518 Re: FCC ID: 2AFJSSET100-2015 To Whom It May Concern: The following application is submitted on behalf of our client, Smart Earth Technologies LLC, for evaluation of their model SET 100 Smart Valve for certification under FCC Part 15.249. The SET 100 Smart Valve is a battery powered, residential water chrome plated water valve operating in the frequency range 2402 – 2480 MHz. The SET 100 Smart Valve was tested in full to the requirements of the aforementioned rules and was found to be in compliance. Sincerely, Sam Wismer Vice President, Technology Advanced Compliance Solutions, Inc.

External Photos

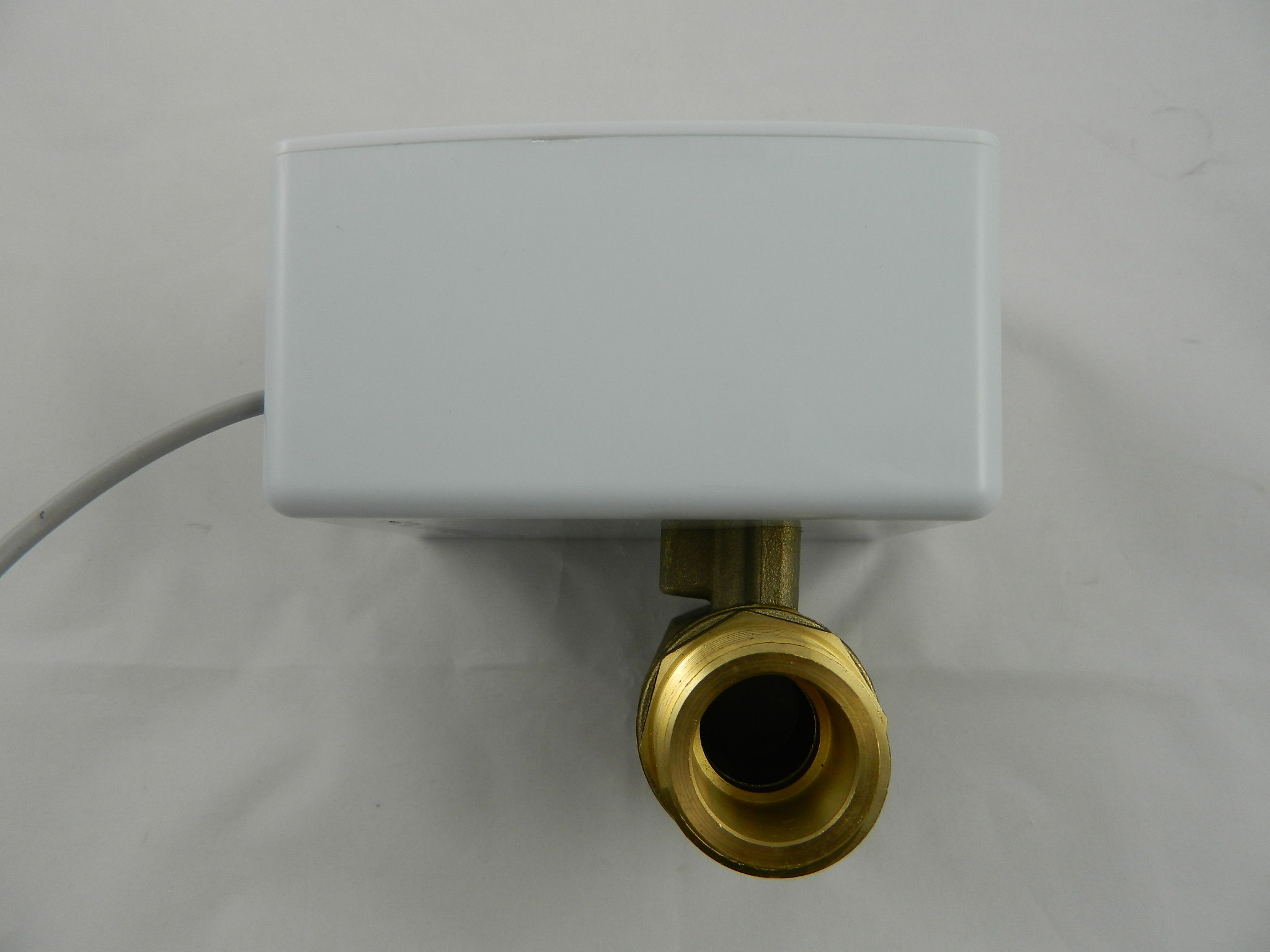

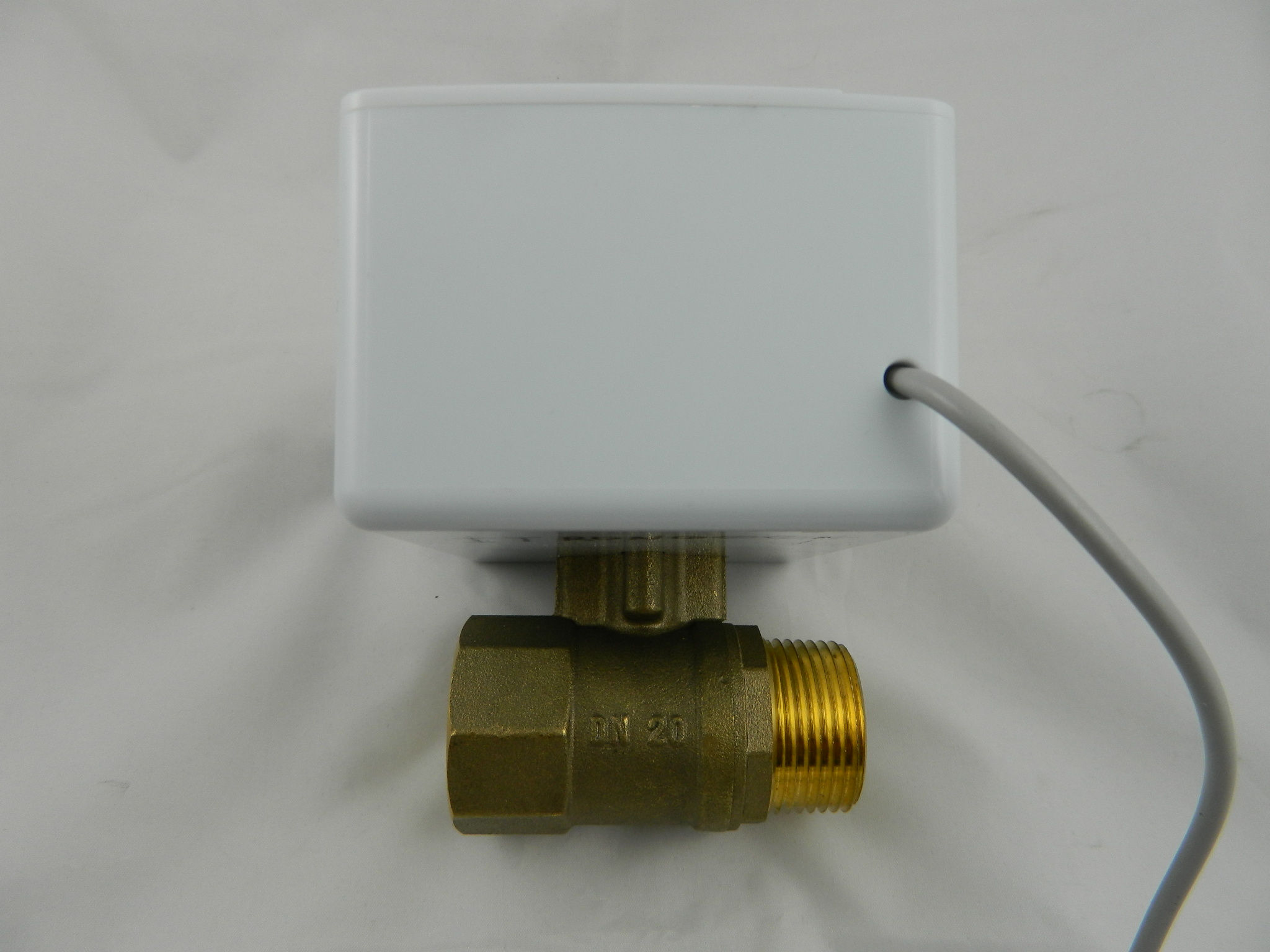

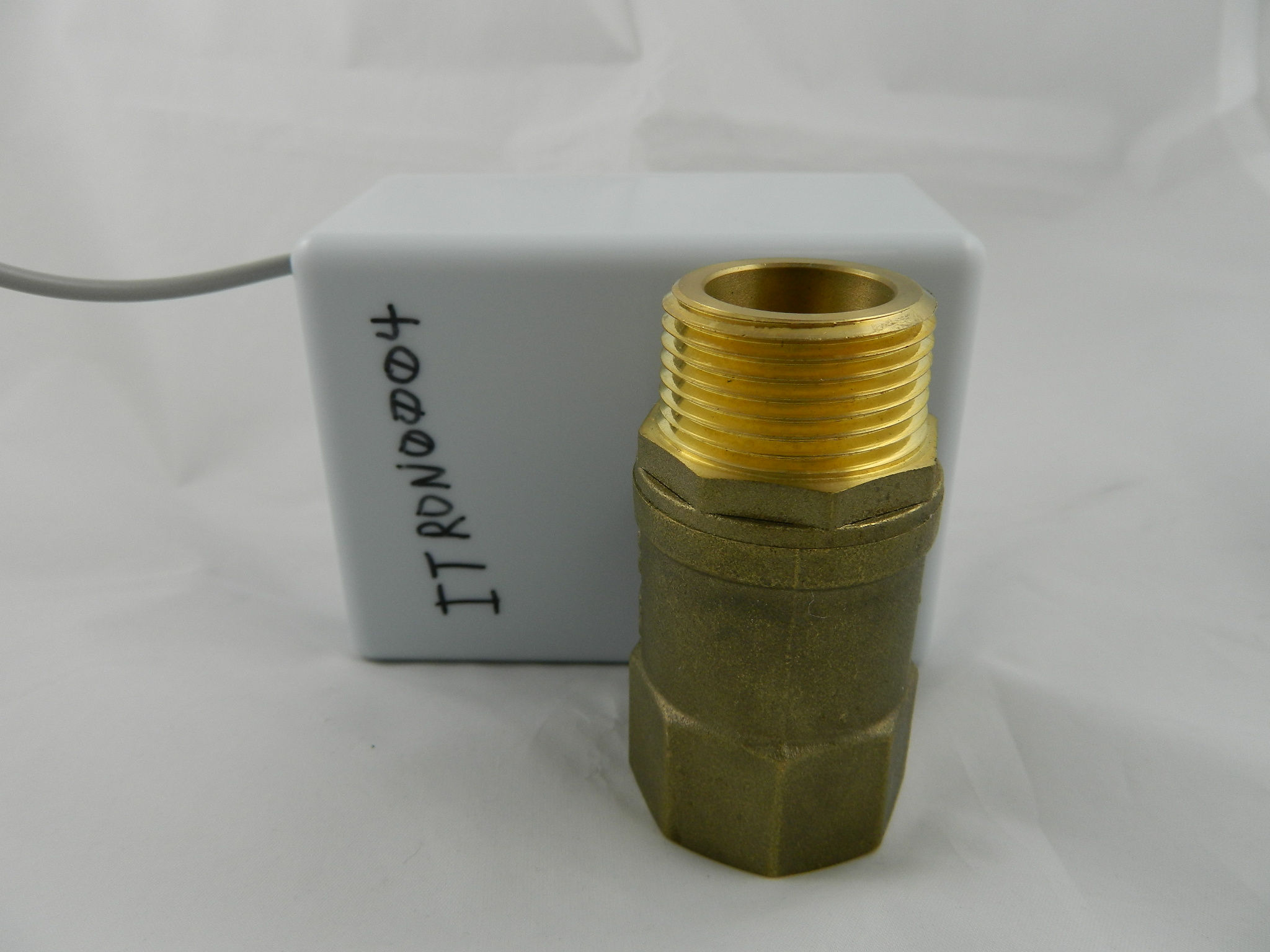

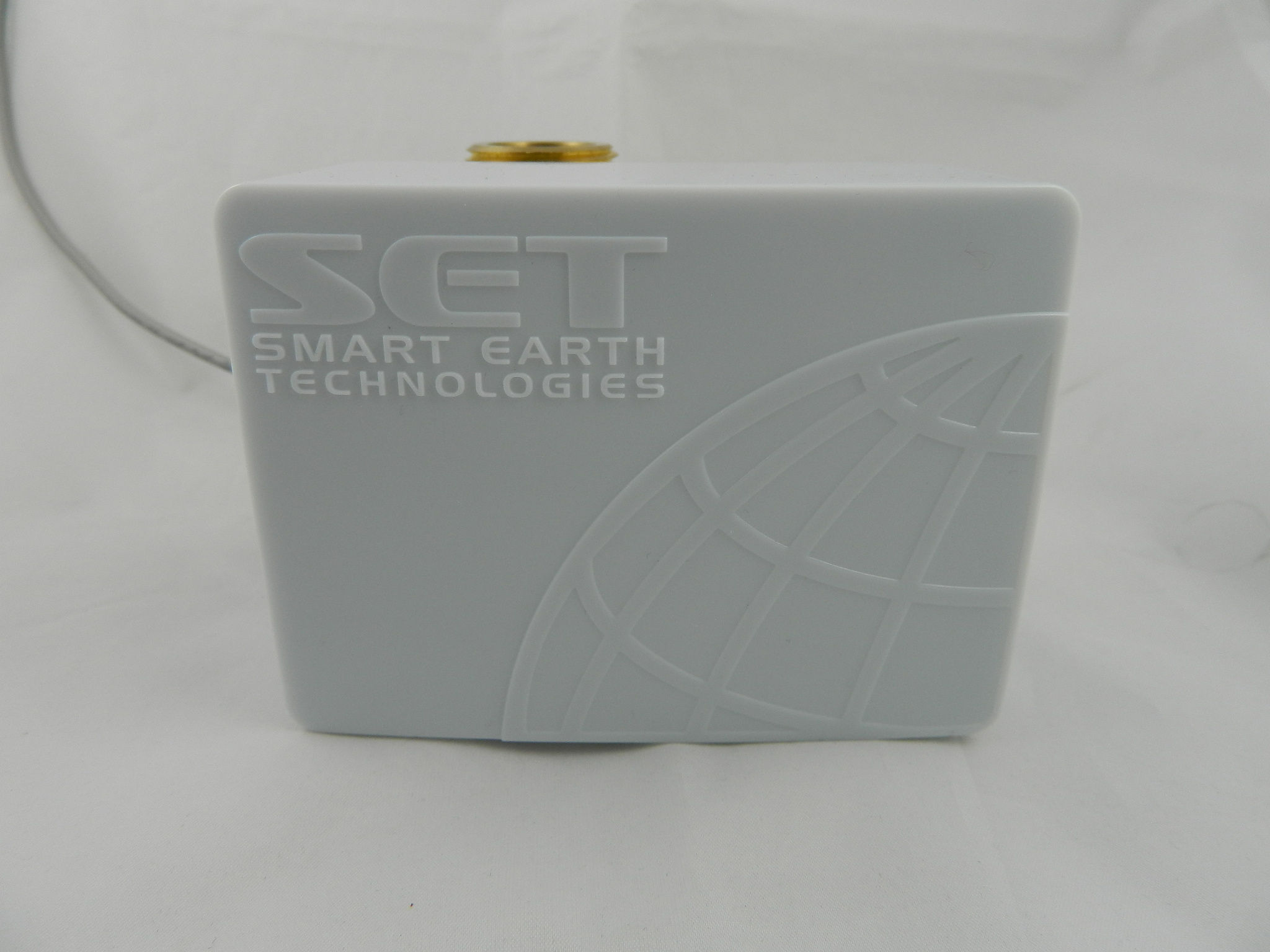

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: 2AFJSSET100-2015 FCC Rule Part: 15.249 ACS Project Number: 14-0039 Manufacturer: Smart Earth Technologies LLC Model: SET 100 Smart Valve External Photos Model: SET 100 Smart Valve FCC ID: 2AFJSSET100-2015 ACS Project: 14-0039 Advanced Compliance Solutions Page 2 Figure 1: External Photo Figure 2: External Photo Model: SET 100 Smart Valve FCC ID: 2AFJSSET100-2015 ACS Project: 14-0039 Advanced Compliance Solutions Page 3 Figure 3: External Photo Figure 4: External Photo Model: SET 100 Smart Valve FCC ID: 2AFJSSET100-2015 ACS Project: 14-0039 Advanced Compliance Solutions Page 4 Figure 5: External Photo Figure 6: External Photo

ID Label/Location Info

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: 2AFJSSET100-2015 FCC Rule Part: 15.249 ACS Project Number: 14-0039 Manufacturer: Smart Earth Technologies LLC Model: SET 100 Smart Valve

Internal Photos

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: 2AFJSSET100-2015 FCC Rule Part: 15.249 ACS Project Number: 14-0039 Manufacturer: Smart Earth Technologies LLC Model: SET 100 Smart Valve Internal Photos Model: SET 100 Smart Valve FCC ID: 2AFJSSET100-2015 ACS Project: 14-0039 Advanced Compliance Solutions Page 2 Figure 1: Internal Photo Figure 2: Internal Photo Model: SET 100 Smart Valve FCC ID: 2AFJSSET100-2015 ACS Project: 14-0039 Advanced Compliance Solutions Page 3 Figure 3: Internal Photo

Test Report

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Test Report FCC ID: 2AFJSSET100-2015 FCC Rule Part: 15.249 ACS Report Number: 14-0039.W03.1A Manufacturer: Smart Earth Technologies LLC Model: SET 100 Smart Valve Test Begin Date: September 2, 2014 Test End Date: September 8, 2014 Report Issue Date: December 29, 2015 FOR THE SCOPE OF ACCREDITATION UNDER LAB Code 200612-0 This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. Reviewed by: Kirby Munroe Director, Wireless Certifications ACS, Inc. This test report shall not be reproduced except in full. This report may be reproduced in part with prior written consent of ACS, Inc. The results contained in this report are representative of the sample(s) submitted for evaluation. This report contains 17 pages 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 TABLE OF CONTENTS 1 GENERAL ............................................................................................................................................ 3 1.1 PURPOSE .......................................................................................................................................... 3 1.2 PRODUCT DESCRIPTION ................................................................................................................... 3 1.3 TEST METHODOLOGY AND CONSIDERATIONS ................................................................................. 3 2 TEST FACILITIES .............................................................................................................................. 4 2.1 LOCATION ....................................................................................................................................... 4 2.2 LABORATORY ACCREDITATIONS/RECOGNITIONS/CERTIFICATIONS ................................................ 4 2.3 RADIATED EMISSIONS TEST SITE DESCRIPTION .............................................................................. 5 2.3.1 Semi-Anechoic Chamber Test Site .......................................................................................... 5 2.3.2 Open Area Tests Site (OATS) ................................................................................................. 6 2.4 CONDUCTED EMISSIONS TEST SITE DESCRIPTION ........................................................................... 7 3 APPLICABLE STANDARD REFERENCES .................................................................................... 7 4 LIST OF TEST EQUIPMENT ............................................................................................................ 8 5 SUPPORT EQUIPMENT .................................................................................................................... 9 6 EQUIPMENT UNDER TEST SETUP BLOCK DIAGRAM ........................................................... 9 7 SUMMARY OF TESTS ......................................................................................................................10 7.1 ANTENNA REQUIREMENT – FCC 15.203 ........................................................................................10 7.2 POWER LINE CONDUCTED EMISSIONS – FCC 15.207 .....................................................................10 7.2.1 Measurement Procedure ........................................................................................................10 7.3 20DB / 99% BANDWIDTH – FCC 15.215 ........................................................................................11 7.3.1 Measurement Procedure ........................................................................................................11 7.3.2 Measurement Results .............................................................................................................11 7.4 FUNDAMENTAL FIELD STRENGTH – FCC 15.249(A) .......................................................................13 7.4.1 Measurement Procedure ........................................................................................................13 7.4.2 Measurement Results .............................................................................................................13 7.5 RADIATED SPURIOUS EMISSIONS – FCC 15.249(A)(D)(E) ..............................................................14 7.5.1 Measurement Procedure ........................................................................................................14 7.5.2 Duty Cycle Correction ...........................................................................................................14 7.5.3 Measurement Results .............................................................................................................15 7.5.4 Sample Calculation: ..............................................................................................................16 8 CONCLUSION ....................................................................................................................................17 Model: SET 100 Smart Valve FCC ID: 2AFJSSET100-2015 ACS Report: 14-0039.W03.1A Advanced Compliance Solutions Page 3 1 GENERAL 1.1 Purpose The purpose of this report is to demonstrate compliance with Part 15 Subpart C of the FCC’s Code of Federal Regulations. 1.2 Product description The SET 100 Smart Valve is a battery powered, residential water chrome plated water valve. The valve is controlled by an electric motor, requiring approximately 41mA of current to turn the motor. Technical Information: Band of operation: 2402 – 2480 MHz Number of channels: 40 Modulation format: GFSK Antenna Type / Gain: PCB Antenna / 3.3dBi gain Operating Voltage: 3.6VDC (Lithium Ion Battery) Manufacturer Information: Smart Earth Technologies LLC 4651 Woodstock Rd Ste 208 Roswell, GA 30075 Test Sample Serial Number(s): Itron0004 Test Sample Condition: The test samples we…

Text truncated - open the document above for the full version.

Test Setup Photos

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: 2AFJSSET100-2015 FCC Rule Part: 15.249 ACS Project Number: 14-0039 Manufacturer: Smart Earth Technologies LLC Model: SET 100 Smart Valve Test Setup Photos Model: SET 100 Smart Valve FCC ID: 2AFJSSET100-2015 ACS Project: 14-0039 Advanced Compliance Solutions Page 2 Figure 1: Radiated Emissions Figure 2: Radiated Emissions Model: SET 100 Smart Valve FCC ID: 2AFJSSET100-2015 ACS Project: 14-0039 Advanced Compliance Solutions Page 3 Figure 3: Radiated Emissions

Contact Information

Applicant

Steve Askew(Co-Owner)
[email protected]8665157627Fax: 4043488348

Test Firm

TUV SUD America, Inc.Sam Wismer
[email protected]678-341-5924Fax: 678-341-5924

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz-
Confidentiality
Long Term
Grant Notes
Device must operate with a source-based, time-averaged duty cycle not to exceed 1.5% controlled via software or firmware.
