2AFKLHYF-KT601REMOTE CONTROL

FCC Section 15.105 Information to the user. NOTE: This equipment has been tested and found to comply with the limits for a lass B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. RF exposure statements

Specification of Antenna Model No.： YTAT Antenna Type： PCB Antenna Length Closed： Length Open： 110mm Diameter： 1mm No. of element： Antenna Gain： 0 dbi Total Resistance： Temperature： -20°C ~ 70°C

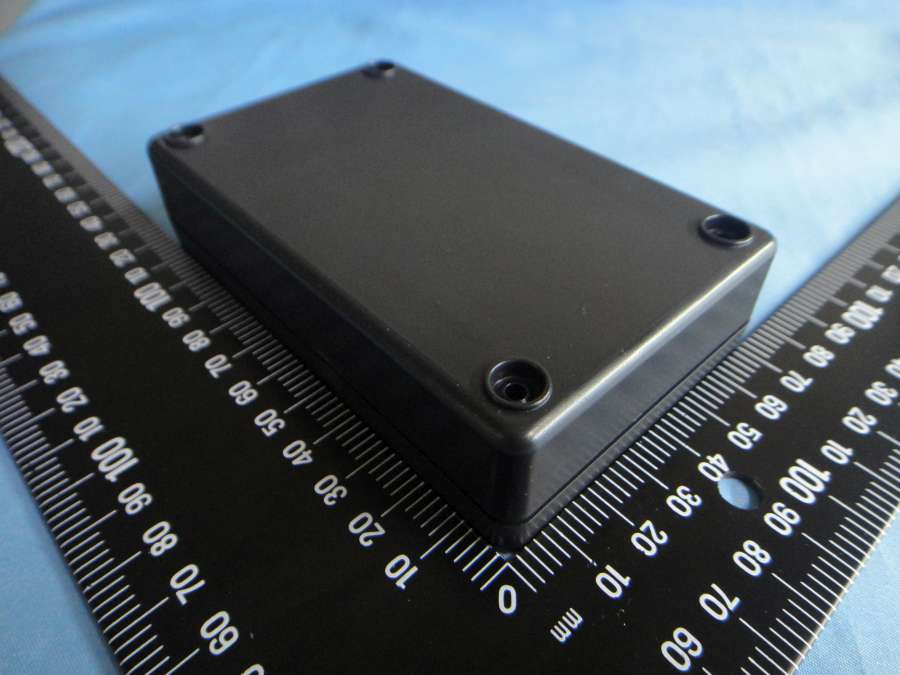

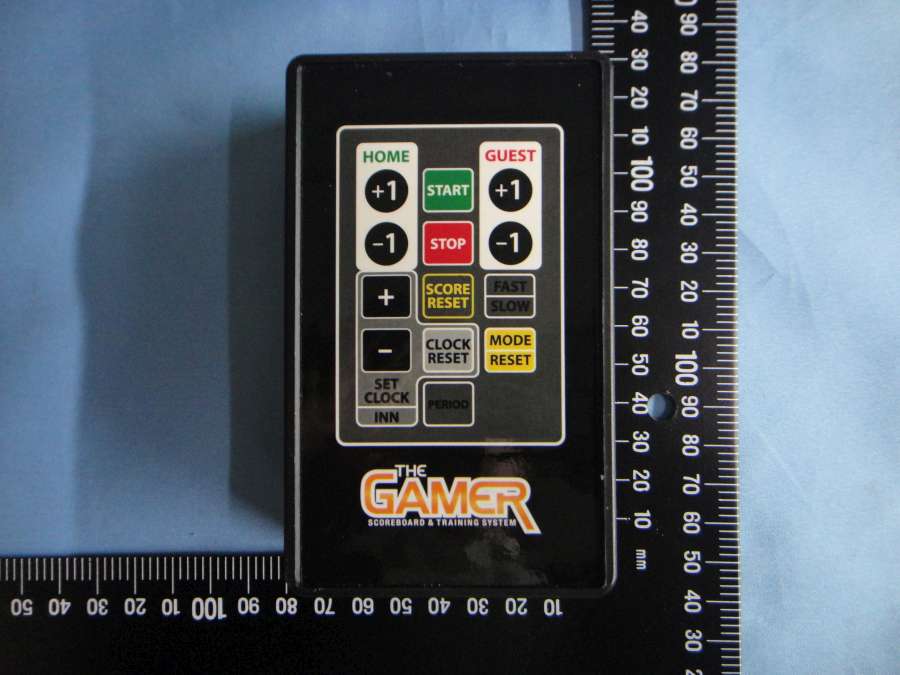

Compliance Certification Services Inc. Report No.：T150804N02 Date of Issue：September 2, 2015 Page A1 / 6 External Photo (Model: HYF-KT601 ) Compliance Certification Services Inc. Report No.：T150804N02 Date of Issue：September 2, 2015 Page A2 / 6

Label Drawing Label location REMOTE CONTROL Model: HYF-KT601 FCC ID: 2AFKLHYF-KT601 Made in Taiwan Label location

Compliance Certification Services Inc. Report No.：T150804N02 Date of Issue：September 2, 2015 Page A3 / 6 Internal Photo (Model: HYF-KT601 ) Compliance Certification Services Inc. Report No.：T150804N02 Date of Issue：September 2, 2015 Page A4 / 6 Antenna Compliance Certification Services Inc. Report No.：T150804N02 Date of Issue：September 2, 2015 Page A5 / 6 Compliance Certification Services Inc. Report No.：T150804N02 Date of Issue：September 2, 2015 Page A6 / 6

Operation of Description Emission principle When the transmitter detects when the key signal is input to, transmitted by the MCU I / O pins I want to send a packet of data, then the data transfer MCU's direct role in the SAW resonator formed OOK modulated signal. The SAW resonant circuit transistor is formed to resonate the carrier frequency, and then the signal transmitted by antenna Frequency Range 433.92MHz ±100 KHz Channel Number 1 Channel Type of Modulation OOK Modulation Transmit Data Rate TX Mode：1kbps Power Source 3.0 Vdc Antenna Type PCB Antenna, 0dBi

Compliance Certification Services Inc. FCC ID: 2AFKLHYF-KT601 Report No.: T150804N02-RP1 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1/ 28 FCC 47 CFR PART 15 SUBPART C ANSI C63.10: 2009 TEST REPORT For REMOTE CONTROL Model : HYF-KT601 Brand : YARTON, NIKI, GAMER Issued to YAR TON ENTERPRISE CO., LTD. 189, Yongke South. Rd., Yongkang, Tainan 71041, Taiwan R.O.C. Issued by Compliance Certification Services Inc. Tainan Lab. No.8,Jiucengling, Xinhua Dist., Tainan City 712, Taiwan (R.O.C.) TEL: (06) 580-2201 FAX: (06) 580-2202 Issued Date: September 2, 2015 Compliance Certification Services Inc. FCC ID: 2AFKLHYF-KT601 Report No.: T150804N02-RP1 Page 2/32 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 September 2, 2015 Initial Issue ALL Eva Lin Compliance Certification Services Inc. FCC ID: 2AFKLHYF-KT601 Report No.: T150804N02-RP1 Page 3/ 28 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .....................................................................................4 2. EUT DESCRIPTION..........................................................................................................5 3. TEST METHODOLOGY....................................................................................................6 3.1 EUT CONFIGURATION .................................................................................................6 3.2 EUT EXERCISE .............................................................................................................6 3.3 GENERAL TEST PROCEDURES ..................................................................................6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ......................................7 3.5 DESCRIPTION OF TEST MODES .................................................................................7 4. INSTRUMENT CALIBRATION .........................................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION.................................................................8 4.2 MEASUREMENT EQUIPMENT USED...........................................................................8 4.3 MEASUREMENT UNCERTAINTY .................................................................................9 5. FACILITIES AND ACCREDITATIONS ...........................................................................10 5.1 FACILITIES ..................................................................................................................10 5.2 EQUIPMENT ................................................................................................................10 5.3 TABLE OF ACCREDITATIONS AND LISTINGS ..........................................................10 5.4 TABLE OF ACCREDITATIONS AND LISTINGS ..........................................................11 6. SETUP OF EQUIPMENT UNDER TEST ........................................................................12 6.1 SETUP CONFIGURATION OF EUT ............................................................................12 6.2 SUPPORT EQUIPMENT ..............................................................................................12 7. FCC PART 15.231 REQUIREMENTS ............................................................................13 7.1 20 DB BANDWIDTH .....................................................................................................13 7.2 LIMIT OF TRANSMISSION TIME.................................................................................15 7.3 DUTY CYCLE...............................................................................................................18 7.4 CENTRAL FREQUNCY................................................................................................22 7.5 RADIATED EMISSIONS...............................................................................................24 7.6 POWERLINE CONDUCTED EMISSIONS ...................................................................34 8. APPENDIX 1 PHOTOGRAPHS OF TEST SETUP.........................................................35 Compliance Certification Services Inc. FCC ID: 2AFKLHYF-KT601 Report No.: T150804N02-RP1 Page 4/ 28 1. TEST RESULT CERTIFICATION Product: REMOTE CONTROL Model: HYF-KT601 Brand Name: YARTON, NIKI, GAMER Applicant: YAR TON ENTERPRISE CO., LTD. 189, Yongke South. Rd., Yongkang, Tainan 71041, Taiwan R.O.C. Manufacturer: YAR TON ENTERPRISE CO., LTD. 189, Yongke South. Rd., Yongkang, Tainan 71041, Taiwan R.O.C. Tested: August 6, 2015 ~ August 18, 2015 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C: 2012 ANSI C63.10 : 2009 No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10: 2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.207, 15.209 and Part 15.231. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Jeter Wu Assistant Manager Eric Huang Assistant Section Manager Compliance Certification Services Inc. FCC ID: 2AFKLHYF-KT601 Report No.: T150804N02-RP1 Page 5/ 28 2. EUT DESCRIPTION Product REMOTE CONTROL Model Number HYF-KT601 Brand Name YARTON, NIKI, GAMER Received Date August 4, 2015 Frequency Range 433.92 MHz ± 100 kHz Number of Channels 1 Channel Type of Modulation OOK Modulation Power Supply 3Vdc (Powered from battery) Antenna Type PCB antenna Gain: 0 dBi Temperature Range 0°C ~ +60°C Software Version V. 1 Hard…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID: 2AFKLHYF-KT601 Report No.: T150804N02-RP1 Page 35/ 28 8. APPENDIX 1 PHOTOGRAPHS OF TEST SETUP X-axis Compliance Certification Services Inc. FCC ID: 2AFKLHYF-KT601 Report No.: T150804N02-RP1 Page 36/ 28
