2AFKR-S86WIRELESS SPEAKER

ZEALOT-S86 ZEALOT-S86 ZEALOT-S86 √ X1 WIRELESS >2 X1 X1 >2 / X1 ＞2 FR 无线版本: 5.4 充电电压: DC 5V 工作电压: 7.4V 传输距离: 10m 频率范围: 20Hz-20KHz 喇叭: Φ79mm*2 信噪比: ≥85dB 失真: ≤1% 重量: 1.99kg 尺寸: 279*136*146mm Wireless version: 5.4 Charging voltage: DC 5V Working voltage: 7.4V Transmission distance: 10m Frequency range: 20Hz-20KHz Speaker: Φ79mm*2 SNR: ≥85dB Distortion: ≤1% Weight: 1.99kg Size: 279*136*146mm TECH SPEC 技术规格 ENCN Version Wireless: 5.4 Tension de charge: DC 5V CHaut-parleur: Φ79mm*2 Distance de transmission: 10 m Réponse en fréquence: 20Hz-20KHz Rapport signal sur bruit: ≥85dB Tension de fonctionnement: 7,4V Distorsion: ≤1% Poids: 1,99kg Taille: 279*136*146mm JP Wireless バージョン: 5.4 充電電圧: DC 5V スピーカー: Φ79mm*2 伝送距離: 約10m 周波数応答: 20Hz-20KHz 信号対雑音比: ≥85dB 動作電圧: 7.4V 歪み: ≤1% 重量: 1.99kg サイズ: 279*136*146mm Wireless-Version: 5.4 Ladespannung: DC 5V Lautsprecher: Φ79mm*2 Übertragungsreichweite: ca. 10m Frequenzgang: 20Hz-20KHz Signal-Rausch-Verhältnis: ≥85dB Betriebsspannung: 7,4V Verzerrung: ≤1% Gewicht: 1,99kg Größe: 279*136*146mm DE Versión Wireless: 5.4 Voltaje de entrada: DC 5V Altavoz: Φ79mm*2 Distancia de transmisión: 10m Respuesta de frecuencia: 20Hz-20KHz SNR: ≥85dB Voltaje de funcionamiento: 7,4V Distorsión:≤1% Peso: 1,99kg Dimensión: 279*136*146mm ESKO 무선 버전: 5.4 충전 전압: DC 5V 스피커: Φ79mm*2 작동 전압: 7.4V 전송 거리: 10m 주파수 범위: 20Hz-20KHz SNR: ≥ 85dB 왜곡: ≤1 % 무게: 1.99kg 크기: 279*136*146mm IT Versione Wireless: 5.4 Tensione di carica: DC 5V Tensione di esercizio: 7,4V Distanza di trasmissione: 10m Gamma di frequenza: 20Hz-20KHz Relatore: Φ79mm*2 SNR: ≥85dB Distorsione: ≤1% Peso: 1,99kg Dimensione: 279*136*146mm Wersja bezprzewodowa: 5.4 Napięcie ładowania: DC 5V Napięcie robocze: 7,4V Odległość transmisji: 10m Zakres częstotliwości: 20Hz-20KHz Głośnik: Φ79mm*2 SNR: ≥85dB Zniekształcenie: ≤1% Waga: 1,99kg Rozmiar: 279*136*146mm PL Versão sem fios: 5.4 Tensão de carregamento: DC 5V Tensão de trabalho: 7,4V Distância de transmissão: 10m Faixa de frequência: 20Hz-20KHz Alto-falante: Φ79mm*2 SNR: ≥85dB Distorção: ≤1% Peso: 1,99kg Tamanho: 279*136*146mm Vezeték nélküli verzió: 5.4 Töltési feszültség: DC 5V Üzemi feszültség: 7,4V Átviteli távolság: 10m Frekvenciatartomány:20Hz-20KHz Előadó: Φ79mm*2 SNR: ≥85dB Torzítás: ≤1% Súly: 1,99kg Méret: 279*136*146mm PTHU CZ Bezdrátová verze: 5.4 Nabíjecí napětí: DC 5V Pracovní napětí: 7,4V Vzdálenost přenosu: 10m Frekvenční rozsah: 20Hz-20KHz Mluvčí: Φ79mm*2 SNR: ≥85dB Deformace: ≤1% Hmotnost: 1,99kg Velikost: 279*136*146mm Trådløs version: 5.4 Ladespænding: DC 5V Arbejdsspænding: 7,4V Transmissionsafstand: 10m Frekvensområde: 20Hz-20KHz Højttaler: Φ79mm*2 SNR: ≥85dB Forvrængning: ≤1 % Vægt: 1,99 kg Størrelse: 279*136*146mm DK Langaton versio: 5.4 Latausjännite: DC 5V Käyttöjännite: 7,4V Lähetysetäisyys: 10m Taajuusalue: 20Hz-20KHz Kaiutin: Φ79mm*2 SNR: ≥85 dB Vääristymä: ≤1 % Paino: 1,99kg Koko: 279*136*146mm FINL Draadloze versie: 5.4 Laadspanning: DC 5V Werkspanning: 7.4V Transmissieafstand: 10m Frequentiebereik: 20Hz-20KHz Luidspreker: Φ79mm*2 SNR: ≥85dB Vervorming: ≤1% Gewicht: 1.99kg Afmetingen: 279*136*146mm EL Ασύρματη έκδοση: 5.4 Τάση φόρτισης: DC 5V Τάση λειτουργίας: 7,4V Απόσταση μετάδοσης: 10μ Εύρος συχνοτήτων: 20Hz-20KHz Ηχείο: Φ79mm*2 SNR: ≥85dB Παραμόρφωση: ≤1% Βάρος: 1,99 kg Διαστάσεις: 279*136*146mm Wireless versjon: 5.4 Charging voltage: DC 5V Arbeidsvoltage: 7.4V Transmission avstand: 10m Frekvensområde: 20Hz-20KHz Snakker: Φ79mm*2 SNR: ≥ 85dB Distorsjon: ≤1 Vekt: 1.99kg Størrelse: 279*136*146mm NO Kablosuz versiyon: 5.4 Şarj voltajı: DC 5V Çalışma voltajı: 7.4V İletim mesafesi: 10m Frekans aralığı: 20Hz-20KHz Hoparlör: Φ79mm*2 SNR: ≥85dB Bozulma: ≤1% Ağırlık: 1.99kg Boyut: 279*136*146mm TR SV Trådlös version: 5.4 Laddspänning: DC 5V Arbetsspänning: 7,4V Sändningsavstånd: 10m Frekvensområde: 20Hz-20KHz Högtalare: Φ79mm*2 SNR: ≥85dB Förvrängning: ≤1 % Vikt: 1,99kg Storlek: 279*136*146mm 5.4الإصدار اللاسلكي: فولت تیار مستمر5جھد الشحن: فولت7.4جھد التشغیل: أمتار10مسافة الإرسال: كیلوھرتز20 ھرتز - 20نطاق التردد: Φ79 :مكبر الصوت2مم* نسبة الإشارة إلى الضوضاء: 85≤ دیسیبل التشویھ: 1%≥ الوزن: 1.99 كجم 146 مم×136×المقاس: 279 AR Беспроводная версия: 5.4 Напряжение зарядки: DC 5V Рабочее напряжение: 7,4V Расстояние передачи: 10 м Диапазон частот: 20 Гц-20 кГц Динамик: Φ79 мм*2 SNR: ≥85 дБ Искажения: ≤1% Вес: 1,99 кг Размер: 279*136*146 мм RU Versi nirkabel: 5.4 Tegangan pengisian daya: DC 5V Tegangan kerja: 7.4V Jarak transmisi: 10m Jangkauan frekuensi: 20Hz-20KHz Speaker: Φ79mm*2 SNR: ≥85dB Distorsi: ≤1% Berat: 1.99kg Ukuran: 279*136*146mm ID 5.4 :תיטוחלא הסרג DC 5V :הניעט חתמ 7.4V :הדובע חתמ רטמ 10 :רודיש קחרמ 20Hz-20KHz :םירדת חווט 2*Φ79mm :לוקמר ≥85dB :שערל תוא סחי ≤1% :תוויע ג"ק 1.99 :לקשמ מ 146*136*279 :לדוג"מ HE MM ကြိုးမဲ့ဗားရှင်း- 5.4 အားသွင်းဗို့အား- DC 5V အလုပ်လုပ်သောဗို့အား: 7.4V ဂီယာအကွာအဝေး: 10 မီတာ ကြိမ်နှုန်းအပိုင်းအခြား- 20Hz-20KHz စပီကာ- Φ79mm*2 SNR- ≥85dB ပုံပျက်ခြင်း- ≤1% အလေးချိန်: 1.99 ကီလိုဂရမ် အရွယ်အစား- 279*136*146mm OFFON X1 长按: 断开无线设备连接 Long press: Wireless will disconnect the current connection Pressione e segure: a conexão sem fio será desconectada WIRELESS CONNECTION CONEXÃO SEM FIO 无线连接 Piscando Flashing 闪烁 Iluminação Lighting 常亮 80%-100% 40%-70% ≤ 30% Green light is on Luz verde acesa 绿灯亮 Yellow light is on Luz amarela acesa 黄灯亮 Red light is on Luz vermelha acesa 红灯亮 Battery | Bateria | 电量 Battery indicator light Indicador de bateria 电量指示灯 EQUALIZER EQUALIZADOR 均衡器 Bass | Graves | 重低音 Green light is on 绿灯亮 Luz verde acesa Vocal | Vocal | 人声 Orange light is on 橙灯亮 Luz laranja acesa Normal | Normal | 正常音 开关机 ON/OFF LIGAR/DESLIGAR PACKING CONTENT CONTEÚDO DA EMBALAGEM 包装内容 POWER ON LIGAR 开关机 MODE SWITCH ALTERAÇÃO DE MODO 模式转换 PLAY TOCAR 播放控制 灯光模式切换 Light mode switch Alternar modo de luz 开关灯效 Light ON/OFF Ligar / Desligar luz LIGHT LUZ 灯光模式 CHARGE CARREGAR 充电 QUICK START GUIDE | GUIA DE INÍCIO RÁPIDO | 快速入门指南 WIRELESS SPEAKER | CAIXA DE SOM SEM FIO | 无线音箱 ZEALOT-S86 1 m 打开手机无线连接列表﹐使 "ZEALOT-S86" 处于未连接状态 。 单击任意一台机子的 键有提示音﹐表示单击成功﹐再次听到提示音表示…

Text truncated - open the document above for the full version.

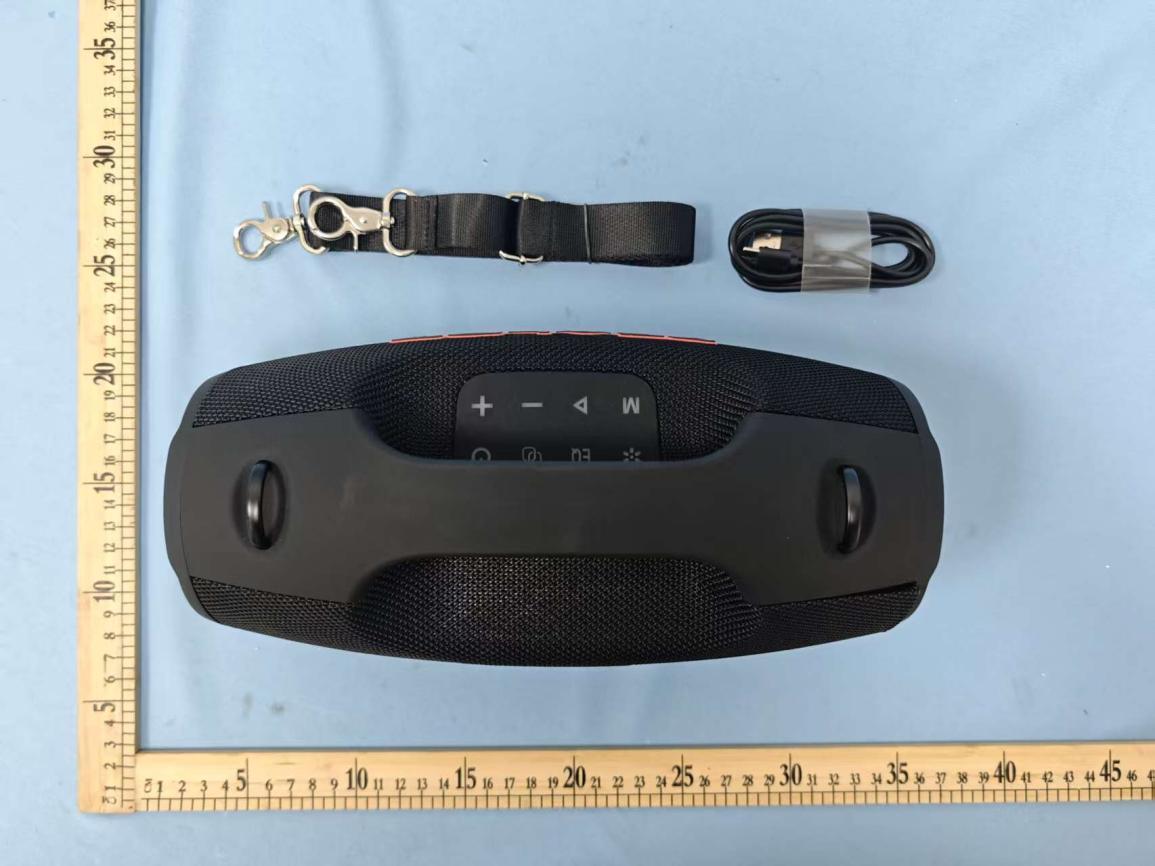

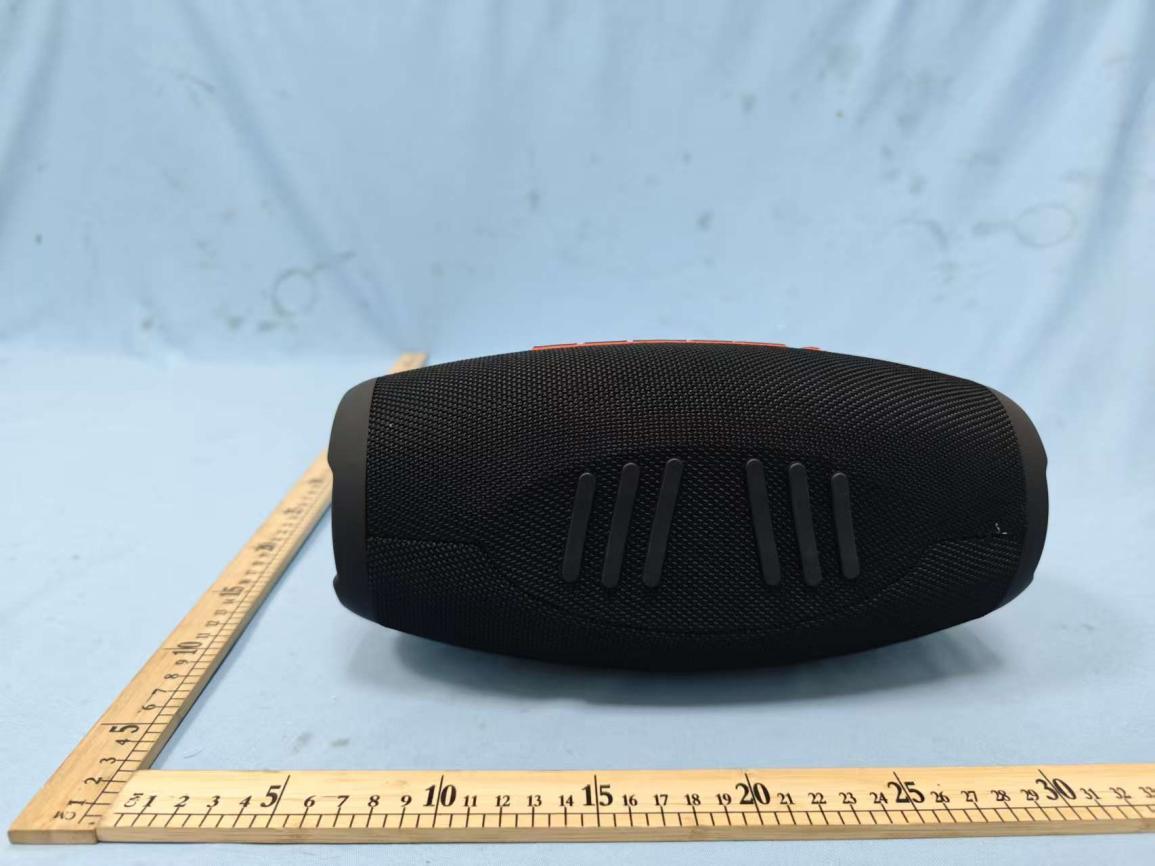

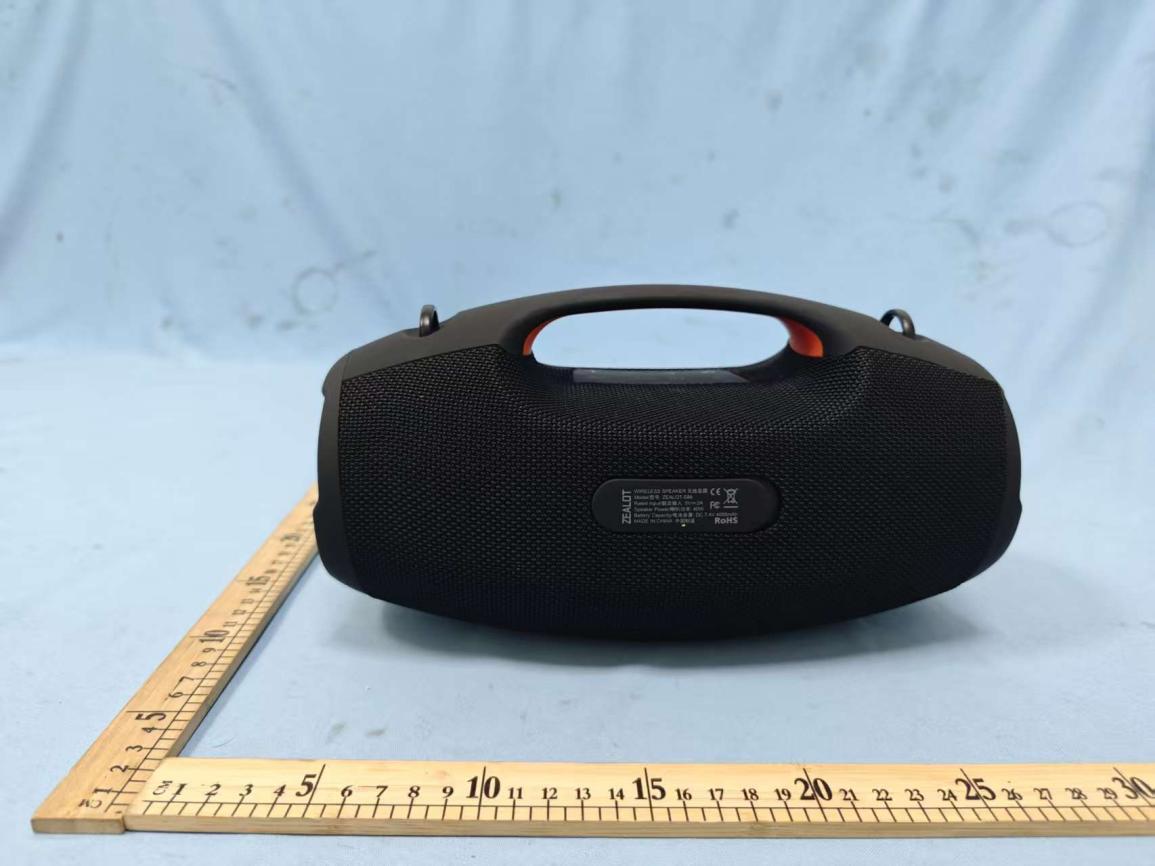

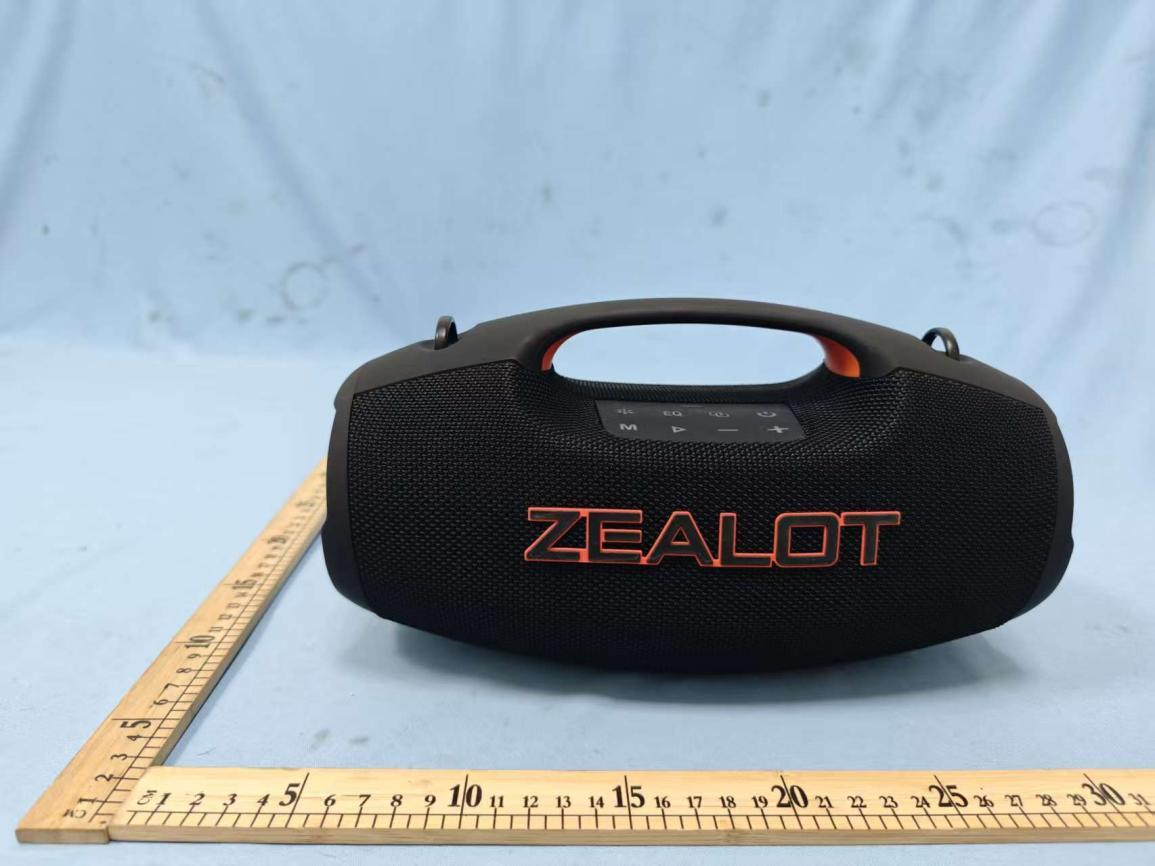

DNT2603270971R01822-P01Page: 1 of 4 PHOTOGRAPHSOFEUT FCCID:2AFKR-S86 ExternalPhotos ExternalPhotos DNT2603270971R01822-P01Page: 2 of 4 ExternalPhotos ExternalPhotos DNT2603270971R01822-P01Page: 3 of 4 ExternalPhotos ExternalPhotos DNT2603270971R01822-P01Page: 4 of 4 ExternalPhotos --END--

FCCID:2AFKR-S86

DNT2603270971R01822-P01Page: 1 of 6 PHOTOGRAPHSOFEUT FCCID:2AFKR-S86 InternalPhotos InternalPhotos DNT2603270971R01822-P01Page: 2 of 6 InternalPhotos InternalPhotos DNT2603270971R01822-P01Page: 3 of 6 InternalPhotos InternalPhotos DNT2603270971R01822-P01Page: 4 of 6 InternalPhotos InternalPhotos DNT2603270971R01822-P01Page: 5 of 6 InternalPhotos InternalPhotos DNT2603270971R01822-P01Page: 6 of 6 InternalPhotos --END--

DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] RFExposureEvaluationReport ApplicationNo.: DNT2603270971R01822-02224 Applicant: SHENZHENZEALOTDIGITALTECHNOLOGYCO.,LTD AddressofApplicant: 401,501,building3,NO.8,YongTaiRoad,eastDistrict,BaiShixia Community,FuYongstreet,BaoAnDistrict,ShenZhenChina EUTDescription: WIRELESSSPEAKER ModelNo.: ZEALOT-S86 FCCID: 2AFKR-S86 Powersupply: InputDC5V;DC7.4Vfromrechargeablelithium-ionbattery TradeMark: ZEALOT Standards: 47CFRPart2.1093 FCCKDB447498D04v01 DateofReceipt: 2026/3/27 DateofTest: 2026/3/28to2026/4/7 DateofIssue: 2026/4/8 TestResult:PASS PreparedBy:(TestingEngineer) ReviewedBy:(ProjectEngineer) ApprovedBy:(Manager) Note:Ifthereisanyobjectiontotheresultsinthisreport,pleasesubmitawritteninquirytothecompanywithin15daysfromthedateof receivingthereport.Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,andisissuedbythecompanyinaccordance withtherequirementsofthe"ConditionsofIssuanceofTestReports"printedintheattachedpage.Unlessotherwisestated,theresults presentedinthisreportonlyapplytothesamplestestedthistime.Partialreproductionofthisreportisnotallowedunlessapprovedbythe companyinwriting. ReportNo.:DNT2603270971R01822-02224Date：April8,2026Page： 2 / 8 DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] ReportReviseRecord ReportVersionReviseTimeIssuedDateValidVersionNotes V1.0/April8,2026ValidOriginalReport ReportNo.:DNT2603270971R01822-02224Date：April8,2026Page： 3 / 8 DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] Contents RFEXPOSUREEVALUATIONREPORT.............................................................................................................................................1 1GENERALINFORMATION..................................................................................................................................................................4 1.1TESTLOCATION.................................................................................................................................................................................4 1.2GENERALDESCRIPTIONOFEUT.....................................................................................................................................................4 1.3TESTFACILITY...................................................................................................................................................................................5 1.4MEASUREMENTUNCERTAINTY(95%CONFIDENCELEVELS,K=2)....................................................................................................5 2RFEXPOSUREEVALUATION............................................................................................................................................................6 2.1RFEXPOSURECOMPLIANCEREQUIREMENT..................................................................................................................................6 ReportNo.:DNT2603270971R01822-02224Date：April8,2026Page： 4 / 8 DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] 1GeneralInformation 1.1TestLocation Company:DongguanDNTestingCo.,Ltd Address: No.1,WestFourthStreet,SouthXinfaRoad,WushaLiwu,Chang＇anTown, DongguanCity,GuangdongP.R.China Testengineer:GaliLin 1.2GeneralDescriptionofEUT Manufacturer: SHENZHENZEALOTDIGITALTECHNOLOGYCO.,LTD AddressofManufacturer: 401,501,building3,NO.8,YongTaiRoad,eastDistrict,BaiShixiaCommunity,Fu Yongstreet,BaoAnDistrict,ShenZhenChina Factory: SHENZHENZEALOTDIGITALTECHNOLOGYCO.,LTD AddressofFactory: 401,501,building3,NO.8,YongTaiRoad,eastDistrict,BaiShixiaCommunity,Fu Yongstreet,BaoAnDistrict,ShenZhenChina EUTDescription: WIRELESSSPEAKER ModelNo.: ZEALOT-S86 AdditionalModel(s): / PowerSupply: InputDC5V;DC7.4Vfromrechargeablelithium-ionbattery TradeMark: ZEALOT HardwareVersion:V1.0 SoftwareVersion:V1.0 ChipType: JL7016C8 Serialnumber PR2603270971R01822 SampleType:PortableDevice,Module,MobileDevice AntennaType: External,Integrated AntennaPorts: Ant1,Ant2,Ant3 AntennaGain: Providedbyapplicant 0dBi Note: *Sincetheabovedataand/orinformationisprovidedbytheclientrelevantresultsorconclusionsofthis reportareonlymadeforthesedataand/orinformation,DNTisnotresponsiblefortheauthenticity,integrity andresultsofthedataandinformationand/orthevalidityoftheconclusion. ReportNo.:DNT2603270971R01822-02224Date：April8,2026Page： 5 / 8 DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] 1.3TestFacility Thetestfacilityisrecognized,certified,oraccreditedbythefollowingorganizations: LabA: •FCC,USA DesignationNumber:CN1348 •A2LA(CertificateNo.7050.01) DONGGUANDNTESTINGCO.,LTD.isaccreditedbytheAmericanAssociationforLaboratory Accreditation(A2LA).CertificateNo.7050.01. •Innovation,ScienceandEconomicDevelopmentCanada DONGGUANDNTESTINGCO.,LTD.EMCLaboratoryhasbeenrecognizedbyISEDasanaccreditedtesting laboratory.CABidentifierisCN0149. IC#:30755. . 1.4MeasurementUncertainty(95%confidencelevels,k=2) No.ItemMeasurementUncertainty 1 20dBEmissionBandwidth±0.0196% 2 CarrierFrequencySeparation±1.9% 3 NumberofHoppingChannel±1.9% 4 TimeofOccupancy±0.028% 5 MaxPeakConductedOutputPower±0.743dB 6 Band-edgeSpuriousEmission±1.328dB 7 ConductedRFSpuriousEmission 9KHz-1GHz:±0.746dB 1GHz-26GHz:±1.328dB No.ItemMeasurementUncertainty 1ConductionEmission±3.0dB(150kHzto30M…

Text truncated - open the document above for the full version.

ANTENNASPECIFICATION Summary ITEM ANTSPEC ModelName2.4GANT Antennaplate PCBantenna Center Frequency HorizontalVertical 2400MHz2450MHz2500MHz2400MHz2450MHz2500MHz -1.66-0.840-6.16-3.65-2.21 MAX.Gain0dBi PolarizationHorizontalandVertical Impedance50Ohm Manufacturer:SHENZHENZEALOTDIGITALTECHNOLOGYCO.,LTD Addressof Manufacturer: 401,501,building3,NO.8,YongTaiRoad,eastDistrict,BaiShixia Community,FuYongstreet,BaoAnDistrict,ShenZhenChina AntennaPhoto Horizontal:2400MHz2450MHz2500MHz Power(dBm) Max:0Min:-40Scale:5/div Frequency Gain(dBi) (MHz) Max. Min Avg. 2400-1.66179-30.2813-8.78713 2450-0.847811-38.7595-7.87812 2500-0.000000-23.6329-6.99139 Vertical:2400MHz2450MHz2500MHz Power(dBm) Max:0Min:-30Scale:5/div Frequency Gain(dBi) (MHz) Max. Min Avg. 2400-6.1623-23.1425-12.5295 2450-3.6534-26.2866-10.6699 2500-2.21101-29.4381-9.58526

Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] FCC Test Report Application No.: DNT2603270971R01822-02226 Applicant: SHENZHEN ZEALOT DIGITAL TECHNOLOGY CO.,LTD Address of Applicant: 401,501,building 3,NO.8,Yong Tai Road,east District,BaiShi xia Community,Fu Yong street,BaoAn District,ShenZhen China EUT Description: WIRELESS SPEAKER Model No.: ZEALOT-S86 FCC ID: 2AFKR-S86 Power Supply: Input DC 5V; DC 7.4V from rechargeable lithium-ion battery Trade Mark: ZEALOT Standards: 47 CFR Part 2, Subpart J 47 CFR Part 15, Subpart C ANSI C63.10: 2020 Date of Receipt: 2026/3/27 Date of Test: 2026/3/28 to 2026/4/7 Date of Issue: 2026/4/8 Test Result:PASS Prepared By:(Testing Engineer) Reviewed By:(Project Engineer) Approved By:(Manager) Note: If there is any objection to the results in this report, please submit a written inquiry to the company within 15 days from the date of receiving the report. The test report is effective only with both signature and specialized stamp, and is issued by the company in accordance with the requirements of the "Conditions of Issuance of Test Reports" printed in the attached page. Unless otherwise stated, the results presented in this report only apply to the samples tested this time. Partial reproduction of this report is not allowed unless approved by the company in writing. Report No.: DNT2603270971R01822-02226Date：April 8, 2026Page： 2 / 64 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] Report Revise Record Report VersionRevise TimeIssued DateValid VersionNotes V1.0/April 8, 2026ValidOriginal Report Report No.: DNT2603270971R01822-02226Date：April 8, 2026Page： 3 / 64 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 1 Test Summary Test ItemTest RequirementTest MethodTest ResultResult Antenna Requirement15.203/247(b)--Clause 3.1PASS 20dB Emission Bandwidth15.247 (a)(1)ANSI C63.10: 2020Clause 3.2PASS Conducted Peak Output Power 15.247 (b)(1)ANSI C63.10: 2020Clause 3.3PASS Carrier Frequencies Separation 15.247 (a)(1)ANSI C63.10: 2020Clause 3.4PASS Dwell Time15.247 (a)(1)ANSI C63.10: 2020Clause 3.5PASS Hopping Channel Number15.247 (a)(1)ANSI C63.10: 2020Clause 3.6PASS Band-edge for RF Conducted Emissions 15.247(d)ANSI C63.10: 2020Clause 3.7PASS RF Conducted Spurious Emissions 15.247(d)ANSI C63.10: 2020Clause 3.8PASS Radiated Spurious emissions 15.247(d); 15.205/15.209 ANSI C63.10: 2020Clause 3.9PASS Restricted bands around fundamental frequency (Radiated Emission) 15.247(d); 15.205/15.209 ANSI C63.10: 2020Clause 3.10PASS AC Power Line Conducted Emission 15.207ANSI C63.10: 2020Clause 3.11PASS Note: 1. “N/A” denotes test is not applicable in this test report. Report No.: DNT2603270971R01822-02226Date：April 8, 2026Page： 4 / 64 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] Contents 1 Test Summary..................................................................................................................................................................3 2 General Information..........................................................................................................................................................5 2.1 Test Location..........................................................................................................................................................5 2.2 General Description of EUT...................................................................................................................................5 2.3 Test Environment...................................................................................................................................................6 2.4 Channel List........................................................................................................................................................... 6 2.5 Power Setting of Test Software............................................................................................................................. 7 2.6 Assistant equipment used for test..........................................................................................................................7 2.7 Description of Support Units.................................................................................................................................. 7 2.8 Test Facility............................................................................................................................................................7 2.9 Equipment List....................................................................................................................................................... 8 2.10 Measurement Uncertainty (95% confidence levels, k=2).................................................................................. 10 3 Test results and Measurement Data..............................................................................................................................11 3.1 Antenna Requirement..........................................................................................................................................11 3.2 20dB Emission Bandwidth................................................................................................................................... 12 3.3 Conducted Output Power.........................…

Text truncated - open the document above for the full version.

Report No.: DNT2603270971R01822-02226Date：April 8, 2026Page： 49 / 64 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] Test Graphs DH5-Ant1-Hop-PASS 2DH5-Ant1-Hop-PASS 3DH5-Ant1-Hop-PASS Report No.: DNT2603270971R01822-02226Date：April 8, 2026Page： 50 / 64 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] Appendix F: Band edge measurements Test Result TestModeAntennaChNameFreq(MHz) RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5Ant1 Low2402-2.57-46.89≤-22.57PASS High2480-2.46-52.33≤-22.46PASS LowHop_2402-2.39-49.55≤-22.39PASS HighHop_2480-2.06-51.59≤-22.06PASS 2DH5Ant1 Low2402-2.25-50.16≤-22.25PASS High2480-2.12-52.94≤-22.12PASS LowHop_2402-2.18-48.2≤-22.18PASS HighHop_2480-1.95-51.7≤-21.95PASS 3DH5Ant1 Low2402-3.20-48.48≤-23.2PASS High2480-1.84-52.67≤-21.84PASS LowHop_2402-7.61-48.34≤-27.61PASS HighHop_2480-2.61-51.21≤-22.61PASS Report No.: DNT2603270971R01822-02226Date：April 8, 2026Page： 51 / 64 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2480-PASS DH5-Ant1-Hop_2402-PASS Report No.: DNT2603270971R01822-02226Date：April 8, 2026Page： 52 / 64 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] DH5-Ant1-Hop_2480-PASS 2DH5-Ant1-2402-PASS 2DH5-Ant1-2480-PASS Report No.: DNT2603270971R01822-02226Date：April 8, 2026Page： 53 / 64 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 2DH5-Ant1-Hop_2402-PASS 2DH5-Ant1-Hop_2480-PASS 3DH5-Ant1-2402-PASS Report No.: DNT2603270971R01822-02226Date：April 8, 2026Page： 54 / 64 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 3DH5-Ant1-2480-PASS 3DH5-Ant1-Hop_2402-PASS 3DH5-Ant1-Hop_2480-PASS Report No.: DNT2603270971R01822-02226Date：April 8, 2026Page： 55 / 64 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] Appendix G: Conducted Spurious Emission Test Result TestModeAntennaFreq(MHz) FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5Ant1 2402 Reference0.010.01---PASS 30~10000.01-58.17≤-19.99PASS 1000~265000.01-44.47≤-19.99PASS 2441 Reference0.050.05---PASS 30~10000.05-59.47≤-19.95PASS 1000~265000.05-42.62≤-19.95PASS 2480 Reference-0.50-0.50---PASS 30~1000-0.50-59.21≤-20.5PASS 1000~26500-0.50-35.73≤-20.5PASS 2DH5Ant1 2402 Reference0.050.05---PASS 30~10000.05-60.31≤-19.95PASS 1000~265000.05-44≤-19.95PASS 2441 Reference0.080.08---PASS 30~10000.08-59.53≤-19.92PASS 1000~265000.08-42.87≤-19.92PASS 2480 Reference-0.20-0.20---PASS 30~1000-0.20-59.58≤-20.2PASS 1000~26500-0.20-46.07≤-20.2PASS 3DH5Ant1 2402 Reference-0.07-0.07---PASS 30~1000-0.07-59.04≤-20.07PASS 1000~26500-0.07-44.09≤-20.07PASS 2441 Reference-0.11-0.11---PASS 30~1000-0.11-59.45≤-20.11PASS 1000~26500-0.11-42.61≤-20.11PASS 2480 Reference-0.22-0.22---PASS 30~1000-0.22-59.71≤-20.22PASS 1000~26500-0.22-46.15≤-20.22PASS Report No.: DNT2603270971R01822-02226Date：April 8, 2026Page： 56 / 64 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] Test Graphs DH5-Ant1-2402-0~Reference-PASS DH5-Ant1-2402-30~1000-PASS DH5-Ant1-2402-1000~26500-PASS Report No.: DNT2603270971R01822-02226Date：April 8, 2026Page： 57 / 64 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] DH5-Ant1-2441-0~Reference-PASS DH5-Ant1-2441-30~1000-PASS DH5-Ant1-2441-1000~26500-PASS Report No.: DNT2603270971R01822-02226Date：April 8, 2026Page： 58 / 64 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] DH5-Ant1-2480-0~Reference-PASS DH5-Ant1-2480-30~1000-PASS DH5-Ant1-2480-1000~26500-PASS Report No.: DNT2603270971R01822-02226Date：April 8, 2026Page： 59 / 64 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 2DH5-Ant1-2402-0~Reference-PASS 2DH5-Ant1-2402-30~1000-PASS 2DH5-Ant1-2402-1000~26500-PASS Report No.: DNT2603270971R01822-02226Date：April 8, 2026Page： 60 / 64 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 2DH5-Ant1-2441-0~Reference-PASS 2DH5-Ant1-2441-30~1000-PASS 2DH5-Ant1-2441-1000~26500-PASS Report No.: DNT2603270971R01822-02226Date：April 8, 2026Page： 61 / 64 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Comm…

Text truncated - open the document above for the full version.

DNT2603270971R01822-P01Page: 1 of 3 PHOTOGRAPHSOFEUT FCCID:2AFKR-S86 AntennaTerminalTestView DNT2603270971R01822-P01Page: 2 of 3 ConductedEmissionTestView RadiatedEmissionTestView|(Below1G) DNT2603270971R01822-P01Page: 3 of 3 RadiatedEmissionTestView|(Above1G) RadiatedEmissionTestView|(Above1G) --END--
