2AFKX-HG50TWireless Gaming Headset

02 03040506 0807 PRODUCT USER MANUAL    EN - User manual FR - Manuel de l’Utilisateur BR - Manual do usuário 8 Use Wired connection: Plug in the Type - C to 3.5mm audio cable, and the headset will automatically power off and switch to the wired mode. Note: The headset will automatically power off if idle for 5 minutes. BT connection: Press and hold the mode button for 3 seconds to switch to BT mode; the blue light flashes. Enable BT on your device, search for “HG50T”, then tap to connect. Power Button Power on: long press for 3 seconds Power off: long press for 5 seconds Play/pause: short press Hang up/answer: short press Reject the call: long press for 2 seconds Voice assistant Features - Using 50mm speaker driver, stereo sound, excellent sound quality effect. - Self-adjusting headbeam for a secure, comfortable fit. - Hidden adjustable boom microphone, free to adjust the microphone angle design. Function Overview 1.Power button 2.Mode button 3.Lighting button 4.Volume wheel 5.Indicator 6.Type-C port 7.Hidden microphone Technical Specifications Driver size: Φ50mm Impedance: 20 Ω±15% Sensitivity: 114dB ±3dB Frequency response: 20Hz-20kHz Microphone size: Φ4.0*1.5mm Directivity: Omnidirectional Transmission range: ≥10m Battery capacity: 3.7V/1000mAh Working time: 50HRGB OFF) Charging port: Type-C Backlight mode:Dynamic RGB System requirements BT support: Windows/MAC/IOS/Android 3.5mm AUX-IN support: PS5/PS4/PC press twice Features - Altavoz de 50 mm, sonido estéreo con excelente calidad de audio. - Diadema autoajustable para un ajuste seguro y cómodo. - Micrófono de brazo oculto y ajustable, ángulo libremente regulable. Function Overview 1. Botón de encendido 2. Botón Mode 3. Botón de iluminación 4. Rueda de volumen 5. Indicador LED 6. Puerto USB-C 7. Micrófono oculto Technical Specifications Tamaño del transductor: Φ50 mm Impedancia: 20 Ω ±15 % Sensibilidad: 114 dB ±3 dB Respuesta de frecuencia: 20 Hz – 20 kHz Tamaño del micrófono: Φ4,0*1,5 mm Directividad: omnidireccional Alcance de transmisión: ≥10 m Features - Driver de 50 mm, som estéreo com excelente qualidade de áudio. - Arco autoajustável para um ajuste seguro e confortável. - Microfone de haste oculto e ajustável, ângulo livremente regulável. Function Overview 1. Botão liga/desliga 2. Botão Mode 3. Botão de iluminação 4. Controle de volume 5. Indicador LED 6. Porta USB-C 7. Microfone oculto Technical Specifications Tamaño del transductor: Φ50 mm Impedancia: 20 Ω ±15 % Sensibilidad: 114 dB ±3 dB Respuesta de frecuencia: 20 Hz – 20 kHz Tamaño del micrófono: Φ4,0*1,5 mm Directividad: omnidireccional Alcance de transmisión: ≥10 m Capacidad de la batería: 3,7 V / 1000 mAh Tiempo de funcionamiento: 50 h (RGB apagado) Puerto de carga: Type-C Modo de retroiluminación: RGB dinámico System requirements Suporte a 2,4G e BT: Windows / macOS / iOS / Android Suporte a AUX-IN 3,5 mm: PS5 / PS4 / PC Utilização Conexão com fio Conecte o cabo de áudio USB-C para 3,5 mm. O fone se desliga automaticamente e entra no modo com fio. Observação: O fone se desliga automaticamente após 5 minutos de inatividade. Conexão BT Mantenha o botão Mode por 3 segundos para mudar para o modo BT; o LED azul pisca. Ative o Bluetooth no dispositivo, busque por « HG50T » e toque para conectar. Botão de ligar/desligar Ligar: pressionar por 3 segundos Desligar: pressionar por 5 segundos Reproduzir/pausar: pressionar rapidamente Desligar/atender: pressionar rapidamente 7 6 1 2 3 4 5 10 09 11 EN EU Declaration of Conformity - Hereby, MARVO SHENZHEN TECHNOLOGY CO. LTD., declares that the equipment type HG50T is in compliance with Directives 2011/65/EU, 2015/863/EU, 2014/53/EU, 2014/30/EU.The full text of the EU declaration of conformity is available via the product tab at www.marvo.pro. The WEEE symbol (the crossed-out wheeled bin) usage indicates that this product is not a household waste. Appropriate waste management aids in avoiding consequences, which are harmful for people and environment and result from dangerous materials used in the device, as well as, improper storage and processing of such equipment. • Use as intended, improper usage may break the device. • Non-authorized repairs or disassembly voids the warranty and may damage the product. • Dropping or hitting the device may lead to device being damaged, scratched or flawed in other way. • Do not use the product in low and high temperatures,strong magnetic fields and damp or dusty surroundings. • The safe product, conforming to the EU requirements. • The product is made in accordance with RoHS European standard. • This product comes with a limited warranty, subject to local regulations and the policies of the authorized distributor. FCC STATEMENT: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relo…

Text truncated - open the document above for the full version.

ShenzhenMarkTradingCo.,Ltd 6thFloor,BuildingA,Dongfangyayuan,ChentianCommunities,Xixiang,Baomin2nd, Bao'anDistrict,ShenzhenChina Date:2026/09/17 FCCID:2AFKX-HG50T DearSir/Madam, We,ShenzhenMarkTradingCo.,LtdHerebydeclaresthefollowingstatementforFederal CommunicationsCommission,allmodelsarejustnameandcolordifferences,motherboard, PCBcircuitboard,chip,electroniccomponentsisallthesame: Productname:WirelessGamingHeadset Modelno.: HG50T,HG51T,HG52T,HG53T,HG55T,HG56T,HG57T,HG58T,HG59T,HG60T,HG61T,HG62T,HG63T ,HG65T,HG66T,HG67T,HG68T,HG69T,HG70T,HG71T,HG96T Sincerely, Name/Title:WuYaoPing/Manager Company:ShenzhenMarkTradingCo.,Ltd Address:6thFloor,BuildingA,Dongfangyayuan,ChentianCommunities,Xixiang, Baomin2nd,Bao'anDistrict,ShenzhenChina Phone:+86-755-27496655 Fax:+86-755-27497699 E-Mail:[email protected]

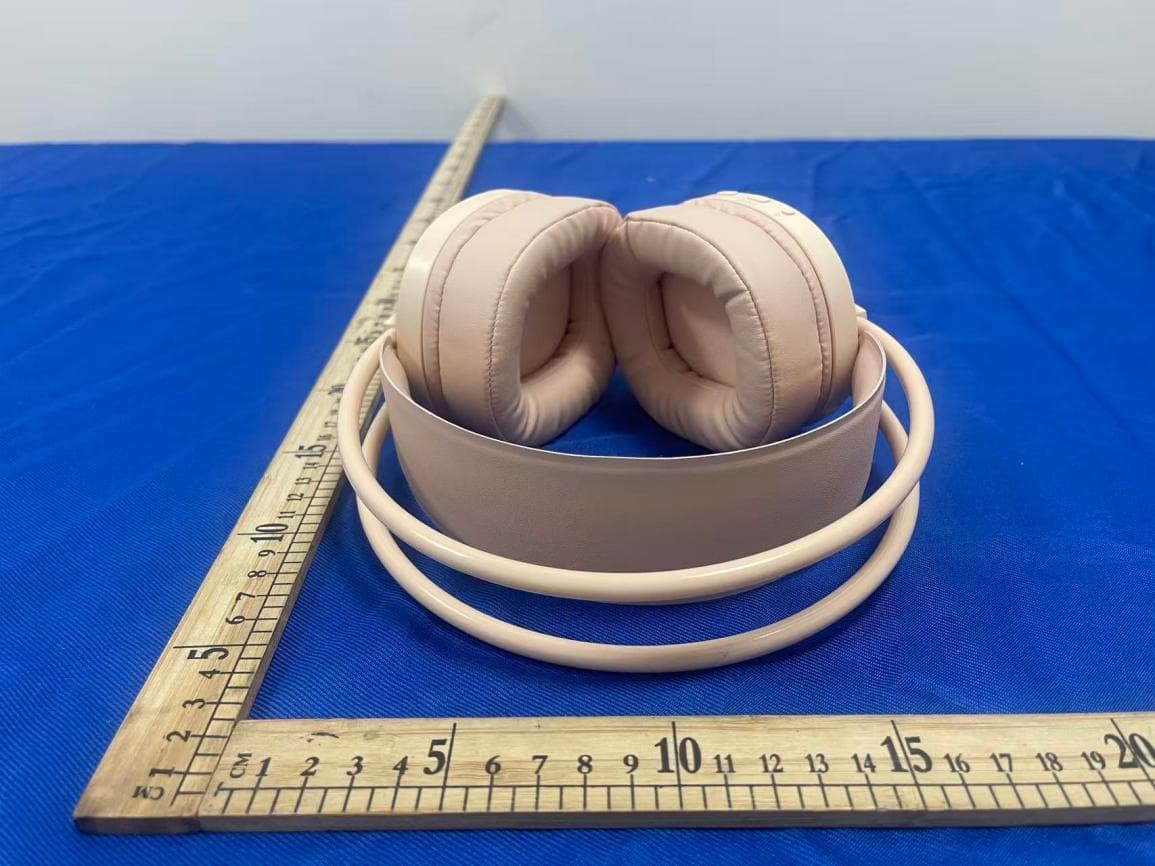

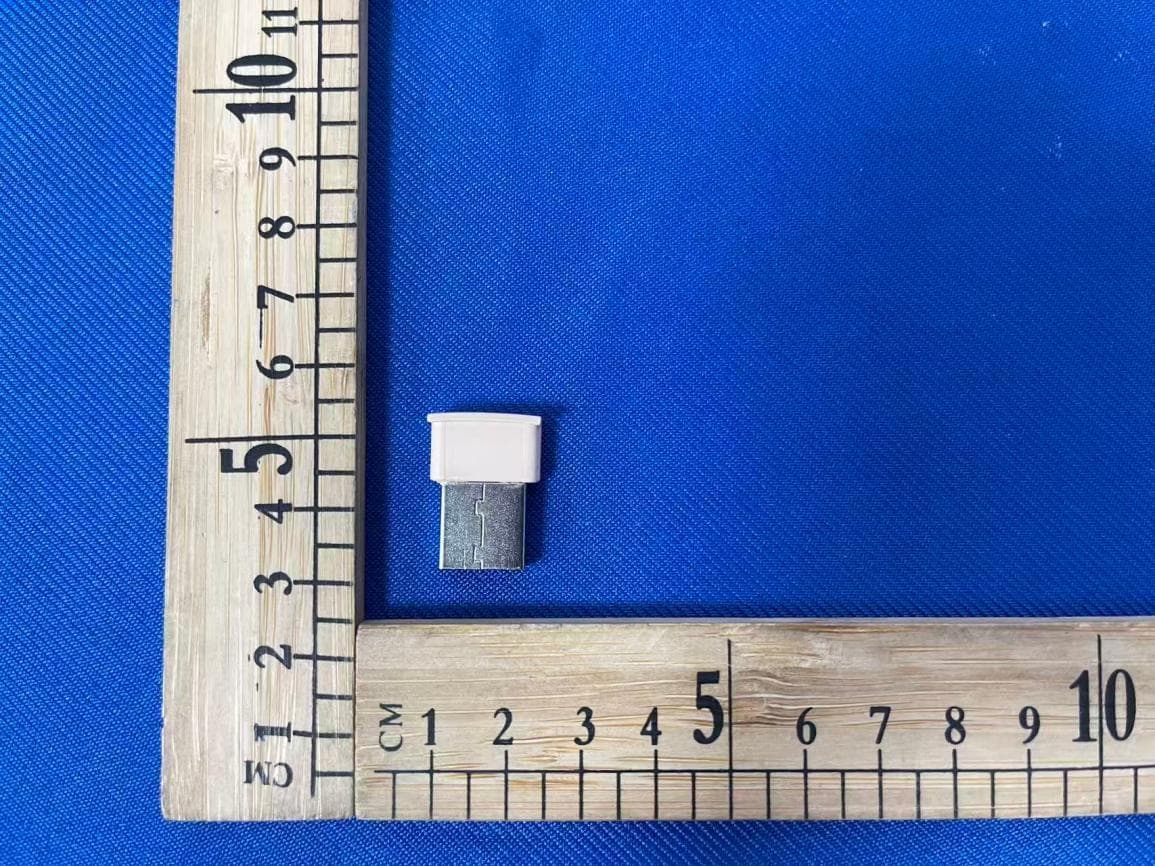

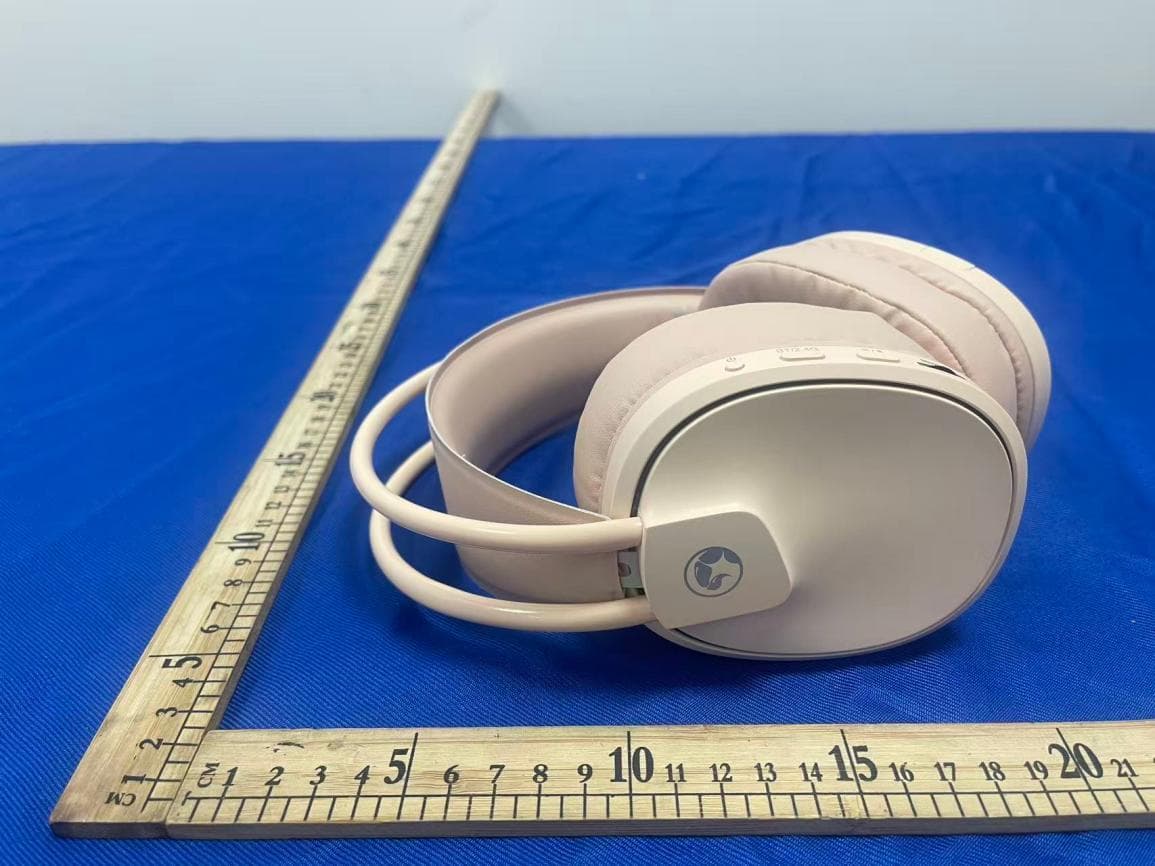

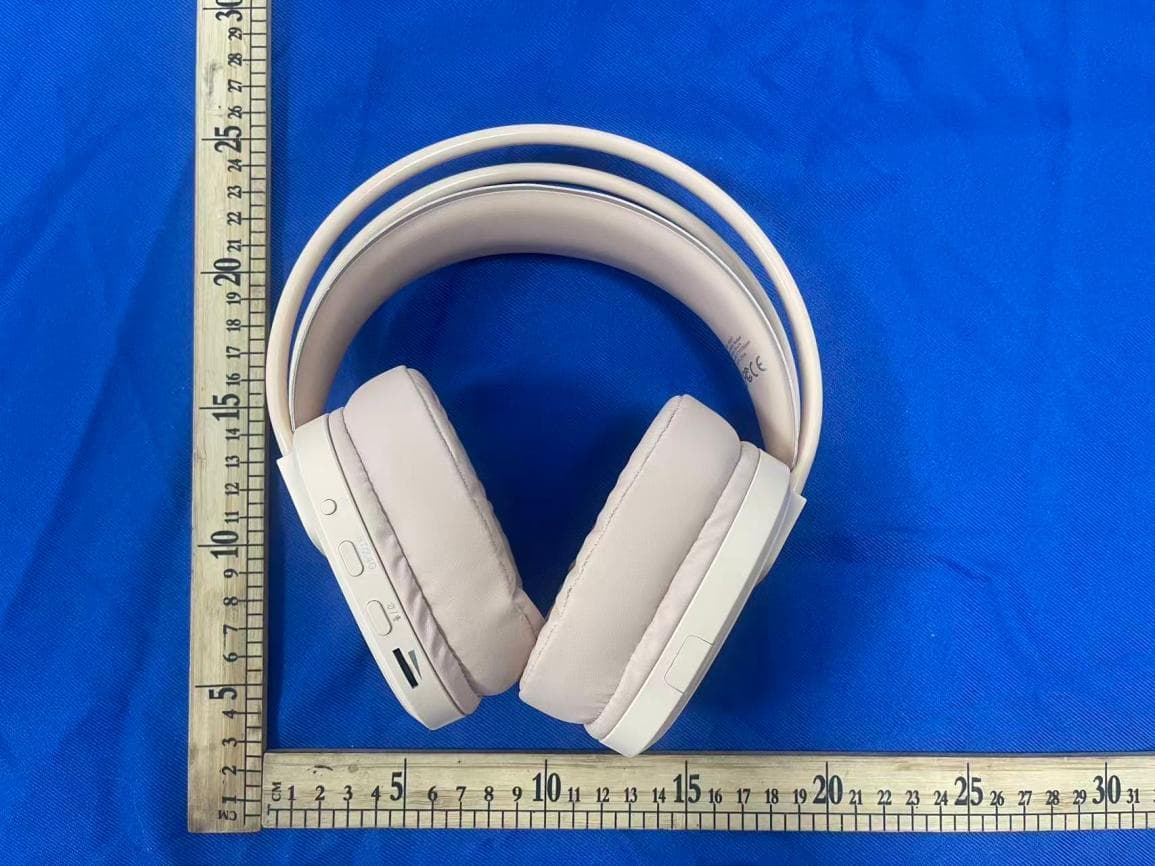

DNT2608126274R12947-P01Page: 1 of 3 PHOTOGRAPHSOFEUT FCCID:2AFKX-HG50T ExternalPhotos ExternalPhotos DNT2608126274R12947-P01Page: 2 of 3 ExternalPhotos ExternalPhotos DNT2608126274R12947-P01Page: 3 of 3 ExternalPhotos ExternalPhotos --END--

FCCID:2AFKX-HG50T

DNT2608126274R12947-P01Page: 1 of 4 PHOTOGRAPHSOFEUT FCCID:2AFKX-HG50T InternalPhotos InternalPhotos DNT2608126274R12947-P01Page: 2 of 4 InternalPhotos InternalPhotos DNT2608126274R12947-P01Page: 3 of 4 InternalPhotos InternalPhotos DNT2608126274R12947-P01Page: 4 of 4 InternalPhotos InternalPhotos --END--

GuangdongDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Tel:+86-769-88087383E-mail:[email protected] RFExposureEvaluationReport ApplicationNo.: DNT2608126274R12947-16594 Applicant: ShenzhenMarkTradingCo.,Ltd AddressofApplicant: 6thFloor,BuildingA,Dongfangyayuan,ChentianCommunities,Xixiang, Baomin2nd,Bao'anDistrict,ShenzhenChina EUTDescription: WirelessGamingHeadset ModelNo.: HG50T AdditionalModel(s): HG51T,HG52T,HG53T,HG55T,HG56T,HG57T,HG58T,HG59T,HG60T, HG61T,HG62T,HG63T,HG65T,HG66T,HG67T,HG68T,HG69T,HG70T, HG71T,HG96T FCCID: 2AFKX-HG50T PowerSupply: Input:DC5V;DC3.7Vfromrechargeablelithium-ionbattery TradeMark: Marvo Standards: 47CFRPart2.1093 FCCKDB447498D04v01 DateofReceipt: 2026/08/12 DateofTest: 2026/08/13to2026/08/27 DateofIssue: 2026/08/31 TestResult:PASS PreparedBy:(TestingEngineer) ReviewedBy:(ProjectEngineer) ApprovedBy:(Manager) Note:Ifthereisanyobjectiontotheresultsinthisreport,pleasesubmitawritteninquirytothecompanywithin15daysfromthedateof receivingthereport.Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,andisissuedbythecompanyinaccordance withtherequirementsofthe"ConditionsofIssuanceofTestReports"printedintheattachedpage.Unlessotherwisestated,theresults presentedinthisreportonlyapplytothesamplestestedthistime.Partialreproductionofthisreportisnotallowedunlessapprovedbythe companyinwriting. ReportNo.:DNT2608126274R12947-16594Date：August31,2026Page： 2 / 8 GuangdongDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Tel:+86-769-88087383E-mail:[email protected] ReportReviseRecord ReportVersionReviseTimeIssuedDateValidVersionNotes V1.0/August31,2026ValidOriginalReport ReportNo.:DNT2608126274R12947-16594Date：August31,2026Page： 3 / 8 GuangdongDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Tel:+86-769-88087383E-mail:[email protected] Contents RFEXPOSUREEVALUATIONREPORT.............................................................................................................................................1 1GENERALINFORMATION..................................................................................................................................................................4 1.1TESTLOCATION.................................................................................................................................................................................4 1.2GENERALDESCRIPTIONOFEUT.....................................................................................................................................................4 1.3TESTFACILITY...................................................................................................................................................................................5 1.4MEASUREMENTUNCERTAINTY(95%CONFIDENCELEVELS,K=2)....................................................................................................5 2RFEXPOSUREEVALUATION............................................................................................................................................................6 2.1RFEXPOSURECOMPLIANCEREQUIREMENT..................................................................................................................................6 ReportNo.:DNT2608126274R12947-16594Date：August31,2026Page： 4 / 8 GuangdongDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Tel:+86-769-88087383E-mail:[email protected] 1GeneralInformation 1.1TestLocation Company:GuangdongDNTestingCo.,Ltd Address: No.1,WestFourthStreet,SouthXinfaRoad,WushaLiwu,Chang＇anTown, DongguanCity,GuangdongP.R.China Testengineer:GaliLin 1.2GeneralDescriptionofEUT Manufacturer: ShenzhenMarkTradingCo.,Ltd AddressofManufacture: 6thFloor,BuildingA,Dongfangyayuan,ChentianCommunities,Xixiang, Baomin2nd,Bao'anDistrict,ShenzhenChina ProductName: WirelessGamingHeadset ModelNo.: HG50T AdditionalModel: HG51T,HG52T,HG53T,HG55T,HG56T,HG57T,HG58T,HG59T,HG60T, HG61T,HG62T,HG63T,HG65T,HG66T,HG67T,HG68T,HG69T,HG70T, HG71T,HG96T PowerSupply: Input:DC5V;DC3.7Vfromrechargeablelithium-ionbattery TradeMark: Marvo HardwareVersion:V1.0 SoftwareVersion:V1.0 Serialnumber:PR2608126274R12947 ChipType: AC7106F8 SampleType:PortableDevice,Module,MobileDevice AntennaType: External,Integrated AntennaPorts: Ant1,Ant2,Ant3 AntennaGain: Providedbyapplicant -0.68dBi Note: *Sincetheabovedataand/orinformationisprovidedbytheclientrelevantresultsorconclusionsofthis reportareonlymadeforthesedataand/orinformation,DNTisnotresponsiblefortheauthenticity,integrityand resultsofthedataandinformationand/orthevalidityoftheconclusion. *Allmodelsarejustnameandcolordifferences,motherboard,PCBcircuitboard,chip,electroniccomponent sisallthesame. ReportNo.:DNT2608126274R12947-16594Date：August31,2026Page： 5 / 8 GuangdongDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Tel:+86-769-88087383E-mail:[email protected] 1.3TestFacility Thetestfacilityisrecognized,certified,oraccreditedbythefollowingorganizations: LabA: •FCC,USA DesignationNumber:CN1348 •A2LA(CertificateNo.7050.01) GUANGDONGDNTESTINGCO.,LTD.isaccreditedbytheAmericanAssociationforLaboratory Accreditation(A2LA).CertificateNo.7050.01. •Innovation,ScienceandEconomicDevelopmentCanada GUANGDONGDNTESTINGCO.,LTD.EMCLaboratoryhasbeenrecognizedbyISEDasanaccreditedtesting laboratory.CABidentifierisCN0149. IC#:30755. . 1.4MeasurementUncertainty(95%confidencelevels,k=2) No.ItemMeasurementUncertainty 1 20dBEmissionBandwidth±0.0196% 2 CarrierFrequencySeparation±1.9% 3 NumberofHoppingChannel±1.9% 4 TimeofOccupancy±0.028% 5 MaxPeakConductedOutputPower±0.743dB 6 Band-edgeSpuriousEmission±1.328dB 7 ConductedRFSpuriousEmission 9KHz-1GHz:±0.746dB 1GHz-26GHz:±1.…

Text truncated - open the document above for the full version.

InvertedFAntennaSpecification Summary ITEM ANTSPEC ModelName2.4GANT Center Frequency HorizontalVertical 2400MHz2400MHz2500MHz2400MHz2400MHz2500MHz -1.73-0.84-0.68-6.15-3.70-2.32 MAX.Gain -0.68 dBi Polarization HorizontalandVertical AzimuthBeam Pattern Omni-directional Impedance 50Ohm AntennaLength38.20mm Manufacture ShenZhenDeXinChengTechnologyCO.，LTD Address A3Building,2ndFloorEast,ChangfengRoad,349, ChangzhenCommunity,YuangangStreet,Guangming, Shenzhen,Guangdong(DeXingChengTechnology) AntennaPhoto&Length(mm) Horizontal:2400MHz2450MHz2500MHz Power(dBm) Max:0Min:-40Scale:5/div Frequency (MHz) Gain(dBi) Max Min Avg 2400-1.73178-30.0815-8.48713 2450-0.845801-38.5605-7.88012 2500-0.685586-24.0318-6.79139 Vertical:2400MHz2450MHz2500MHz Power(dBm) Max:0Min:-30Scale:5/div Frequency (MHz) Gain(dBi) Max Min Avg 2400-6.1530-24.1420-13.0295 2450-3.7054-26.5836-10.6700 2500-2.32122-30.4301-9.70536

Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Tel:+86-769-88087383E-mail: [email protected] FCC Test Report Application No.: DNT2608126274R12947-16592 Applicant: Shenzhen Mark Trading Co.,Ltd Address of Applicant: 6th Floor, Building A, Dongfangyayuan, Chentian Communities, Xixiang, Baomin 2nd, Bao'an District, Shenzhen China EUT Description: Wireless Gaming Headset Model No.: HG50T Additional Model(s): HG51T,HG52T,HG53T,HG55T,HG56T,HG57T,HG58T,HG59T,HG60T, HG61T,HG62T,HG63T,HG65T,HG66T,HG67T,HG68T,HG69T,HG70T, HG71T,HG96T FCC ID: 2AFKX-HG50T Power Supply: Input:DC 5V;DC 3.7V from rechargeable lithium-ion battery Trade Mark: Marvo Standards: 47 CFR Part 2, Subpart J 47 CFR Part 15, Subpart C ANSI C63.10: 2020 Date of Receipt: 2026/08/12 Date of Test: 2026/08/13 to 2026/08/27 Date of Issue: 2026/08/31 Test Result:PASS Prepared By:(Testing Engineer) Reviewed By:(Project Engineer) Approved By:(Manager) Note: If there is any objection to the results in this report, please submit a written inquiry to the company within 15 days from the date of receiving the report. The test report is effective only with both signature and specialized stamp, and is issued by the company in accordance with the requirements of the "Conditions of Issuance of Test Reports" printed in the attached page. Unless otherwise stated, the results presented in this report only apply to the samples tested this time. Partial reproduction of this report is not allowed unless approved by the company in writing. Report No.: DNT2608126274R12947-16592Date：August 31, 2026Page： 2 / 65 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Tel:+86-769-88087383E-mail: [email protected] Report Revise Record Report VersionRevise TimeIssued DateValid VersionNotes V1.0/August 31, 2026ValidOriginal Report Report No.: DNT2608126274R12947-16592Date：August 31, 2026Page： 3 / 65 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Tel:+86-769-88087383E-mail: [email protected] 1 Test Summary Test ItemTest RequirementTest MethodTest ResultResult Antenna Requirement15.203/247(b)--Clause 3.1PASS 20dB Emission Bandwidth15.247 (a)(1)ANSI C63.10: 2020Clause 3.2PASS Conducted Peak Output Power 15.247 (b)(1)ANSI C63.10: 2020Clause 3.3PASS Carrier Frequencies Separation 15.247 (a)(1)ANSI C63.10: 2020Clause 3.4PASS Dwell Time15.247 (a)(1)ANSI C63.10: 2020Clause 3.5PASS Hopping Channel Number15.247 (a)(1)ANSI C63.10: 2020Clause 3.6PASS Band-edge for RF Conducted Emissions 15.247(d)ANSI C63.10: 2020Clause 3.7PASS RF Conducted Spurious Emissions 15.247(d)ANSI C63.10: 2020Clause 3.8PASS Radiated Spurious emissions 15.247(d); 15.205/15.209 ANSI C63.10: 2020Clause 3.9PASS Restricted bands around fundamental frequency (Radiated Emission) 15.247(d); 15.205/15.209 ANSI C63.10: 2020Clause 3.10PASS AC Power Line Conducted Emission 15.207ANSI C63.10: 2020Clause 3.11PASS Note: 1. “N/A” denotes test is not applicable in this test report. Report No.: DNT2608126274R12947-16592Date：August 31, 2026Page： 4 / 65 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Tel:+86-769-88087383E-mail: [email protected] Contents 1 Test Summary..................................................................................................................................................................3 1.1 General Description of EUT...................................................................................................................................5 2 General Information..........................................................................................................................................................6 2.1 Test Location..........................................................................................................................................................6 2.2 Test Environment...................................................................................................................................................7 2.3 Channel List........................................................................................................................................................... 7 2.4 Power Setting of Test Software............................................................................................................................. 8 2.5 Assistant equipment used for test..........................................................................................................................8 2.6 Description of Support Units.................................................................................................................................. 8 2.7 Test Facility............................................................................................................................................................8 2.8 Equipment List....................................................................................................................................................... 9 2.9 Measurement Uncertainty (95% confidence levels, k=2).................................................................................... 11 3 Test results and Measurement Data..............................................................................................................................12 3.1 Antenna Requirement..........................................................................................................................................12 3.2 20dB Emission Bandwidth...................................................................................................................................…

Text truncated - open the document above for the full version.

Report No.: DNT2608126274R12947-16592Date：August 31, 2026Page： 48 / 65 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Tel:+86-769-88087383E-mail: [email protected] 3DH1_Ant1_Hop 3DH3_Ant1_Hop 3DH5_Ant1_Hop Report No.: DNT2608126274R12947-16592Date：August 31, 2026Page： 49 / 65 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Tel:+86-769-88087383E-mail: [email protected] Appendix E: Number of hopping channels Test Result TestModeAntennaFreq(MHz)Result[Num]Limit[Num]Verdict DH5Ant1Hop79≥15PASS 2DH5Ant1Hop79≥15PASS 3DH5Ant1Hop79≥15PASS Report No.: DNT2608126274R12947-16592Date：August 31, 2026Page： 50 / 65 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Tel:+86-769-88087383E-mail: [email protected] Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop Report No.: DNT2608126274R12947-16592Date：August 31, 2026Page： 51 / 65 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Tel:+86-769-88087383E-mail: [email protected] Appendix F: Band edge measurements Test Result TestModeAntennaChNameFreq(MHz) RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5Ant1 Low2402-0.77-50.51≤-20.77PASS High2480-0.42-39.86≤-20.42PASS LowHop_2402-1.03-51.45≤-21.03PASS HighHop_2480-0.78-50.45≤-20.78PASS 2DH5Ant1 Low2402-3.78-52.25≤-23.78PASS High2480-6.55-49.05≤-26.55PASS LowHop_2402-1.03-52≤-21.03PASS HighHop_2480-0.92-47.33≤-20.92PASS 3DH5Ant1 Low2402-2.39-52.41≤-22.39PASS High2480-5.70-52.27≤-25.7PASS LowHop_2402-0.69-51.86≤-20.69PASS HighHop_2480-2.37-43.03≤-22.37PASS Report No.: DNT2608126274R12947-16592Date：August 31, 2026Page： 52 / 65 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Tel:+86-769-88087383E-mail: [email protected] Test Graphs DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 Report No.: DNT2608126274R12947-16592Date：August 31, 2026Page： 53 / 65 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Tel:+86-769-88087383E-mail: [email protected] DH5_Ant1_High_Hop_2480 2DH5_Ant1_Low_2402 2DH5_Ant1_High_2480 Report No.: DNT2608126274R12947-16592Date：August 31, 2026Page： 54 / 65 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Tel:+86-769-88087383E-mail: [email protected] 2DH5_Ant1_Low_Hop_2402 2DH5_Ant1_High_Hop_2480 3DH5_Ant1_Low_2402 Report No.: DNT2608126274R12947-16592Date：August 31, 2026Page： 55 / 65 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Tel:+86-769-88087383E-mail: [email protected] 3DH5_Ant1_High_2480 3DH5_Ant1_Low_Hop_2402 3DH5_Ant1_High_Hop_2480 Report No.: DNT2608126274R12947-16592Date：August 31, 2026Page： 56 / 65 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Tel:+86-769-88087383E-mail: [email protected] Appendix G: Conducted Spurious Emission TestModeAntennaFreq(MHz) FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5Ant1 2402 Reference1.051.05---PASS 30~10001.05-50.66≤-18.95PASS 1000~265001.05-34.85≤-18.95PASS 2441 Reference2.342.34---PASS 30~10002.34-49.75≤-17.66PASS 1000~265002.34-34.15≤-17.66PASS 2480 Reference1.391.39---PASS 30~10001.39-48.73≤-18.61PASS 1000~265001.39-45.15≤-18.61PASS 2DH5Ant1 2402 Reference1.241.24---PASS 30~10001.24-49.65≤-18.76PASS 1000~265001.24-45.28≤-18.76PASS 2441 Reference2.462.46---PASS 30~10002.46-50.04≤-17.54PASS 1000~265002.46-45.72≤-17.54PASS 2480 Reference1.181.18---PASS 30~10001.18-49.79≤-18.82PASS 1000~265001.18-47.07≤-18.82PASS 3DH5Ant1 2402 Reference1.201.20---PASS 30~10001.20-50.41≤-18.8PASS 1000~265001.20-46.42≤-18.8PASS 2441 Reference2.092.09---PASS 30~10002.09-49.41≤-17.91PASS 1000~265002.09-46.64≤-17.91PASS 2480 Reference1.491.49---PASS 30~10001.49-49.84≤-18.51PASS 1000~265001.49-44.11≤-18.51PASS Report No.: DNT2608126274R12947-16592Date：August 31, 2026Page： 57 / 65 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Tel:+86-769-88087383E-mail: [email protected] Test Graphs DH5_Ant1_2402_0~Reference DH5_Ant1_2402_30~1000 DH5_Ant1_2402_1000~26500 Report No.: DNT2608126274R12947-16592Date：August 31, 2026Page： 58 / 65 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Tel:+86-769-88087383E-mail: [email protected] DH5_Ant1_2441_0~Reference DH5_Ant1_2441_30~1000 DH5_Ant1_2441_1000~26500 Report No.: DNT2608126274R12947-16592Date：August 31, 2026Page： 59 / 65 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Tel:+86-769-88087383E-mail: [email protected] DH5_Ant1_2480_0~Reference DH5_Ant1_2480_30~1000 DH5_Ant1_2480_1000~26500 Report No.: DNT2608126274R12947-16592Date：August 31, 2026Page： 60 / 65 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Tel:+86-769-88087383E-mail: [email protected] 2DH5_Ant1_2402_0~Reference 2DH5_Ant1_2402_30~1000 2DH5_Ant1_2402_1000~26500 Report No.: DNT2608126274R12947-16592Date：August 31, 2026Page： 61 / 65 Guangdong DN Testing Co., Ltd. Add: No. 1, West F…

Text truncated - open the document above for the full version.

Report No.: DNT2608126274R12947-16592Date：August 31, 2026Page： 64 / 65 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Tel:+86-769-88087383E-mail: [email protected] 3DH5_Ant1_2441_0~Reference 3DH5_Ant1_2441_30~1000 3DH5_Ant1_2441_1000~26500 Report No.: DNT2608126274R12947-16592Date：August 31, 2026Page： 65 / 65 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Tel:+86-769-88087383E-mail: [email protected] 3DH5_Ant1_2480_0~Reference 3DH5_Ant1_2480_30~1000 3DH5_Ant1_2480_1000~26500 ---End of Report---

DNT2608126274R12947-P01Page: 1 of 3 PHOTOGRAPHSOFEUT FCCID:2AFKX-HG50T AntennaTerminalTestView DNT2608126274R12947-P01Page: 2 of 3 ConductedEmissionTestView RadiatedEmissionTestView|(30M-1G) DNT2608126274R12947-P01Page: 3 of 3 RadiatedEmissionTestView|(1G-18G) RadiatedEmissionTestView|(1G-18G) --END--
