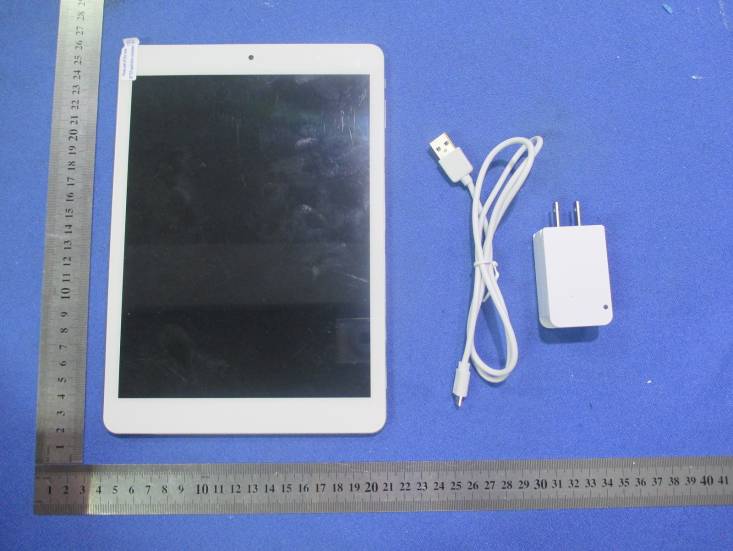

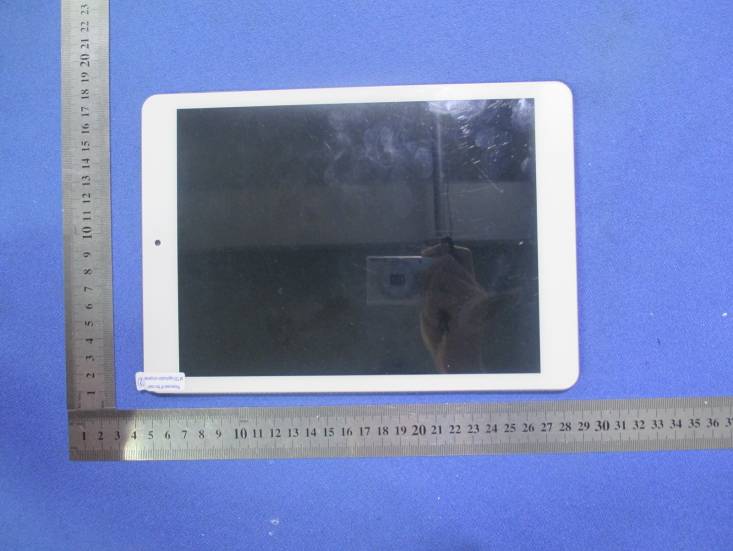

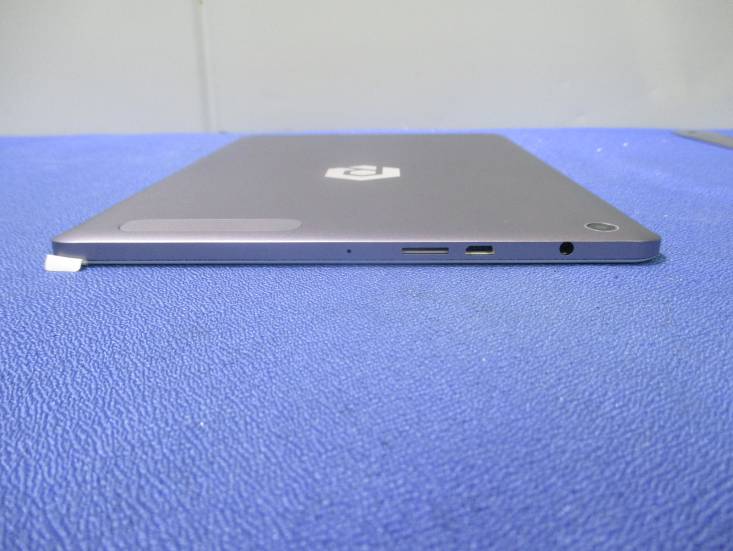

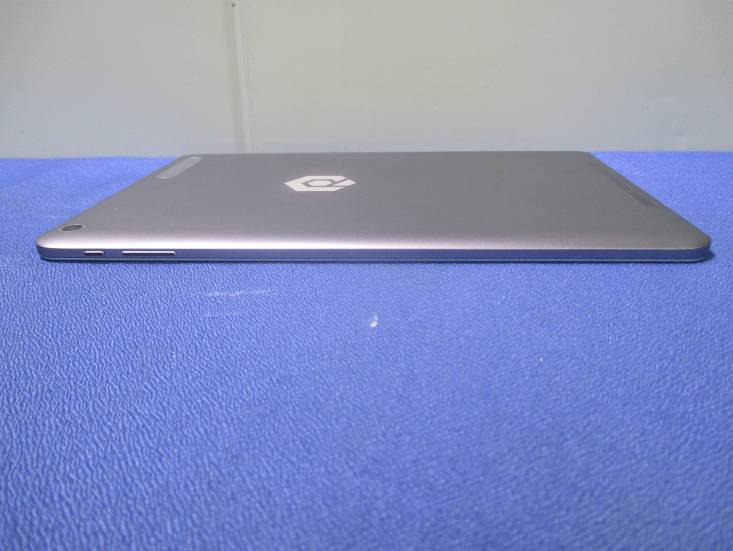

2AFL3-R405Rectonics RecPad R405

2.4GHz R405 2412-2462MHz

Hummingbird System Inc 2140 PERALTA BLVD SUITE 212-D, FREMONT, CA 94536 TEL: +1 415 8130680 FAX: +1 415 8130680 DATE 08-25-2015 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AFL3-R405 Product Name: Rectonics RecPad R405 Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 08-25-2015 By: Fan Wu Signature Printed Title: CEO On behalf of : Hummingbird System Inc Telephone: +1 415 8130680 FCC ID: 2AFL3-R405 Product Name: Rectonics RecPad R405 Model Name: R405 We declared the device will apply FCC DOC by FCC recognized and accredited MRA lab, FCC doc will be got before sell.

Hummingbird System Inc 2140 PERALTA BLVD SUITE 212-D, FREMONT, CA 94536 TEL: +1 415 8130680 FAX: +1 415 8130680 DATE 08-25-2015 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AFL3-R405 Product Name: Rectonics RecPad R405 Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 08-25-2015 By: Fan Wu Signature Printed Title: CEO On behalf of : Hummingbird System Inc Telephone: +1 415 8130680

FCC ID Label Information 1. Label location: 2. FCC ID Label: Hummingbird System Inc Model: R405 FCC ID: 2AFL3-R405 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCCID Label Location

RF Exposure evaluation According to KDB 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m So pt = (EXd) 2 /30 x gt Field strength = 98.71dBuV/m @3m Ant gain 1dBi; so Ant numeric gain=1.259 So pt={[10 (98.71/20) /10 6 x3] 2 /(30x1.259)}x1000mW = 1.77mW So (1.77mW/5mm)x √2.402GHz = 0.55<3 Then SAR evaluation is not required

- Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 Fax: +86-755-26636041 FCC PART 15 SUBPART C TEST REPORT Report Reference No.: CTL1508062198-WB01 Compiled by: ( position+printed name+signature) Happy Guo (File administrators) Tested by: ( position+printed name+signature) Nice Nong (Test Engineer) Approved by: ( position+printed name+signature) Tracy Qi (Manager) Product Name...............................: Rectonics RecPad R405 Model/Type reference..................: R405 Trade Mark....................................: N/A FCC ID...........................................: 2AFL3-R405 Applicant’s name.........................: Hummingbird System Inc Address of applicant...................: 2140 PERALTA BLVD SUITE 212-D, FREMONT, CA 94536 Test Firm.......................................: Shenzhen CTL Testing Technology Co., Ltd. Address of Test Firm...................: Floor 1- A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Test specification.........................: Standard........................................: FCC Part 15.249: Operation within the bands 920-928 MHz, 2400- 2483.5 MHz, 5725-5850 MHz and 24.0 - 24.25 GHz. TRF Originator..........................: Shenzhen CTL Testing Technology Co., Ltd. Master TRF..............................: Dated 2011-01 Date of Receipt.............................: Aug. 06, 2015 Date of Test Date..........................: Aug. 06, 2015 - Aug. 21, 2015 Data of Issue.................................: Aug. 21, 2015 Result............................................: Positive Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. V1.0 Page 2 of 30 Report No.: CTL1508062198-WB01 T E S T R E P O R T Test Report No. : CTL1508062198-WB01 Aug. 21, 2015 ______________________________________________________________________________________________ Date of issue Equipment under Test : Rectonics RecPad R405 Model /Type : R405 Applicant : Hummingbird System Inc Address : 2140 PERALTA BLVD SUITE 212-D, FREMONT, CA 94536 Manufacturer : Five Science and Technology Co.,LTD. Address : 12-13F, Block C2, Nanshan Zhiyuan, No. 1001 Xueyuan Road, Nanshan District, Shenzhen, China Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 30 Report No.: CTL1508062198-WB01 Contents 1.TEST STANDARDS .................................................................. 4 2.SUMMARY............................................................................. 5 2.1.Equipment Under Test 5 2.2.Description of the Equipment under Test (EUT) 5 2.3.EUT operation mode 6 2.4.EUT configuration 6 2.5.Related Submittal(s) / Grant (s) 6 2.6.Modifications 6 3. TEST ENVIRONMENT............................................................... 7 3.1.Address of the test laboratory 7 3.2.Test Facility 7 3.3.Environmental conditions 7 3.4.Configuration of Tested System 7 3.5.Statement of the measurement uncertainty 8 3.6.Equipments Used during the Test 9 4. TEST CONDITIONS AND RESULTS ............................................ 10 4.1.Conducted Emissions Test 10 4.2. Transmitter Radiated Unwanted Emissions and Bandedge 13 4.3.Occupied Bandwidth Measurement 19 5. ANTENNA REQUIREMENT ....................................................... 21 6.TEST SETUP PHOTOS OF THE EUT .......................................... 22 7.EXTERNAL AND INTERNAL PHOTOS OF THE EUT ....................... 24 V1.0 Page 4 of 30 Report No.: CTL1508062198-WB01 1. TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 15.249: Operation within the bands 902 - 928 MHz, 2400 - 2483.5 MHz, 5725 - 5875 MHz, and 24.0 - 24.25 GHz. ANSI C63.10-2013 ANSI C63.4-2014 V1.0 Page 5 of 30 Report No.: CTL1508062198-WB01 2. SUMMARY 2.1. Equipment Under Test Power supply system utilised Power supply voltage : ƽ 120V / 60 Hz o 115V / 60Hz o 12 V DC o 24 V DC ƽ Other (specified in blank below) DC 3.7V from battery 2.2. Description of the Equipment under Test (EUT) The EUT (Rectonics RecPad R405) support Bluetooth function. Name of EUT Rectonics RecPad R405 Model Number R405 Antenna Type Internal BT Operation frequency 2402MHz-2480MHz BT Modulation Type GFSK,8DPSK,/4DQPSK(BT V3.0+EDR) Bluetooth BT V3.0+EDR Channel List: Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 00 2402 27 2429 54 2456 01 2403 28 2430 55 2457 02 2404 29 2431 56 2458 03 2405 30 2432 57 2459 04 2406 31 2433 58 2460 05 2407 32 2434 59 2461 06 2408 33 2435 60 2462 07 2409 34 2436 61 2463 08 2410 35 2437 62 2464 09 2411 36 2438 63 2465 10 2412 37 2439 64 2466 11 2413 38 2440 65 2467 12 2414 39 2441 66 2468 13 2415 40 2442 67 2469 14 2416 41 2443 68 2470 15 2417 42 2444 69 2471 16 2418 43 2445 70 2472 17 2419 44 2446 71 2473 18 2420 45 2447 72 2474 19 2421 46 2448 73 2475 20 2422 47 2449 74 2476 21 2423 48 2450 75 2477 22 2424 49 2451 76 2478 23 2425 50 2452 77 2479 24 2426 51 2453 78 2480 25 2427 52 2454 26 2428 53 2455 For more details, refer to the user’s manual of the EUT. Serial number: Prototype V1.0 Page 6 of 30 Report No.: CTL1508062198-WB01 2.3. EUT operation mode Test Mode(TM) Description Remark TM1 Bottom Channel Transmitting / TM2 Middle Channel Transmitting / TM3 Top Channel Transmitting / TM4 Charging and keeping TX power by AC adapter The field strength of radiation emission was measured in the following position: EUT stand-up position (Y axis), lie-dow…

Text truncated - open the document above for the full version.

- Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 Fax: +86-755-26636041 FCC PART 15 SUBPART C TEST REPORT Report Reference No.: CTL1508062198-WB02 Compiled by: ( position+printed name+signature) Happy Guo (File administrators) Tested by: ( position+printed name+signature) Nice Nong (Test Engineer) Approved by: ( position+printed name+signature) Tracy Qi (Manager) Product Name...............................: Rectonics RecPad R405 Model/Type reference..................: R405 Trade Mark....................................: N/A FCC ID...........................................: 2AFL3-R405 Applicant’s name.........................: Hummingbird System Inc Address of applicant...................: 2140 PERALTA BLVD SUITE 212-D, FREMONT, CA 94536 Test Firm.......................................: Shenzhen CTL Testing Technology Co., Ltd. Address of Test Firm...................: Floor 1- A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Test specification.........................: Standard........................................: FCC Part 15.249: Operation within the bands 920-928 MHz, 2400- 2483.5 MHz, 5725-5850 MHz and 24.0 - 24.25 GHz. TRF Originator..........................: Shenzhen CTL Testing Technology Co., Ltd. Master TRF..............................: Dated 2011-01 Date of Receipt.............................: Aug. 06, 2015 Date of Test Date..........................: Aug. 06, 2015 - Aug. 21, 2015 Data of Issue.................................: Aug. 21, 2015 Result............................................: Positive Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. V1.0 Page 2 of 30 Report No.: CTL1508062198-WB02 T E S T R E P O R T Test Report No. :CTL1508062198-WB02 Aug. 21, 2015 ______________________________________________________________________________________________ Date of issue Equipment under Test : Rectonics RecPad R405 Model /Type : R405 Applicant : Hummingbird System Inc Address : 2140 PERALTA BLVD SUITE 212-D, FREMONT, CA 94536 Manufacturer : Five Science and Technology Co.,LTD. Address : 12-13F, Block C2, Nanshan Zhiyuan, No. 1001 Xueyuan Road, Nanshan District, Shenzhen, China Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 30 Report No.: CTL1508062198-WB02 Contents 1.TEST STANDARDS .................................................................. 4 2.SUMMARY............................................................................. 5 2.1.Equipment Under Test 5 2.2.Description of the Equipment under Test (EUT) 5 2.3.EUT operation mode 6 2.4.EUT configuration 6 2.5.Related Submittal(s) / Grant (s) 6 2.6.Modifications 6 3. TEST ENVIRONMENT............................................................... 7 3.1.Address of the test laboratory 7 3.2.Test Facility 7 3.3.Environmental conditions 7 3.4.Configuration of Tested System 7 3.5.Statement of the measurement uncertainty 8 3.6.Equipments Used during the Test 9 4. TEST CONDITIONS AND RESULTS ............................................ 10 4.1.Conducted Emissions Test 10 4.2. Transmitter Radiated Unwanted Emissions and Bandedge 13 4.3.Occupied Bandwidth Measurement 19 5. ANTENNA REQUIREMENT ....................................................... 21 6.TEST SETUP PHOTOS OF THE EUT .......................................... 22 7.EXTERNAL AND INTERNAL PHOTOS OF THE EUT ....................... 24 V1.0 Page 4 of 30 Report No.: CTL1508062198-WB02 1. TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 15.249: Operation within the bands 902 - 928 MHz, 2400 - 2483.5 MHz, 5725 - 5875 MHz, and 24.0 - 24.25 GHz. ANSI C63.10-2013 ANSI C63.4-2014 V1.0 Page 5 of 30 Report No.: CTL1508062198-WB02 2. SUMMARY 2.1. Equipment Under Test Power supply system utilised Power supply voltage : ƽ 120V / 60 Hz o 115V / 60Hz o 12 V DC o 24 V DC ƽ Other (specified in blank below) DC 3.7V from battery 2.2. Description of the Equipment under Test (EUT) TheEUT (Rectonics RecPad R405) support Bluetooth function. Name of EUT Rectonics RecPad R405 Model Number R405 Antenna Type Internal BT Operation frequency 2402MHz-2480MHz BT Modulation Type GFSK (BT V4.0LE) Bluetooth BT V4.0LE Channel List: Channel Frequency (MHz) Channel Frequency (MHz) 00 2402 21 2444 01 2404 22 2446 02 2406 23 2448 03 2408 24 2450 04 2410 25 2452 05 2412 26 2454 06 2414 27 2456 07 2416 28 2458 08 2418 29 2460 09 2420 30 2462 10 2422 31 2464 11 2424 32 2466 12 2426 33 2468 13 2428 34 2470 14 2430 35 2472 15 2432 36 2474 16 2434 37 2476 17 2436 38 2478 18 2438 39 2480 19 2440 20 2442 For more details, refer to the user’s manual of the EUT. Serial number: Prototype V1.0 Page 6 of 30 Report No.: CTL1508062198-WB02 2.3. EUT operation mode Test Mode(TM) Description Remark TM1 Bottom Channel Transmitting / TM2 Middle Channel Transmitting / TM3 Top Channel Transmitting / TM4 Charging and keeping TX power by USB The field strength of radiation emission was measured in the following position: EUT stand-up position (Y axis), lie-down position (X, Z axis). The following data show only with the worst case setup. The worst case of X axis was reported. Based on client request, all normal using modes of the normal function were tested but only the worst test data of the worst mode is reported by this report. Remark: The worst case mode is TM1(1Mbps) reported for unwanted emission and band edge…
