2AFM7WI-BT550Bluetooth headset

\\192.168.6.111\任务\15-13909 莱茜耳机 CE FCC IC\签字\POA_Letter_.docx Wicked Audio, Inc Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2015-09-21 SUBJECT: FCC Application for ( 2AFM7WI-BT550) To Whom It May Concern: We, the undersigned, hereby authorize Mr. Zhang Shangwen from CCIC-SET on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by CCIC-SET on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, Name: Steve Jaynes Signature: Date: 2015-9-21

Rev 11/20/07 Wicked Audio, Inc Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2AFM7WI-BT550. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram 2AFM7WI-BT550_Block Diagram.pdf Circuit Diagram 2AFM7WI-BT550_Schematics.pdf Operational Description 2AFM7WI-BT550_Operational description.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Name: Steve Jaynes Signature: Date: 2015-9- 21

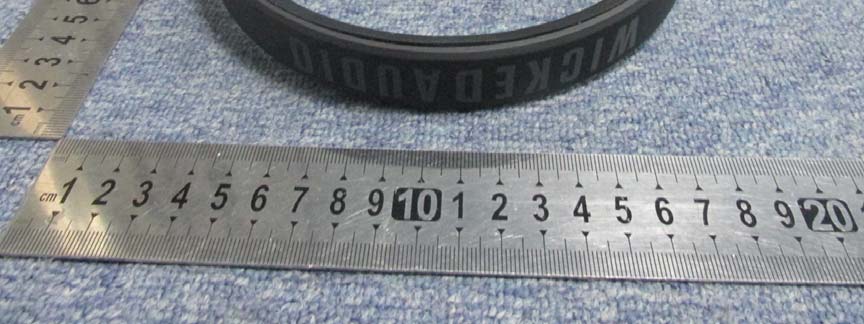

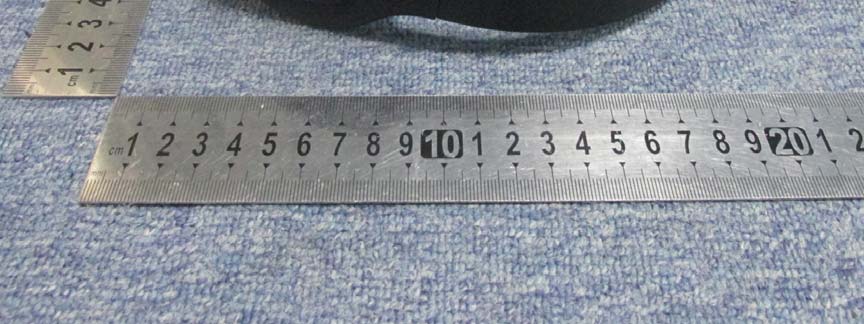

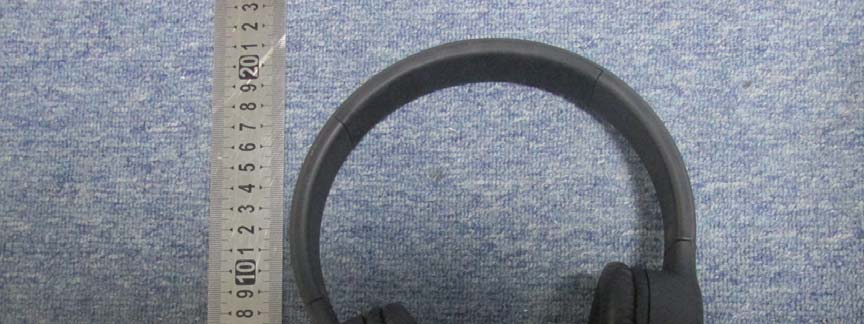

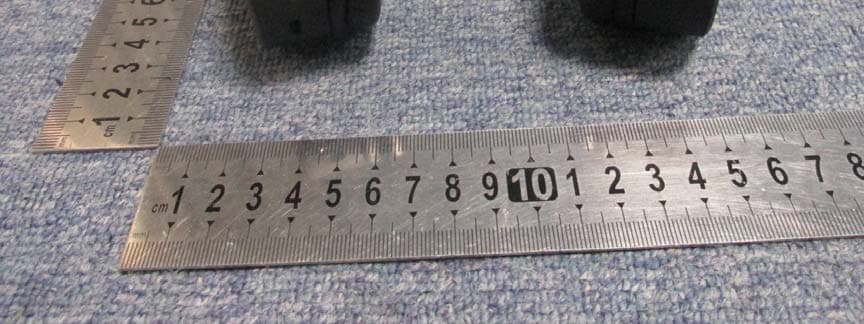

External Photo

Internal Photo BT antenn a

FCC RF Exposure FCC ID: 2AFM7WI-BT550 Applicant: Wicked Audio, Inc Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Portable Device Refer Standard: KDB 447498 D01 General RF Exposure Guidance v05r02 FCC Part 2 §2.1093 Evaluation method According to KDB447498 D01 General RF Exposure Guidance v05r01Section 4.3.1 Standalone SAR test exclusion considerations:“ Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “[(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)]≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is <5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. Conducted Power Results GFSK mode Channel Channel 0 Channel 39 Channel 78 Output Power (dBm) 1.75 1.89 2.04 π/4-DQPSK mode Channel Channel 0 Channel 39 Channel 78 Output Power (dBm) 1.40 1.13 1.74 8- DPSK mode Channel Channel 0 Channel 39 Channel 78 Output Power (dBm) 0.46 1.01 1.28 BLE mode Channel Channel 0 Channel 20 Channel 39 Output Power (dBm) -0.97 -0.66 -0.28 Manufacturing tolerance GFSK mode Channel Channel 0 Channel 39 Channel 78 Target (dBm) 2 2 2 Tolerance ±(dB) 1 1 1 π/4-DQPSK mode Channel Channel 0 Channel 39 Channel 78 Target (dBm) 1 1 1 Tolerance ±(dB) 1 1 1 8- DPSK mode Channel Channel 0 Channel 39 Channel 78 Target (dBm) 1 1 1 Tolerance ±(dB) 1 1 1 BLE mode Channel Channel 0 Channel 20 Channel 39 Target (dBm) 0 0 0 Tolerance ±(dB) 1 1 1 Evaluation Results GFSK mode Frequency Antenna Distance （mm） RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW 2402MHz 5 3 2.0 0.6＜3.0 Yes 2441MHz 5 3 2.0 0.6＜3.0 Yes 2480MHz 5 3 2.0 0.6＜3.0 Yes π/4-DQPSK mode Frequency Antenna Distance （mm） RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW 2402MHz 5 2 1.6 0.5＜3.0 Yes 2441MHz 5 2 1.6 0.5＜3.0 Yes 2480MHz 5 2 1.6 0.5＜3.0 Yes 8- DPSK mode Frequency Antenna Distance （mm） RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW 2402MHz 5 2 1.6 0.5＜3.0 Yes 2441MHz 5 2 1.6 0.5＜3.0 Yes 2480MHz 5 2 1.6 0.5＜3.0 Yes BLE mode Frequency Antenna Distance （mm） RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW 2402MHz 5 1 1.3 0.4＜3.0 Yes 2442MHz 5 1 1.3 0.4＜3.0 Yes 2480MHz 5 1 1.3 0.4＜3.0 Yes Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v05r02.

Report No.: SET2015-13065 CCIC-SET/T（00） Page 1 of 34 RF TEST REPORT Report No.: SET2015-13065 Product Name: Bluetooth headset FCC ID: 2AFM7WI-BT550 Model No. : WI-BT550/14LY25 Applicant: Wicked Audio, Inc Address: 875 WEST 325 NORTH, LINDON, UT 84042, USA Dates of Testing: 09/07/2015 — 09/14/2015 Issued by: CCIC-SET Lab Location: Electronic Testing Building, Shahe Road, Xili, Nanshan District, Shenzhen, 518055, P. R. China Tel: 86 755 26627338 Fax: 86 755 26627238 This test report consists of 34 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CCIC-SET. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CCIC-SET within 20 days since the date when the report is received. It will not be taken into consideration beyond this limit. Report No.: SET2015-13065 CCIC-SET/T（00） Page 2 of 34 Test Report Product Name ...................... : Bluetooth headset Brand Name ......................... : Wicked Audio Trade Name .......................... : Wicked Audio Applicant .............................. : Wicked Audio, Inc Applicant Address ............... : 875 WEST 325 NORTH, LINDON, UT 84042, USA Manufacturer ........................ : Jia Hua Li Dian Zi You Xian Gong Si Manufacturer Address ........ : NO 101,201, BUILDING E, NEW INDUSTRIAL ZONE, SHENZHU ROAD, LIUYUE SHENKENG VILLAGE, HENGGANG, DISTRICT, SHENZHEN CHINA. Test Standards ..................... : 47 CFR Part 15 Subpart C：Radio Frequency Devices ANSI C63.10-2013：American National Standard for Testing Unlicensed Wireless Devices RSS-247 Issue 1, May 2015 Digital Transmission Systems (DTSs), Frequency Hopping Systems (FHSs) and Licence-Exempt Local Area Network (LE-LAN) Devices KDB 558074D01 v03r03 Test Result ........................... : PASS Tested by ............................ : 2015.09.14 Lu Lei， Test Engineer Reviewed by ......................... : 2015.09.14 Zhu Qi, Senior Egineer Approved by ........................ : 2015.09.14 Wu Li’an，Manager Report No.: SET2015-13065 CCIC-SET/T（00） Page 3 of 34 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................... 4 1.1. EUT Description ....................................................................................................................... 4 1.2. Test Standards and Results ........................................................................................................ 5 1.3. Description of test environment test modes .............................................................................. 6 1.4. Test Facilities ............................................................................................................................ 7 2. 47 CFR PART 15C REQUIREMENTS .................................................................................... 8 2.1. Antenna requirement ................................................................................................................. 8 2.2. Peak Output Power.................................................................................................................... 9 2.3. Bandwidth ............................................................................................................................... 10 2.3.7. Conducted Band Edges and Spurious Emissions .................................................................... 14 2.4. Power spectral density (PSD) ................................................................................................. 19 2.5. Conducted Emission ............................................................................................................... 22 2.6. Radiated Band Edge and Spurious Emission .......................................................................... 26 3. LIST OF MEASURING EQUIPMENT ................................................................................. 34 Change History Issue Date Reason for change 1.0 2015.09.14 First edition Report No.: SET2015-08708 Page 4 of 34 1. General Information 1.1. EUT Description EUT Type Bluetooth headset Hardware Version V1.0 Software Version V4.0 Power Supply 3.7V DC EUT supports Radios application Bluetooth V4.0 BLE Frequency Range 2402MHz~2480MHz Channel Number 40 Bit Rate of Transmitter 1Mbps Modulation Type GFSK Antenna Type PCB Antenna Antenna Gain -5dBi Note 1: The EUT is a BT headset, it contain Bluetooth 4.0 LTE Module operating at 2.4GHz ISM band; the frequencies allocated for the Bluetooth 4.0 LTE is F(MHz)=2402+2*n (0<=n<=39). The lowest, middle, highest channel numbers of the Bluetooth Module used and tested in this report are separately 0 (2402MHz), 20(2442MHz) and 39 (2480MHz). Note 2: For a more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/or manufacturer. Note 3: The EUT is a BT headset，it contains two models，they are WI-BT550 and 14LY25. They have the same size, appearance and internal structure, and the only difference is the model number. Report No.: SET2015-08708 Page 5 of 34 1.2. Test Standards and Results The objective of the report is to perform testing according to 47 CFR Part 15 Subpart C (Bluetooth, 2.4GHz ISM band radiators) for the EUT FCC/IC Certification: No. Identity Document Title 1 47 CFR Part 15 Subpart C 2013 Radio Frequency Devices 2 ANSI C63.10 2013 American National Standard for Testing Unlicensed Wireless Devices 3 RSS-GEN: Issue 4,November 2014: General Requirements and Information for the Certification of Radio Apparatus 4 RSS-247:Issue 1,December2015: Digital Transmission Systems (DTSs), Frequency Hopping Systems (FHSs) and Licence-Exempt Local Area Network (LE-L…

Text truncated - open the document above for the full version.

15C Setup Photo
