2AFMJ-IGHFRF module

S m art S wi tc h Us er M an ual Introduction: Thank you for purchasing an igh control device. igh system is designed to automate home control and provide easy remote operation of all your electrical appliances/lights connected to system. igh products include a variety of devices to control your home. It can be installed in one room, expand to additional rooms or to the entire house according to your needs and budgets. Green Point products are constructed with careful attention to detail, using only h igh quality materials, assuring peak performance over time. Warning!!! Controlling Appliances: igh systems can control electrical appliances either remotely or automatically, allowing electrical appliances or light to be activated without the operator presence in the room. Extreme cautions must be taken to avoid hazard conditions. Important Read before installing 1. Install in accordance with all national and local electrical codes and local regulations of your country. 2. At the end of a successful installation, the igh switch will function as a standard wall switch enabling the use of only the ON/OFF buttons (without Dim). Only after the activation of the igh switch, it will acquire additional functionalities. 3. The products of the igh system range are designed to be used and installed in domestic and similar environments where there is no need for special protections against the ingress of water. 4. The igh switch requires a neutral wire for operation. 5. It is recommended to use a non-metallic wall plate with the igh switch. 6. The installer must hand the user manual over to the user and should stress that the user become fully familiar with it. 7. The installer must perform the wiring operation with extreme care so as to avoid the risk of damaging the products in case of inversion and/or wire exchange. 8. In case of a breakdown or malfunction, please contact an authorized technician or the Green Point help desk. 9. There are no serviceable parts in this unit. 10. Do not paint on the igh switch. 11. Operate between temperatures of 14 °F and 122 °F. 12. The igh switch may feel warm to the touch during normal operation. 13. Shut OFF power through the main circuit breaker when connecting or disconnecting lights or appliances. 14. Clean the igh switches only with a soft dry cloth. Do not use any chemical cleaners. General Product Description System overview igh is a home automation and power management system, enabling unified and automated control over electrical appliances connected to the system. The system is composed of 5 main components:
igh Smart Switch
igh Sensor
igh Keypad
igh IR Bridge
igh Internet Gateway System Connectivity Functions Key features:
Automated functionalities
Integrated scheduler (up to 16 schedulers)
Remote control via other igh products
Manual control with the front touch panel
LED indicators Operating Modes There are 3 operating modes, Automatic, Eco and Manual, that can be toggled manually, remotely or in accordance with 16 preconfigured schedulers, allowing maximum adaptation to the user’s lifestyle. Automatic Mode The lights/appliances are controlled automatically using sensor information such as motion detection, light intensity, temperature and synchronize clock. Eco Mode The lights/appliances turn OFF automatically in accordance with your preferences and sensor information. Manual Mode Switching ON/OFF of the lights/appliance is managed manually, without automation. Internal Capabilities RF transceiver capabilities: The internal transceiver works on ISM Band (433.040 - 434.400 MHz). The transceiver communication range is up to 10 m depending on the number of walls in the way. Real time power consumption metering: The measurement of the power consumption is done via DSP - Digital Signal Processing. Decision making capabilities The igh switch is equipped with igh smart home automation software, you can configure the switch and adjust it to your lifestyle. In addition, It has self-learning capabilities that will adjust itself automatically to your lifestyle. Switch Power Specification Dimmer Switch – IGHH: 120V – 60Hz 250W/250VA Maximum power per gauge 300W The Dimmer Smart Switch is designed only for use with permanently installed lighting fixtures. Do not use it to control motorized appliances or receptacles. It can be used as dimmer for any approved dimmable lights or as a regular switch for non- dimmable light. Shutter Switch – IGTH: 120V – 60Hz 250VA The Shutter Smart Switch is designed for use only with AC powered shutters and blinds. Power Switch – IGPH: 120V – 60Hz 10A The Power Smart Switch is designed for any AC powered light/appliance. Sense Switch – IGSH: 120V – 60Hz 10A The Sense Smart Switch is designed for any AC powered light/appliance. Installation Instructions SHOCK HAZARD! Turn OFF the power to the branch circuit at the circuit breaker in your electrical service panel. Ensure power is OFF before you install this device. All wiring connections must be made with the POWER OFF to avoid personal injury and/or damage to the switch. Assembly instructions 1. Cut OFF the power to the circuit at the fuse box or circuit breaker. 2. Remove wall plate**. Warning: Verify that the power is OFF in the switch box before continuing. 3. Carefully remove the switch from the switch box. DO NOT disconnect the wires. 4. Disconnect the wires from the existing switch and insert them to the igh switch according to Diagram 1 (add a neutral wire if needed). 5. Insert the igh Switch into the switch box, being careful not to pinch or crush wires. 6. Mount the wall plate. 7. Turn ON the power to the circuit in the fuse box or circuit breaker and test the system. **This switch may be used in new installations or to replace an existing wall switch. A wall plate is not included. If this is a new installation or you are replacing a switch which is not compatible with the igh switch, we recommend that you purchase a common standard wall plate. These are …

Text truncated - open the document above for the full version.

IGHF TRANSCEIVER MODULE - BLOCK DIAGRAM Si4431 32Mhz 8Mhz internal oscilator

Artwork FCC ID: 2AFMJ‐IGHF This label “Contains FCC ID: 2AFMJ‐IGHF” will be incorporated on the back of every Green Point Systems LTD product. Also all our User manual will have this label. Sincerely, Allon Apelker CEO Green point systems LTD. 7 Haeshelst. south industrial zone cesarea, Israel, 3088900 Tel:+972 46260087 Fax:+9721536260087 email: [email protected]

Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Sections 0.457 and 0.459 pertaining to confidential material. Green Point Systems LTD would like the following documents regarding this submission for FCC ID: 2AFMJ-IGHF to be kept confidential. 1. BOM 2. SCHEMATICS The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Allon Apelker CEO Green point systems LTD. 7 Haeshelst. south industrial zone cesarea, Israel, 3088900 Tel:+972 46260087 Fax:+9721536260087 email: [email protected]

LIMITED MODULAR APPROVAL LETTER FCC ID: 2AFMJ‐IGHF Item Requirements EUT 1 The modular transmitter must have its own RF shielding The modular transmitter has not its own RF shielding. 2 The modular transmitter must have buffered modulation/data inputs. The modular transmitter has SPI/Buffer input internally within the SI4431 chip see block diagramm.(SDI) 3 The modular transmitter must have its own power supply regulation. The modular transmitter has its own power supply regulation embedded in the chip SI4431 digital LDO in the IGHF block diagram. 4 The modular transmitter must comply with the antenna and transmission system requirements of sections 15.203, 15.204(b) and 15.204(c) NoStandard or external antenna connector is available. 5 The modular transmitter must be tested in a stand‐alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. The modular transmitter has been tested in the host environment. 6 The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: "Contains Transmitter Module FCC ID: XYZMODEL1" or "Contains FCC ID: XYZMODEL1." Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization The modular transmitter has been labeled with its own FCC ID number. The user manual of “ models” Includes the phrase: "contains a transmitter module, FCC ID: “ 2AFMJ‐IGHF” 7 The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. Refer to test report # 9512312314 Device complies to §15.209 and 15.207 8 The modular transmitter must comply with any applicable RF exposure requirements. Complies.

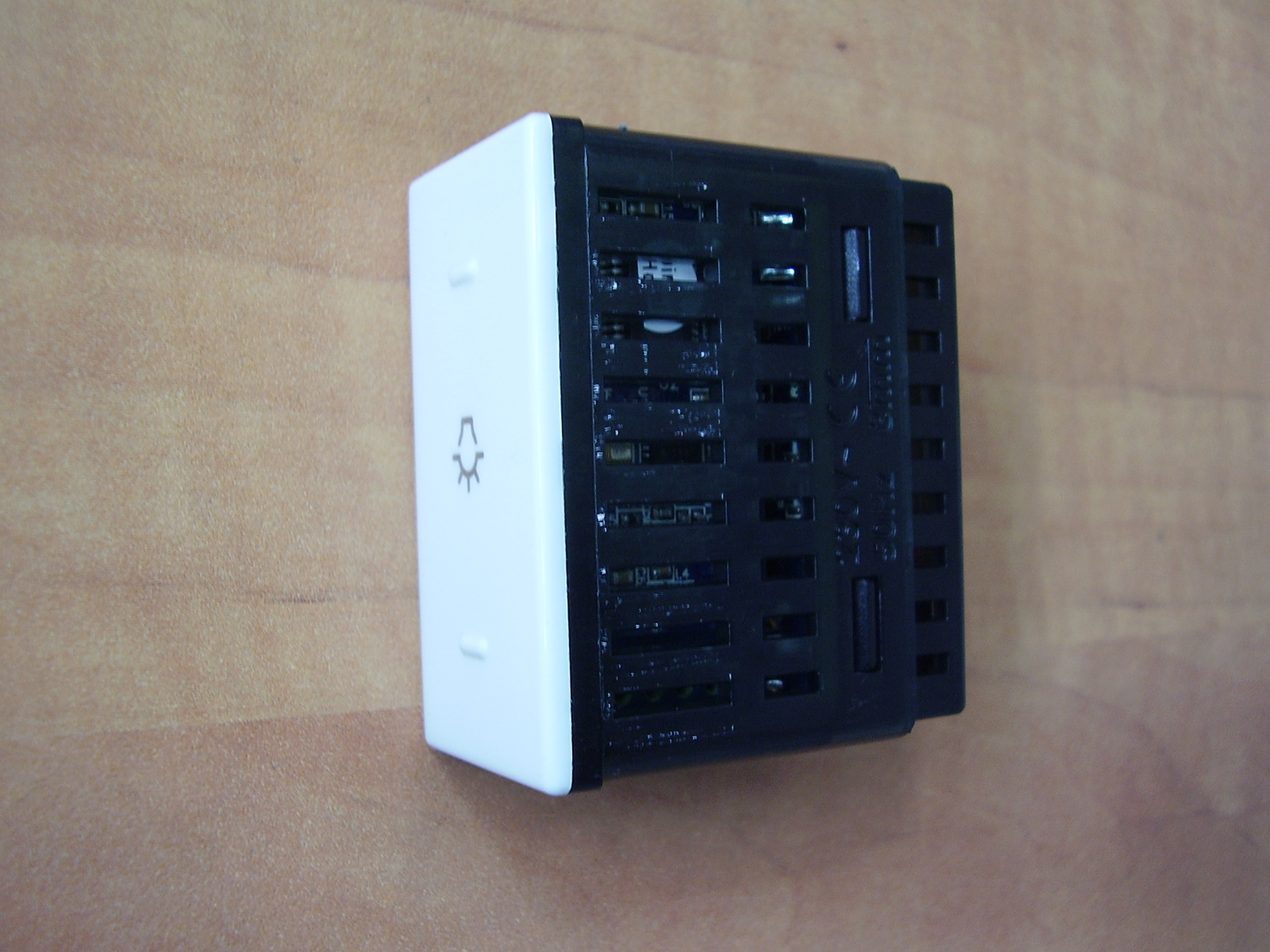

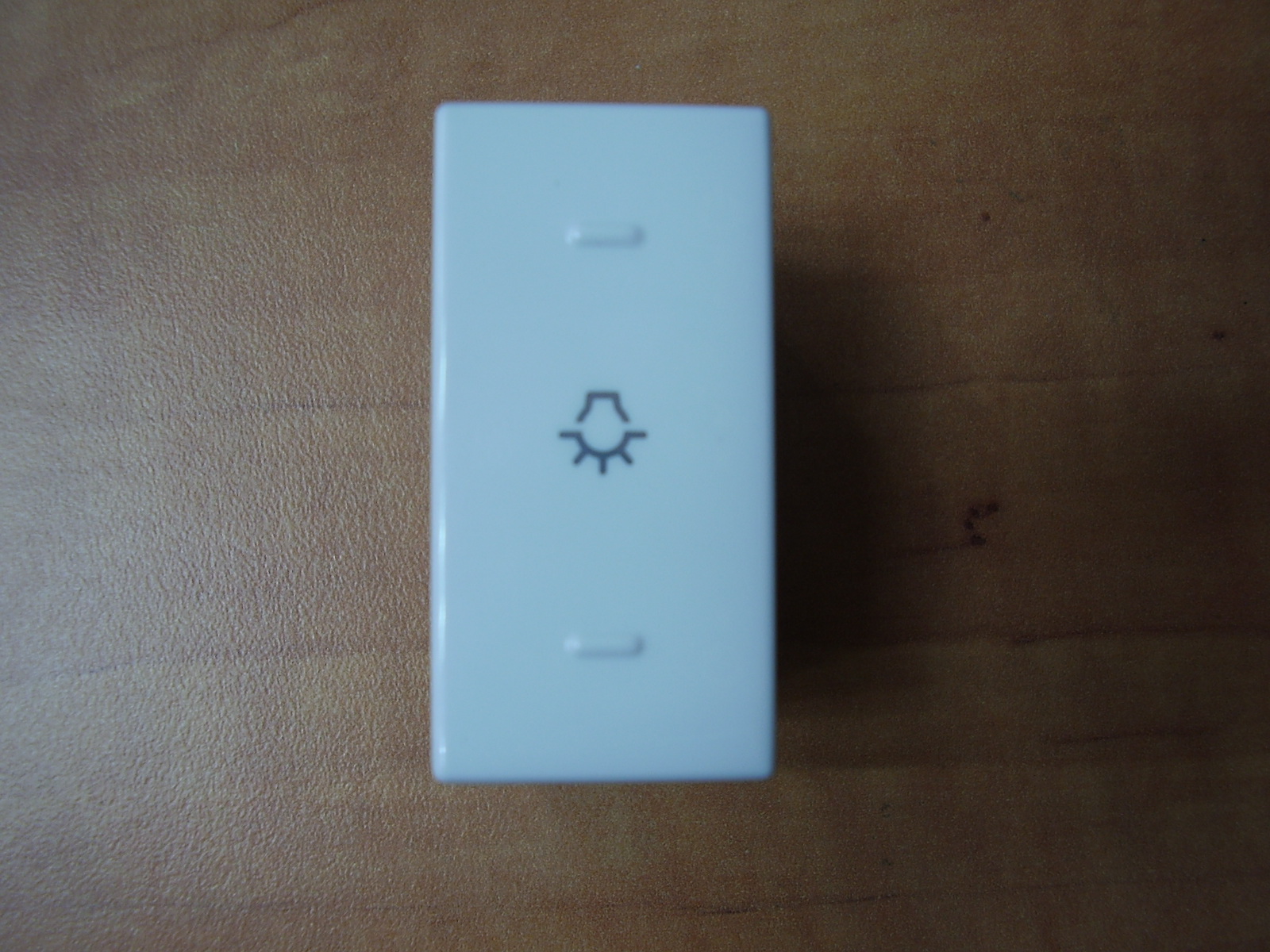

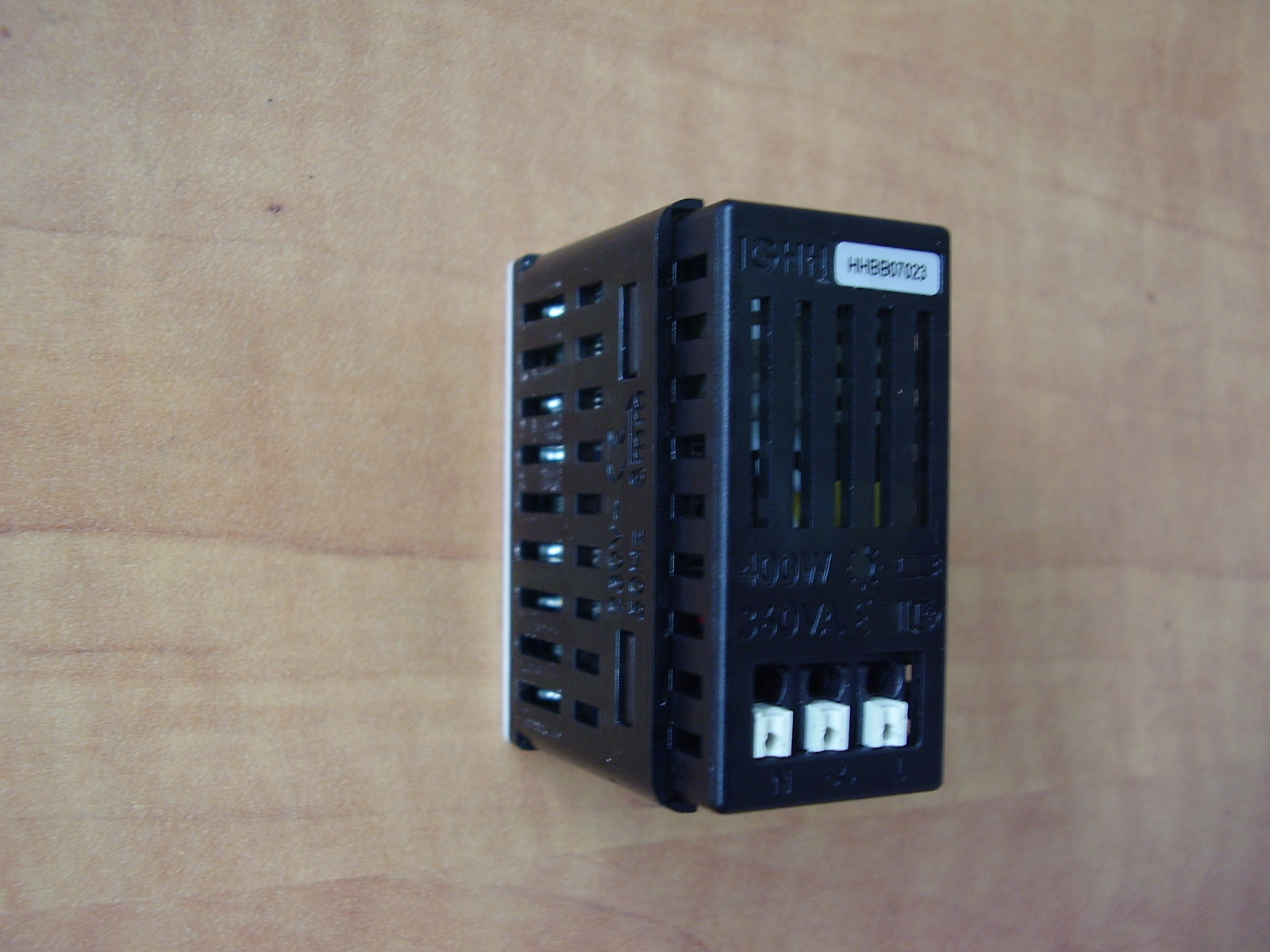

External Photos IGHF module Host

Internal Photos PCB Antenna trace

Operational description IGHF FCC ID: 2AFMJ‐IGHF is a build in our home automation products products allowing them to communicate via RF only when their status changes. IGHF is a RF transceiver base on Silicon LAB SI4431B1 chip (Data sheet attached) The antenna is a PCB copper trace or wire of 3 inches . Sincerely, Allon Apelker CEO Green point systems LTD. 7 Haeshelst. south industrial zone cesarea, Israel, 3088900 Tel:+972 46260087 Fax:+9721536260087 email: [email protected]

Test Report No. 9512312314 Applicant : Green Point Systems Ltd. Equipment Under Test: RF transceiver Models: IGHF FCC ID: 2AFMJ-IGHF From The Standards Institution Of Israel Industry Division Electronics & Telematics Laboratory EMC Branch ACLASS Accreditation Services Certificate Number: AT-1359 Test Report No.: 9512312314 Page 2 of 27 pages Title: RF transceiver Model: IGHF FCC ID: 2AFMJ-IGHF Description of Equipment Under Test (EUT): RF transceiver. Models: IGHF Software version of radio unit B1 Manufactured by: Green Point Systems Ltd. Reference Documents:  CFR 47 FCC: Rules and Regulations; Part 15. “Radio frequency devices”; Subpart C : “Intentional radiators” Section 15.205. “Restricted bands of operations”, Section 15.207. “Conducted limit" Section 15.209. “Radiated emission limits, general requirements”. “Radiated Emission Limits, Additional Provisions”; Section 15.231. “Periodic operation in the bands 40.66 – 40.70 MHz, and above 70 MHz”. . Applicant: Green Point Systems Ltd. Address: 7 Haeshel St., South Industrial Park, P.O.Box 3136, Caesarea, 3088900, Israel Sample for test selected by: The customer The date of tests: 11, 17 May 2015 This Test Report contains 27 pages and may be used only in full. This Test Report applies only to the specimen tested and may not be applied to other specimens of the same product. Test Report No.: 9512312314 Page 3 of 27 pages Title: RF transceiver Model: IGHF FCC ID: 2AFMJ-IGHF Table of Contents 1. EUT Description and operation 4 1.1. General description: 4 2. Test summary 5 2.1. Potential emission sources: 7 2.2. EUT setup and operation: 7 3. Measurements and derived results 7 3.1. Location of the Test Site: 7 3.2. Test condition: 7 3.3. Radiated emission test. 8 3.4. Common conditions for operation in the band above 70 MHz. 9 3.5. Test of field strength emission from intentional radiator. 10 3.6. Test of occupied bandwidth per 15.231(c) 19 3.7. Conducted emission test on AC main line. 20 4. Appendix 1. Test equipment used 22 5. Appendix 2: Antenna Factor and Cable Loss 23 6. Appendix 3: Test setups photo. 27 Test Report No.: 9512312314 Page 4 of 27 pages Title: RF transceiver Model: IGHF FCC ID: 2AFMJ-IGHF 1. EUT Description and operation 1.1. General description: * Note: the customer supplied all information in clause below. RF transceiver IGHF is integrated in IGHH smart switch that is a part of smart home system. The IGHF enables smart control over lights shutters, air conditioning and power appliances and can be operated locally or from Internet via the Internet Gateway. Switch is built with touch technology and no mechanical parts. The switch is designed with subtle LED lights which display the current switch mode. Type of modulation: FSK Antenna type: Integrated The EUT external view is presented in photo # 1. Photo 1. Smart switch side and rear view. Test Report No.: 9512312314 Page 5 of 27 pages Title: RF transceiver Model: IGHF FCC ID: 2AFMJ-IGHF 2. Test summary Parameter FCC Part 15 Reference paragraph Verdict Conducted emission test on AC line. Subpart C Section 15.207 Comply Radiated emission from intentional radiators in restricted bands Subpart C Section 15.205 Comply Test of field strength emission from intentional radiators “Radiated Emission Limits, Additional Provisions”; Section 15.231. Comply Occupied bandwidth Subpart C Section 15.231(c) Comply Electronics & Telematics Laboratory May 2015 Name: Eng. Yuri Rozenberg Name: Michael Feldman Position: Head of EMC Branch Position: Test Technician Measurement uncertainty. The test equipment has been calibrated according to its recommended procedures and is within the manufacturer's published limit of error. The laboratory calibrates its standards by a third party (traceable to NIST, USA) on a regular basis according to equipment manufacturer requirements. In the following table the uncertainty calculation is given. Type of disturbance Test description Calculated uncertainty U LAB Radiated disturbance electric field strength in a SAR at 3 m distance 30 MHz – 1.0 GHz ±4.32 dB electric field strength in a FAR at 3 m distance 1.0 – 18 GHz. 18 – 40 GHz. ±4.47 dB ±2.78 dB Test Report No.: 9512312314 Page 6 of 27 pages Title: RF transceiver Model: IGHF FCC ID: 2AFMJ-IGHF Normative References. FCC 47 CFR Part 15, Subpart C, 2015 Radio Frequency Devices Subpart C – Intentional Radiators ANSI C63.4: 2009 American National Standard for Method of Measurements of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz ANSI C63.10: 2013 American National Standard for Testing of Unlicensed Wireless Devices. Test Report No.: 9512312314 Page 7 of 27 pages Title: RF transceiver Model: IGHF FCC ID: 2AFMJ-IGHF 2.1. Potential emission sources: The potential emission sources are detailed in Table 1. Table 1. Potential emission sources Frequency Location 30.0 MHz RF Lo oscillator 433.04 – 434.4 MHz RF signal 2.2. EUT setup and operation: Test was performed in continuous transmission mode at two frequency points – near bottom and near top of 433 – 434.5 MHz frequency band. 3. Measurements and derived results 3.1. Location of the Test Site: Radiated test was conducted at the EMC laboratory of the Standards Institution of Israel in Tel-Aviv. 3.2. Test condition: Temperature: 24 C. Humidity: 53 %. Atmospheric pressure: 1008 mbar. Test Report No.: 9512312314 Page 8 of 27 pages Title: RF transceiver Model: IGHF FCC ID: 2AFMJ-IGHF 3.3. Radiated emission test. 3.3.1. General: Per FCC Part 15 Subpart C Sections 15.209, 15.231.  Initial scans were made using a peak detector but still using the appropriate ANSI IF bandwidth.  A tolerance limit was set 10 dB below the specification limit. Levels above the tolerance limit were retested using the Peak, QP or Average detectors. 3.3.2. Radiated emission measurements: Preliminary investigation was performed from the lowest radio frequency signal generated in the equipment up to ten harmonic of a carrier frequency. …

Text truncated - open the document above for the full version.

Test set up. Photo 1. RE test setup Photo 2. RE test setup Photo 3. RE test setup Photo 4. RE test setup Photo 5. RE test setup Photo 6. CE test setup
