2AFMLBMTX-SC16Paging Transmitter

BTG Server Transmitter BMTX‐SC16 Users Guide Congratulations on your purchase/rental of the Boomerang Paging family of products. This on‐premise paging system incorporates may advances in electronics and wireless technologies. The Boomerang family of paging products allows your business to serve your customers more effectively, increase convenience for your customers and your staff, and additionally manage your customers expectations more efficiently. This user manual explains how to operate your new paging system, and provides the needed support to use your new system to its full potential. Familiarity with this user manual assures you get the most from your Boomerang paging system. Keep this guide handy and preferably close to the system for quick reference. Mode Explanations: Your new Server Transmitter can operate in one of 3 modes:  Standard Mode: This is the simplest of modes, and suits most kitchen staff needs. To page a staff member back to the kitchen, simply press the number of the pager that the staff member is carrying. The light next to the number will light for 5 seconds, and your page will be sent.  Cancel Mode: This mode will page the selected staff member repeatedly at a set interval until the selected staff member’s button is cleared. To page a staff member back to the kitchen, simply press the number of the pager that the staff member is carrying. This will page the staff member once, and then keep paging them until you press the staff member’s button again.  Notify Manager Mode: Notify manager mode works very similar to Cancel mode, except that it will send an additional message to the manager pagers if the call is not cancelled before a set amount of time. This feature is very useful to notify managers if food is waiting too long before it is picked up. Note: The function is to system upgrade of the USB. Changing the Mode of your Server Transmitter: 1. Press the FUNC button on your Transmitter 6 times. This should then show your current Operation Mode. 2. Press the X3 button once. 3. Cycle through the Operation modes using the FUNC key. 4. Press X3 to select your desired mode. 5. Press X2 to exit the function menus. Setting the Clock on your Server Transmitter: 1. Press the FUNC button 3 times. This should then show the current setting of the clock. 2. Press the X3 Button once. 3. Enter the desired time in a 24 Hour format using the numbered keys. Use the 10 key to enter 0. 4. Press X3 to save. If you make a mistake, press X2 twice to exit the settings and start again. Setting the Repeat Interval for Cancel Mode: The repeat interval is the setting that tells the system how often to repeat a page to the staff in Cancel mode. For example: if you set this setting to 30 seconds, the system will repeat the page to the staff member every 30 seconds until the staff members page has been cleared. This is also the case for Notify Manager mode. 1. Press the FUNC button 8 times. This should then show the current setting of the Repeat Interval. 2. Press the X3 button once. 3. Entered the desired time in seconds using the numbered keys. Use the 10 key to enter 0. 4. Press the X3 key to save. 5. Press the X2 key to exit the settings screens. Setting the Notify Manager Timing for Notify Manager Mode Notify manager Mode is useful to notify managers that the kitchen may be waiting too long for wait staff to pick up orders from the kitchen. The Notify Manager Timing setting lets you set how long before the system alerts a manager that an order has not been picked up. **It is VERY important that this setting is not lower than the Repeat Interval for Cancel Mode as set previously. If it is set too low, it can cause a paging loop and produce undesired operation. Please set it to be a minimum of 2 times the value of your Repeat Interval** 1. Press the FUNC button 5 times. This should then show the current setting of the Notify Manager Time. 2. Press the X3 button once. 3. Entered the desired time in seconds using the numbered keys. Use the 10 key to enter 0. 4. Press the X3 button to save. 5. Press the X2 button to exit the setting screens. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FCC DOC status letter Product：Paging Transmitter Model：BMTX-SC16 We Paging Transmitter. are applying FCC DOC by PEP Certification Corp. The FCC DOC certificate will get before the product sales. REMARK： PEP Certification Corp. is a MRA lab recognized and authorized by FCC By: 2015-08-15 Signature Date Title: Chief Financial Officer On behalf of : Brighton Technologies Pty Ltd

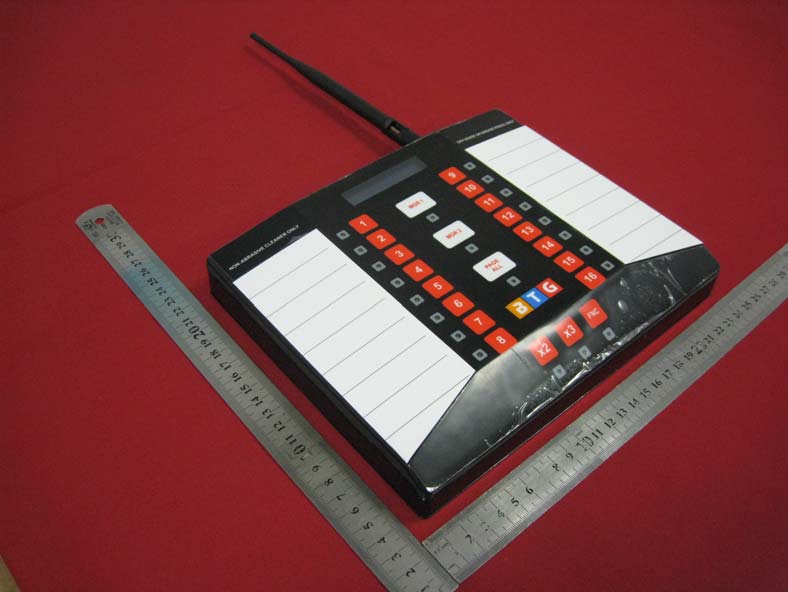

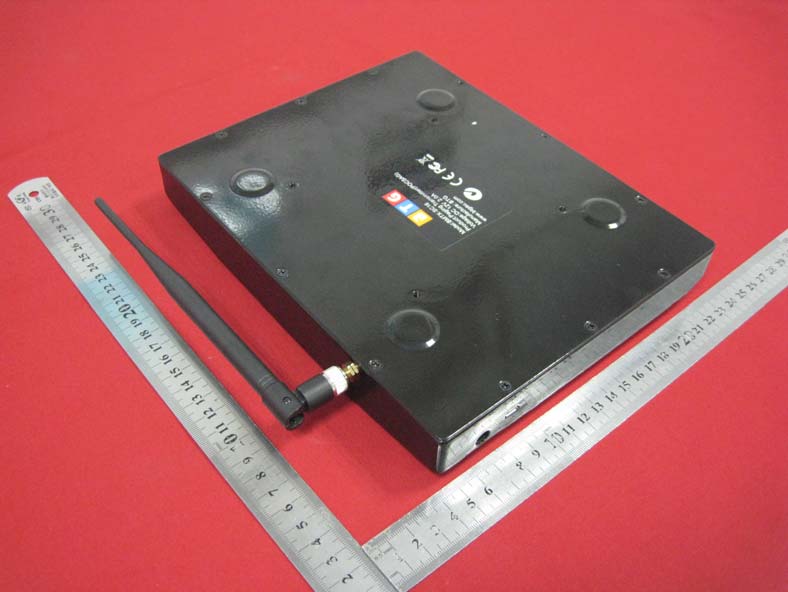

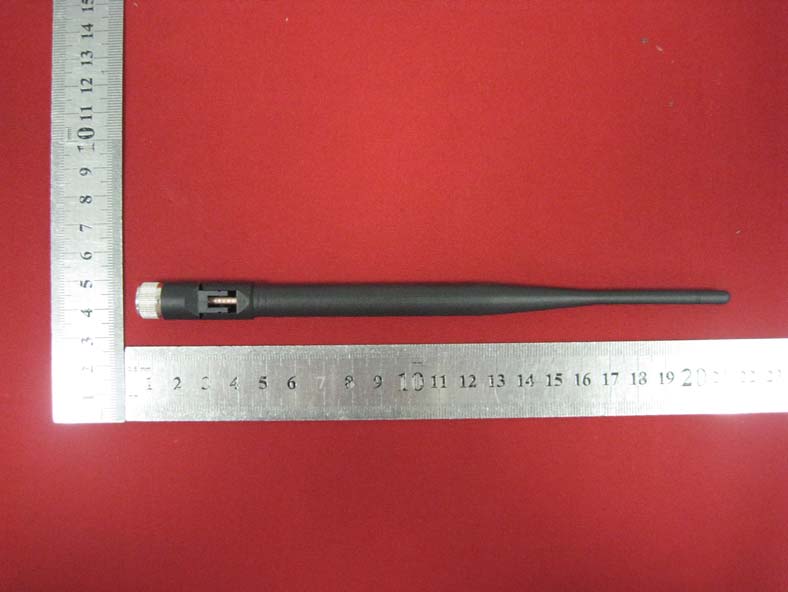

External photo

Label Location

Internal photo ٛ

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m So pt = (EXd) 2 /30 x gt Field strength = 72.45dBuV/m @3m Ant gain 2.15dBi; so Ant numeric gain=1.64 So pt={[10 (72.45/20) /10 6 x3] 2 /(30x1 .64) }x1000mW=0.0 04mW So (0.004mW/5mm)x √0.43392GHz=0.001<3 Then SAR evaluation is not required

Report No.: 15IAS06027 811 of 19 ATT Product Service Co., Ltd. (CBTL Lab of UL/Demko) No. 3, ChangLianShan Industrial Park, ChangAn Town, DongGuan City, GuangDong, China. Phone: 86-769-8509 8000; Fax: 86-769-8509 8777 E-mail:[email protected] FCC CERTIFICATION TEST REPORT FOR FCC ID: 2AFMLBMTX-SC16 Report Reference No....................... : 15IAS06027 81 Date of issue.................................... : 2015-7-20 Testing Laboratory........................... : ATT Product Service Co., Ltd. Address ............................................ : No. 3, ChangLianShan Industrial Park, ChangAn Town, DongGuan City, GuangDong, China. Applicant’s name.............................. : Brighton Technologies Pty Ltd Address ............................................ : 8/31 Maclaurin Ave, East Hills NSW 2213 | PO Box 284, Panania NSW 2213 Manufacturer.................................... : Global asia High-Tech Electronics co.Ltd Address ............................................ : Cai Wu Industrial Park Wu Sha Administrative District, Chang An. Dong Guan Guang Dong Ching Test specification: Test item description........................ : Paging Transmitter Trade Mark....................................... : BTG Model/Type reference .................... : BMTX-SC16 Ratings ............................................. : Input: 12Vdc from adapter supply input: 120V/60Hz; Tested by Approved by ˄Bin Jiang/ Engineer˅ ˄King Wang /EMC Manager˅ Report No.: 15IAS06027 812 of 19 ATT Product Service Co., Ltd. (CBTL Lab of UL/Demko) No. 3, ChangLianShan Industrial Park, ChangAn Town, DongGuan City, GuangDong, China. Phone: 86-769-8509 8000; Fax: 86-769-8509 8777 E-mail:[email protected] TABLE OF CONTENTS TEST REPORT DECLARE.............................................................................................................................. 3 1.Summary of test Standards and results...................................................................................................... 4 2.General test information................................................................................................................................5 2.1ACCRESITATIONS...................................................................................................................................... 5 2.2 Description of EUT...................................................................................................................................... 5 2.3 Accessories of EUT..................................................................................................................................... 5 2.4 Block diagram of EUT configuration for test............................................................................................ 5 2.5 Test environment conditions...................................................................................................................... 6 2.6 Measurement uncertainty........................................................................................................................... 6 3.Radiated emission.......................................................................................................................................... 7 3.1Test equipment............................................................................................................................................. 7 3.2Block diagram of test setup......................................................................................................................... 7 3.3 Limits............................................................................................................................................................. 8 3.4 Test Procedure............................................................................................................................................ 9 3.5 Test Result................................................................................................................................................... 9 4. Power Line Conducted Emission.............................................................................................................. 12 4.1 Test equipment.......................................................................................................................................... 12 4.2 Block diagram of test setup..................................................................................................................... 12 4.3 Power Line Conducted Emission Limits (Class B)............................................................................... 12 4.4 Test Procedure.......................................................................................................................................... 13 4.5 Test Result................................................................................................................................................. 14 5. Stop transmiitting time test......................................................................................................................... 16 5.1 Test equipment.......................................................................................................................................... 16 5.2 Block diagram of test setup..................................................................................................................... 16 5.3 Limits........................................................................................................................................................... 16 5.4 Test Procedure.......................................................................................................................................... 16 5.5 Test Result................................................................................................................................................. 16 5.6 Original test data..........................................................…
