2AFMQPALADONEUKRadio Controlled Van

Key-press Circuit Power supply 3V Encoding IC Modulator Crystal Oscillate 27.145MHz AMP

Paladone Products Ltd.

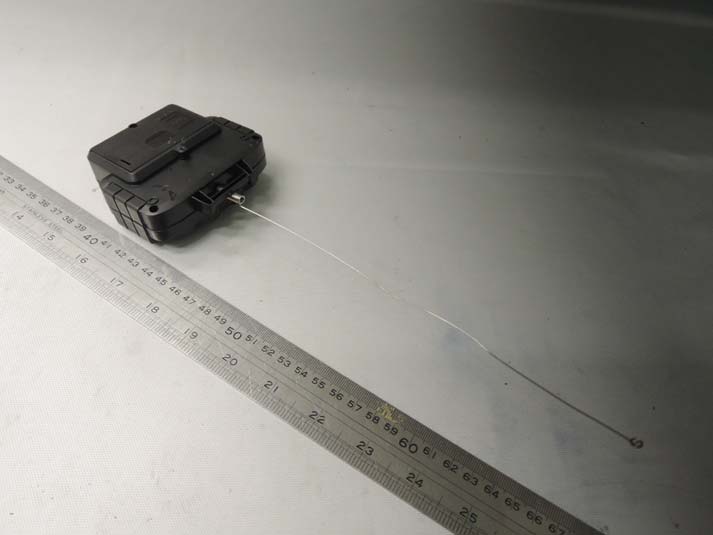

INTERTEK TESTING SERVICE Report No.: 15080489HKG-001 FCC ID: 2AFMQPALADONEUK Equipment Photographs Model : PP2450VWTJX (External)

INTERTEK TESTING SERVICE Report No.: 15080489HKG-001 FCC ID: 2AFMQPALADONEUK Equipment Photographs Model : PP2450VWTJX (Internal) INTERTEK TESTING SERVICE Report No.: 15080489HKG-001 FCC ID: 2AFMQPALADONEUK Equipment Photographs Model : PP2450VWTJX (Internal)

Technical Description (Transmitter portion) The Equipment Under Test (EUT) is a transmitter of a RC system, which is operating at 27.145MHz as dictated by a crystal. The EUT is powered by 1 x 3V size AA battery. The EUT has a power ON/OFF switch and control key. After switching ON the EUT and the corresponding car(ie. Receiver), activating the control key on the EUT can control the car moving forward, backward, left and right. It can charge the receiver by plug in the charging port over the receiver. Antenna Type: Integral, external Nominal field strength is 52.1dBμV/m @ 3m Production Tolerance of field strength is 49.1 dBμV/m to 55.1 dBμV/m Antenna gain is 0dBi The circuit of the transmitter mentioned below. 1. Control buttons: Consists of K1, K2, K3 and K4 2. Encoding circuit Consists of U1(TX2 1435) 3. Oscillator (27.145MHz): Consists of Y1 4. RF power amplifier and modulator Consists of Q1 , Q2 , L2, L3 5. Power Supply Consists of 3VDC (2 x 1.5 sizeAA battery)

Analysis Report The Equipment Under Test (EUT) is a transmitter of a RC system, which is operating at 27.145MHz as dictated by a crystal. The EUT is powered by 1 x 3V sizeAA battery. The EUT has a power ON/OFF s witch and control key. After switching ON the EUT and the corresponding car(ie. Receiver), activating the control key on the EUT can control the car moving forward, backward, left and right. It can charge the receiver by plug in the charging port over the receiver. Antenna Type: Integral, external Nominal field strength is 52.1dBμV/m @ 3m Production Tolerance of field strength is 49.1 dBμV/m to 55.1 dBμV/m Antenna gain is 0dBi Based on the Maximum allowed field strength of production tolerance was 55.1dBμV/m at 3m in frequency 27.145MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.0000971mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.0000971mW The SAR Exclusion Threshold Level for 27.145MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 371.2mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

11 22 33 44 D D C C B B A A C4100P Y1 27.145MHz L3 6.8uH L1 3.3uH L23.3uH R3100R R233K C5100P R46.8K C247P Q1J3Y Q2J3Y LEFT 14 RIGHT 1 FOSC 13 TEST 2 OSCI 12 GND 3 OSCO 11 BACKWARD 4 FORWARD 5 TURBO 6 SC 7 SO 8 VDD 9 PC 10 U1 TX 2 1435 K3K2K4K1 R1200K R5100R GND C347P C722P GND C647P ANT 3V C1104P GND LEFTRIGHTBACK FORWARD

- Intertek's standard Terms and Conditions can be obtained at our website http://www.intertek.com/terms/. - The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: 15080489HKG-001 Paladone Products Ltd Application For Certification (Original Grant) (FCC ID: 2AFMQPALADONEUK) Transmitter Prepared and Checked by: Approved by: Signed On File Tse Ying, Cathy Senior Lead Engineer Chow Chi Ming, Billy Manager Date: September 25, 2015 INTERTEK TESTING SERVICES Report No.: 15080489HKG-001 i FCC ID: 2AFMQPALADONEUK GENERAL INFORMATION Grantee: Paladone Products Ltd Grantee Address: Unit 3, New Wharf Brighton Road, Shoreham by Sea, West Sussex, BN43 6RN, United Kingdom. Contact Person: Martin Carascon Tel: +441273 230037 Fax: +441273 230039 e-mail: [email protected] Manufacturer: Qunye Toys Factory Manufacturer Address: Chenghai District, Shantou City, Guangdong Province, China. Brand Name: VW RC Campervan Model: PP2450VWTJX Type of EUT: Transmitter Description of EUT: Radio Controlled Van Serial Number: N/A FCC ID: 2AFMQPALADONEUK Date of Sample Submitted: August 11, 2015 Date of Test: August 11, 2015 to September 18, 2015 Report No.: 15080489HKG-001 Report Date: September 25, 2015 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: 15080489HKG-001 ii FCC ID: 2AFMQPALADONEUK SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength 15.227 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2014 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: 15080489HKG-001 iii FCC ID: 2AFMQPALADONEUK Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description ...................................................................................... 1 1.2 Related Submittal(s) Grants .......................................................................... 1 1.3 Test Methodology ......................................................................................... 1 1.4 Test Facility .................................................................................................. 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification................................................................................................... 2 2.2 EUT Exercising Software .............................................................................. 2 2.3 Special Accessories...................................................................................... 2 2.4 Measurement Uncertainty ............................................................................. 2 2.5 Support Equipment List and Description........................................................ 2 3.0 Emission Results ........................................................................................... 3 3.1 Field Strength Calculation ............................................................................. 3 3.2 Radiated Emission Configuration Photograph ............................................... 4 3.3 Radiated Emission Data ............................................................................... 4 4.0 Equipment Photographs ................................................................................ 6 5.0 Product Labelling ........................................................................................... 6 6.0 Technical Specifications................................................................................ 6 7.0 Instruction Manual......................................................................................... 6 8.0 Miscellaneous Information ............................................................................ 7 8.1 Measured Bandwidth ....................................................................................7 8.2 Discussion of Pulse Desensitization .............................................................. 8 8.3 Calculation of Average Factor ....................................................................... 8 8.4 Emissions Test Procedures ....................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 15080489HKG-001 FCC ID: 2AFMQPALADONEUK Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : PP2450VWTJX INTERTEK TESTING SERVICE Report No: 15080489HKG-001 FCC ID: 2AFMQPALADONEUK Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : PP2450VWTJX
