2AFN315RM01RF Remote

1. WEDGE UP 2. WEDGE DOWN 3. SURF LEFT 4. SURF RIGHT 5. CRUISE SPEED UP 6. CRUISE SPEED DOWN Remark: For the head unit which did not have RF receiver build in, an extra Dongle (sold separately) have to be equipped. Dongle This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: — Reorient or relocate the receiving antenna. — Increase the separation between the equipment and receiver. — Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. — Consult the dealer or an experienced radio/TV technician for help.

Operational Descriptionexplaining the block diagram of the EUT

AUDIO LINK.CO., LTD #101-1207. CHUNUI TECHNO PARK. 198-36 BUCHEON ROAD.WONMI-GU. BUCHEON CITY.GYEONGGI-DO. South Korea We, (the approval holder) Company name AUDIO LINK.CO., LTD Address #101-1207. CHUNUI TECHNO PARK. 198-36 BUCHEON ROAD.WONMI-GU. City BUCHEON CITY.GYEONGGI-DO. Country South Korea declare that the following representative (agent): Name (person) Kelly. Jiang Company name Shenzhen ECT Testing Technology Co.,Ltd Address Room 1106,Era Innovation Certer Xixiang gushu second road, Baoan district City Shenzhen city Country China is hereby authorized to apply the following equipment for certification on our behalf: Product Description RF REMOTE Type or Model(s) GO RIDER CONTROLLER Tradename or Brand(s) MEDALLION We also authorize Teleconformity (Mr. M. Koop, Manager Certification, Address: Rietven 31, 7534NH Enschede, the Netherlands) to apply and sign this application for certification, registration or filing on our behalf (as representative agent or certifier). Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) BUCHEON CITY.GYEONGGI-DO. South Korea 2015-08-01 S.M. YEON manager

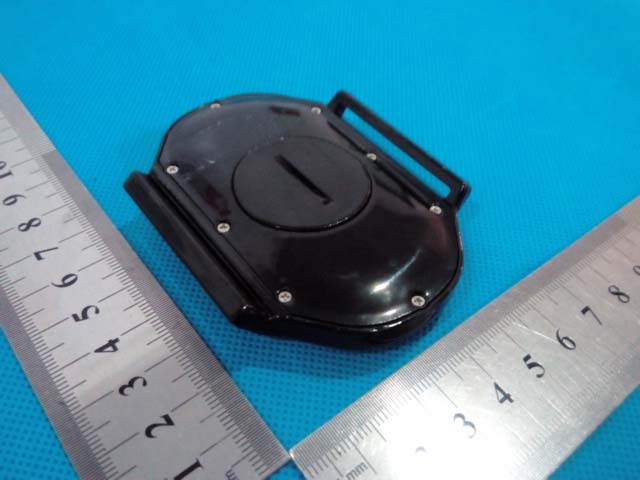

Report No.: ECT2015E02856 Page 1 of 1 Shenzhen ECT Testing Technology Co., Ltd. Room 1106, Era Innovation Certer, Xixiang gushu second road,Baoan district, Shenzhen city, China External View of EUT Model: GO RIDER CONTROLLER Photo 1 Model: GO RIDER CONTROLLER Photo 2

Report No.: ECT2015E02856 Page 1 of 2 Shenzhen ECT Testing Technology Co., Ltd. Room 1106, Era Innovation Certer, Xixiang gushu second road,Baoan district, Shenzhen city, China Internal View of EUT Model: GO RIDER CONTROLLER Photo 1 Model: GO RIDER CONTROLLER Photo 2 Report No.: ECT2015E02856 Page 2 of 2 Shenzhen ECT Testing Technology Co., Ltd. Room 1106, Era Innovation Certer, Xixiang gushu second road,Baoan district, Shenzhen city, China Model: GO RIDER CONTROLLER Photo 3 Model: GO RIDER CONTROLLER Photo 4

Report No.: ECT2015E02856 Page 1 of 17 Rev: 00 Shenzhen ECT Testing Technology Co., Ltd. Room 1106, Era Innovation Certer, Xixiang gushu second road,Baoan district, Shenzhen city, China FCC Test Report Part 15 subpart C Client Information: Applicant : AUDIO LINK.CO., LTD Applicant add.: #101-1207. CHUNUI TECHNO PARK. 198-36 BUCHEON ROAD. WONMI-GU. BUCHEON CITY.GYEONGGI-DO. KOREA EUT Information: EUT Name : RF REMOTE Model No. : GO RIDER CONTROLLER Brand Name : MEDALLION FCC ID : 2AFN315RM01 Prepared By: Shenzhen ECT Testing Technology Co., Ltd. Add. : Room 1106, Era Innovation Certer, Xixiang gushu second road, Baoan district, Shenzhen city, China Date of Receipt: Jul. 06, 2015 Date of Test: Jul. 06~ 20, 2015 Date of Issue: Jul. 20, 2015 Te s t R e s u l t : Pass Test procedure used: ANSI C63.4-2009 This device described above has been tested by Shenzhen ECT Testing Technology Co., Ltd., and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. *This test report must not be used by the client to claim product endorsement by any agency of the U.S. government. Reviewed by: Approved by: Nancy Xu kelly Jiang Report No.: ECT2015E02856 Page 2 of 17 Rev: 00 Shenzhen ECT Testing Technology Co., Ltd. Room 1106, Era Innovation Certer, Xixiang gushu second road,Baoan district, Shenzhen city, China 1 Contents Page COVER PAGE 1 CONTENTS ...........................................................................................................................................................2 2 TEST SUMMARY ..................................................................................................................................................3 2.1 COMPLIANCE WITH FCC PART 15 SUBPART C .....................................................................................................3 2.2 MEASUREMENT UNCERTAINTY............................................................................................................................3 3 GENERAL INFORMATION ...................................................................................................................................4 3.1 GENERAL DESCRIPTION OF EUT ........................................................................................................................4 3.2 DESCRIPTION OF TEST CONDITIONS....................................................................................................................5 3.3 EUT PERIPHERAL LIST.......................................................................................................................................6 3.4 TEST PERIPHERAL LIST......................................................................................................................................6 4 EQUIPMENTS LIST FOR ALL TEST ITEMS .......................................................................................................7 5 TEST RESULT.......................................................................................................................................................8 5.1 ANTENNA REQUIREMENT....................................................................................................................................8 5.1.1 Standard requirement ..............................................................................................................................8 5.1.2 EUT Antenna ...........................................................................................................................................8 5.2 RADIATED EMISSIONS MEASUREMENT................................................................................................................9 5.3 BANDWIDTH TEST.......................................................................................................................................16 5.4 DWELL TIME.....................................................................................................................................................17 Report No.: ECT2015E02856 Page 3 of 17 Rev: 00 Shenzhen ECT Testing Technology Co., Ltd. Room 1106, Era Innovation Certer, Xixiang gushu second road,Baoan district, Shenzhen city, China 2 Test Summary 2.1 Compliance with FCC Part 15 subpart C 2.2 Measurement Uncertainty All measurements involve certain levels of uncertainties, The following measurements uncertainty Levels have estimated based on ANSI C63.4:2009, the maximum value of the uncertainty as below No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 Radiated Emission Test ±3.57dB Test Test Requirement Standard Paragraph Result Antenna Requirement FCC Part 15 C:2013 Section 15.203 PASS Radiated Emission FCC Part 15 C:2013 section 15.231(b) PASS Occupied Bandwidth FCC Part 15 C:2013 section 15.231(c) PASS Dwell Time FCC Part 15 C:2013 section 15.231(a) PASS Report No.: ECT2015E02856 Page 4 of 17 Rev: 00 Shenzhen ECT Testing Technology Co., Ltd. Room 1106, Era Innovation Certer, Xixiang gushu second road,Baoan district, Shenzhen city, China 3 General Information 3.1 General Description of EUT Manufacturer: Audio Development Organization Manufacturer add: Puxinhu,Pulong Industry Complex Tangxia Town,Dongguan City, Guangdong Province,China EUT Name: RF REMOTE Model No: GO RIDER CONTROLLER Serial No: N/A Brand Name: MEDALLION Operation frequency: 433.92MHz Channel Number: 1 Modulation Technology: ASK AntennaType: Integral Antenna Gain: 0 dBi Power Supply Range: DC 3.0 V (CR2016 battery) Power Supply: DC 3.0 V (CR2016 battery) Power Cord: N/A Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. Report No.: ECT2015E02856 Page 5 of 17 Rev: 00 Shenzhen ECT Testing Technology Co., Ltd. Room 1106, Era Innovation Certer, Xixiang gushu second road,Baoan district, Shenzhen city, China 3.2 Description of Test conditions (1) EUT was teste…

Text truncated - open the document above for the full version.

Report No.: ECT2015E02856 Page 1 of 1 Shenzhen ECT Testing Technology Co., Ltd. Room 1106, Era Innovation Certer, Xixiang gushu second road,Baoan district, Shenzhen city, China Test Setup Photograph Radiated Measurement Photos 30MHz-1GHz Above 1G
