2AFNLMA8801Tuya Smart Wi-Fi Module

TYW001DATASHEET TuyaSmartWi-FiModule Thisequipmentshouldbeinstalled and operatedwithminimumdistance20cmbetween theradiatorandyourbody. TYW001is anultra-compact,low-powerembedded Wi-Fimodulebased onMarvell88MC200and Marvell88w8801.ItintegratedwirelessLANMAC BasebandRadioandanARMCortex-M3that runsWi-Finetworkingstackandsoftwareapplicationlibrary.TYW001has1Mbytesflash,512KB RAMbytesandrichperipheralsforyourIOTWi-Fiapplication. Asimplifiedblockdiagram oftheTYW001moduleisdepictedinthefigurebelow TherearetwomothedtousetheTYW001module asfollows: TYW001DATASHEET 2412-2462MHz TYW001DATASHEET 4.4SpecificationsofWi-Fi'soutputpowerevmsensitivity TYW001DATASHEET TYW001DATASHEET FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. 15.105 Information to the user. (b) For a Class B digital device or peripheral, the instructions furnished the user shall include the following or similar statement, placed in a prominent location in the text of the manual: Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncont rolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user. The final end product must be labelled in a visible area with the following: “Contains Transmitter Module 2AFNLMA8801” This radio module must not installed to co-locate and operating simultaneously with other radios in host system, additional testing and equipment authorization may be required to operating simultaneously with other radio. This LMA does not have RF shielding and is tested and approved as standalone configuration, additional evaluation may be required for any system integrated this radio module.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 Hangzhou AiXiangJi Technology Co., Ltd. 2015/8/17 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, Hangzhou AiXiangJi Technology Co., Ltd. hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): Product description: Tuya Smart Wi-Fi Module model name: MA8801 FCC ID: 2AFNLMA8801 Sincerely, Client’s signature Client’s name / title : Zoe Zhu /manager Contact information / address: Room 701, Building 3, More Center, No.87 GuDun Road,Hangzhou

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526- 1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (current) 3.0 4.0 March-26-2015 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 4.0 Hangzhou AiXiangJi Technology Co., Ltd. 2015/8/17 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2AFNLMA8801 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Client’s name / title : Zoe Zhu /manager Contact information / address: Room 701, Building 3, More Center, No.87 GuDun Road,Hangzhou

Hangzhou AiXiangJi Technology Co., Ltd. WIFI Channel 12 & 13 Declaration Letter To whom it may concern : We have declared below featured for FCC equipment authorization in regard to 802.11b/g/n channel 12 & 13 operating capability for FCC ID : 2AFNLMA8801 Please check Product hardware does not have the capability to operate on channel 12 & 13 Product hardware has the capability to operate on channel 12 & 13. However , these 2 channels will be disabled via software and user will not able to enable these 2 channels Product hardware has the capability to operate on channel 12 & 13. And meeting KDB 594280 D01 requirement. Pls explain detail here. Others Pls explain detail here. Company Name: Hangzhou AiXiangJi Technology Co., Ltd. Address : Room 701, Building 3, More Center, No.87 GuDun Road,Hangzhou Name / Title : Zoe Zhu /manager Signature : Phone : 0571-86581786 Email : [email protected] Date :2015.8.17

SCS-F26 Modular Approval Letter Page 1 of 2 Rev 7.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Modular Approval Declaration Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (Obsolete) 1.0 1.0 Dec-04-2006 Added IC Modular Letter (Obsolete) 1.0 2.0 Feb 16 2009 Add LMA and MA option (Obsolete) 2.0 3.0 April 14 2010 Revised per RSS Gen issue 3.0 (Obsolete) 3.0 4.0 Jan 12 2011 Removed Foot(2) (obsolete) 4.0 5.0 July 19 2011 Adding New note per KDB996369 D01 V01R03 (obsolete) 5.0 6.0 August 29 2011 Updated company template & Added text box (current) 6.0 7.0 Jan-31-2012 SCS-F26 Modular Approval Letter Page 2 of 2 Rev 7.0 Hangzhou AiXiangJi Technology Co., Ltd. (Date) 2015/8/17 (Product name) Tuya Smart Wi-Fi Module FCC ID : 2AFNLMA8801 , is seeking FCC Authorization as a Single Modular transmitter / Single Limited Modular Approval (Please check one). The EUT meets the requirements for Single Modular approval / Single Limited Modular Approval (please check one) as detailed in FCC public Notice DA00-1407. Compliance to each of the requirements is described below: Questions are: * Please provide a detailed explanation if the answer is “No.” 1. “The modular transmitter must have its own RF shielding.” Yes / No No shield when product is designed 2. “The modular transmitter must have buffered modulation/data inputs.” Yes / No 3. “The modular transmitter must have its own power supply regulation.” Yes / No 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(c).” Yes / No 5. “The modular transmitter must be tested in a stand-alone configuration.” Yes / No 6. “The modular transmitter must be labeled with its own FCC ID number.” Yes / No 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacture must provide adequate instruction along with the module to explain any such requirements.” Yes / No 8. “The modular transmitter must comply with any applicable RF exposure requirements.” Yes / No Note: (1) LMA may be granted when one or more of the requirements in the table above cannot be demonstrated. LMA will also be issued in those instances where applicants can demonstrate that they will retain control over the final installation of the device, such that compliance of the end product is assured. In such cases, an operating condition on the LMA for the module must state that the module is only approved for use when installed in devices produced by a specific manufacturer. When LMA is sought, the application for equipment certification must specifically state how control of the end product into which the module will be installed, and will be maintained, such that full compliance of the end product is always ensured. (2) Please provide Clear and specific instructions describing the conditions, limitations and procedures for third-parties to use and/or integrate the module into a host device. (3) For non-Software Defined Radio transmitter modules where software is used to ensure compliance of the device, technical description of how such control is implemented to ensure prevention of third party modification must be provided (see KDB 594280). Note 1: Compliance of a module in its final configuration is the responsibility of the applicant. A host device will not be considered certified if the instructions regarding antenna configuration provided in the original description, of one or more separately certified modules it contains, were not followed. Example: A separately certified low-power transceiver module using Bluetooth technology which is housed in a desktop computer, laptop or peripheral does not require the overall system to be recertified, if the desktop computer, laptop or peripheral, as a stand-alone unit, complies with all applicable technical standards. Client’s name / title : Zoe Zhu /manager Contact information / address: Room 701, Building 3, More Center, No.87 GuDun Road,Hangzhou

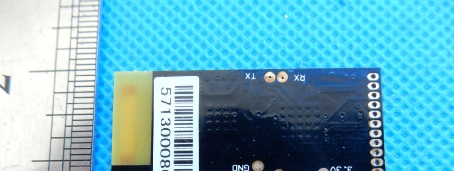

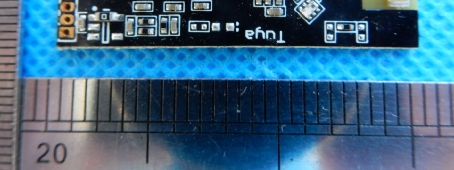

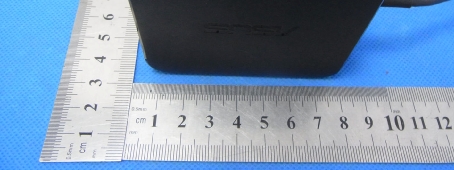

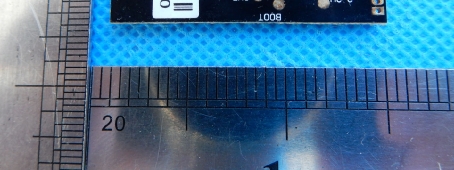

Shenzhen BCTC Technology Co., Ltd. FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page1 of 2 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 WIFI ANT Shenzhen BCTC Technology Co., Ltd. FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page2 of 2 Photo 3 Lab provides adapter

FCC ID: 2AFNLMA8801 Tuya Smart Wi-Fi Module Model: MA8801

Shenzhen BCTC Technology Co., Ltd. FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page1 of 2 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 WIFI ANT

FCC §15.247 (i), §2.1091 – RF Exposure FCC ID: 2AFNLMA8801 Applied procedures / limit According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Test Result of RF Exposure Evaluation Target power W/ tolerance (dBm) Max tune up power toleranc e (dBm) Total Output power to antenna (mW) Antenna Gain(dBi) Total Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 802.11b 17±1.0 18.0 63.1 1.0 (1.258) 0.0158 1.0 Pass

Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC-15080167 FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page1 of 52 FCC Part 15C Test Report FCC ID: 2AFNLMA8801 Product Name: Tuya Smart Wi-Fi Module Trademark: N/A Model Name : MA8801 Prepared For : Hangzhou AiXiangJi Technology Co., Ltd. Address : Room 701, Building 3, More Center, No.87 GuDun Road,Hangzhou, China Prepared By : Shenzhen BCTC Technology Co., Ltd. Address : No.101,Yousong Road,Longhua New District, Shenzhen,China Test Date: Aug. 14 - Aug. 19, 2015 Date of Report : Aug. 19, 2015 Report No.: BCTC-15080167 Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC-15080167 FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page2 of 52 TEST RESULT CERTIFICATION Applicant’s name ................. : Hangzhou AiXiangJi Technology Co., Ltd. Address ................................. : Room 701, Building 3, More Center, No.87 GuDun Road,Hangzhou, China Manufacture's Name ............ : Hangzhou AiXiangJi Technology Co., Ltd. Address ................................. : Room 701, Building 3, More Center, No.87 GuDun Road,Hangzhou, China Product description Product name ............................ : Tuya Smart Wi-Fi Module Model and/or type reference : MA8801 Serial Model ............................... : N/A Standards ............................. : FCC Part15.247 Test procedure ................................ ANSI C63.10-2013 This device described above has been tested by BCTC, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of BCTC, this document may be altered or revised by BCTC, personal only, and shall be noted in the revision of the document. Testing Engineer : (Eric Yang) Technical Manager : (Sophia Lee) Authorized Signatory : (Casey Wang) Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC-15080167 FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page3 of 52 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 9 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 11 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 14 3.1.3 DEVIATION FROM TEST STANDARD 14 3.1.4 TEST SETUP 14 3.1.5 EUT OPERATING CONDITIONS 14 3.1.6 TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 17 3.2.1 RADIATED EMISSION LIMITS 17 3.2.2 TEST PROCEDURE 18 3.2.3 DEVIATION FROM TEST STANDARD 18 3.2.4 TEST SETUP 19 3.2.5 EUT OPERATING CONDITIONS 20 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 21 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 22 3.2.8 TEST RESULTS (ABOVE 1000 MHZ) 24 4 . POWER SPECTRAL DENSITY TEST 27 4.1 APPLIED PROCEDURES / LIMIT 27 4.1.1 TEST PROCEDURE 27 4.1.2 DEVIATION FROM STANDARD 27 4.1.3 TEST SETUP 27 4.1.4 EUT OPERATION CONDITIONS 27 4.1.5 TEST RESULTS 28 Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC-15080167 FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page4 of 52 Table of Contents Page 5 . BANDWIDTH TEST 34 5.1 APPLIED PROCEDURES / LIMIT 34 5.1.1 TEST PROCEDURE 34 5.1.2 DEVIATION FROM STANDARD 34 5.1.3 TEST SETUP 34 5.1.4 EUT OPERATION CONDITIONS 34 5.1.5 TEST RESULTS 35 6 . PEAK OUTPUT POWER TEST 41 6.1 APPLIED PROCEDURES / LIMIT 41 6.1.1 TEST PROCEDURE 41 6.1.2 DEVIATION FROM STANDARD 41 6.1.3 TEST SETUP 41 6.1.4 EUT OPERATION CONDITIONS 41 6.1.5 TEST RESULTS 42 7 . 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE 43 7.1 DEVIATION FROM STANDARD 43 7.2 TEST SETUP 44 7.3 EUT OPERATION CONDITIONS 44 7.4 TEST RESULTS 45 8 . ANTENNA REQUIREMENT 49 8.1 STANDARD REQUIREMENT 49 8.2 EUT ANTENNA 49 9 . EUT TEST PHOTO 50 10 . EUT PHOTO 52 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC-15080167 FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page5 of 52 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247 (a)(2) 6dB Bandwidth PASS 15.247 (b) Peak Output Power PASS 15.247 (c) Radiated Spurious Emission PASS 15.247 (d) Power Spectral Density PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC-15080167 FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page6 of 52 1.1 TEST FACILITY Shenzhen BCTC Technology Co., Ltd. Add. : No.101,Yousong Road,Longhua New District, Shenzhen,China FCC Registered No.: 187086 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC-15080167 FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page7 of 52 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Tuya Smart Wi-Fi Module Trade Name N/A Model Name MA8801 Serial Model N/A Model Difference N/A Product Description The EUT is a Tuya Smart Wi-Fi Module Operation Frequency: 802.11b/g/n20MHz:2412~2462 MHz Modulation Type: DSSS/CCK/OFDM/BPSK/QPSK/16 QAM/64QAM Bit Rate of Transmitter 802.11b:11/5.5/2/1 Mbps 802.11g:54/48/36…

Text truncated - open the document above for the full version.

Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC-15080167 FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page50 of 52 9. EUT TEST PHOTO Radiated Measurement Photos Radiated Measurement Photos Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC-15080167 FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page51 of 52 Conducted Measurement Photos
