2AFNM-JT2692Sport Bluetooth Speaker

User Manual Model:JT2692 Reset Answer Mode Last Power/Play Next Operation Short press---- to select next one Long press-----to increase the volume There is a voice prompt “Maximum Volume” when press to max volume. Short press-----to select last one Long press------to decrease the volume Long press----to Power ON/OFF Short press----to Play/Pause Short press to switch TF card bluetooth mode Long press to reject a call Short press to answer/hang up the phone Reset Basic Functions 1, Bluetooth wireless music play 2, Built-in high definition microphone, support hands-free calls 3, Exclusive voice prompts 4, TF card full format lossless music play 5, Read cards and support USB sound card Bluetooth Function Instructions In bluetooth mode, turn on bluetooth function of the bluetooth device when there is a voice prompt “waiting for connection” from bluetooth speaker. Then scan for devices. After scanning the device named “Tmusik”, click it to pair. After successful pairing, there is a voice promp “Connected”. (Some device need password, just input “0000” ) Card Reader Operating Instructions In the off state, input TF card and connect it with USB cable then power on and enter the card reader to download songs. Sound Card Operation Connect computer by USB cable, press M button till the device give the voice prompt “ USB speaker”. Then the sound from computer can be transferred to the bluetooth speaker to paly. (It will automatically install the driver when first connecting with computer. No need any operation at this time. Just wait for the driver installation finished. And then press M button and switch to “USB sound card” function via reconnect the USB cable. ) Parameters 1, Speaker specifications: 40+ Low-frequency amplifier 2, Frequency: 60HZ-18HZ 3, SNR: ≥96db 4, Distortion: ≤0.5% 5, File format: Full formats/APE/FLAC 6,Battery: 3.7V 1400mAH 7, Charging voltage/current: DC5V/500MA 8, USB: USB2.0, compatible with USB1.1 9, Bluetooth version: Bluetooth 4.0 Common Instructions 1, Do not let children play with the device. 2, Do not strike or beat this device. 3, Note waterproof and prevent heat. 4, Do not block the speaker network. 5, When a failure accurs, please contact the dealer but do not disassemble by yourself. 6, It is a natural oxidation, such as extraneous rust, layer falls off, and so on, which appear on the surface of the device. 7, Avoid prolonged charging via USB cable. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party. Responsible for compliance could void the user’s authority to operate this equipment. (Example- use only shielded interface cables when connecting to computer or peripheral devices). This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. RF warning statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

Shenzhen Jinruitai Electronics Co.,Ltd 2015-10-14 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD FCC ID: 2AFNM-JT2692 To Whom It May Concern: This letter is to ascertain that Shenzhen Jinruitai Electronics Co.,Ltd. Product Sport Bluetooth Speaker has been the units used for conducting FCC compliance testing, the DoC part will be tested by FCC recognized test lab. If you have any question or concerns, pls. contact us. Sincerely, Client’s signature : Client’s name / title : Henry He/ sales manager

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 Shenzhen Jinruitai Electronics Co.,Ltd 2015-10-14 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, _____ Shenzhen Jinruitai Electronics Co.,Ltd _____hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): (Sport Bluetooth Speaker: JT2692) FCC ID: 2AFNM-JT2692 Sincerely, Client’s signature Client’s name / title Henry He/ sales manager Contact information / address 4F, Building A, Taixinglong Industrial Town, Zhongwu Xixiang, Baoan District, Shenzhen City, GuangDong Province, China

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (current) 3.0 4.0 March-26-2015 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 4.0 Shenzhen Jinruitai Electronics Co.,Ltd 2015-10-14 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2AFNM-JT2692 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Client’s name / title Henry He/ sales manager Contact information / address 4F, Building A, Taixinglong Industrial Town, Zhongwu Xixiang, Baoan District, Shenzhen City, GuangDong Province, China

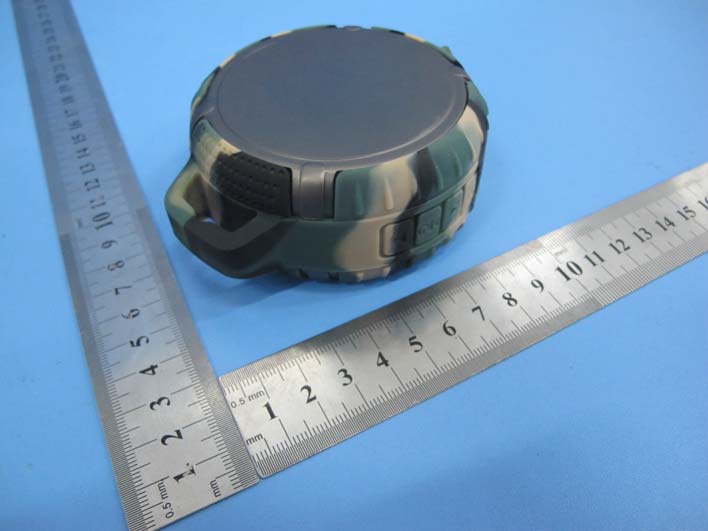

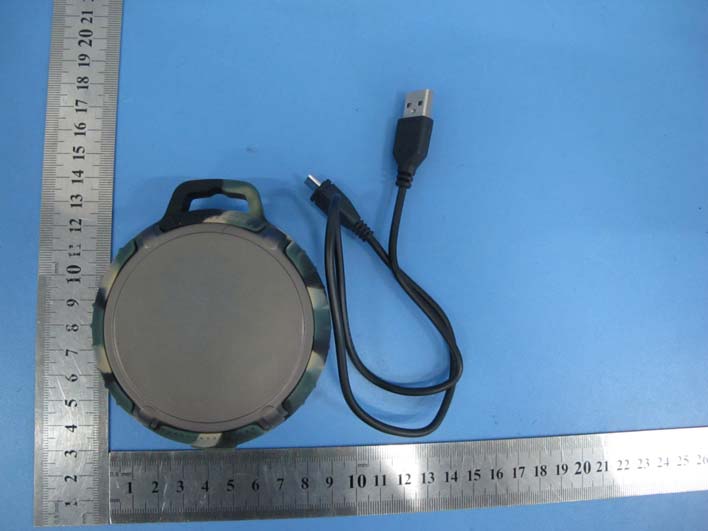

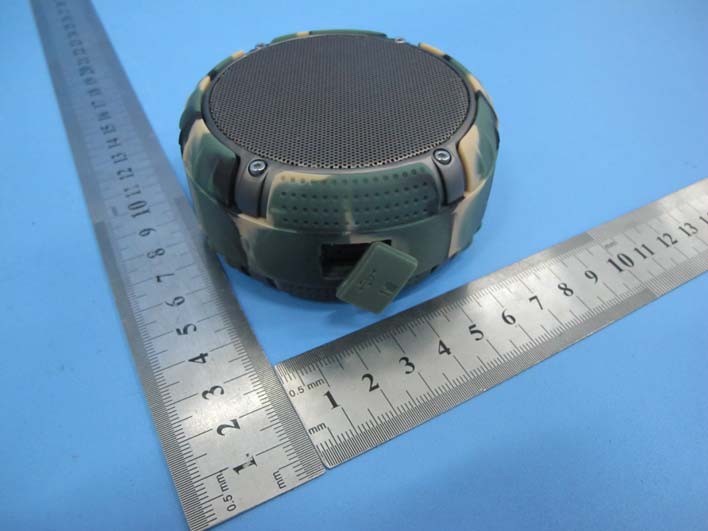

Report No.: TB-FCC145542 Page: 3 of 9 TB-RF-075-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of EUT Report No.: TB-FCC145542 Page: 4 of 9 TB-RF-075-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of EUT

Report No.: TB-FCC145542 Page: 2 of 9 TB-RF-075-1.0 Appendix II ID Label Location ID LOCATION

Report No.: TB-FCC145542 Page: 1 of 9 TB-RF-074-1.0 Appendix IFCC ID Label FCC ID : 2AFNM-JT2692 Sport Bluetooth Speaker Shenzhen Jinruitai Electronics Co.,Ltd This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Model: JT2692

Report No.: TB-FCC145542 Page: 5 of 9 TB-RF-075-1.0 Appendix IV EUT Internal Photographs Photo 5 Internal of EUT Photo 6 Internal of EUT Report No.: TB-FCC145542 Page: 6 of 9 TB-RF-075-1.0 Photo 7 Appearance of PCB Photo 8 Appearance of PCB 2.4G PCB Antenna Report No.: TB-FCC145542 Page: 7 of 9 TB-RF-075-1.0 Photo 9 Appearance of PCB Photo 10 Appearance of Battery

Shenzhen Toby Technology Co., Ltd. Report No.: TB-MPE145543 Page: 1 of 2 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 RF Exposure Evaluation FCC ID: 2AFNM-JT2692 1. Client Information Applicant : Shenzhen Jinruitai Electronics Co.,Ltd Address : 4F, Building A, Taixinglong Industrial Town, Zhongwu Xixiang, Baoan District, Shenzhen City, GuangDong Province, China Manufacturer : Shenzhen Jinruitai Electronics Co.,Ltd Address : 4F, Building A, Taixinglong Industrial Town, Zhongwu Xixiang, Baoan District, Shenzhen City, GuangDong Province, China 2. General Description of EUT EUT Name : Sport Bluetooth Speaker Models No. : JT2692 Model Difference : N/A Product Description : Operation Frequency: 2402~2480MHz Number of Channel: Bluetooth 4.0 (BLE): 40 channels Max Peak Output Power: 4.50 dBm Conducted Power Antenna Gain: -0.46 dBi PCB Antenna Modulation Type: GFSK Power Supply : DC Voltage supplied from Host System by USB cable. DC power by Li-ion Battery. Power Rating : DC 5.0V by USB cable. DC 3.7V 1800mAh Li-ion Battery. Connecting I/O Port(S) : Please refer to the User's Manual Note: More test information about the EUT please refer the RF Test Report. Report No.: TB-MPE145543 Page: 2 of 2 TB-RF-074-1.0 SAR Test Exclusion Calculations 1. FCC: According to KDB 447498 D01 Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies v05r02. (1) Clause 4.3: General SAR test reduction and exclusion guidance Sub clause 4.31: Standalone SAR test exclusion considerations 1) The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6GHz at test separation distance≤5 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√f (GHz) ] ≤3.0 for 1-g SAR [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√f (GHz) ] ≤7.5.0 for 10-g SAR 2. Calculation: Test separation: 5mm BLE(GFSK) Frequency (GHz) Conducted Power (dBm) Turn-up Power Tolerance (dB) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.402 4.50 ±0.5 3.162 0.980 3.0 2.442 2.67 ±0.5 2.075 0.648 3.0 2.480 2.29 ±0.5 1.901 0.599 3.0 So standalone SAR measurements are not required.

Shenzhen Toby Technology Co., Ltd. Report No.: TB-FCC145542 Page: 1 of 49 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 FCC Radio Test Report FCC ID: 2AFNM-JT2692 Original Grant Report No. : TB-FCC145542 Applicant : Shenzhen Jinruitai Electronics Co.,Ltd Equipment Under Test (EUT) EUT Name : Sport Bluetooth Speaker Model No. : JT2692 Series No. : N/A Brand Name : N/A Receipt Date : 2015-09-24 Test Date : 2015-09-25 to 2015-10-14 Issue Date : 2015-10-15 Standards : FCC Part 15, Subpart C (15.247:2015) Test Method : ANSI C63.10: 2013 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above, The EUT technically complies with the FCC and IC requirements Test/Witness Engineer : Approved& Authorized : This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TB-FCC145542 Page: 2 of 49 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 4 1.1 Client Information ................................................................................................................. 4 1.2 General Description of EUT (Equipment Under Test) ................................................... 4 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 5 1.4 Description of Support Units .............................................................................................. 6 1.5 Description of Test Mode .................................................................................................... 6 1.6 Description of Test Software Setting ................................................................................ 7 1.7 Measurement Uncertainty .................................................................................................. 7 1.8 Test Facility ........................................................................................................................... 8 2. TEST SUMMARY ....................................................................................................................... 9 3. TEST EQUIPMENT .................................................................................................................. 10 4. CONDUCTED EMISSION TEST ........................................................................................... 11 4.1 Test Standard and Limit .................................................................................................... 11 4.2 Test Setup ........................................................................................................................... 11 4.3 Test Procedure ................................................................................................................... 11 4.4 EUT Operating Mode ........................................................................................................ 12 4.5 Test Data ............................................................................................................................. 12 5. RADIATED EMISSION TEST ................................................................................................ 17 5.1 Test Standard and Limit .................................................................................................... 17 5.2 Test Setup ........................................................................................................................... 18 5.3 Test Procedure ................................................................................................................... 19 5.4 EUT Operating Condition ................................................................................................. 20 5.5 Test Data ............................................................................................................................. 20 6. RESTRICTED BANDS REQUIREMENT ............................................................................. 33 6.1 Test Standard and Limit .................................................................................................... 33 6.2 Test Setup ........................................................................................................................... 33 6.3 Test Procedure ................................................................................................................... 33 6.4 EUT Operating Condition ................................................................................................. 34 6.5 Test Data ............................................................................................................................. 34 7. BANDWIDTH TEST ................................................................................................................. 40 7.1 Test Standard and Limit .................................................................................................... 40 7.2 Test Setup ........................................................................................................................... 40 7.3 Test Procedure ................................................................................................................... 40 7.4 EUT Operating Condition ................................................................................................. 40 7.5 Test Data ........................................................................................................…

Text truncated - open the document above for the full version.

Report No.: TB-FCC145542 Page: 8 of 9 TB-RF-075-1.0 Appendix V EUT Test Photographs 15C Test Setup Photo of Setup for Radiated Emission (Above 1 GHz) Photo of Setup for Radiated Emission (Below 1 GHz) Report No.: TB-FCC145542 Page: 9 of 9 TB-RF-075-1.0 Photo of Setup for Conducted Emission
