1 Forest EasyTouch Quick start guide Forest Link 2 RF Protocol included FRONT BACK T-button Prg-button 2x AAA battery Favorite Channel - Channel + Open Close Channel LED bar Stop (520108X006) 2 Welcome to the EasyTouch family! Thank you for purchasing the EasyTouch remote control. With this remote control you are ready to operate your Forest Shuttle™ and Forest tubular motors effortlessly. In this manual you will find all the information you need to get the most out of your EasyTouch. General Read this installation guide and the safety instructions carefully before you start using this Forest product. Follow the instructions given in this manual and keep this manual for the entire life of the product. This manual describes the use and commissioning of the EasyTouch. Any installation or use that falls outside the scope defined by Forest is not permitted. Ignoring the instructions in this manual will void all liability and warranty of Forest Group. Contents Introduction 2 Contents box 2 Features 3 Button specification 3 Change battery 4 Functionality 5 Safety & Troubleshooting 6 Motor pairing 7 Technical specification 8 Contents box 1x Remote 1x wall mount 2x AAA battery in seal 2x plastic plug 2x 4x 40 screw 1x Manual 3 Features & Benefits • 6-channel Forest RF control • low battery alert • low power standby • child lock function • Configure for use as a wall-mount control or handheld control. • Utilizes Forest Link 2 RF technology ButtonDescription/ function Open Opens the curtains or blinds Close Closes the curtains or blinds Stop Stops the movement Channel + Pressing Channel Up increments the channel or moves the LED in the bar to the next. Channel - Pressing Channel Up decrements the channel or moves the LED in the bar to the previous. Favorite allows users to quickly access their preferred curtain positions with a single press.* PP Prg The Program button, accessible upon removing the back case, enables users to access programming functions * This function applies only to Forest Link 2 motors 4 Place or Change battery 1. Press and slide the back cover from the remote control upward, exposing the battery compartment. 2. Insert the batteries, paying attention to match up the (+) and (-) ends of the batteries with the symbols inside the battery compartment. 3. Slide the battery cover back into place. 5 Child lock: locks all programming functions 1. Press PP for 10 seconds 2. LED flickers 1x 3. Repeat the above, to activate again Select channel 1. Navigate with or 2. LED indicate the channel number 3. Repeat the above, to activate again Set number of channels 1. Press & for 3 seconds the LED flickers 2. Set the amount of active channels with the and buttons 3. Press to approve 4. The LED flickers 3 times Note: if all LED’s are lit, that is channel 0 (all channels moving together) Switch Protocol Note: if you only have Forest motors without the Forest Link 2 protocol, you can switch from dual to single protocol for legacy compatibility 1. Remove the batteries 2. Press & reinstall the batteries 3. the LED flickers 1x 6 General safety instructions This product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the product by a person responsible for their safety or supervision. use of the product. • Do not let children play with the remote control • Never immerse the device in any liquid • Do not drop, drill holes in or disassemble the device, otherwise the warranty will be void. • Do not expose the device to high temperatures or place it in direct sunlight. Troubleshooting 1. During use, when the remote control distance is significantly shorter or less sensitive, please check whether the battery needs to be replaced 2. When the battery voltage is insufficient, an orange LED will flicker upon pressing a button, signaling the need for battery replacement. 7 Instructions for connecting to Forest motors To connect the remote to the Forest product, please refer to the user manual of the respective Forest motor or visit the landing page containing all manuals and videos (accessible via a QR code). 8 FCC Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Technical Specification • Battery: 3V (AAA battery×2) LR03 • Battery life < 3 years • Transmit range indoor max. 30mtr • Transmit power max. 10mW (ERP) • Working temperature -10°C - +50°C • Frequency 433.92MHz±100KHz • Radiocodi…

Text truncated - open the document above for the full version.

Date: 06-04-2024 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Ref: Attestation Statements Part 2.911(d)(5)(i) and Part 2.911(d)(5)(ii) Filing Re. KDB 986446 D01 FCC ID: 2AFO8520108X006 Dear Sir or Madam, Forest Group (Nederland) B.V. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, Forest Group (Nederland) B.V. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] identified on the Covered List ( as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment . If you have any questions, please contact us. Sincerely, Contact name: Marco de Lange Company name: Forest Group (Nederland) B.V. Address: Teugseweg 42 Deventer 7418 AM E-mail: [email protected] Tel: +31 (0) 570 - 622850

Date (July 02, 2024) TUV SUD BABT UNLIMTED (TCB) Octagon House, Concorde Way Segensworth North, Fareham, Hampshire, PO15 5RL Agent (power of attorney) Letter FCC ID: 2AFO8520108X006 Dear Sir or Madam, We, Forest Group (Nederland) B.V. Teugseweg 42 Deventer 7418 AM Deventer Netherlands hereby authorize Jiaxi Xu from TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151 Heng Tong Road Shanghai 201108 P.R. China to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on November 27, 2024. Sincerely, Contact name: Marco de Lange Company name: Forest Group (Nederland) B.V. Address: Teugseweg 42 Deventer 7418 AM Deventer Netherlands E-mail: [email protected] Tel: +31 (0) 570 - 622850

Date (July 02, 2024) TUV SUD BABT UNLIMITED (TCB) Octagon House, Concorde Way Segensworth North, Fareham, Hampshire, PO15 5RL Confidentiality Request FCC ID: 2AFO8520108X006 Pursuant to FCC 47 CFR 0.457(d)(1)(ii) and FCC 47 CFR 0.459 of the Commission’s Rules, Forest Group (Nederland) B.V. hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Block Diagrams Theory of Operation Yours sincerely, (signed by FCC listed Grantee contact) Contact name: Marco de Lange Company name: Forest Group (Nederland) B.V. Address: Teugseweg 42 Deventer 7418 AM Deventer Netherlands E-mail: [email protected] Tel: +31 (0) 570 - 622850

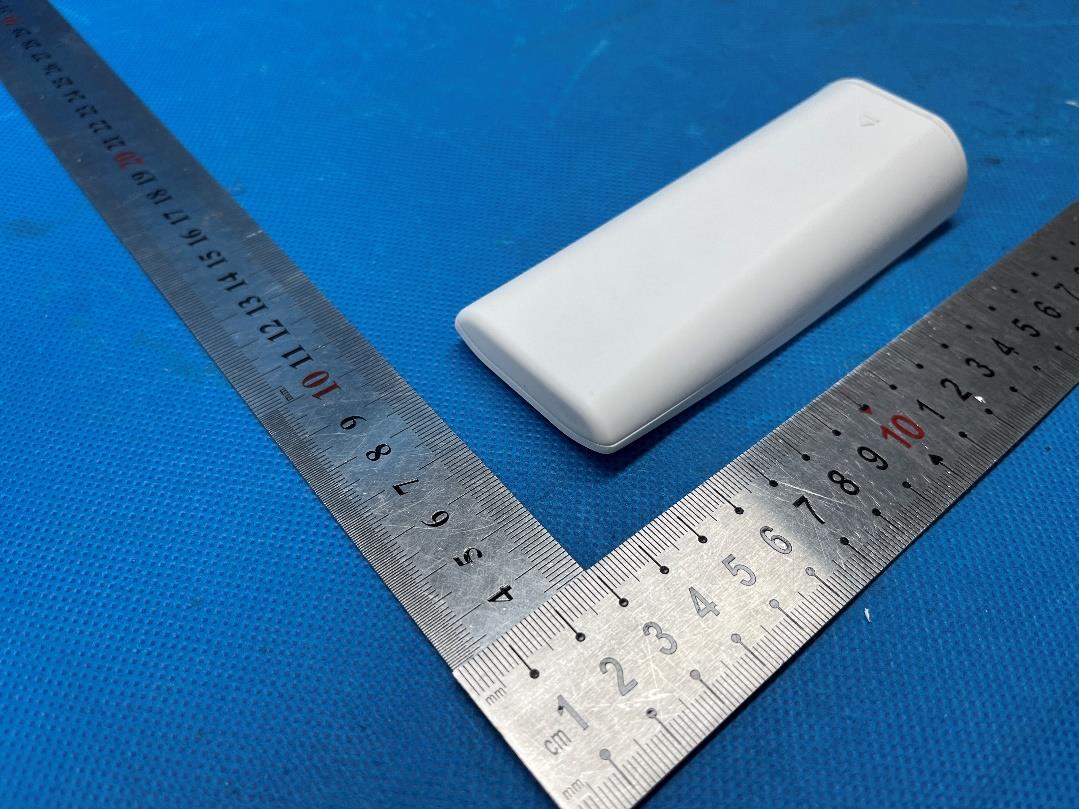

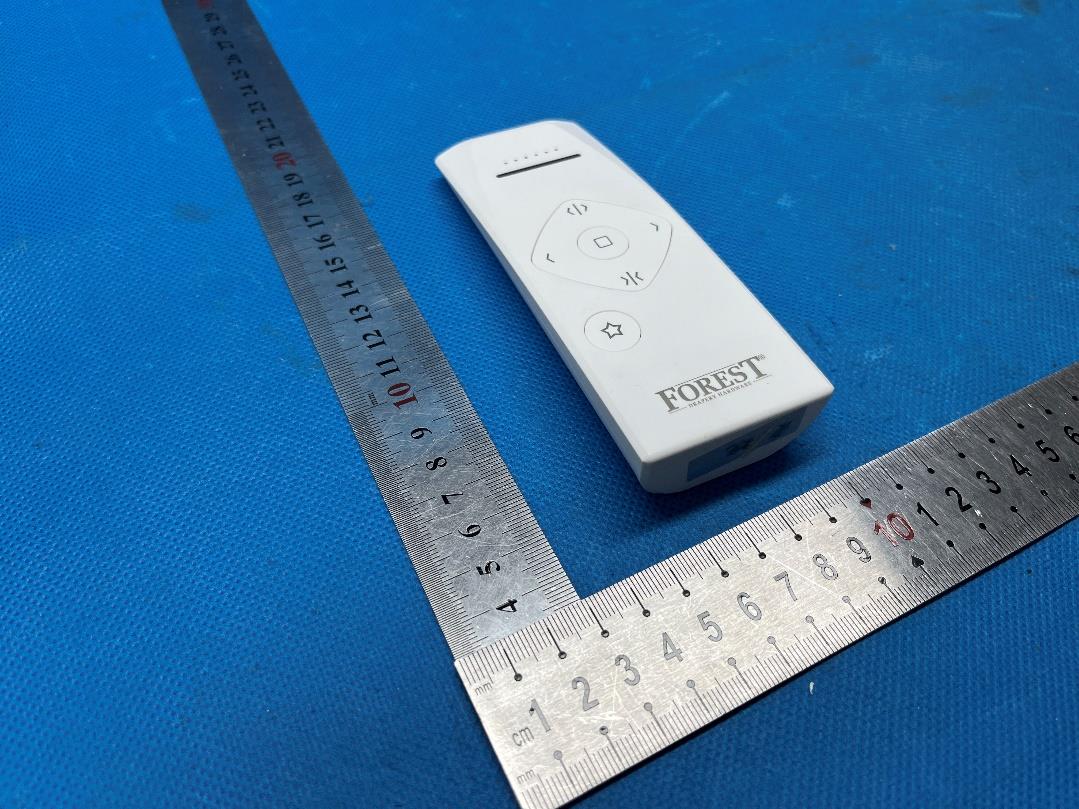

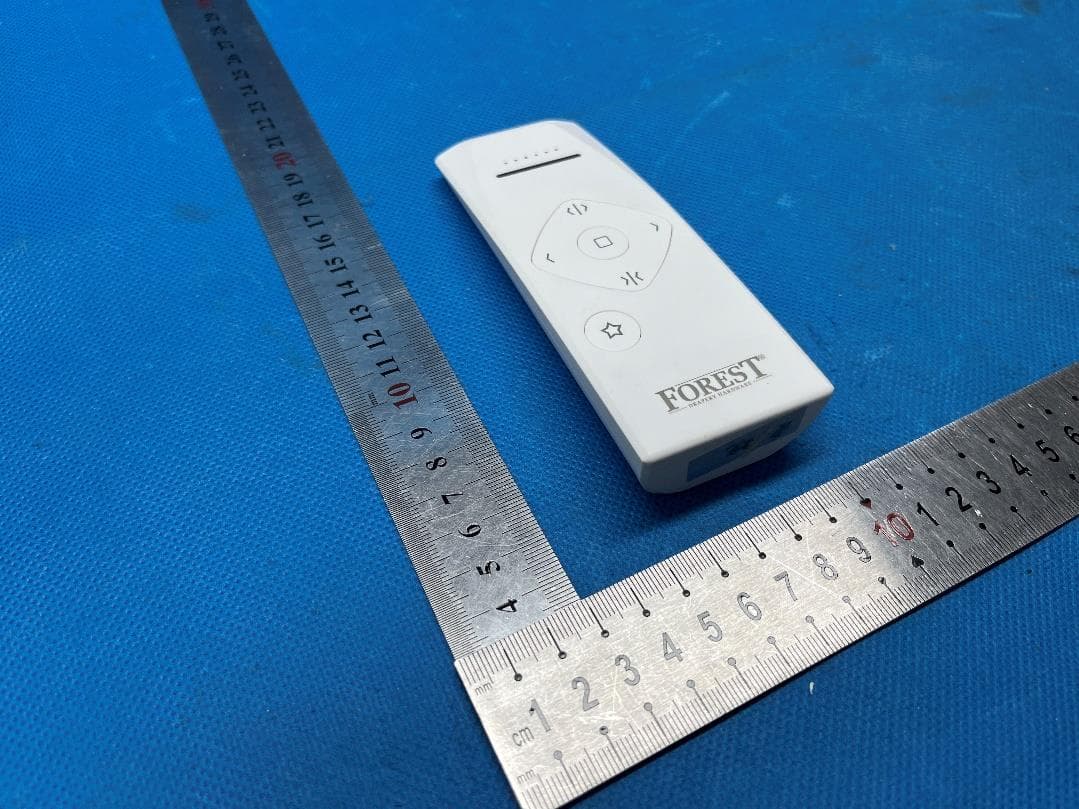

External Photos Documentation Manufacturer: Forest Group Nederland B.V. Page 1 of 2 Product: Forest EasyTouch FCC ID: 2AFO8520108X006 Model: 5201081006 External Photos Documentation Manufacturer: Forest Group Nederland B.V. Page 2 of 2 Product: Forest EasyTouch FCC ID: 2AFO8520108X006

Internal Photos Documentation Manufacturer: Forest Group Nederland B.V. Page 1 of 2 Product: Forest EasyTouch FCC ID: 2AFO8520108X006 Model: 5201081006 Internal Photos Documentation Manufacturer: Forest Group Nederland B.V. Page 2 of 2 Product: Forest EasyTouch FCC ID: 2AFO8520108X006 Antenna Location

Report No: 709502403680-00B EMC_SHA_F_R_02.06E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 1 of 2 Rev. 23.00 RF Exposure Estimation 1. Introduction Applicant: Forest Group (Nederland) B.V. Address: Teugseweg 42 7418 AM Deventer THE NETHERLANDS Product: Forest EasyTouch FCC ID: 2AFO8520108X006 Model No.: 5201081006, 5201086006 Reference RF report # 709502403680-00A 2. B.2 Blanket 1 mW Blanket Exemption The 1 mW Blanket Exemption of § 1.1307(b)(3)(i)(A) applies for single fixed, mobile, and portable RF sources with available maximum time-averaged power of no more than 1 mW, regardless of separation distance. The 1 mW blanket exemption applies at separation distances less than 0.5 cm, including where there is no separation. This exemption shall not be used in conjunction with other exemption criteria other than those for multiple RF sources in paragraph § 1.1307(b)(3)(ii)(A). The 1 mW exemption is independent of service type and covers the full range of 100 kHz to 100 GHz, but it shall not be used in conjunction with other exemption criteria or in devices with higher-power transmitters operating in the same time-averaging period. Exposure from such higher-power transmitters would invalidate the underlying assumption that exposure from the lower-power transmitter is the only contributor to SAR in the relevant volume of tissue. 3. RF Exposure Evaluation Per the test report included herein, for 433.92MHz According to C63.10-2020 Annex G EIRP = pt × gt =( E × d) 2 /30 (G.1) where pt is the transmitter output power in watts gt is the numeric gain of the transmitting antenna (dimensionless) E is the electric field strength in V/m d is the measurement distance in meters (m) ERP = EIRP /1.64 = (E x d) 2 / (30 x 1.64) = (E x d) 2 / 49.2 (G.2) Transmitter output power for 433.92MHz Function Field strength (E): 86.03 (dBuV/m) = 0.02 (V/m) Measurement distance (d): 3 (m) ERP (W): 0.0000733(W) ERP (mW): 0.0733(mW) Report No: 709502403680-00B EMC_SHA_F_R_02.06E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 2 of 2 Rev. 23.00 We used the maximum ERP/EIRP to perform RF exposure exemption evaluation. Evaluation method Exempt Limit (mW) Verdict ◼ Blanket 1 mW Blanket Exemption 1mW Yes  MPE-based Exemption (ERP) 7mW (ERP) N/A  SAR-based Exemption (Pth) 3060mW N/A So, the device is qualified for SAR test exemption, the exemption report is in lieu of the SAR report. - TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch Reviewed by: Prepared by: Tested by: _____________________ _____________________ ______________________ Hui TONG Jiaxi XU Cheng Huali EMC Section Manager EMC Project Engineer EMC Test Engineer Date: July 08, 2024 Date: July 08, 2024 Date: July 08, 2024 -------------------------------------------------------End of Test Report--------------------------------------------------------------------

Antenna Information To whom it may concern, Product name: Forest EasyTouch Model: 5201081006, 5201086006 FCC ID: 2AFO8520108X006 The applicable FCC rule part of this product is § 15.231, radiated measurements are used to show compliance with FCC limits for fundamental and spurious emissions. The Antenna information as below for your reference. Antenna photo: An tenna transmission frequency: 433.92MHz Antenna type: PCB Antenna Yo urs sincerely, Con tact name: Marco de Lange Company name: Forest Group (Nederland) B.V. Address: Teugseweg 42 Deventer 7418 AM E-mail: [email protected] Tel: +31 (0) 570 - 622850

EMC_SHA_F_R_02.01E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 1 of 23 Rev. 23.00 FCC ID TEST REPORT Report Number : 709502403680-00A Date of Issue: July 08, 2024 Model : 5201081006, 5201086006 Product Type : Forest EasyTouch Applicant : Forest Group (Nederland) B.V. Address : Teugseweg 42 7418 AM Deventer THE NETHERLANDS Manufacturer : Forest Group (Nederland) B.V. Address : Teugseweg 42 7418 AM Deventer THE NETHERLANDS Production Facility : Zhejiang Jiecang Linear Motion Technology Co., Ltd. Address : HIGH TECH PARK, QIXING STREET, XINCHANG COUNTY, ZHEJIANG, P.R. CHINA 312500 Test Result : ◼ Positive  Negative Total pages including Appendices : 23 TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch is a subcontractor to TÜV SÜD Product Service GmbH according to the principles outlined in ISO 17025. TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch reports apply only to the specific samples tested under stated test conditions. Construction of the actual test samples has been documented. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. The manufacturer/importer is responsible to the Competent Authorities in Europe for any modifications made to the production units which result in non-compliance to the relevant regulations. TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. dc Report Number: 709502403680-00A EMC_SHA_F_R_02.01E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 2 of 23 Rev. 23.00 1 Table of Contents 1 Table of Contents ............................................................................................ 2 2 Report Modification Record ............................................................................. 3 3 Details about the Test Laboratory .................................................................... 4 4 Description of the Equipment Under Test ........................................................ 5 5 Summary of Test Standards ............................................................................ 6 6 Summary of Test Results ................................................................................ 7 7 General Remarks ............................................................................................ 8 8 Systems test configuration ............................................................................... 9 9 Test Setups ................................................................................................... 10 10 Test Methodology .......................................................................................... 11 10.1 Radiated Emission ................................................................................... 11 10.2 Bandwidth Measurement ......................................................................... 17 10.3 Deactivation Time .................................................................................... 19 11 Test Equipment List ....................................................................................... 20 12 System Measurement Uncertainty ................................................................. 21 13 Photographs of Test Set-ups ...................................................................... 22 14 Photographs of EUT ................................................................................... 23 Report Number: 709502403680-00A EMC_SHA_F_R_02.01E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 3 of 23 Rev. 23.00 2 Report Modification Record Alterations and additions to this report will be issued to the holders of each copy in the form of a complete document. Issue Description of Change Date of Issue -00A First Issue 07/08/2024 Report Number: 709502403680-00A EMC_SHA_F_R_02.01E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 4 of 23 Rev. 23.00 3 Details about the Test Laboratory Test Site 1 Company name: TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch No.16 Lane, 1951 Du Hui Road, Shanghai 201108, P.R. China Telephone: +86 21 6141 0123 Fax: +86 21 6140 8600 FCC Registration No.: 820234 FCC Designation Number: CN1183 Report Number: 709502403680-00A EMC_SHA_F_R_02.01E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 5 of 23 Rev. 23.00 4 Description of the Equipment Under Test Product: Forest EasyTouch Model no.: 5201081006, 5201086006 FCC ID: 2AFO8520108X006 Options and accessories: NA Rating: 2x1.5V DC AAA/LR03 Battery RF Transmission Frequency: 433.92MHz No. of Operated Channel: 1 Modulation: FSK Antenna Type: internal, PCB Antenna Description of the EUT: The EUT was a Forest EasyTouch transmit at 433.92MHz. We tested it and listed the worst data in this report. Test sample no.: SHA-812923-1 (Continue transmitting for Radiated Emission) SHA-812923-2 (Normal operating for other tests) The sample’s mentioned in this report is/are s…

Text truncated - open the document above for the full version.

Manufacturer: Forest Group Nederland B.V. Product: Forest EasyTouch FCC ID: 2AFO8520108X006 ©2024 Not to be reproduced, except in its entirety, Page 1 of 1 without the Permission of TÜ V SÜ D Certification and Testing (China) Co., Ltd. Shanghai Branch PHOTOGRAPHS OF TEST SET UP Field Strength and Harmonics Test Setup Radiated Emission Setup 30MHz - 1GHz 1GHz - 5GHz
