2AFRLGC130824Bluetooth Speaker

Quick Start Guide Highlights Bluetooth Speaker The Highlights Bluetooth Speaker features great sound and includes a built-in microphone for easy hands free calling. Simply pair your hand held device with the Highlights Bluetooth Speaker to easily answer calls while enjoying your favorite music. Includes 1 x Bluetooth Speaker 1 x Micro USB Charging Cable Speaker Controls (+): Quick Press Plays next song; Press and hold down to increase volume (-): Quick Press Plays previous song; Press and hold down to decrease volume (>II): Quick Press Plays and Pauses; for incoming call Quick Press to answer call; Long Press to call back the last number dialed on your mobile phone A): Micro USB Recharge Port B): Power Switch Charging Battery Before your first use follow these instructions to fully charge the Highlights Bluetooth Speaker 1- Move the “On/Off” switch to the “Off” Position 2- Plug the Micro USB charging cable into the speaker and a powered USB port. While charging the White indicator LED light will be laminated. When the White LED light turns off the Speaker will be fully charged Playing Music 1- Move the “On/Off” switch to the “On” position 2- The Highlights Bluetooth Speaker will make a loud series of beeps and Blue LED indicator light will blink rapidly, indicating that the speaker is attempting to pair/connect to your device. If a device is not in pairing/connected mode after 30 seconds, the speaker will switch to sleep mode. Turn the speaker off and then on again in order to pair/connect with your device. 3- On your mobile device select Bluetooth mode “On” search for Bluetooth devices and select the Speaker 4- The Highlights Bluetooth Speaker will beep and the Blue LED light will blink slower indicating that the Speaker and mobile device is paired/connected Note: You can control play/pause, go to next song, previous song all from your mobile device Note: If the Highlights Bluetooth Speaker is moved out of range or runs out of power and drops the connection to your mobile device, you will then need to recharge or move the Highlights Bluetooth Speaker closer to your mobile device and return to Step 1 above to re-establish the Bluetooth connection Answering a Call with the Highlights Bluetooth Speaker 1- Establish a Bluetooth connection between your mobile device and the Highlights Bluetooth Speaker as described in the section above “Playing Music” 2- To answer a call press the Call Button (>II) once 3- To end a call press the Call Button (>II) once Specifications  Dimensions: 2.32” H x 2.44” D x 1.85” D (Suction Cup Base)  Battery Voltage: 3.7V  Battery Capacity: 300mAH  Recharging Voltage: 5V  Speaker Driver: 13pin inner magnetic 4Ω/3W  Frequency Response: 180Hz – 16KHz  Wireless Range: up to 33 ft.  Bluetooth V2.1 + EDR Compliant  Speaker Sensitivity: ≥91dB  Speaker Impedance: 8Ω Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference. (2) this device must accept any interference received, including interference that may cause undesired operation. The FCC ID: 2AFRLGC130824 is marking on the plastic shell and the users can remove the silicon shell to find it without using any tools.

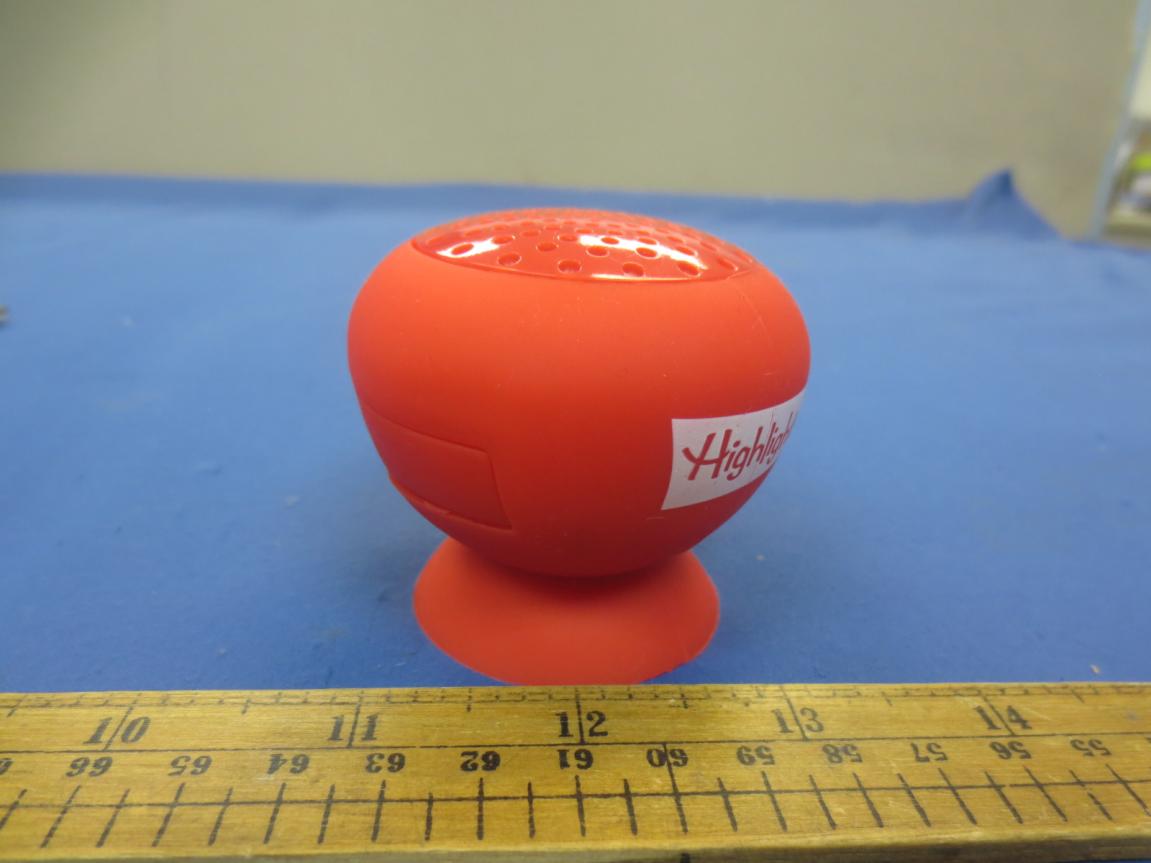

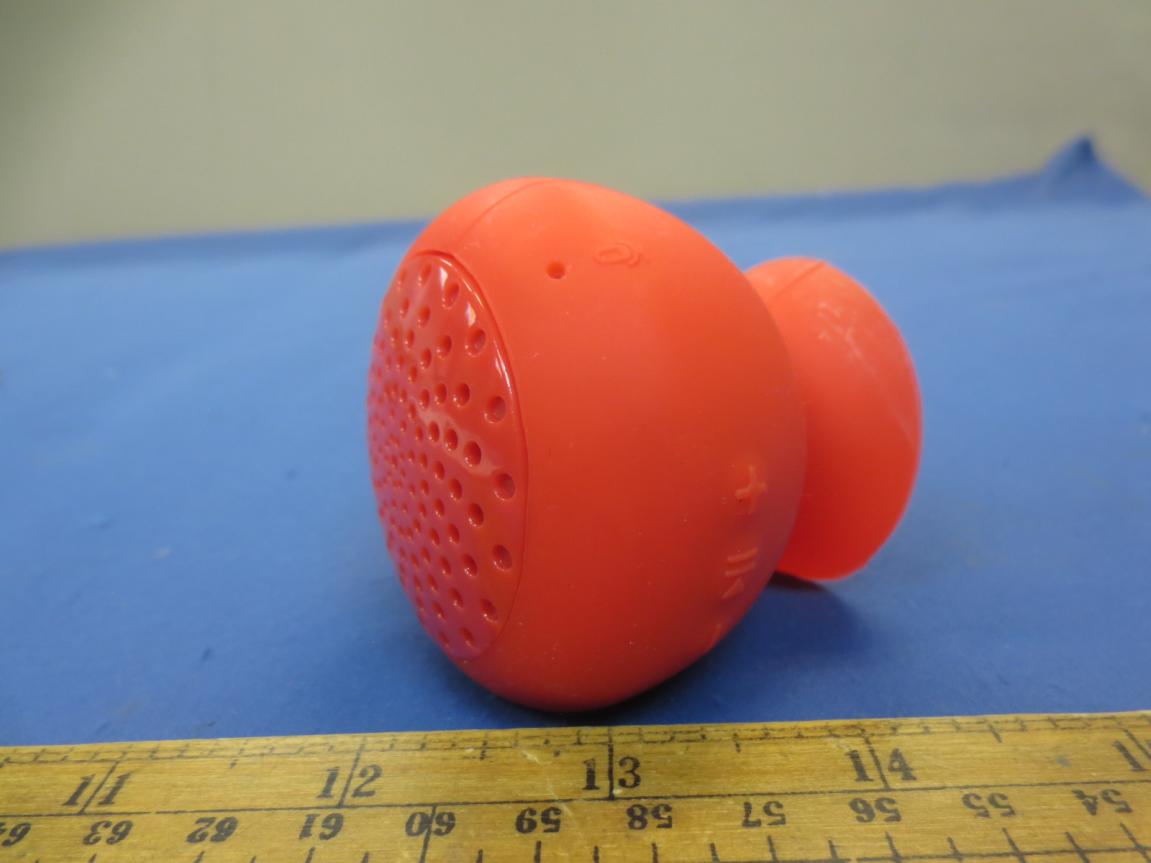

External Photos

INTERTEK TESTING SERVICES RF Exposure The equipment under test (EUT) is a BLUETOOTH SPEAKER with Bluetooth function. The EUT was powered by DC 3.7V lithium battery and charged by DC 5V USB port. For more detail information pls. refer to the user manual. Modulation Type: GFSK, π/4DQPSK, 8DPSK. Bluetooth Version: 2.1+EDR. Antenna Type: Integral antenna. Antenna Gain: -1dBi. The nominal conducted output power specified: -12.0dBm (+/-3dB). The nominal radiated output power (e.i.r.p) specified: -13.0dBm (+/- 3dB) According to the KDB 447498: The maximun peak radiated emission for the EUT is 82.8dBμV/m at 3m in the frequency 2402MHz The EIRP = [(FS*D) ^2 / 30] mW =-12.43dBm which is within the production variation. The minimum peak radiated emission for the EUT is 79.9dBμV/m at 3m in the frequency 2480MHz The EIRP = [(FS*D) ^2 / 30] mW = -15.33dBm which is within the production variation. The maximun conducted output power specified is -9.0dBm = 0.13 mW The source- based time-averaging conducted output power = 0.13 * Duty Cycle mW (where Duty Cycle < 100%) < 0.13mW The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.5 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. FCC ID: 2AFRLGC130824

BT 2.1+EDR

BT 2.1+EDR

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results referenced from this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. TRF No.: FCC 15C_TX_b Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Website: www.china.intertek-etlsemko.com Cinrett Promotional Inc,. Application For Certification FCC ID: 2AFRLGC130824 Bluetooth Speaker Model: BT Speaker Brand name: N/A 2.4GHz Transceiver Report No.: 150811005SZN-001 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [ 10-1-13] Prepared and Checked by: Approved by: Sign on file Vincent Chen Engineer Andy Yan Senior Project Engineer Date: August 20, 2015 INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: 2AFRLGC130824 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information EXHIBIT 9: Confidentiality Request EXHIBIT 10: Test Equipment List INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: 2AFRLGC130824 ii MEASUREMENT/TECHNICAL REPORT Cinrett Promotional Inc,. MODEL: BT Speaker Brand name: N /A FCC ID: 2AFRLGC130824 This report concerns (check one:) Original Grant X Class II Change Equipment Type: DXX - Part 15 Low Power Communication Device Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator − the new 47 CFR [10-1-13 Edition] provision. Report prepared by: Vincent Chen Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, Block D, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Phone: (86 755) 8601 0684 Fax: (86 755) 8601 6751 INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: 2AFRLGC130824 iii Table of Contents 1.0 General Description ............................................................................................................................................ 2 1.1 Product Description ........................................................................................................................................... 2 1.2 Related Submittal(s) Grants ............................................................................................................................. 2 1.3 Test Methodology .............................................................................................................................................. 2 1.4 Test Facility ....................................................................................................................................................... 2 2.0 System Test Configuration ................................................................................................................................ 4 2.1 Justification ......................................................................................................................................................... 4 2.2 EUT Exercising Software .................................................................................................................................. 4 2.3 Special Accessories .......................................................................................................................................... 4 2.4 Equipment Modification ..................................................................................................................................... 4 2.5 Measurement Uncertainty ................................................................................................................................. 5 2.6 Support Equipment List and Description ......................................................................................................... 5 3.0 Emission Results ................................................................................................................................................ 7 3.1 Radiated Test Results ....................................................................................................................................... 8 3.1.1 Field Strength Calculation .............................................................................................................................. 8 3.1.2 Radiated Emission Configuration Photograph................................................…
