2AFRZWUZ-01B-NB01InfoLinker

Quick Guide Model No. WUZ-01B-NB01 Read the “Safety precautions” section before start using this device and use the device correctly. In addition, keep this manual at a place where a user can use whenever necessary. Glasses-type Wearable Device For detailed operations, refer to the User manual. The User manual is available for downloading on the following web site. http://www.westunitis.co.jp/en/ ™ 2 Table of Contents Table of Contents ............................................................ Introduction .................................................................. Intended use .................................................................. Users .............................................................................. Service life ..................................................................... Safety precautions ............................................................ Product documentation ................................................... Checking the accessories ................................................... Before Use ........................................................................... Names and functions of components .................................... Charging the batteries ...................................................... Inserting and replacing batteries .......................................... How to Wear the Device ......................................................... Basic Operations .................................................................. Turning On/Off the Power ...................................................... Turning on the power ...................................................... Turning off the power ...................................................... Sleep mode ..................................................................... Turning on/off the display (screen) ....................................... Home Screen ..................................................................... Displayed information ...................................................... Initial application ............................................................ Development Environment ................................................... FCC Information .................................................................. Specifications ..................................................................... Trademarks ........................................................................ 02 03 03 03 03 04 10 10 11 11 12 13 14 15 16 16 16 16 17 18 18 19 20 21 22 23 3 Introduction Thank you very much for choosing our product, InfoLinker “WUZ-01B-NB01.” This product is used by attaching to the temporal part in combination with the glasses and provided neckband with intension of easing the indoor navigating and picking works and remote operations in a factory and a warehouse. Before start using this product, analyze the risks that may exist while using this product and check the safety thoroughly. Intended use Users need to understand the contents of this manual for safe and correct use of this product. We recommend that any person who corresponds to one of the following con- ditions refrain from using this product. Users • Person who is wearing medical electric equipment such as an implanting type pacemaker or an implanting type defibrillator • Person who has health history of photosensitivity • Person who has a heart disease • Person in poor physical condition • Person with poor sleep • Person who is tired • Person who has influence of alcohol 3 years. This service life is expected only if you use the product properly accord- ing to this manual and the user manual. Service life 4 Safety precautions DANGER A Danger indicates a hazard with a high level of risk which, if not avoided, will result in death or serious injury. A Warning indicates a hazard with a medium level of risk which, if not avoided, could result in death or serious injury. A Caution indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury, damage to the property. Alert symbol This section describes precautions to use the product in safety and to avoid putting yourself, other people, and your property at risk. The words DANGER, WARNING, and CAUTION convey special meanings. Follow the instructions precisely while you use the product. ■ Examples of pictorial images Symbol for “Prohibitions (Must not do).” Symbol for “Compulsory actions (Must do).” WARNING CAUTION 5 Handling of InfoLinker, battery charger, battery, and AC adapter DANGER Always wear the device with the glasses. Otherwise, an injury may cause such as by hurting the eye by the display. Before start using the device, confirm the safety in the surrounding environment. While watching the images, recognizing the surrounding conditions becomes difficult. If there is any fragile object or obstacle, an injury or an accident may occur. Do not use the device while driving a car, motor cycle, or a bicycle. Otherwise, a traffic accident, tumbling, or falling accident may occur. When stopping by a place which handles the flammable gas such as a gas station, be sure to remove the battery from the device in advance. Do not charge the battery either. Otherwise, the gas may catch a fire. WARNING Do not use the device continuously for a long time. Use the device by taking sufficient breaks periodically. Do not use the device while moving. Otherwise, tumbling or traffic accident may occur. Do not use the device with a high volume for a long time. Otherwise, hearing disorder may occur. Set to a proper volume. Do not use, store, or charge the device in the following places. ・Hot place such as near fire or heating equipment ・Place exposed to the direct sunlight (such as inside of a vehicle on a sunny day) ・Place with abrupt temperature changes ・Place with high humidity such as near water or place where water may splash ・Dusty place Otherwise, fire or malfunction may occu…

Text truncated - open the document above for the full version.

Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: 2AFRZWUZ-01B-NB01 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Parts List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until July 17, 2016. External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Tetsuya Taki / Manager WESTUNITIS CO., Ltd. Jan. 18, 2016

Date: Jan. 18, 2016 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. UL Verification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Mika Itagaki, Project Coordinator of Japan Q uality Assurance Organization and hereafter referred to as JQA, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Mika Itagaki, Project Coordinator of JQA on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing JQA as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Tetsuya Taki / Manager WESTUNITIS CO., Ltd. REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

FCC ID Location LABEL Location About FCC ID/LABEL Location

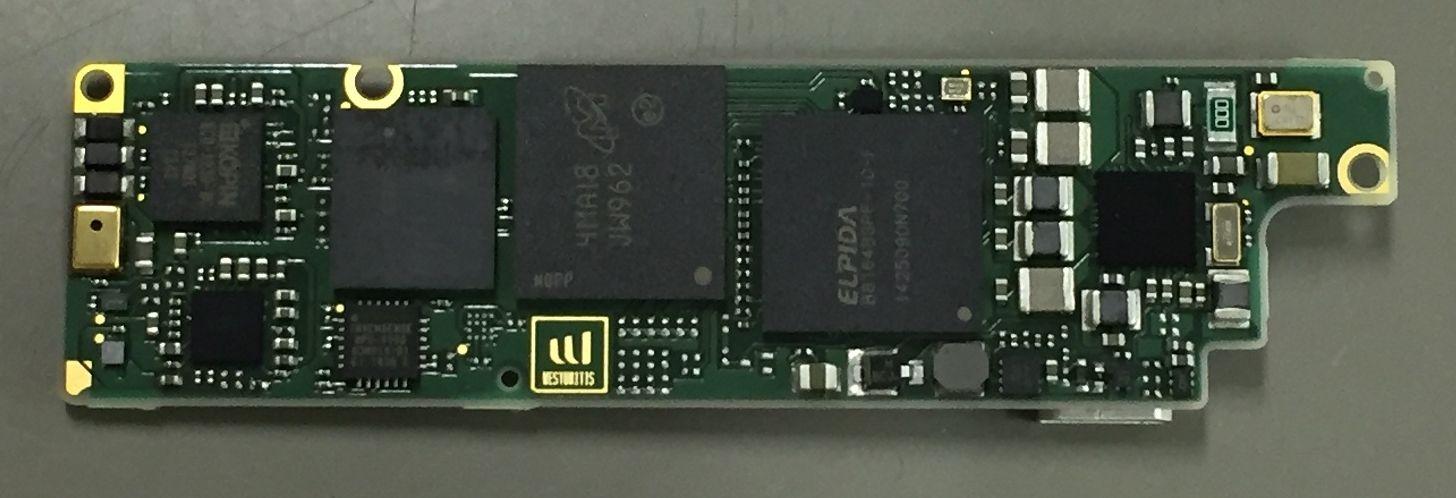

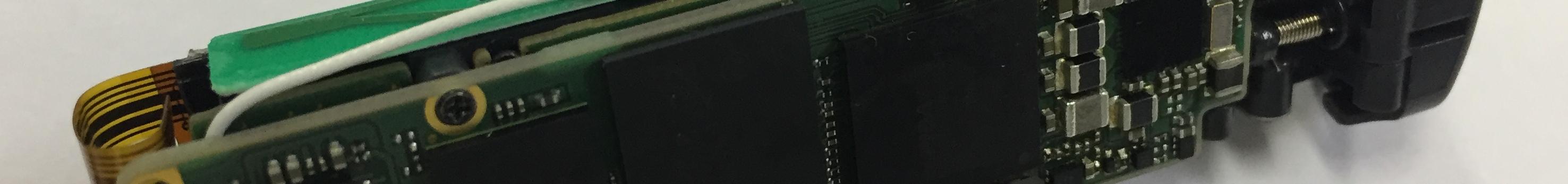

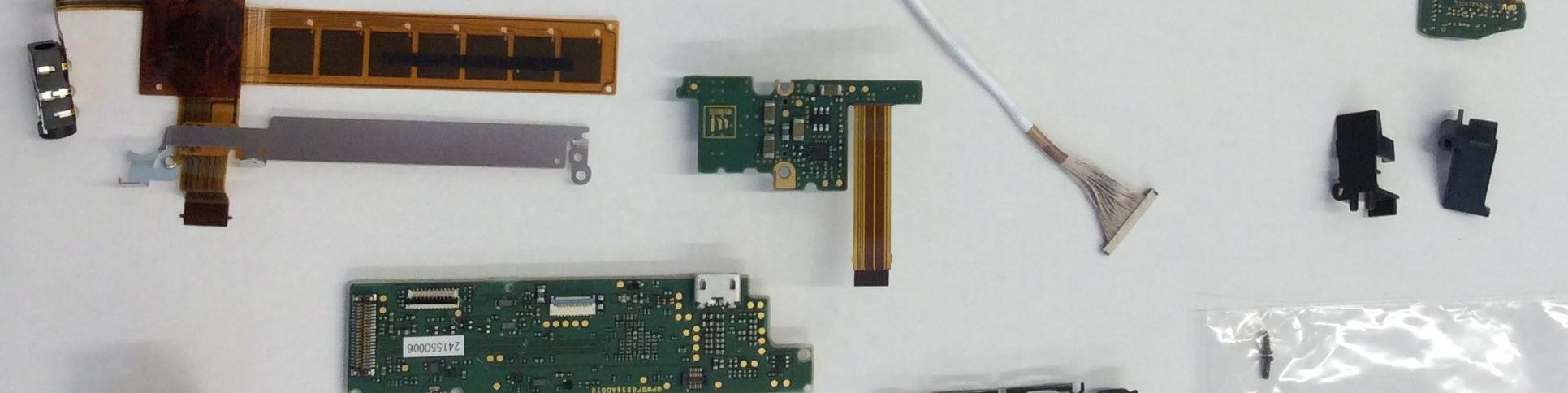

Internal Photos PC Board Photos Component Side Solder Side OMAP+POPMemory ANTConnector WLAN/BTModule EMMCMemory PMIC LCD Driver Codec 9-AxisSensor Disassembled Infolinker

JQA File No. : KL80150485SIssue Date : January 28, 2016 Model No.: WUZ-01B-NB01FCC ID: 2AFRZWUZ-01B-NB01 Standard: CFR 47 FCC Rules and Regulations Part 15 Page 84 of 90 Technical document No. 23199-1501 7.8SAR Test Exclusion 7.8.1Maximum Output Power (Average) BandMode Data Rate Ch# Frequency (MHz) Average Power (dBm) MeasuredSpec. Max. 5.2 GHz (UNII 1) 802.11a6 Mbps 3651805.40 6.04452205.62 4852405.34 802.11n [HT20] MCS 0 3651805.97 6.04452205.59 4852405.67 802.11n [HT40] MCS 0 3851905.38 6.0 4652305.18 5.3 GHz (UNII 2) 802.11a6 Mbps 5252604.88 6.06053005.04 6453205.39 802.11n [HT20] MCS 0 5252605.10 6.06053005.33 6453205.47 802.11n [HT40] MCS 0 5452704.58 6.0 6253104.71 Note(s): Powermeasurementisrequiredforthetransmissionmodeconfigurationwiththehighestmaximum output power specified for production units. (802.11a/n OFDM configurations are considered separately.) ● When the same highest maximum output power specification applies to multiple transmission modes, the largest channel bandwidth configuration with the lowest order modulation and lowest data rate is measured. ● When the same highest maximum output power is specified for multiple largest channel bandwidth configurations with the same lowest order modulation or lowest order modulation and lowest data rate, power measurement is required for all equivalent 802.11 configurations with the same maximum output power. 7.8.2Standalone SAR Test Exclusion Considerations (KDB 447498 D01) The 1 g SAR test exclusion thresholds for 100 MHz to 6 GHz attest separation distances ≤ 50 mm are determined by; [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] ∙ [√f (GHz) ] ≤ 3.0, where -f (GHz) is the RF channel transmit frequency in GHz. -Power and distance are rounded to the nearest mW and mm before calculation. -The result is rounded to one decimal place for comparison. -When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied. SAR exclusion calculations for antenna ≤ 50 mm from the user Band Freq. (MHz) Max. Power Distance (mm) Threshold Test Exclusion (dBm)(mW) WLAN (U-NII)53206.04< 51.8YES Theminimumuserseparationdistancewasassumedtobe0mmforthepurposeoftheSARexclusion calculations. Conclusion: The device qualifies for the Standalone SAR test exclusion because the computed value is < 3. JAPAN QUALITY ASSURANCE ORGANIZATION

Page 1 of 90 Technical document No. 23199-1501 JQA File No. :KL80150485S Issue Date :January 28, 2016 T E S T R E P O R T Applicant:WESTUNITIS CO., LTD. Address:29F Grand Front Osaka Tower-A , 4-20 Ofukacho, Kita-ku, Osaka, Japan,530-0011 Products:InfoLinker Model No.:WUZ-01B-NB01 Serial No.:501550014 501550016 FCC ID:2AFRZWUZ-01B-NB01 Test Standard:CFR 47 FCC Rules and Regulations Part 15 Test Results: Passed Date of Test:November 18 ~ December 14, 2015 Kousei Shibata Manager Japan Quality Assurance Organization KITA-KANSAI Testing Center SAITO EMC Branch 7-3-10, Saito-asagi, Ibaraki-shi, Osaka 567-0085, Japan ● The measurement values stated in Test Report was made with traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan and National Institute of Information and Communications Technology (NICT) of Japan. ● The applicable standard, testing condition and testing method which were used for the tests are based on the request of the applicant. ● The test results presented in this report relate only to the offered test sample. ● The contents of this test report cannot be used for the purposes, such as advertisement for consumers. ● This test report shall not be reproduced except in full without the written approval of JQA. ● VLAC does not approve, certify or warrant the product by this test report. VLAC-001-2 JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80150485SIssue Date : January 28, 2016 Model No.: WUZ-01B-NB01FCC ID: 2AFRZWUZ-01B-NB01 Standard: CFR 47 FCC Rules and Regulations Part 15 Page 2 of 90 Technical document No. 23199-1501 TABLE OF CONTENTS Page 1Description of the Equipment Under Test...................................................................................... 3 2Summary of Test Results................................................................................................................ 4 3Test Procedure................................................................................................................................. 5 4Test Location................................................................................................................................... 5 5Recognition of Test Laboratory....................................................................................................... 5 6Description of Test Setup................................................................................................................ 6 7Test Requirements.........................................................................................................................10 DEFINITIONS FOR ABBREVIATION AND SYMBOLS USED IN THIS TEST REPORT EUT: Equipment Under TestEMC: Electromagnetic Compatibility AE: Associated EquipmentEMI: Electromagnetic Interference N/A: Not ApplicableEMS: Electromagnetic Susceptibility N/T: Not Tested -indicates that the listed condition, standard or equipment is applicable for this report. -indicates that the listed condition, standard or equipment is not applicable for this report. JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80150485SIssue Date : January 28, 2016 Model No.: WUZ-01B-NB01FCC ID: 2AFRZWUZ-01B-NB01 Standard: CFR 47 FCC Rules and Regulations Part 15 Page 3 of 90 Technical document No. 23199-1501 1Description of the Equipment Under Test 1.Manufacturer:WESTUNITIS CO., LTD. 29F Grand Front Osaka Tower-A , 4-20 Ofukacho, Kita-ku, Osaka, Japan,530-0011 2.Products:InfoLinker 3.Model No.:WUZ-01B-NB01 4.Serial No.:501550014 501550016 5.Product Type:Mass Production 6.Date of Manufacture:June, 2015 7.Power Rating:3.7VDC (Lithium-ion Battery WHB-001 300mAh) 5.0VDC (USB) 8.Grounding:None 9.Operating Frequency:5180.0 MHz(36CH) –5320.0MHz(64CH): IEEE802.11a/n HT20 :5190.0 MHz(38CH) –5310.0MHz(62CH): IEEE802.11n HT40 10.Modulation:OFDM 11.Antenna Type:1/2λType Antenna (Integral) 12.Antenna Gain:0.5 dBi 13.Category:Spread Spectrum Transmitter(OFDM)/UNII* 14.EUT Authorization:Certification 15.Received Date of EUT:September 9, 2015 JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80150485SIssue Date : January 28, 2016 Model No.: WUZ-01B-NB01FCC ID: 2AFRZWUZ-01B-NB01 Standard: CFR 47 FCC Rules and Regulations Part 15 Page 4 of 90 Technical document No. 23199-1501 2Summary of Test Results Applied Standard :CFR 47 FCC Rules and Regulations Part 15 Subpart E – Unlicensed National Information Infrastructure Devices The EUT described in clause 1 was tested according to the applied standard shown above. Details of the test configuration is shown in clause 6. The conclusion for the test items of which are required by the applied standard is indicated under the test result. - The test result waspassedfor the test requirements of the applied standard. - The test result wasfailedfor the test requirements of the applied standard. - The test result wasnot judgedthe test requirements of the applied standard. In the approval of test results, -Determining compliance with the limits in this report was based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. -No deviations were employed from the applied standard. -No modifications were conducted by JQA to achieve compliance to the limitations. Reviewed by:Tested by: Shigeru OsawaTakeshi Choda Deputy ManagerAssistant Manager JQA KITA-KANSAI Testing CenterJQA KITA-KANSAI Testing Center SAITO EMC BranchSAITO EMC Branch JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80150485SIssue Date : January 28, 2016 Model No.: WUZ-01B-NB01FCC ID: 2AFRZWUZ-01B-NB01 Standard: CFR 47 FCC Rules and Regulations Part 15 Page 5 of 90 Technical document No. 23199-1501 3Test Procedure Test Requirements : CFR 47 FCC Rules and Regulations Part 15 Subpart E – Unlicensed National Information Infrastructure Devices Test Procedure: ANSI C63.10–2013 Testing unlicensed wireless devices. KDB 789033 D02 General UNII Test Procedures New Rules v01: June 6, 2014 KDB 905462 D02 UNII DFS Complianc…

Text truncated - open the document above for the full version.

JQA File No. : KL80150485SIssue Date : January 28, 2016 Model No.: WUZ-01B-NB01FCC ID: 2AFRZWUZ-01B-NB01 Standard: CFR 47 FCC Rules and Regulations Part 15 Page 85 of 90 Technical document No. 23199-1501 7.9Test Setup (Photographs) 7.9.1AC Powerline Conducted Emission – Front View – – Side View – Photograph present configuration with maximum emission JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80150485SIssue Date : January 28, 2016 Model No.: WUZ-01B-NB01FCC ID: 2AFRZWUZ-01B-NB01 Standard: CFR 47 FCC Rules and Regulations Part 15 Page 86 of 90 Technical document No. 23199-1501 7.9.2Unwanted Radiated Emission(9kHz – 1000MHz) – Front View– – Rear View – Photograph present configuration with maximum emission JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80150485SIssue Date : January 28, 2016 Model No.: WUZ-01B-NB01FCC ID: 2AFRZWUZ-01B-NB01 Standard: CFR 47 FCC Rules and Regulations Part 15 Page 87 of 90 Technical document No. 23199-1501 – X axis – – Y axis – JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80150485SIssue Date : January 28, 2016 Model No.: WUZ-01B-NB01FCC ID: 2AFRZWUZ-01B-NB01 Standard: CFR 47 FCC Rules and Regulations Part 15 Page 88 of 90 Technical document No. 23199-1501 – Z axis – JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80150485SIssue Date : January 28, 2016 Model No.: WUZ-01B-NB01FCC ID: 2AFRZWUZ-01B-NB01 Standard: CFR 47 FCC Rules and Regulations Part 15 Page 89 of 90 Technical document No. 23199-1501 7.9.3Radiated Emission(Above 1GHz) – Front View– – Rear View – Photograph present configuration with maximum emission JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80150485SIssue Date : January 28, 2016 Model No.: WUZ-01B-NB01FCC ID: 2AFRZWUZ-01B-NB01 Standard: CFR 47 FCC Rules and Regulations Part 15 Page 90 of 90 Technical document No. 23199-1501 7.9.4Dynamic Frequency Selection Test Setup for Generating the Radar Waveform Test Setup for DFS Testing and Monitoring the UNII Device JAPAN QUALITY ASSURANCE ORGANIZATION
