2AFS5T-RC002Balight

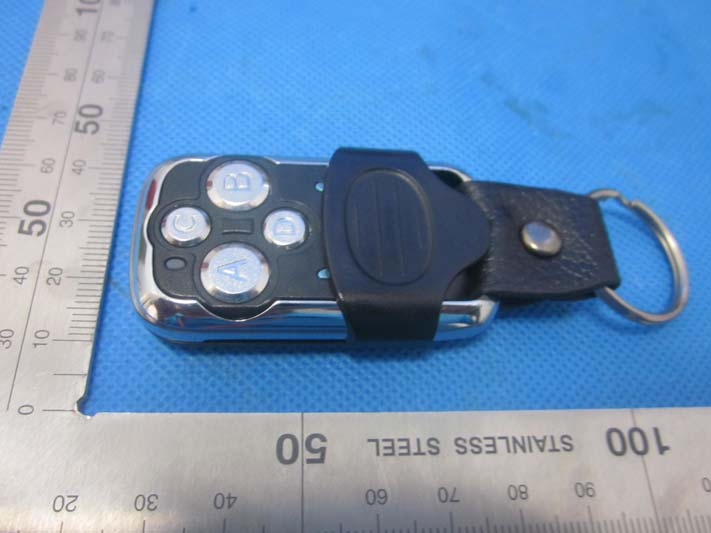

Wireless Remote Controllerfor Totron Wiring Harnesses Parameters Model No. T‐RC002 Input Voltage: 10‐30V DC Max Amp: 2A (the cable) Frequency: 433.92MHZ Effective distance: 50m Waterproof: Yes Compatible with: All Totron Wiring Harnesses Functions  On/off model  9 flash patterns  SOS emergency mode Instructions Key A:Turn on/off. Key B:Flashforward(Key A needs to be “ON”). Key C: Flash backward (Key A needs to be “ON”). Key D: SOS Exclusive mode on/off. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Totron Company Limited FCC Authorization Letter Number: CF304 Version: V03 Date: 01-08-2011 We, (the approval holder) Company name Totron Company Limited Address Room1109, Zhonghe Building, #3 Yongfu Lu, Yuexiu District, City Guangzhou Country China declare that the following representative (agent): Name (person) [email protected] Company name Shenzhen BCTC Technology Co., Ltd. Address No.101,Yousong Road,Longhua New District, City Shenzhen Country China is hereby authorized to apply the following equipment for certification on our behalf: Product Description Wireless Remote Controller Type or Model(s) T-RC002 T-RC001, T-RC101 Tradename or Brand(s) N/A We also authorize Teleconformity (Mr. M. Koop, Manager Certification, Address: Rietven 31, 7534NH Enschede, the Netherlands) to apply and sign this application for certification, registration or filing on our behalf (as representative agent or certifier). Attestation: City and Country: Date: Name: (this must be a person) Function:Signature: (or official company stamp) guangzhou 2015-9-2 Fan Haijun Manager

Totron Company Limited FCC Confidentiality Request Number: CF303 Version: V05 Date: 21-05-2012 (Permanent or also called long term confidentiality is the normal method to keep certain docuements confidential, and may apply to schematics, block diagrams, operational description and bill of materials.) To: Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name Totron Company Limited Address Room1109, Zhonghe Building, #3 Yongfu Lu, Yuexiu District, City Guangzhou Country China request for this certification filing under: Grantee Code Product Number FCC ID: 2AFS5 T-RC002 to maintain permanent confidentiality for the following documents submitted within this application: (please cross what is applicable, or add other documents, provide the file name and description) Exhibit File Name Description x Operational Description explaining the functioning of the block diagram x Block Diagrams showing the systematic building blocks of the EUT x Schematics Diagrams showing components, their values and interconnection Above materials crossed contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. The documents indicated as confidential above, are not publicly available elsewhere. Attestation: City and Country: Date: Name: (this must be a person) Function:Signature: (or official company stamp) guangzhou 2015-9-2 Fan Haijun Manager

M/N: T-RC002 FCC ID: 2AFS5T-RC002 Label location

Antenna location

Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC-15080239 FCC Part 15C Test Report FCC ID: 2AFS5T-RC002 Product Name: Wireless Remote Controller Trademark: N/A Model Name : T-RC002, T-RC001, T-RC101 Prepared For : Totron Company Limited Address : Room1109, Zhonghe Building, #3 Yongfu Lu, Yuexiu District, Guangzhou, China Prepared By : Shenzhen BCTC Technology Co., Ltd. Address : No.101,Yousong Road,Longhua New District, Shenzhen,China Test Date: Aug. 18 - Aug. 25, 2015 Date of Report : Aug. 26, 2015 Report No.: BCTC-15080239 Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC-15080239 FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page 2 of 30 VERIFICATION OF COMPLIANCE Applicant’s name ................. : Totron Company Limited Address ................................. : Room1109, Zhonghe Building, #3 Yongfu Lu, Yuexiu District, Guangzhou, China Manufacture's Name ............ : Totron Company Limited Address ................................. : Room1109, Zhonghe Building, #3 Yongfu Lu, Yuexiu District, Guangzhou, China Product description Product name ........................... : Wireless Remote Controller Trademark: N/A Model Name: T-RC002, T-RC001, T-RC101 Test procedure FCC Part15.231 Standards ANSI C63.10-2009 This device described above has been tested by BCTC, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of BCTC, this document may be altered or revised by BCTC, personal only, and shall be noted in the revision of the document. Test Result ............................................... : Pass Testing Engineer : (Eric Yang) Technical Manager : (Sophia Lee) Authorized Signatory : (Carson. Zhang) Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC-15080239 FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page 3 of 30 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 8 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 8 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 8 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 9 3 . EMC EMISSION TEST 10 3.1 CONDUCTED EMISSION MEASUREMENT 10 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 10 3.1.2 TEST PROCEDURE 11 3.1.3 DEVIATION FROM TEST STANDARD 11 3.1.4 TEST SETUP 11 3.1.5 EUT OPERATING CONDITIONS 11 3.1.6 TEST RESULTS 11 3.2 RADIATED EMISSION MEASUREMENT 12 3.2.1 RADIATED EMISSION LIMITS 12 3.2.2 TEST PROCEDURE 13 3.2.3 TEST SETUP 14 3.2.4 EUT OPERATING CONDITIONS 15 3.2.5 TEST RESULTS 16 4 . BANDWIDTH TEST 21 4.1 APPLIED PROCEDURES / LIMIT 21 4.1.1 TEST PROCEDURE 21 4.1.2 DEVIATION FROM STANDARD 21 4.1.3 TEST SETUP 21 4.1.4 EUT OPERATION CONDITIONS 21 4.1.5 TEST RESULTS 22 5 . CALCULATION OF AVERAGE FACTOR 23 6 . DWELL TIME 26 6.1 DEVIATION FROM STANDARD 26 6.2 TEST SETUP 26 6.3 EUT OPERATION CONDITIONS 26 Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC-15080239 FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page 4 of 30 Table of Contents Page 6.4 TEST RESULTS 27 7 . ANTENNA REQUIREMENT 28 7.1 STANDARD REQUIREMENT 28 7.2 EUT ANTENNA 28 8 . EUT TEST PHOTO 29 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC-15080239 FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page 5 of 30 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.231) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission N/A 15.209,15.231b Radiated Emission Test PASS 15.231c 20dB Occupy Bandwidth PASS 15.231a Dwell time PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC-15080239 FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page 6 of 30 1.1 TEST FACILITY Shenzhen BCTC Technology Co., Ltd. Add.:No.101,Yousong Road,Longhua New District, Shenzhen,China FCC Registration No.:187086 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC-15080239 FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page 7 of 30 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Wireless Remote Controller Trade Name N/A Model Name T-RC002 Serial Model T-RC001, T-RC101 Model Difference All the same,Only model name is different. Product Description The EUT is a Wireless Remote Controlle r Operation Frequency: 433.92MHz Modulation Type: ASK Antenna Designation: Integral Antenna Gain 3dBi Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More details of EUT technical specification, please refer to the User's Manual. Adapter N/A Battery DC 12V Connecting I/O Port(s) Please refer to the User's Manual Hardware Version V1.1 Software Version V0.1 Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC-15080239 FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page 8 of 30 2.2 DESCRIPTION OF TEST MODES For All Emission Final Test Mode Description Mode 1 TX Mode Note: (1) New battery is used during the test (2) The antenn…
