2AFSGHX-P270Daze speaker

AOK UI INTRUCTION for HX-P270 TABLE OF CONTENT Change history.........................................................................................................................................................................................................2 1. Product setting.........................................................................................................................................................................................................2 2. System feedback......................................................................................................................................................................................................4 3. Product states..........................................................................................................................................................................................................6 Change History Issue Date Handle by Comments 00 July-30-2015 Mir xie First release 1. Product setting: buttons, LEDs, Audio sources 2.1 Buttons and switches and Touch, the systems have below buttons: Button Power switch button, MFB, Vol+, Vol-, LED display functional button 2.2 Connection of Power and audio system, the system has the following connection: Audio port In Aux-in Out - Data port - Power port In DC jack Out USB out for charging 2.3 Button press Type and Duration. The following table describes how the buttons react and describes timing constraints Button pressing time Press type Duration(Seconds) Short press X<0.5 Long press 2<x<3 Press & hold - 2.4 Feature List # Category Feature Value 1 Out of the Box/ After Factory Reset Total volume level 16 steps Default volume level 10 steps (equal to 60% volume) Default audio source BT, Duration for volume to change from min to max <16 seconds Remember previous audio source NO Remember previous connected BT devices Yes, If Aux is not connected, always reconnect with last device which connected during power up Remember previous volume level Yes (only if volume <60%, use previous volume, else use 60%) 2 Power mode Supports Battery Mode? Yes Charging hour Within 2 hours Playback hour 4.2 hours at 70% volume without LED lighting 2.5 hours at 70% volume with LED lighting AC Mode No External charging sourcing Yes (USB, Power bank, etc.) 3 Battery mode Battery management i. Healthy: X > 10% ii. Low: 0 < X ≤ 10% ‐ Low battery indication available (Red LED flashing warning) ‐when X>95% charging Red LED off iii. Critical: X = 0% ‐ DUT off. 4 Connection Audio input Aux in, BT audio Audio output No Physical button for audio switch No special button available Auto audio switch feature Aux‐in audio source priority to BT audio. 5 ERP(Energy related product) compliance Auto Standby No Auto Standby Duration No Power consumption to meet ERP <0.3W Auto shut off without paired NO 6 Reset Factory Reset Not Hardware Reset Yes 7 Bluetooth connectivity Bluetooth naming HX‐P270 Wireless range 10 m Supported audio codec SBC Supported profiles A2DP, AVRCP so on # of supported device in pairing list 1 paired device recorded Supports Dual devices NO Volume sync No BT Pairing duration Within 1 minutes BT Reconnect duration Power up = 2sec Link lost = 10sec BT reconnect method (single device or all devices) Power up = attempt reconnect to same device. Link lost = attempt reconnect to same device twice, each time for 10 seconds 8 PC compatibility Windows version No information Mac version MacBook (Pro, Air) with OS X 10.8.2 or later 9 Phone device compatibility Phone model with OS version iPod touch (2-5 Gen), iPod Nano (7 Gen), iPhone (6,5, 4s, 4, 3Gs, 3G), iPad (1, 2, 3, 4, mini 1, 2), 2.5 Audio source, Available audio source Input: # Audio input Image 1 Line (3.5mm) In 2 Bluetooth 2.6 Available Audio Source Output: No audio output Sequence & Priority The audio source switch command shall allow DUT to switch sources using the following priority and sequence: Priority Audio input Sequence Default Manual/Automatic switch 1 Line (3.5mm) In Line in is 1 st For Speaker is default. NA 2 Bluetooth BT is 2nd Speaker, is default NA 2. SYSTEM FEEDBACK 3.1 The system has the following indicators, list of Audio Indications. (Prompt tone) # Indicator Description File Name 1 Power on Switch on Provide by HMDX 2 Power down using or Switch off No 3 Auto power off No Bluetooth connection and Audio input No 4 Low battery warning The batter low 3.5 Volts No 5 BT Pairing started Blue LED flashing No 6 BT pairing successfully Blue LED stable Provided by HMDX 7 BT pairing timeout Blue LED flashing No 8 BT disconnect manually After pressing PP button and then enter into paring status Provided by HMDX 9 BT disconnect – link lost Entering into paring status No 10 BT reconnect successful As pairing successful Provided by HMDX 11 BT reconnect timeout Entering into paring status No 12 Max volume reached Reminder Provided by HMDX 13 Min volume reached no No 3.2 List of Physical Visual Indications Product off, USB connected Indicator color Description Product LED null off Charging LED ● Solid as long as charging. Off when charging complete Power off and USB not connected Indicator color Description Product LED null off Charging LED null off Powering up Indicator color Description Product LED ● On Powering down Indicator color Description Product LED null off Product on Event indicator color Description Aux audio source Product LED ● Aux as active audio source BT audio source Product LED ● 1. At Re-connect or Pairing mode, Product LED flashing 2. After paired, product LED lighting stable Charging mode Event Indicator color Description Charging Charging LED ● Solid as long as charging. Off when charging complete. Battery mode Event indicator color Description Battery healthy Charging LED null Charging LED off, not required Battery low Product LED ● Flashing 1 sec on, 1 sec off until USB cable is inserted or battery died. Battery critical All LEDs null Off, device is off. BT activity (The Fla…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 Dongguan Jin wen hua digital technology Co., LTD. 2015-09-14 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, _____ Dongguan Jin wen hua digital technology Co., LTD. _____hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): (Daze speaker: HX-P270) FCC ID: 2AFSGHX-P270 Sincerely, Client’s signature Client’s name / title Luo Peng/ Manager Contact information / address NO.1 Hua Da Road, Long Bei Ling Village, Tangxia Town, Dongguan City, Guangdong, China

Report No.: TB-FCC145251 Page: 1 of 9 TB-RF-074-1.0 Appendix IFCC ID Label FCC ID : 2AFSGHX-P270 Daze speaker Dongguan Jin wen hua digital technology Co., LTD. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Model: HX-P270

Report No.: TB-FCC145251 Page: 2 of 9 TB-RF-075-1.0 Appendix II ID Label Location ID LOCATION

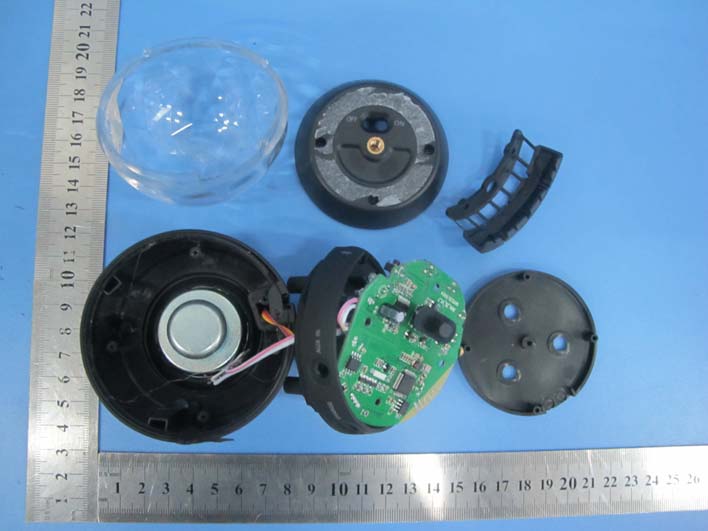

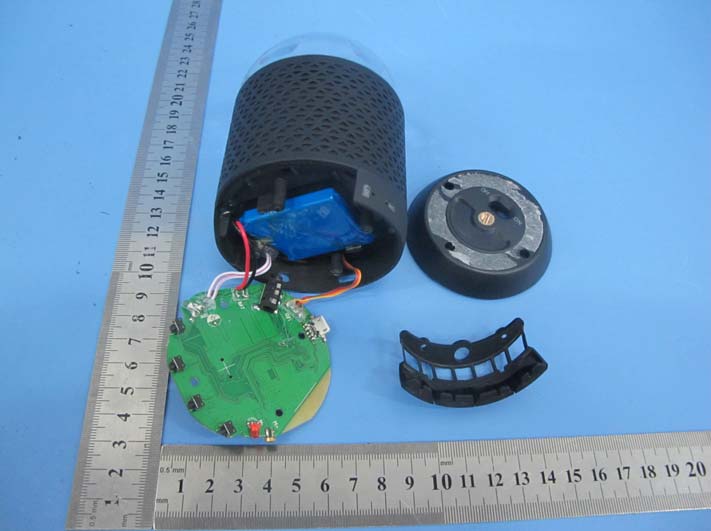

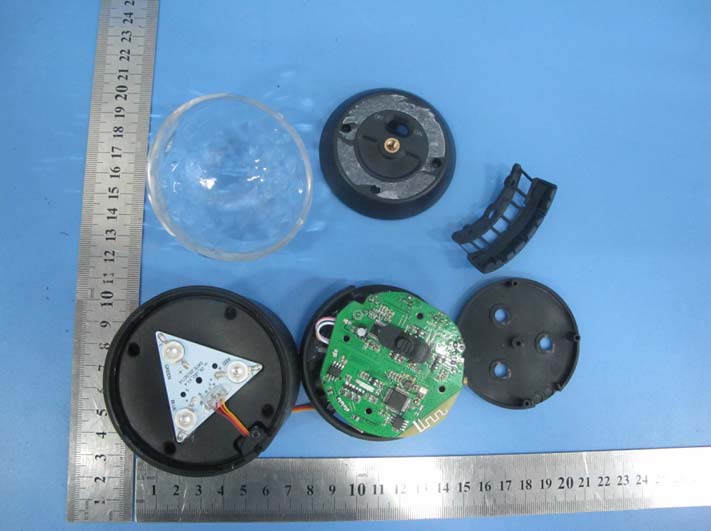

Report No.: TB-FCC145251 Page: 5 of 9 TB-RF-075-1.0 Appendix IV EUT Internal Photographs Photo 5 Internal of EUT Photo 6 Internal of EUT Report No.: TB-FCC145251 Page: 6 of 9 TB-RF-075-1.0 Photo 7 Internal of EUT Photo 8 Appearance of PCB 2.4G PCB Antenna Report No.: TB-FCC145251 Page: 7 of 9 TB-RF-075-1.0 Photo 9 Appearance of PCB

Shenzhen Toby Technology Co., Ltd. Report No.: TB-MPE145252 Page: 1 of 3 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 RF Exposure Evaluation FCC ID: 2AFSGHX-P270 1. Client Information Applicant : Dongguan Jin wen hua digital technology Co., LTD. Address : NO.1 Hua Da Road, Long Bei Ling Viliage, Tangxia Town, Dongguan City, Guangdong, China Manufacturer : Dongguan Jin wen hua digital technology Co., LTD. Address : NO.1 Hua Da Road, Long Bei Ling Viliage, Tangxia Town, Dongguan City, Guangdong, China 2. General Description of EUT EUT Name : Daze speaker Models No. : HX-P270 Model difference : N/A Product Description : Operation Frequency: Bluetooth:2402~2480MHz Number of Channel: Bluetooth:79 Channels Max Peak Output Power: Bluetooth: -10.0 dBm(GFSK) Antenna Gain: 2.1 dBi PCB Antenna Modulation Type: GFSK 1Mbps(1 Mbps) π/4-DQPSK(2 Mbps) 8-DPSK(3 Mbps) Power Supply : DC Voltage supplied from Host System by USB cable. DC power by Li-ion Battery. Power Rating : DC 5.0V by USB cable. DC 3.7V Li-ion Battery. Connecting I/O Port(S) : Please refer to the User's Manual Note: More test information about the EUT please refer the RF Test Report. Report No.: TB-MPE145252 Page: 2 of 3 TB-RF-074-1.0 SAR Test Exclusion Calculations 1. FCC: According to KDB 447498 D01 Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies v05r02. (1) Clause 4.3: General SAR test reduction and exclusion guidance Sub clause 4.31: Standalone SAR test exclusion considerations 1) The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6GHz at test separation distance≤5 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√f (GHz) ] ≤3.0 for 1-g SAR [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√f (GHz) ] ≤7.5.0 for 10-g SAR Report No.: TB-MPE145252 Page: 3 of 3 TB-RF-074-1.0 2. Calculation: Test separation: 5mm Bluetooth Mode (GFSK) Frequency (GHz) Conducted Power (dBm) Turn-up Power Tolerance (dB) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.402 -10.00 ±0.5 0.112 0.035 3.0 2.441 -10.86 ±0.5 0.092 0.029 3.0 2.480 -11.65 ±0.5 0.077 0.024 3.0 Bluetooth Mode (π/4-DQPSK) Frequency (GHz) Conducted Power (dBm) Turn-up Power Tolerance (dB) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.402 -11.34 ±0.5 0.082 0.026 3.0 2.441 -12.07 ±0.5 0.070 0.022 3.0 2.480 -12.85 ±0.5 0.058 0.018 3.0 Bluetooth Mode (8-DPSK) Frequency (GHz) Conducted Power (dBm) Turn-up Power Tolerance (dB) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.402 -11.63 ±0.5 0.077 0.024 3.0 2.441 -12.36 ±0.5 0.065 0.020 3.0 2.480 -13.20 ±0.5 0.054 0.017 3.0 So standalone SAR measurements are not required.

Shenzhen Toby Technology Co., Ltd. Report No.: TB-FCC145251 Page: 1 of 93 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 FCC Radio Test Report FCC ID: 2AFSGHX-P270 Original Grant Report No. : TB-FCC145251 Applicant : Dongguan Jin wen hua digital technology Co., LTD. Equipment Under Test (EUT) EUT Name : Daze speaker Model No. : HX-P270 Series Model No. : N/A Brand Name : HMDX Receipt Date : 2015-08-28 Test Date : 2015-08-28 to 2015-09-10 Issue Date : 2015-09-11 Standards : FCC Part 15: 2014, Subpart C(15.247) Test Method : ANSI C63.10:2013 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above, The EUT technically complies with the FCC requirements Test/Witness Engineer : Approved& Authorized : This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TB-FCC145251 Page: 2 of 93 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 4 1.1 Client Information ................................................................................................................. 4 1.2 General Description of EUT (Equipment Under Test) ................................................... 4 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 5 1.4 Description of Support Units .............................................................................................. 6 1.5 Description of Test Mode .................................................................................................... 6 1.6 Description of Test Software Setting ................................................................................ 7 1.7 Measurement Uncertainty .................................................................................................. 8 1.8 Test Facility ........................................................................................................................... 8 2. TEST SUMMARY ....................................................................................................................... 9 3. TEST EQUIPMENT .................................................................................................................. 10 4. CONDUCTED EMISSION TEST ........................................................................................... 11 4.1 Test Standard and Limit .................................................................................................... 11 4.2 Test Setup ........................................................................................................................... 11 4.3 Test Procedure ................................................................................................................... 11 4.4 EUT Operating Mode ........................................................................................................ 12 4.5 Test Data ............................................................................................................................. 12 5. RADIATED EMISSION TEST ................................................................................................ 17 5.1 Test Standard and Limit .................................................................................................... 17 5.2 Test Setup ........................................................................................................................... 18 5.3 Test Procedure ................................................................................................................... 19 5.4 EUT Operating Condition ................................................................................................. 19 6. RESTRICTED BANDS REQUIREMENT ............................................................................. 38 6.1 Test Standard and Limit .................................................................................................... 38 6.2 Test Setup ........................................................................................................................... 38 6.3 Test Procedure ................................................................................................................... 38 6.4 EUT Operating Condition ................................................................................................. 39 6.4 Test Data ............................................................................................................................. 39 7. NUMBER OF HOPPING CHANNEL .................................................................................... 52 7.1 Test Standard and Limit .................................................................................................... 52 7.2 Test Setup ........................................................................................................................... 52 7.3 Test Procedure ................................................................................................................... 52 7.4 EUT Operating Condition ................................................................................................. 52 7.5 Test Data ............................................................................................................................. 52 8. AVERAGE TIME OF OCCUPANCY ..................................................................................... 54 8.1 Test Standard …

Text truncated - open the document above for the full version.

Report No.: TB-FCC145251 Page: 8 of 9 TB-RF-075-1.0 Appendix V EUT Test Photographs 15C Test Setup Photo of Setup for Radiated Emission (Above 1 GHz) Photo of Setup for Radiated Emission (Below 1 GHz) Report No.: TB-FCC145251 Page: 9 of 9 TB-RF-075-1.0 Photo of Setup for Conducted Emission
